Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E

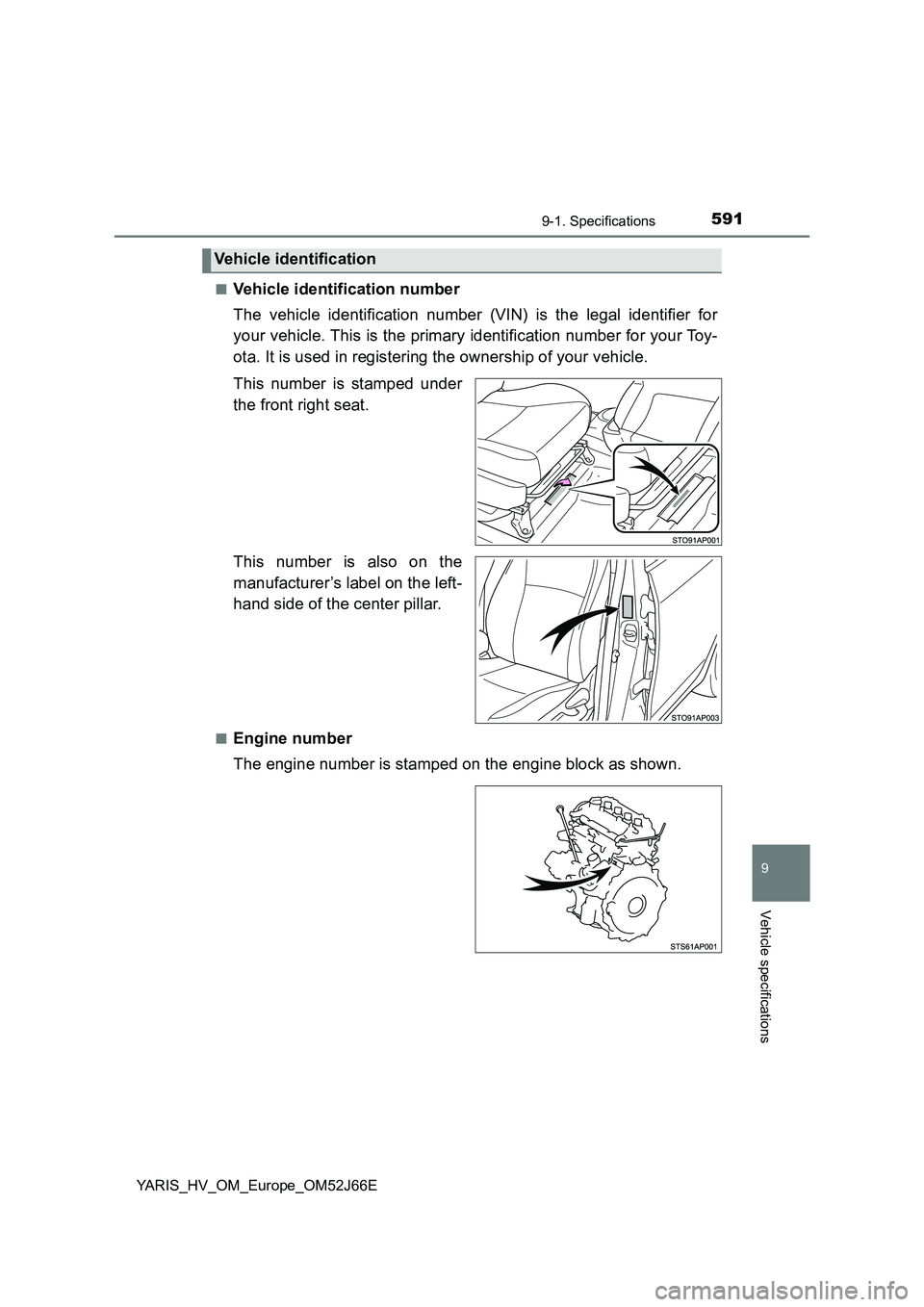

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification

5929-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

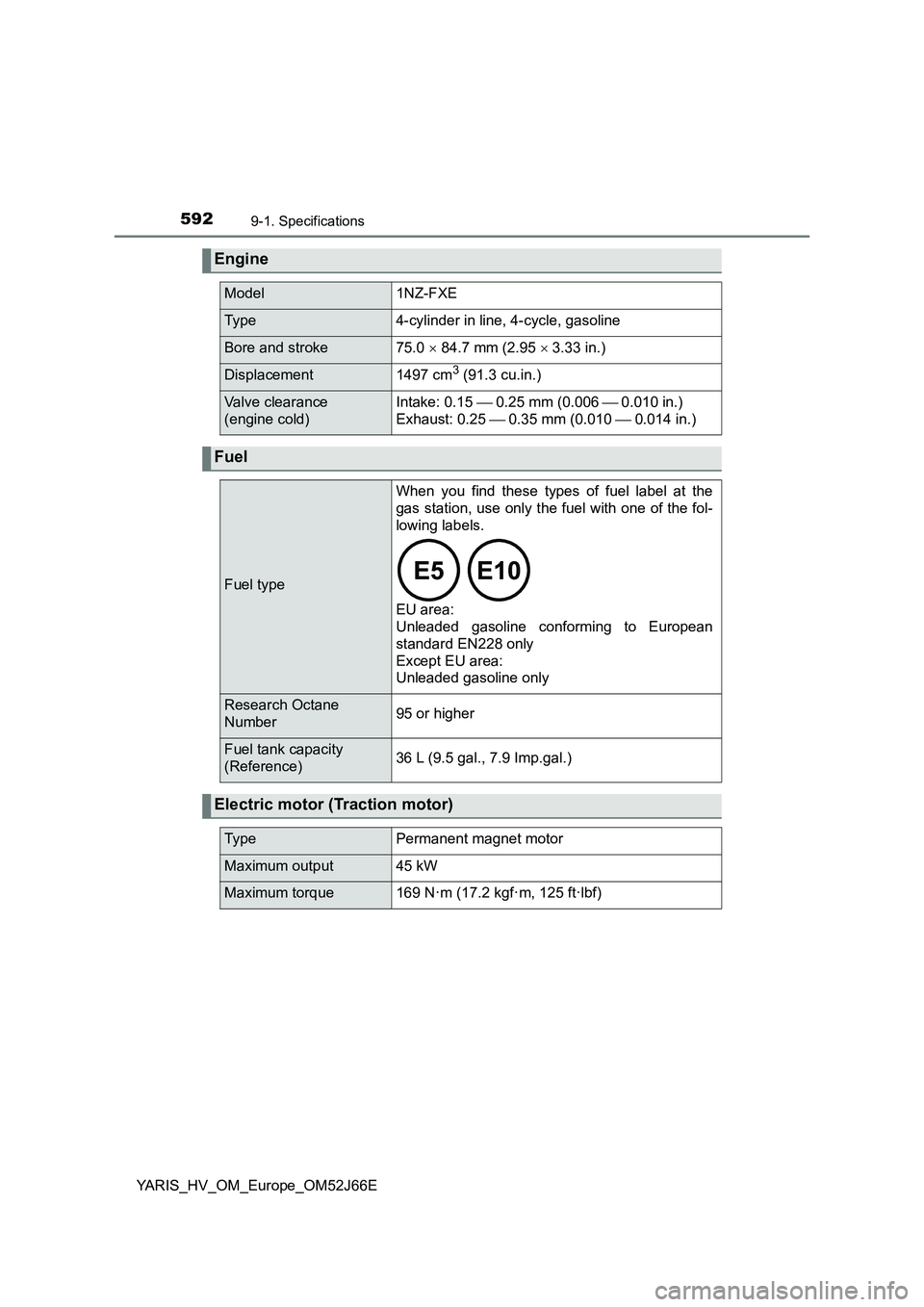

Engine
Model1NZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke75.0  84.7 mm (2.95  3.33 in.)
Displacement1497 cm3 (91.3 cu.in.)
Valve clearance
(engine cold)
Intake: 0.15  0.25 mm (0.0060.010 in.)
Exhaust: 0.25 0.35 mm (0.010  0.014 in.)
Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Electric motor (Traction motor)
Ty p ePermanent magnet motor
Maximum output45 kW
Maximum torque169 N·m (17.2 kgf·m, 125 ft·lbf)

5939-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
■Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
Hybrid battery (Traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity20 modules
Overall voltage144 V
Lubrication system
With filter 3.7 L (3.9 qt., 3.3 Imp.qt.)
Without filter 3.4 L (3.6 qt., 3.0 Imp.qt.)

5949-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

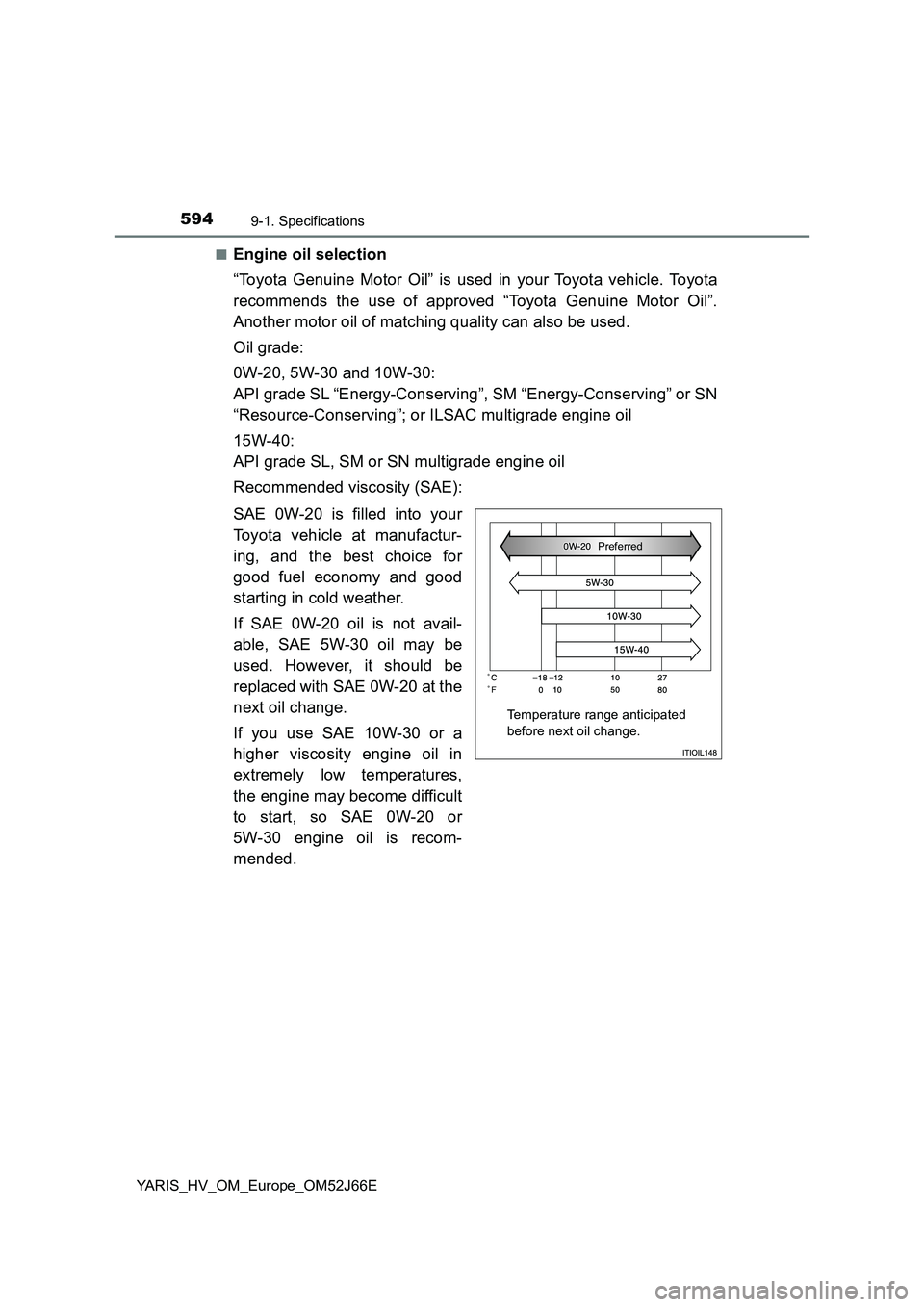

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or
5W-30 engine oil is recom-
mended.
Temperature range anticipated
before next oil change.
Preferred

5959-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

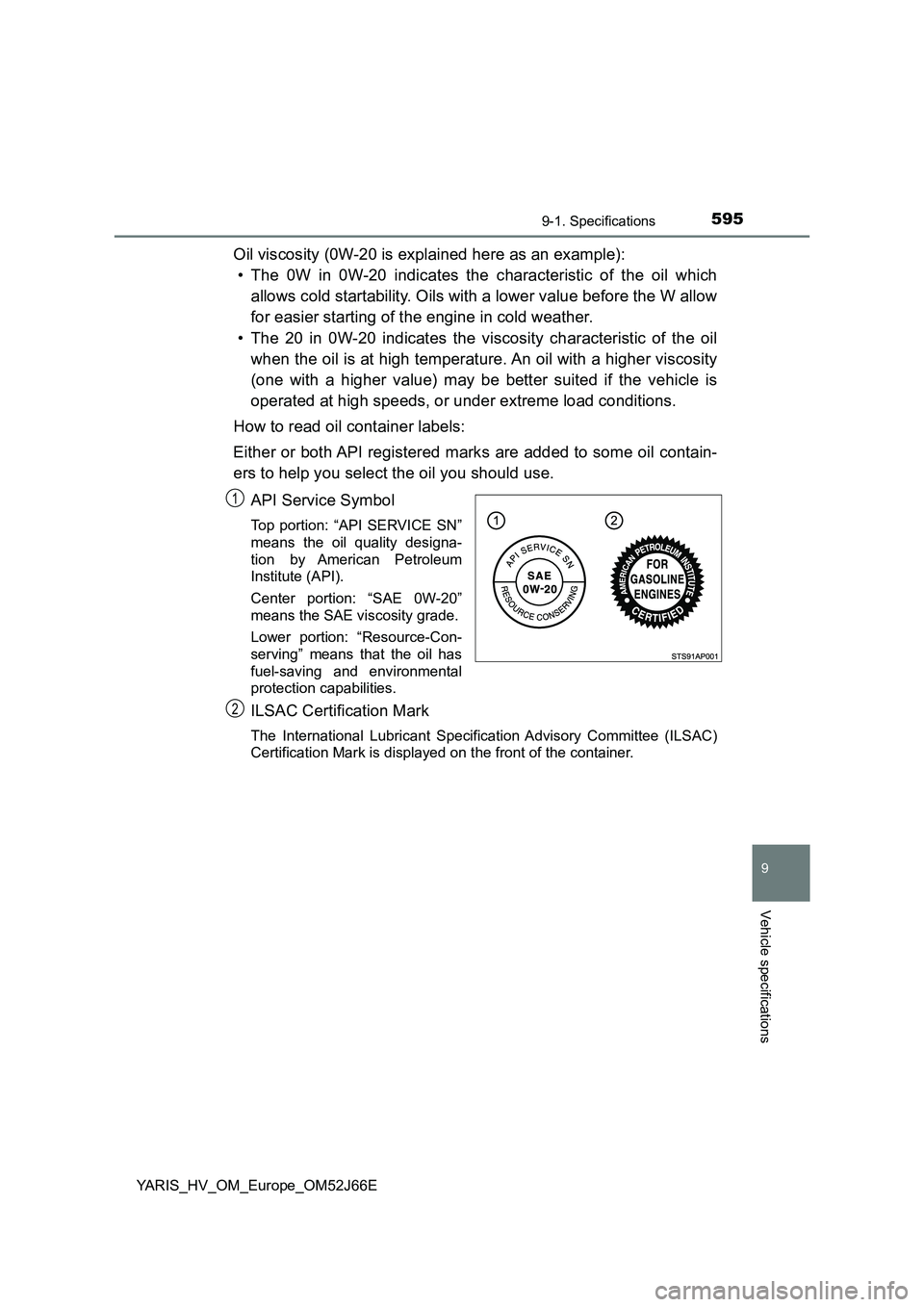

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5969-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

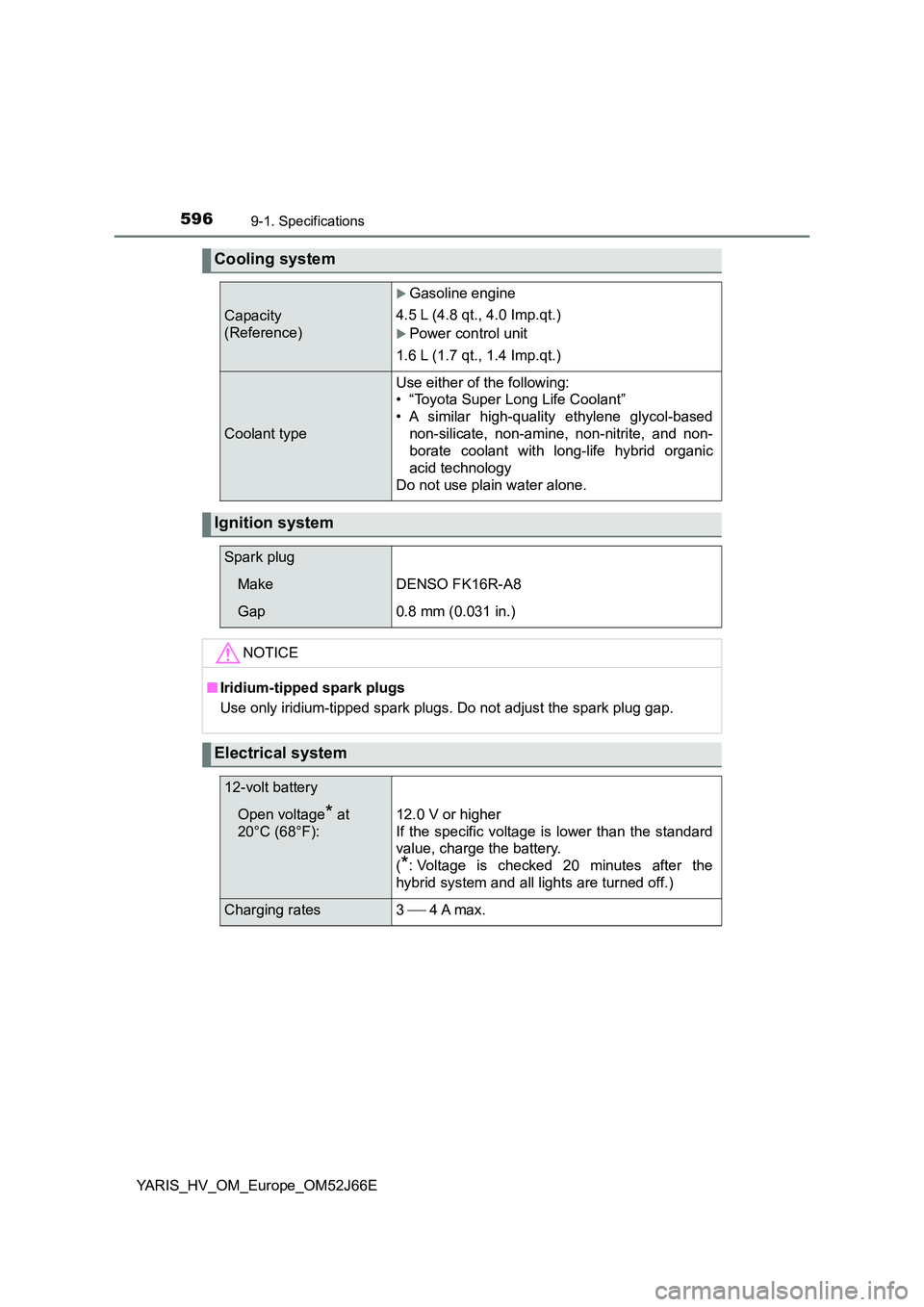

Cooling system
Capacity
(Reference)
Gasoline engine
4.5 L (4.8 qt., 4.0 Imp.qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16R-A8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage* at
20°C (68°F):
12.0 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(*: Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates 3  4 A max.

5979-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,
67.4 lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
*3: Follow the indications of the designated fluid types for the brake reservoir
tank.

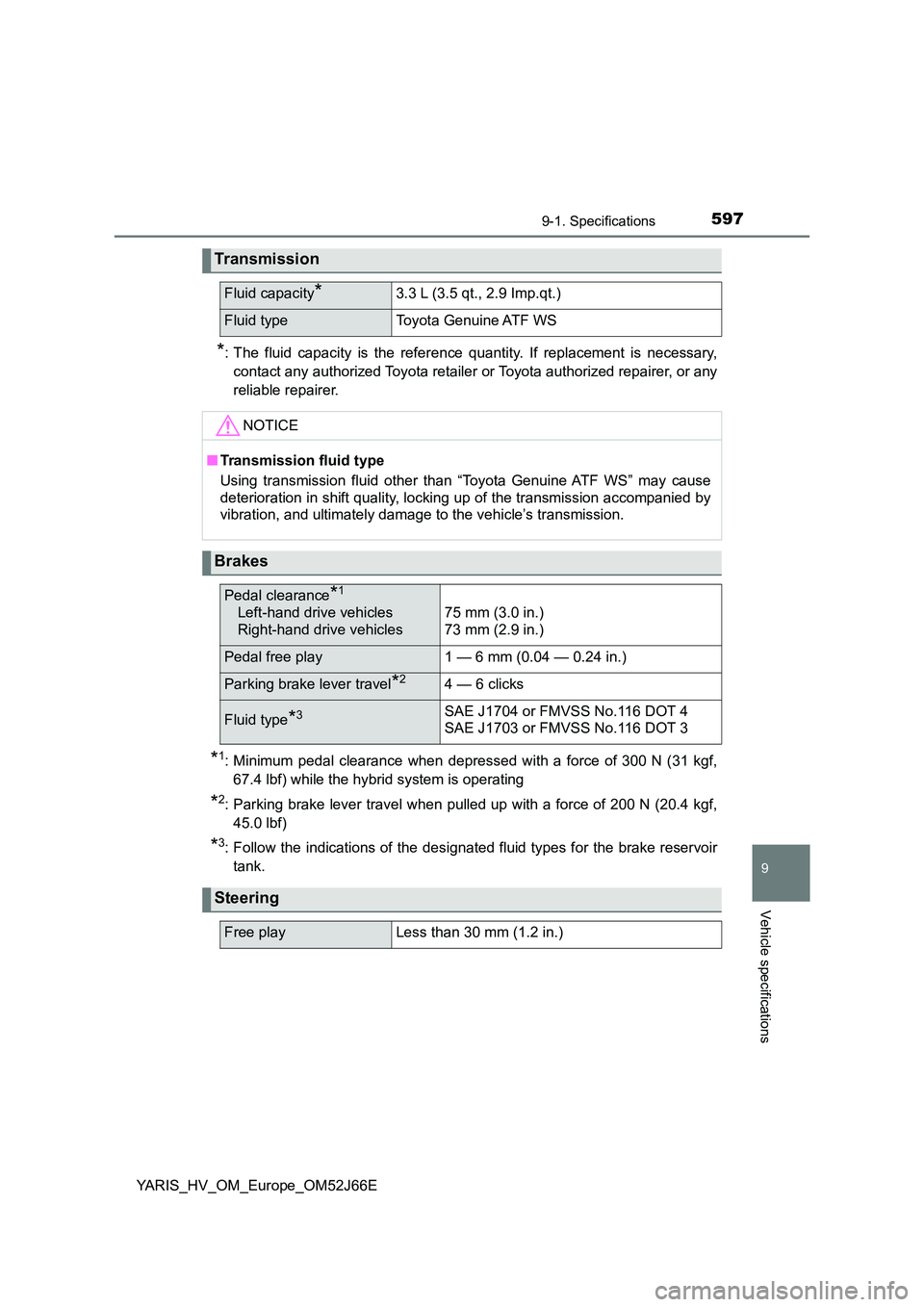

Transmission
Fluid capacity*3.3 L (3.5 qt., 2.9 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles
75 mm (3.0 in.)
73 mm (2.9 in.)
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*24 — 6 clicks
Fluid type*3SAE J1704 or FMVSS No.116 DOT 4
SAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 30 mm (1.2 in.)

5989-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

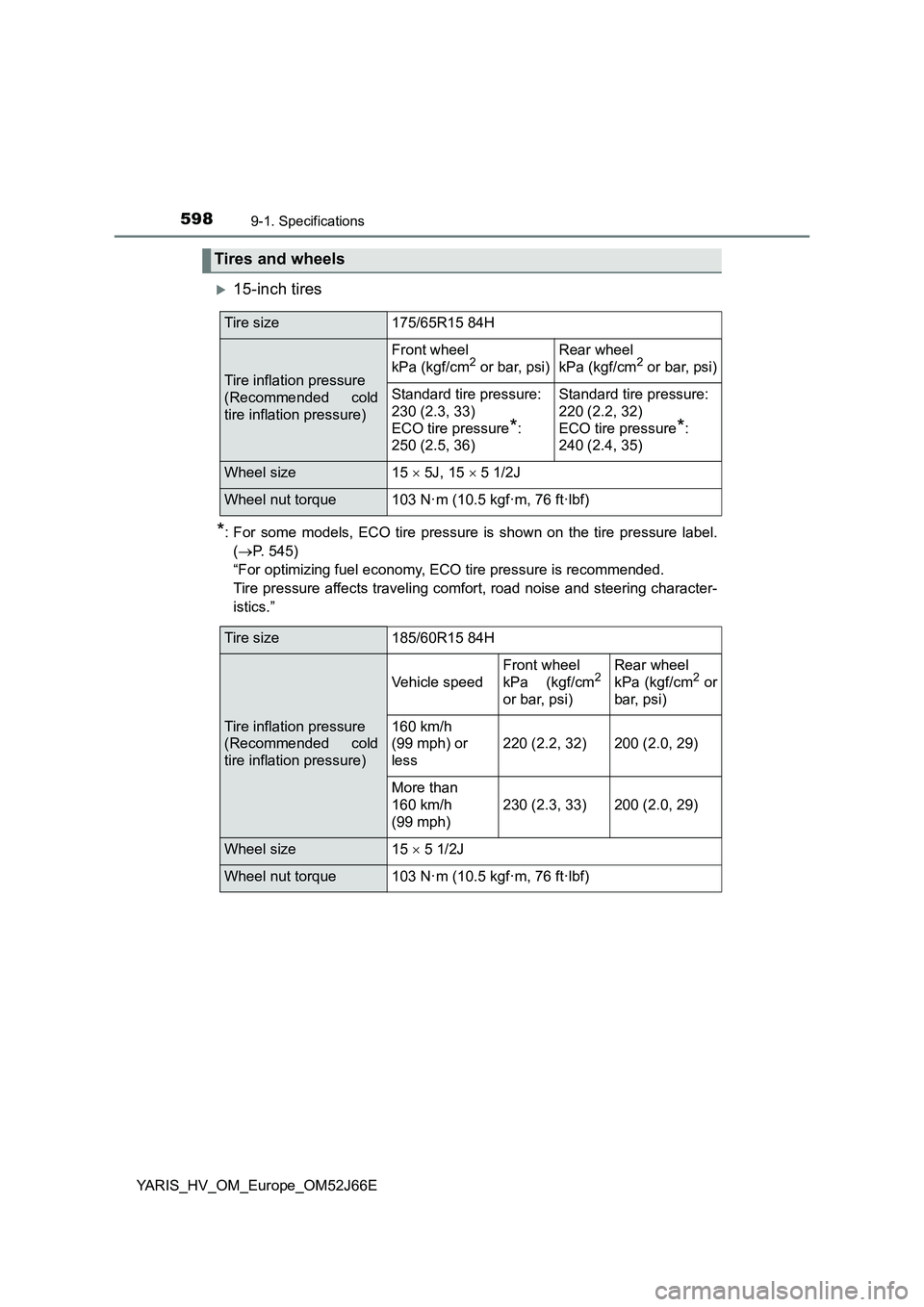

15-inch tires
*: For some models, ECO tire pressure is shown on the tire pressure label.
( P. 545)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
Tires and wheels
Tire size175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure*:
240 (2.4, 35)
Wheel size15  5J, 15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
230 (2.3, 33)200 (2.0, 29)
Wheel size15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

5999-1. Specifications
9
Vehicle specifications
YARIS_HV_OM_Europe_OM52J66E

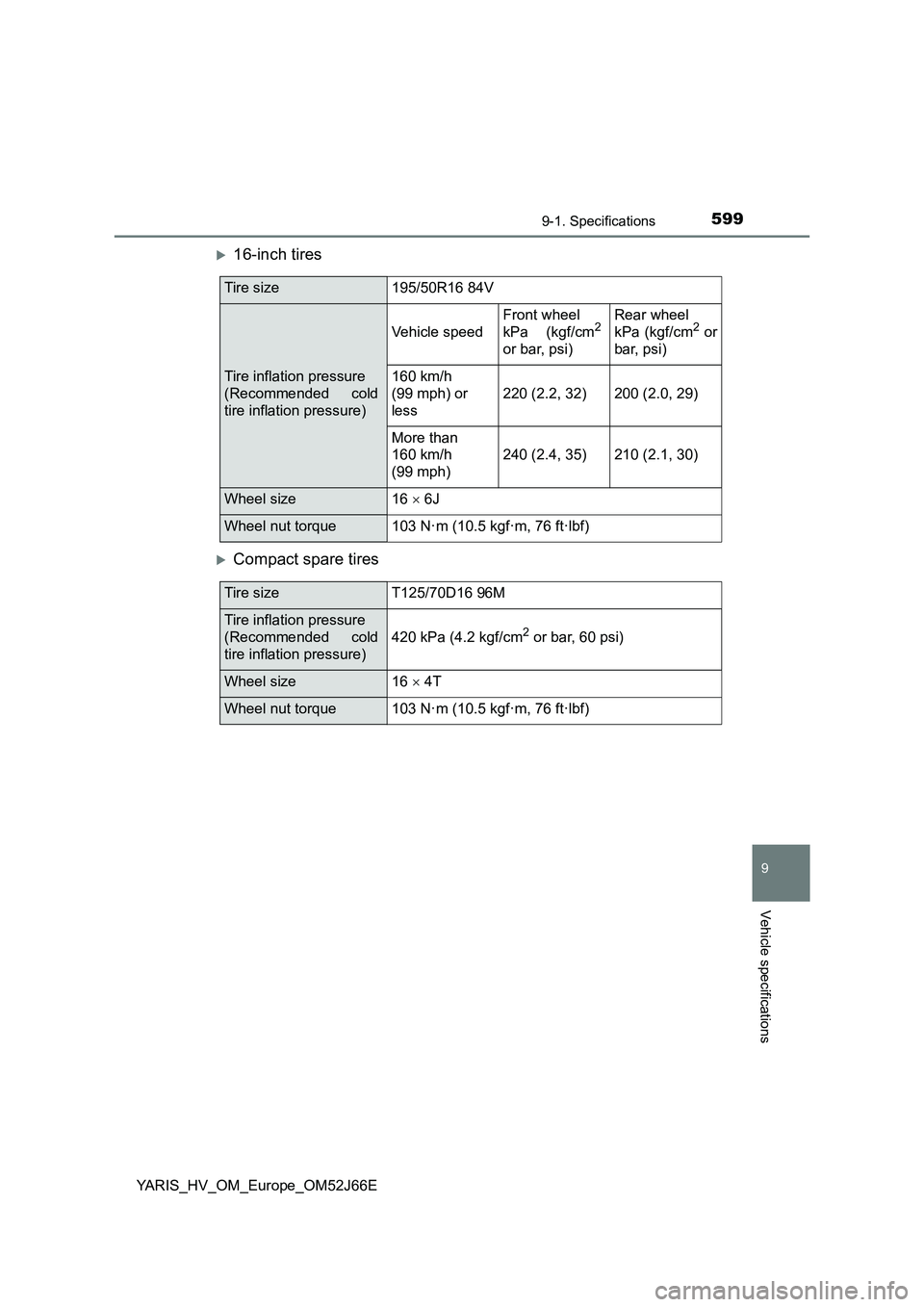

16-inch tires
Compact spare tires
Tire size195/50R16 84V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
240 (2.4, 35)210 (2.1, 30)
Wheel size16  6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6009-1. Specifications
YARIS_HV_OM_Europe_OM52J66E

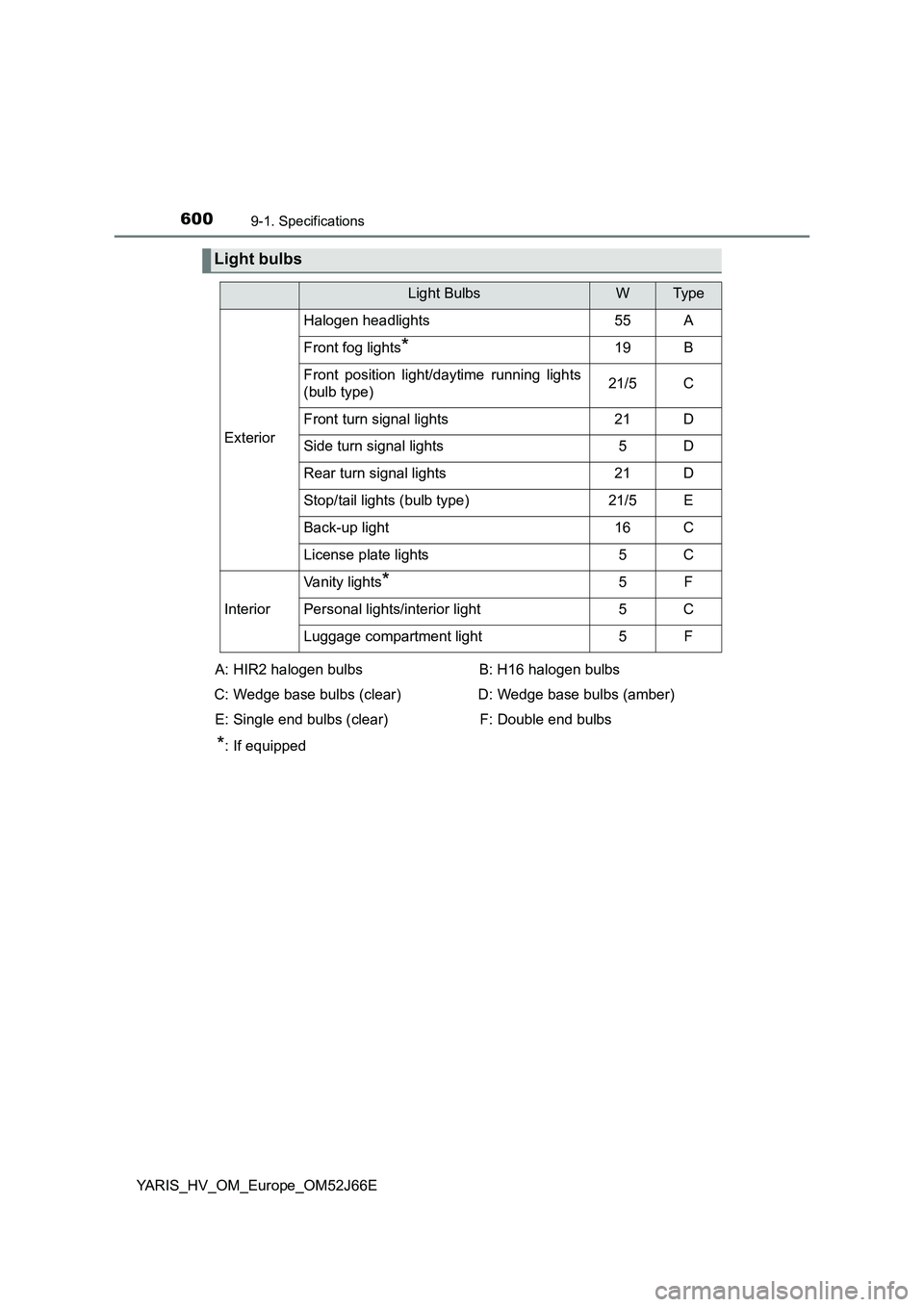

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights55A
Front fog lights*19B
Front position light/daytime running lights
(bulb type)21/5C
Front turn signal lights21D
Side turn signal lights5D
Rear turn signal lights21D
Stop/tail lights (bulb type)21/5E
Back-up light16C
License plate lights5C
Interior
Vanity lights*5F
Personal lights/interior light5C
Luggage compartment light5F
A: HIR2 halogen bulbs
C: Wedge base bulbs (clear)
E: Single end bulbs (clear)
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Double end bulbs
*: If equipped
