TOYOTA YARIS 2019 (in English) User Guide

1918
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS

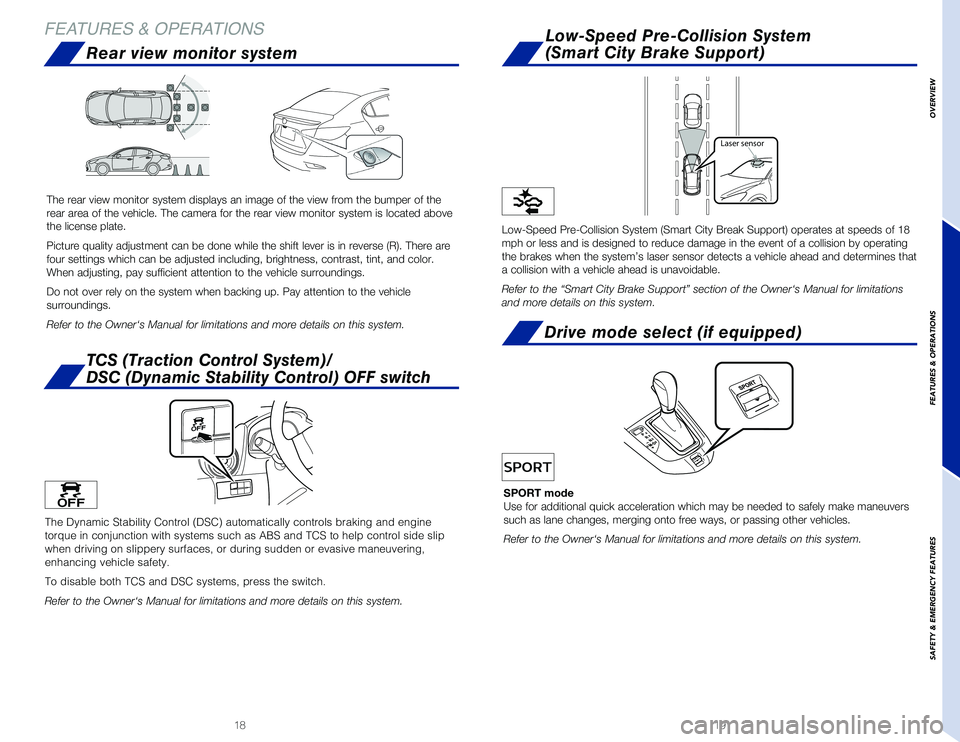

The Dynamic Stability Control (DSC) automatically controls braking and\
engine
torque in conjunction with systems such as ABS and TCS to help control s\
ide slip
when driving on slippery surfaces, or during sudden or evasive maneuveri\
ng,
enhancing vehicle safety.
To disable both TCS and DSC systems, press the switch.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
Low-Speed Pre-Collision System (Smart City Break Support) operates at \
speeds of 18
mph or less and is designed to reduce damage in the event of a collision\
by operating
the brakes when the system’s laser sensor detects a vehicle ahead and\
determines that
a collision with a vehicle ahead is unavoidable.
Refer to the “Smart City Brake Support” section of the Owner‘s \
Manual for limitations
and more details on this system.
SPORT mode
Use for additional quick acceleration which may be needed to safely make\
maneuvers
such as lane changes, merging onto free ways, or passing other vehicles.\
Refer to the Owner‘s Manual for limitations and more details on this \
system.
Laser sensor
Low-Speed Pre-Collision System
(Smart City Brake Support)
Drive mode select (if equipped)
TCS (Traction Control System)/
DSC (Dynamic Stability Control) OFF switch
The rear view monitor system displays an image of the view from the bump\
er of the
rear area of the vehicle. The camera for the rear view monitor system is\
located above
the license plate.
Picture quality adjustment can be done while the shift lever is in rever\
se (R). There are
four settings which can be adjusted including, brightness, contrast, tin\
t, and color.
When adjusting, pay sufficient attention to the vehicle surroundings.
Do not over rely on the system when backing up. Pay attention to the veh\
icle
surroundings.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
Rear view monitor system

2120
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES

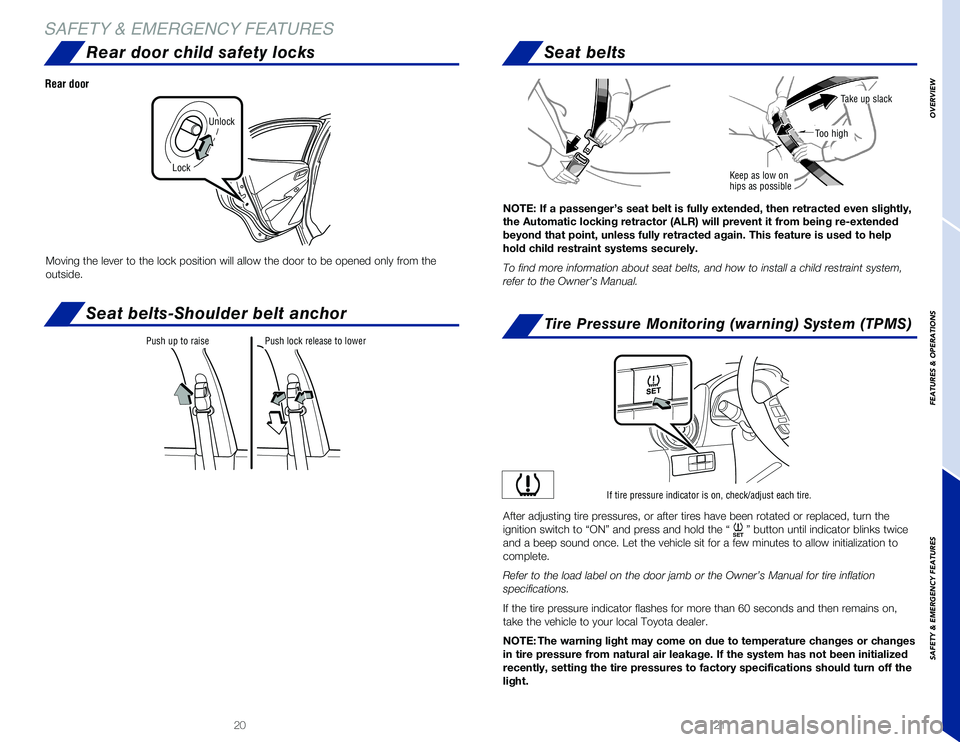

Rear door child safety locks
Seat belts-Shoulder belt anchor
Moving the lever to the lock position will allow the door to be opened o\
nly from the
outside.
Rear door
Unlock
Lock
Push up to raisePush lock release to lower
Seat belts
Tire Pressure Monitoring (warning) System (TPMS)
NOTE: If a passenger’s seat belt is fully extended, then retracted ev\
en slightly,
the Automatic locking retractor (ALR) will prevent it from being re-ex\
tended
beyond that point, unless fully retracted again. This feature is used to\
help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint system,
refer to the Owner’s Manual.
Keep as low on hips as possible
Take up slack
Too high
If tire pressure indicator is on, check/adjust each tire.
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn the
ignition switch to “ON” and press and hold the “SET” button until indicator blinks twice
and a beep sound once. Let the vehicle sit for a few minutes to allow in\
itialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been in\
itialized
recently, setting the tire pressures to factory specifications should tu\
rn off the
light.

2322
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES

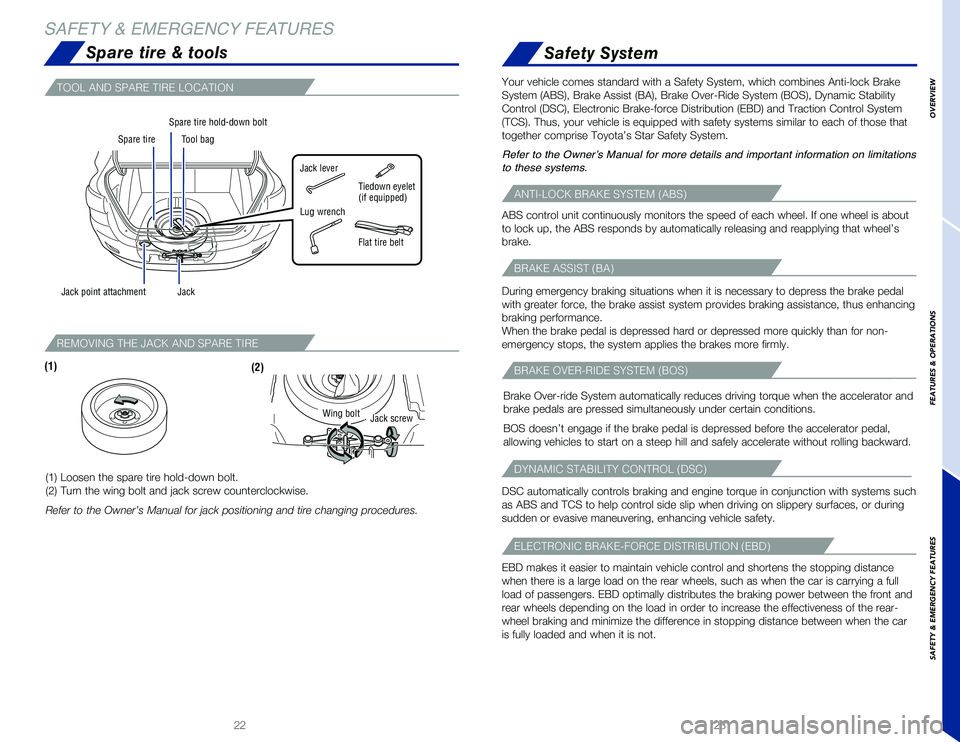

Spare tire & tools
Spare tire
Flat tire belt
Spare tire hold-down bolt
Lug wrench
Tool bag
Jack
Jack lever
Jack point attachment
Tiedown eyelet(if equipped)
(1) Loosen the spare tire hold-down bolt.
(2) Turn the wing bolt and jack screw counterclockwise.
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
Wing boltJack screw
(1)(2)
REMOVING THE JACK AND SPARE TIRE
Safety System
Your vehicle comes standard with a Safety System, which combines Anti-lo\
ck Brake
System (ABS), Brake Assist (BA), Brake Over-Ride System (BOS), Dyn\
amic Stability
Control (DSC), Electronic Brake-force Distribution (EBD) and Tractio\
n Control System
(TCS). Thus, your vehicle is equipped with safety systems similar to e\
ach of those that
together comprise Toyota’s Star Safety System.
Refer to the Owner’s Manual for more details and important informatio\
n on limitations
to these systems.
DSC automatically controls braking and engine torque in conjunction with\
systems such
as ABS and TCS to help control side slip when driving on slippery surfac\
es, or during
sudden or evasive maneuvering, enhancing vehicle safety.
DYNAMIC STABILITY CONTROL (DSC)
ABS control unit continuously monitors the speed of each wheel. If one w\
heel is about
to lock up, the ABS responds by automatically releasing and reapplying t\
hat wheel’s
brake.
ANTI-LOCK BRAKE SYSTEM (ABS)
During emergency braking situations when it is necessary to depress the \
brake pedal
with greater force, the brake assist system provides braking assistance,\
thus enhancing
braking performance.
When the brake pedal is depressed hard or depressed more quickly than fo\
r non-
emergency stops, the system applies the brakes more firmly.
BRAKE ASSIST (BA)
EBD makes it easier to maintain vehicle control and shortens the stoppin\
g distance
when there is a large load on the rear wheels, such as when the car is c\
arrying a full
load of passengers. EBD optimally distributes the braking power between \
the front and
rear wheels depending on the load in order to increase the effectiveness\
of the rear-
wheel braking and minimize the difference in stopping distance between w\
hen the car
is fully loaded and when it is not.
ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD)
Brake Over-ride System automatically reduces driving torque when the acc\
elerator and
brake pedals are pressed simultaneously under certain conditions.
BOS doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling backward.
BRAKE OVER-RIDE SYSTEM (BOS)
TOOL AND SPARE TIRE LOCATION

2524
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep\
the mat in
place.
• Install floor mats right side up.
TCS enhances traction and safety by controlling engine torque and brakin\
g. When the
TCS detects driving wheel slippage, it lowers engine torque and operates\
the
brakes to prevent loss of traction.
This means that on a slick surface, the engine adjusts automatically to \
provide optimum
power to the drive wheels, limiting wheel spin and loss of traction.
TRACTION CONTROL SYSTEM (TCS)

2726
PAIRING BLUETOOTH® PHONE FOR THE FIRST TIME
Yaris Sedan Display Audio and Display Audio with Navigation1
To use the hands-free3 features of the Yaris Sedan Display Audio system,
it is necessary to first pair a compatible Bluetooth®2 mobile device to the
vehicle. This operation cannot be performed while driving.
You can pair up to 7 devices.
1. Activate the Bluetooth®2
connection setting of your mobile
device. [See Figures 1 & 2]
2. Using the remote commander
knob or touch-screen, select
"Settings " from the home
screen of the vehicle display (far
right circle)
5. Within the "Bluetooth®" menu,
select "Add New Device".
[See Figure 4]
7. Verify the PIN. Select "Pair" on
your device and select "Yes" on the
head unit. [See Figure 5]
6. On your mobile device, find and
select "My Toyota" or your vehicle
within the Bluetooth® device list.
iPhone4: Select the icon next
to the paired vehicle on your
phone, and switch the "Show
Notifications" toggle to on.
[See Figure 6]
Android: Your device might pop up
two messages asking to allow the
vehicle head unit to access your
contacts and messages. You may
choose to select "Yes" to both.
[See Figure 7]
8. To enable text message
notification on your mobile device,
follow the appropriate directions
below:
4. Within the "Devices" tab, select
"Bluetooth®".[See Figure 3]Figure 3
Figure 1: iOS
Figure 6: iOS
Figure 2: Android
Figure 7: Android
Figure 4
Figure 5
3. Within "Settings", you will see
tabs on the top. Hit the >> arrow until
the "Devices" tab is available. Select
"Devices". [See Figure 3]
1. Availability & accuracy of the information provided by the navigation sys\
tem is dependent upon many factors. Use common sense when relying on information provided. Services & programming subject to change. Services not available in every city or roadway. See Owner’s Manual for details. Map updates may be available for download, visit \
Toyota.com/Owners, select “Yaris Sedan”, then “Resources”, then “Multimedia System” for details. 2. The Bluetooth® word mark and logos are registered trademarks owned by\
Bluetooth® SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth® enabled phone must first be\
paired. Phone performance depends on software, coverage & carrier. 3. Concentrating on the road should always be your first priority while dr\
iving. Do not use the hands-free phone system if it will distract you. 4. iPhone® is not included. iPhone® is registered trademarks of Apple\
, Inc.
