TOYOTA YARIS 2019 Owners Manual (in English)

2 0 1 9 www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 6 /18
1 8 - M K G - 119 4 4
QUICK REFERENCE GUIDE
YARIS SEDAN
FPO

1
* Visit your Toyota dealer for information on customizing this feature.

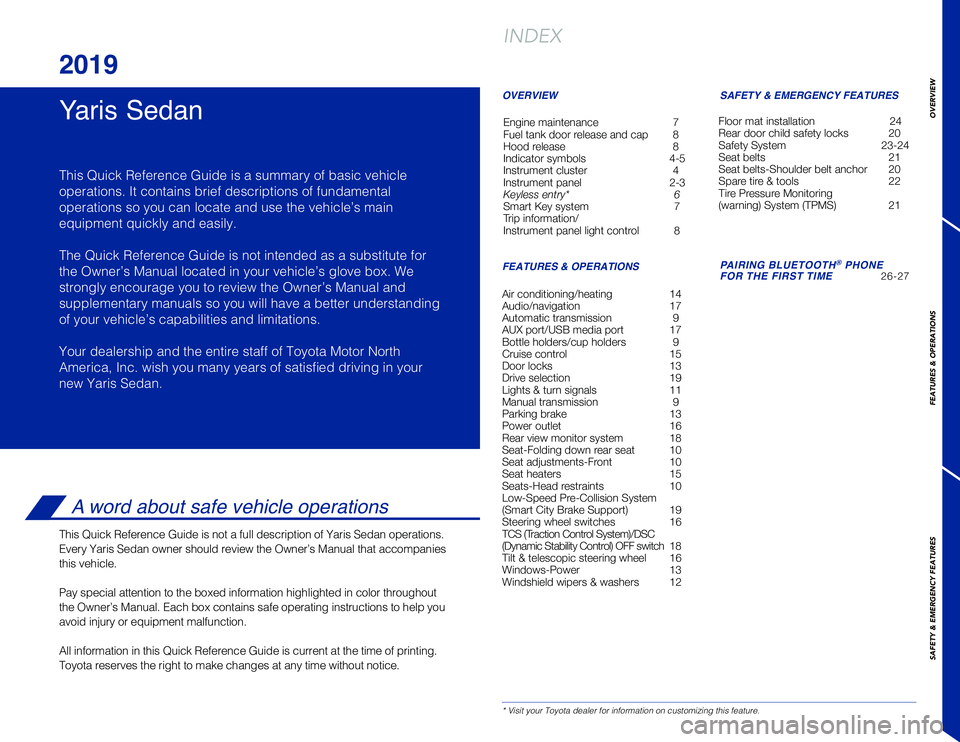

Yaris Sedan
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Yaris Sedan.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Yaris Sedan oper\
ations.
Every Yaris Sedan owner should review the Owner’s Manual that accompa\
nies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
INDEX
Engine maintenance 7Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry* 6Smart Key system 7Trip information/ Instrument panel light control 8
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
PAIRING BLUETOOTH® PHONEFOR THE FIRST TIME 26-27
Air conditioning/heating 14Audio/navigation 17Automatic transmission 9AUX port/USB media port 17Bottle holders/cup holders 9Cruise control 15Door locks 13Drive selection 19 Lights & turn signals 11Manual transmission 9Parking brake 13Power outlet 16Rear view monitor system 18Seat-Folding down rear seat 10Seat adjustments-Front 10Seat heaters 15 Seats-Head restraints 10 Low-Speed Pre-Collision System (Smart City Brake Support) 19Steering wheel switches 16TCS (Traction Control System)/DSC (Dynamic Stability Control) OFF switch 18Tilt & telescopic steering wheel 16Windows-Power 13Windshield wipers & washers 12
Floor mat installation 24Rear door child safety locks 20Safety System 23-24Seat belts 21Seat belts-Shoulder belt anchor 20Spare tire & tools 22Tire Pressure Monitoring(warning) System (TPMS) 21
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

32
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
OVERVIEW

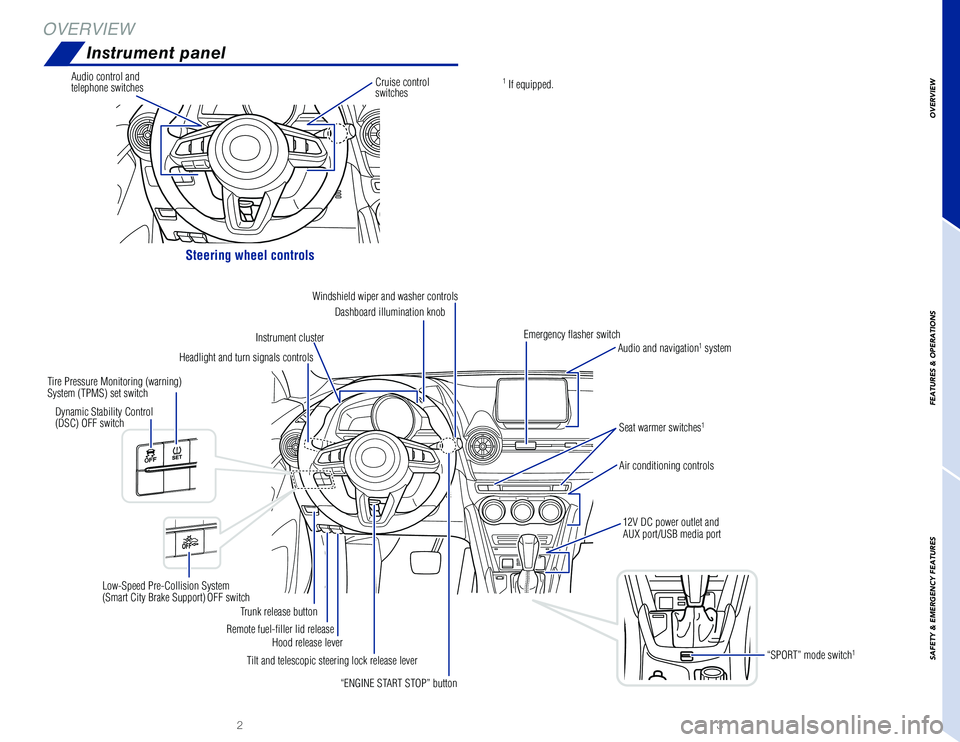

Instrument panel
Steering wheel controls
Headlight and turn signals controls
Instrument cluster
Trunk release button
Remote fuel-filler lid release
Audio and navigation1 system
Emergency flasher switch
Dashboard illumination knob
Air conditioning controls
Seat warmer switches1
“SPORT” mode switch1
12V DC power outlet and AUX port/USB media port
Windshield wiper and washer controls
“ENGINE START STOP” button
Hood release lever
Tilt and telescopic steering lock release lever
Dynamic Stability Control (DSC) OFF switch
Low-Speed Pre-Collision System (Smart City Brake Support) OFF switch
Tire Pressure Monitoring (warning) System (TPMS) set switch
Audio control and telephone switchesCruise control switches
1 If equipped.

54
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
OVERVIEW

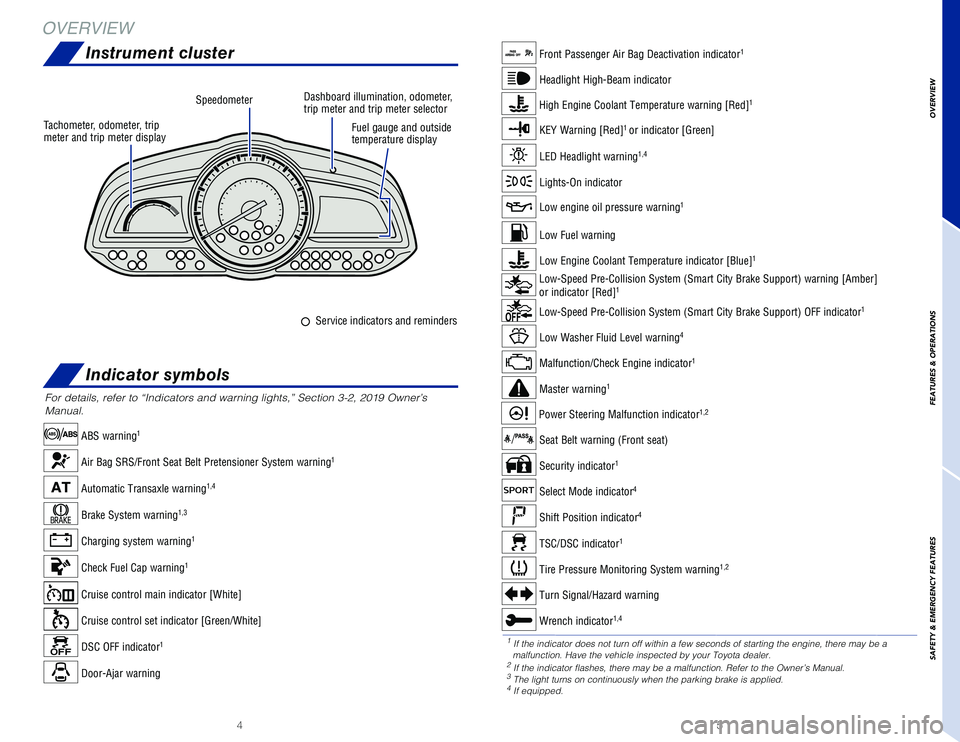

Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 3-2, 2019 Owner’s
Manual.
High Engine Coolant Temperature warning [Red]1
Master warning1
Charging system warning1
Brake System warning1,3
ABS warning1
Malfunction/Check Engine indicator1
Power Steering Malfunction indicator1,2
Air Bag SRS/Front Seat Belt Pretensioner System warning1
Automatic Transaxle warning1,4
Low engine oil pressure warning1
Check Fuel Cap warning1
Seat Belt warning (Front seat)
Low-Speed Pre-Collision System (Smart City Brake Support) warning [Amb\
er]
or indicator [Red]1
Low-Speed Pre-Collision System (Smart City Brake Support) OFF indicator1
Tire Pressure Monitoring System warning1,2
KEY Warning [Red]1 or indicator [Green]
Low Washer Fluid Level warning4
Low Fuel warning
Wrench indicator1,4
Low Engine Coolant Temperature indicator [Blue]1
TSC/DSC indicator1
DSC OFF indicator1
Security indicator1
Shift Position indicator4
Turn Signal/Hazard warning
Select Mode indicator4
Lights-On indicator
LED Headlight warning1,4
Front Passenger Air Bag Deactivation indicator1
Cruise control set indicator [Green/White]
Cruise control main indicator [White]
Headlight High-Beam indicator
Door-Ajar warning
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a malfunction. Have the vehicle inspected by your Toyota dealer.2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 The light turns on continuously when the parking brake is applied.4 If equipped.
SpeedometerDashboard illumination, odometer, trip meter and trip meter selector
Tachometer, odometer, trip meter and trip meter display Fuel gauge and outsidetemperature display
Service indicators and reminders

76
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

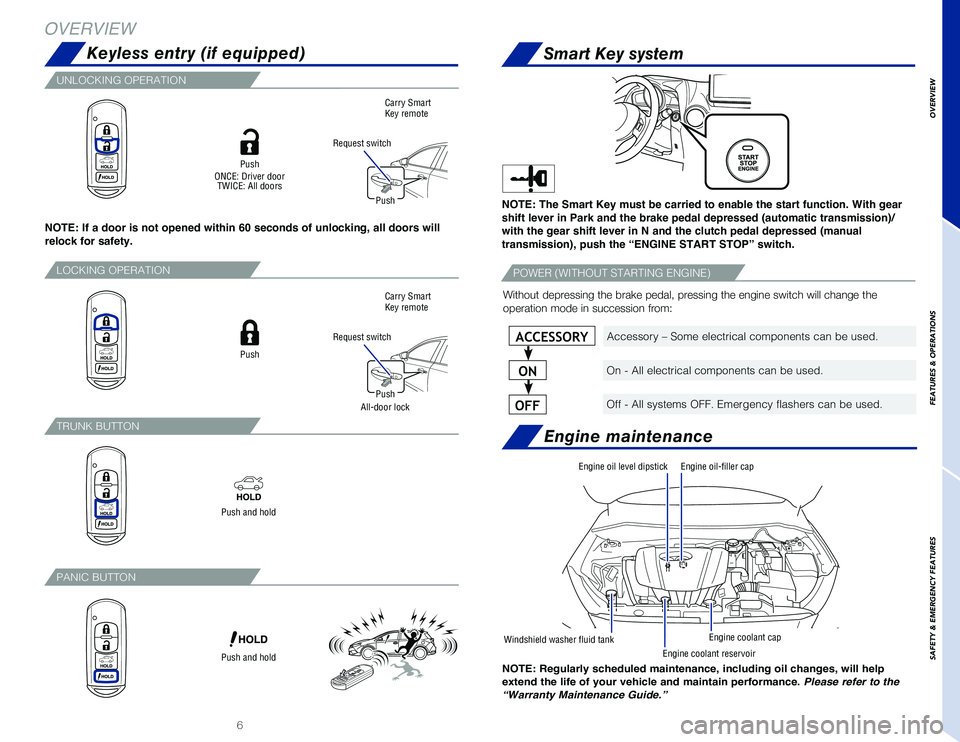

UNLOCKING OPERATION
PANIC BUTTON
TRUNK BUTTON
LOCKING OPERATION
Keyless entry (if equipped)Smart Key system
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push
Push and hold
PushONCE: Driver doorTWICE: All doors
Push and hold
Without depressing the brake pedal, pressing the engine switch will chan\
ge the
operation mode in succession from:
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
POWER (WITHOUT STARTING ENGINE)
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed (automatic transmission)/
with the gear shift lever in N and the clutch pedal depressed (manual
transmission), push the “ENGINE START STOP” switch.
ACCESSORY
ON
OFF
Engine maintenance
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Windshield washer fluid tank
Engine oil level dipstickEngine oil-filler cap
Engine coolant reservoir
Engine coolant cap
Carry Smart Key remote
Push
Request switch
All-door lock
Carry Smart Key remote
Push
Request switch

98
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

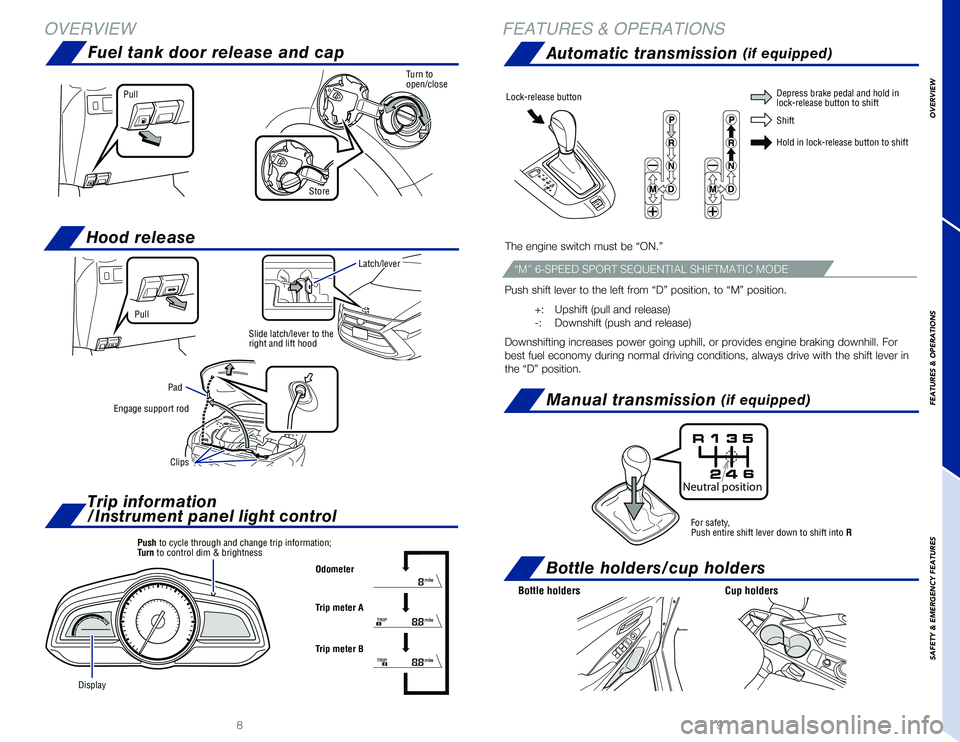

Fuel tank door release and cap
Pull
Turn to open/close
Store
OVERVIEW
Hood release
Automatic transmission (if equipped)
Manual transmission (if equipped)
Bottle holders/cup holders
Push shift lever to the left from “D” position, to “M” posit\
ion.
+: Upshift (pull and release)
-: Downshift (push and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever in
the “D” position.
The engine switch must be “ON.”
Depress brake pedal and hold in lock-release button to shift
Shift
Hold in lock-release button to shift
“M” 6-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE
Trip information
/Instrument panel light control
Push to cycle through and change trip information;Turn to control dim & brightness
Display
Odometer
Trip meter A
Trip meter B
Pull
Latch/lever
Pad
Clips
Slide latch/lever to the right and lift hood
Engage support rod
FEATURES & OPERATIONS
Neutral po sition
Lock-release button
Cup holdersBottle holders
For safety,Push entire shift lever down to shift into R

1110
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

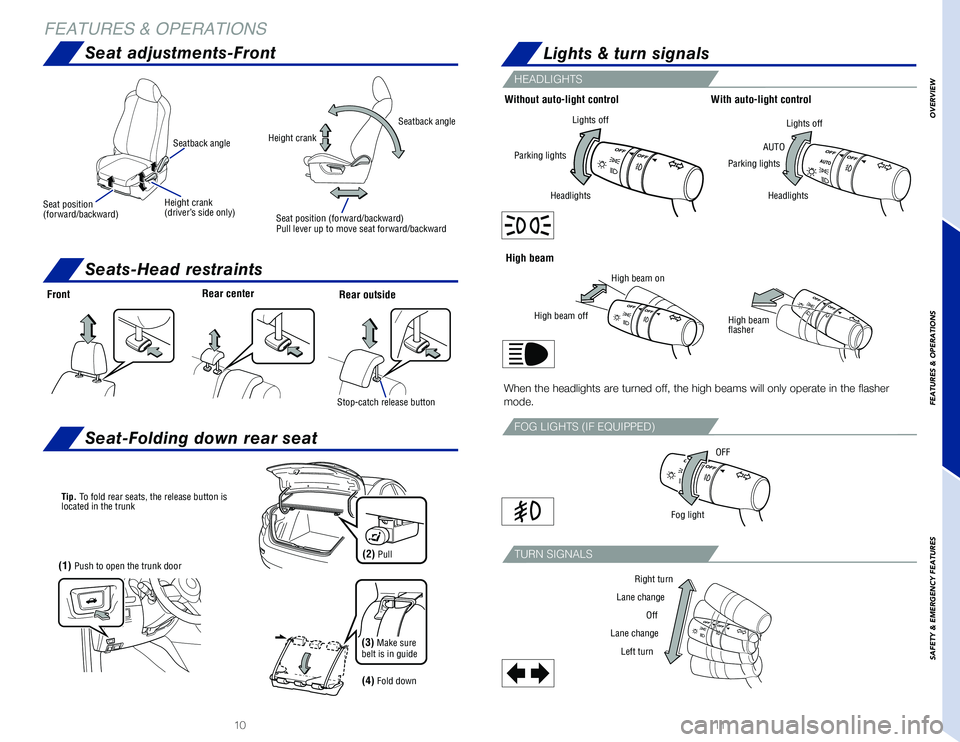

Seat position (forward/backward)Seat position (forward/backward)
Height crank(driver’s side only)
Height crankSeatback angle
Seatback angle
(4) Fold down
(3) Make surebelt is in guide
(2) Pull(1) Push to open the trunk door
Tip. To fold rear seats, the release button is located in the trunk
Lights & turn signals
HeadlightsHeadlights
Parking lightsParking lights
AUTO
Lights offLights off
Fog light
Right turn
Lane change
Off
Lane change
Left turn
High beam offHigh beam flasher
High beam on
When the headlights are turned off, the high beams will only operate in \
the flasher
mode.
OFF
Seat adjustments-Front
Seats-Head restraints
Seat-Folding down rear seat
FEATURES & OPERATIONS
HEADLIGHTS
FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
High beam
Stop-catch release button
FrontRear centerRear outside
Pull lever up to move seat forward/backward
Without auto-light controlWith auto-light control

1312
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS
Interval wipe
AUTO (rain-sensing)
Slow
Slow
Fast
Fast
Pull to wash and wipe
Adjust frequency1
Adjust sensor sensitivity2
Fast
High
Slow
Low
Mist
Mist
Off
Off
With the wiper lever in the OFF or INT position, the wipers will operate\
continuously until
the lever is released.

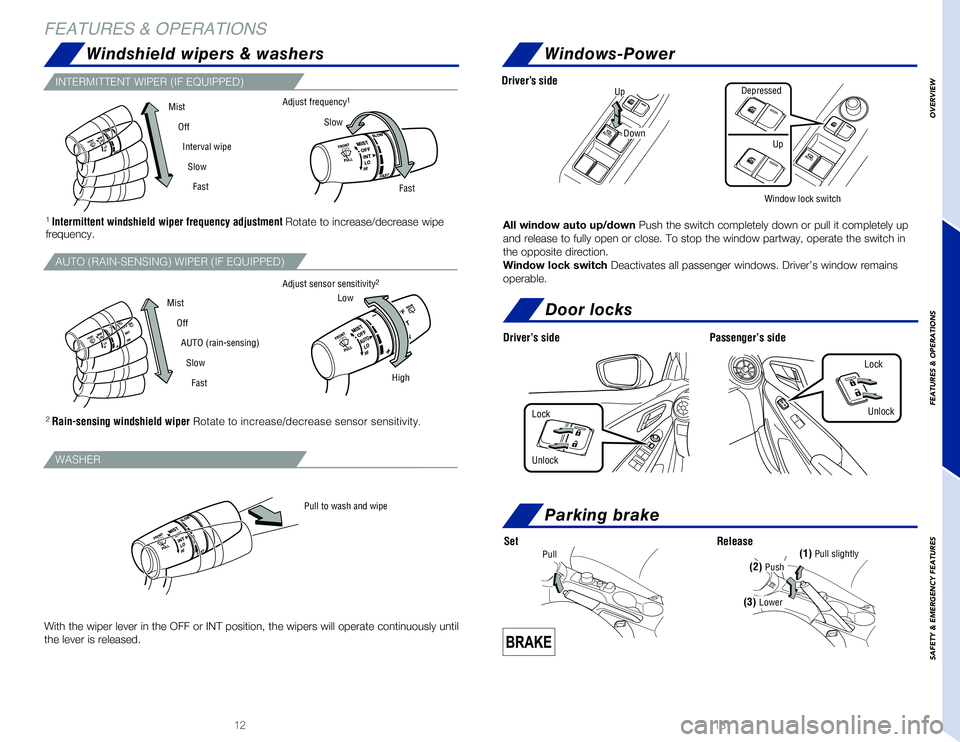

Windshield wipers & washers
1 Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
INTERMITTENT WIPER (IF EQUIPPED)
AUTO (RAIN-SENSING) WIPER (IF EQUIPPED)
WASHER
Windows-Power
All window auto up/down Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate \
the switch in
the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
DownUp
DepressedDriver’s side
Window lock switch
Parking brake
Pull
(2) Push
(1) Pull slightly
(3) Lower
SetRelease
Door locks
Lock
Driver’s sidePassenger’s side
Lock
Unlock
Unlock

1514
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES
FEATURES & OPERATIONS
The engine switch must be in the “ON” mode.

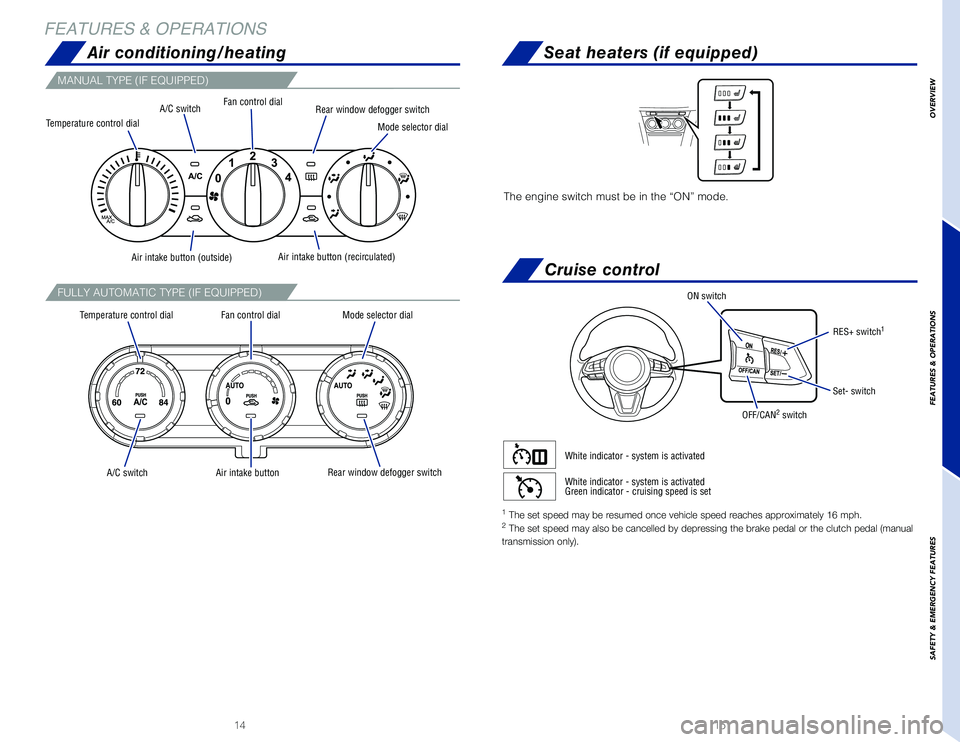

Seat heaters (if equipped)
MANUAL TYPE (IF EQUIPPED)
FULLY AUTOMATIC TYPE (IF EQUIPPED)
Temperature control dialMode selector dial
Air intake buttonA/C switchRear window defogger switch
Fan control dial
Air conditioning/heating
Temperature control dialMode selector dial
Air intake button (outside)Air intake button (recirculated)
A/C switchRear window defogger switchFan control dial
Cruise control
ON switch
Set- switch
RES+ switch1
OFF/CAN2 switch
1 The set speed may be resumed once vehicle speed reaches approximately 16\
mph.2 The set speed may also be cancelled by depressing the brake pedal or th\
e clutch pedal (manual
transmission only).
White indicator - system is activatedGreen indicator - cruising speed is set
White indicator - system is activated

1716
OVERVIEW
FEATURES & OPERATIONS
SAFETY
& EMERGENCY FEATURES

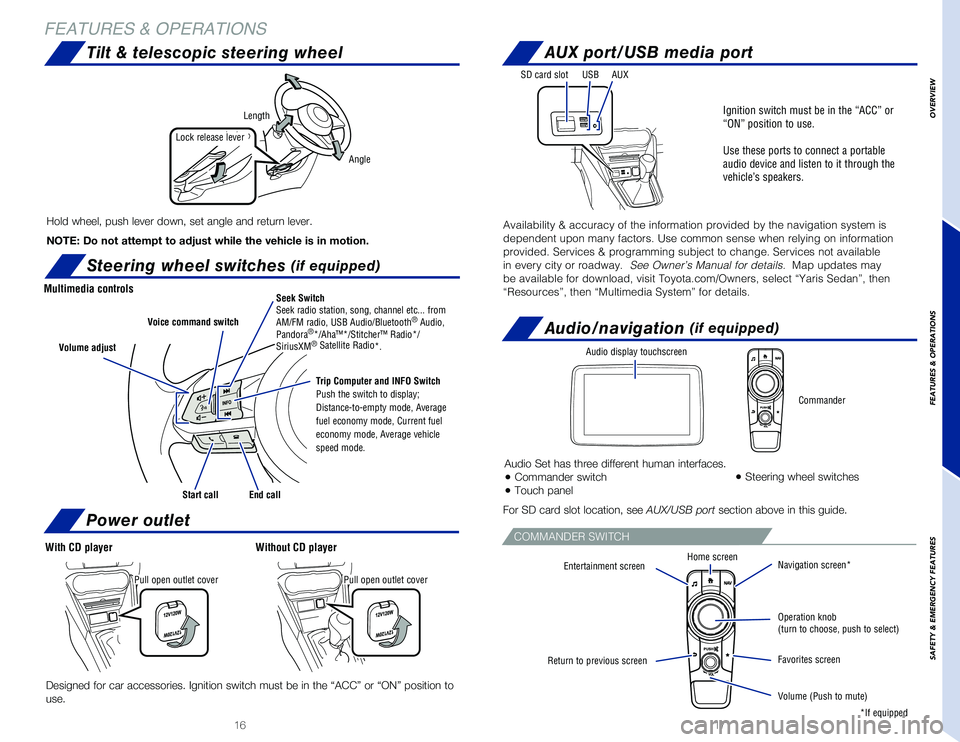

AUX port/USB media port
Steering wheel switches (if equipped)
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Angle
Length
Multimedia controls
Ignition switch must be in the “ACC” or
“ON” position to use.
Use these ports to connect a portable
audio device and listen to it through the
vehicle’s speakers.
Availability & accuracy of the information provided by the navigation sy\
stem is
dependent upon many factors. Use common sense when relying on informatio\
n
provided. Services & programming subject to change. Services not availab\
le
in every city or roadway. See Owner’s Manual for details. Map updates may
be available for download, visit Toyota.com/Owners, select “Yaris Sed\
an”, then
“Resources”, then “Multimedia System” for details.
AUXSD card slotUSB
Audio/navigation (if equipped)
Audio Set has three different human interfaces.
● Commander switch
● Touch panel
● Steering wheel switches
For SD card slot location, see AUX/USB port section above in this guide.Power outlet
Designed for car accessories. Ignition switch must be in the “ACC”\
or “ON” position to
use.
Pull open outlet cover
With CD playerWithout CD player
Pull open outlet cover
Seek SwitchSeek radio station, song, channel etc... from AM/FM radio, USB Audio/Bluetooth® Audio, Pandora®*/Aha™*/Stitcher™ Radio*/ SiriusXM® Satellite Radio*.
Trip Computer and INFO Switch
Push the switch to display;
Distance-to-empty mode, Average
fuel economy mode, Current fuel
economy mode, Average vehicle
speed mode.
Voice command switch
Volume adjust
Start callEnd call
Audio display touchscreen
Commander
*If equipped
Home screenNavigation screen* Entertainment screen
Return to previous screen
Operation knob(turn to choose, push to select)
Favorites screen
Volume (Push to mute)
COMMANDER SWITCH
