TOYOTA YARIS 2019 Owners Manual

1011-3. Theft deterrent system
1
For safety and security
YARIS_F_OM_Europe_OM52K19E

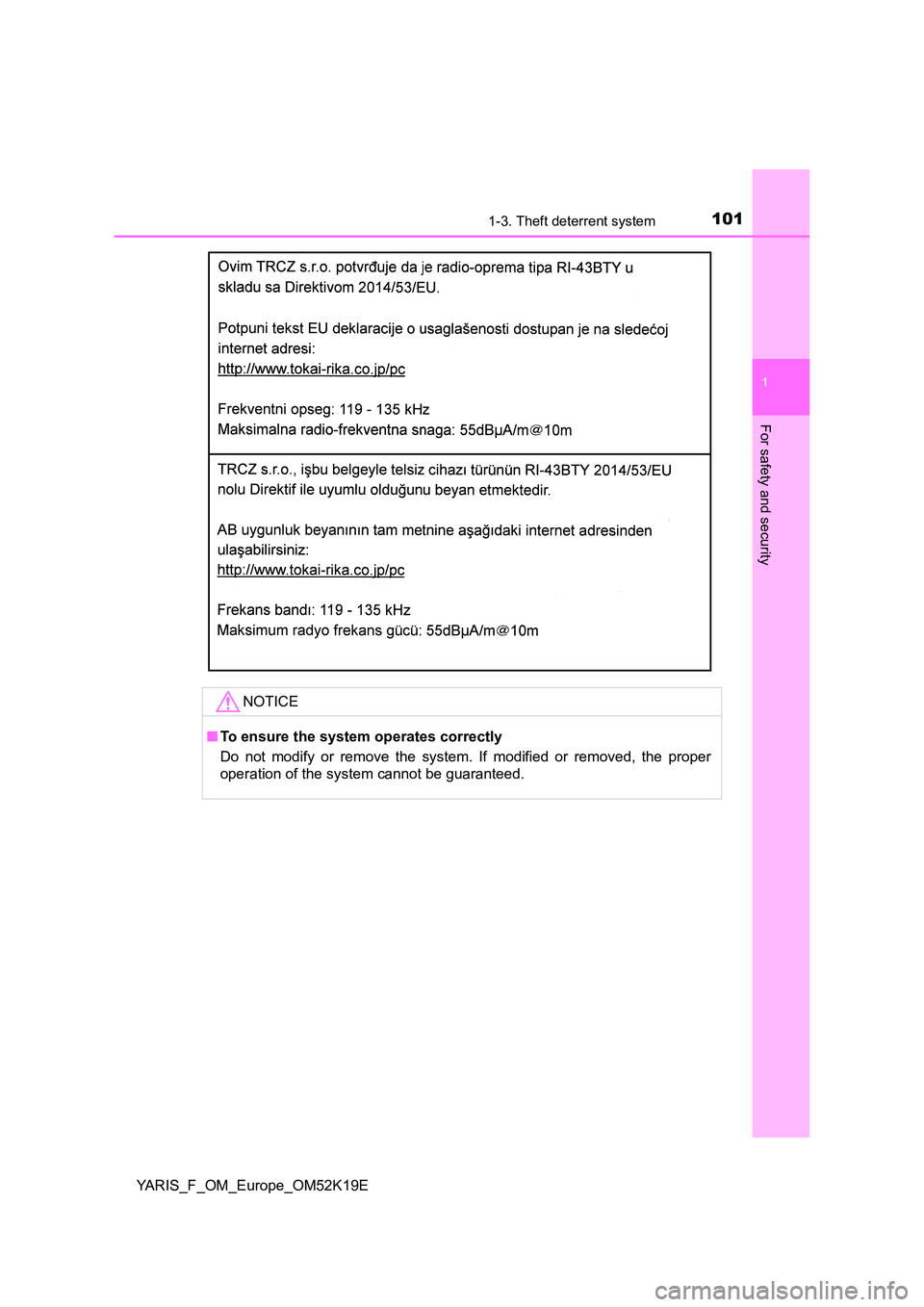

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1021-3. Theft deterrent system
YARIS_F_OM_Europe_OM52K19E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system), have all the passengers exit the vehicle and ensure that all
the doors are closed.
Using the entry function (vehicles with a smart entry & start system):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

1031-3. Theft deterrent system
1
For safety and security
YARIS_F_OM_Europe_OM52K19E
Using the entry function (vehicles with a smart entry & start system):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .

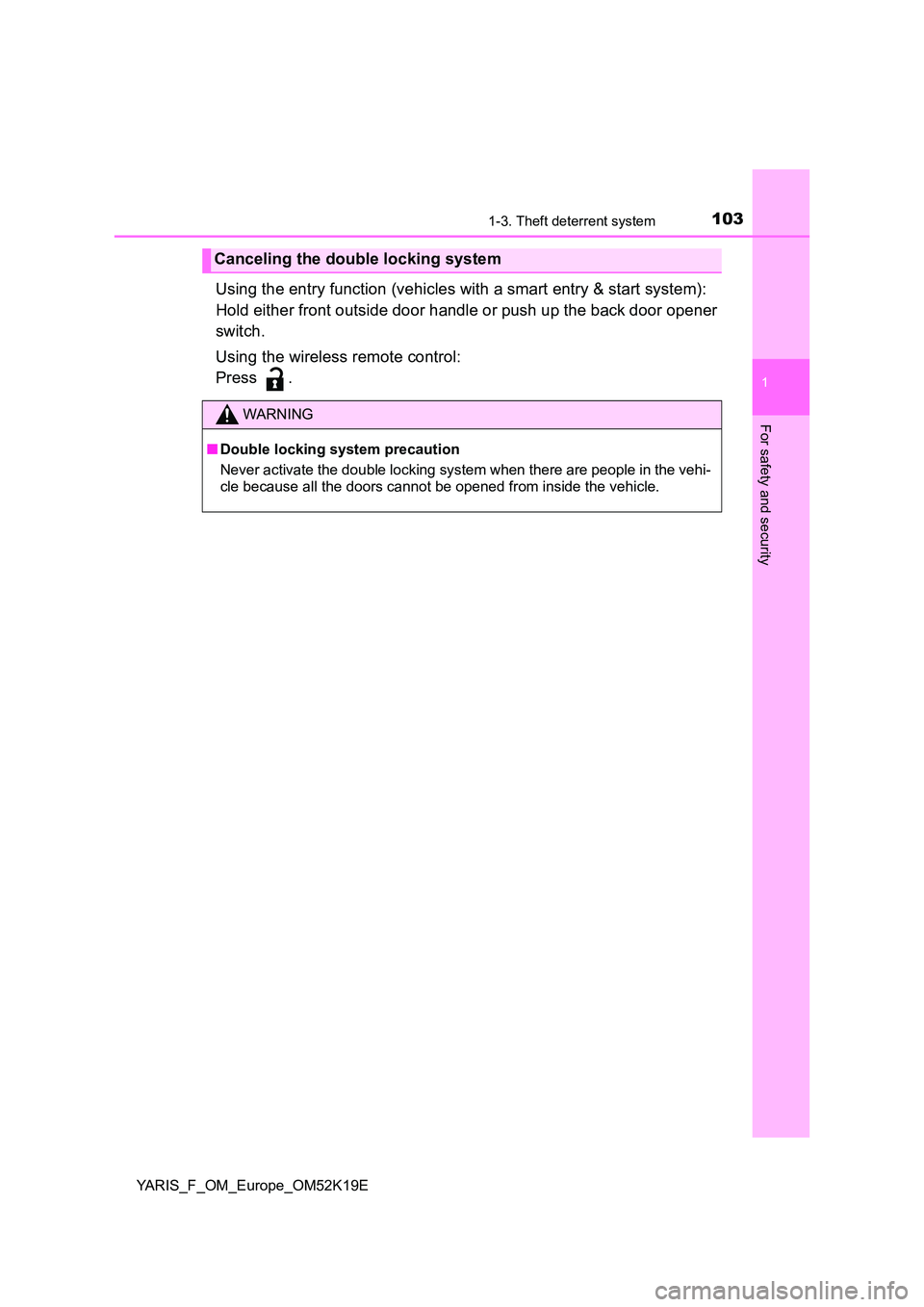

Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

1041-3. Theft deterrent system
YARIS_F_OM_Europe_OM52K19E

105
2Instrument cluster
YARIS_F_OM_Europe_OM52K19E

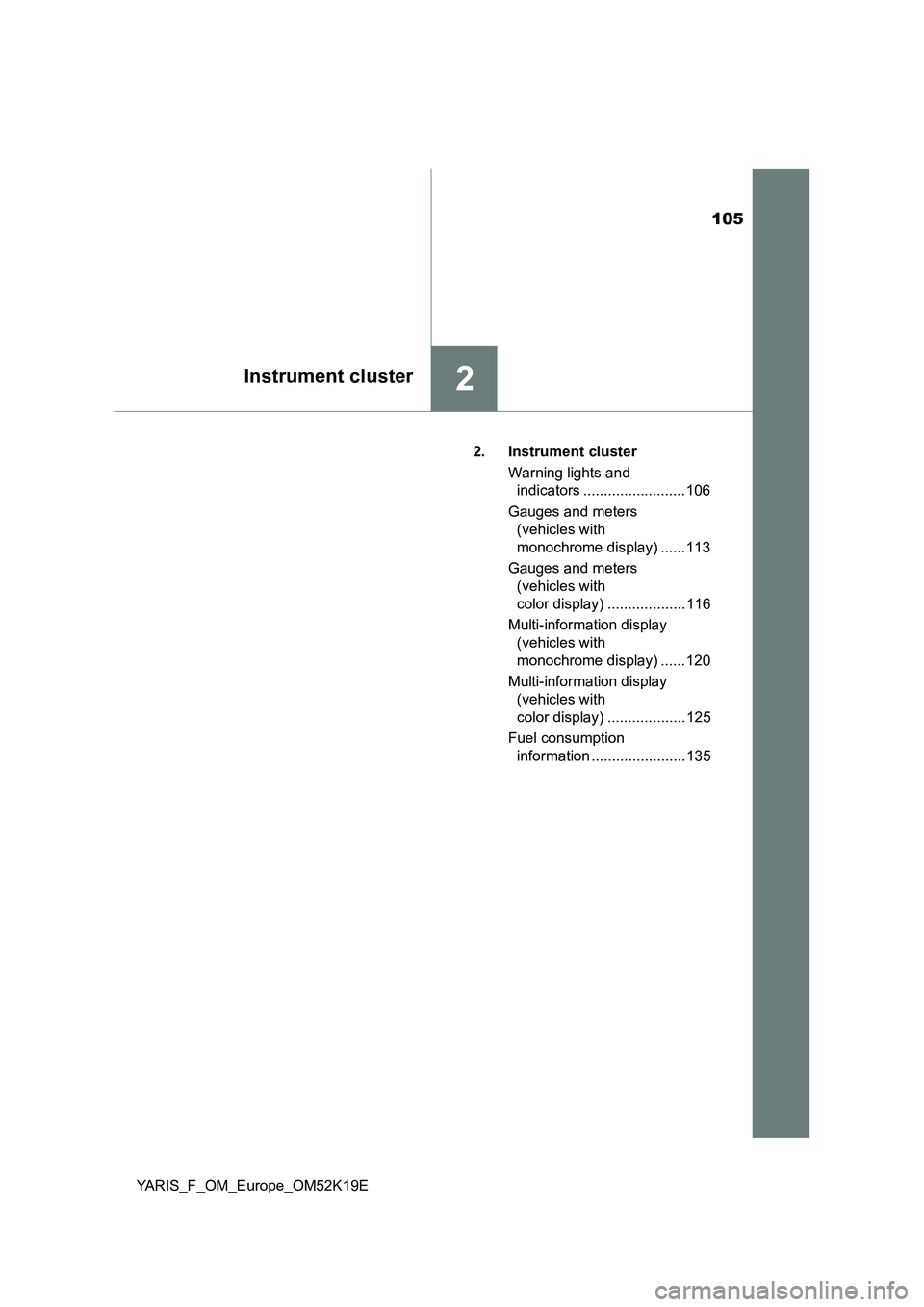

2. Instrument cluster
Warning lights and
indicators ......................... 106
Gauges and meters
(vehicles with
monochrome display) ...... 113
Gauges and meters
(vehicles with
color display) ................... 116
Multi-information display
(vehicles with
monochrome display) ...... 120
Multi-information display
(vehicles with
color display) ................... 125
Fuel consumption
information ....................... 135

1062. Instrument cluster
YARIS_F_OM_Europe_OM52K19E
Warning lights and indicators
Vehicles with monochrome display type A
Vehicles with monochrome display type B
This illustration represents a meter with a tachometer and may differ
from the look of the meter without a tachometer.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

1072. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52K19E

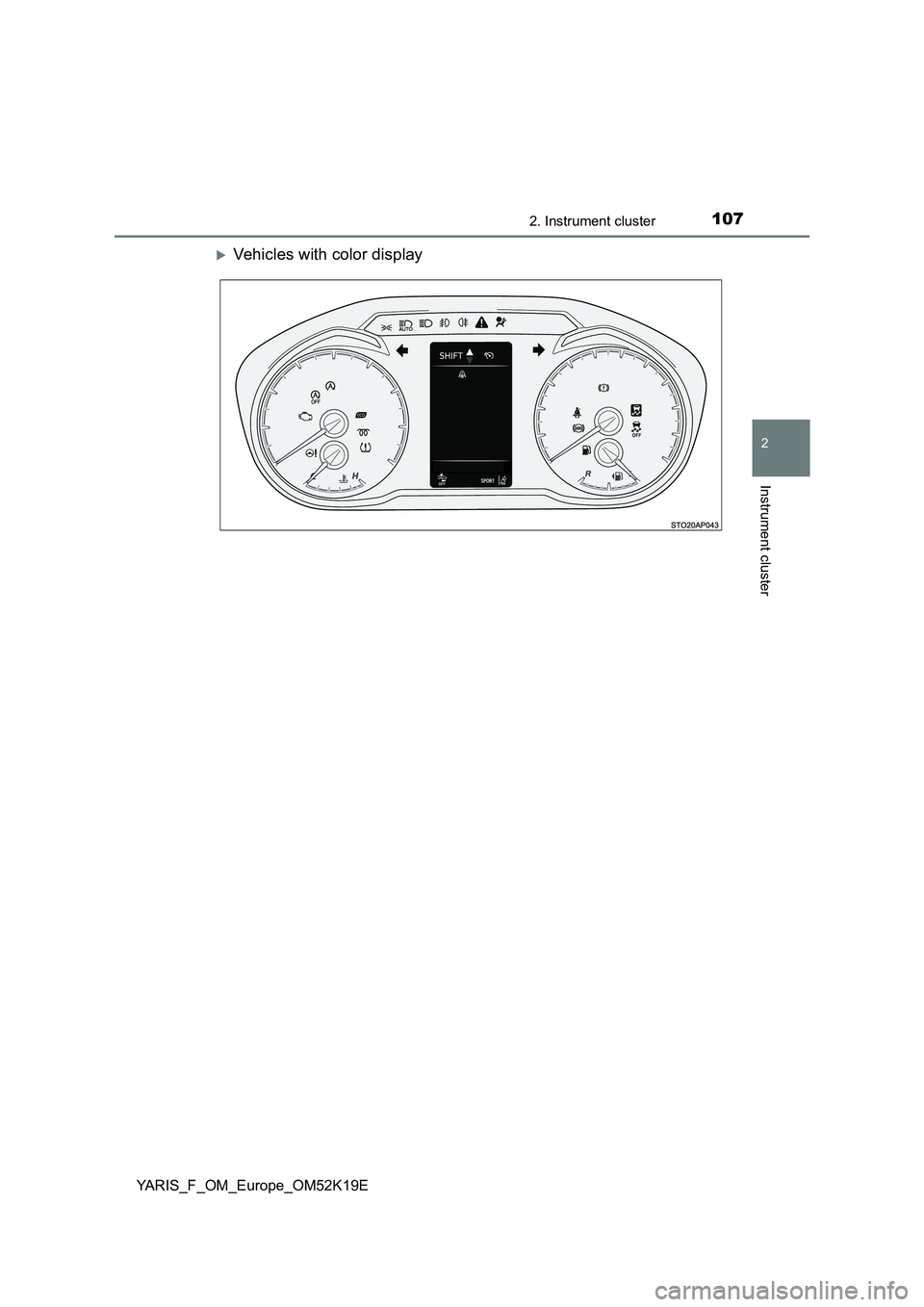

Vehicles with color display

1082. Instrument cluster
YARIS_F_OM_Europe_OM52K19E

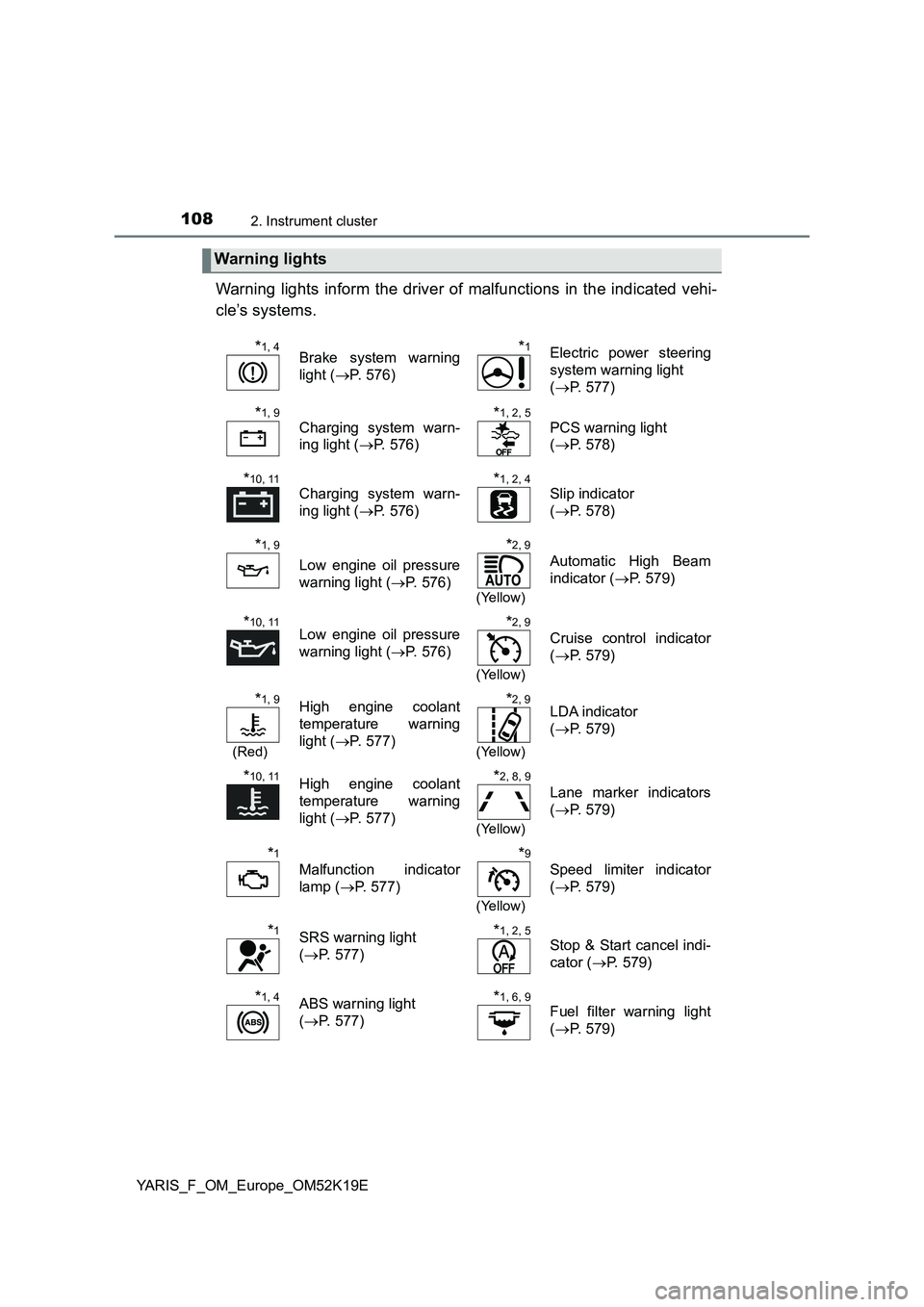

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 4Brake system warning
light ( P. 576)
*1Electric power steering
system warning light
( P. 577)
*1, 9
Charging system warn-
ing light ( P. 576)
*1, 2, 5
PCS warning light
( P. 578)
*10, 11
Charging system warn-
ing light ( P. 576)
*1, 2, 4
Slip indicator
( P. 578)
*1, 9
Low engine oil pressure
warning light ( P. 576)
*2, 9
(Yellow)
Automatic High Beam
indicator ( P. 579)
*10, 11Low engine oil pressure
warning light ( P. 576)
*2, 9
(Yellow)
Cruise control indicator
( P. 579)
*1, 9
(Red)
High engine coolant
temperature warning
light ( P. 577)
*2, 9
(Yellow)
LDA indicator
( P. 579)
*10, 11High engine coolant
temperature warning
light ( P. 577)
*2, 8, 9
(Yellow)
Lane marker indicators
( P. 579)
*1
Malfunction indicator
lamp ( P. 577)
*9
(Yellow)
Speed limiter indicator
( P. 579)
*1SRS warning light
( P. 577)
*1, 2, 5
Stop & Start cancel indi-
cator ( P. 579)
*1, 4ABS warning light
( P. 577)
*1, 6, 9
Fuel filter warning light
( P. 579)

1092. Instrument cluster
2
Instrument cluster
YARIS_F_OM_Europe_OM52K19E

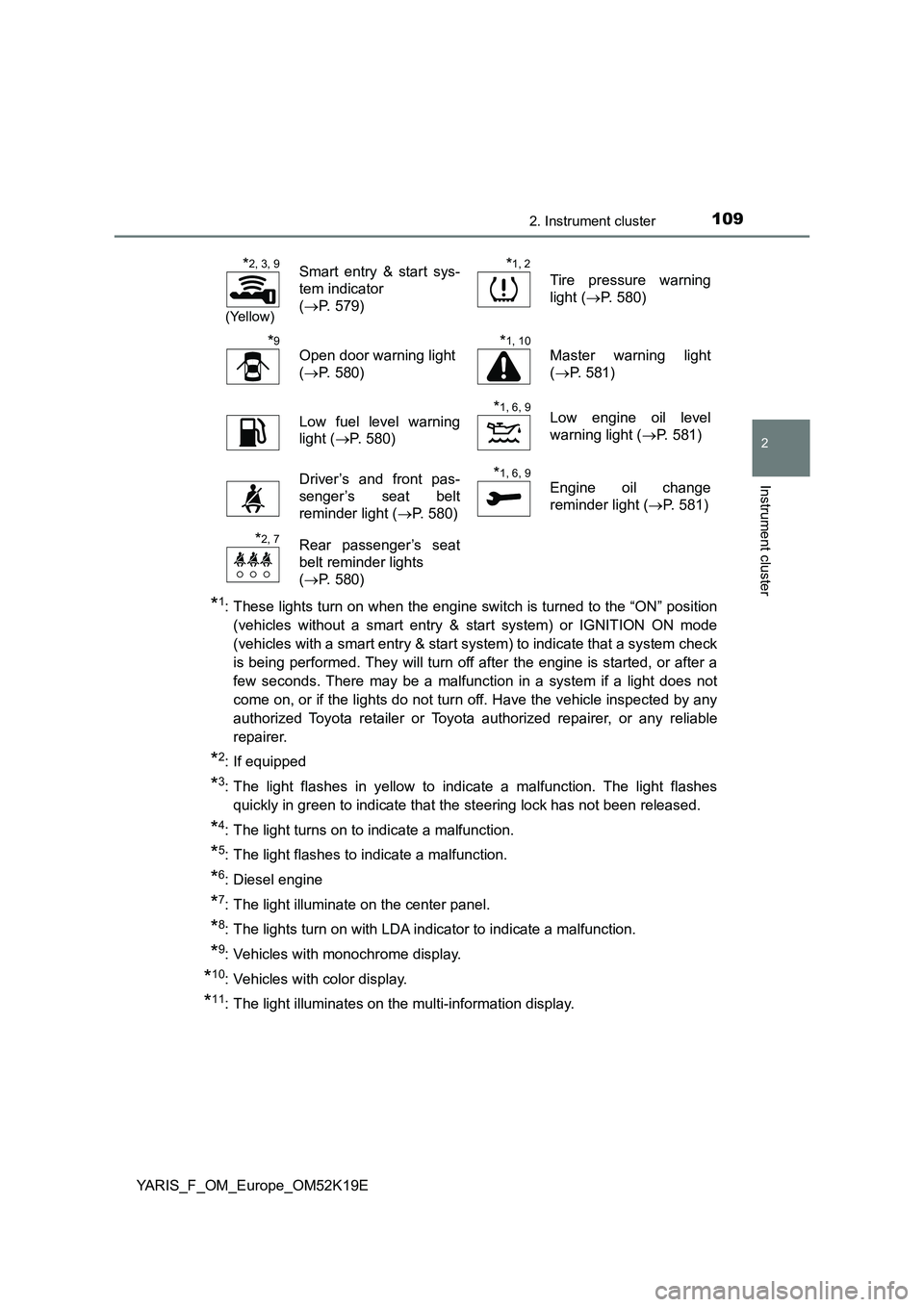

*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
*2: If equipped
*3: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*4: The light turns on to indicate a malfunction.
*5: The light flashes to indicate a malfunction.
*6: Diesel engine
*7: The light illuminate on the center panel.
*8: The lights turn on with LDA indicator to indicate a malfunction.
*9: Vehicles with monochrome display.
*10: Vehicles with color display.
*11: The light illuminates on the multi-information display.
*2, 3, 9
(Yellow)
Smart entry & start sys-
tem indicator
( P. 579)
*1, 2
Tire pressure warning
light ( P. 580)
*9
Open door warning light
( P. 580)
*1, 10
Master warning light
( P. 581)
Low fuel level warning
light ( P. 580)
*1, 6, 9Low engine oil level
warning light ( P. 581)
Driver’s and front pas-
senger’s seat belt
reminder light ( P. 580)
*1, 6, 9
Engine oil change
reminder light ( P. 581)
*2, 7Rear passenger’s seat
belt reminder lights
( P. 580)

1102. Instrument cluster
YARIS_F_OM_Europe_OM52K19E

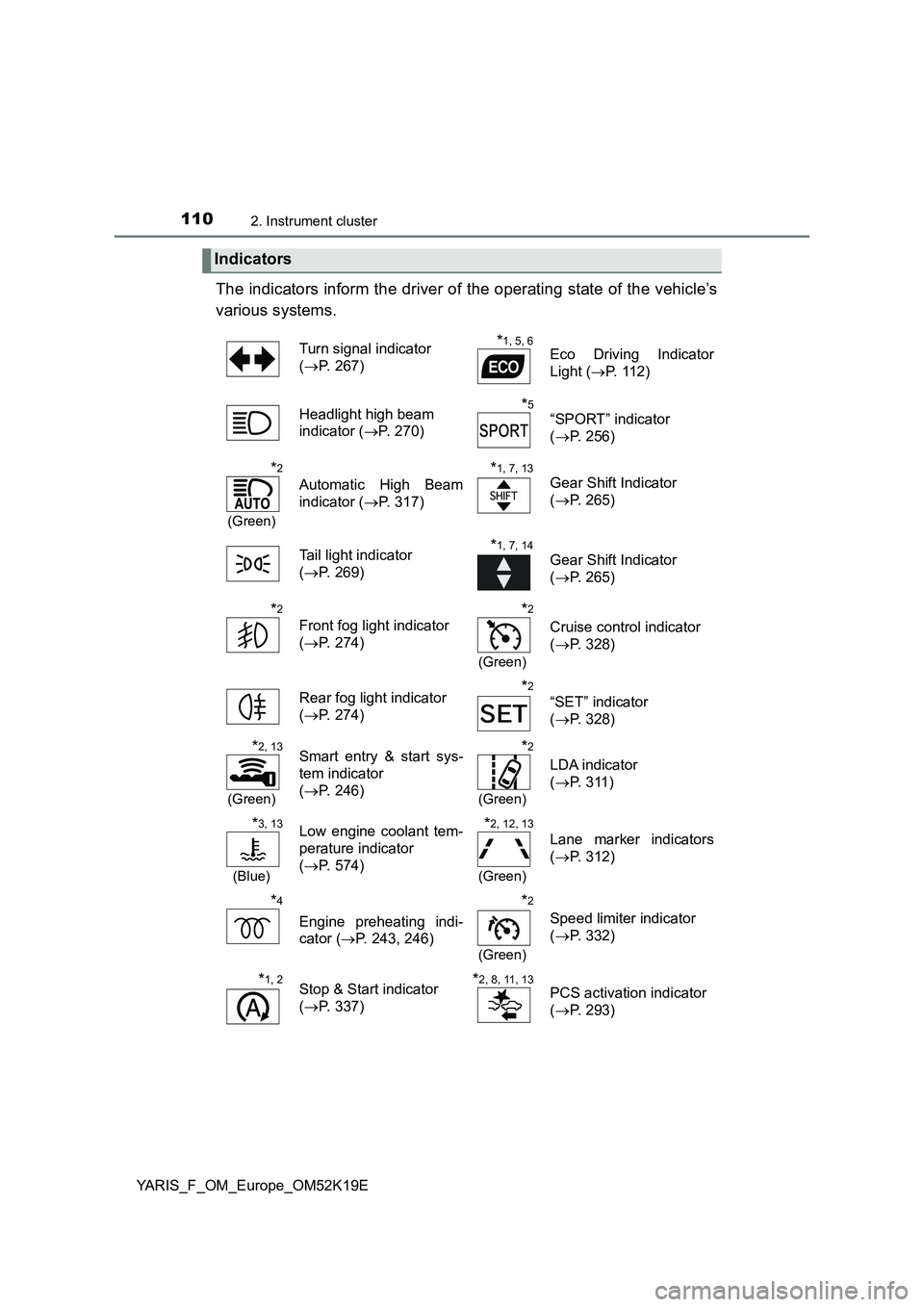

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 267)
*1, 5, 6Eco Driving Indicator
Light ( P. 112)
Headlight high beam
indicator ( P. 270)
*5
“SPORT” indicator
( P. 256)
*2
(Green)
Automatic High Beam
indicator ( P. 317)
*1, 7, 13
Gear Shift Indicator
( P. 265)
Tail light indicator
( P. 269)
*1, 7, 14
Gear Shift Indicator
( P. 265)
*2
Front fog light indicator
( P. 274)
*2
(Green)
Cruise control indicator
( P. 328)
Rear fog light indicator
( P. 274)
*2
“SET” indicator
( P. 328)
*2, 13
(Green)
Smart entry & start sys-
tem indicator
( P. 246)
*2
(Green)
LDA indicator
( P. 311)
*3, 13
(Blue)
Low engine coolant tem-
perature indicator
( P. 574)
*2, 12, 13
(Green)
Lane marker indicators
( P. 312)
*4
Engine preheating indi-
cator ( P. 243, 246)
*2
(Green)
Speed limiter indicator
( P. 332)
*1, 2Stop & Start indicator
( P. 337)
*2, 8, 11, 13PCS activation indicator
( P. 293)
