TOYOTA YARIS 2019 Owners Manual

1513-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52K19E

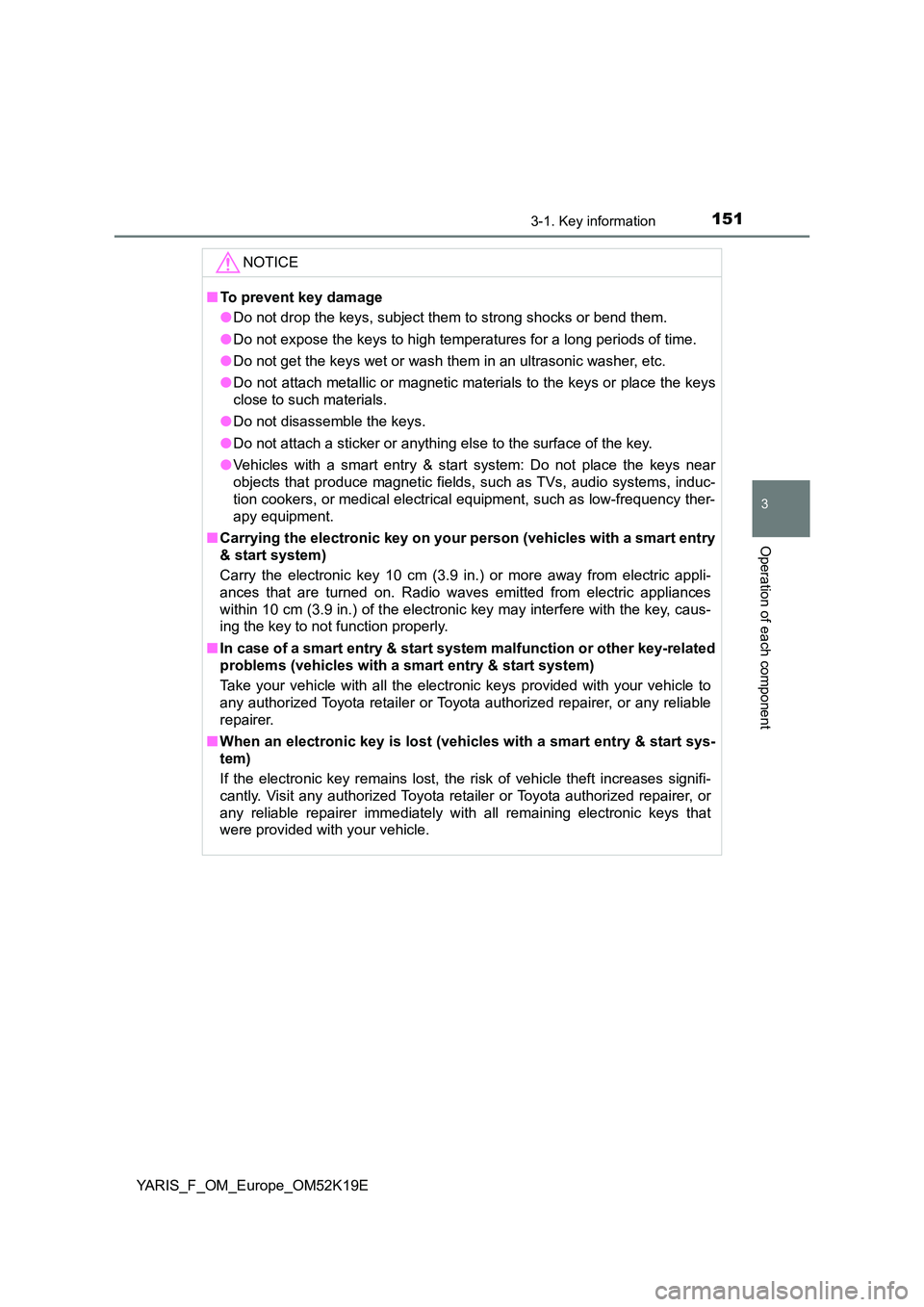

NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Vehicles with a smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems, induc-
tion cookers, or medical electrical equipment, such as low-frequency ther-
apy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer imm ediately with all remaining electronic keys that
were provided with your vehicle.

1523-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52K19E
Side doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely
locked.
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote control, key or door lock switch.
Unlocking and locking the doors from the outside
1
2

1533-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_OM_Europe_OM52K19E

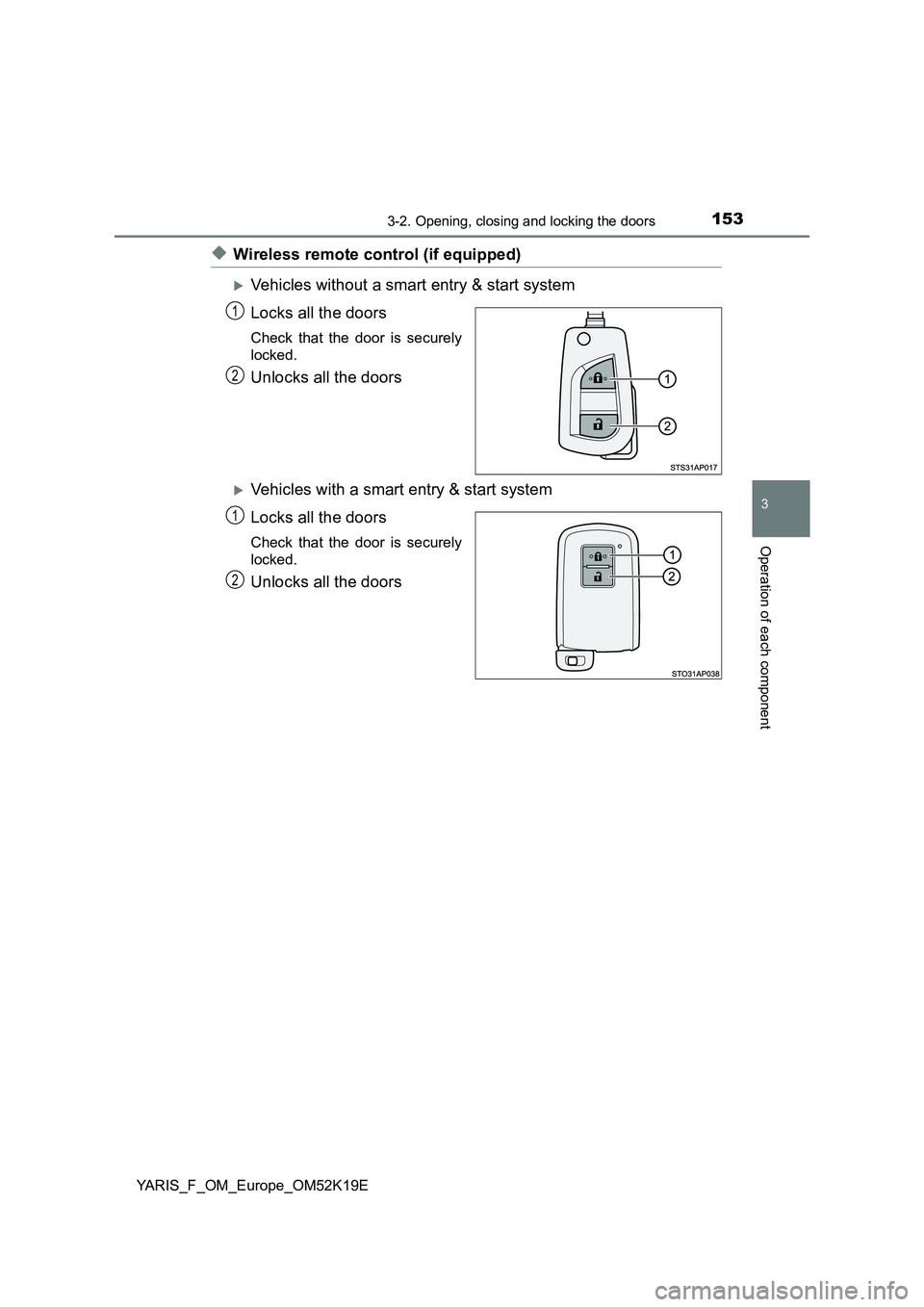

◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
1
2
1
2

1543-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52K19E

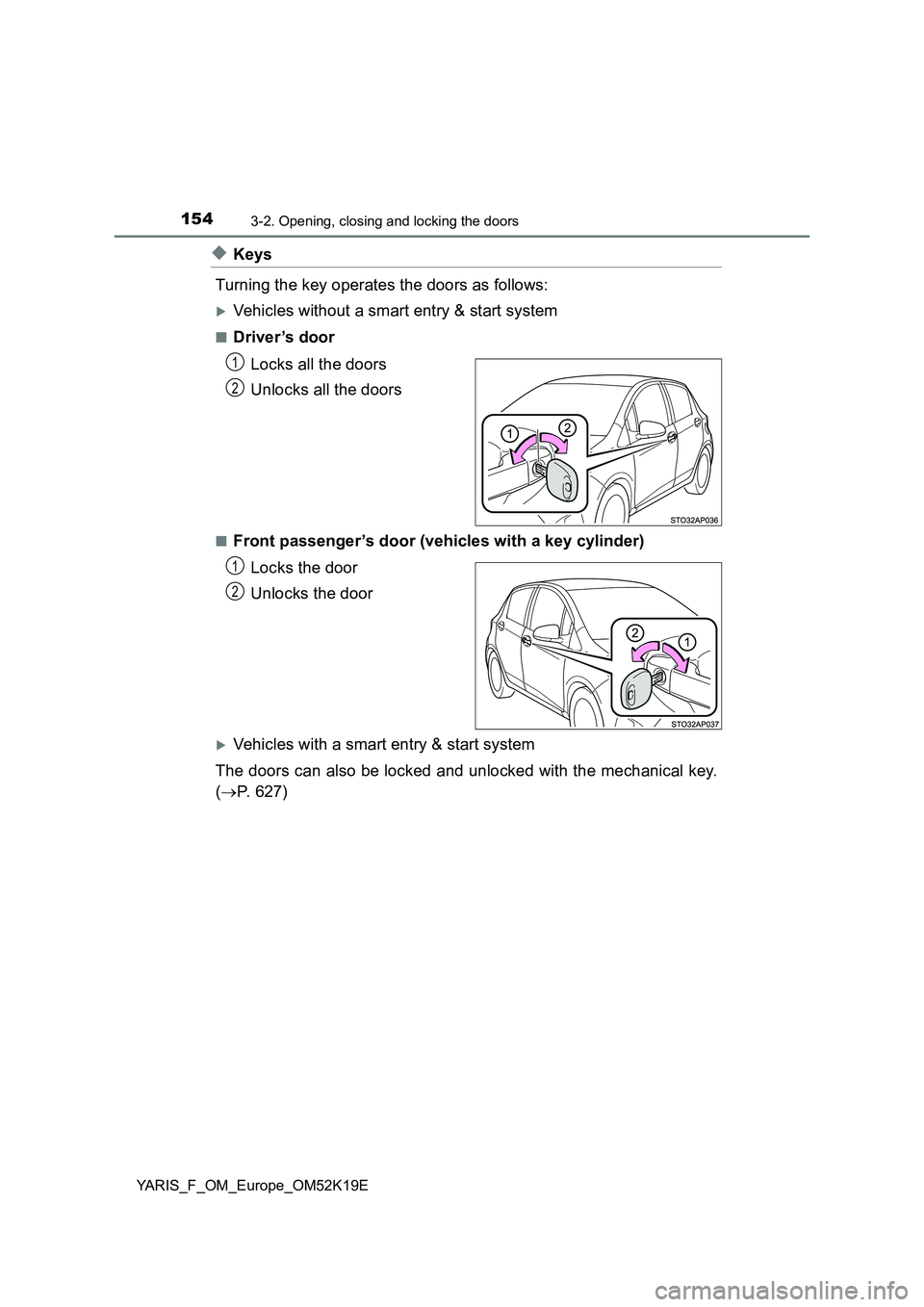

◆Keys
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
■Driver ’s door
Locks all the doors
Unlocks all the doors
■Front passenger’s door (vehicles with a key cylinder)
Locks the door
Unlocks the door
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical key.
( P. 627)
1
2
1
2

1553-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_OM_Europe_OM52K19E
■Operation signals (vehicles with an entry function or wireless remote
control)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature (wireless remote control)
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.)
■ When the door cannot be locked by the lock sensor (vehicles with a
smart entry & start system)
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ If the entry function (vehicles with a smart entry & start system) or the
wireless remote control (if equipped) does not operate properly
● Vehicles without a smart entry & start system: Use the key to lock and
unlock the doors. ( P. 154)
● Vehicles with a smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 627)
● Replace the key battery with a new one if it is depleted. (P. 532)
Use your thumb to push lock sensor.

1563-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52K19E

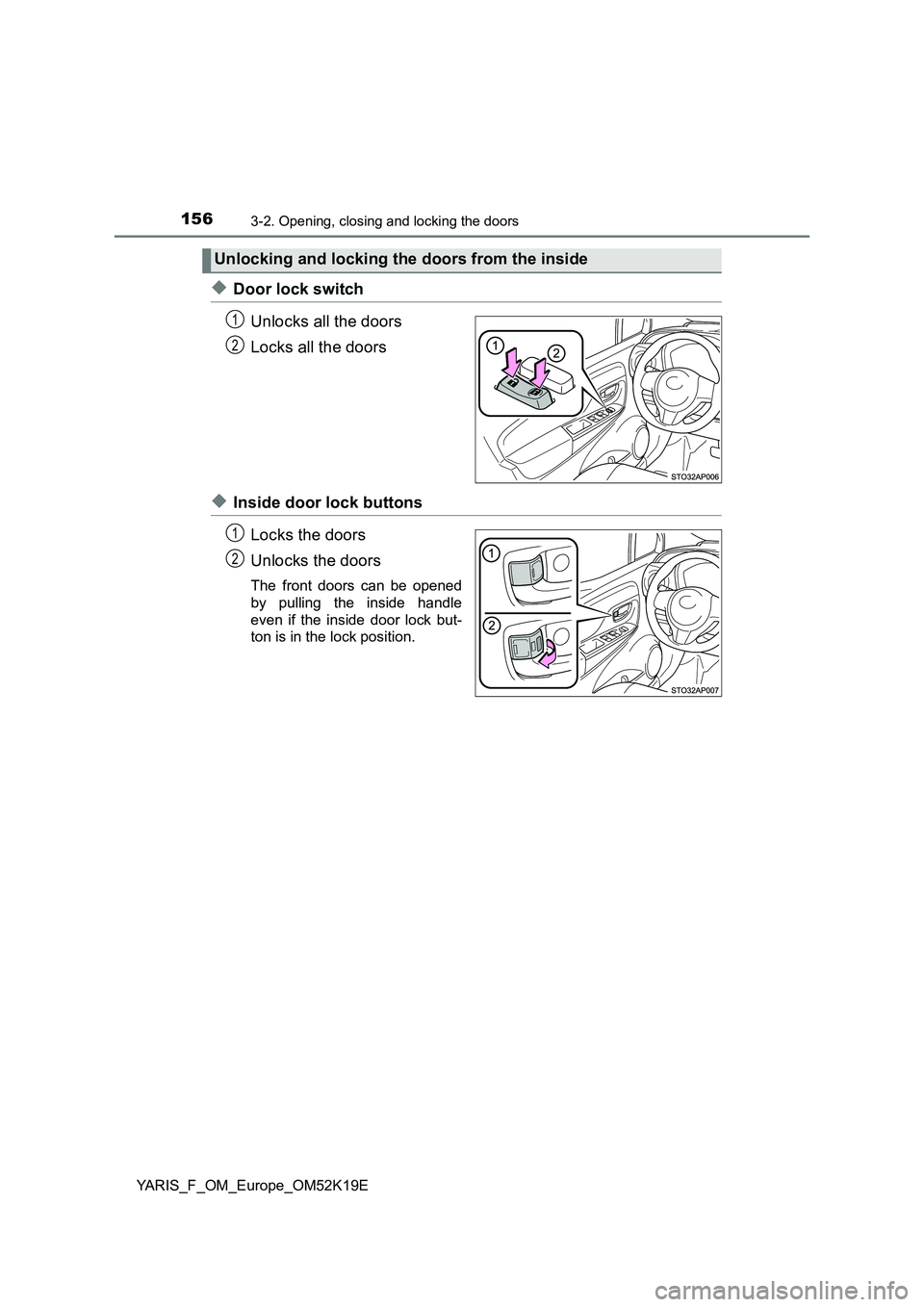

◆Door lock switch
Unlocks all the doors
Locks all the doors
◆Inside door lock buttons
Locks the doors
Unlocks the doors
The front doors can be opened
by pulling the inside handle
even if the inside door lock but-
ton is in the lock position.
Unlocking and locking the doors from the inside
1
2
1
2

1573-2. Opening, closing and locking the doors
3
Operation of each component
YARIS_F_OM_Europe_OM52K19E

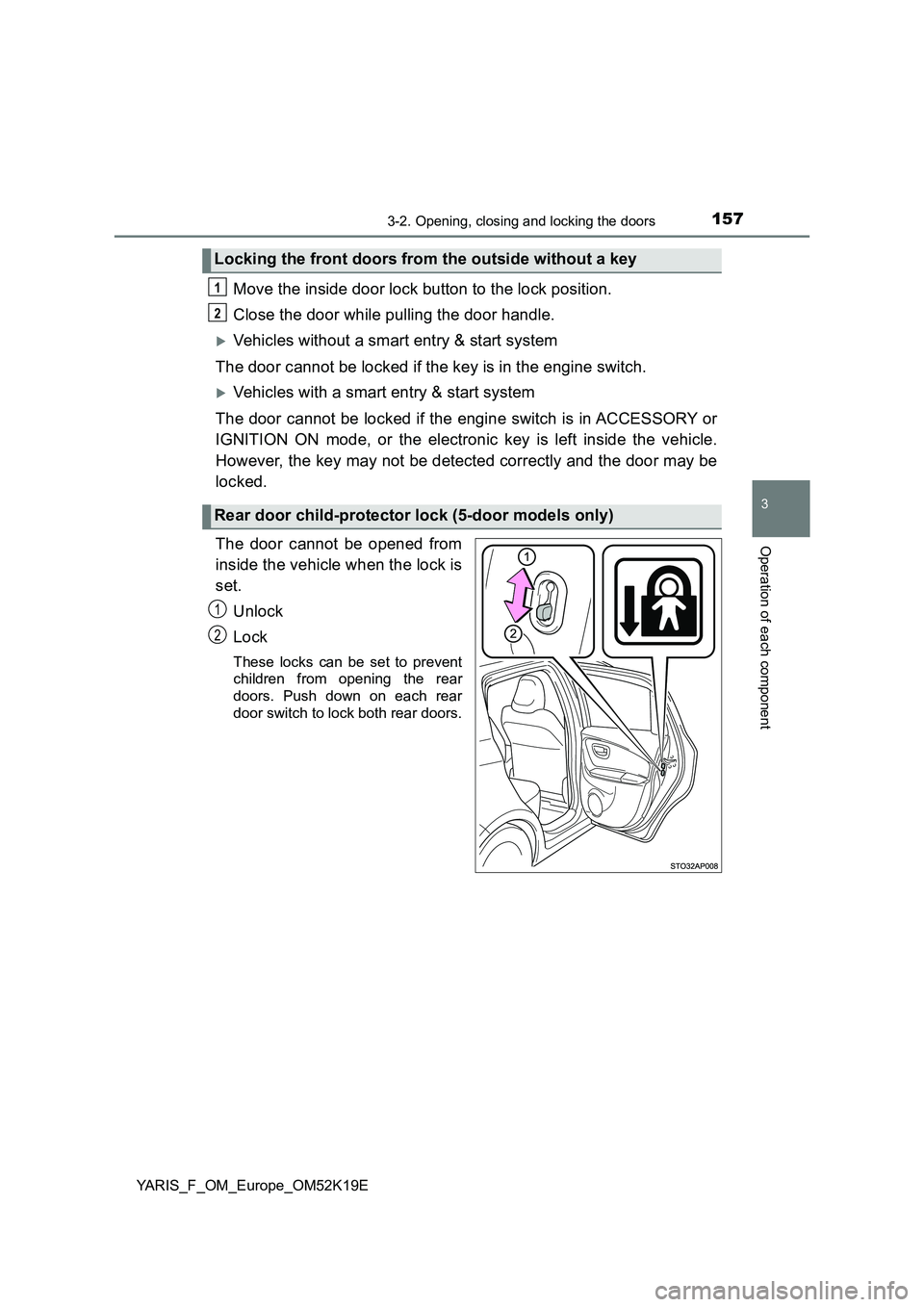

Move the inside door lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
However, the key may not be detected correctly and the door may be
locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock (5-door models only)
1
2
1
2

1583-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52K19E

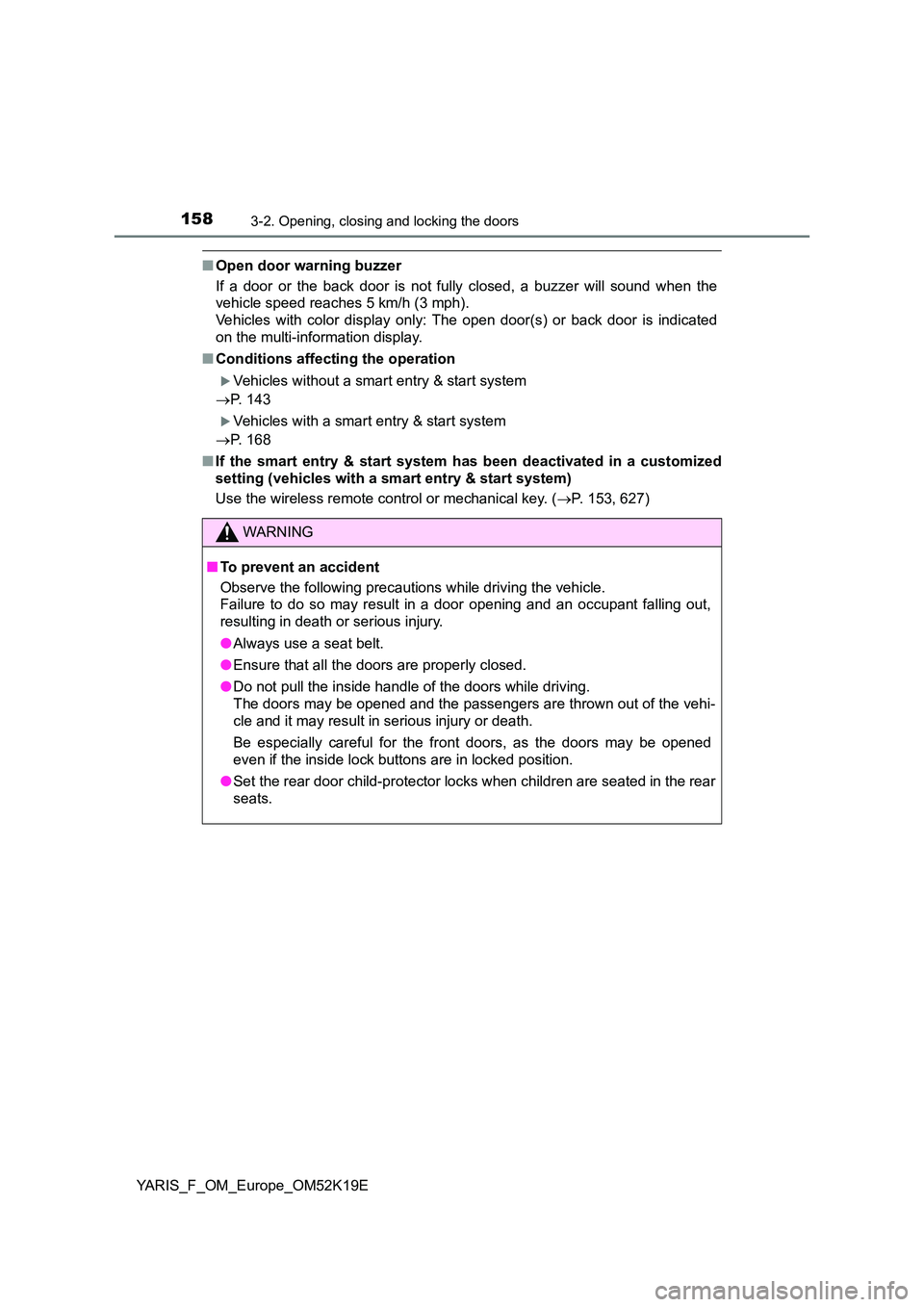

■Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
Vehicles with color display only: T he open door(s) or back door is indicated
on the multi-information display.
■ Conditions affecting the operation
Vehicles without a smart entry & start system
 P. 143
Vehicles with a smart entry & start system
 P. 168
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. ( P. 153, 627)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Ensure that all the doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

159
3
3-2. Opening, closing and locking the doors
Operation of each component
YARIS_F_OM_Europe_OM52K19E

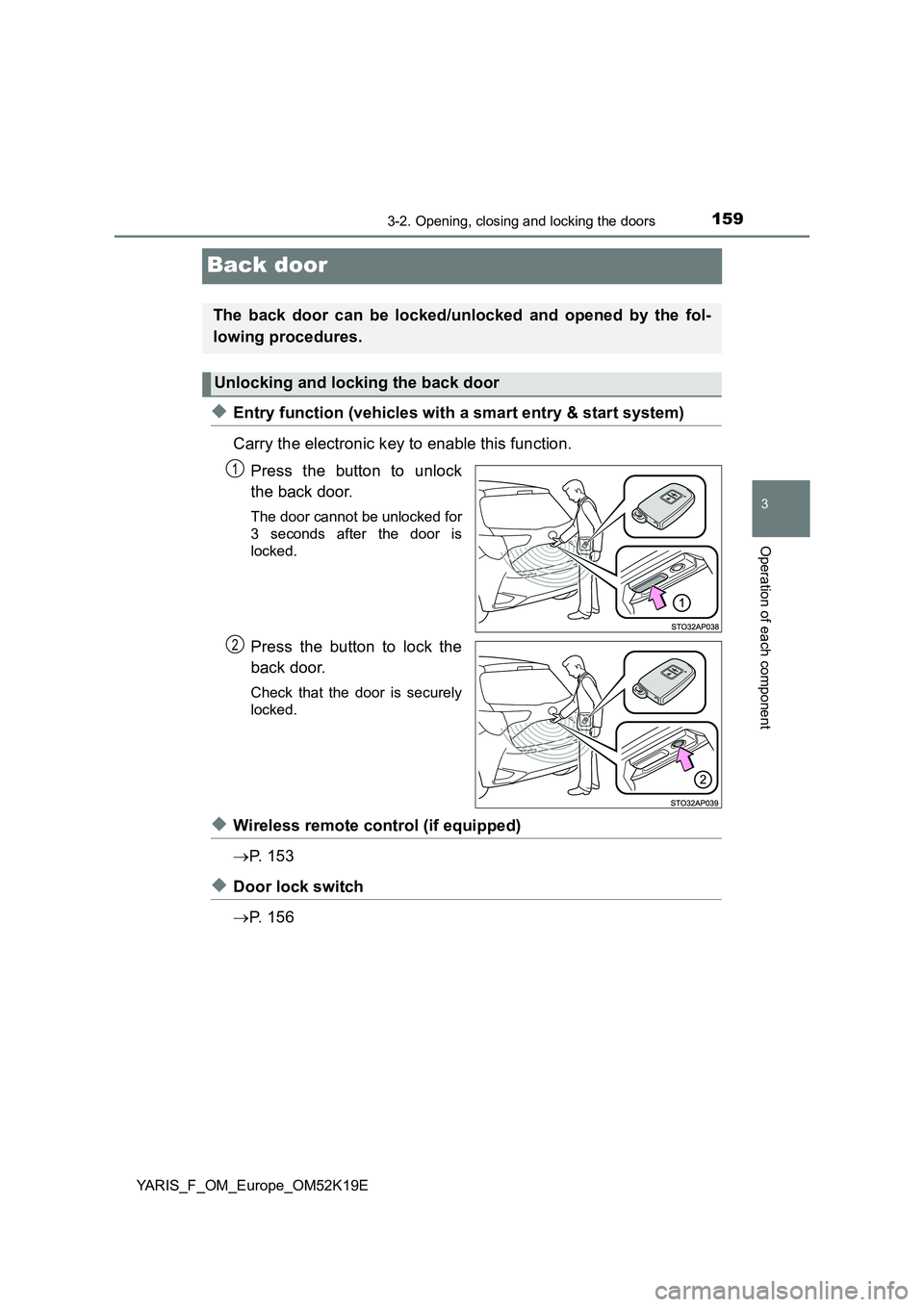

Back door
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Press the button to unlock
the back door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the button to lock the
back door.
Check that the door is securely
locked.
◆Wireless remote control (if equipped)
 P. 1 5 3
◆Door lock switch
 P. 1 5 6
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2

1603-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52K19E

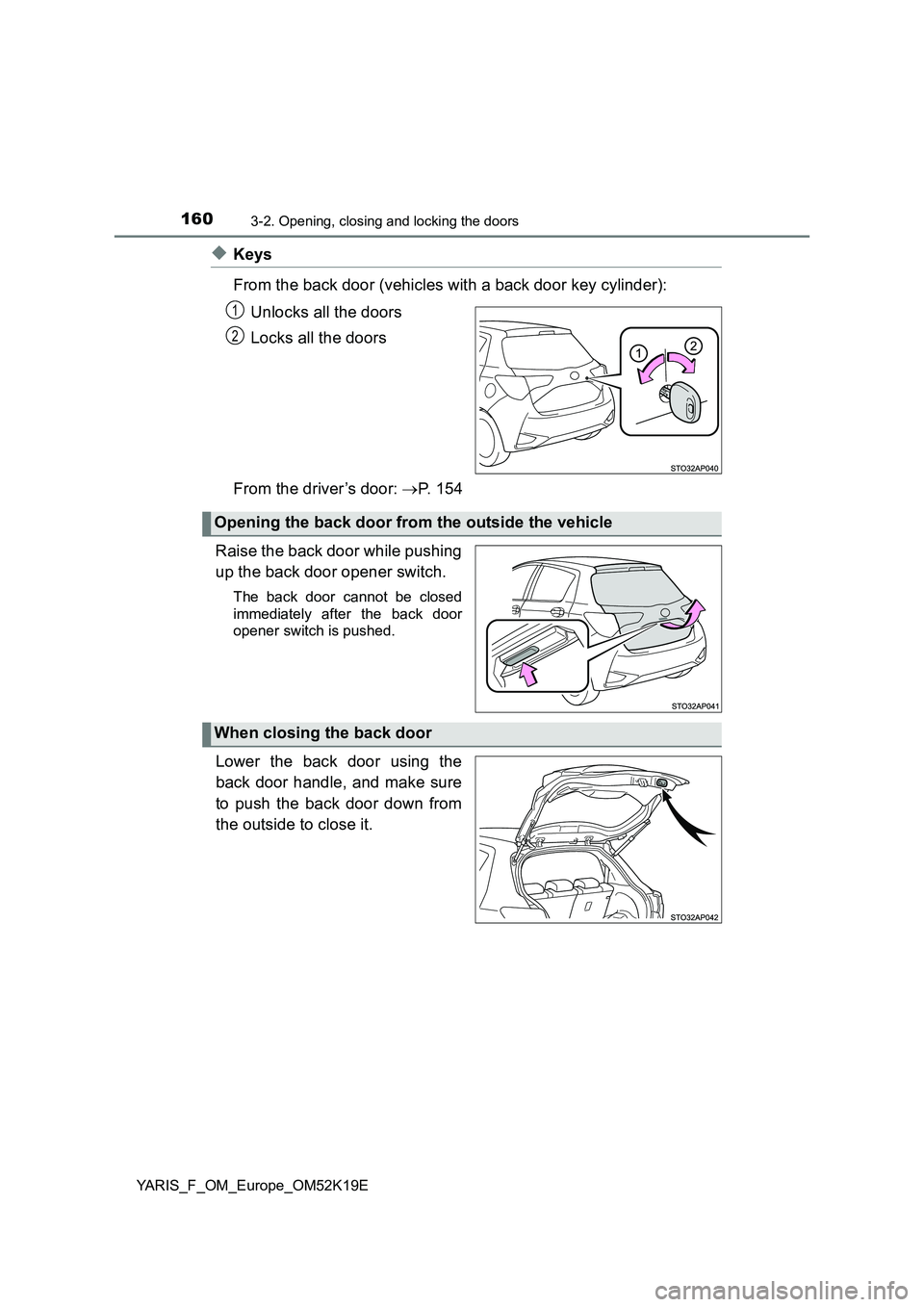

◆Keys
From the back door (vehicles with a back door key cylinder):
Unlocks all the doors
Locks all the doors
From the driver’s door: P. 154
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
1
2
Opening the back door from the outside the vehicle
When closing the back door
