TOYOTA YARIS 2019 Warranties & Maintenance Guides (in English)

40

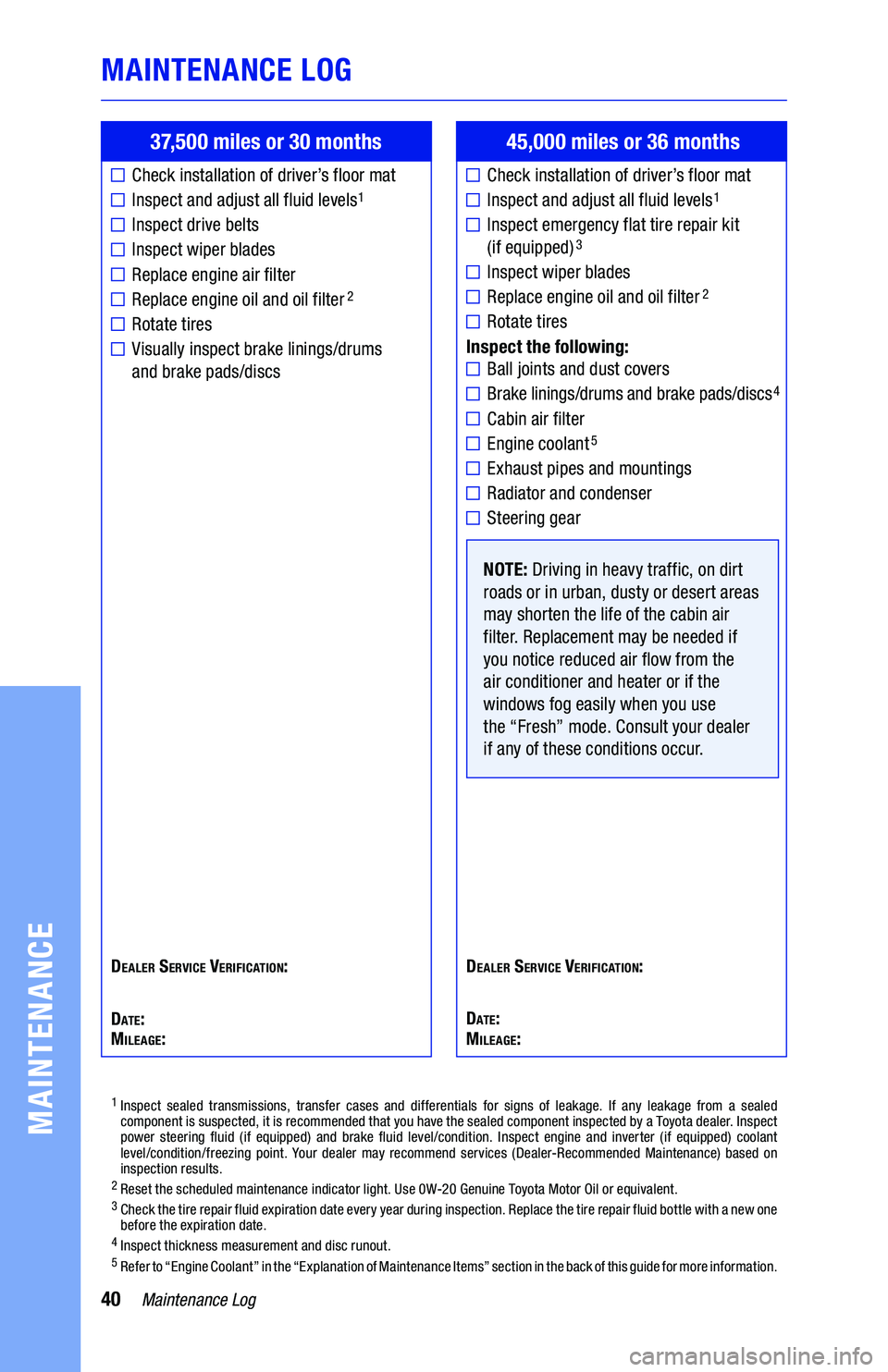

37,500 miles or 30 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect drive belts
Inspect wiper blades
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
45,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
Ball joints and dust covers
Brake linings/drums and brake pads/discs4
Cabin air filter
Engine coolant5
Exhaust pipes and mountings
Radiator and condenser
Steering gear
NOTE: Driving in heavy traffic, on dirt
roads or in urban, dusty or desert areas
may shorten the life of the cabin air
filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use
the “Fresh” mode. Consult your dealer
if any of these conditions occur.
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent.3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 inspect thickness measurement and disc runout.5 refer to

41
52,500 miles or 42 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
60,000 miles or 48 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Tighten nuts and bolts on body
and chassis
Inspect the following:
Ball joints and dust covers
Brake lines and hoses
Brake linings/drums and brake pads/discs4
Drive shaft boots
Emission hoses and tubes
Engine coolant5
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasket
Radiator and condenser
Steering gear
Steering linkage and boots
Transmission fluid or oil
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent.3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 inspect thickness measurement and disc runout.5 refer to

42

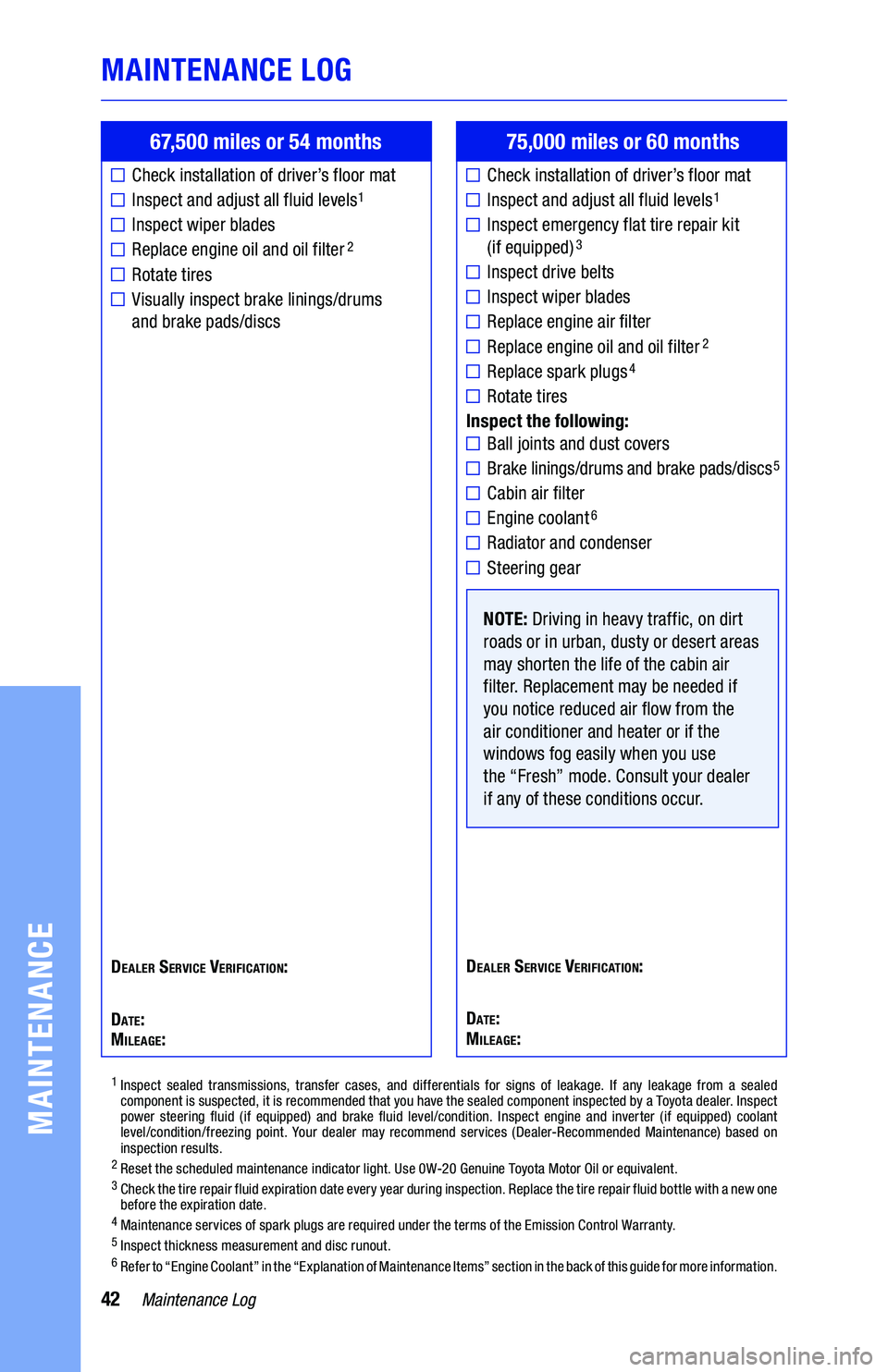

67,500 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
75,000 miles or 60 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect drive belts
Inspect wiper blades
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following:
Ball joints and dust covers
Brake linings/drums and brake pads/discs5
Cabin air filter
Engine coolant6
Radiator and condenser
Steering gear
NOTE: Driving in heavy traffic, on dirt
roads or in urban, dusty or desert areas
may shorten the life of the cabin air
filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use
the “Fresh” mode. Consult your dealer
if any of these conditions occur.
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases, and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent. 3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 Maintenance services of spark plugs are required under the terms of the emission control Warranty. 5 inspect thickness measurement and disc runout.6 refer to

43

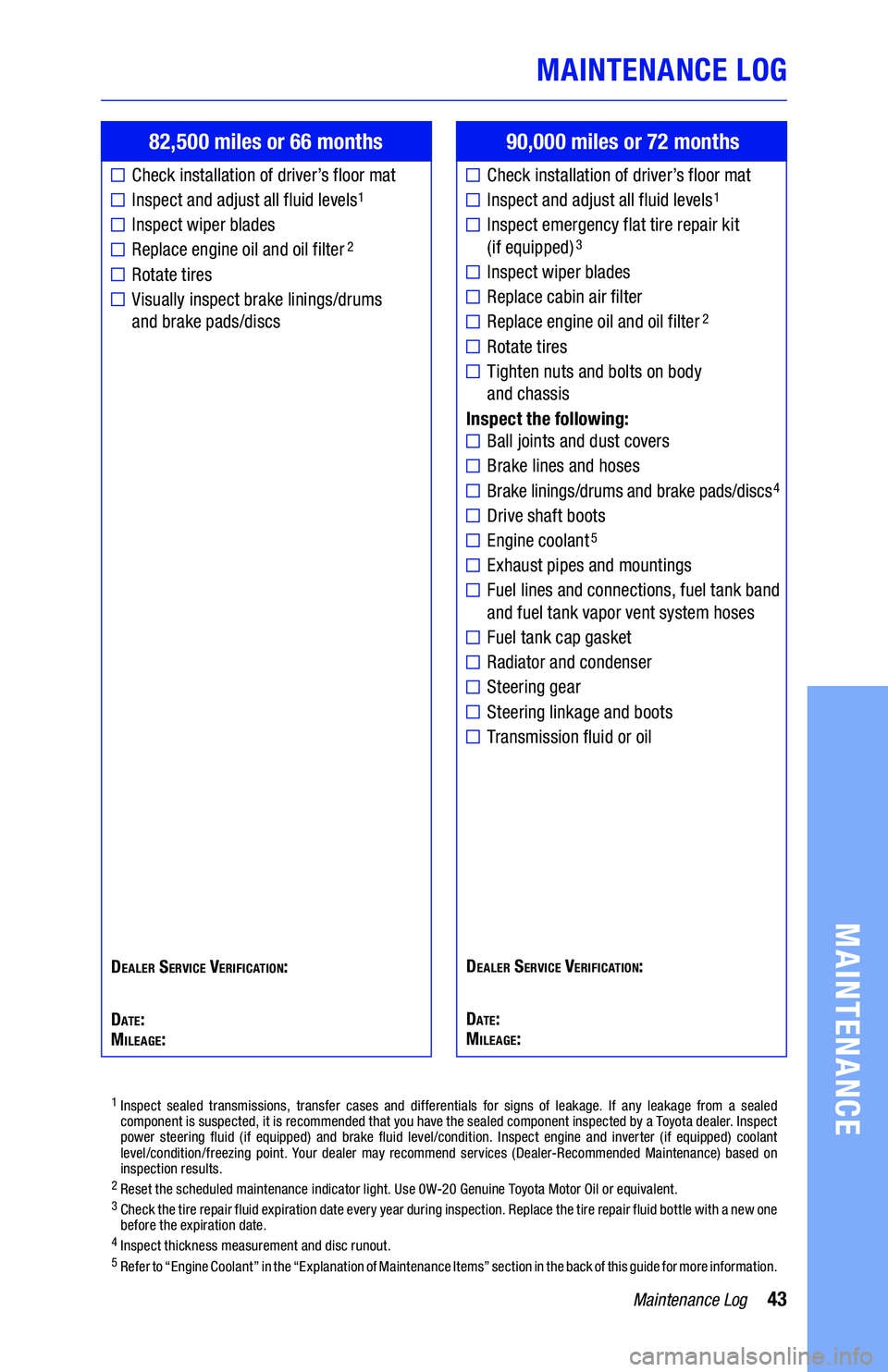

82,500 miles or 66 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
90,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Tighten nuts and bolts on body
and chassis
Inspect the following:
Ball joints and dust covers
Brake lines and hoses
Brake linings/drums and brake pads/discs4
Drive shaft boots
Engine coolant5
Exhaust pipes and mountings Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasket
Radiator and condenser
Steering gear
Steering linkage and boots
Transmission fluid or oil
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent.3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 inspect thickness measurement and disc runout.5 refer to

44
97,500 miles or 78 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
105,000 miles or 84 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
Ball joints and dust covers
Brake linings/drums and brake pads/discs4
Cabin air filter
Engine coolant5
Radiator and condenser
Steering gear
NOTE: Driving in heavy traffic, on dirt
roads or in urban, dusty or desert areas
may shorten the life of the cabin air
filter. Replacement may be needed if
you notice reduced air flow from the
air conditioner and heater or if the
windows fog easily when you use
the “Fresh” mode. Consult your dealer
if any of these conditions occur.
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent.3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 inspect thickness measurement and disc runout.5 refer to

45
112,500 miles or 90 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect drive belts
Inspect wiper blades
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Dealer Service verification:
D
ate:
Mileage:
120,000 miles or 96 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect emergency flat tire repair kit
(if equipped)3
Inspect wiper blades
Replace cabin air filter
Replace engine coolant4
Replace engine oil and oil filter2
Rotate tires
Tighten nuts and bolts on body
and chassis
Inspect the following:
Ball joints and dust covers
Brake lines and hoses
Brake linings/drums and brake pads/discs5
Drive shaft boots
Emission hoses and tubes Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Fuel tank cap gasket
Radiator and condenser
Steering gear
Steering linkage and boots
Transmission fluid or oil
Dealer Service verification:
D
ate:
Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2 reset the scheduled maintenance indicator light. Use 0W-20 genuine toyota Motor oil or equivalent. 3 check the tire repair fluid expiration date every year during inspection. replace the tire repair fluid bottle with a new one before the expiration date.
4 NOTE: Initial replacement at 120,000 miles/120 months. Replace every 60,000 miles/60 months thereafter. Refer
to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
5 Inspect thickness measurement and disc runout.
Maintenance Log
MAINTENANCE LOG
MAINTENANCE

46

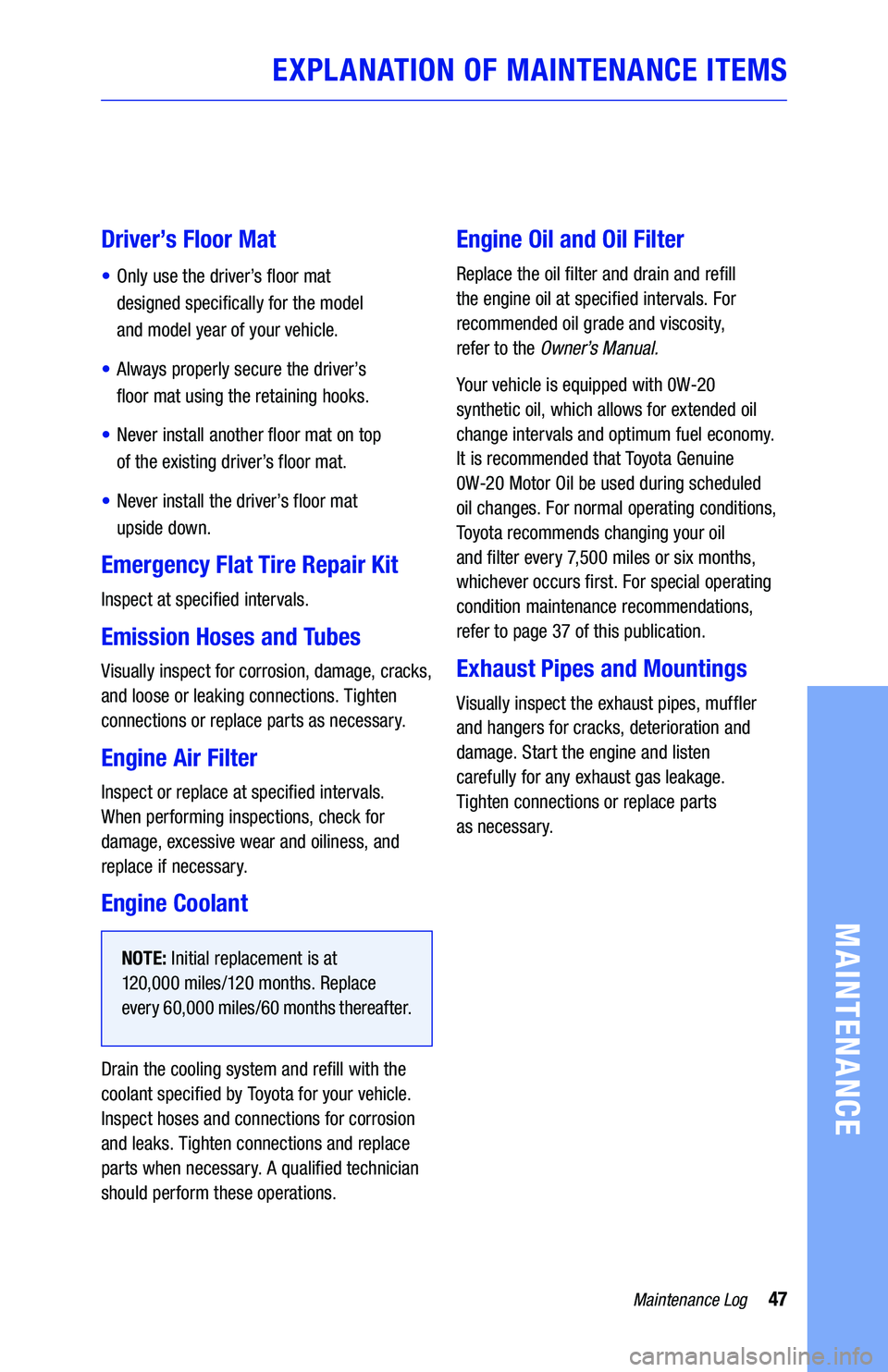

EXPLANATION OF MAINTENANCE ITEMS
T
he following descriptions are
provided to give you a better
u
nderstanding of the maintenance
items that should be performed on your
v
ehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified technician.
NOTE: For further information on
maintenance items you can perform
yourself, see the “Maintenance and
Care” section of the Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage and the wheel bearings for
axial play. Check all dust covers for
deterioration and damage. Replace
any deteriorated or damaged parts.
A qualified technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may
be necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they
are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified
technician should perform these operations.
Maintenance Log
MAINTENANCE

47
EXPLANATION OF MAINTENANCE ITEMS
Driver’s Floor Mat
• Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
•

A

lways properly secure the driver’s
floor mat using the retaining hooks.
•

N

ever install another floor mat on top
of the existing driver’s floor mat.
•

N

ever install the driver’s floor mat
upside down.
Emergency Flat Tire Repair Kit
Inspect at specified intervals.
Emission Hoses and Tubes
Visually inspect for corrosion, damage, cracks,
and loose or leaking connections. Tighten
connections or replace parts as necessary.
Engine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Engine Coolant
NOTE: Initial replacement is at
120,000 miles /120 months. Replace
every 60,000 miles/60 months thereafter.
Drain the cooling system and refill with the
coolant specified by Toyota for your vehicle.
Inspect hoses and connections for corrosion
and leaks. Tighten connections and replace
parts when necessary. A qualified technician
should perform these operations.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
Your vehicle is equipped with 0W-20
synthetic oil, which allows for extended oil
change intervals and optimum fuel economy.
It is recommended that Toyota Genuine
0W-20 Motor Oil be used during scheduled
oil changes. For normal operating conditions,
Toyota recommends changing your oil
and filter every 7,500 miles or six months,
whichever occurs first. For special operating
condition maintenance recommendations,
refer to page 37 of this publication.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Maintenance Log
MAINTENANCE

48

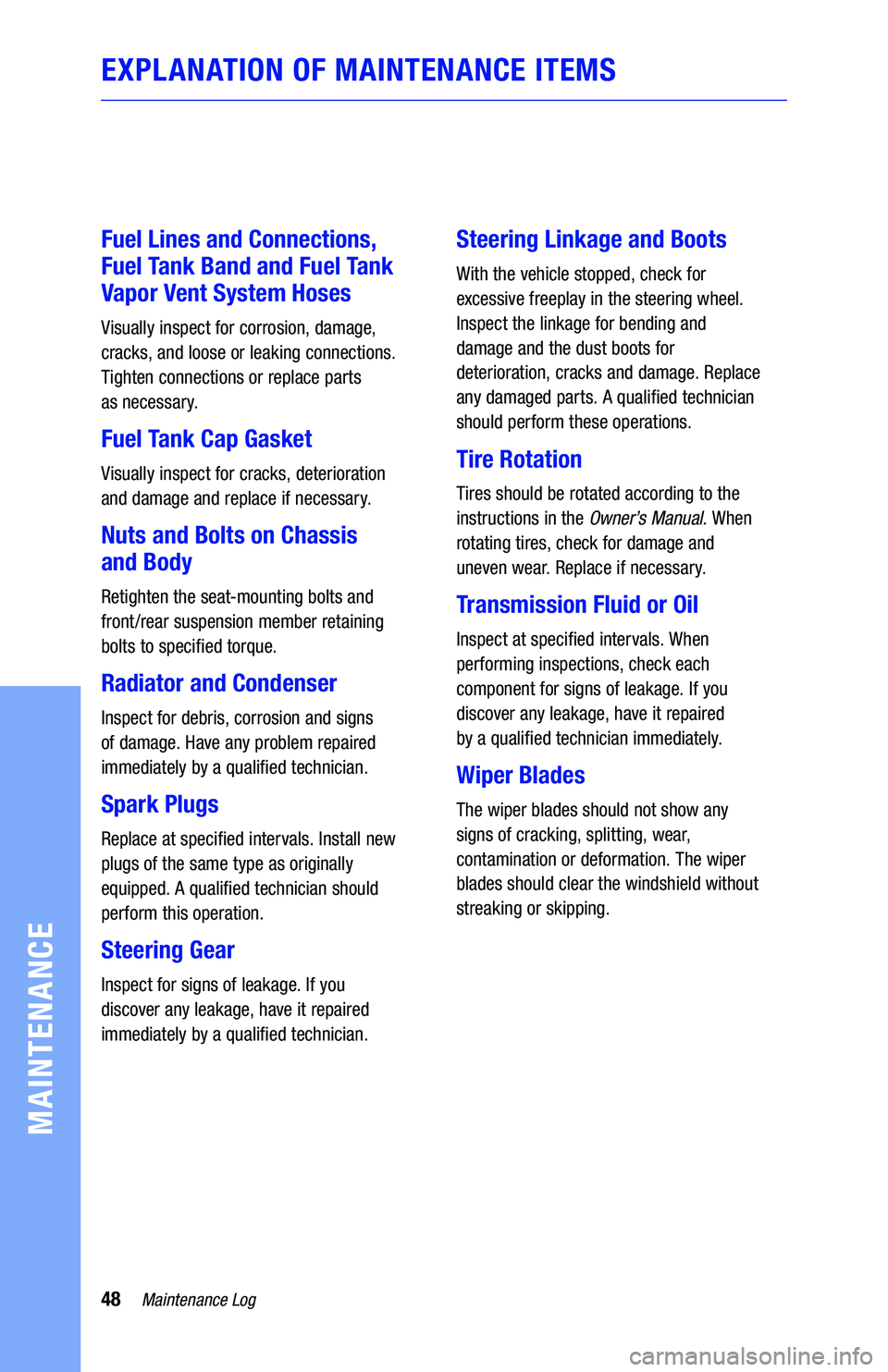

Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect at specified intervals. When
performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired
by a qualified technician immediately.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log
MAINTENANCE

49
VEHICLE IDENTIFICATION
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number
Maintenance Log
MAINTENANCE
