TOYOTA YARIS 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
912-1. Keys
2
Before Driving
●The driver must carry the key to ensure the system functions properly.
● Always keep a spare key in case one is lost. If a key is lost, consult your
Toyota dealer as soon as possible.
WARNING
■Do not leave the key in your vehi cle with children and keep them in a
place where your children will not find or play with them
Leaving children in a vehicle with the key is dangerous. This c ould result in
someone being badly injured or even killed. Children may find these keys to
be an interesting toy to play with and could cause the power wi ndows or
other controls to operate, or even make the vehicle move.
NOTICE
● Because the key (smart key) uses low-intensity radio waves, it may not
function correctly under the following conditions:
• The key is carried with communication devices such as cellular phones.
• The key contacts or is covered by a metal object.
• The key is near electronic devices such as personal computers.
• Non-Toyota genuine electronic equipment is installed in the ve hicle.
• There is equipment which discharges radio waves near the vehic le.
● The key (smart key) may consume battery power excessively if it receives
high-intensity radio waves. Do not place the key near electronic devices
such as televisions or personal computers.
● To avoid damage to the key (smart key), DO NOT:
• Drop the key.
• Get the key wet.
• Disassemble the key.
• Expose the key to high temperatures on places such as the dash board
or hood, under direct sunlight.
• Expose the key to any kind of magnetic field.
• Place heavy objects on the key.
• Put the key in an ultrasonic cleaner.
• Put any magnetized objects close to the key.

92
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-1. Keys
Keyless Entr y System
It can also help you signal for attention.
Operating the theft deterrent s ystem is also possible on theft deterrent
system-equipped vehicles.
Press the buttons slo wly and carefully.
System malfunctions or warnings a re indicated by the following warn-
ing lights or beeps.
● KEY Warning Light (Red)
Refer to Warning/Indi cator Lights on P. 173.
● Ignition Not Switched O ff (STOP) Warning Beep
Refer to Ignition Not Switched Off (STOP) Warning Beep on P. 504.
● Key Removed from Vehicle Warning Beep
Refer to Key Removed from Ve hicle Warning Beep on P. 504.
If you have a problem with the key, consult your Toyota dealer.
If your key is lost or stolen, consult your Toyota dealer as soon as pos-
sible for a replacement and to make the lost or stolen key inop erative.
This system uses the key buttons to remotely lock and unlock
the doors and the liftgate, and opens the trunk lid.
The system can start the engine without having to take the key
out of your purse or pocket.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
932-1. Keys
2
Before Driving
●The keyless entry system operation may vary due to local conditions.
● The keyless entry system is fully operational (door/liftgate lo ck/unlock) when
the ignition is switched off. The system does not operate if th e ignition is
switched to any position other than off.
● If the key does not operate when pressing a button or the opera tional range
becomes too small, the battery may be dead. To install a new ba ttery, refer
to Key Battery Replacement ( P. 410).
● Additional keys can be obtained at your Toyota dealer. Up to 6 keys can be
used with the keyless functions per vehicle. Bring all keys to your Toyota
dealer when additional keys are required.
Operation indicator light
Operation buttons
The operation indicator light
flashes when the buttons are
pressed.
● Battery life is about one year. Replace
the battery with a new one if the KEY
indicator light (green) flashes in the com-
bination meter. Replacing the battery
about once a year is recommended
because the KEY warning light/indicator
light may not illuminate or flash depend-
ing on the rate of battery depletion.
NOTICE
Radio equipment like this is governed by laws in the United Sta tes.
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.
Smart Key
1
2

94
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-1. Keys
■Lock button
To lock the doors and the lift-
gate, press the lock button and
the hazard warning lights will
flash once.
With the advanced keyless
function:
A beep sound will be heard
once.
To confirm that all doors and the liftgate have been locked, pr ess
the lock button again within 5 seconds. If they are closed and
locked, the horn will sound.
■Unlock button
To unlock the driver’s door,
press the unlock button and the
hazard warning lights will flash
twice.
With the advanced keyless
function:
A beep sound will be heard
twice.
To unlock all doors and the liftgate, press the unlock button a gain
within three seconds and two more beep sounds will be heard.
■Trunk button (4-Door)
To open the trunk lid, press and
hold the trunk button until the
trunk lid opens.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
952-1. Keys
2
Before Driving
■Panic button
If you witness from a distance
someone attempting to break
into or damage your vehicle,
press and hold the panic button
to activate the vehicle’s alarm.
Call emergency services if nec-
essary.
●Turning on the alarm
Pressing the panic button for 1 second or longer will trigger t he
alarm for about 2 minutes and 30 seconds, and the following wil l
occur: • The horn sounds intermittently.
• The hazard warning lights flash.
● Turning off the alarm
The alarm stops by pressing any button on the key.

96
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-1. Keys
■Smart Key
●With theft deterrent system:
The hazard warning lights flash when the theft deterrent system is armed or
turned off.
Refer to Theft Deterrent System on P. 138.
● With the advanced keyless function:
A beep sound can be heard for confirmation when the doors and t he liftgate
are locked/unlocked using the key. If you prefer, the beep sound can be
turned off. The volume of the beep sound can also be changed.
Refer to Customizable Features on P. 555.
Use the following procedure to change the setting.
Switch the ignition off and close all of the doors and the lift gate/trunk lid.
Open the driver’s door.
Within 30 seconds of opening the driver’s door, press and hold the LOCK
button on the key for 5 seconds or longer (All of the doors and the liftgate
are locked and unlocked when the LOCK button on the key is pressed
and held for 5 seconds.).
The beep sound activates at the currently set volume. The setting
changes each time the LOCK button on the key is pressed and the beep
sound activates at the set volume. (If the beep sound has been set to not
activate, it will not activate.)
The setting change is completed by doing any one of the followi ng:
• Switching the ignition to ACC or ON.
• Closing the driver’s door.
• Opening the liftgate/trunk lid.
• Not operating the key for 10 seconds.
• Pressing any button except the LOCK button on the key.
• Pressing a request switch.
■ Lock button
●The doors and the liftgate can be locked by pressing the lock b utton while
any other door or the liftgate/trunk lid is open. The hazard wa rning lights will
not flash.
● When the lock button is pressed while any door is open and then the door is
closed, all the doors and the liftgate are locked.
● Confirm that all doors and the liftgate are locked visually or audibly by use of
the double click.
● Make sure all doors and the liftgate are locked after pressing the button.
● With theft deterrent system:
When the doors are locked by pressing the lock button on the key while the
theft deterrent system is armed, the hazard warning lights will flash once to
indicate that the system is armed.
1
2
3
4

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
972-1. Keys
2
Before Driving
■Unlock button
●The system can be set to unlock all doors by performing a single operation.
Refer to Customizable Features on P. 555.
Use the following procedure to change the setting.
Switch the ignition off and close all of the doors and the lift gate/trunk lid.
Open the driver’s door
Within 30 seconds of opening the driver’s door, press and hold the
UNLOCK button on the key for 5 seconds or longer (the sound of the
doors locking/unlocking can be heard).
After this, the system switches the setting each time the UNLOC K button
is pressed (the sound of the doors locking/unlocking can be hea rd).
The setting change is completed by doing any one of the followi ng:
• Switching the ignition to ACC or ON.
• Closing the driver’s door.
• Opening the liftgate/trunk lid.
• Not operating the key for 10 seconds.
• Pressing any button except the UNLOCK button on the key.
• Pressing a request switch.
● Auto re-lock function:
After unlocking with the key, all doors and the liftgate will a utomatically lock
if any of the following operations are not performed within about 60 sec-
onds. If your vehicle has a theft deterrent system, the hazard warning lights
will flash for confirmation.
The time required for the doors to lock automatically can be ch anged.
Refer to Customizable Features on P. 555.
• A door or the liftgate/trunk lid is opened.
• The ignition is switched to any position other than off.
● With theft deterrent system:
When the doors are unlocked by pressing the unlock button on th e key while
the theft deterrent system is turned off, the hazard warning li ghts will flash
twice to indicate that the system is turned off.
■ Panic button
The panic button will work whether any door or the liftgate/tru nk lid is open or
closed.
1
2
3
4

98
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-1. Keys
The system operates only when the driver is in the vehicle or within
operational range while the key is being carried.
■Starting the Engine
● Starting the engine may be possible even if the key is outside of the vehicle
and extremely close to a door and window, however, always start the engine
from the driver’s seat.
If the vehicle is started and the key is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition is switched to of f.
● The luggage compartment/trunk is out of the assured operational range,
however, if the key (smart key) is operable the engine will sta rt.
● The engine may not start if the key is placed in the following areas:
• Around the dashboard
• In the storage compartments such as the glove compartment
• On the rear parcel shelf (4-door)
If a key is left in the vehicle, the functions of the key left in the vehicle
are temporarily suspended to pr event theft of the vehicle.
To restore the functions, press the unlock button on the functi ons-sus-
pended key in the vehicle.

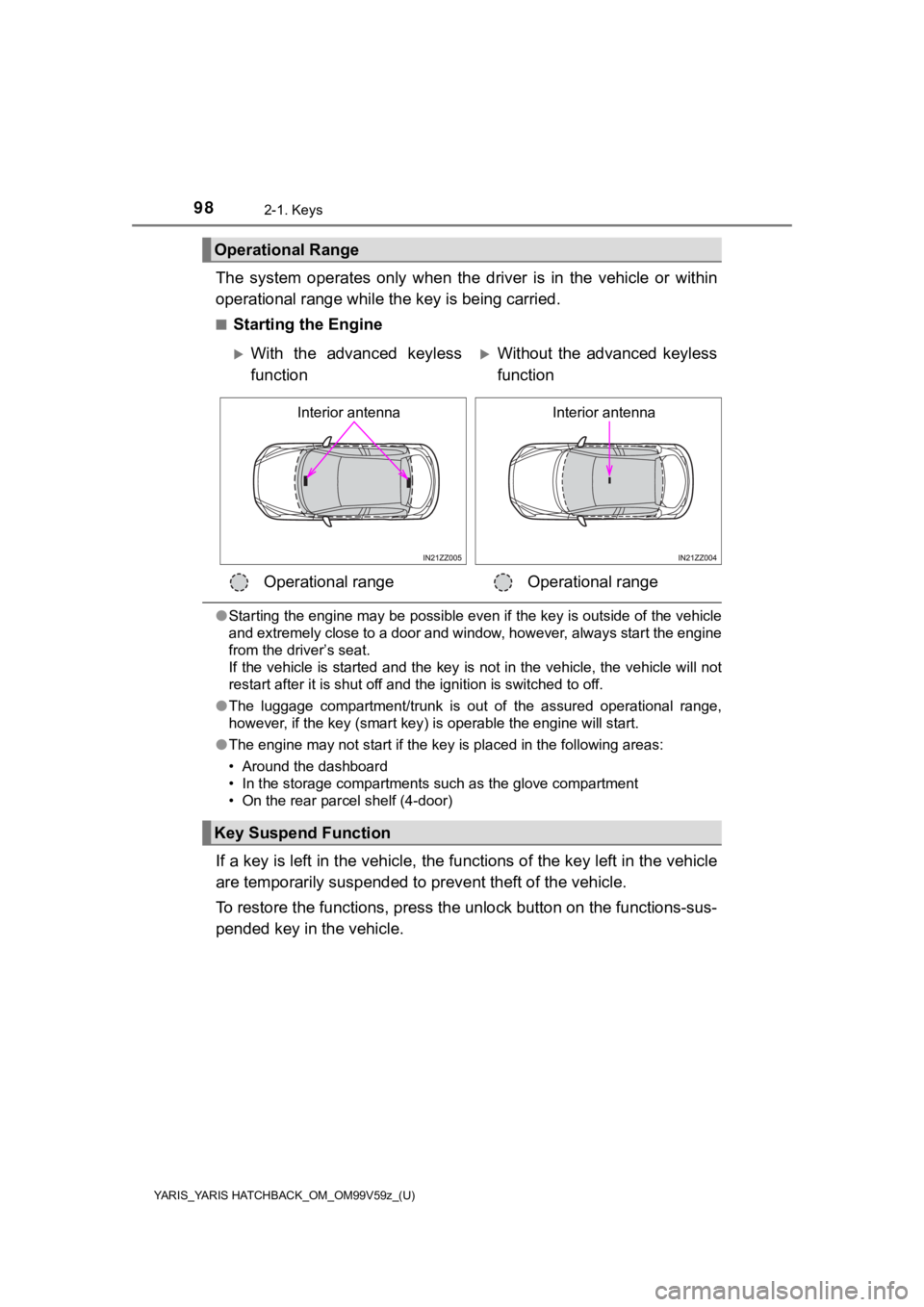

Operational Range
With the advanced keyless
functionWithout the advanced keyless
function
Operational range Operational range
Key Suspend Function
Interior antennaInterior antenna

99
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-2. Advanced Keyless Entry System
2
Before Driving
Advanced Keyless Entr y System
System malfunctions or warnings are indicated by the following warn-
ing lights or beeps.
● Request switch Inoperable Warning Beep
Refer to Request Switch Inoperable Warning Beep (With the
advanced keyless function) on P. 504.
● Key Left-in-luggage Compartment/Trunk Warning Beep
Refer to Key Left-in-luggage Co mpartment/Trunk Warning Beep
(With the advanced keyl ess function) on P. 504.
● Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warn ing Beep (With the advanced key-
less function) on P. 505.
The advanced keyless entry system functions can be deactivated to prevent
any possible adverse effect on a user wearing a pacemaker or ot her medical
device. If the system is deactivated, you will be unable to start the engine by
carrying the key. Consult your Toyota dealer for details. If th e advanced key-
less entry system has been deactivated, you can start the engin e by following
the procedure indicated when the key battery goes dead.
Refer to Engine Start Function When Key Battery is Dead on P. 1 61.
: If equipped
The advanced keyless function allows you to lock/unlock the
door and the liftgate or open the liftgate/trunk lid while carrying
the key.
WARNING
■ Radio waves from the key may affect medical devices such as pac e-
makers
Before using the key near people who use medical devices, ask t he medical
device manufacturer or your physician if radio waves from the key will affect
the device.

100
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-2. Advanced Keyless Entry System
The system operates only when the driver is in the vehicle or w ithin
operational range while the key is being carried.
■Locking, Unlocking the D oors and the Liftgate
Operational range
■Opening the Liftgate/Trunk Lid Operational range
●When the battery power is low, or in places where there are hig h-intensity
radio waves or noise, the operational range may become narrower or the
system may not operate. For determining battery replacement, Re fer to
Keyless Entry System on P. 92.
● The system may not operate if you are too close to the windows or door
handles.
● If the key is left in the following areas and you leave the vehicle, the doors
may be locked depending on the radio wave conditions even if th e key is left
in the vehicle.
• Around the dashboard
• In the storage compartments such as the glove compartment or the cen- ter console
• On the rear parcel shelf (4–door)
• Next to a communication device such as a mobile phone
Operational Range
Exterior antenna
31 in. (800 mm)
31 in. (800 mm)
Exterior antenna
31 in. (800 mm)
