TOYOTA YARIS 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

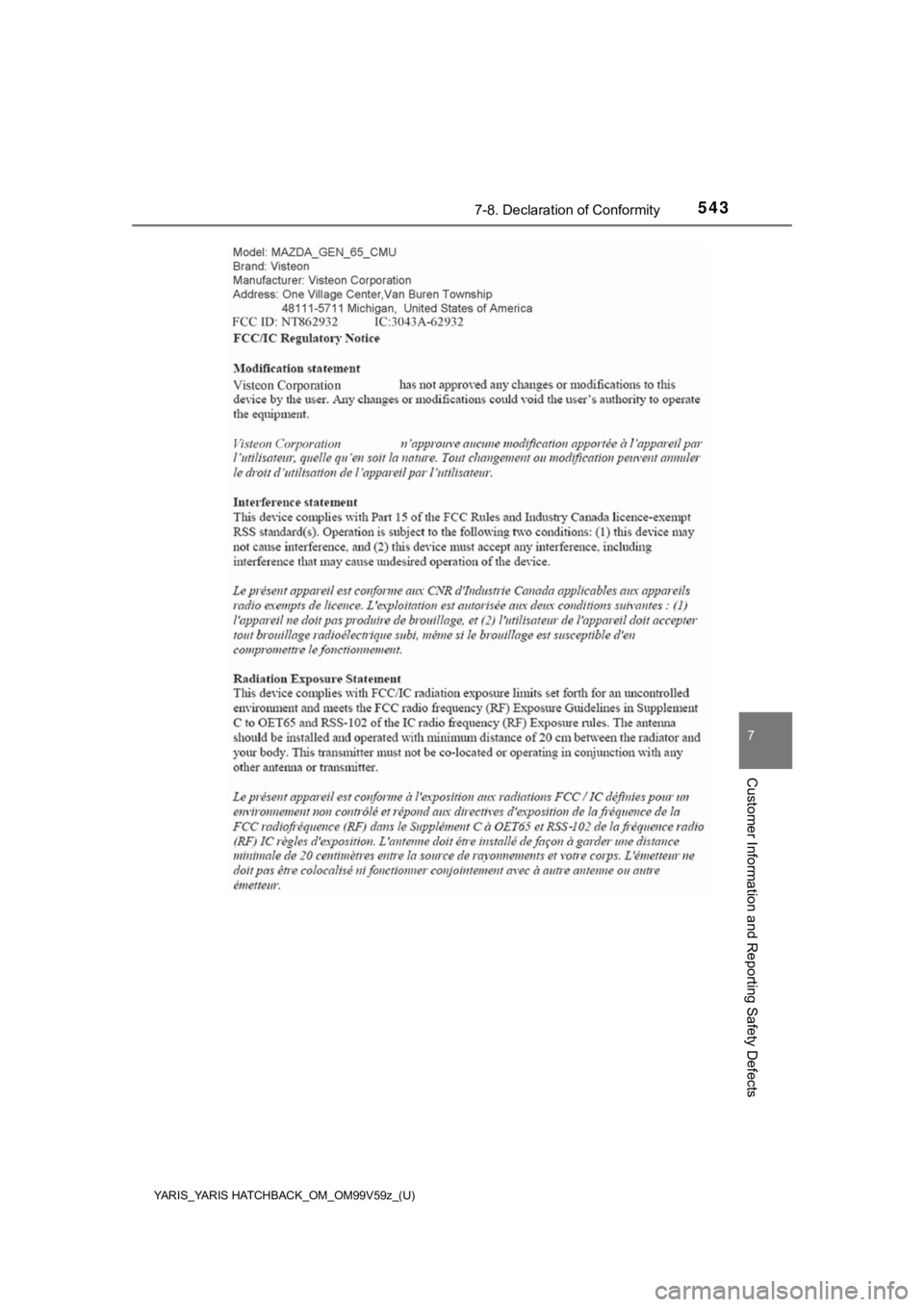

5417-8. Declaration of Conformity
7
Customer Information and Reporting Safety Defects

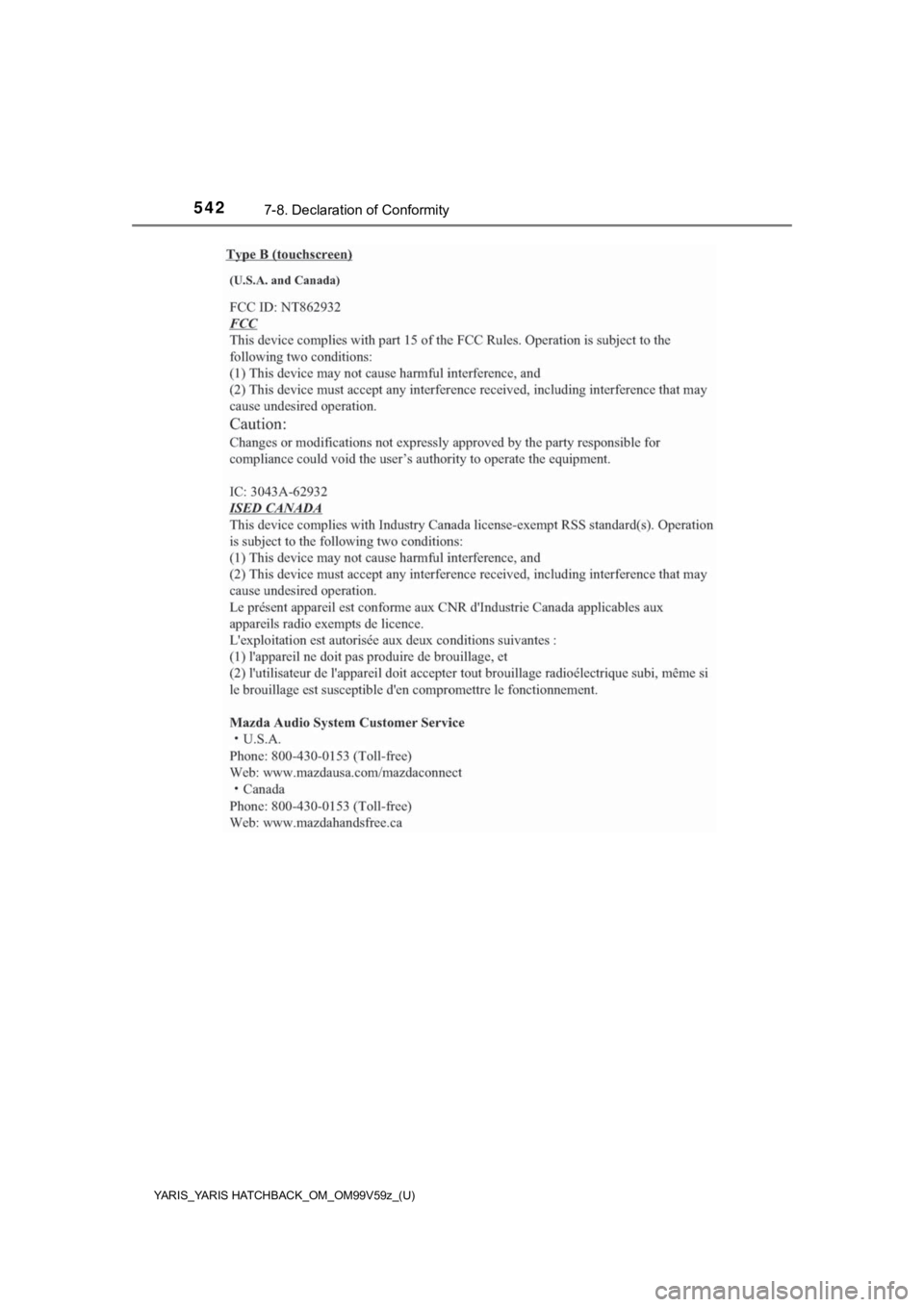

Audio System

542
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
7-8. Declaration of Conformity

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5437-8. Declaration of Conformity
7
Customer Information and Reporting Safety Defects

544
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
7-8. Declaration of Conformity

545
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8Specifications
8-1. Identification NumbersVehicle Information Labels ............................. 546
8-2. Specifications Specifications .................... 548
8-3. Customizable Features Customizable Features.......................... 555

546
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8-1. Identification Numbers
Vehicle Information Labels
The vehicle identification number
legally identifies your vehicle. The
number is on a plate attached to
the cowl panel located on the left
corner of the dashboard. This
plate can easily be seen through
the windshield.
Open the cover shown in the fig-
ure to check the chassis number.
Vehicle Identification Number
Motor Vehicle Safety Standard Label
Chassis Number

5478-1. Identification Numbers
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8
Specifications
Vehicle Emission Control Information Label
Tire Pressure Label
Engine Number
Forward

548
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8-2. Specifications
Specifications
*: The spark plugs provide the engine its optimum performance. Consult your
Toyota dealer for details.
Engine
ItemSpecification
Ty p eDOHC-16V in-line, 4-cylinder
Bore  Stroke2.93  3.38 in. (74.5  85.8 mm)
Displacement1,496.1 ml (1,496.1 cc)
Compression ratio12.0
Electrical System
ItemClassification
Battery12V-60Ah/20HR
Spark-plug numberspark plug required*P51R-18-110
NOTICE
When cleaning the iridium plugs, do not use a wire brush. The f ine particu-
late coating on the iridium alloy and platinum tips could be da maged.

5498-2. Specifications
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8
Specifications
Refer to Introduction on P. 386 for owner’s responsibility in protecting your
investment.
Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.

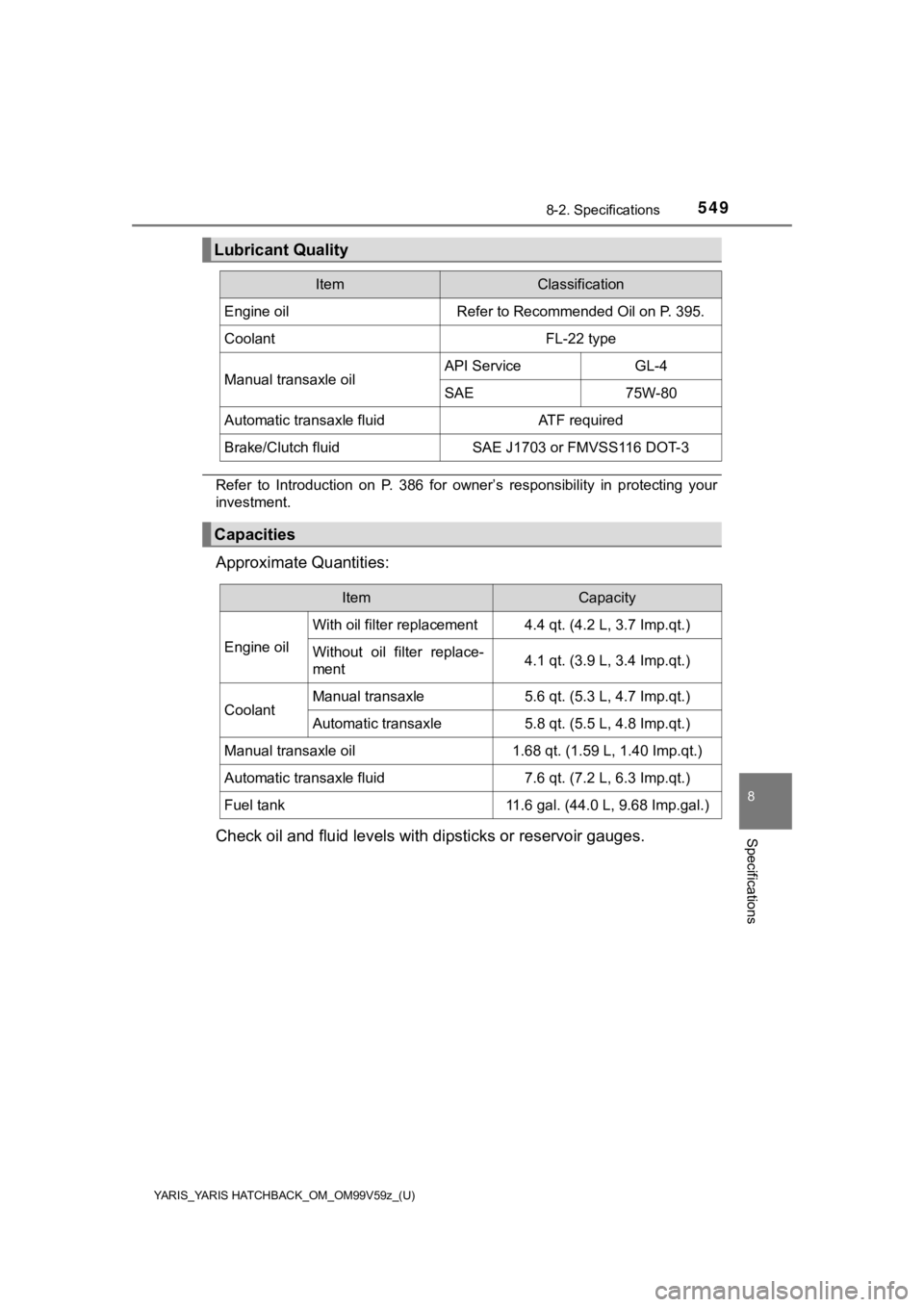

Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 395.
CoolantFL-22 type
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.6 qt. (5.3 L, 4.7 Imp.qt.)
Automatic transaxle5.8 qt. (5.5 L, 4.8 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)

5508-2. Specifications
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-Door
5-Door
*: The overall height is categorized according to the antenna type as follows:

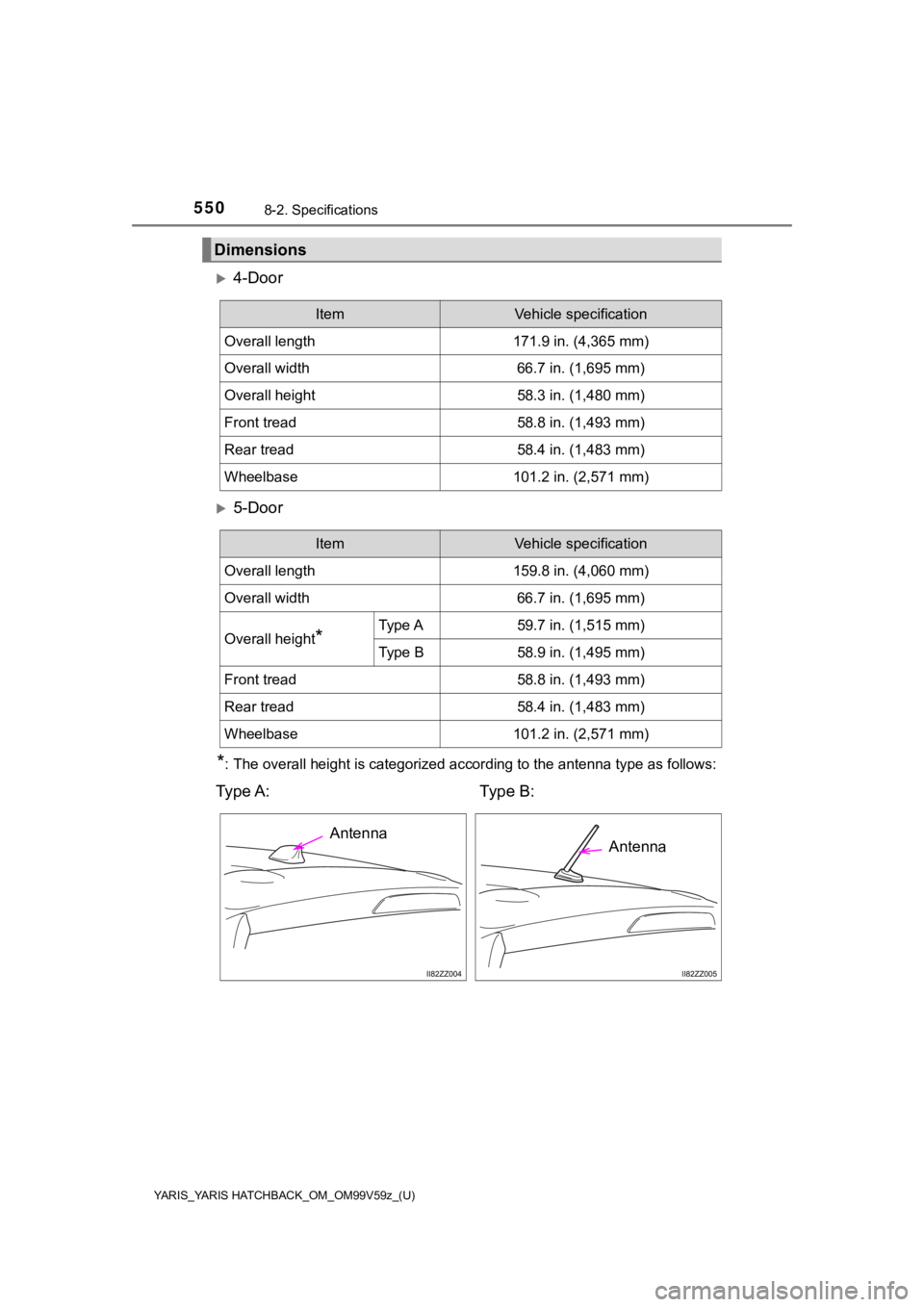

Dimensions
ItemVehicle specification
Overall length171.9 in. (4,365 mm)
Overall width66.7 in. (1,695 mm)
Overall height58.3 in. (1,480 mm)
Front tread58.8 in. (1,493 mm)
Rear tread58.4 in. (1,483 mm)
Wheelbase101.2 in. (2,571 mm)
ItemVehicle specification
Overall length159.8 in. (4,060 mm)
Overall width66.7 in. (1,695 mm)
Overall height*Type A59.7 in. (1,515 mm)
Type B58.9 in. (1,495 mm)
Front tread58.8 in. (1,493 mm)
Rear tread58.4 in. (1,483 mm)
Wheelbase101.2 in. (2,571 mm)
Type A:Type B:
AntennaAntenna
