TOYOTA YARIS 2020 Owners Manual

2614-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E

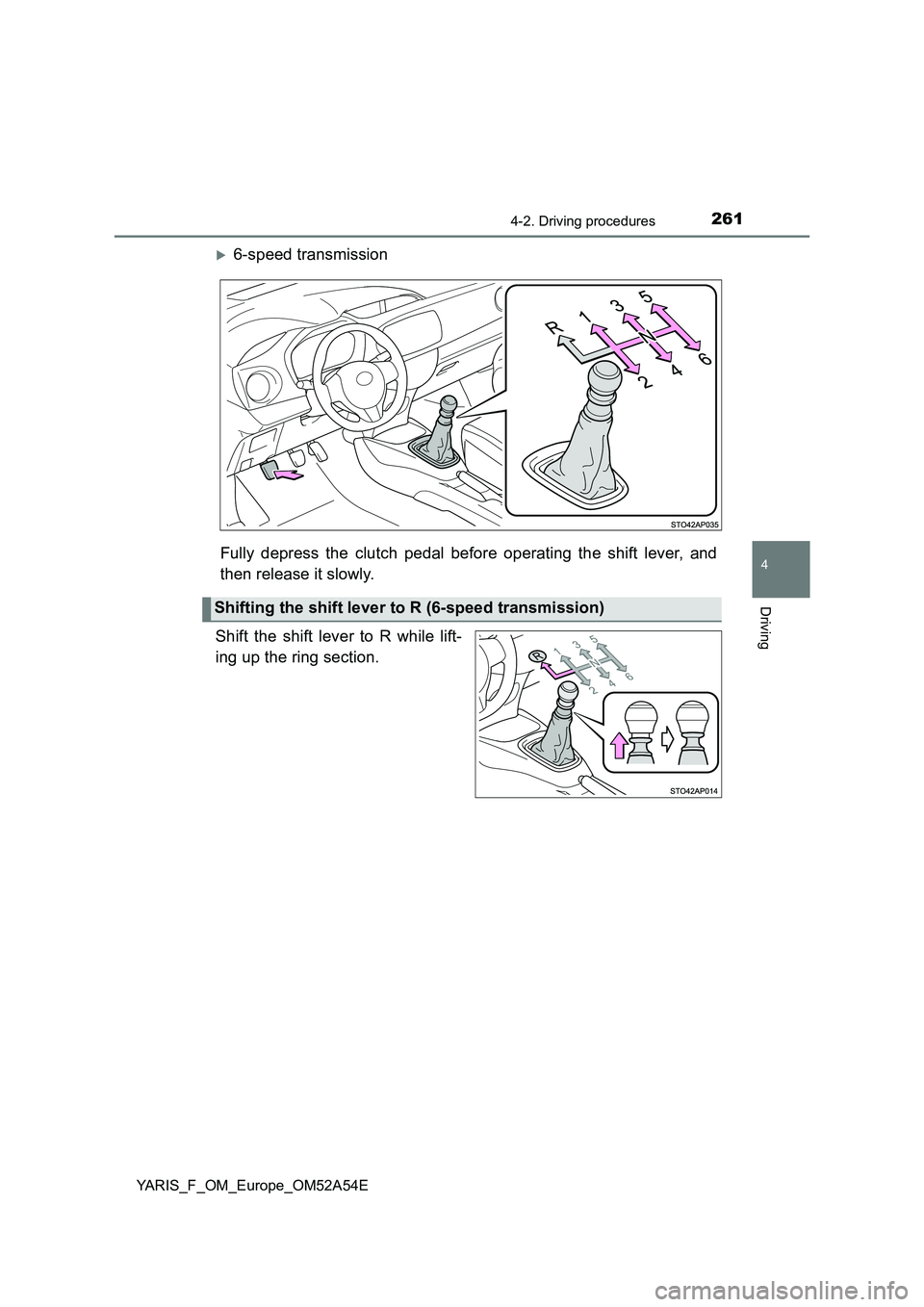

6-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while lift-
ing up the ring section.
Shifting the shift lever to R (6-speed transmission)

2624-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E

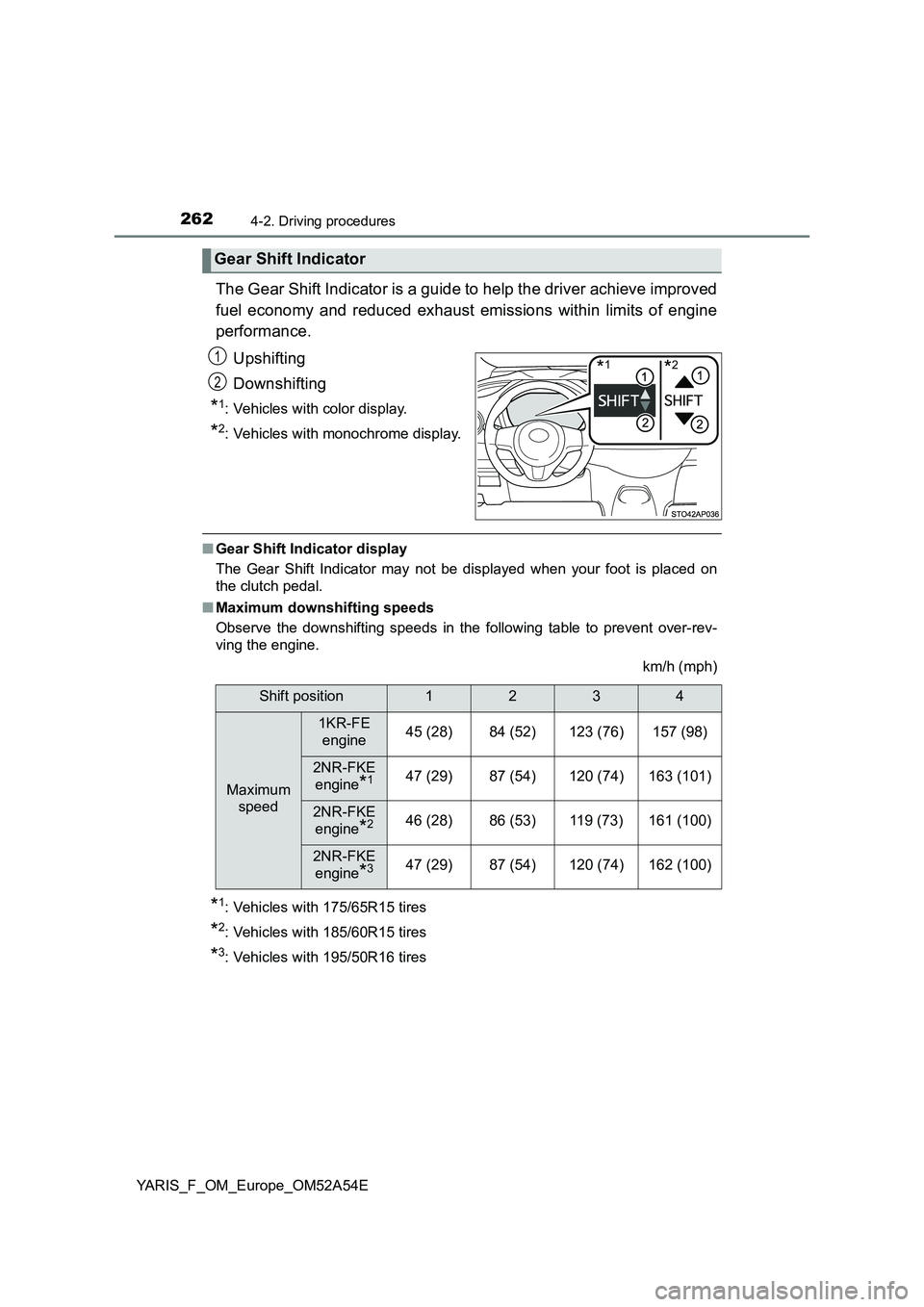

The Gear Shift Indicator is a guide to help the driver achieve improved
fuel economy and reduced exhaust emissions within limits of engine
performance.
Upshifting
Downshifting
*1: Vehicles with color display.
*2: Vehicles with monochrome display.
■Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
■Maximum downshifting speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
km/h (mph)
*1: Vehicles with 175/65R15 tires
*2: Vehicles with 185/60R15 tires
*3: Vehicles with 195/50R16 tires
Gear Shift Indicator
*1*21
2
Shift position1234
Maximum
speed
1KR-FE
engine45 (28)84 (52)123 (76)157 (98)
2NR-FKE
engine
*147 (29)87 (54)120 (74)163 (101)
2NR-FKE
engine
*246 (28)86 (53)119 (73)161 (100)
2NR-FKE
engine
*347 (29)87 (54)120 (74)162 (100)

2634-2. Driving procedures
4
Driving
YARIS_F_OM_Europe_OM52A54E

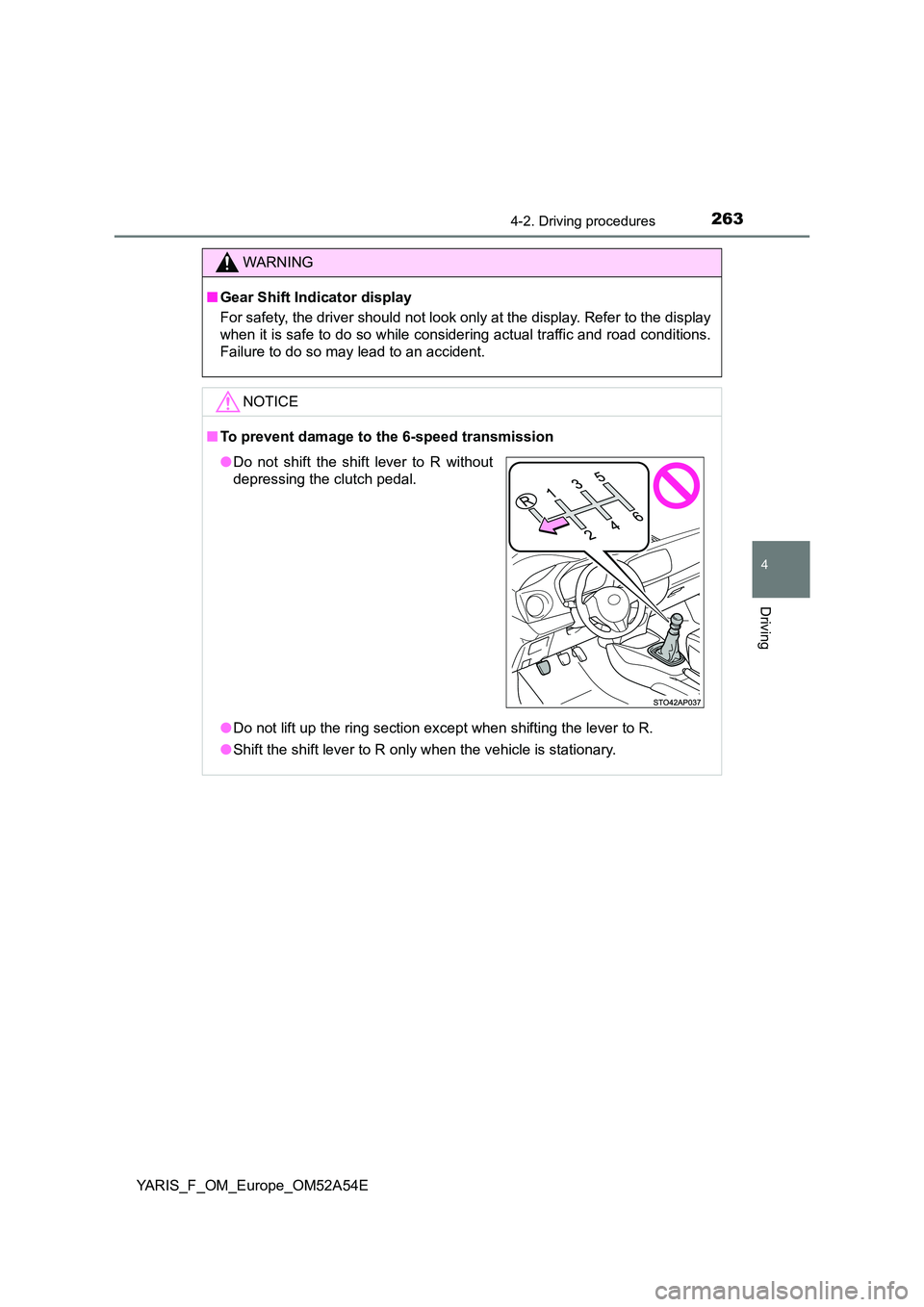

WARNING
■Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
NOTICE
■ To prevent damage to the 6-speed transmission
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary.
●Do not shift the shift lever to R without
depressing the clutch pedal.

2644-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E

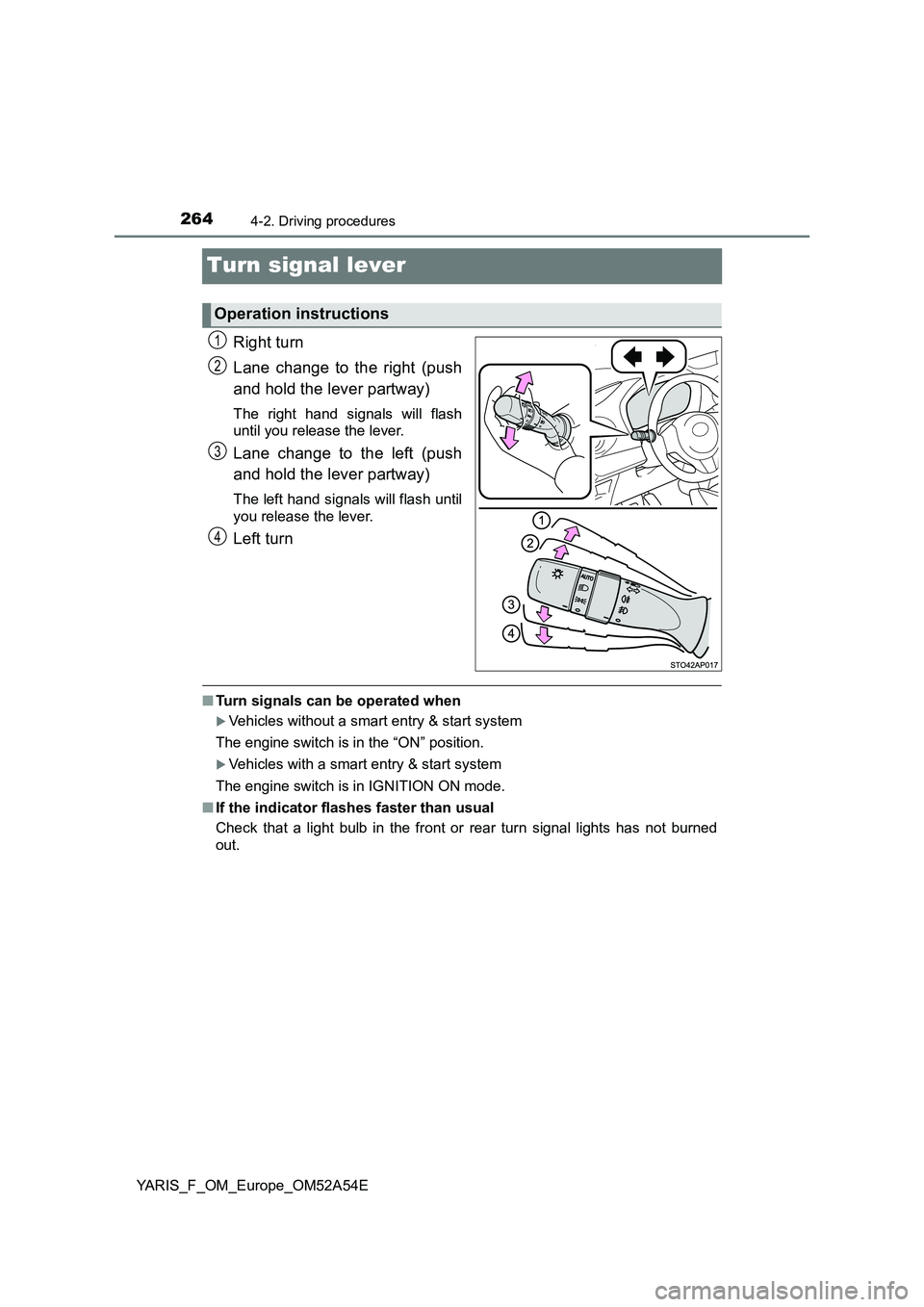

Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4

265
4
4-2. Driving procedures
Driving
YARIS_F_OM_Europe_OM52A54E

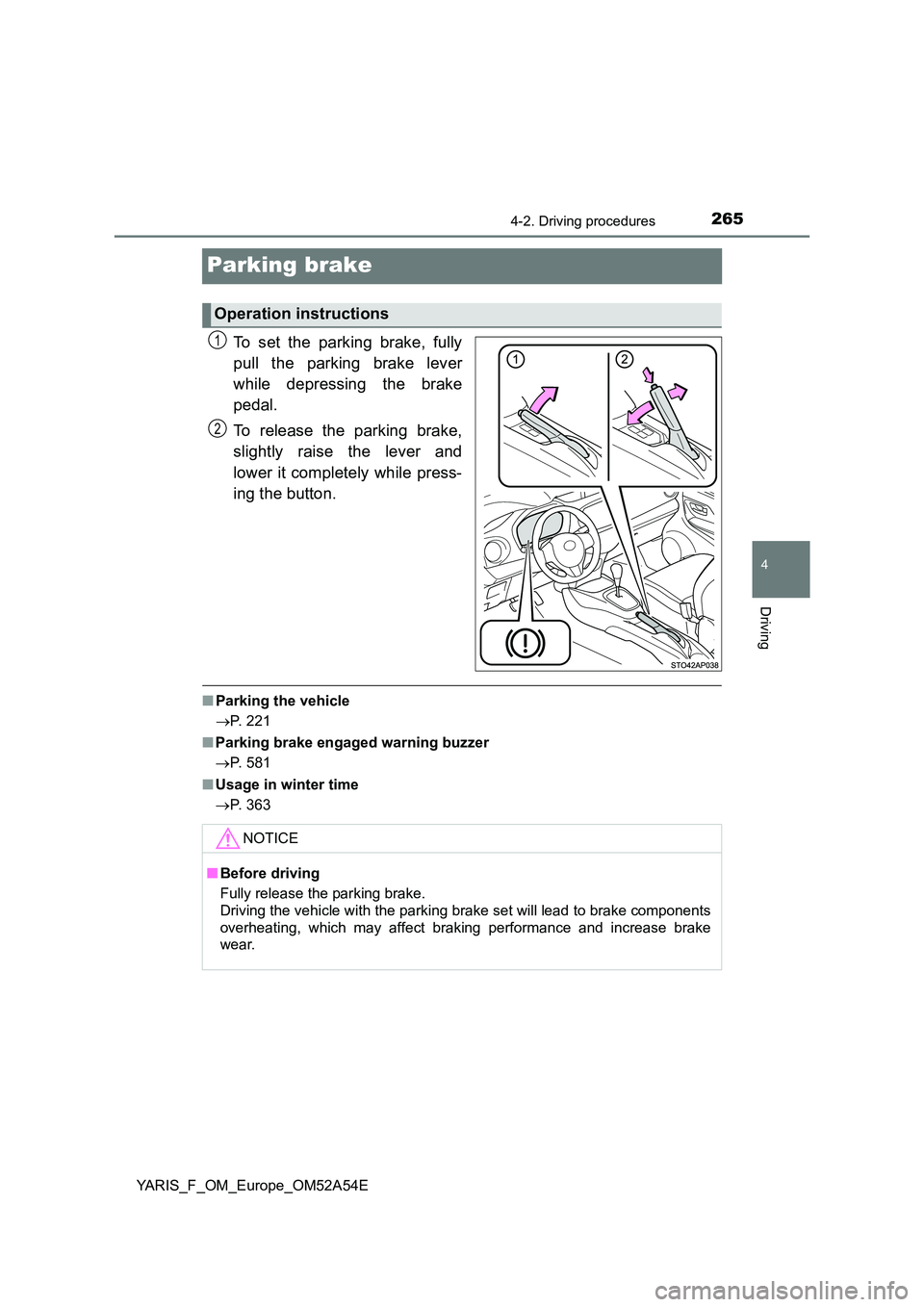

Parking brake
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■ Parking the vehicle
 P. 221
■ Parking brake engaged warning buzzer
 P. 581
■ Usage in winter time
 P. 363
Operation instructions
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

2664-3. Operating the lights and wipers
YARIS_F_OM_Europe_OM52A54E

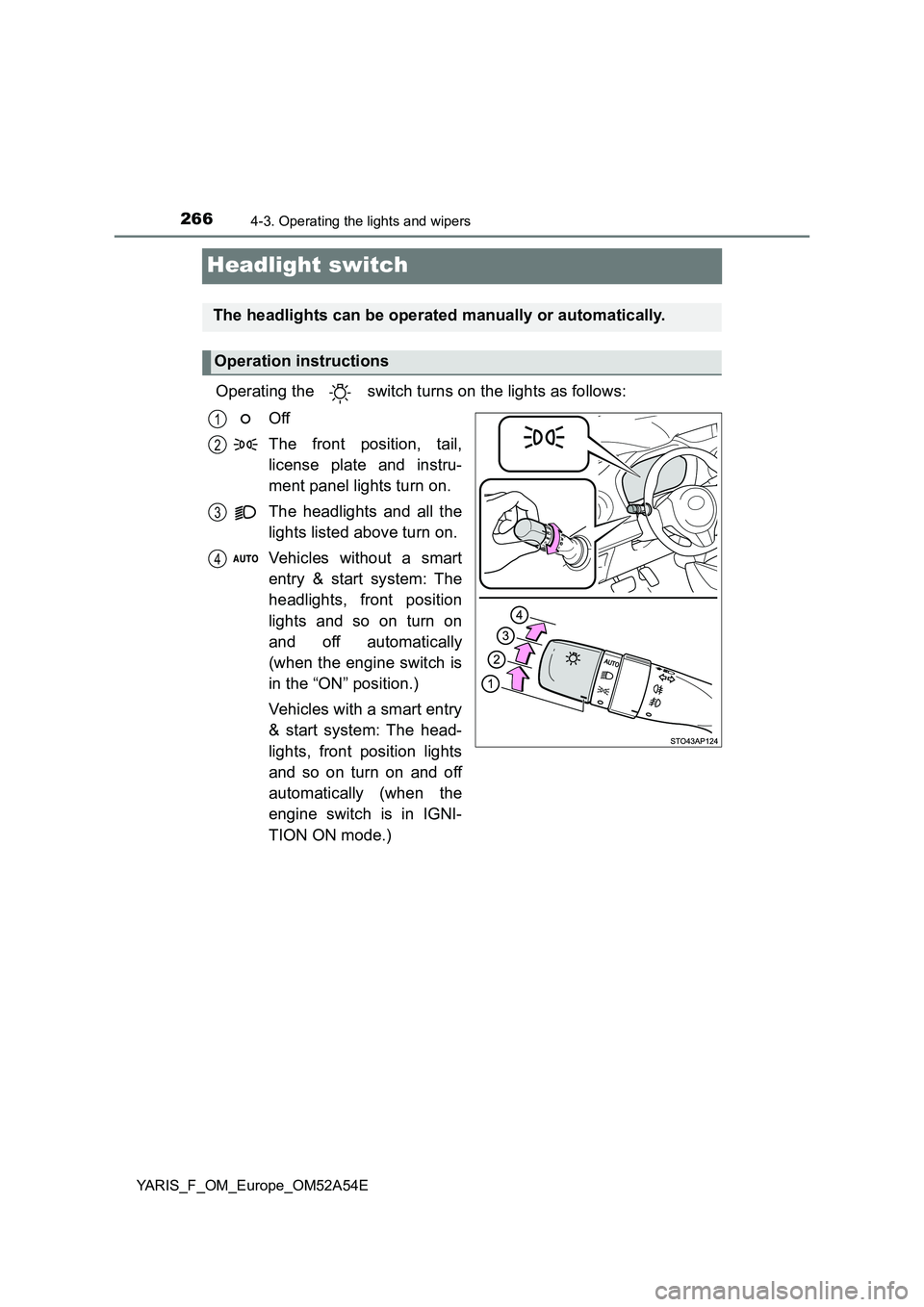

Headlight switch
Operating the switch turns on the lights as follows:
Off
The front position, tail,
license plate and instru-
ment panel lights turn on.
The headlights and all the
lights listed above turn on.
Vehicles without a smart
entry & start system: The
headlights, front position
lights and so on turn on
and off automatically
(when the engine switch is
in the “ON” position.)
Vehicles with a smart entry
& start system: The head-
lights, front position lights
and so on turn on and off
automatically (when the
engine switch is in IGNI-
TION ON mode.)
The headlights can be operated manually or automatically.
Operation instructions
1
2
3
4

2674-3. Operating the lights and wipers
4
Driving
YARIS_F_OM_Europe_OM52A54E

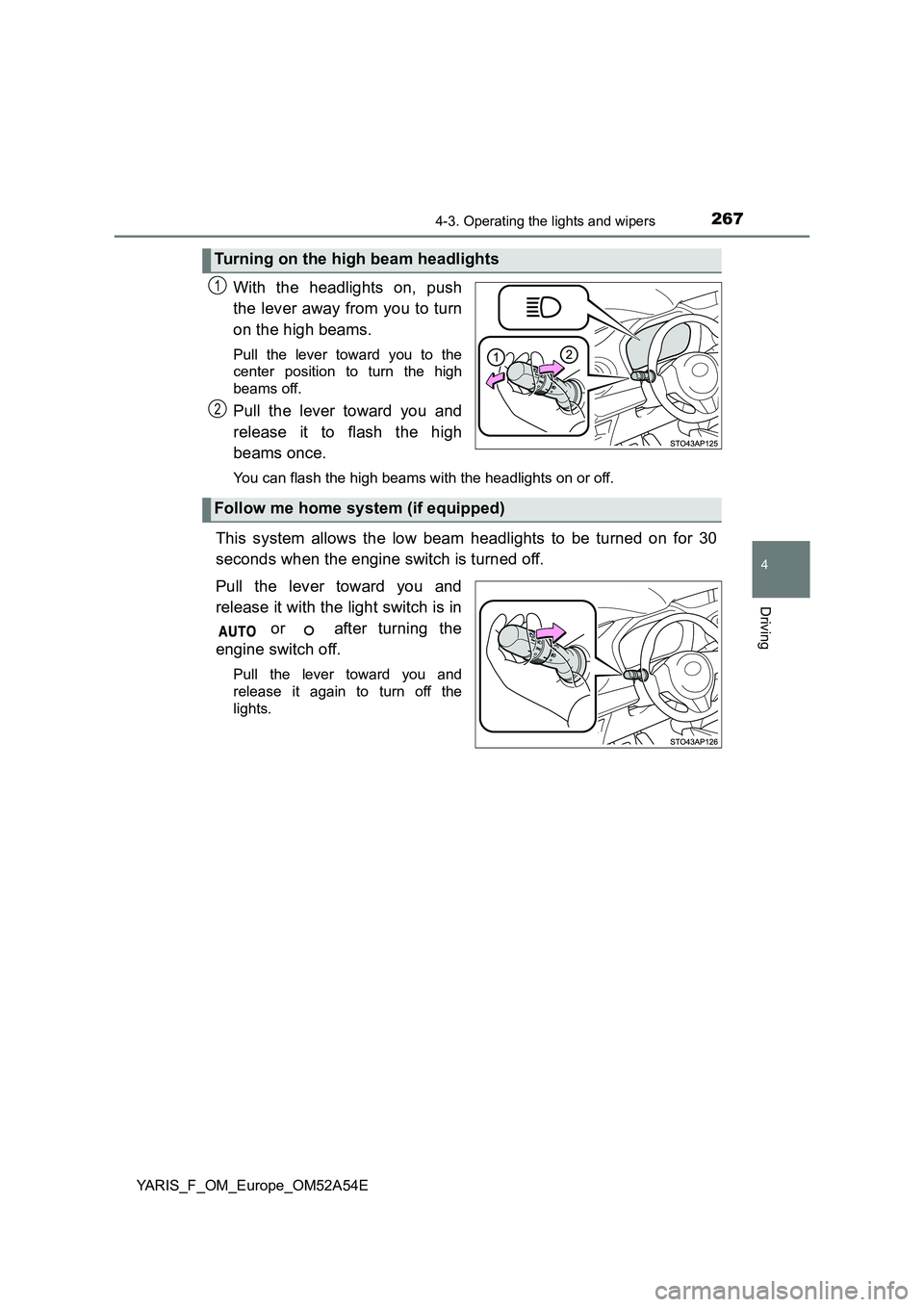

With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams wi th the headlights on or off.
This system allows the low beam headlights to be turned on for 30
seconds when the engine switch is turned off.
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Turning on the high beam headlights
1
2
Follow me home system (if equipped)

2684-3. Operating the lights and wipers
YARIS_F_OM_Europe_OM52A54E

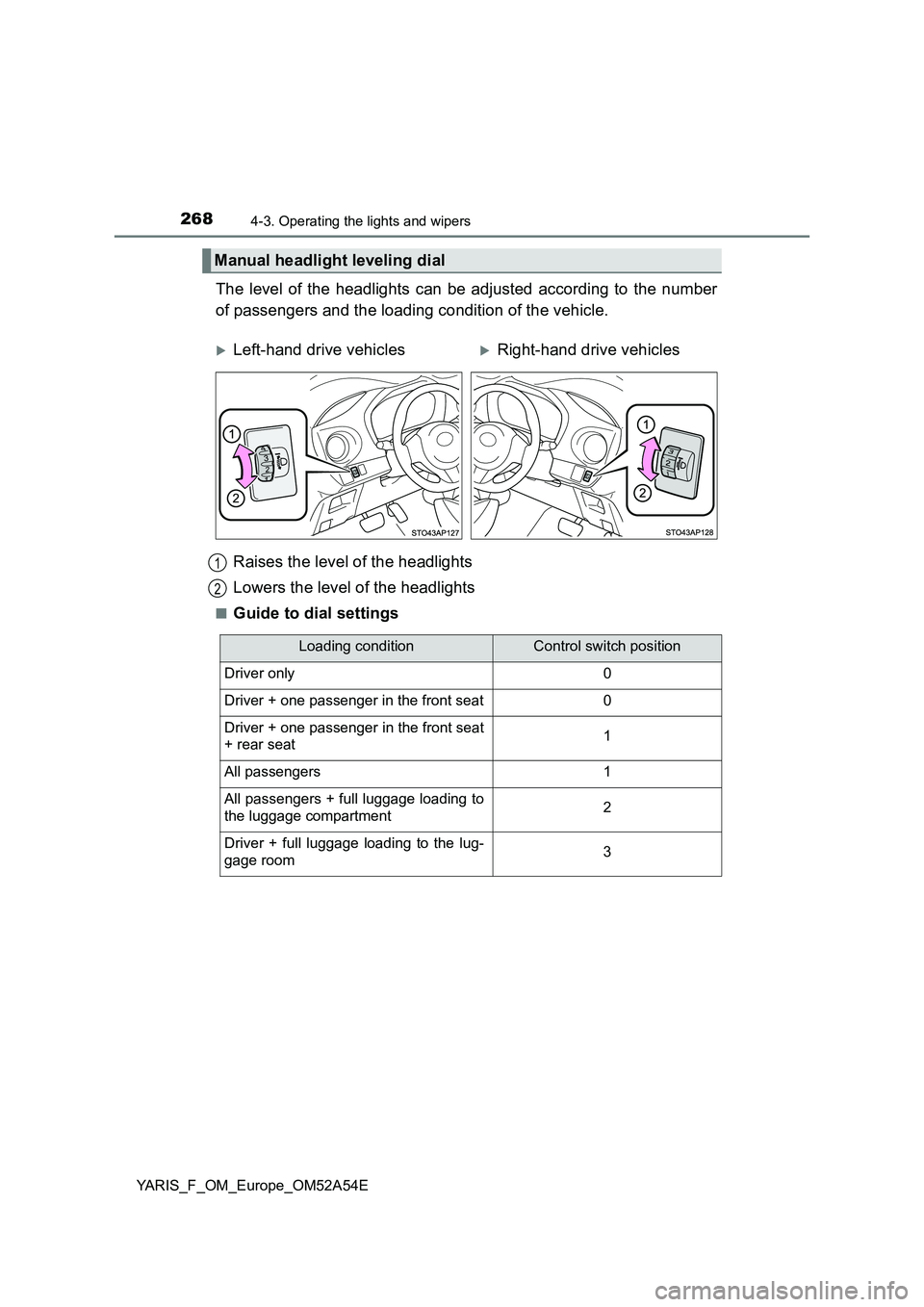

The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the headlights
Lowers the level of the headlights
■Guide to dial settings
Manual headlight leveling dial
Left-hand drive vehiclesRight-hand drive vehicles
1
2
Loading conditionControl switch position
Driver only0
Driver + one passenger in the front seat0
Driver + one passenger in the front seat
+ rear seat1
All passengers1
All passengers + full luggage loading to
the luggage compartment2
Driver + full luggage loading to the lug-
gage room3

2694-3. Operating the lights and wipers
4
Driving
YARIS_F_OM_Europe_OM52A54E
■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch off or in the
“AUTO” position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system (if equipped)
Vehicles without a smart entry & start system
●When the light switch is in
or : The headlights and front fog
lights turn off automatically when the engine switch is turned to the “LOCK”
position.
●When the light switch is in : The headlights and all the lights turn off
automatically when the engine switch is turned to the “LOCK” position.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch to once and then back to
or .
Vehicles with a smart entry & start system
●When the light switch is in
or : The headlights and front fog
lights turn off automatically when the engine switch is turned off.
●When the light switch is in : The headlights and all the lights turn off
automatically when the engine switch is turned off.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch to once and then back to
or . The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2704-3. Operating the lights and wipers
YARIS_F_OM_Europe_OM52A54E
■ Automatic High Beam (if equipped)
 P. 314
■ Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the key is removed from the engine switch and the
driver’s door is opened while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.
■ Battery-saving function
In all conditions following below, the headlights and the other remaining lights
will go off automatically after 20 minutes in order to prevent the vehicle bat-
tery from being discharged:
● The headlights and/or tail lights are on.
● The light switch is in or .
● Vehicles without a smart entry & start system: The engine switch is turned to
the “LOCK” position.
● Vehicles with a smart entry & start system: The engine switch is turned off.
This function will be canceled in any of the following situations:
● Vehicles without a smart entry & start system: When the engine switch is
turned to the “ON” position.
● Vehicles with a smart entry & start system: When the engine switch is turned
to IGNITION ON mode.
● When the light switch is operated.
● When the door is opened or closed.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 666)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
