TOYOTA YARIS 2020 Owners Manual

4616-2. Using the interior lights
6
Interior features
YARIS_F_OM_Europe_OM52A54E
On
Off
■Illuminated entry system
Vehicles without a smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
■To prevent battery from being discharged
If the following lights remain on when the door is not fully closed, the lights will
go off automatically after 20 minutes:
●Interior/personal lights (when the switch is in the door position)
●Luggage compartment light
●Engine switch light (vehicles with a smart entry & start system)
●Footwell lights (if equipped)
■Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 666)

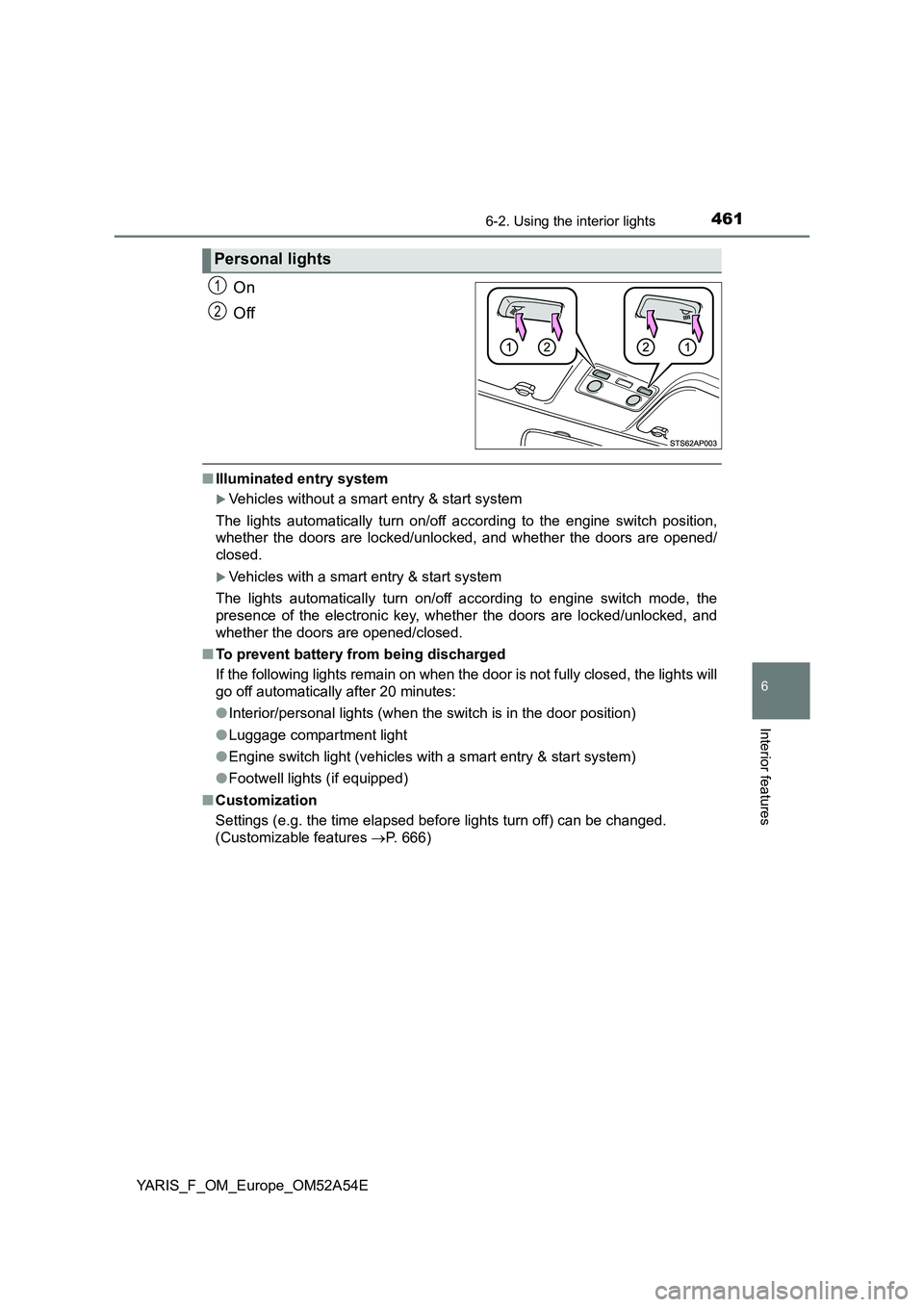

Personal lights
1
2

4626-3. Using the storage features
YARIS_F_OM_Europe_OM52A54E

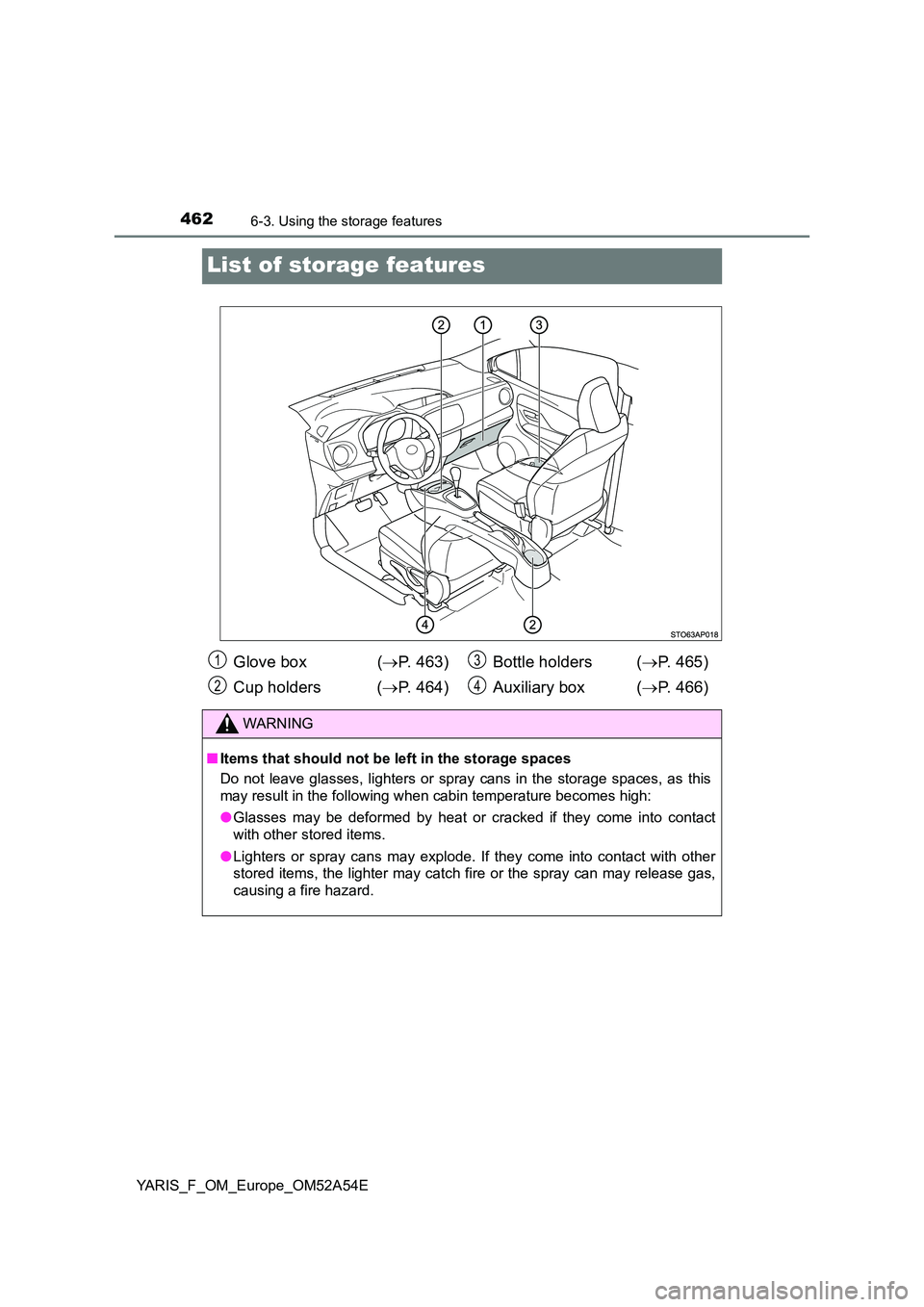

List of storage features
Glove box (P. 463)
Cup holders ( P. 464)
Bottle holders ( P. 465)
Auxiliary box ( P. 466)
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
1
2
3
4

4636-3. Using the storage features
6
Interior features
YARIS_F_OM_Europe_OM52A54E

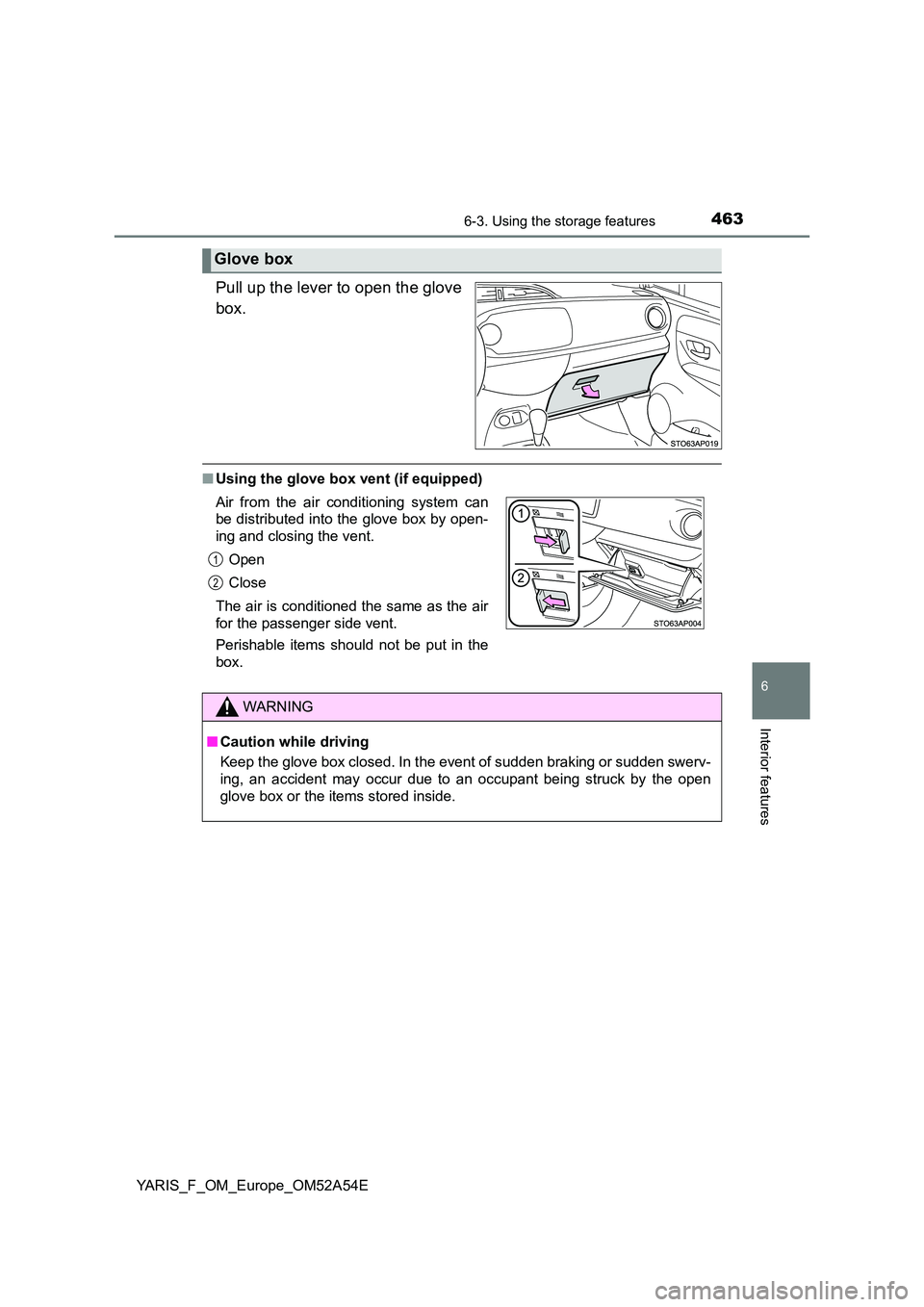

Pull up the lever to open the glove
box.
■ Using the glove box vent (if equipped)
Glove box
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
WARNING
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
1
2

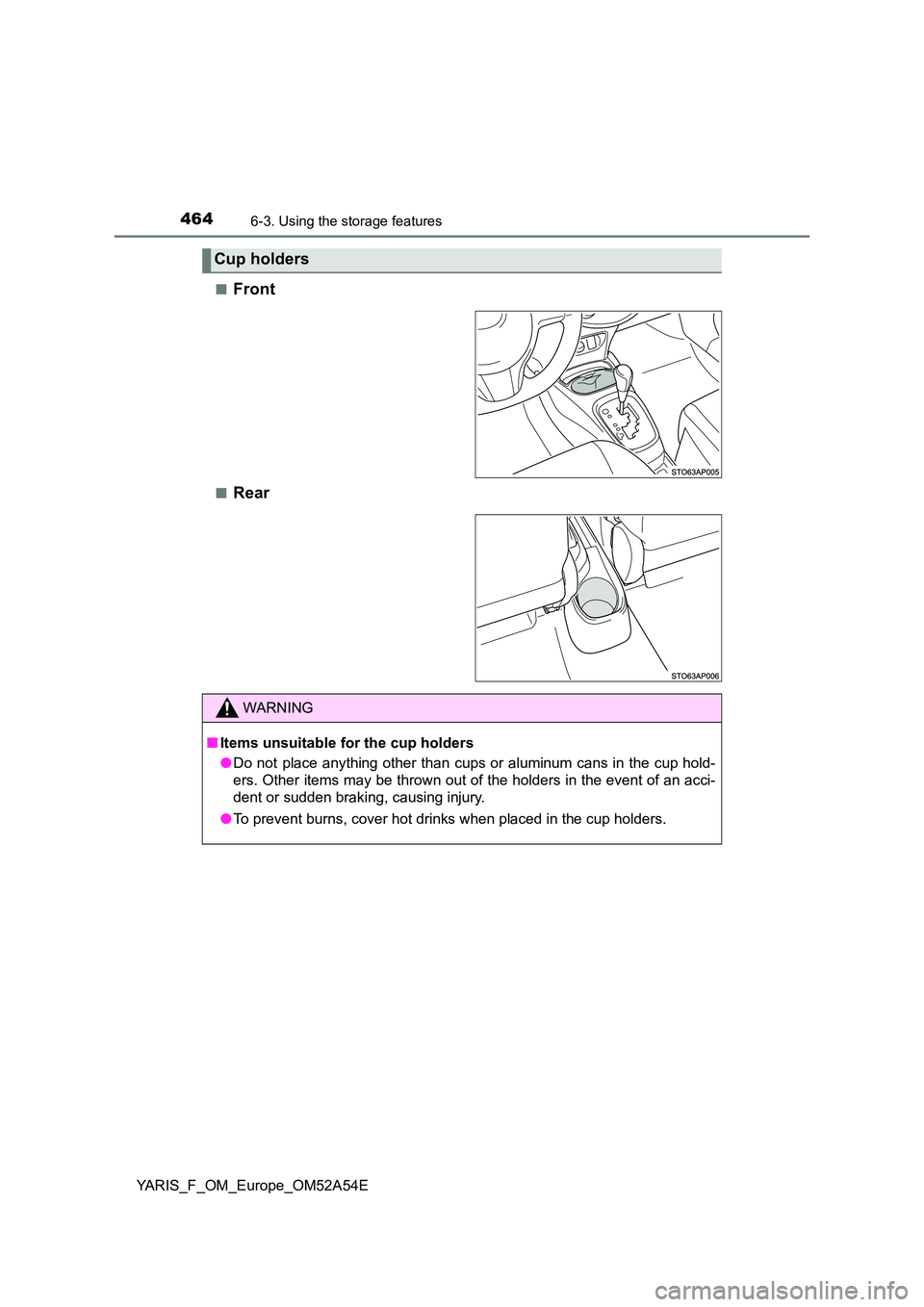

4646-3. Using the storage features
YARIS_F_OM_Europe_OM52A54E
■Front
■Rear
Cup holders
WARNING
■ Items unsuitable for the cup holders
● Do not place anything other than cups or aluminum cans in the cup hold-
ers. Other items may be thrown out of the holders in the event of an acci-
dent or sudden braking, causing injury.
● To prevent burns, cover hot drinks when placed in the cup holders.

4656-3. Using the storage features
6
Interior features
YARIS_F_OM_Europe_OM52A54E

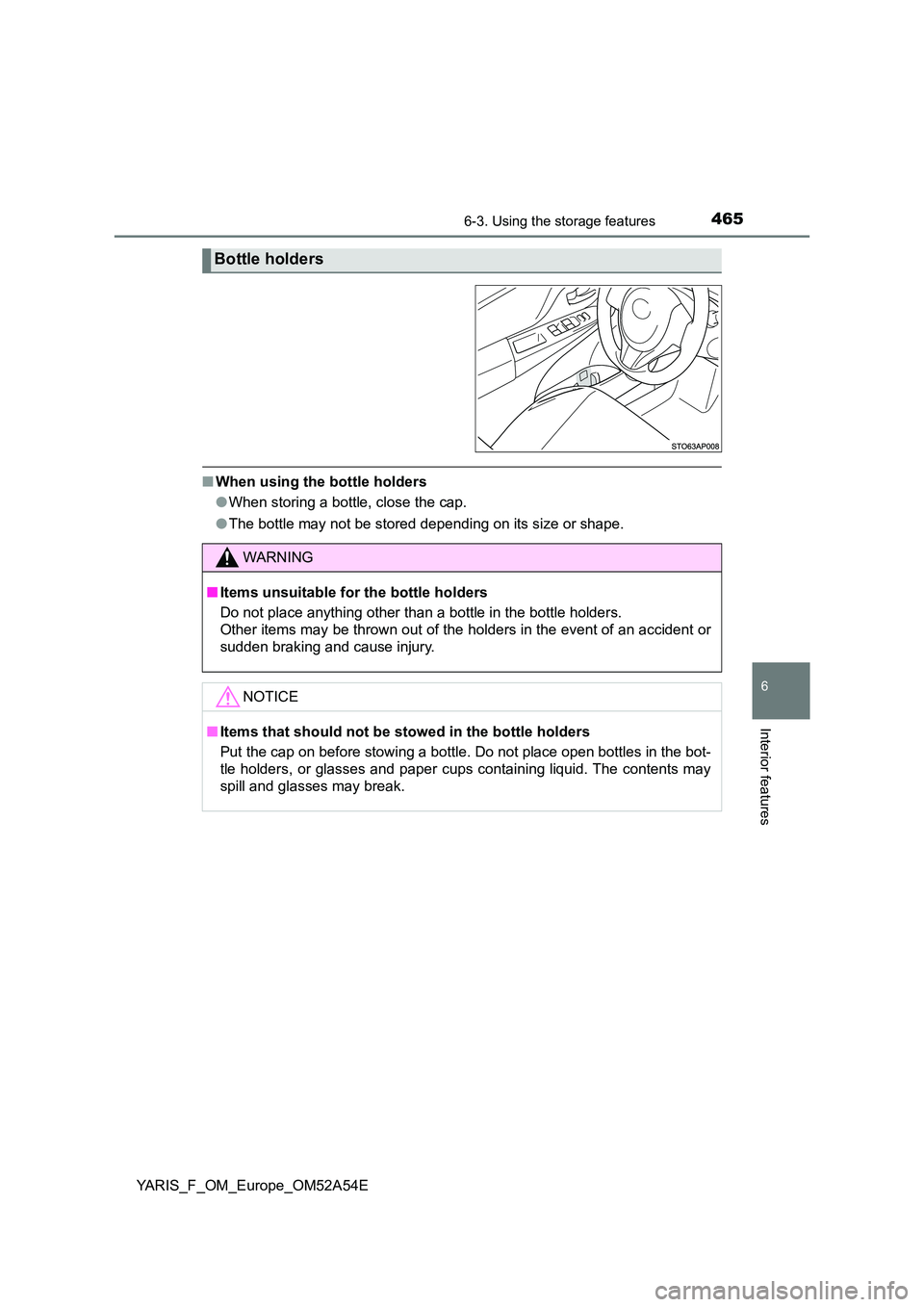

■When using the bottle holders
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■ Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.

4666-3. Using the storage features
YARIS_F_OM_Europe_OM52A54E

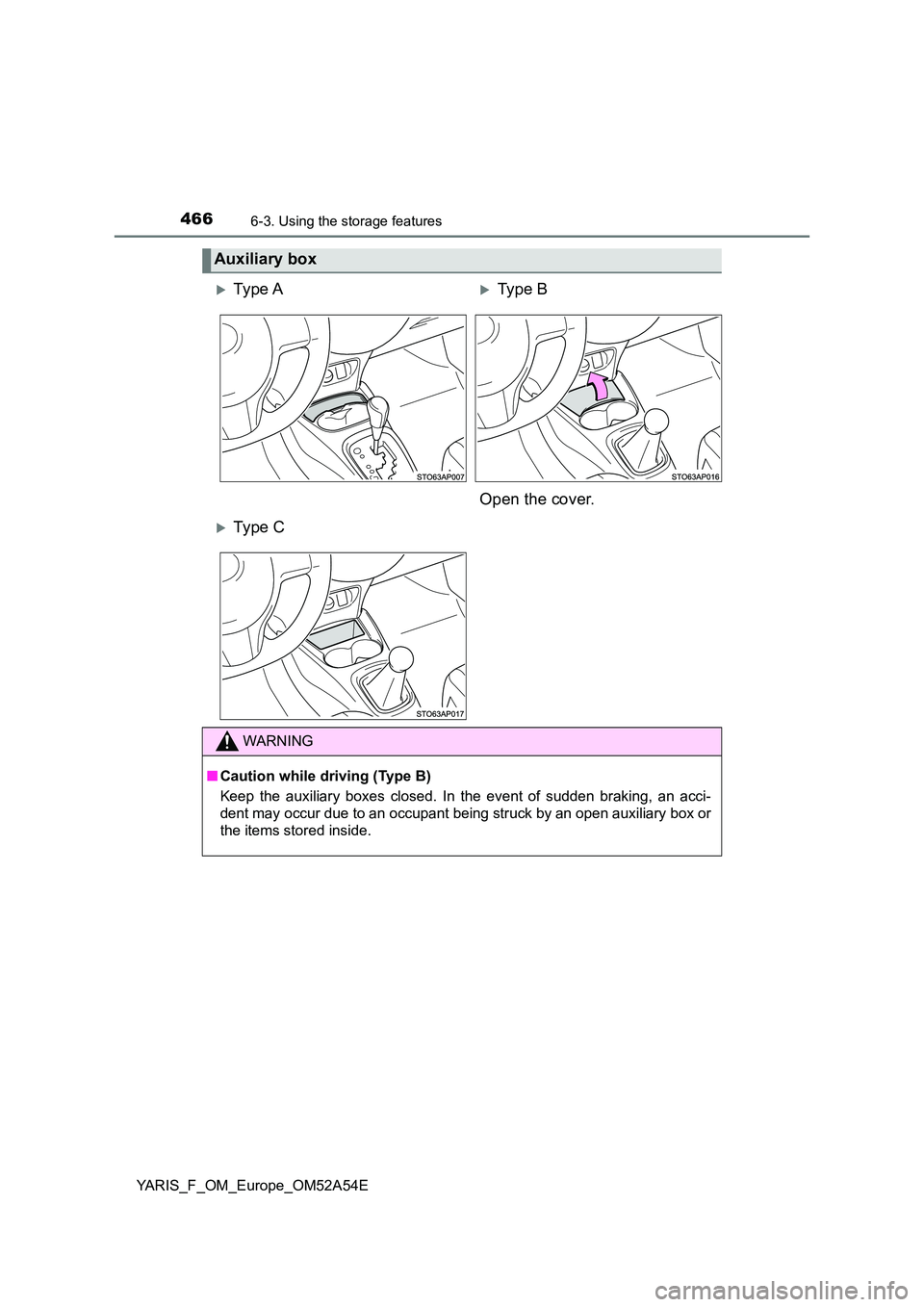

Auxiliary box
Ty pe AType B
Open the cover.
Ty pe C
WARNING
■ Caution while driving (Type B)
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.

4676-3. Using the storage features
6
Interior features
YARIS_F_OM_Europe_OM52A54E

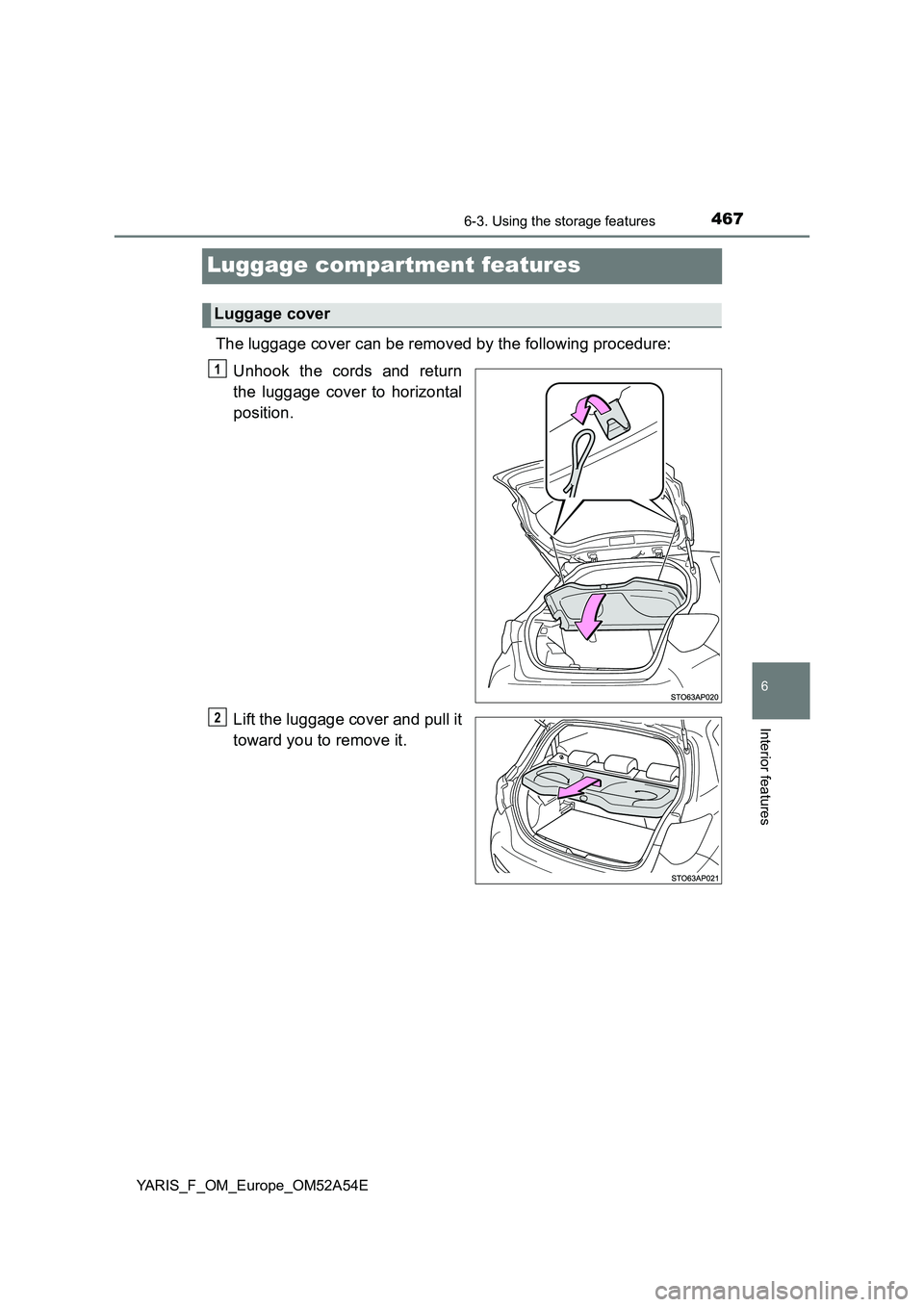

Luggage compartment features
The luggage cover can be removed by the following procedure:
Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover
1
2

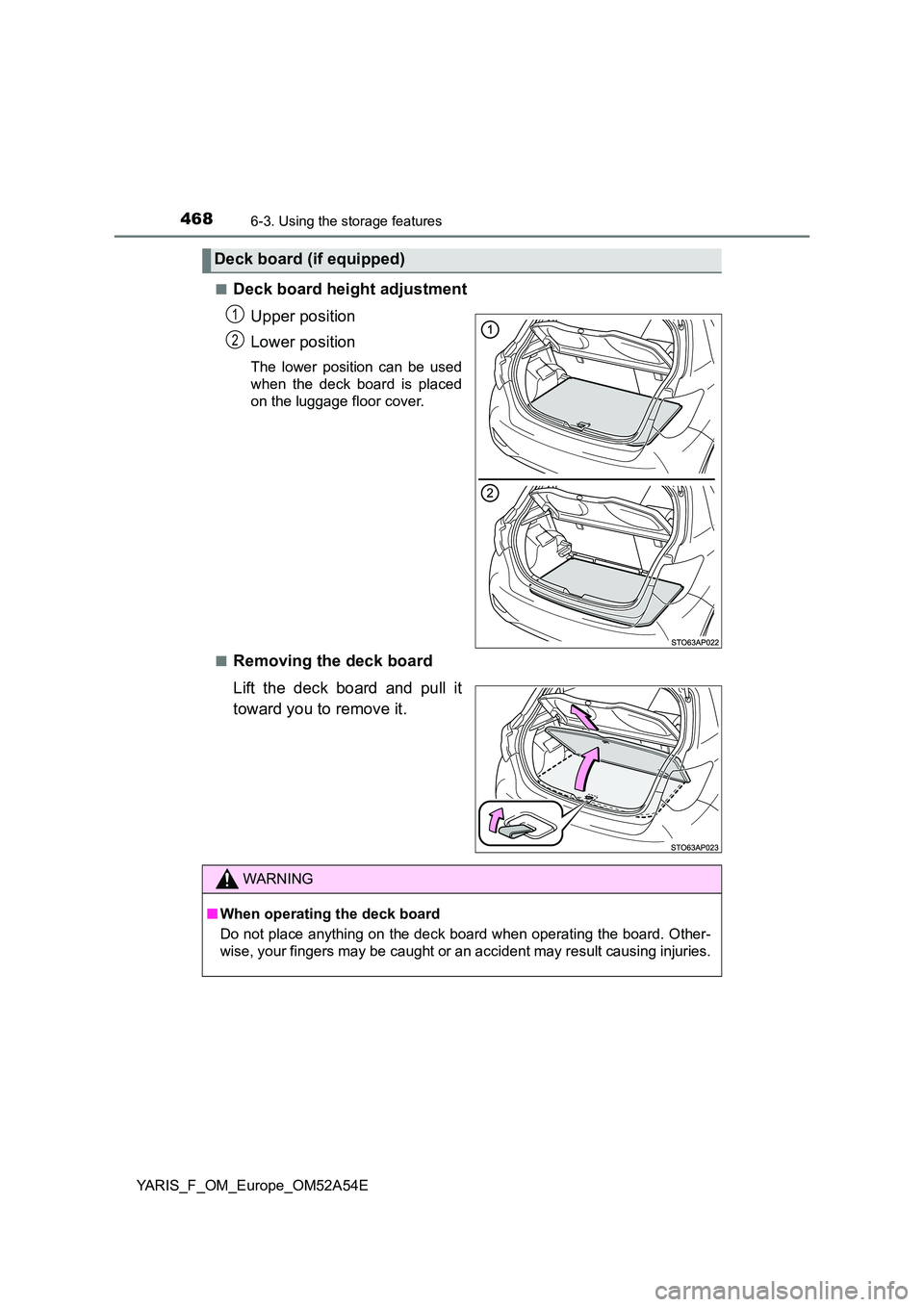

4686-3. Using the storage features
YARIS_F_OM_Europe_OM52A54E
■Deck board height adjustment
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
■Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Deck board (if equipped)
1
2
WARNING
■ When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.

4696-3. Using the storage features
6
Interior features
YARIS_F_OM_Europe_OM52A54E

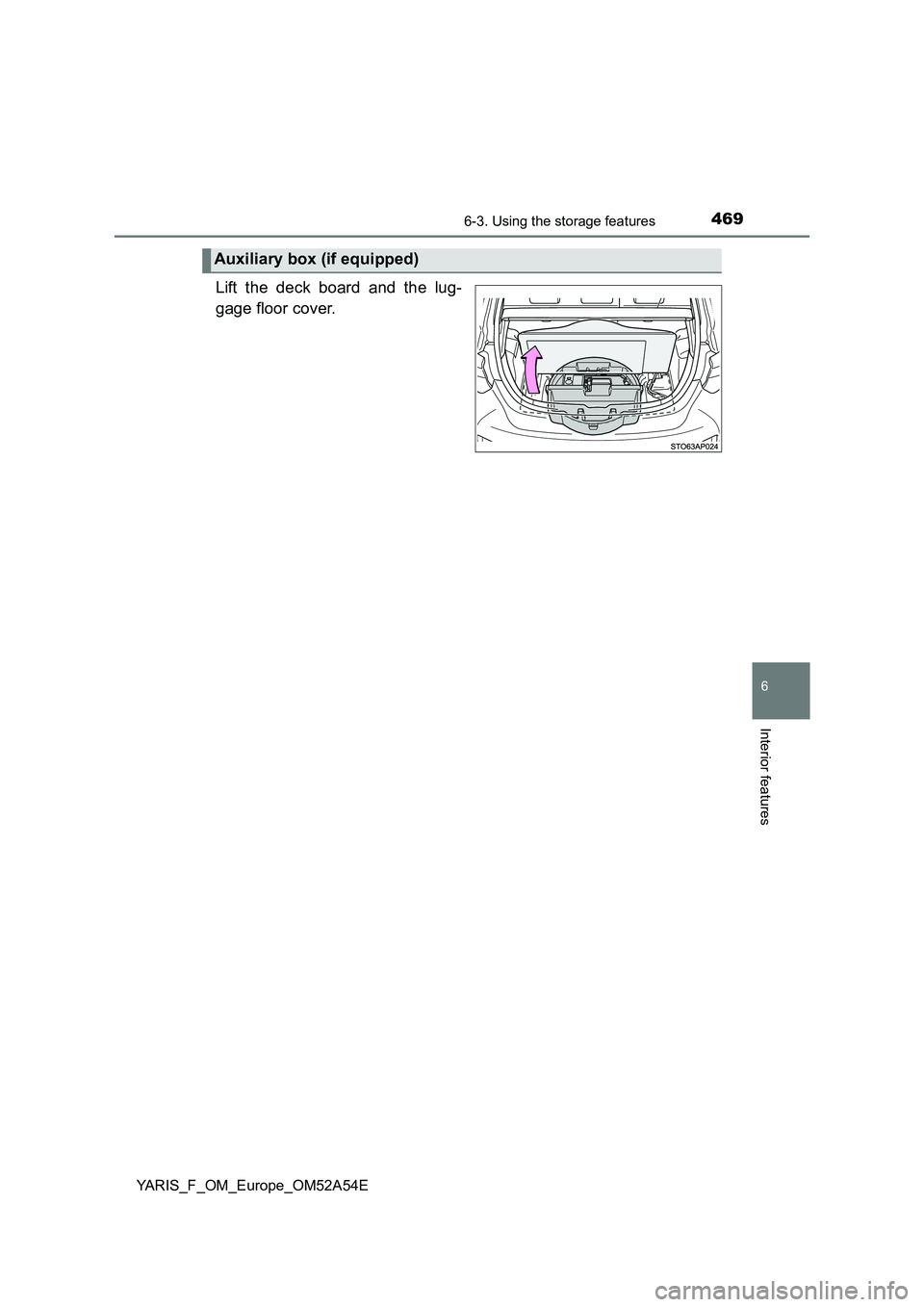

Lift the deck board and the lug-
gage floor cover.
Auxiliary box (if equipped)

4706-4. Using the other interior features
YARIS_F_OM_Europe_OM52A54E

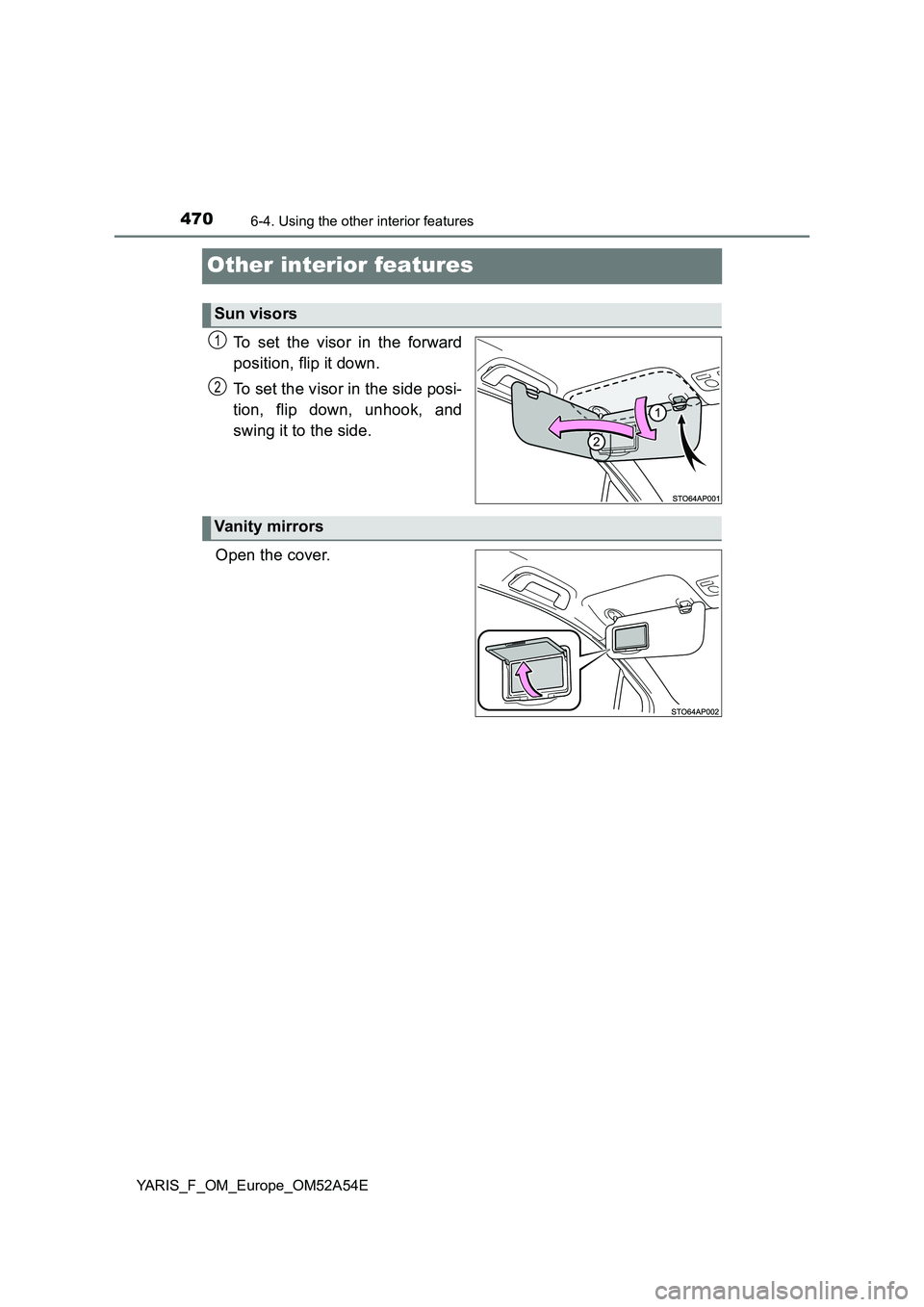

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
Sun visors
1
2
Vanity mirrors
