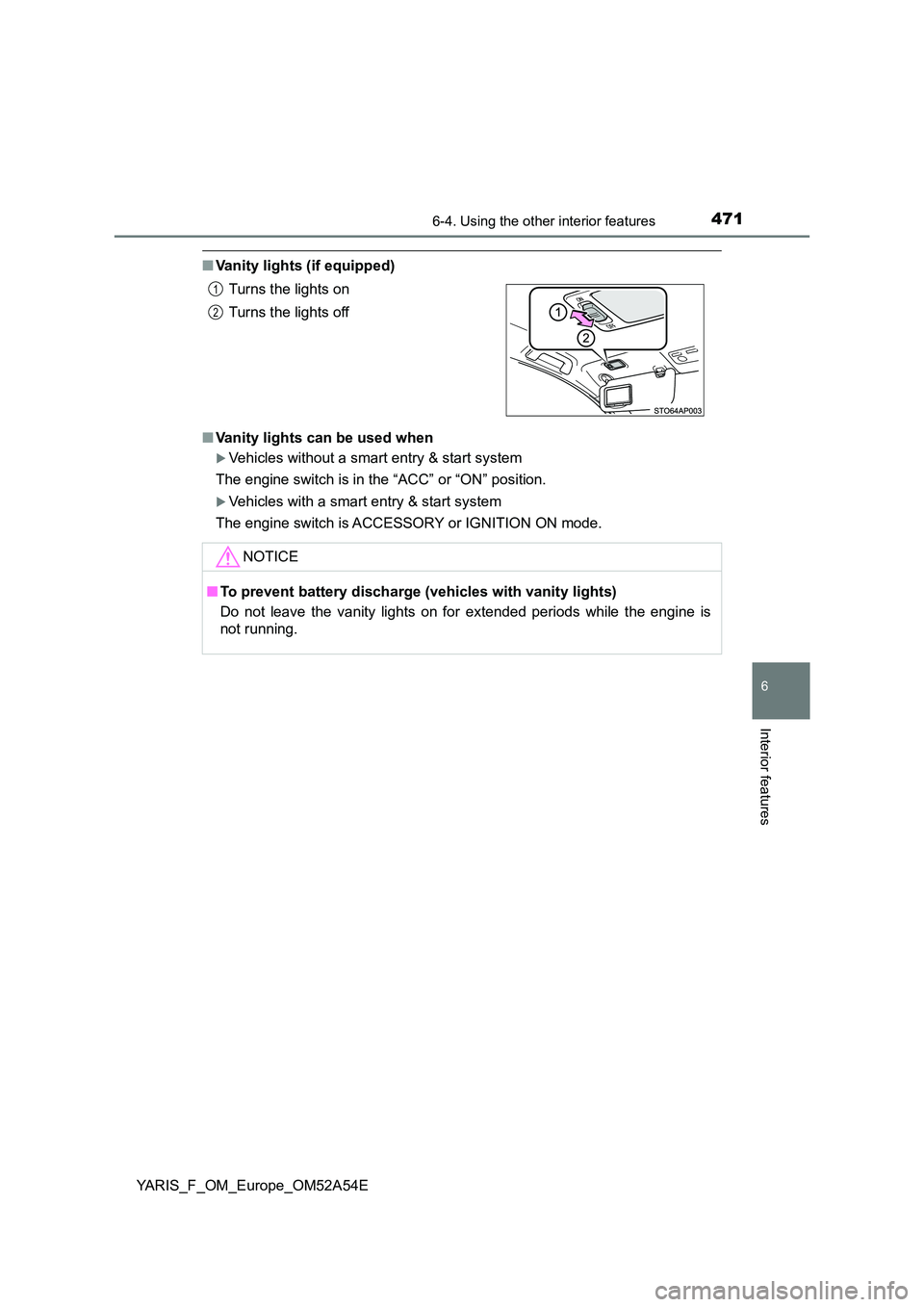

Page 471 of 692

4716-4. Using the other interior features
6
Interior features
YARIS_F_OM_Europe_OM52A54E
■Vanity lights (if equipped)
■ Vanity lights can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is ACCESSORY or IGNITION ON mode.
Turns the lights on
Turns the lights off
NOTICE
■ To prevent battery discharge (vehicles with vanity lights)
Do not leave the vanity lights on for extended periods while the engine is
not running.
1
2

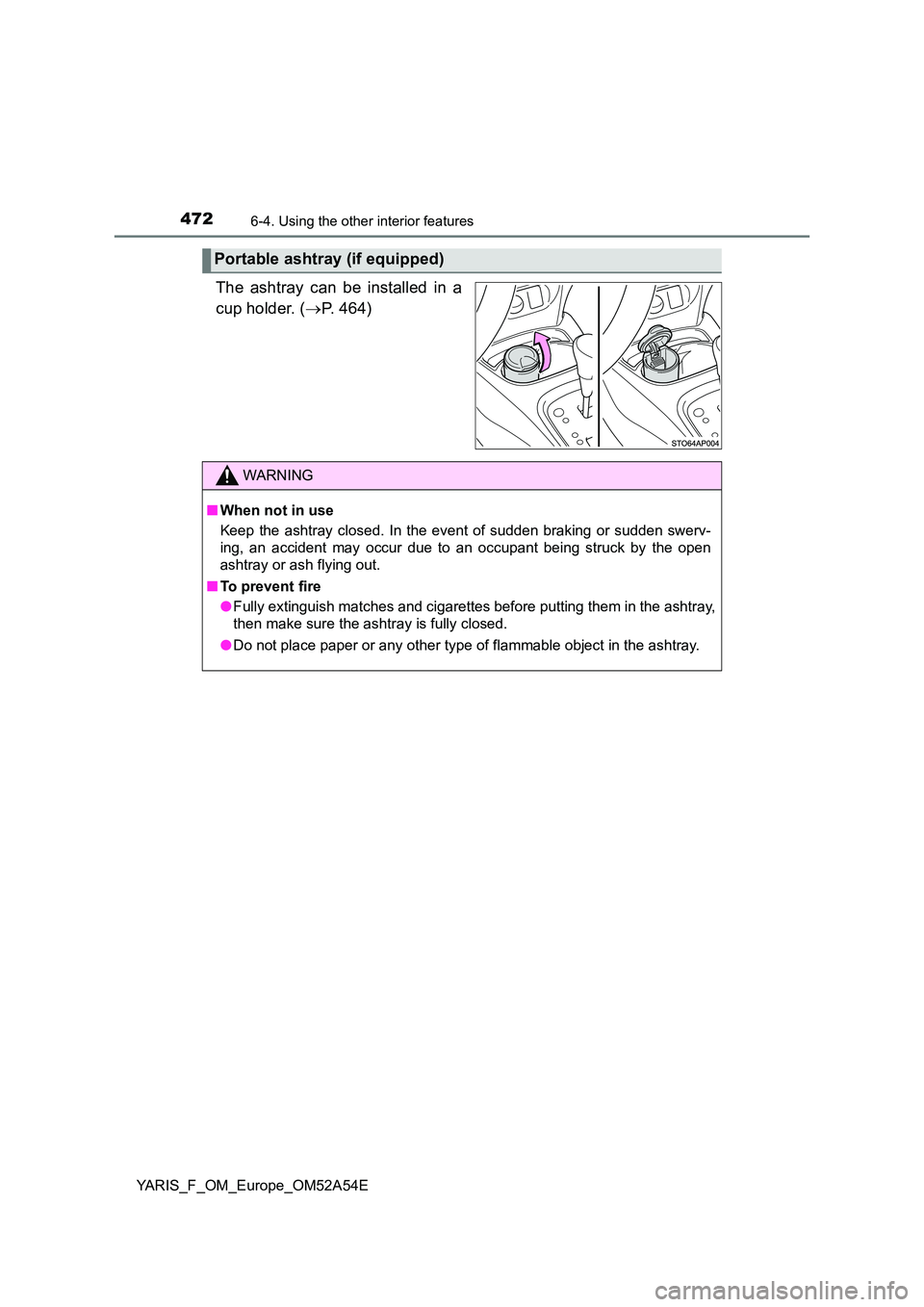

Page 472 of 692

4726-4. Using the other interior features
YARIS_F_OM_Europe_OM52A54E
The ashtray can be installed in a
cup holder. ( P. 464)
Portable ashtray (if equipped)
WARNING
■When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
ashtray or ash flying out.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

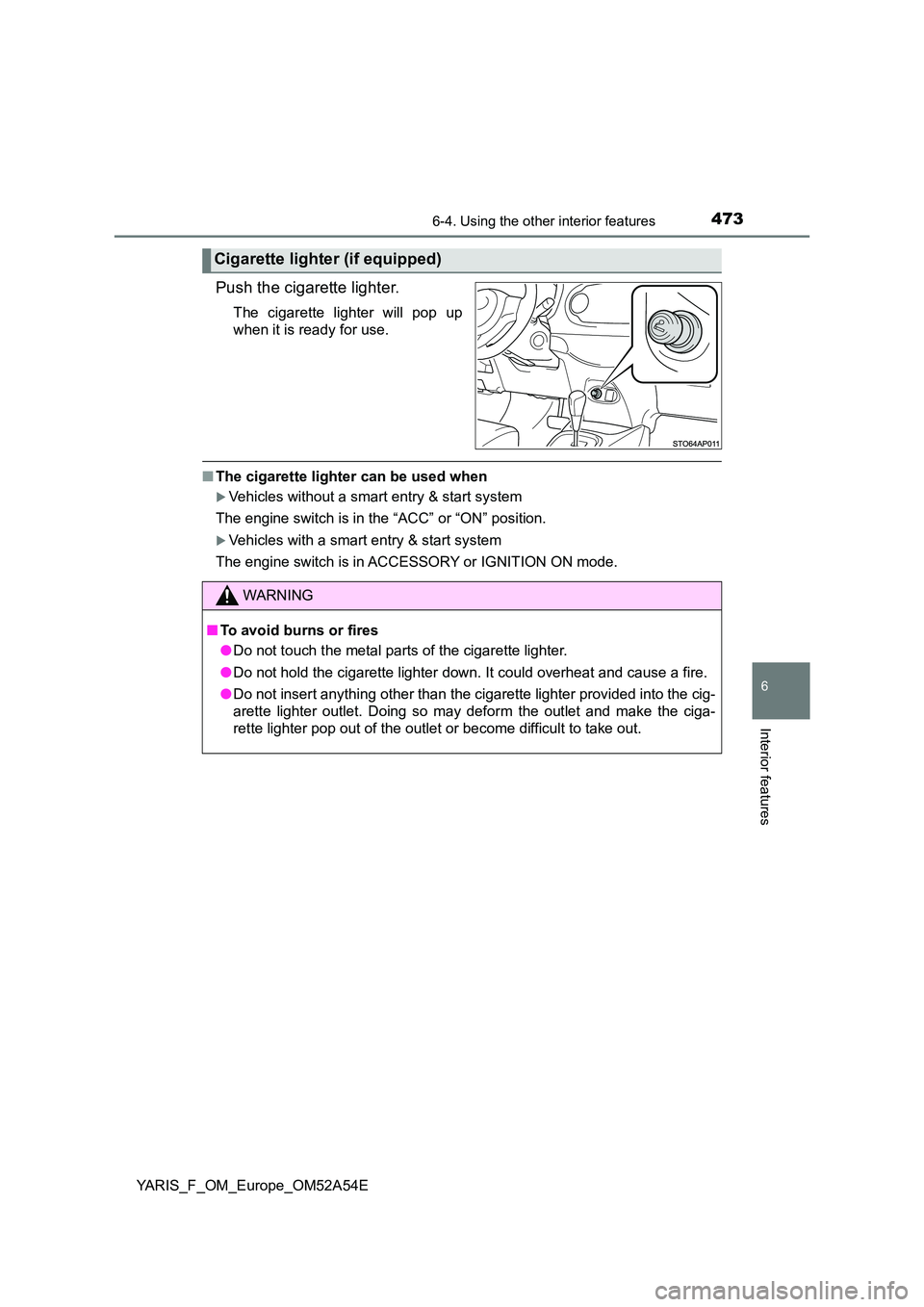

Page 473 of 692

4736-4. Using the other interior features
6
Interior features
YARIS_F_OM_Europe_OM52A54E
Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.
■ The cigarette lighter can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
Cigarette lighter (if equipped)
WARNING
■ To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.

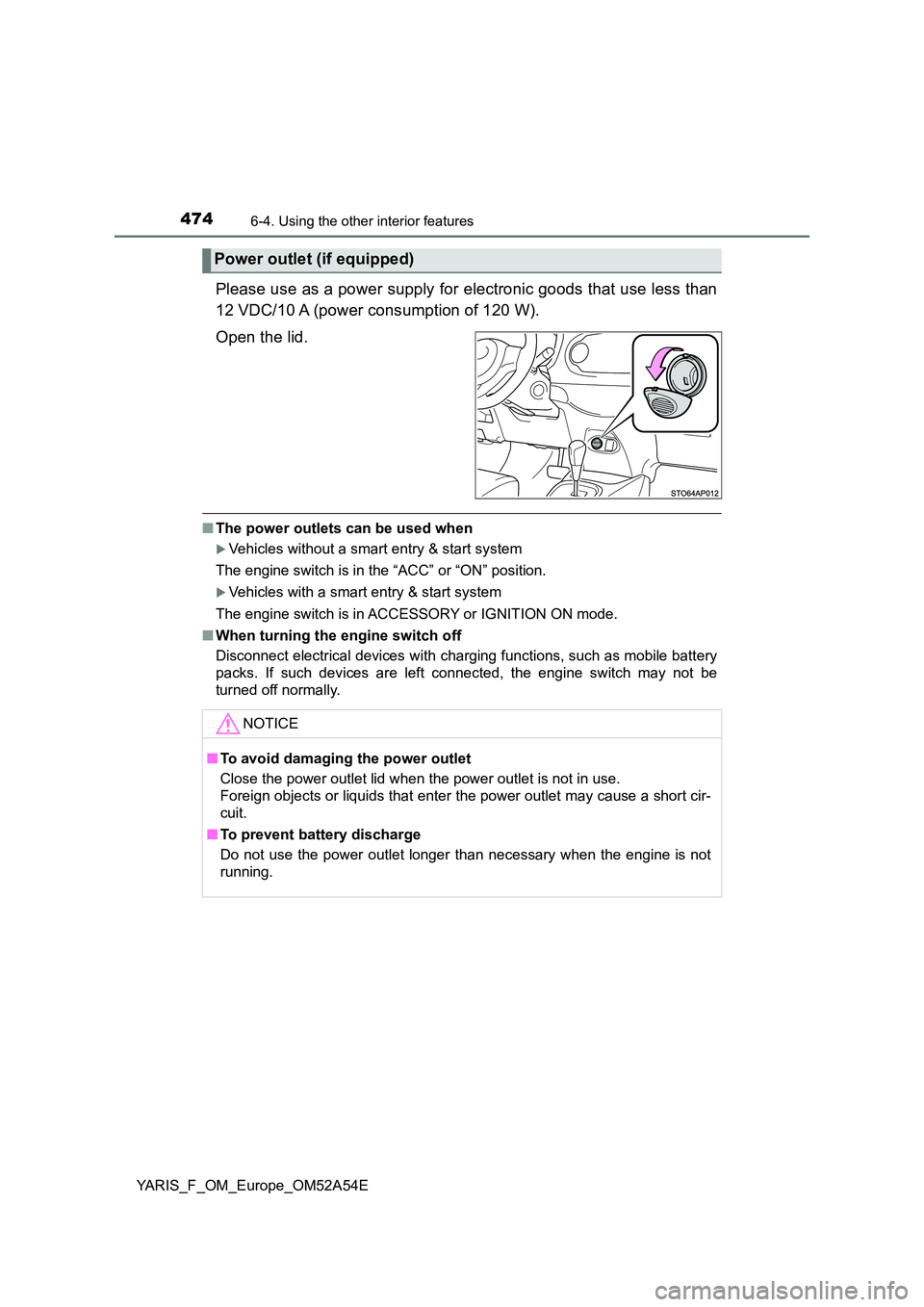

Page 474 of 692

4746-4. Using the other interior features
YARIS_F_OM_Europe_OM52A54E
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■ The power outlets can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile battery
packs. If such devices are left connected, the engine switch may not be
turned off normally.
Power outlet (if equipped)
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.

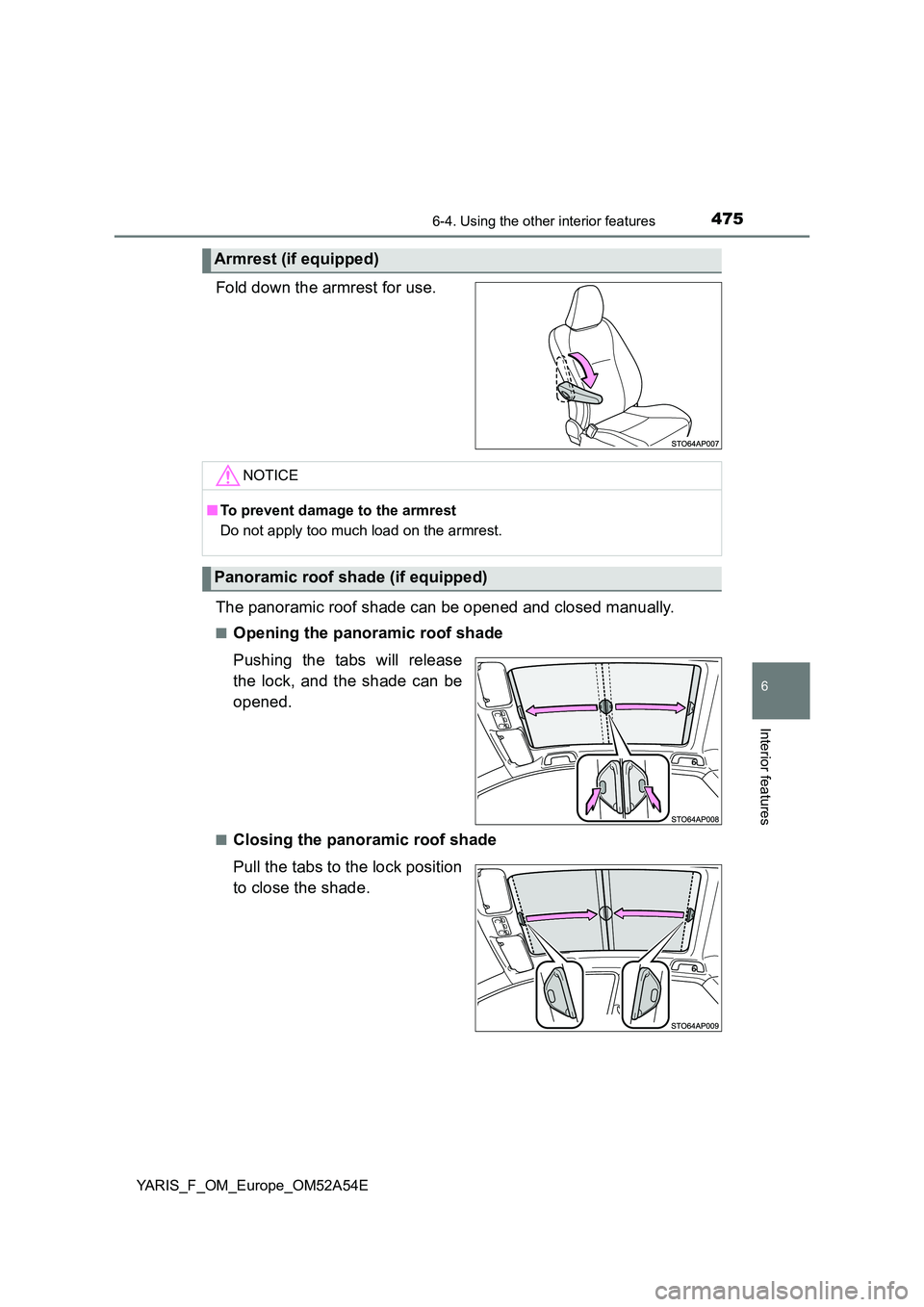

Page 475 of 692

4756-4. Using the other interior features
6
Interior features
YARIS_F_OM_Europe_OM52A54E
Fold down the armrest for use.
The panoramic roof shade can be opened and closed manually.
■Opening the panoramic roof shade
Pushing the tabs will release
the lock, and the shade can be
opened.
■Closing the panoramic roof shade
Pull the tabs to the lock position
to close the shade.
Armrest (if equipped)
NOTICE
■ To prevent damage to the armrest
Do not apply too much load on the armrest.
Panoramic roof shade (if equipped)

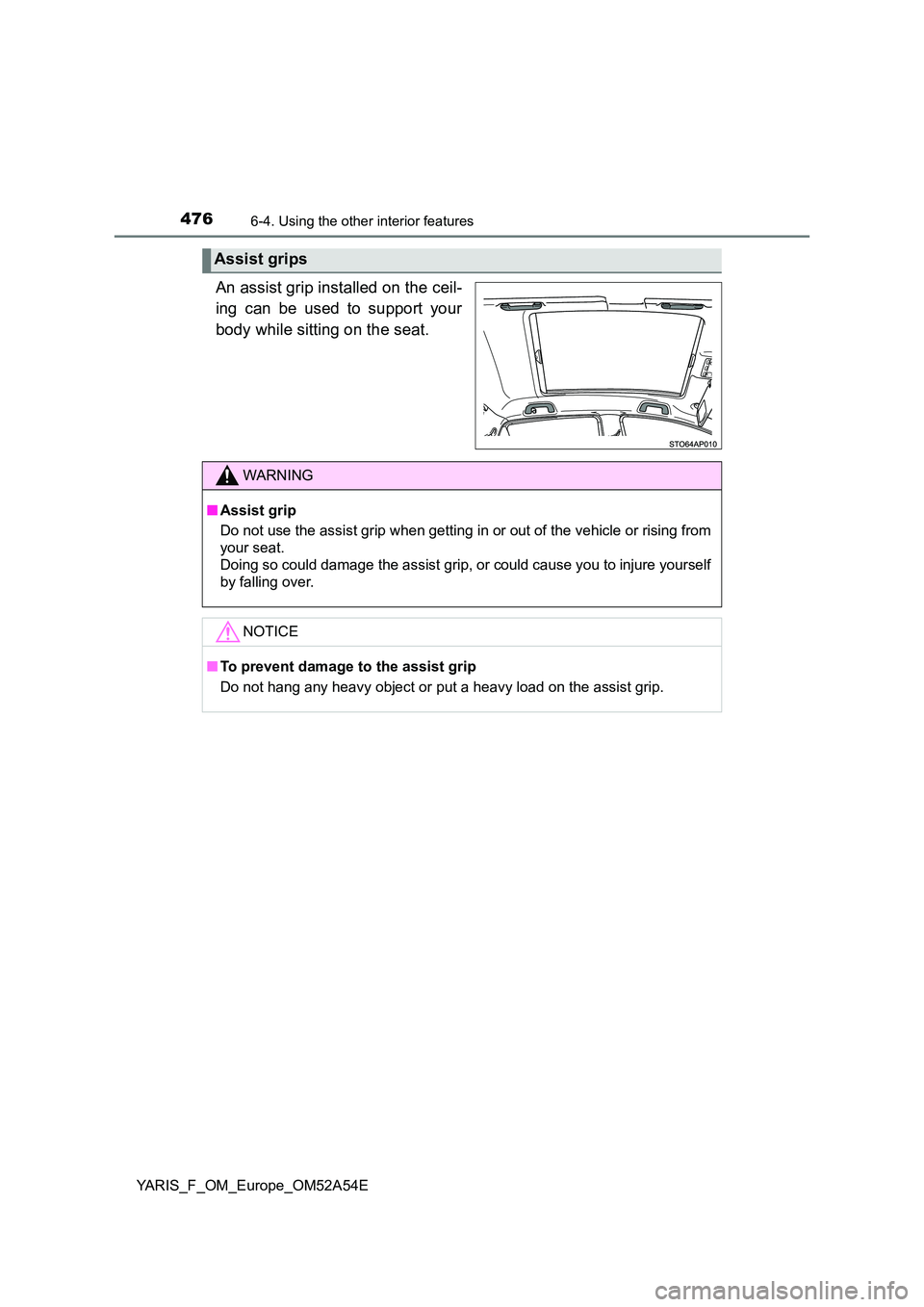

Page 476 of 692

4766-4. Using the other interior features
YARIS_F_OM_Europe_OM52A54E
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
■ Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
Page 477 of 692

477
7Maintenance and care
YARIS_F_OM_Europe_OM52A54E7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 478
Cleaning and protecting
the vehicle interior ........... 482
7-2. Maintenance
Maintenance
requirements.................... 4857-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 488
Hood .................................. 491
Positioning a floor jack ....... 493
Engine compartment.......... 495
Tires ................................... 508
Tire inflation pressure ........ 528
Wheels ............................... 530
Air conditioning filter .......... 534
Wireless remote control/
electronic key battery....... 537
Checking and replacing
fuses ................................ 541
Light bulbs ......................... 547

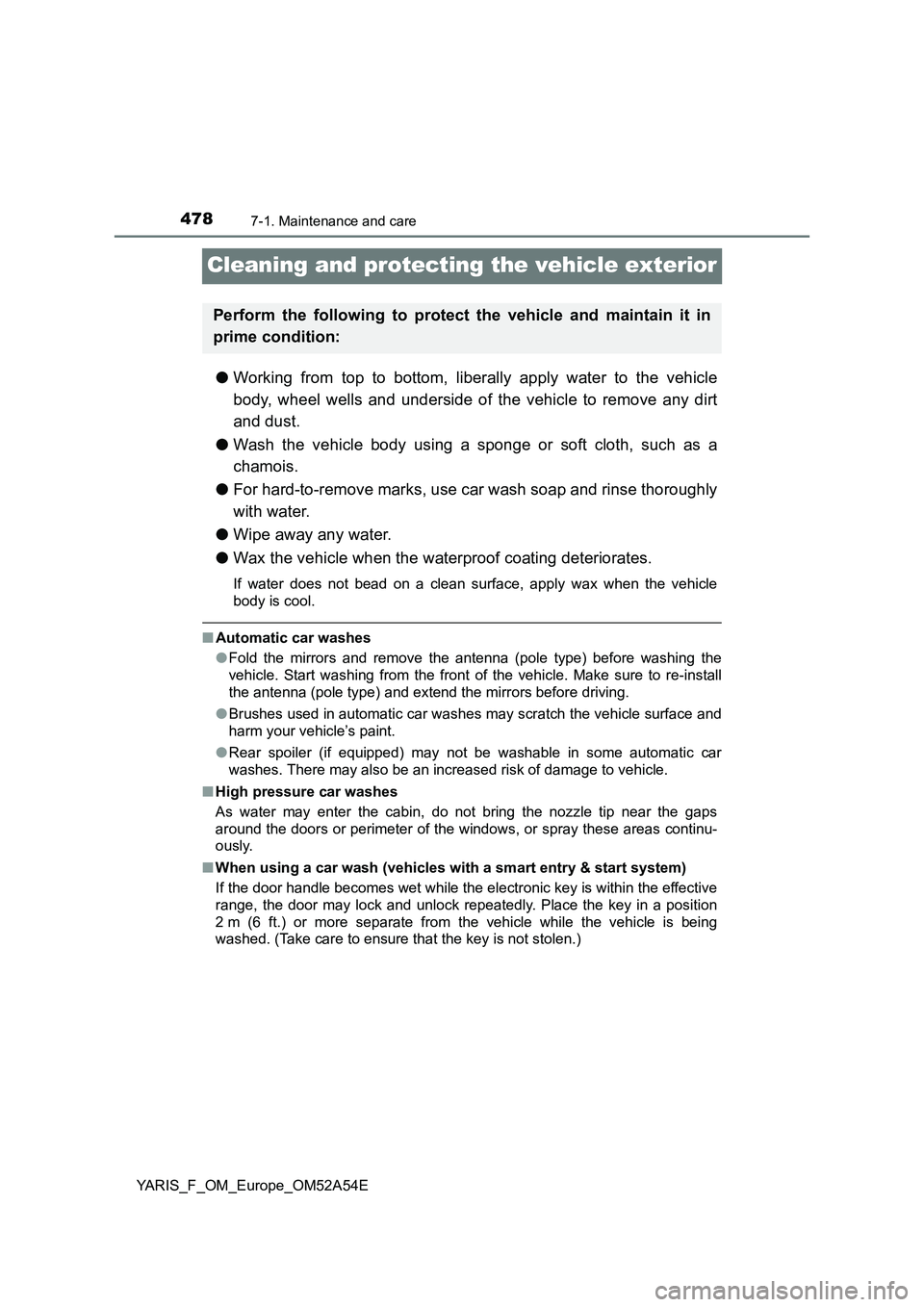

Page 478 of 692

4787-1. Maintenance and care
YARIS_F_OM_Europe_OM52A54E
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors and remove the antenna (pole type) before washing the
vehicle. Start washing from the front of the vehicle. Make sure to re-install
the antenna (pole type) and extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
●Rear spoiler (if equipped) may not be washable in some automatic car
washes. There may also be an increased risk of damage to vehicle.
■High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps
around the doors or perimeter of the windows, or spray these areas continu-
ously.
■When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position
2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
Perform the following to protect the vehicle and maintain it in
prime condition:
Page 479 of 692

4797-1. Maintenance and care
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E
■ Aluminum wheels (if equipped)
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
■ Bumpers
Do not scrub with abrasive cleaners.
WARNING
■ When cleaning the windshield
• When the upper part of the windshield where the raindrop sensor is
located is touched by hand
• When a wet rag or similar is held close to the raindrop sensor
• If something bumps against the windshield
• If you directly touch the raindrop sensor body or if something bumps
into the raindrop sensor
● Installation area of front sensor on windshield:P. 289
■ When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components, etc., to catch fire.
■ Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have
cooled sufficiently, as touching hot exhaust pipes can cause burns.
● Vehicles with a rain-sensing windshield
wiper: Set the wiper switch to off.
If the wiper switch is in “AUTO”, the
wiper may operate unexpectedly in the
following situations, and may result in
hands being caught or other serious
injuries and cause damage to the wiper
blades.
Off

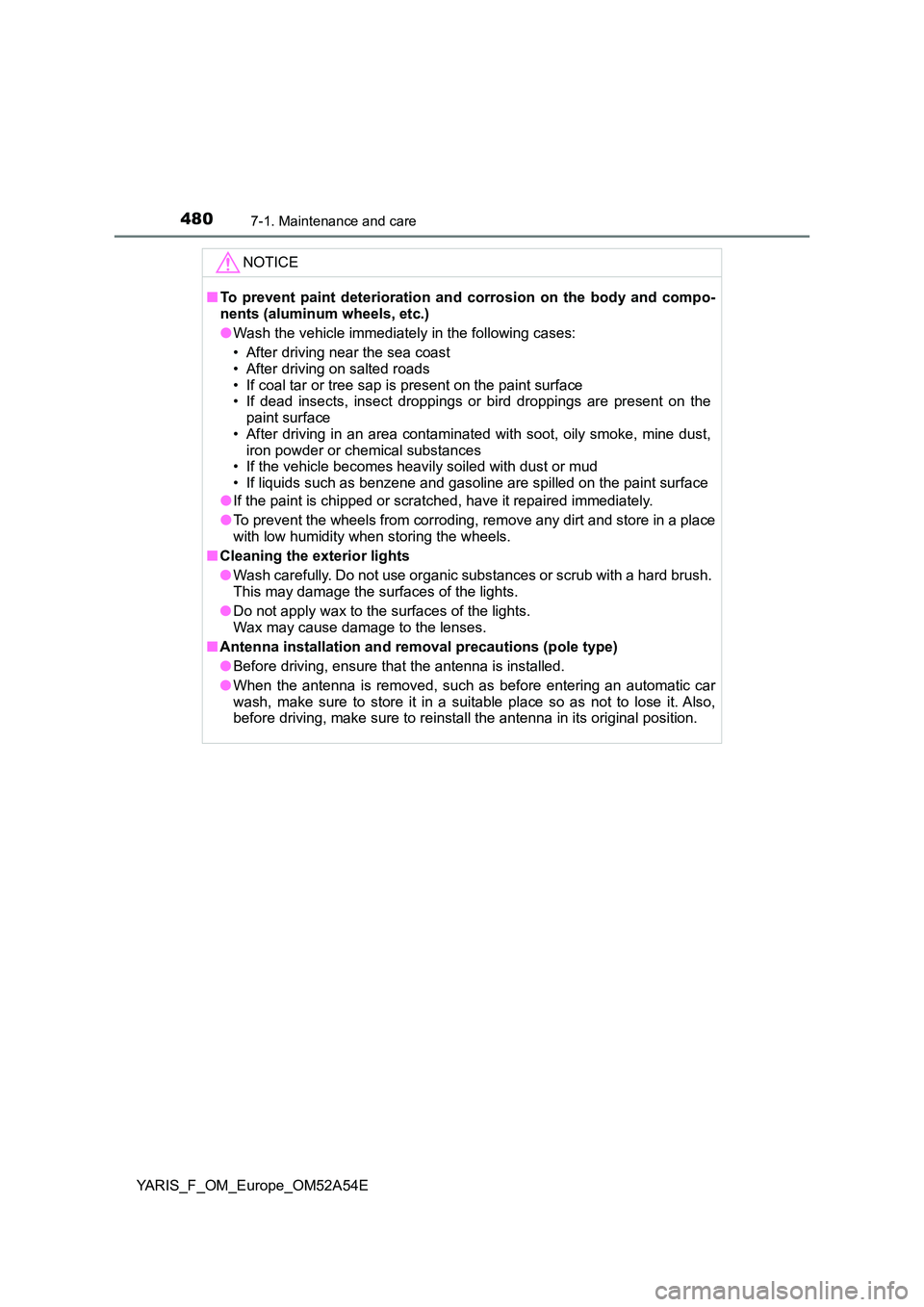

Page 480 of 692

4807-1. Maintenance and care
YARIS_F_OM_Europe_OM52A54E
NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ Antenna installation and removal precautions (pole type)
● Before driving, ensure that the antenna is installed.
● When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.
