TOYOTA YARIS 2021 Owners Manual

291
5
YARIS(HB) Owner's Manual_Europe_MK0001_en

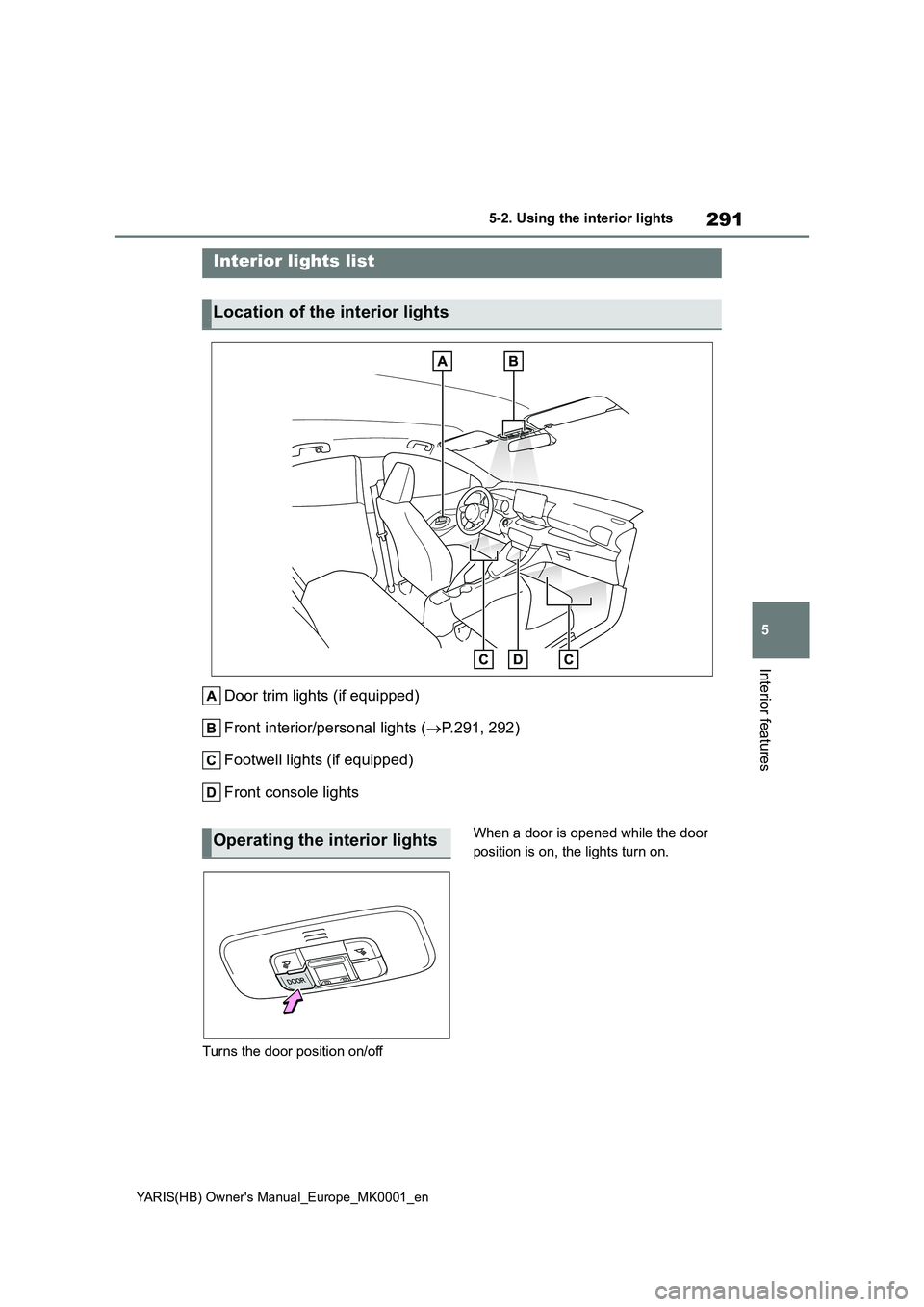

5-2. Using the interior lights
Interior features
5-2.Using the interior lights
Door trim lights (if equipped)
Front interior/personal lights ( →P.291, 292)
Footwell lights (if equipped)
Front console lights
Turns the door position on/off
When a door is opened while the door
position is on, the lights turn on.
Interior lights list
Location of the interior lights
Operating the interior lights

292
YARIS(HB) Owner's Manual_Europe_MK0001_en

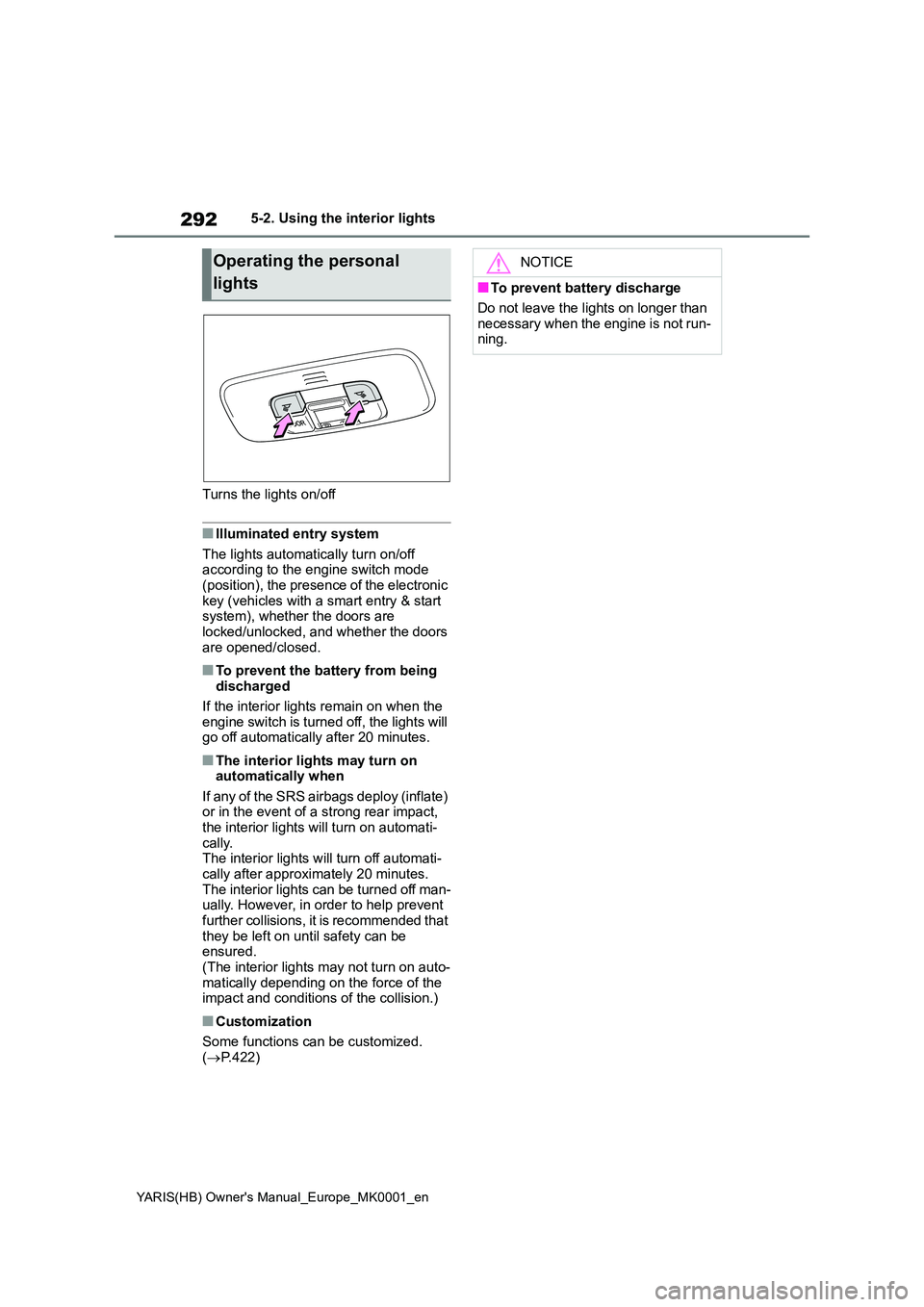

5-2. Using the interior lights
Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off according to the engine switch mode (position), the presence of the electronic
key (vehicles with a smart entry & start system), whether the doors are locked/unlocked, and whether the doors
are opened/closed.
■To prevent the battery from being discharged
If the interior lights remain on when the
engine switch is turned off, the lights will go off automatically after 20 minutes.
■The interior lights may turn on automatically when
If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the interior lights will turn on automati-
cally. The interior lights will turn off automati-cally after approximately 20 minutes.
The interior lights can be turned off man- ually. However, in order to help prevent further collisions, it is recommended that
they be left on until safety can be ensured.(The interior lights may not turn on auto-
matically depending on the force of the impact and conditions of the collision.)
■Customization
Some functions can be customized.
( →P.422)
Operating the personal
lights
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than
necessary when the engine is not run- ning.

293
5
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features
Interior features
5-3.Using the s torage feature s
Bottle holders (→P.294)
Glove box ( →P.293)
Cup holders ( →P.294)
Pull up the lever to open the glove
box.
List of storage features
Location of the storage features
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or
spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
●Lighters or spray cans may
explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may
release gas, causing a fire hazard.
Glove box

294
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features
Front
Rear
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend- ing on its size or shape.
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the
open glove box or the items stored inside.
Cup holders
WARNING
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Bottle holders
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a
bottle in the bottle holders. Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

295
5
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features
Interior features

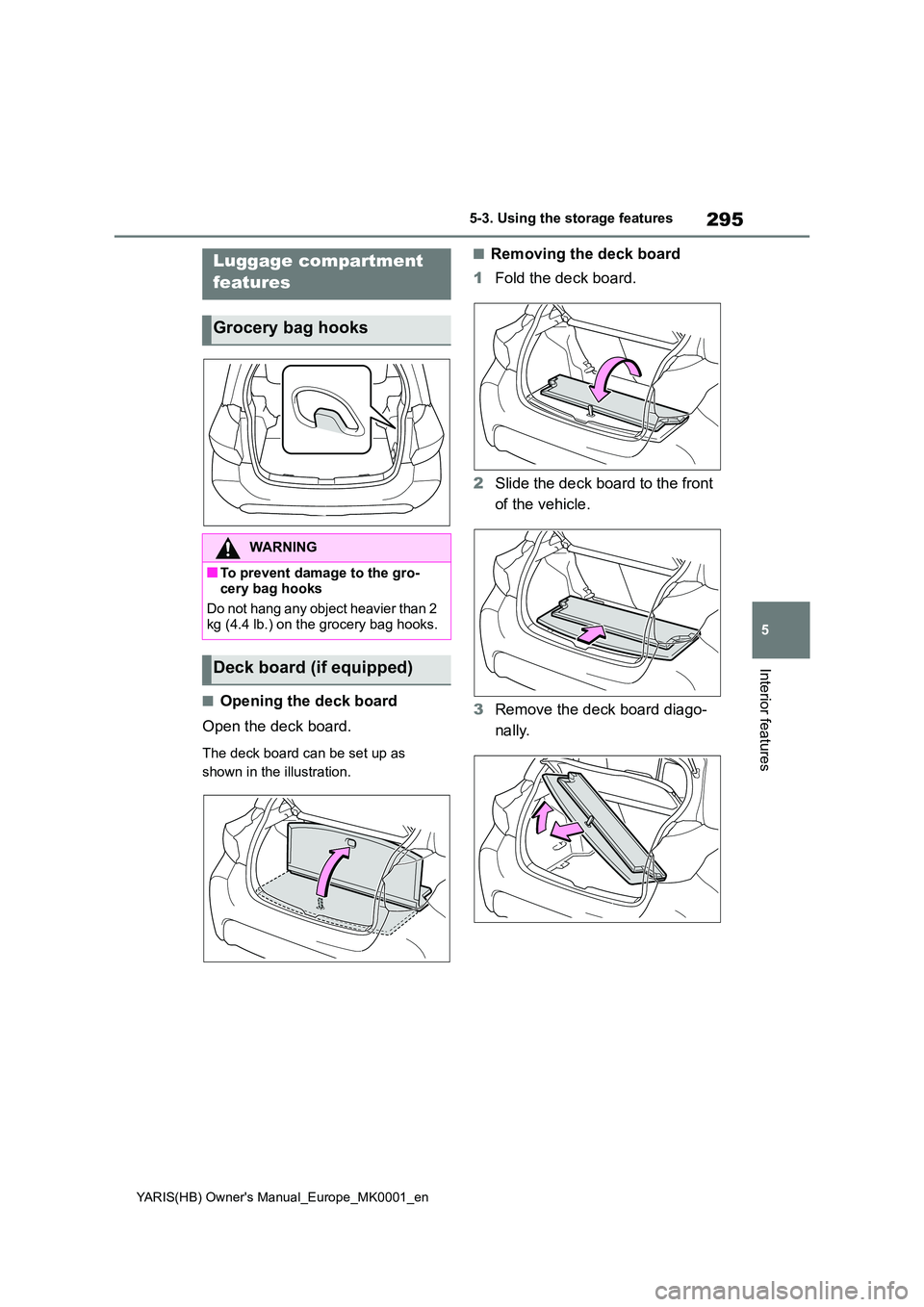

■Opening the deck board
Open the deck board.
The deck board can be set up as
shown in the illustration.
■Removing the deck board
1 Fold the deck board.
2 Slide the deck board to the front
of the vehicle.
3 Remove the deck board diago-
nally.
Luggage compartment
features
Grocery bag hooks
WARNING
■To prevent damage to the gro- cery bag hooks
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hooks.
Deck board (if equipped)

296
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features

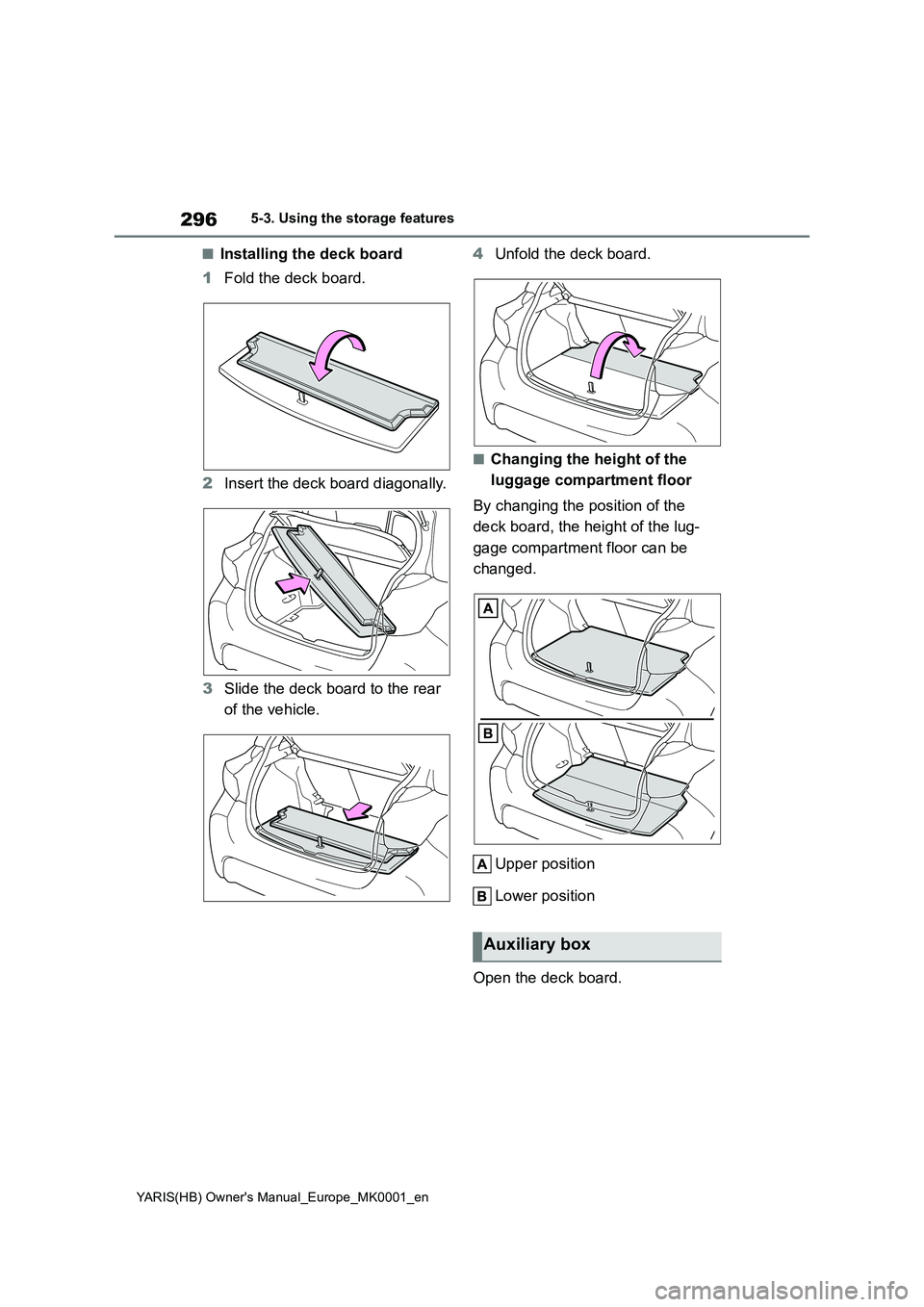

■Installing the deck board
1Fold the deck board.
2Insert the deck board diagonally.
3Slide the deck board to the rear
of the vehicle.4Unfold the deck board.
■Changing the height of the
luggage compartment floor
By changing the position of the
deck board, the height of the lug-
gage compartment floor can be
changed.
Upper position
Lower position
Open the deck board.
Auxiliary box

297
5
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features
Interior features

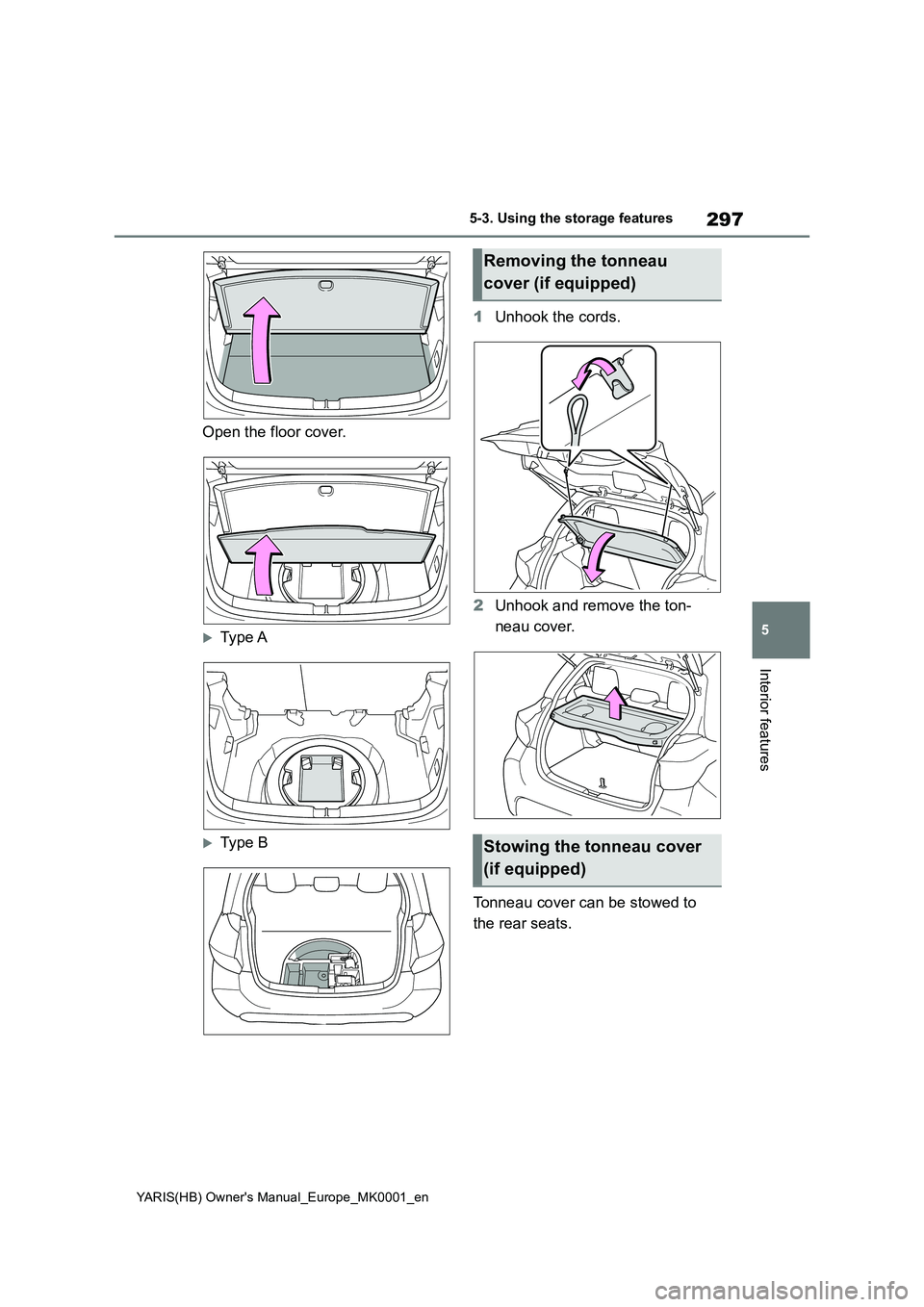

Open the floor cover.
Type A
Type B
1 Unhook the cords.
2 Unhook and remove the ton-
neau cover.
Tonneau cover can be stowed to
the rear seats.
Removing the tonneau
cover (if equipped)

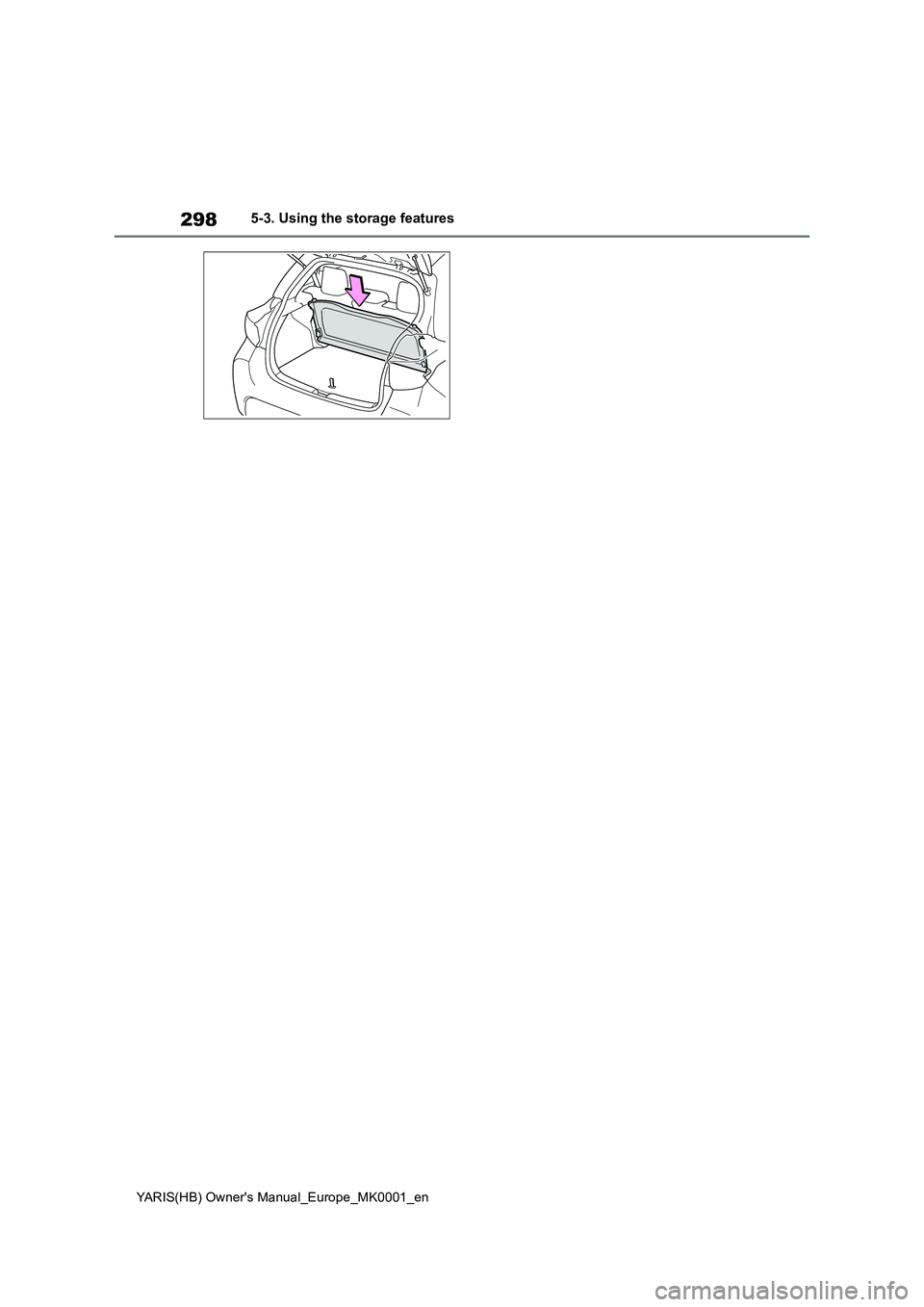

Stowing the tonneau cover
(if equipped)

298
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-3. Using the storage features

299
5
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-4. Other interior features
Interior features
5-4.Othe r in terior fe atu res

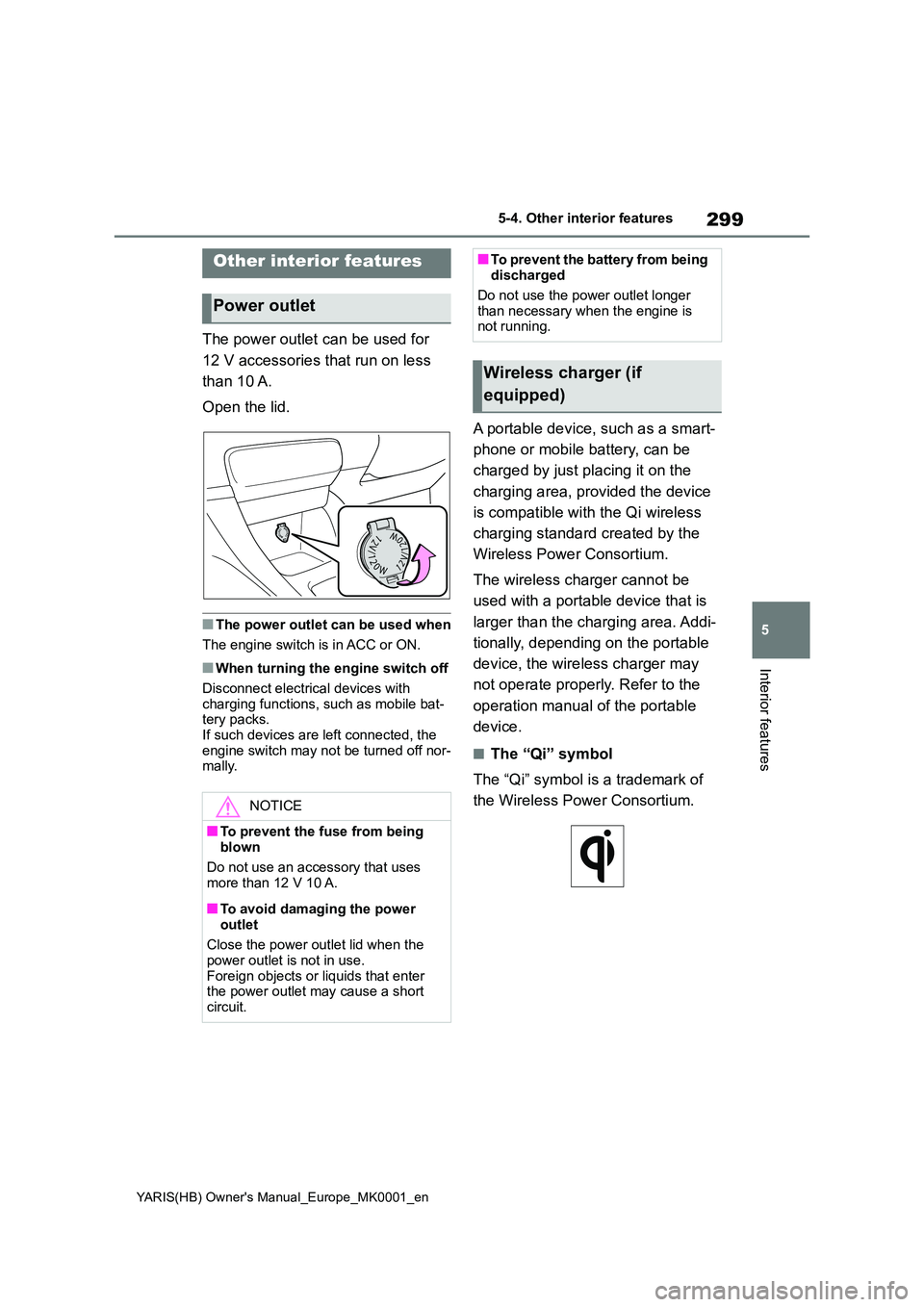

The power outlet can be used for
12 V accessories that run on less
than 10 A.
Open the lid.
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with
charging functions, such as mobile bat- tery packs.If such devices are left connected, the
engine switch may not be turned off nor- mally.
A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be
used with a portable device that is
larger than the charging area. Addi-
tionally, depending on the portable
device, the wireless charger may
not operate properly. Refer to the
operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
Other interior features
Power outlet
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses
more than 12 V 10 A.
■To avoid damaging the power
outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the battery from being discharged
Do not use the power outlet longer
than necessary when the engine is not running.
Wireless charger (if
equipped)

300
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-4. Other interior features

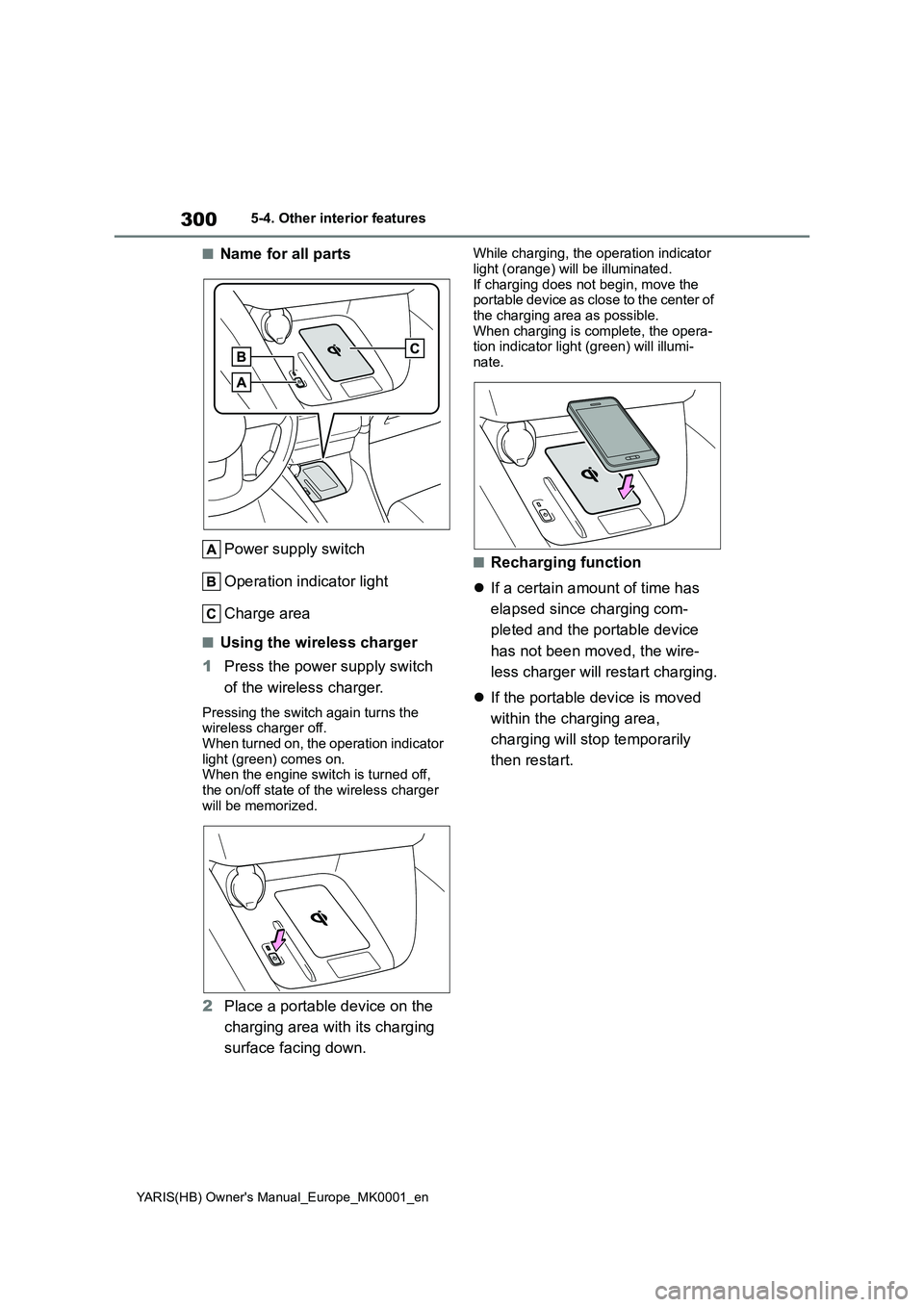

■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1Press the power supply switch
of the wireless charger.
Pressing the switch again turns the
wireless charger off.
When turned on, the operation indicator
light (green) comes on.
When the engine switch is turned off,
the on/off state of the wireless charger
will be memorized.
2Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator
light (orange) will be illuminated.
If charging does not begin, move the
portable device as close to the center of
the charging area as possible.
When charging is complete, the opera-
tion indicator light (green) will illumi-
nate.
■Recharging function
zIf a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
zIf the portable device is moved
within the charging area,
charging will stop temporarily
then restart.
