coolant capacity TOYOTA YARIS 2021 Owners Manual

415
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-1. Specifications
Vehicle specifications
Cooling system
Capacity
(Reference)
1KR-FE
engine
Right-hand drive vehicles
4.94 L (5.2 qt., 4.3 Imp. qt.)
Left-hand drive vehicles
4.92 L (5.2 qt., 4.3 Imp. qt.)
M15A-FKS
engine
Right-hand drive vehicles
Multidrive: 5.06 L (5.3 qt., 4.5 Imp. qt.)
Manual transmission: 4.86 L (5.1 qt., 4.3 Imp. qt.)
Left-hand drive vehicles
Multidrive: 5.04 L (5.3 qt., 4.4 Imp. qt.)
Manual transmission: 4.84 L (5.1 qt., 4.3 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
NGK DILKAR6T8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
(Turn the engine switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.

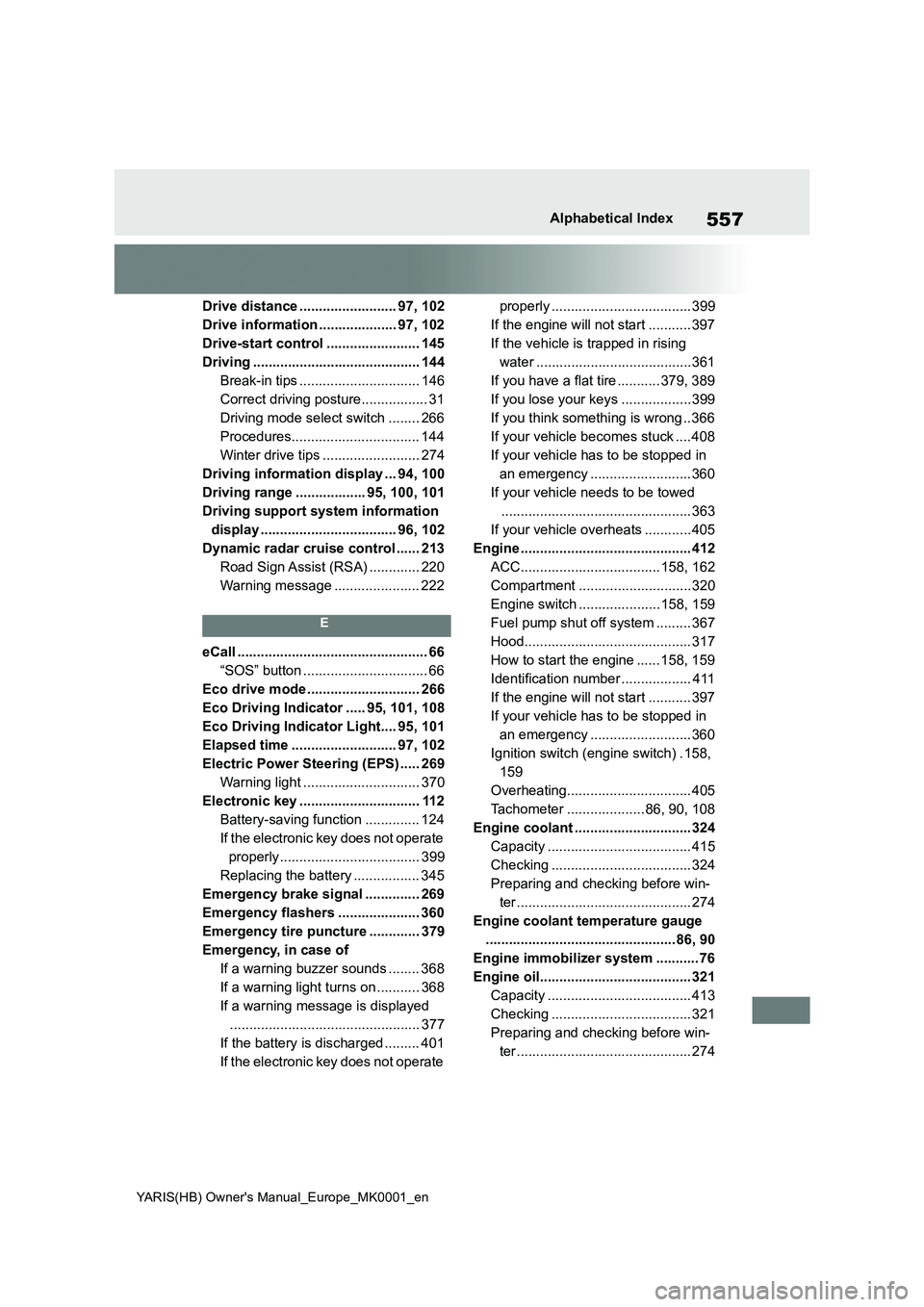

557
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Drive distance ......................... 97, 102
Drive information .................... 97, 102
Drive-start control ........................ 145
Driving ........................................... 144
Break-in tips ............................... 146
Correct driving posture................. 31
Driving mode select switch ........ 266
Procedures................................. 144
Winter drive tips ......................... 274
Driving information display ... 94, 100
Driving range .................. 95, 100, 101
Driving support system information
display ................................... 96, 102
Dynamic radar cruise control ...... 213
Road Sign Assist (RSA) ............. 220
Warning message ...................... 222
E
eCall ................................................. 66
“SOS” button ................................ 66
Eco drive mode ............................. 266
Eco Driving Indicator ..... 95, 101, 108
Eco Driving Indicator Light.... 95, 101
Elapsed time ........................... 97, 102
Electric Power Steering (EPS) ..... 269
Warning light .............................. 370
Electronic key ............................... 112
Battery-saving function .............. 124
If the electronic key does not operate
properly.................................... 399
Replacing the battery ................. 345
Emergency brake signal .............. 269
Emergency flashers ..................... 360
Emergency tire puncture ............. 379
Emergency, in case of
If a warning buzzer sounds ........ 368
If a warning light turns on ........... 368
If a warning message is displayed
................................................. 377
If the battery is discharged ......... 401
If the electronic key does not operate properly .................................... 399
If the engine will not start ........... 397
If the vehicle is trapped in rising
water ........................................361
If you have a flat tire ........... 379, 389
If you lose your keys ..................399
If you think something is wrong .. 366
If your vehicle becomes stuck .... 408
If your vehicle has to be stopped in
an emergency .......................... 360
If your vehicle needs to be towed
................................................. 363
If your vehicle overheats ............405
Engine ............................................ 412
ACC.................................... 158, 162
Compartment .............................320
Engine switch .....................158, 159
Fuel pump shut off system ......... 367
Hood........................................... 317
How to start the engine ...... 158, 159
Identification number .................. 411
If the engine will not start ........... 397
If your vehicle has to be stopped in
an emergency .......................... 360
Ignition switch (engine switch) . 158,
159
Overheating................................ 405
Tachometer .................... 86, 90, 108
Engine coolant .............................. 324
Capacity ..................................... 415
Checking .................................... 324
Preparing and checking before win-
ter ............................................. 274
Engine coolant temperature gauge
................................................. 86, 90
Engine immobilizer system ........... 76
Engine oil....................................... 321
Capacity ..................................... 413
Checking .................................... 321
Preparing and checking before win-
ter ............................................. 274

559
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Headlamp temporary lighting func-
tion............................................... 175
Headlights
Automatic High Beam system .... 177
Headlamp temporary lighting func-
tion ........................................... 175
Light switch ................................ 173
Replacing light bulbs .......... 351, 352
Wattage ...................................... 419
Heated steering wheel ................. 289
Heaters
Automatic air conditioning system
................................................. 283
Heated steering wheel ............... 289
Heater system ............................ 278
Manual air conditioning system.. 278
Outside rear view mirrors ... 280, 285
Seat heaters............................... 289
High mounted stoplight
Replacing light bulbs .................. 352
Hill-start assist control................. 269
Hood .............................................. 317
Open .......................................... 317
Hooks
Coat hooks ................................. 304
Grocery bag hooks..................... 295
Retaining hooks (floor mat) .......... 30
Horn ............................................... 134
I
Identification
Engine ........................................ 411
Vehicle ....................................... 411
Ignition switch (engine switch) . 158,
159
Auto power off function .............. 162
Changing the engine switch modes
......................................... 158, 162
If your vehicle has to be stopped in
an emergency .......................... 360
Illuminated entry system ............. 292Indicators......................................... 84
Initialization
Engine oil maintenance data ...... 323
Items to initialize......................... 431
Parking Support Brake ............... 255
Power windows .......................... 139
Tire pressure warning system .... 334
Inside rear view mirror ................. 135
Intercooler ..................................... 324
Intercooler coolant .......................324
Capacity ..................................... 415
Checking .................................... 324
Interior lights ................................. 291
Front interior light .......................291
Rear interior light ........................ 291
Wattage ...................................... 419
J
Jack
Positioning a floor jack ............... 319
Vehicle-equipped jack ................ 390
Jack handle ...................................390
Jam protection function
Power windows .......................... 139
K
Keyless entry
Smart entry & start system ......... 123
Wireless remote control ............. 114
Keys ............................................... 112
Battery-saving function............... 124
Electronic key ............................. 112
Engine switch .....................158, 159
If the electronic key does not operate
properly .................................... 399
If you lose your keys ..................399
Key number plate ....................... 112
Keyless entry.............. 116, 121, 123
Mechanical key .......................... 112
Replacing the battery ................. 345
