TOYOTA YARIS CROSS 2021 Owners Manual

109
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
Score result
Eco start status
Eco cruise status
Eco stop status
 How to read the bar display
Not yet evaluated
Low
High
• After the hybrid system is started, the
Eco score will not be displayed until
the vehicle speed exceeds approxi-
mately 20 km/h (12 mph).
• The Eco score will be reset each time
the hybrid system is started.
• When the hybrid system is stopped,
the total score of the current trip will
be displayed.
■EV travel time display
EV travel time ratio is displayed
within the overall travel time.
■The ECO Accelerator Guidance/Eco
score will not operate when
The ECO Accelerator Guidance/Eco score will not operate in the following sit-
uations:
●The Hybrid System Indicator is not
operating.
●The vehicle is being driven using the
dynamic radar cruise control with full- speed range. (if equipped)
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( P.242)
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.252)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
 Route guidance to destination (if
equipped)
 Compass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination display is enabled on the head-up dis-
play, it will not be displayed on the multi- information display. ( P.119)
Driving support system
information display

110
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Display items
 Drive information
 Energy monitor (P. 1 2 3 )
 Torque distribution (if equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets).
( P. 1 1 0 )
Use the displayed information as a
reference only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since hybrid sys-
tem start*
• “Distance”: Displays the distance
driven since hybrid system start*
• “Total Time”: Displays the elapsed
time since hybrid system start*
*: These items are reset each time the
hybrid system stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Torque distribution (if
equipped)
Drive power put on each tire is dis-
played with a bar meter. The larger
the bar meter the larger the driving
power is displayed.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 9 8
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
Audio system-linked dis-
play (if equipped)
Vehicle information display
Settings display

111
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
displayed.
EV indicator
Select to enable/disable the EV indica-
tor.

Select to change the displayed content
of the following:
• Hybrid System Indicator
Select to display/not display the Eco
Accelerator Guidance. ( P.108)
• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P.107)
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Display contents
Select to display/not display the energy
monitor/torque distribution display.
( P.123)
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.

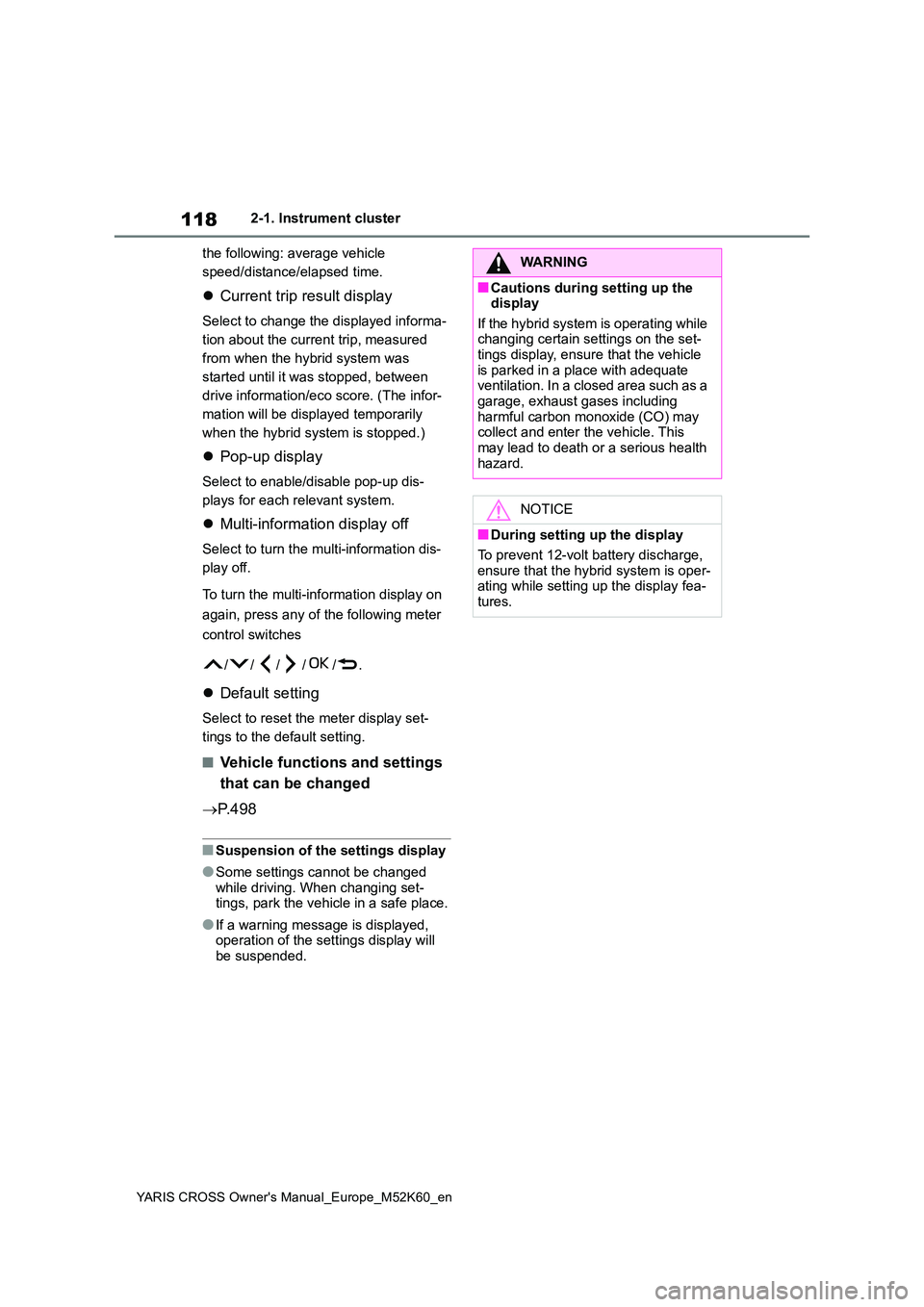

 Current trip result display
Select to change the displayed informa-
tion about the current trip, measured
from when the hybrid system was
started until it was stopped, between
drive information/eco score. (The infor-
mation will be displayed temporarily
when the hybrid system is stopped.)
 Pop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
 Multi-information display off
Select to turn the multi-information dis-
play off.
To turn the multi-information display on
again, press any of the following meter
control switches
//// /.
 Default setting
Select to reset the meter display set-
tings to the default setting.
■Vehicle functions and settings
that can be changed
 P. 4 9 8
■Suspension of the settings display
●Some settings cannot be changed while driving. When changing set-
tings, park the vehicle in a safe place.
●If a warning message is displayed,
operation of the settings display will be suspended.

112
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
■Display
Driving support system status
display area
Displays an image when the following
systems are operating and a menu icon
other than is selected:
• LTA (Lane Tracing Assist) (if
equipped) ( P.242)
• Dynamic radar cruise control with full-
speed range (if equipped) ( P.252)
• RSA (Road Sign Assist) (if equipped)
( P.266)
Content display area
By selecting menu icons on the multi-
information display, a variety of driving-
WARNING
■Cautions during setting up the display
If the hybrid system is operating while changing certain settings on the set-tings display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-ating while setting up the display fea-
tures.
Multi-information display
(7-inch display)
The multi-information display
is used to display fuel effi-
ciency related information and
various types of driving-
related information. The multi-
information display can also
be used to change the display
settings and other settings.
Display and menu icons

113
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.
■Menu icons
The menu icons will be displayed
by pressing the or meter
control switch.
■When the drive mode is changed
The multi-information display back- ground color changes in accordance to
the drive mode selected. ( P.330)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to use the display.
The multi-information display is
operated using the meter control
switches.
/ : Select menu icons
/ : Change displayed con-
tent, scroll up/down the screen
and move the cursor up/down
Press: Enter/Set
Press and hold: Reset/Display
customizable items
Return to the previous screen
Call sending/receiving and his-
tory display
Linked with the hands-free system,
sending or receiving call is displayed.
For details regarding the hands-free
system, refer to the “Navigation and
Driving information display
( P.114)
Driving support system infor-
mation display (if equipped)
( P.116)
Audio system-linked display
(if equipped) ( P. 1 1 6 )
Vehicle information display
( P.116)
Settings display ( P. 1 1 7 )
Warning message display
( P.449)
WARNING
■Caution for use while driving
●When operating the multi-informa- tion display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driv-ing as you may fail to see pedestri-
ans, objects on the road, etc., ahead of the vehicle.
■The information display at low temperatures
 P. 1 0 3
Changing the meter display

114
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
multimedia system Owner’s manual”.
■Display items
 Speedometer display/Driving
range
 Fuel economy
 ECO Accelerator Guidance/Eco
score
 EV travel time display
■Fuel economy
Use the displayed values as a ref-
erence only.
Driving range
Displays driving range with remaining
fuel.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.
Current fuel consumption
Displays instantaneous current fuel
consumption.
Average fuel economy (after
reset)
To reset the average fuel economy dis-
play, press and hold the meter
control switch.
The average fuel economy display
can be changed in . ( P. 1 1 7 )
 Average fuel economy (after
start)
Displays the average fuel consumption
since hybrid system start.
 Average fuel economy (after
refuel)
Displays the average fuel consumption
since the vehicle was refueled.
■ECO Accelerator Guid-
ance/Eco score
ECO Accelerator Guidance
Eco score
 ECO Accelerator Guidance
Content of driving informa-
tion

115
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving, etc.).
Current acceleration
Reference operation range
A zone is displayed in blue under the
Eco area which can be used as a refer-
ence operation range for using the
accelerator pedal according to driving
conditions such as starting off and
cruising.
The ECO Accelerator Guidance display
changes according to the driving status,
such as when starting off or cruising.
It is easier to drive in an Eco-friendly
manner by driving according to the dis-
play showing the accelerator pedal
operations and staying within the refer-
ence operation range.
 Eco score
The following 3 Eco driving methods
are evaluated in 5 levels: Smooth start-
off acceleration, driving without sudden
acceleration, and smooth stopping.
When the vehicle is stopped, an Eco
score out of 100 points will be dis-
played.
Score result
Eco start status
Eco cruise status
Eco stop status
 How to read the bar display
Not yet evaluated
Low
High
• After the hybrid system is started, the
Eco score will not be displayed until
the vehicle speed exceeds approxi-
mately 20 km/h (12 mph).
• The Eco score will be reset each time
the hybrid system is started.
• When the hybrid system is stopped,
the total score of the current trip will
be displayed.

116
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
■EV travel time display
EV travel time ratio is displayed
within the overall travel time.
■The ECO Accelerator Guidance/Eco
score will not operate when
The ECO Accelerator Guidance/Eco score will not operate in the following sit-
uations:
●The Hybrid System Indicator is not
operating.
●The vehicle is being driven using the
dynamic radar cruise control with full- speed range. (if equipped)
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( P.242)
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.252)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
 Route guidance to destination (if
equipped)
 Compass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination display is enabled on the head-up dis-
play, it will not be displayed on the multi-
information display. ( P.119)
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Display items
 Drive information
 Energy monitor (P.123)
 Torque distribution (if equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets).
( P. 1 1 7 )
Use the displayed information as a
reference only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since hybrid sys-
tem start*
• “Distance”: Displays the distance
Driving support system
information display
Audio system-linked dis-
play (if equipped)
Vehicle information display

117
2
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
Vehicle status information and indicators
driven since hybrid system start*
• “Total Time”: Displays the elapsed
time since hybrid system start*
*: These items are reset each time the
hybrid system stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Torque distribution (if
equipped)
Drive power put on each tire is dis-
played with a bar meter. The larger
the bar meter the larger the driving
power is displayed.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting (vehicles without
navigation/multimedia system)
 P. 1 0 4
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
displayed.
 Meter Type
The speed meter display method can
be changed.
 EV indicator
Select to enable/disable the EV indica-
tor.

Select to change the displayed content
of the following:
• Hybrid System Indicator
Select to display/not display the Eco
Accelerator Guidance. ( P. 1 1 4 )
• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. ( P.114)
 (if equipped)
Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
• Display contents
Select to display/not display the energy
monitor/torque distribution display.
( P.123)
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
Settings display

118
YARIS CROSS Owner's Manual_Europe_M52K60_en
2-1. Instrument cluster
the following: average vehicle
speed/distance/elapsed time.
 Current trip result display
Select to change the displayed informa-
tion about the current trip, measured
from when the hybrid system was
started until it was stopped, between
drive information/eco score. (The infor-
mation will be displayed temporarily
when the hybrid system is stopped.)
 Pop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
 Multi-information display off
Select to turn the multi-information dis-
play off.
To turn the multi-information display on
again, press any of the following meter
control switches
//// /.
 Default setting
Select to reset the meter display set-
tings to the default setting.
■Vehicle functions and settings
that can be changed
 P. 4 9 8
■Suspension of the settings display
●Some settings cannot be changed
while driving. When changing set- tings, park the vehicle in a safe place.
●If a warning message is displayed, operation of the settings display will be suspended.
WARNING
■Cautions during setting up the display
If the hybrid system is operating while changing certain settings on the set-tings display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including
harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-ating while setting up the display fea-
tures.
