remote start TOYOTA YARIS CROSS 2022 Owner's Manual

437
7
CV Owner's Manual_Europe_M52N20_en

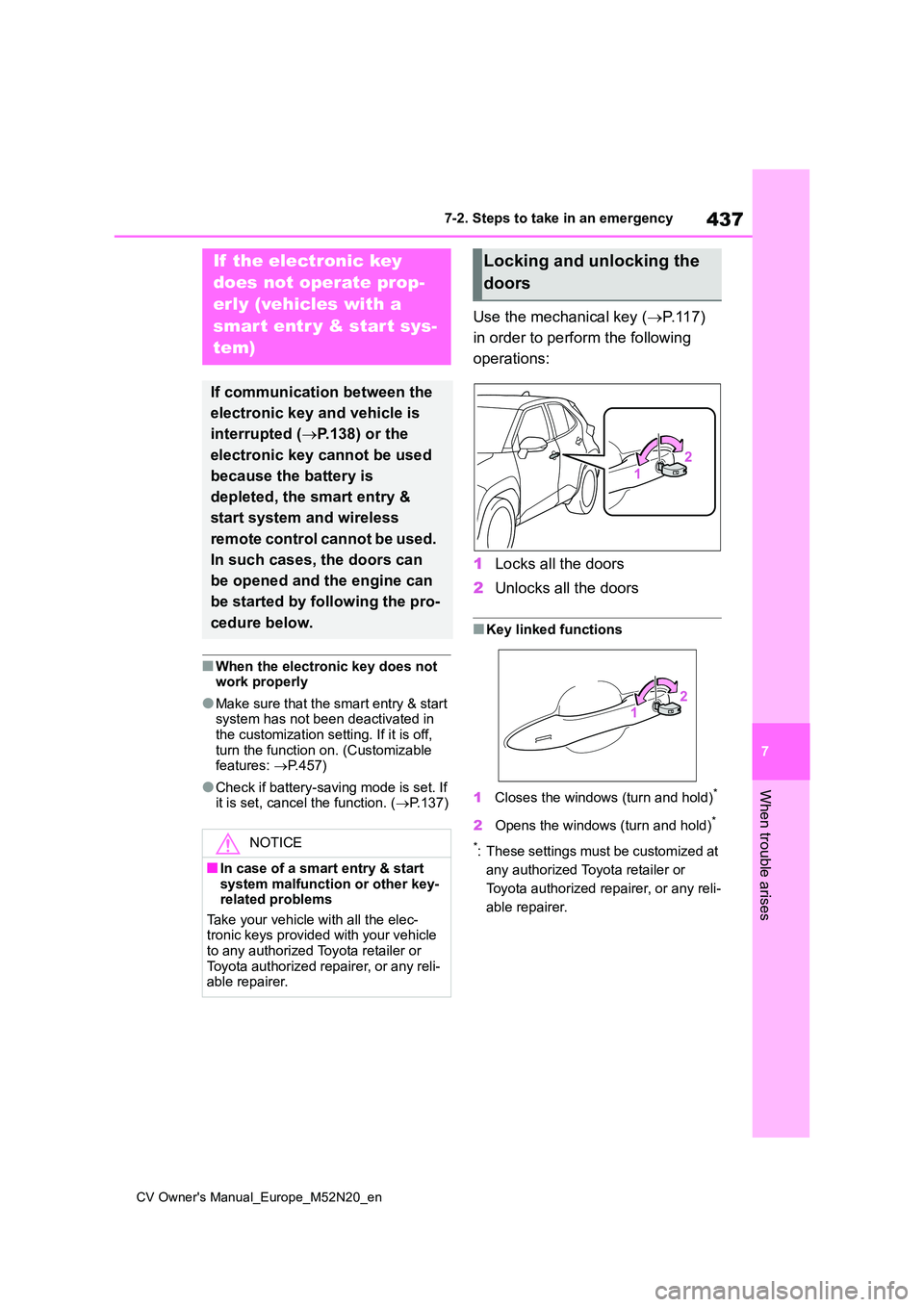

7-2. Steps to take in an emergency
When trouble arises
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on. (Customizable features: P.457)
●Check if battery-saving mode is set. If it is set, cancel the function. ( P.137)
Use the mechanical key (P. 1 1 7 )
in order to perform the following
operations:
1 Locks all the doors
2 Unlocks all the doors
■Key linked functions
1 Closes the windows (turn and hold)*
2Opens the windows (turn and hold)*
*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
If the electronic key
does not operate prop-
erly (vehicles with a
smart entr y & start sys-
tem)
If communication between the
electronic key and vehicle is
interrupted ( P.138) or the
electronic key cannot be used
because the battery is
depleted, the smart entry &
start system and wireless
remote control cannot be used.
In such cases, the doors can
be opened and the engine can
be started by following the pro-
cedure below.
NOTICE
■In case of a smart entry & start system malfunction or other key-related problems
Take your vehicle with all the elec- tronic keys provided with your vehicle to any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
Locking and unlocking the
doors

441
7
CV Owner's Manual_Europe_M52N20_en
7-2. Steps to take in an emergency
When trouble arises

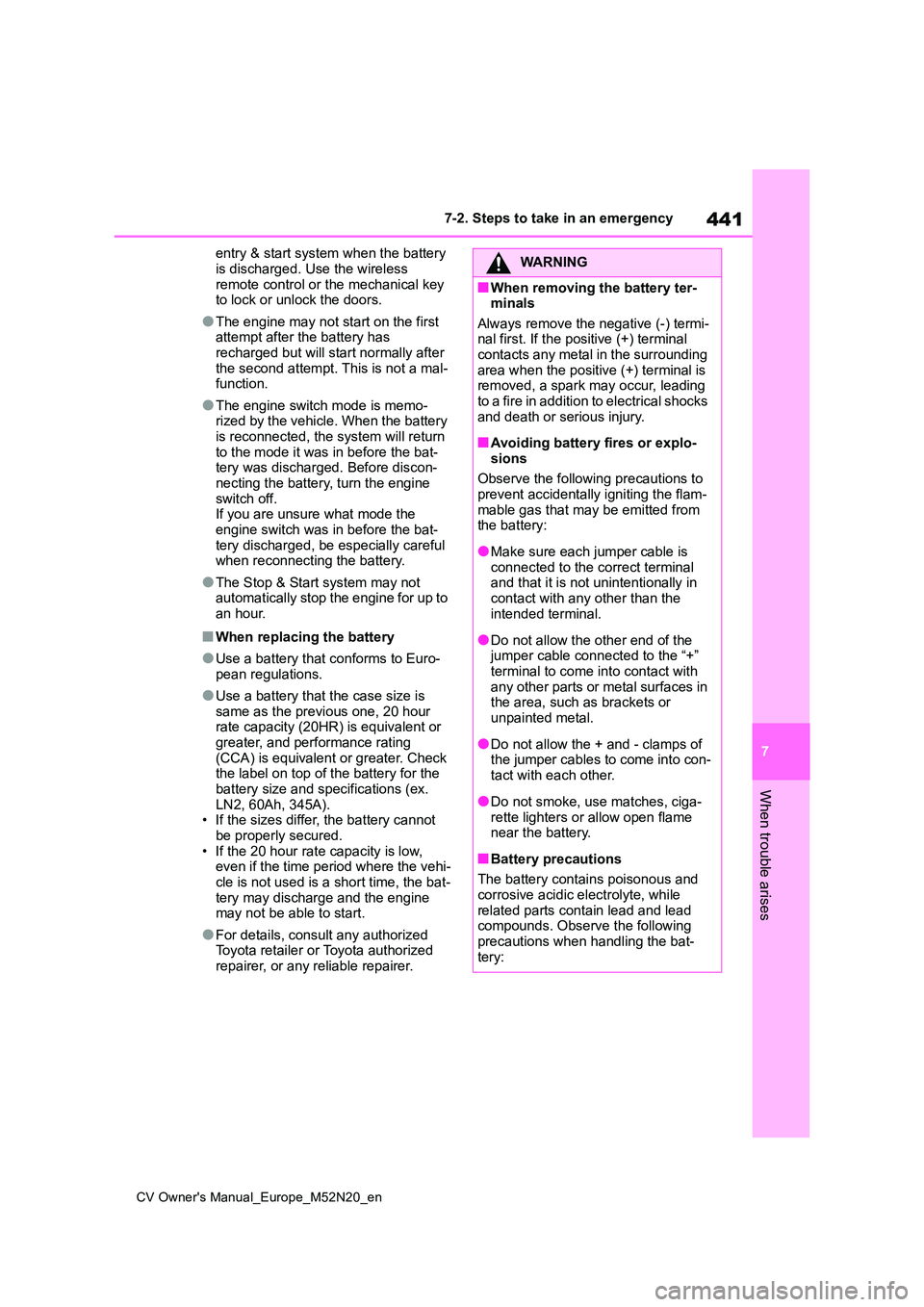

entry & start system when the battery
is discharged. Use the wireless remote control or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has
recharged but will start normally after the second attempt. This is not a mal-function.
●The engine switch mode is memo-rized by the vehicle. When the battery
is reconnected, the system will return to the mode it was in before the bat-tery was discharged. Before discon-
necting the battery, turn the engine switch off.If you are unsure what mode the
engine switch was in before the bat- tery discharged, be especially careful when reconnecting the battery.
●The Stop & Start system may not automatically stop the engine for up to
an hour.
■When replacing the battery
●Use a battery that conforms to Euro-
pean regulations.
●Use a battery that the case size is
same as the previous one, 20 hour rate capacity (20HR) is equivalent or greater, and performance rating
(CCA) is equivalent or greater. Check the label on top of the battery for the battery size and specifications (ex.
LN2, 60Ah, 345A). • If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-cle is not used is a short time, the bat-
tery may discharge and the engine may not be able to start.
●For details, consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
WARNING
■When removing the battery ter-minals
Always remove the negative (-) termi- nal first. If the positive (+) terminal contacts any metal in the surrounding
area when the positive (+) terminal is removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
■Avoiding battery fires or explo-
sions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not unintentionally in
contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to come into contact with
any other parts or metal surfaces in the area, such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into con-
tact with each other.
●Do not smoke, use matches, ciga-
rette lighters or allow open flame near the battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following precautions when handling the bat-
tery:

460
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
■Smart entry & start system* and wireless remote control (P.119,
136)
*: If equipped
■Smart entry & start system* ( P.119, 125, 136)
*: If equipped
■Wireless remote control (P.116, 119)
■Power back door* (P.126)
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 4—O—
User optional setting—O—
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensorOnOff—O—

472
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
Is the parking brake released?
( P. 1 8 6)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.403, 413)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 7 7)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.413)
When a warning light turns on or
a warning message is displayed,
refer to P.403, 413.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.415)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.426)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.444)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

473
CV Owner's Manual_Europe_M52N20_en

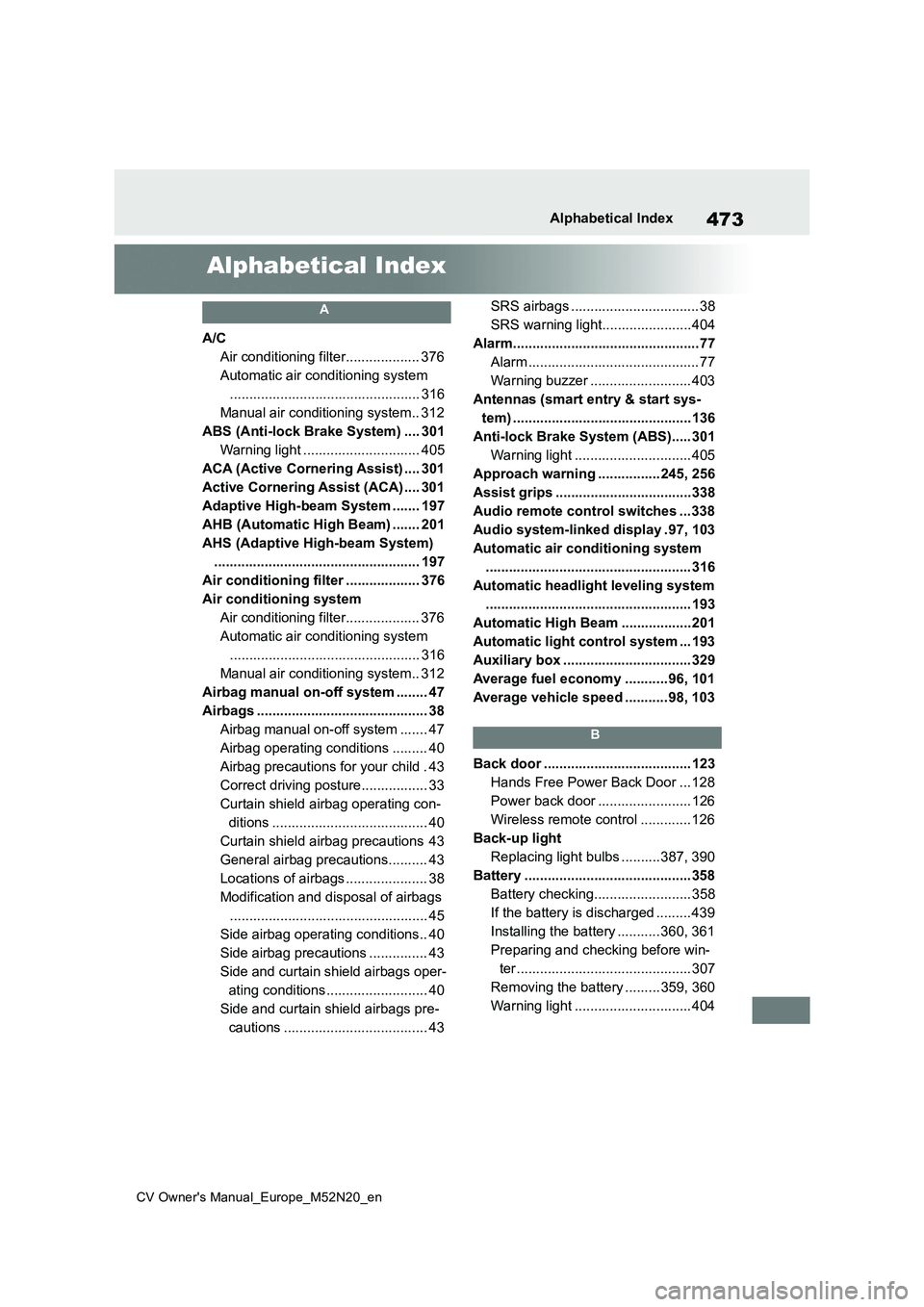

Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
ABS (Anti-lock Brake System) .... 301
Warning light .............................. 405
ACA (Active Cornering Assist) .... 301
Active Cornering Assist (ACA) .... 301
Adaptive High-beam System ....... 197
AHB (Automatic High Beam) ....... 201
AHS (Adaptive High-beam System)
..................................................... 197
Air conditioning filter ................... 376
Air conditioning system
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
Airbag manual on-off system ........ 47
Airbags ............................................ 38
Airbag manual on-off system ....... 47
Airbag operating conditions ......... 40
Airbag precautions for your child . 43
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 40
Curtain shield airbag precautions 43
General airbag precautions.......... 43
Locations of airbags ..................... 38
Modification and disposal of airbags
................................................... 45
Side airbag operating conditions.. 40
Side airbag precautions ............... 43
Side and curtain shield airbags oper-
ating conditions.......................... 40
Side and curtain shield airbags pre-
cautions ..................................... 43
SRS airbags ................................. 38
SRS warning light.......................404
Alarm................................................77
Alarm ............................................ 77
Warning buzzer .......................... 403
Antennas (smart entry & start sys-
tem) ..............................................136
Anti-lock Brake System (ABS)..... 301
Warning light .............................. 405
Approach warning ................ 245, 256
Assist grips ...................................338
Audio remote control switches ... 338
Audio system-linked display .97, 103
Automatic air conditioning system
..................................................... 316
Automatic headlight leveling system
..................................................... 193
Automatic High Beam ..................201
Automatic light control system ... 193
Auxiliary box ................................. 329
Average fuel economy ...........96, 101
Average vehicle speed ...........98, 103
B
Back door ...................................... 123
Hands Free Power Back Door ... 128
Power back door ........................ 126
Wireless remote control ............. 126
Back-up light
Replacing light bulbs ..........387, 390
Battery ........................................... 358
Battery checking......................... 358
If the battery is discharged ......... 439
Installing the battery ........... 360, 361
Preparing and checking before win-
ter ............................................. 307
Removing the battery ......... 359, 360
Warning light .............................. 404

475
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Display
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range ....................... 238
Head-up display ......................... 106
LTA (Lane-Tracing Assist) .......... 234
Multi-information display ...... 94, 100
Speed limiter .............................. 261
Toyota parking assist-sensor ..... 277
Warning message ...................... 413
Display change button ............. 87, 92
Distance until next engine oil change
................................................. 87, 92
Do-it-yourself maintenance ......... 348
Door
Double locking system ................. 76
Door lock
Back door ................................... 123
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 123
Door glasses .............................. 153
Door lock ............................ 119, 123
Open door warning buzzer. 120, 122
Outside rear view mirrors ........... 150
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 76
Drive distance ......................... 98, 103
Drive information .................... 98, 103
Driving ........................................... 158
Break-in tips ............................... 160
Correct driving posture................. 33
Driving mode select switch ........ 299
Procedures................................. 158
Winter drive tips ......................... 307
Driving information display ... 96, 101
Driving range................... 96, 101, 102
Driving support system information
display ...................................97, 103
Dynamic radar cruise control ...... 250
Road Sign Assist (RSA) ............. 257
Warning message ...................... 259
Dynamic radar cruise control with
full-speed range.......................... 238
Road Sign Assist (RSA) ............. 246
Warning message ...................... 248
E
eCall ................................................. 65
“SOS” button ................................ 65
Eco drive mode .............................299
Eco Driving Indicator...... 96, 102, 109
Eco Driving Indicator Light ....96, 102
Elapsed time............................98, 103
Electric Power Steering (EPS) ..... 301
Warning light .............................. 406
Electronic key ............................... 114
Battery-saving function............... 137
If the electronic key does not operate
properly .................................... 437
Replacing the battery ................. 378
Emergency brake signal .............. 301
Emergency flashers...................... 394
Emergency tire puncture ............. 415
Emergency, in case of
If a warning buzzer sounds ........ 403
If a warning light turns on ........... 403
If a warning message is displayed
................................................. 413
If the battery is discharged ......... 439
If the electronic key does not operate
properly .................................... 437
If the engine will not start ........... 435
If the vehicle is trapped in rising
water ........................................395

478
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Ignition switch (engine switch) . 173,
174
Auto power off function .............. 177
Changing the engine switch modes
......................................... 173, 177
If your vehicle has to be stopped in
an emergency .......................... 394
Illuminated entry system ............. 325
iMT (Intelligent Manual Transmis-
sion)............................................. 184
Indicators ........................................ 82
Initialization
Engine oil maintenance data...... 356
Items to initialize ........................ 467
Power back door ........................ 132
Power windows .......................... 153
Tire pressure warning system .... 367
Inside rear view mirror ................. 149
Interior lights ................................ 324
Wattage ...................................... 455
J
Jack
Positioning a floor jack ............... 353
Vehicle-equipped jack ................ 427
Jack handle ................................... 427
Jam protection function
Power back door ........................ 129
Power windows .......................... 153
K
Keyless entry
Smart entry & start system......... 136
Wireless remote control ............. 116
Keys ............................................... 114
Battery-saving function .............. 137
Electronic key............................. 114
Engine switch ..................... 173, 174
If the electronic key does not operate
properly .................................... 437
If you lose your keys ..................436
Key number plate ....................... 114
Keyless entry.............. 119, 125, 136
Mechanical key .......................... 114
Replacing the battery ................. 378
Warning buzzer .......................... 137
Wireless remote control ............. 116
L
Lane Tracing Assist (LTA) ............228
Operation ...................................228
Warning lights.............................407
Warning messages..................... 237
Language (multi-information dis-
play) .......................................98, 104
Lever
Auxiliary catch lever ................... 351
Hood lock release lever.............. 351
Shift lever ...........................179, 183
Turn signal lever ......................... 186
Wiper lever ................................. 205
License plate light
Replacing light bulbs ..................389
License plate lights
Light switch ................................ 192
Wattage ...................................... 455
Light bulbs
Replacing ...................................386
Lights
Adaptive High-beam System...... 197
Automatic High Beam system .... 201
Extended headlight lighting function
................................................. 194
Fog light switch .......................... 204
Headlight switch ......................... 192
Interior lights............................... 324

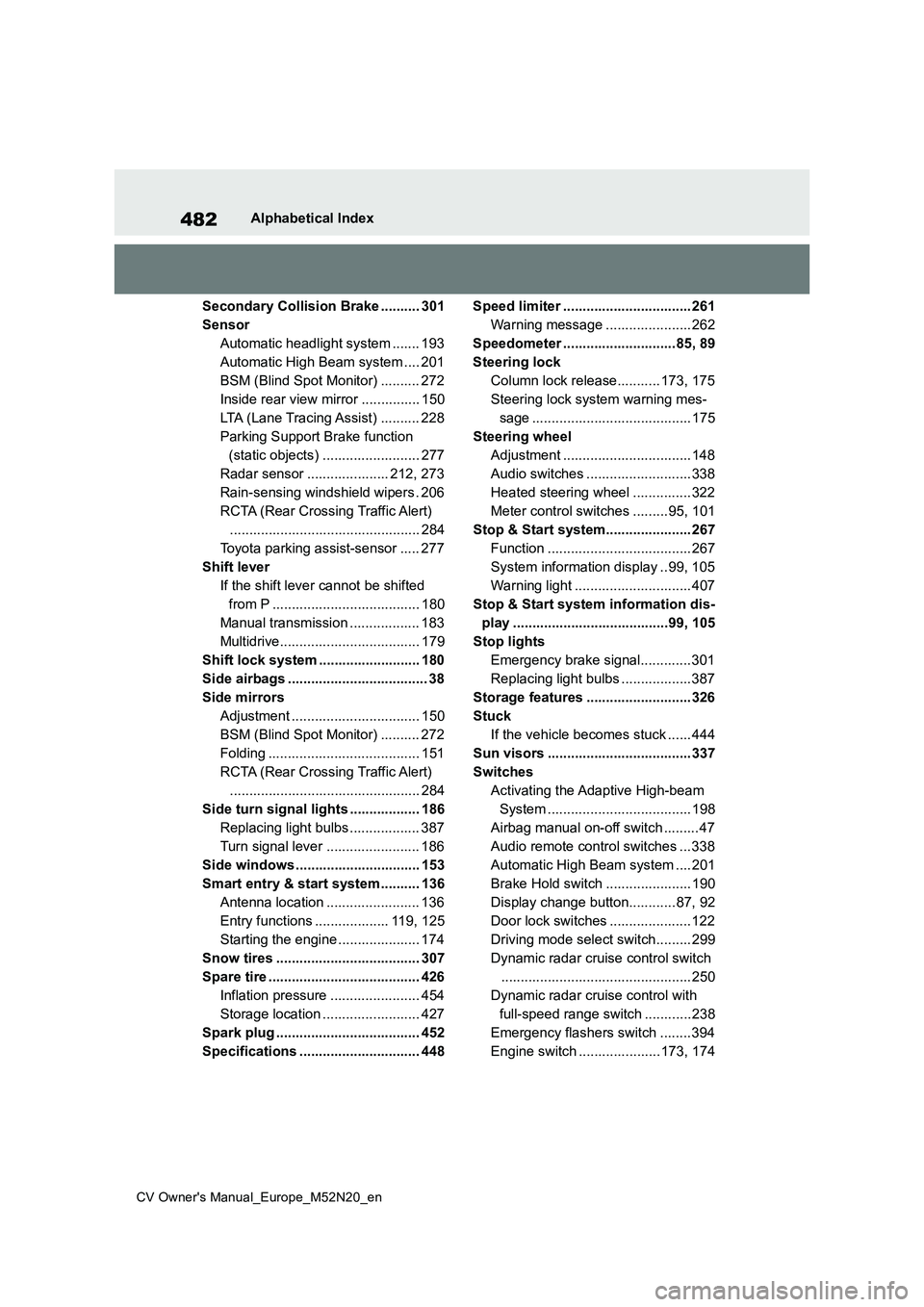

482
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Secondary Collision Brake .......... 301
Sensor
Automatic headlight system ....... 193
Automatic High Beam system .... 201
BSM (Blind Spot Monitor) .......... 272
Inside rear view mirror ............... 150
LTA (Lane Tracing Assist) .......... 228
Parking Support Brake function
(static objects) ......................... 277
Radar sensor ..................... 212, 273
Rain-sensing windshield wipers . 206
RCTA (Rear Crossing Traffic Alert)
................................................. 284
Toyota parking assist-sensor ..... 277
Shift lever
If the shift lever cannot be shifted
from P ...................................... 180
Manual transmission .................. 183
Multidrive.................................... 179
Shift lock system .......................... 180
Side airbags .................................... 38
Side mirrors
Adjustment ................................. 150
BSM (Blind Spot Monitor) .......... 272
Folding ....................................... 151
RCTA (Rear Crossing Traffic Alert)
................................................. 284
Side turn signal lights .................. 186
Replacing light bulbs .................. 387
Turn signal lever ........................ 186
Side windows ................................ 153
Smart entry & start system .......... 136
Antenna location ........................ 136
Entry functions ................... 119, 125
Starting the engine ..................... 174
Snow tires ..................................... 307
Spare tire ....................................... 426
Inflation pressure ....................... 454
Storage location ......................... 427
Spark plug ..................................... 452
Specifications ............................... 448
Speed limiter ................................. 261
Warning message ...................... 262
Speedometer ............................. 85, 89
Steering lock
Column lock release........... 173, 175
Steering lock system warning mes-
sage ......................................... 175
Steering wheel
Adjustment ................................. 148
Audio switches ........................... 338
Heated steering wheel ............... 322
Meter control switches .........95, 101
Stop & Start system...................... 267
Function ..................................... 267
System information display ..99, 105
Warning light .............................. 407
Stop & Start system information dis-
play ........................................99, 105
Stop lights
Emergency brake signal............. 301
Replacing light bulbs ..................387
Storage features ........................... 326
Stuck
If the vehicle becomes stuck ...... 444
Sun visors ..................................... 337
Switches
Activating the Adaptive High-beam
System ..................................... 198
Airbag manual on-off switch ......... 47
Audio remote control switches ... 338
Automatic High Beam system .... 201
Brake Hold switch ...................... 190
Display change button............ 87, 92
Door lock switches ..................... 122
Driving mode select switch......... 299
Dynamic radar cruise control switch
................................................. 250
Dynamic radar cruise control with
full-speed range switch ............238
Emergency flashers switch ........ 394
Engine switch .....................173, 174

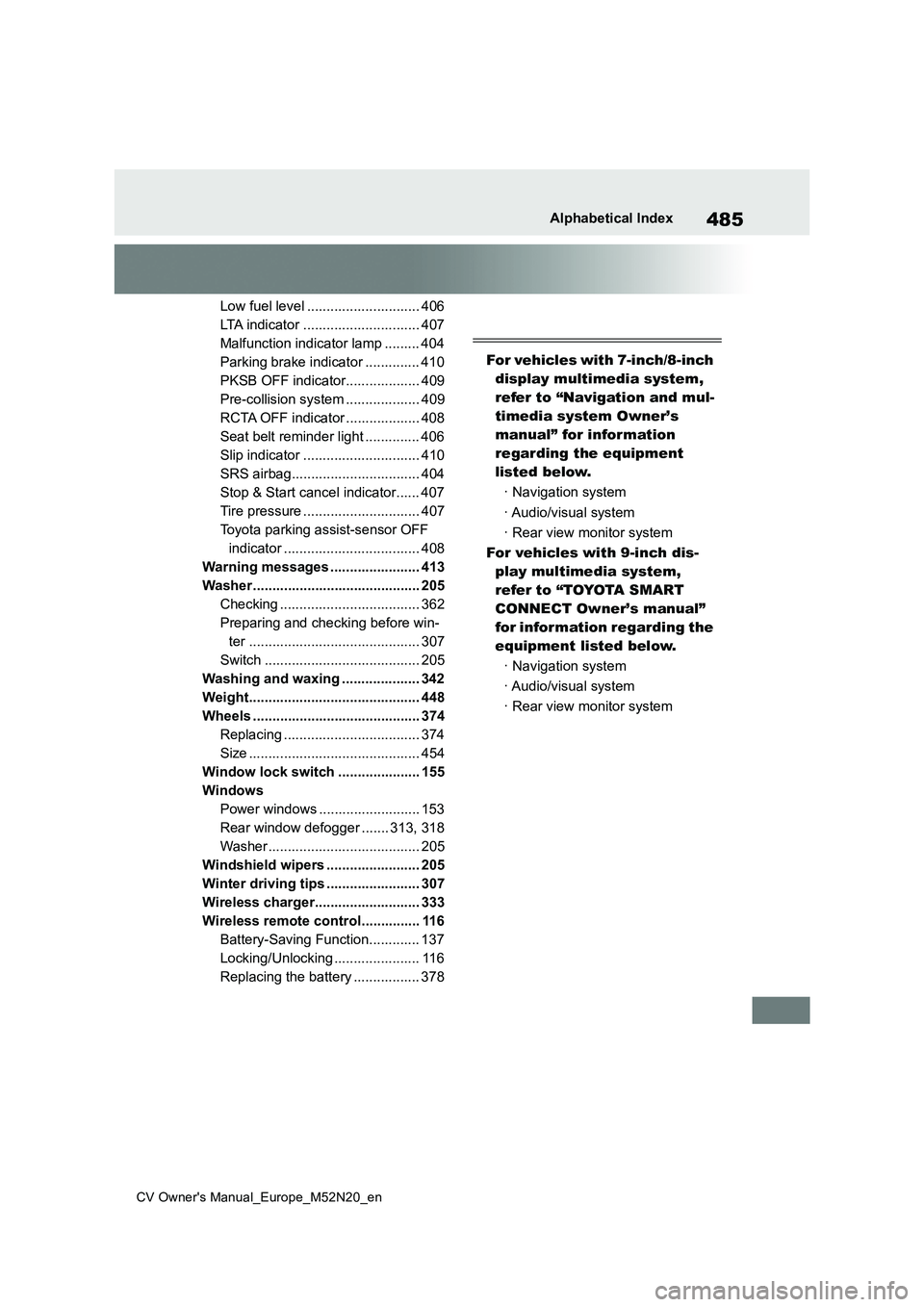

485
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Low fuel level ............................. 406
LTA indicator .............................. 407
Malfunction indicator lamp ......... 404
Parking brake indicator .............. 410
PKSB OFF indicator................... 409
Pre-collision system ................... 409
RCTA OFF indicator ................... 408
Seat belt reminder light .............. 406
Slip indicator .............................. 410
SRS airbag................................. 404
Stop & Start cancel indicator...... 407
Tire pressure .............................. 407
Toyota parking assist-sensor OFF
indicator ................................... 408
Warning messages ....................... 413
Washer........................................... 205
Checking .................................... 362
Preparing and checking before win-
ter ............................................ 307
Switch ........................................ 205
Washing and waxing .................... 342
Weight............................................ 448
Wheels ........................................... 374
Replacing ................................... 374
Size ............................................ 454
Window lock switch ..................... 155
Windows
Power windows .......................... 153
Rear window defogger ....... 313, 318
Washer ....................................... 205
Windshield wipers ........................ 205
Winter driving tips ........................ 307
Wireless charger........................... 333
Wireless remote control............... 116
Battery-Saving Function............. 137
Locking/Unlocking ...................... 116
Replacing the battery ................. 378
For vehicles with 7-inch/8-inch
display multimedia system,
refer to “Navigation and mul-
timedia system Owner’s
manual” for infor mation
regarding the equipment
listed below.
· Navigation system
· Audio/visual system
· Rear view monitor system
For vehicles with 9-inch dis-
play multimedia system,
refer to “TOYOTA SMART
CONNECT Owner’s manual”
for infor mation regarding the
equipment listed below.
· Navigation system
· Audio/visual system
· Rear view monitor system
