TOYOTA YARIS CROSS 2022 Owners Manual

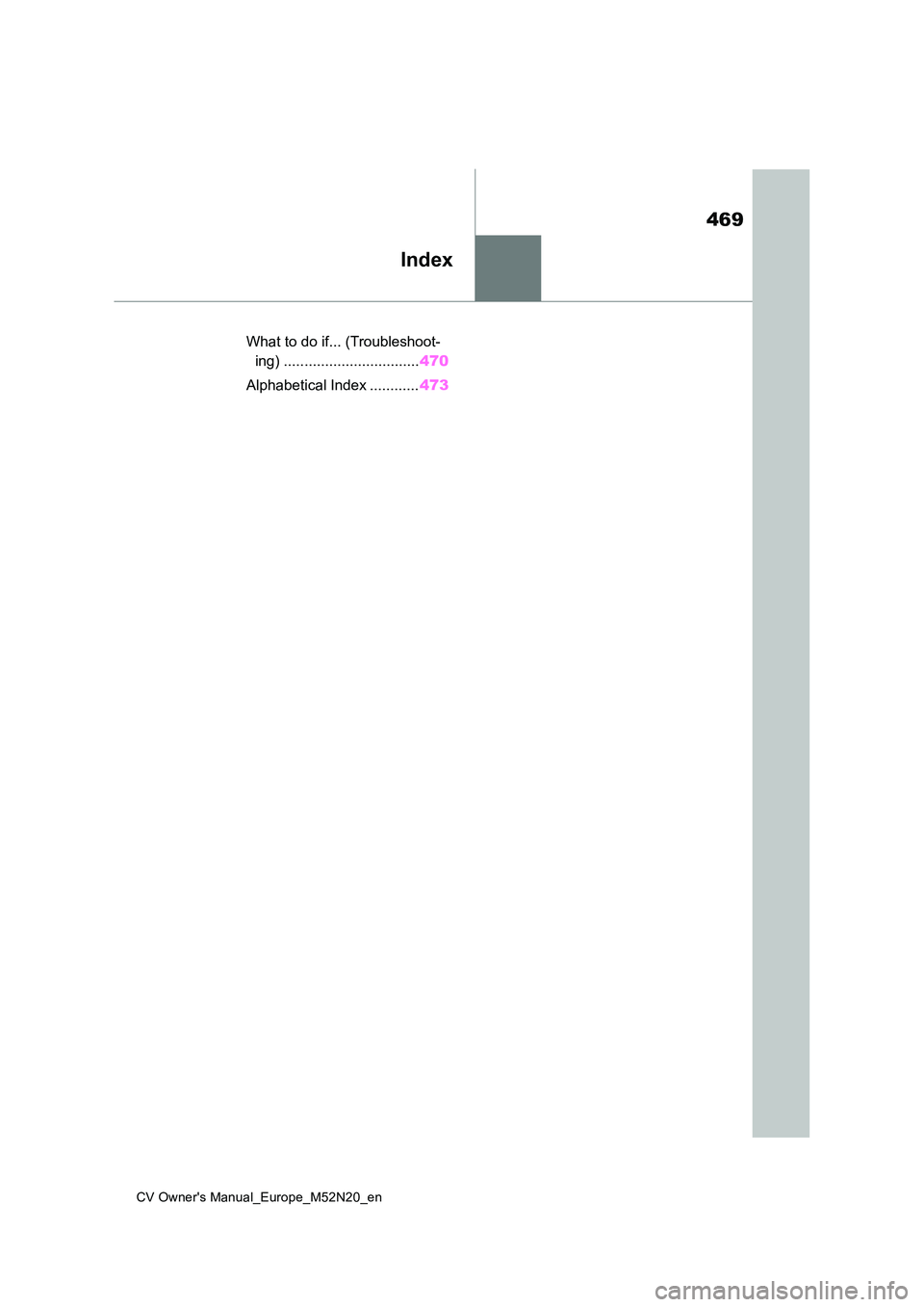

469
CV Owner's Manual_Europe_M52N20_en
Index
What to do if... (Troubleshoot-
ing) ................................. 470
Alphabetical Index ............ 473

470
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys or mechani-
cal keys, new genuine keys or
mechanical keys can be made
by any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer. ( P.436)
 Vehicles with smart entry & start
system: If you lose your elec-
tronic keys, the risk of vehicle
theft increases significantly. Con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer
immediately. ( P.436)
 Is the key battery weak or
depleted? ( P.378)
 Vehicles with a smart entry &
start system: Is the engine switch
in ON?
When locking the doors, turn the
engine switch off. ( P.177)
Vehicles with a smart entry &
start system: Is the electronic
key left inside the vehicle?
When locking the doors, make sure that
you have the electronic key on your
person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.117, 138)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and
then unlock the child-protector lock.
( P.123)
Multidrive: Is the shift lever in P?
( P.173)
 Manual transmission: Do you
turn the key with the clutch pedal
depressed firmly? ( P.173)
 Is the steering wheel unlocked?
( P.173)
 Is the battery discharged?
( P.439)
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without a smart
entry & start system)

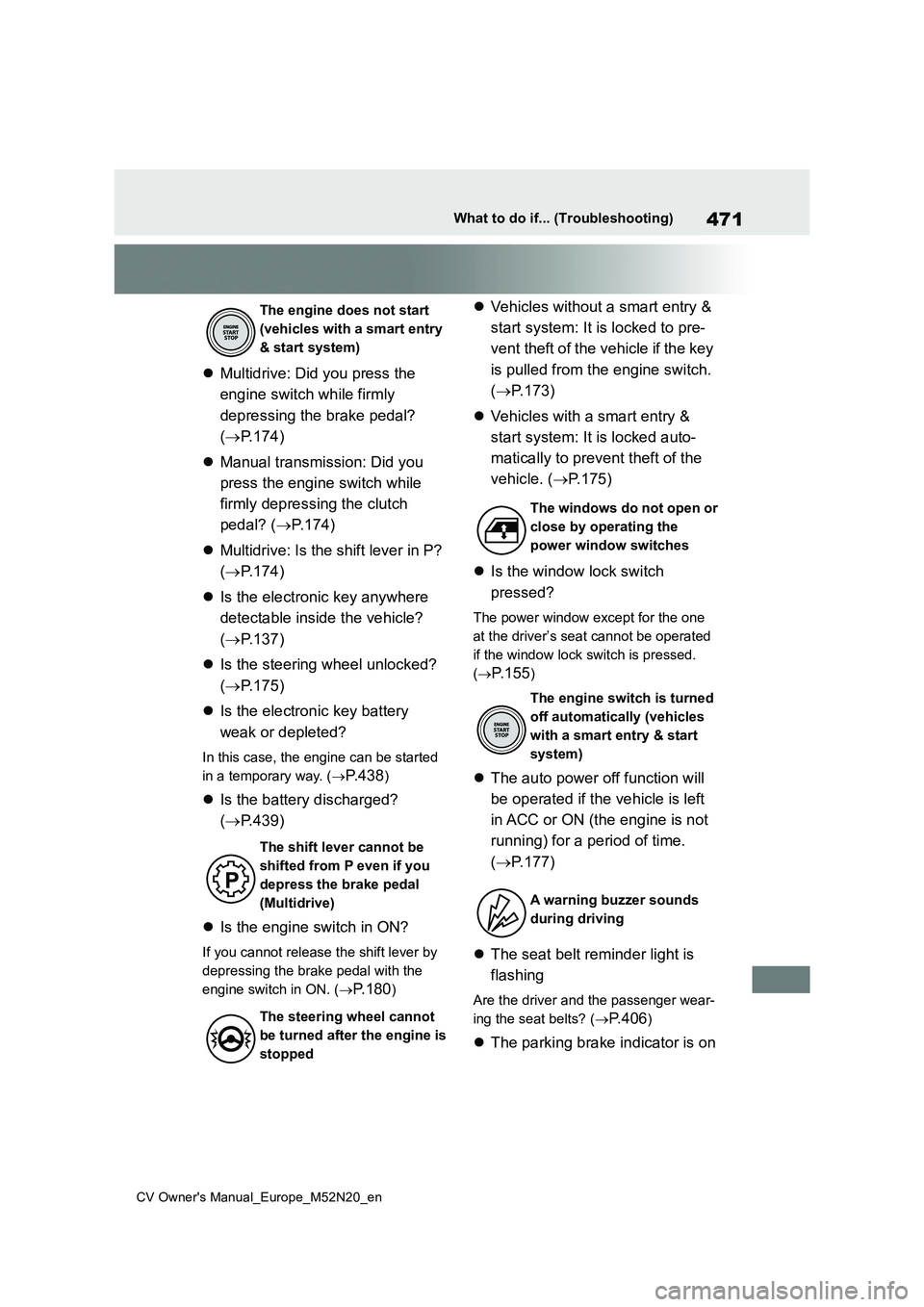

471
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
Multidrive: Did you press the
engine switch while firmly
depressing the brake pedal?
( P.174)
 Manual transmission: Did you
press the engine switch while
firmly depressing the clutch
pedal? ( P.174)
 Multidrive: Is the shift lever in P?
( P.174)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.137)
 Is the steering wheel unlocked?
( P.175)
 Is the electronic key battery
weak or depleted?
In this case, the engine can be started
in a temporary way. ( P.438)
Is the battery discharged?
( P.439)
 Is the engine switch in ON?
If you cannot release the shift lever by
depressing the brake pedal with the
engine switch in ON. ( P.180)
Vehicles without a smart entry &
start system: It is locked to pre-
vent theft of the vehicle if the key
is pulled from the engine switch.
( P.173)
 Vehicles with a smart entry &
start system: It is locked auto-
matically to prevent theft of the
vehicle. ( P.175)
 Is the window lock switch
pressed?
The power window except for the one
at the driver’s seat cannot be operated
if the window lock switch is pressed.
( P.155)
The auto power off function will
be operated if the vehicle is left
in ACC or ON (the engine is not
running) for a period of time.
( P.177)
 The seat belt reminder light is
flashing
Are the driver and the passenger wear-
ing the seat belts? ( P. 4 0 6)
The parking brake indicator is on
The engine does not start
(vehicles with a smart entry
& start system)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
(Multidrive)
The steering wheel cannot
be turned after the engine is
stopped
The windows do not open or
close by operating the
power window switches
The engine switch is turned
off automatically (vehicles
with a smart entry & start
system)
A warning buzzer sounds
during driving

472
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
Is the parking brake released?
( P. 1 8 6)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.403, 413)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P. 7 7)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.413)
When a warning light turns on or
a warning message is displayed,
refer to P.403, 413.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P.415)
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.426)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.444)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

473
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
ABS (Anti-lock Brake System) .... 301
Warning light .............................. 405
ACA (Active Cornering Assist) .... 301
Active Cornering Assist (ACA) .... 301
Adaptive High-beam System ....... 197
AHB (Automatic High Beam) ....... 201
AHS (Adaptive High-beam System)
..................................................... 197
Air conditioning filter ................... 376
Air conditioning system
Air conditioning filter................... 376
Automatic air conditioning system
................................................. 316
Manual air conditioning system.. 312
Airbag manual on-off system ........ 47
Airbags ............................................ 38
Airbag manual on-off system ....... 47
Airbag operating conditions ......... 40
Airbag precautions for your child . 43
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 40
Curtain shield airbag precautions 43
General airbag precautions.......... 43
Locations of airbags ..................... 38
Modification and disposal of airbags
................................................... 45
Side airbag operating conditions.. 40
Side airbag precautions ............... 43
Side and curtain shield airbags oper-
ating conditions.......................... 40
Side and curtain shield airbags pre-
cautions ..................................... 43
SRS airbags ................................. 38
SRS warning light.......................404
Alarm................................................77
Alarm ............................................ 77
Warning buzzer .......................... 403
Antennas (smart entry & start sys-
tem) ..............................................136
Anti-lock Brake System (ABS)..... 301
Warning light .............................. 405
Approach warning ................ 245, 256
Assist grips ...................................338
Audio remote control switches ... 338
Audio system-linked display .97, 103
Automatic air conditioning system
..................................................... 316
Automatic headlight leveling system
..................................................... 193
Automatic High Beam ..................201
Automatic light control system ... 193
Auxiliary box ................................. 329
Average fuel economy ...........96, 101
Average vehicle speed ...........98, 103
B
Back door ...................................... 123
Hands Free Power Back Door ... 128
Power back door ........................ 126
Wireless remote control ............. 126
Back-up light
Replacing light bulbs ..........387, 390
Battery ........................................... 358
Battery checking......................... 358
If the battery is discharged ......... 439
Installing the battery ........... 360, 361
Preparing and checking before win-
ter ............................................. 307
Removing the battery ......... 359, 360
Warning light .............................. 404

474
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Blind Spot Monitor (BSM) ............ 272
Enabling/disabling the Blind Spot
Monitor..................................... 274
Bottle holders ............................... 327
Brake
Brake hold .................................. 190
Emergency brake signal ............ 301
Fluid ........................................... 453
Parking brake ............................. 186
Warning light .............................. 403
Brake assist .................................. 301
Break-in tips .................................. 160
Brightness control
Instrument panel light control . 88, 93
BSM (Blind Spot Monitor) ............ 272
Enabling/disabling the Blind Spot
Monitor..................................... 274
C
Care ....................................... 342, 345
Aluminum wheels ....................... 342
Exterior....................................... 342
Interior ........................................ 345
Seat belts ................................... 345
Chains ........................................... 308
Child restraint system .................... 49
Points to remember...................... 49
Riding with children ...................... 48
Child safety ..................................... 48
Airbag precautions ....................... 43
Back door precautions ............... 123
Battery precautions ............ 361, 441
Child restraint system .................. 49
Heated steering wheel and seat
heater precautions ................... 322
How your child should wear the seat
belt ............................................. 36
Installing child restraints............... 49
Power window lock switch.......... 155
Power window precautions ........ 154
Rear door child-protectors.......... 123
Removed electronic key battery pre-
cautions.................................... 380
Seat belt precautions ................... 48
Child-protectors ............................ 123
Cleaning................................. 342, 345
Aluminum wheels .......................342
Exterior ....................................... 342
Interior ........................................345
Radar sensor.............................. 213
Seat belts ...................................345
Clock ........................85, 87, 88, 89, 93
Coat hooks .................................... 339
Condenser ..................................... 357
Console box .................................. 328
Consumption screen .................... 110
Cooling system .............................356
Engine overheating .................... 442
Cruise control
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range .......................238
Cup holders ...................................327
Current fuel consumption ......96, 101
Curtain shield airbags ....................38
Customizable features ................. 457
D
Daytime running light system ..... 192
Deck board .................................... 329
Defogger
Outside rear view mirrors ... 313, 318
Rear window ...................... 313, 318
Windshield.......................... 313, 318
Dimensions ...................................448

475
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Display
Dynamic radar cruise control ..... 250
Dynamic radar cruise control with
full-speed range ....................... 238
Head-up display ......................... 106
LTA (Lane-Tracing Assist) .......... 234
Multi-information display ...... 94, 100
Speed limiter .............................. 261
Toyota parking assist-sensor ..... 277
Warning message ...................... 413
Display change button ............. 87, 92
Distance until next engine oil change
................................................. 87, 92
Do-it-yourself maintenance ......... 348
Door
Double locking system ................. 76
Door lock
Back door ................................... 123
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 123
Door glasses .............................. 153
Door lock ............................ 119, 123
Open door warning buzzer. 120, 122
Outside rear view mirrors ........... 150
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 76
Drive distance ......................... 98, 103
Drive information .................... 98, 103
Driving ........................................... 158
Break-in tips ............................... 160
Correct driving posture................. 33
Driving mode select switch ........ 299
Procedures................................. 158
Winter drive tips ......................... 307
Driving information display ... 96, 101
Driving range................... 96, 101, 102
Driving support system information
display ...................................97, 103
Dynamic radar cruise control ...... 250
Road Sign Assist (RSA) ............. 257
Warning message ...................... 259
Dynamic radar cruise control with
full-speed range.......................... 238
Road Sign Assist (RSA) ............. 246
Warning message ...................... 248
E
eCall ................................................. 65
“SOS” button ................................ 65
Eco drive mode .............................299
Eco Driving Indicator...... 96, 102, 109
Eco Driving Indicator Light ....96, 102
Elapsed time............................98, 103
Electric Power Steering (EPS) ..... 301
Warning light .............................. 406
Electronic key ............................... 114
Battery-saving function............... 137
If the electronic key does not operate
properly .................................... 437
Replacing the battery ................. 378
Emergency brake signal .............. 301
Emergency flashers...................... 394
Emergency tire puncture ............. 415
Emergency, in case of
If a warning buzzer sounds ........ 403
If a warning light turns on ........... 403
If a warning message is displayed
................................................. 413
If the battery is discharged ......... 439
If the electronic key does not operate
properly .................................... 437
If the engine will not start ........... 435
If the vehicle is trapped in rising
water ........................................395

476
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
If you have a flat tire........... 415, 426
If you lose your keys .................. 436
If you think something is wrong.. 401
If your vehicle becomes stuck .... 444
If your vehicle has to be stopped in
an emergency .......................... 394
If your vehicle needs to be towed
................................................. 397
If your vehicle overheats ............ 442
Engine ........................................... 449
ACC ................................... 173, 177
Compartment ............................. 354
Engine switch ..................... 173, 174
Fuel pump shut off system ......... 402
Hood .......................................... 351
How to start the engine ...... 173, 174
Identification number.................. 449
If the engine will not start ........... 435
If your vehicle has to be stopped in
an emergency .......................... 394
Ignition switch (engine switch) . 173,
174
Overheating ............................... 442
Tachometer .................... 85, 89, 109
Engine coolant .............................. 356
Capacity ..................................... 452
Checking .................................... 356
Preparing and checking before win-
ter ............................................ 307
Engine coolant temperature gauge
................................................. 85, 89
Engine immobilizer system ........... 75
Engine oil ...................................... 354
Capacity ..................................... 450
Checking .................................... 354
Preparing and checking before win-
ter ............................................ 307
Warning light .............................. 404
Engine oil maintenance data ....... 356
Engine switch........................ 173, 174
Auto power off function .............. 177
Changing the engine switch modes
......................................... 173, 177
If your vehicle has to be stopped in
an emergency .......................... 394
EPS (Electric Power Steering) ..... 301
Warning light .............................. 406
Extended headlight lighting function
..................................................... 194
F
Flat tire
Tire pressure warning system .... 364
Vehicles with a spare tire ........... 426
Vehicles without a spare tire ...... 415
Floor mats ....................................... 32
Fluid
Brake .......................................... 453
Clutch ......................................... 453
Multidrive .................................... 452
Washer ....................................... 362
Fog lights
Switch......................................... 204
Wattage ...................................... 455
Front fog lights
Switch......................................... 204
Wattage ...................................... 455
Front position lights
Replacing light bulbs ..................387
Wattage ...................................... 455
Front seat center airbags ............... 38
Front seats .................................... 141
Adjustment ................................. 141
Cleaning ..................................... 345
Correct driving posture ................. 33
Head restraints ........................... 144
Seat heaters ............................... 322

477
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Front turn signal lights ................ 186
Replacing light bulbs .......... 387, 388
Turn signal lever ........................ 186
Wattage ...................................... 455
Fuel ................................................ 210
Capacity ..................................... 450
Fuel gauge ............................. 85, 89
Fuel pump shut off system ......... 402
Information ................................. 456
Refueling .................................... 210
Type ........................................... 450
Warning light .............................. 406
Fuel consumption
Average fuel economy ......... 96, 101
Current fuel consumption ..... 96, 101
Fuel economy ......................... 96, 101
Fuel filler door .............................. 210
Refueling .................................... 210
Fuel gauge ................................ 85, 89
Fuel pump shut off system .......... 402
Fuses ............................................. 381
G
Gauges ...................................... 85, 89
Gear Shift Indicator ...................... 185
Glove box ...................................... 327
GPF (Gasoline Particulate Filter)
system ......................................... 300
H
Hands Free Power Back Door ..... 128
Head restraints ............................. 144
Head-up display ............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display
area .......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Headlights
Adaptive High-beam System...... 197
Automatic High Beam system .... 201
Extended headlight lighting function
................................................. 194
Light switch ................................ 192
Replacing light bulbs ..................387
Wattage ...................................... 455
Heated steering wheel ..................322
Heaters
Automatic air conditioning system
................................................. 316
Heated steering wheel ............... 322
Heater system ............................ 312
Manual air conditioning system .. 312
Outside rear view mirrors ... 313, 318
Seat heaters ............................... 322
High mounted stoplight
Replacing light bulbs ..................387
Hill-start assist control ................. 301
Hood............................................... 351
Open .......................................... 351
Hooks
Coat hooks ................................. 339
Retaining hooks (floor mat) .......... 32
Horn ............................................... 148
I
Identification
Engine ........................................449
Vehicle........................................448

478
CV Owner's Manual_Europe_M52N20_en
Alphabetical Index
Ignition switch (engine switch) . 173,
174
Auto power off function .............. 177
Changing the engine switch modes
......................................... 173, 177
If your vehicle has to be stopped in
an emergency .......................... 394
Illuminated entry system ............. 325
iMT (Intelligent Manual Transmis-
sion)............................................. 184
Indicators ........................................ 82
Initialization
Engine oil maintenance data...... 356
Items to initialize ........................ 467
Power back door ........................ 132
Power windows .......................... 153
Tire pressure warning system .... 367
Inside rear view mirror ................. 149
Interior lights ................................ 324
Wattage ...................................... 455
J
Jack
Positioning a floor jack ............... 353
Vehicle-equipped jack ................ 427
Jack handle ................................... 427
Jam protection function
Power back door ........................ 129
Power windows .......................... 153
K
Keyless entry
Smart entry & start system......... 136
Wireless remote control ............. 116
Keys ............................................... 114
Battery-saving function .............. 137
Electronic key............................. 114
Engine switch ..................... 173, 174
If the electronic key does not operate
properly .................................... 437
If you lose your keys ..................436
Key number plate ....................... 114
Keyless entry.............. 119, 125, 136
Mechanical key .......................... 114
Replacing the battery ................. 378
Warning buzzer .......................... 137
Wireless remote control ............. 116
L
Lane Tracing Assist (LTA) ............228
Operation ...................................228
Warning lights.............................407
Warning messages..................... 237
Language (multi-information dis-
play) .......................................98, 104
Lever
Auxiliary catch lever ................... 351
Hood lock release lever.............. 351
Shift lever ...........................179, 183
Turn signal lever ......................... 186
Wiper lever ................................. 205
License plate light
Replacing light bulbs ..................389
License plate lights
Light switch ................................ 192
Wattage ...................................... 455
Light bulbs
Replacing ...................................386
Lights
Adaptive High-beam System...... 197
Automatic High Beam system .... 201
Extended headlight lighting function
................................................. 194
Fog light switch .......................... 204
Headlight switch ......................... 192
Interior lights............................... 324
