8-1. Specifications
Vehicle specifications

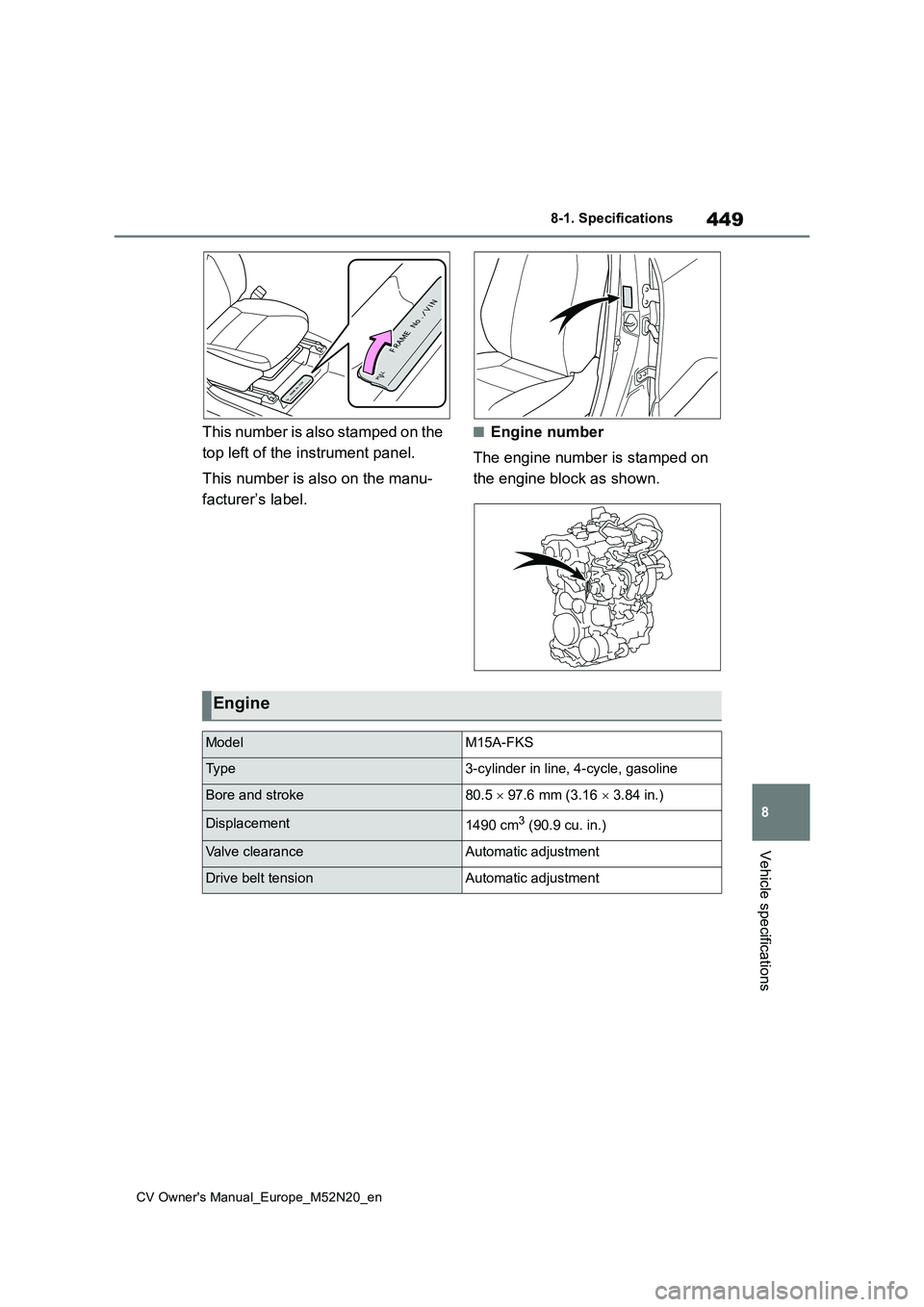

This number is also stamped on the
top left of the instrument panel.
This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelM15A-FKS
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  97.6 mm (3.16  3.84 in.)
Displacement1490 cm3 (90.9 cu. in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

450
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
■Oil capacity (Drain and refill
[Reference*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 5 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection
Gasoline Engine 
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil

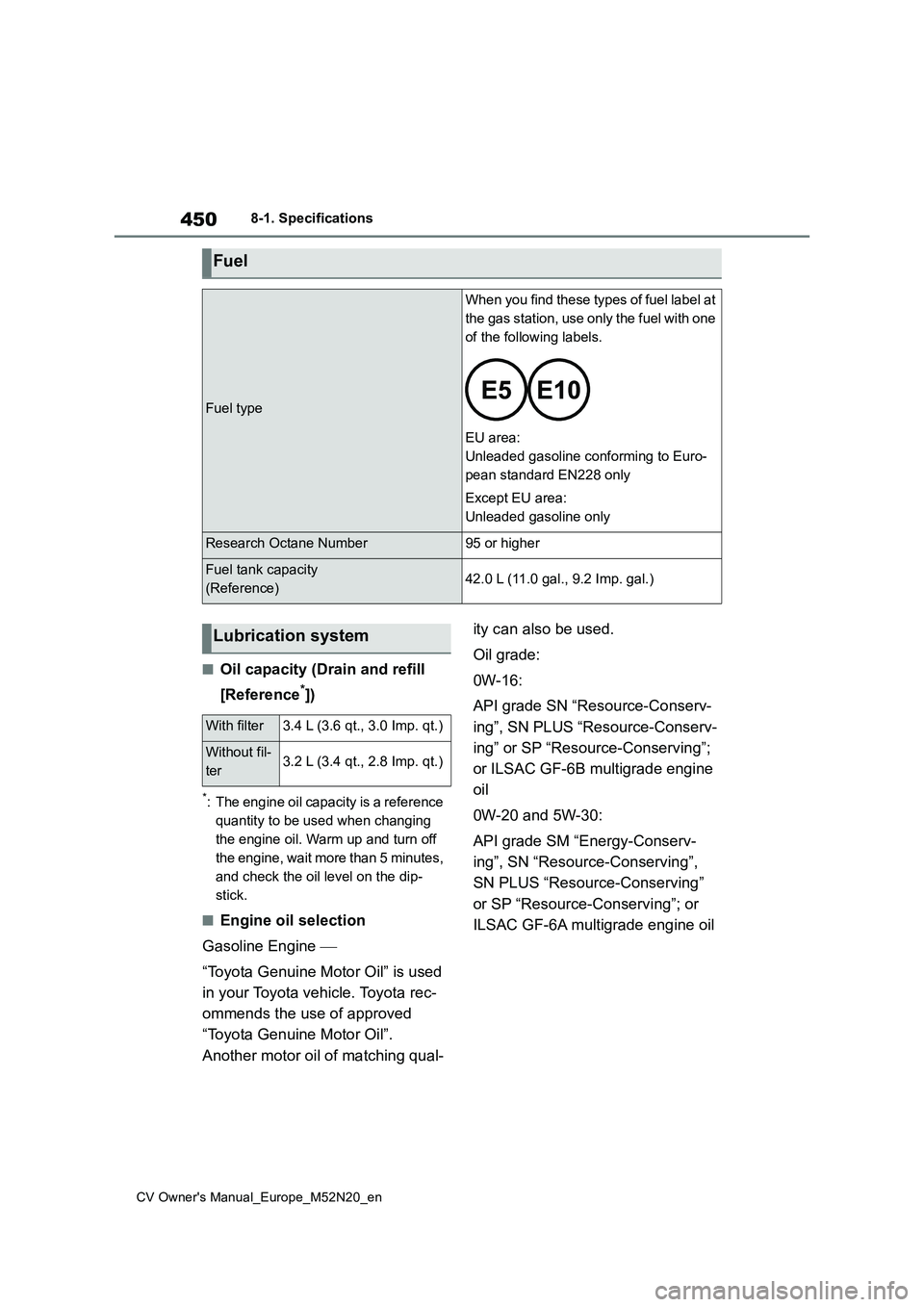

Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)42.0 L (11.0 gal., 9.2 Imp. gal.)
Lubrication system
With filter3.4 L (3.6 qt., 3.0 Imp. qt.)
Without fil-
ter3.2 L (3.4 qt., 2.8 Imp. qt.)

451
8
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
Vehicle specifications
Preferred
Temperature range anticipated
before next oil change
SAE 0W-16 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How-
ever, it should be replaced with
SAE 0W-16 at the next oil change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
f ic at i o n M ar k i s d is pl a ye d on t h e f r o nt o f
the container.

452
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
Cooling system
Capacity (Reference)4.7 L (5.0 qt., 4.1 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
NGK DILKAR6T8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
(Turn the engine switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*8.43 L (8.9 qt., 7.4 Imp. qt.)
Fluid type“Toyota Genuine CVT Fluid FE”

453
8
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
Vehicle specifications
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than the above type may cause abno rmal noise or
vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristic s of the gear oil used or the operating conditions, idle sound, shift feeling and /or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s
transmission. Toyota recommends to use “TOYOTA Genuine Manual Transmission Ge ar Oil LV GL-4 75W” to achieve optimal performance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Trans mission Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oi l LV GL- 4 75W” or an equivalent oil of matching quality that satisfies the above specifica-
tions. Please contact any authorized Toyota retailer or Toyota authori zed repairer, or any reliable repairer for further details.
Clutch (Manual transmission)
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*187 mm (3.4 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)

454
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf, 67.4
lbf) while the engine is running.
*2: Make sure to confirm that the brake warning light (yellow) doe s not illuminate. (If
the brake warning light illuminates, refer to P.81, 410)
16-inch tires
17-inch tires

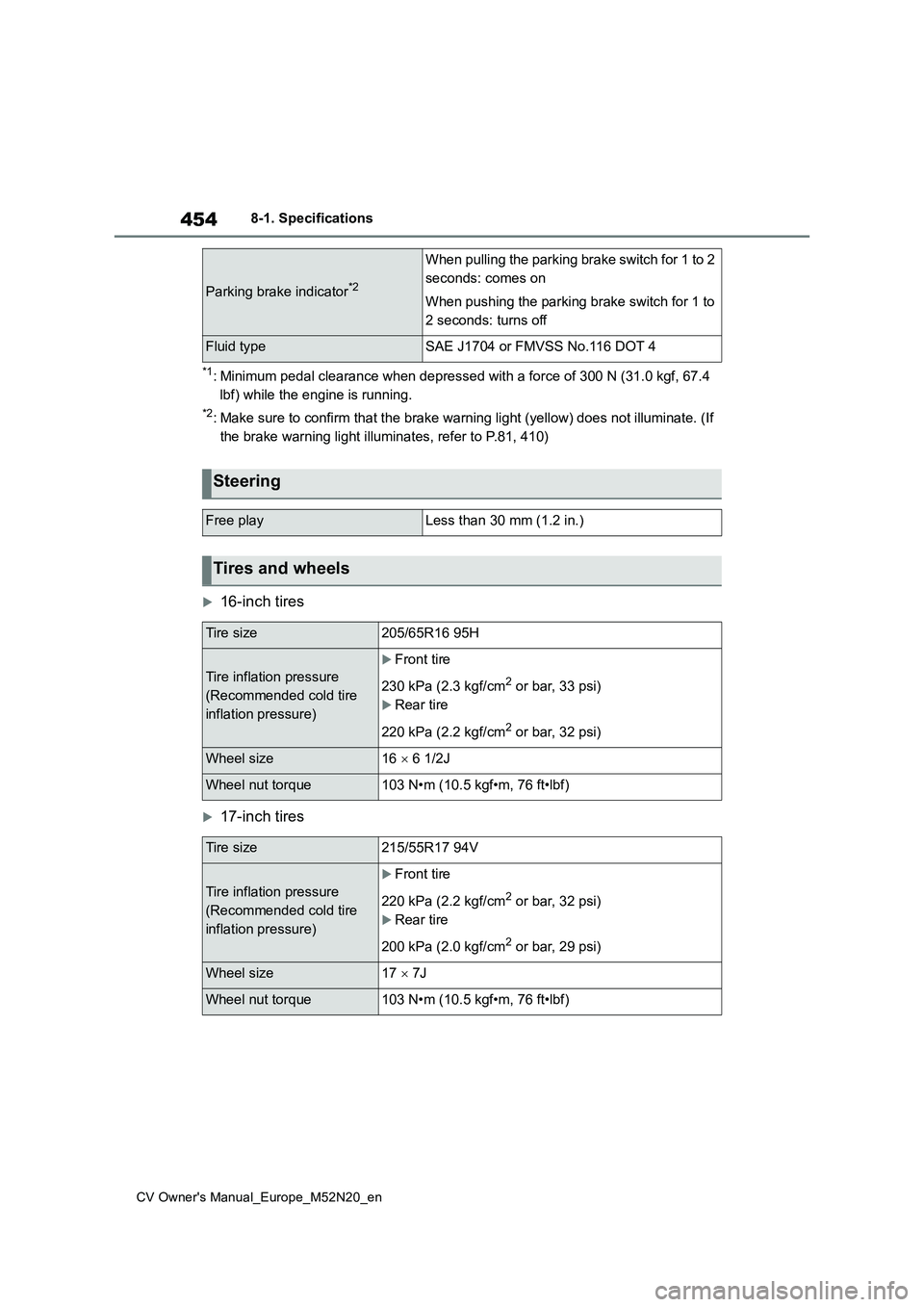

Parking brake indicator*2
When pulling the parking brake switch for 1 to 2
seconds: comes on
When pushing the parking brake switch for 1 to
2 seconds: turns off
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size205/65R16 95H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size16  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size215/55R17 94V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear tire
200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Wheel size17  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

455
8
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications
Vehicle specifications

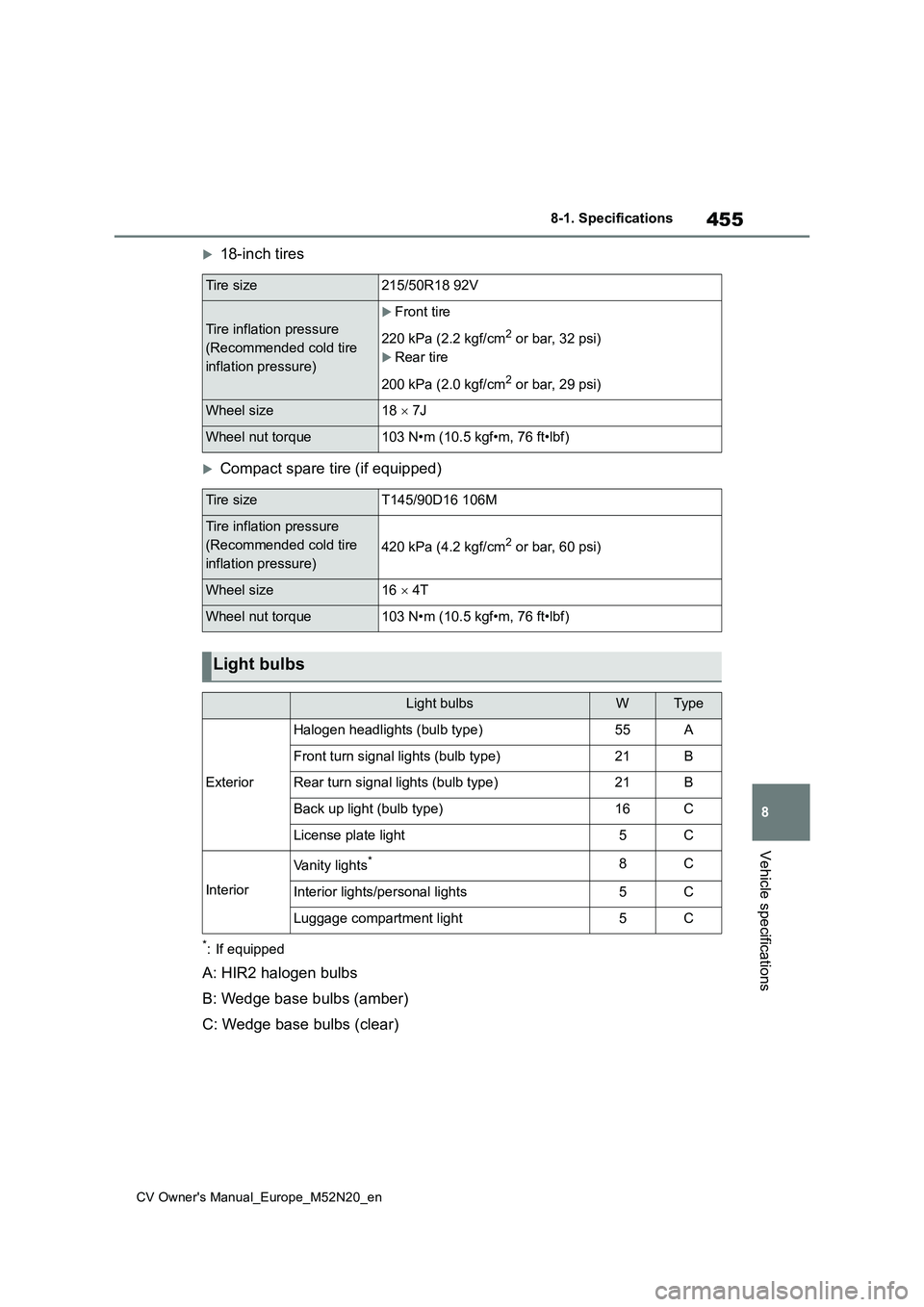

18-inch tires
Compact spare tire (if equipped)
*: If equipped
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
Tire size215/50R18 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear tire
200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Wheel size18  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT145/90D16 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior
Halogen headlights (bulb type)55A
Front turn signal lights (bulb type)21B
Rear turn signal lights (bulb type)21B
Back up light (bulb type)16C
License plate light5C
Interior
Vanity lights*8C
Interior lights/personal lights5C
Luggage compartment light5C

456
CV Owner's Manual_Europe_M52N20_en
8-1. Specifications

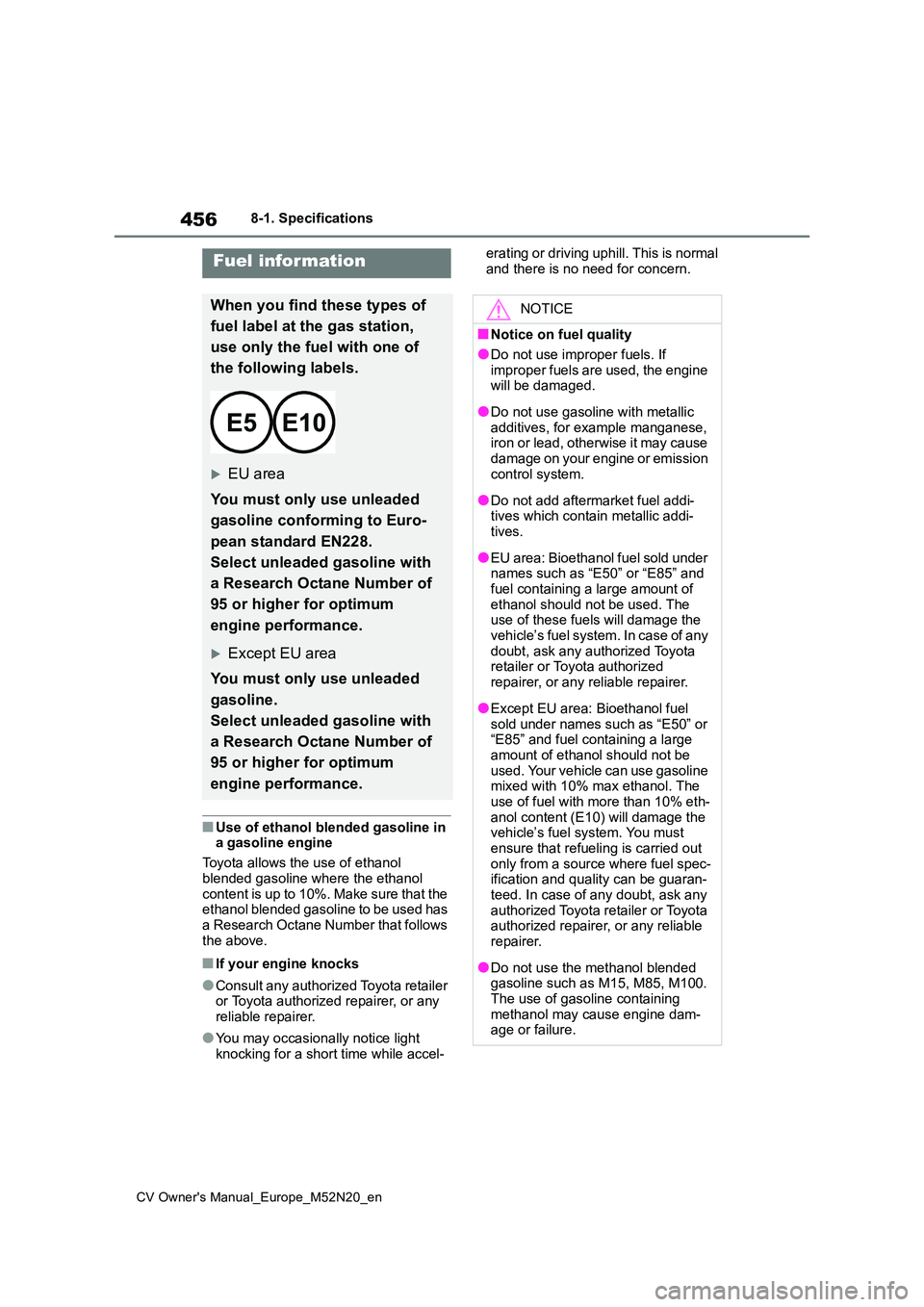

■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light
knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine will be damaged.
●Do not use gasoline with metallic additives, for example manganese, iron or lead, otherwise it may cause
damage on your engine or emission control system.
●Do not add aftermarket fuel addi-tives which contain metallic addi-tives.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel
sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% eth-
anol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out
only from a source where fuel spec- ification and quality can be guaran-teed. In case of any doubt, ask any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine dam-age or failure.

457
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with 7-inch/8-inch
display multimedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 4 Select “Vehicle customiza-
tion”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select .
2 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select the desired item to be
customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the nav igation/multi-
media system or at any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
turesWARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with ade- quate ventilation. In a closed area such as a garage, exhaust gases
including harmful carbon monoxide (CO) may collect and enter the vehi-cle. This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-tomizing features.

458
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
system
Settings that can be changed using the multi-information displ ay
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* ( P.77)
*: If equipped
■Gauges, meters and multi-information display (P.85, 89, 94, 100)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2EnglishExcept English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Speedometer display*5AnalogDigital—O—
Eco Driving Indicator
Light*4OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
