TOYOTA YARIS HATCHBACK 2010 User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Brightness
control
+
-
Lights&turnsignals
Headlights
High beam flasher
Low beam
Headlights
Parking lights
High beam
Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
Turn signals
Right turn
Lane change
Lane change Left turn
Front fog lights (if equipped)
Tu r n
Front fog lights turn on only when the headlights are on low beam.

10
FEATURES/OPERATIONS
Seat adjustments-Front
Seat adjustments-Rear
Non-split seat
Seatback angle
Seat position
(forward/backward)
Angle
Split seat
Position
Seatback angle/Fold
Lock release button
Lock release button Height
Rear seat (split seat)
Front seats
Seats-Head restraints
Rear seats (non-split seat)
Lock release button

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

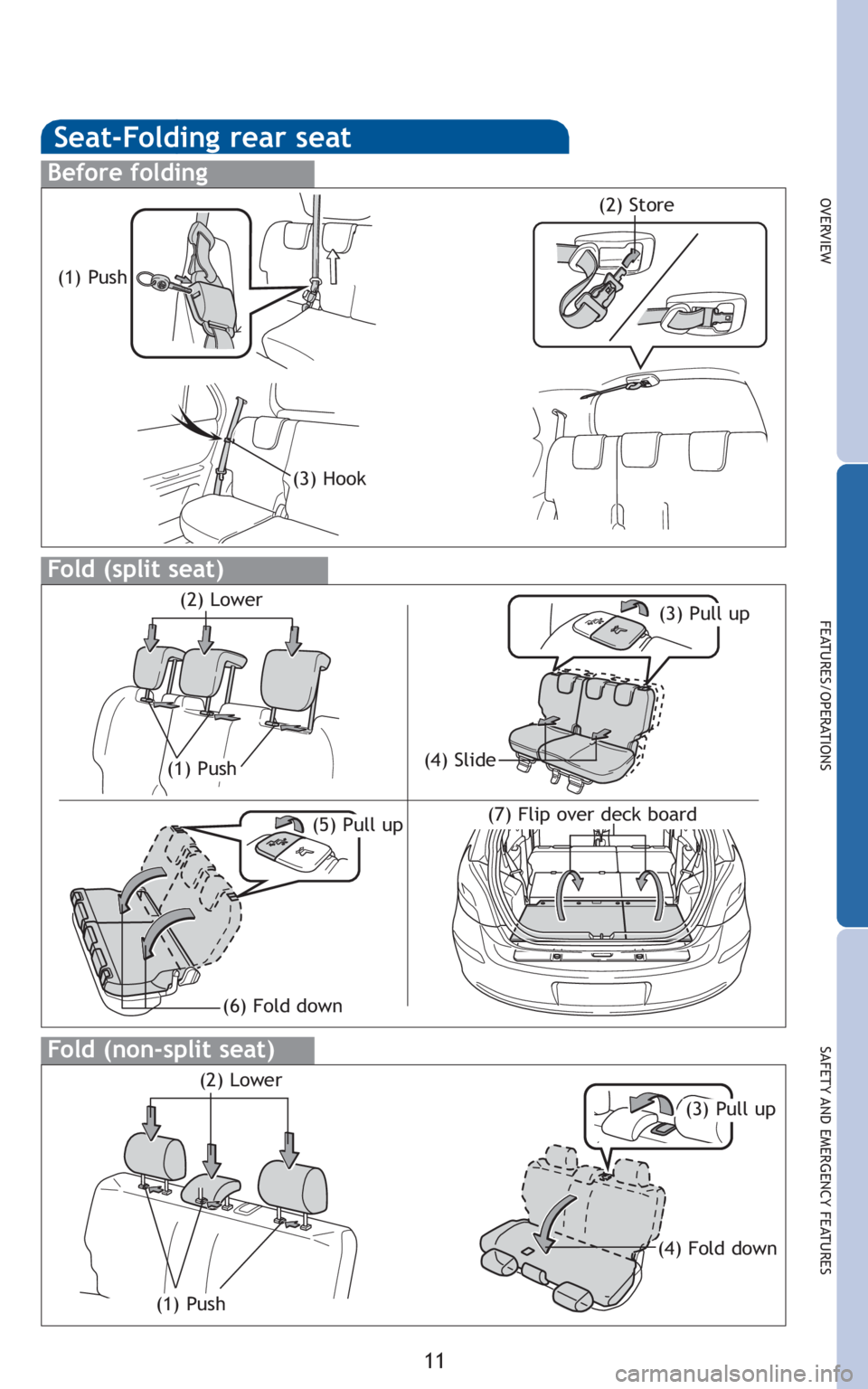

Seat-Folding rear seat
Before folding
(1) Push
(3) Hook
(2) Store
Fold (split seat)
(1) Push
(3) Pull up(2) Lower
(4) Slide
(5) Pull up(7) Flip over deck board
(6) Fold down
Fold (non-split seat)
(1) Push
(3) Pull up
(2) Lower
(4) Fold down

12
FEATURES/OPERATIONS

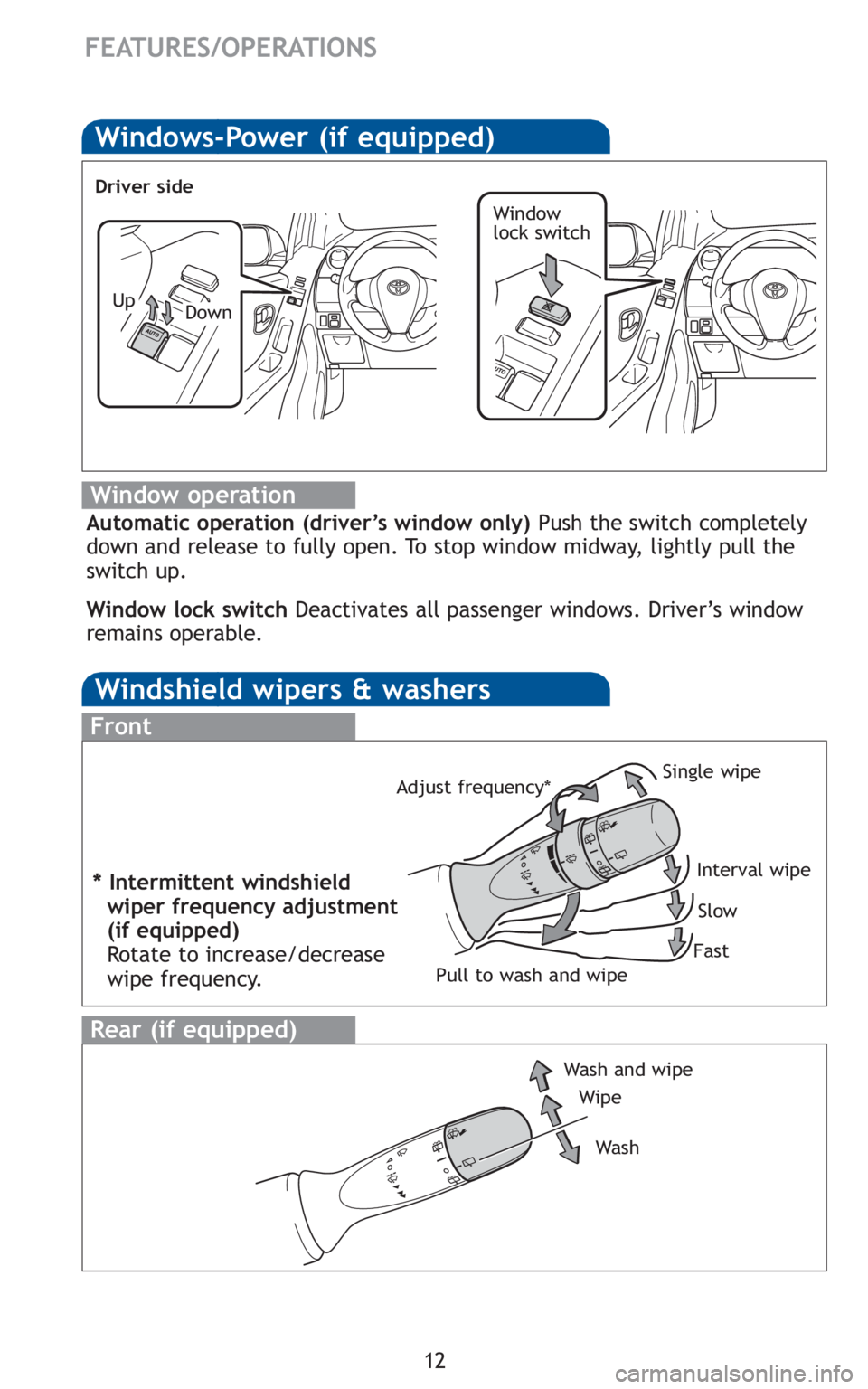

Windows-Power (if equipped)
Window operation
Automatic operation (driver’s window only)Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Window
lock switch
Up
Driver side
Down
Windshield wipers & washers
Wipe
Wash and wipe
Wa s h
Rear (if equipped)
Front
Single wipe
Interval wipeSlow
Fast
Pull to wash and wipe
Adjust frequency*
* Intermittent windshield
wiper frequency adjustment
(if equipped)
Rotate to increase/decrease
wipe frequency.

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

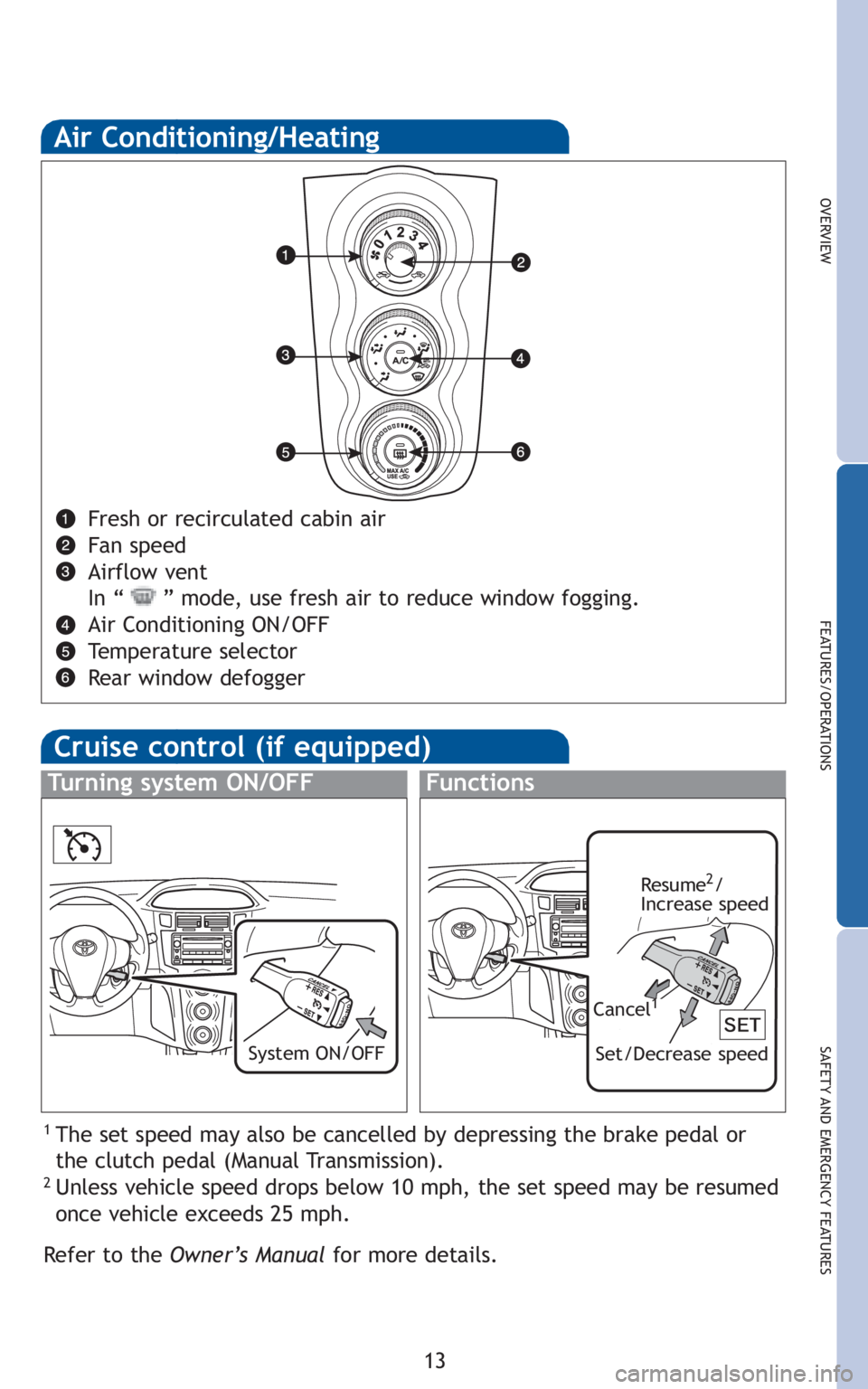

Fresh or recirculated cabin air
Fan speed
Airflow vent
In “ ” mode, use fresh air to reduce window fogging.
Air Conditioning ON/OFF
Temperature selector
Rear window defogger
Air Conditioning/Heating
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal or
the clutch pedal (Manual Transmission).
2Unless vehicle speed drops below 10 mph, the set speed may be resumed
once vehicle exceeds 25 mph.
Refertothe Owner’s Manual for more details.
Turning system ON/OFFFunctions
Resume2/
Increase speed
Set/Decrease speed
Cancel1
System ON/OFF

14
FEATURES/OPERATIONS
Audio (if equipped)
To scan tracks on a discPush “SCAN.” Push again to hold selection.
RADIO
To preset stationsTune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
CD PLAYER
Preset buttons - functions in other
modes indicated above number.
View CD text
Push to skip up
/down folder
Eject CD
Push to turn
ON/OFF Push to adjust
tone & balance
Mode
Seek station/
CD track select
Station/CD
track scan
By inserting a mini plug of a commercially available component into the
AUX audio jack, you can listen to music from a portable audio device
through the vehicle’s speaker system while in AUX mode.
AUX audio jack (if equipped)
Clock
Press and hold clock reset button for adjustment mode. Press again to
adjust minutes and hours, waiting 5 seconds after each.
Refer to the Owner’s Manual for adjustment instructions.
Clock reset button
Without tachometerWith tachometer

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Luggage storage box
Open
Right side:
Turn to unlockLeft side:
Turn to unlock
Power outlet
Designed for 12V car accessories. Key must be in the “ACC” or “ON”
position to be used.
Door-Back
Open/Close
Unlock Lock
Push to open
The VSC OFF button is used to switch between modes related to the TRAC
and VSC.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button

16

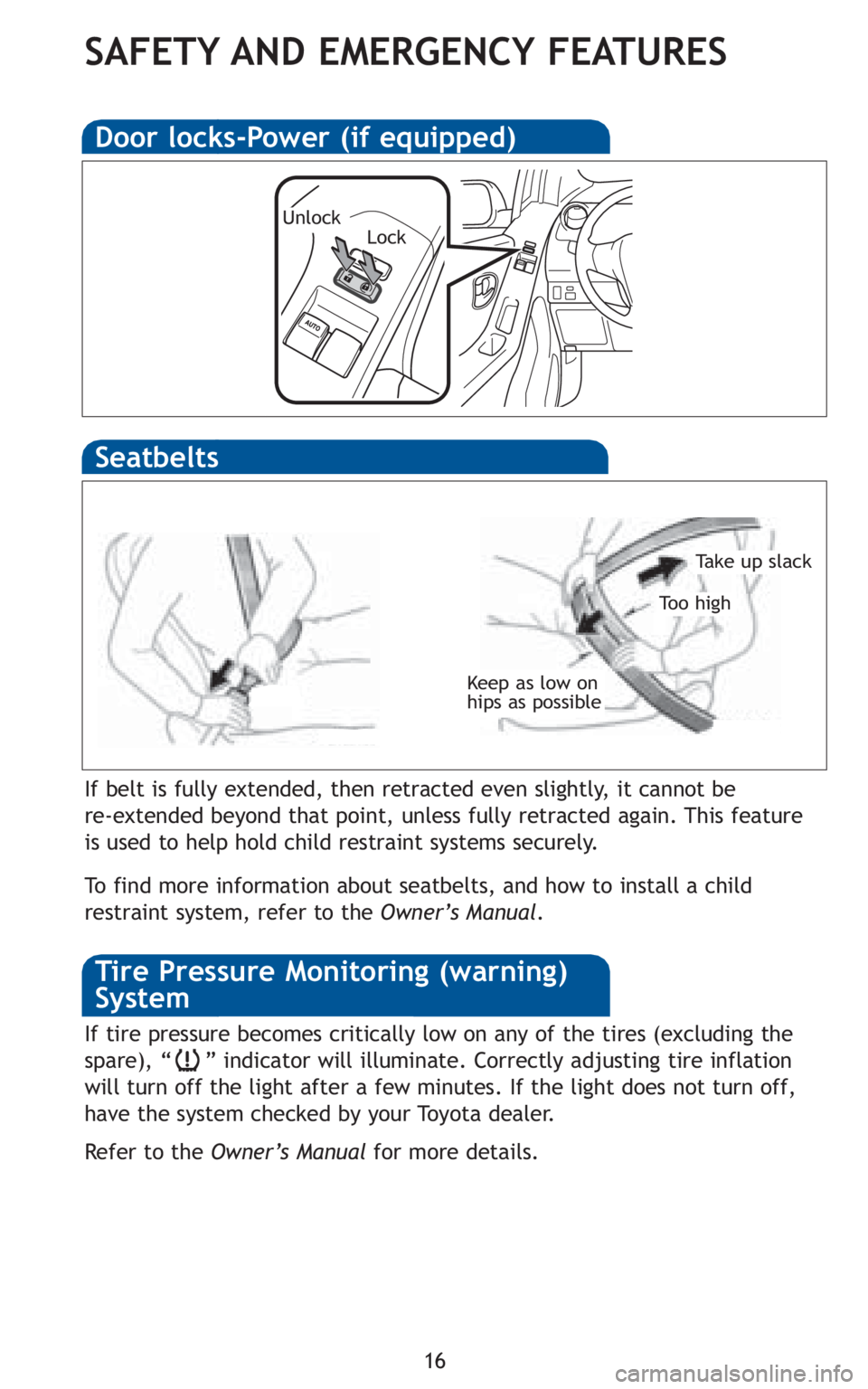

SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
To o h i g h
Seatbelts
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to theOwner’s Manual.
Door locks-Power (if equipped)
UnlockLock
If tire pressure becomes critically low on any of the tires (excluding the
spare), “ ” indicator will illuminate. Correctly adjusting tire inflation
will turn off the light after a few minutes. If the light does not turn off,
have the system checked by your Toyota dealer.
RefertotheOwner’s Manual for more details.
Tire Pressure Monitoring (warning)
System

388
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-Lock Brake System
ACC Accessory ALR Automatic Locking Retractor
CRS Child Restraint System
ECU Electronic Control Unit
EDR Event Data Recorder ELR Emergency Locking Retractor
EPS Electric Power Steering
GAWR Gross Axle Weight Ratings
GVWR Gross Vehicle Weight Rating I/M Emission inspection and maintenance
LATCH Lower Anchors and Tethers for Children LED Light Emitting Diode
LT Light truck
M + S Mud + Snow MMT Methylcy clopentadienyl Manganese Tricarbonyl
MTBE Methyl Tertiary Butyl Ether OBD On Board DiagnosticsSRS Supplemental Restraint System
TIN Tire Identification Number
TPMS Tire Pressure Warning System TRAC Traction Control
TWI Treadwear IndicatorsVIN Vehicle Identification Number
VSC Vehicle Stability Control

20
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
