2

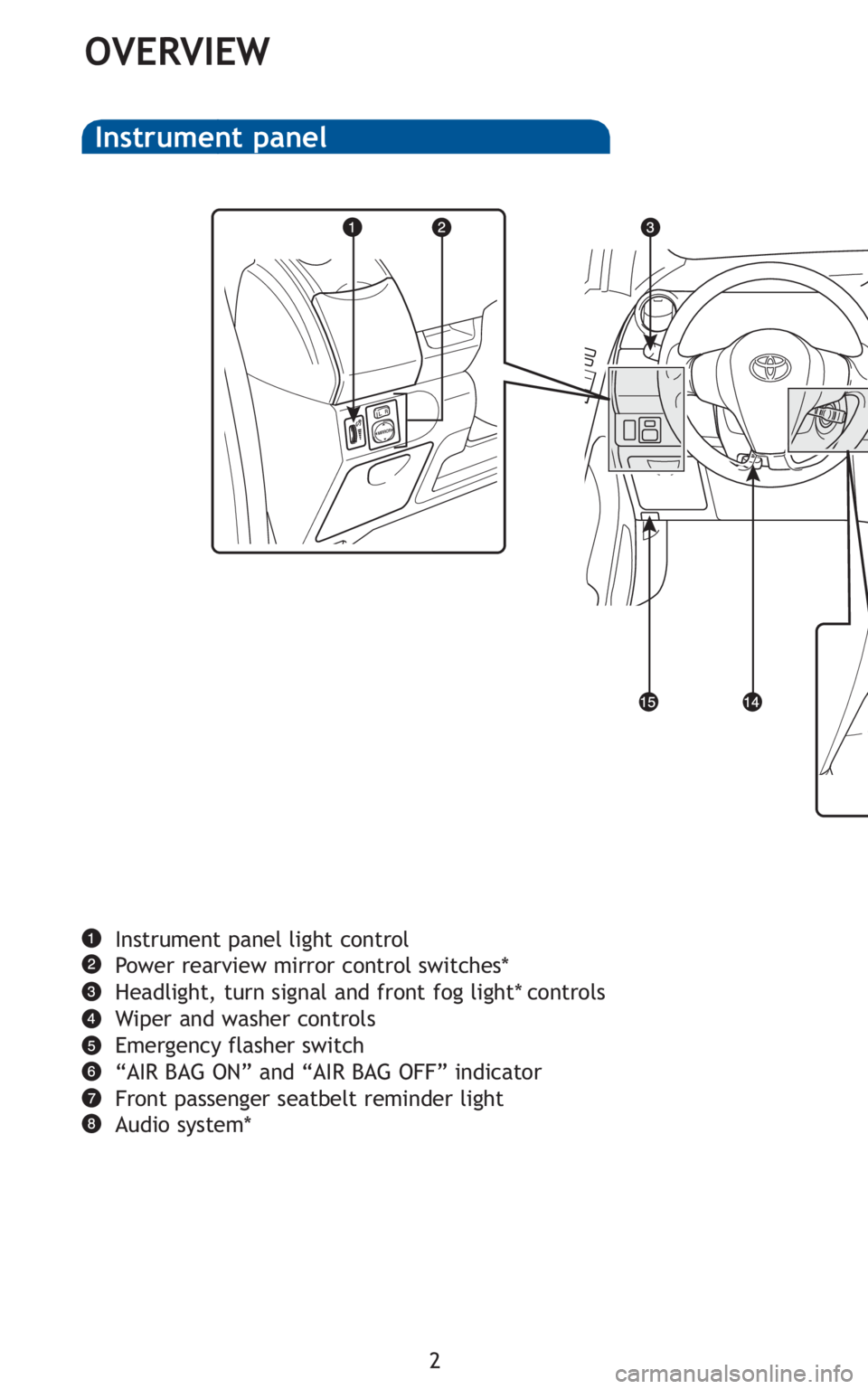

OVERVIEW
Instrument panel light control
Power rearview mirror control switches*
Headlight, turn signal and front fog light* controls
Wiper and washer controls
Emergency flasher switch
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seatbelt reminder light
Audio system*
Instrument panel

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

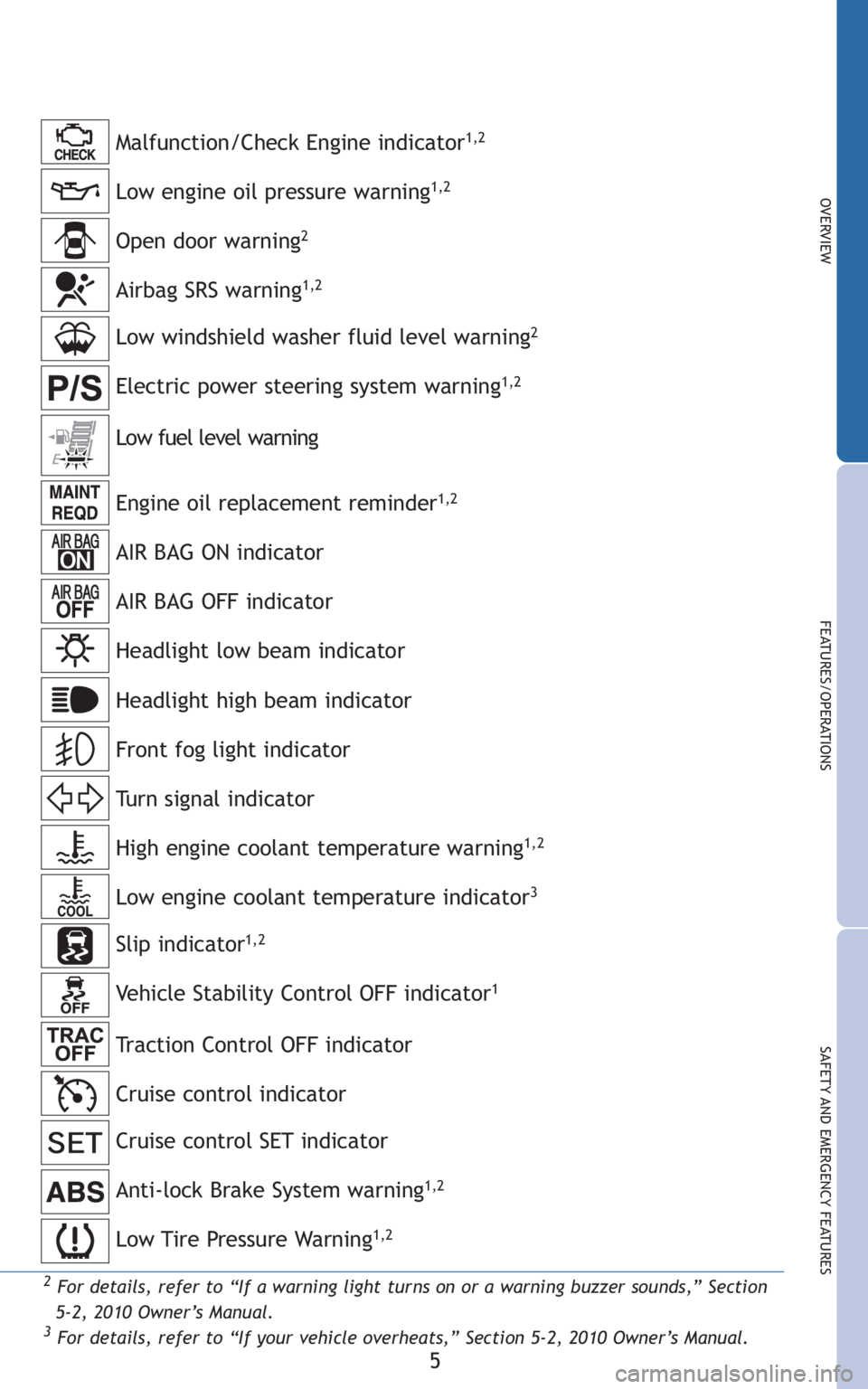

2For details, refer to “If a warning light turns on or a warning buzzer sounds,” Section
5-2, 2010 Owner’s Manual.
3For details, refer to “If your vehicle overheats,” Section 5-2, 2010 Owner’s Manual.
Low engine oil pressure warning1,2
Anti-lock Brake System warning1,2
Malfunction/Check Engine indicator1,2
Open door warning2
Low windshield washer fluid level warning2
Engine oil replacement reminder1,2
AIR BAG ON indicator
AIR BAG OFF indicator
Headlight low beam indicator
Turn signal indicator
Low fuel level warning
Headlight high beam indicator
High engine coolant temperature warning
1,2
Airbag SRS warning1,2
Electric power steering system warning1,2
Low engine coolant temperature indicator3
Front fog light indicator
Low Tire Pressure Warning1,2
Cruise control SET indicator
Cruise control indicator Slip indicator
1,2
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

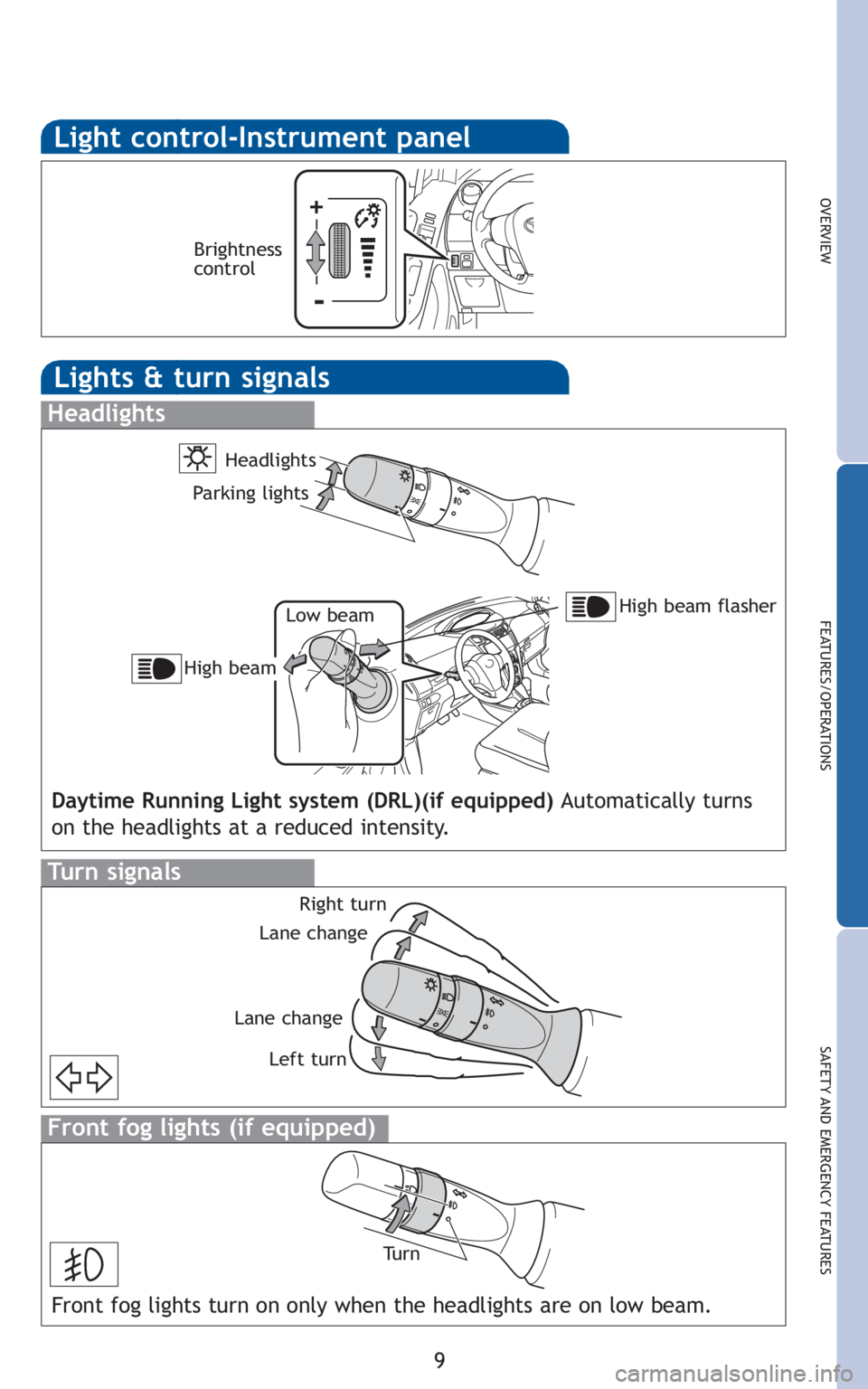

Light control-Instrument panel
Brightness
control
+
-
Lights&turnsignals
Headlights
High beam flasher
Low beam
Headlights
Parking lights
High beam
Daytime Running Light system (DRL)(if equipped) Automatically turns
on the headlights at a reduced intensity.
Turn signals
Right turn
Lane change
Lane change Left turn
Front fog lights (if equipped)
Tu r n
Front fog lights turn on only when the headlights are on low beam.

6
Headlights (low and high beam)
and daytime running lights
∗
P. 149, 150
Pictorial indexExterior
Front fog lights∗ P. 151
Hood P. 250
Windshield wipers P. 152
Outside rear view mirrors P. 68
Parking lights P. 149
Front turn signal lights P. 135
3-door models
Front side marker lights P. 149
Side turn signal lights P. 135

7
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 266
P. 325
P. 272
P. 364
∗: If equipped
Back door P. 36Side doors P. 31
Fuel filler door P. 74
Rear turn signal lights P. 135
Rear window defogger∗ P. 193
License plate light P. 149
Stop/tail and rear side
marker lights
P. 149
Rear window wiper∗ P. 155

8
Pictorial indexExterior
5-door models
Headlights (low and high beam)
and daytime running lights
∗
P. 149, 150
Front fog lights∗ P. 151
Hood P. 250
Windshield wipers P. 152
Outside rear view mirrors P. 68
Parking lights P. 149
Front turn signal lights P. 135
Front side marker lights P. 149
Side turn signal lights P. 135

9
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 266
P. 325
P. 272
P. 364
∗: If equipped
Back door P. 36Side doors P. 31
Fuel filler door P. 74
Rear turn signal lights P. 135
Rear window defogger∗ P. 193
License plate light P. 149
Stop/tail and rear side
marker lights
P. 149
Rear window wiper∗ P. 155

15
Pictorial indexInstrument panel
Fog light switch∗ P. 151Rear window wiper
and washer switch
∗ P. 155
Tilt steering lock release lever P. 66
Hood opener P. 250
Gauges and meters
P. 139
Audio system P. 195
Glove boxes P. 221
Fuel filler door
opener
P. 74
Auxiliary boxes
P. 225
Bottle holder
P. 223
Windshield wipers and
washer switch
P. 152Turn signal lever P. 135
Headlight switch P. 149
∗: If equipped

122 2-1. Driving procedures
Manual transmissionWith the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
●For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 500 miles (800 km):
Do not tow a trailer.
● For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 354)

147

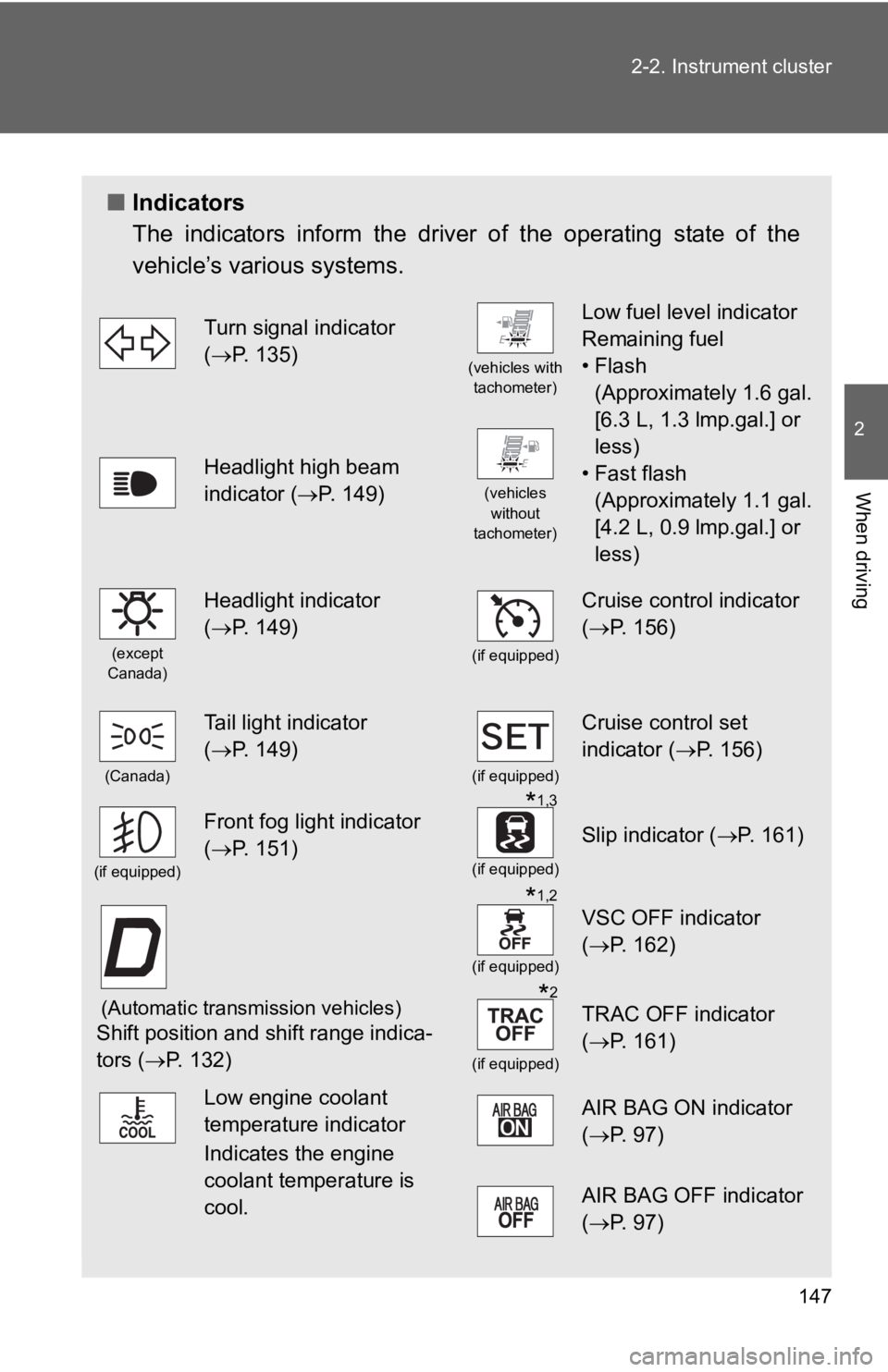

2-2. Instrument cluster
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(→P. 135)
(vehicles with
tachometer)
Low fuel level indicator
Remaining fuel
•Flash (Approximately 1.6 gal.
[6.3 L, 1.3 lmp.gal.] or
less)
• Fast flash (Approximately 1.1 gal.
[4.2 L, 0.9 lmp.gal.] or
less)
Headlight high beam
indicator ( →P. 149)
(vehicles
without
tachometer)
(except
Canada)
Headlight indicator
( →P. 149)
(if equipped)
Cruise control indicator
( →P. 156)
(Canada)
Tail light indicator
(→P. 149)
(if equipped)
Cruise control set
indicator ( →P. 156)
(if equipped)
Front fog light indicator
(→P. 151)*1,3
(if equipped)
Slip indicator ( →P. 161)
(Automatic transmission vehicles)
Shift position and shift range indica-
tors (→P. 132)
*1,2
(if equipped)
VSC OFF indicator
(→P. 162)
*2
(if equipped)
TRAC OFF indicator
(→P. 161)
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.AIR BAG ON indicator
(→P. 97)
AIR BAG OFF indicator
(→P. 97)
