turn signal bulb TOYOTA YARIS HATCHBACK 2011 Owners Manual

136
2-1. Driving procedures

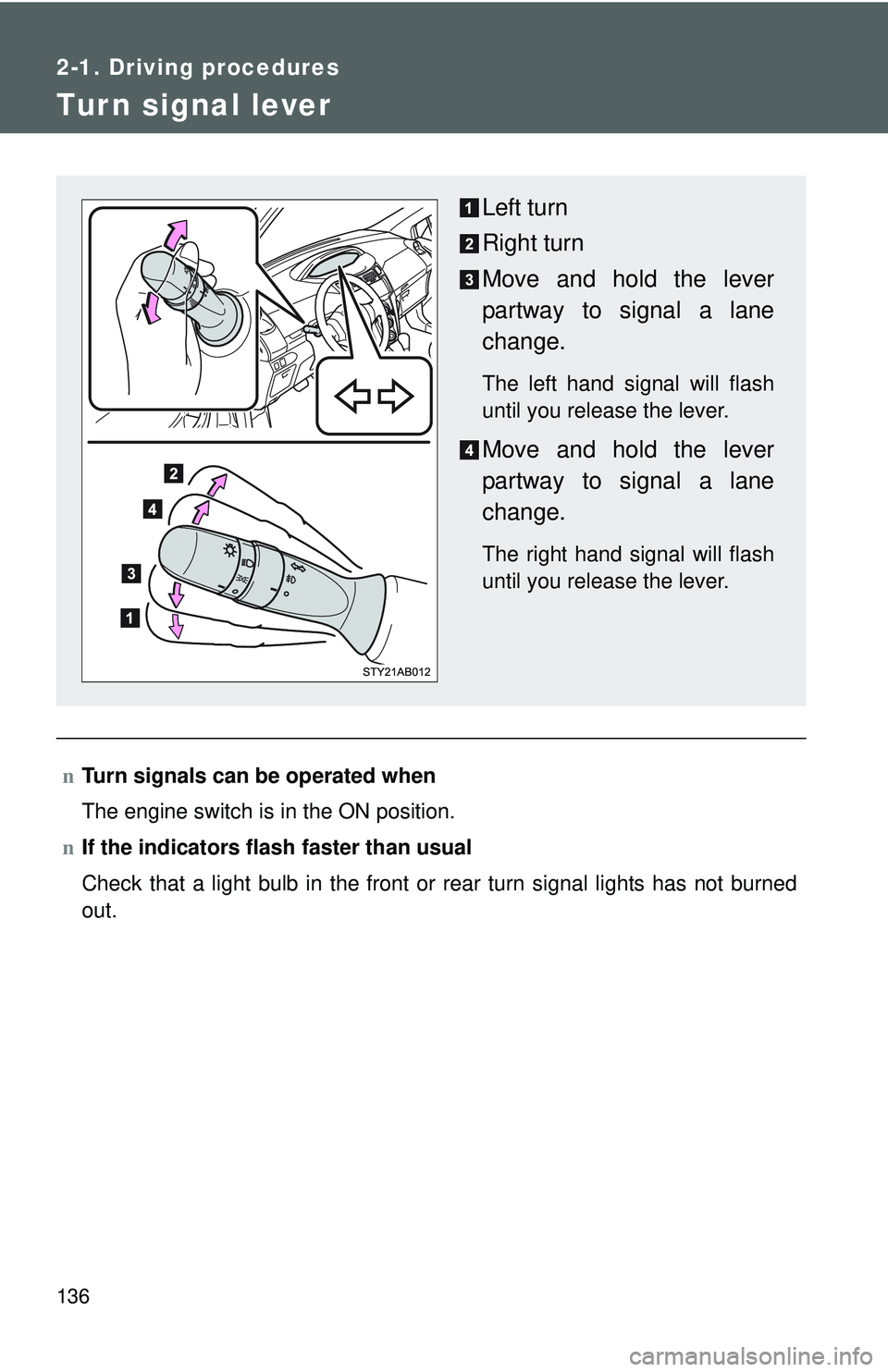

Turn signal lever
nTurn signals can be operated when
The engine switch is in the ON position.
n If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.

297
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
n Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 366)

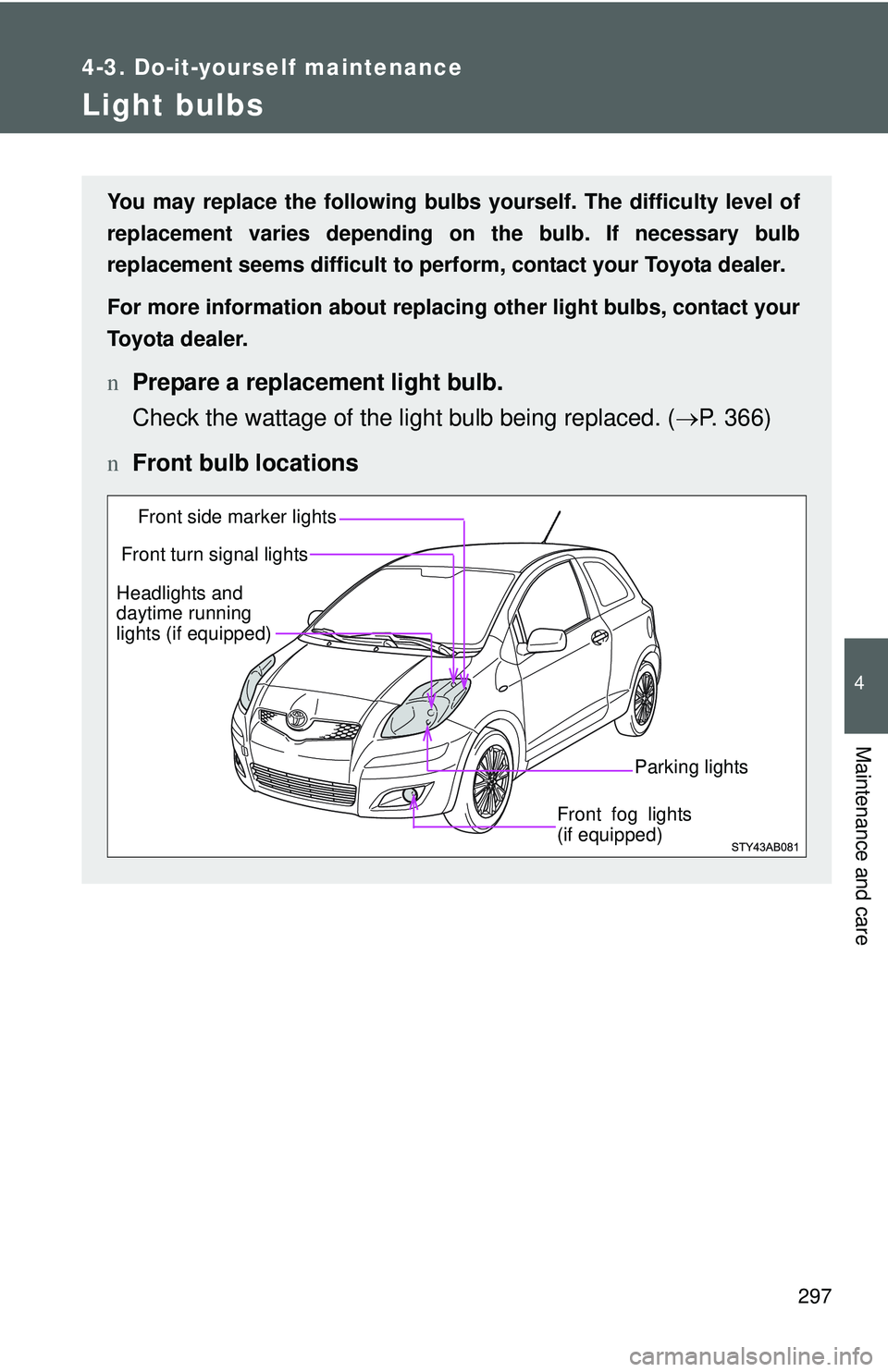

n Front bulb locations
Headlights and
daytime running
lights (if equipped)
Front fog lights
(if equipped)
Front side marker lights
Front turn signal lights
Parking lights

298 4-3. Do-it-yourself maintenance

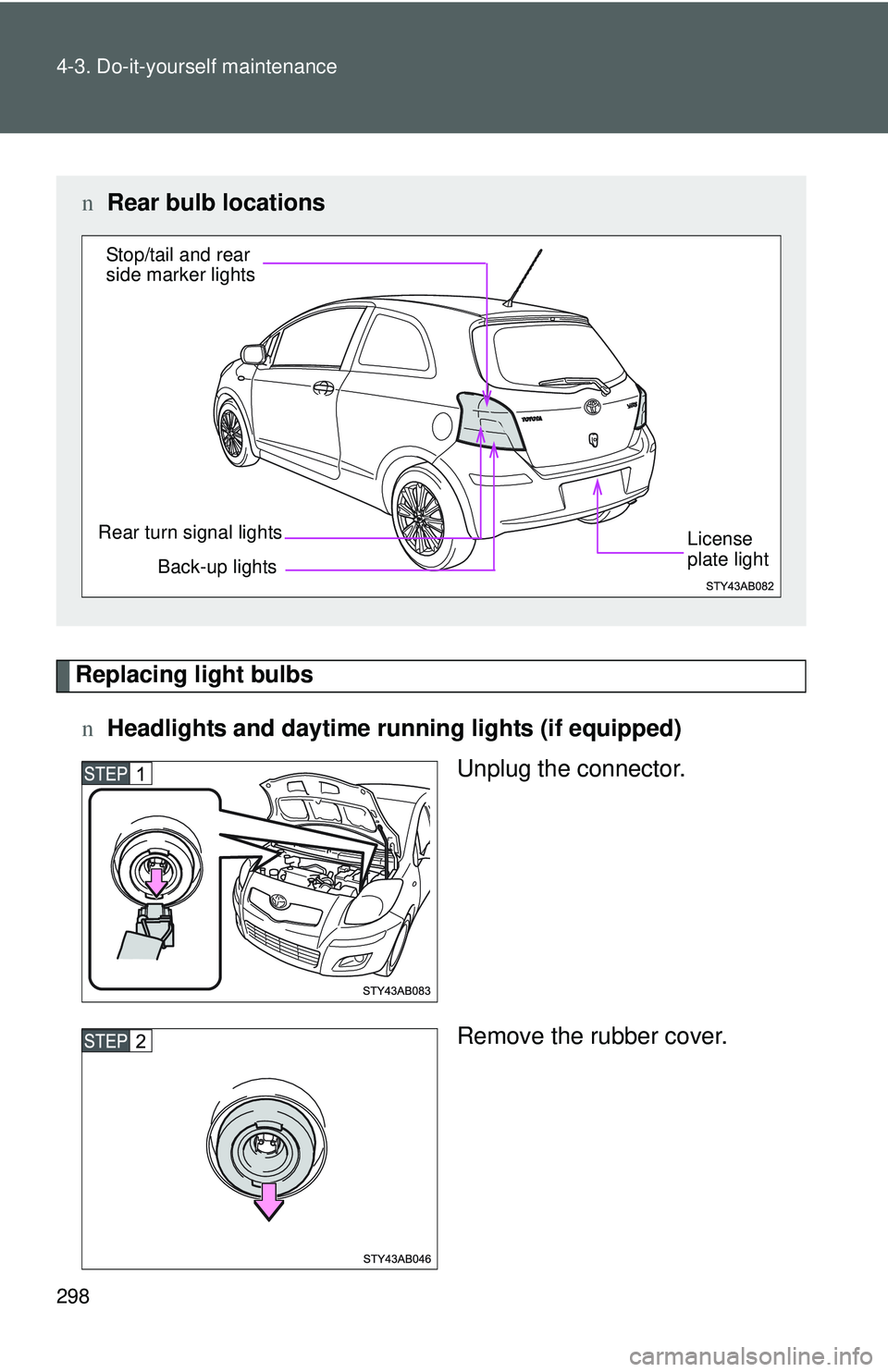

Replacing light bulbsn Headlights and daytime running lights (if equipped)
Unplug the connector.
Remove the rubber cover.
nRear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side marker lights
License
plate light

301
4-3. Do-it-yourself maintenance
4
Maintenance and care
n

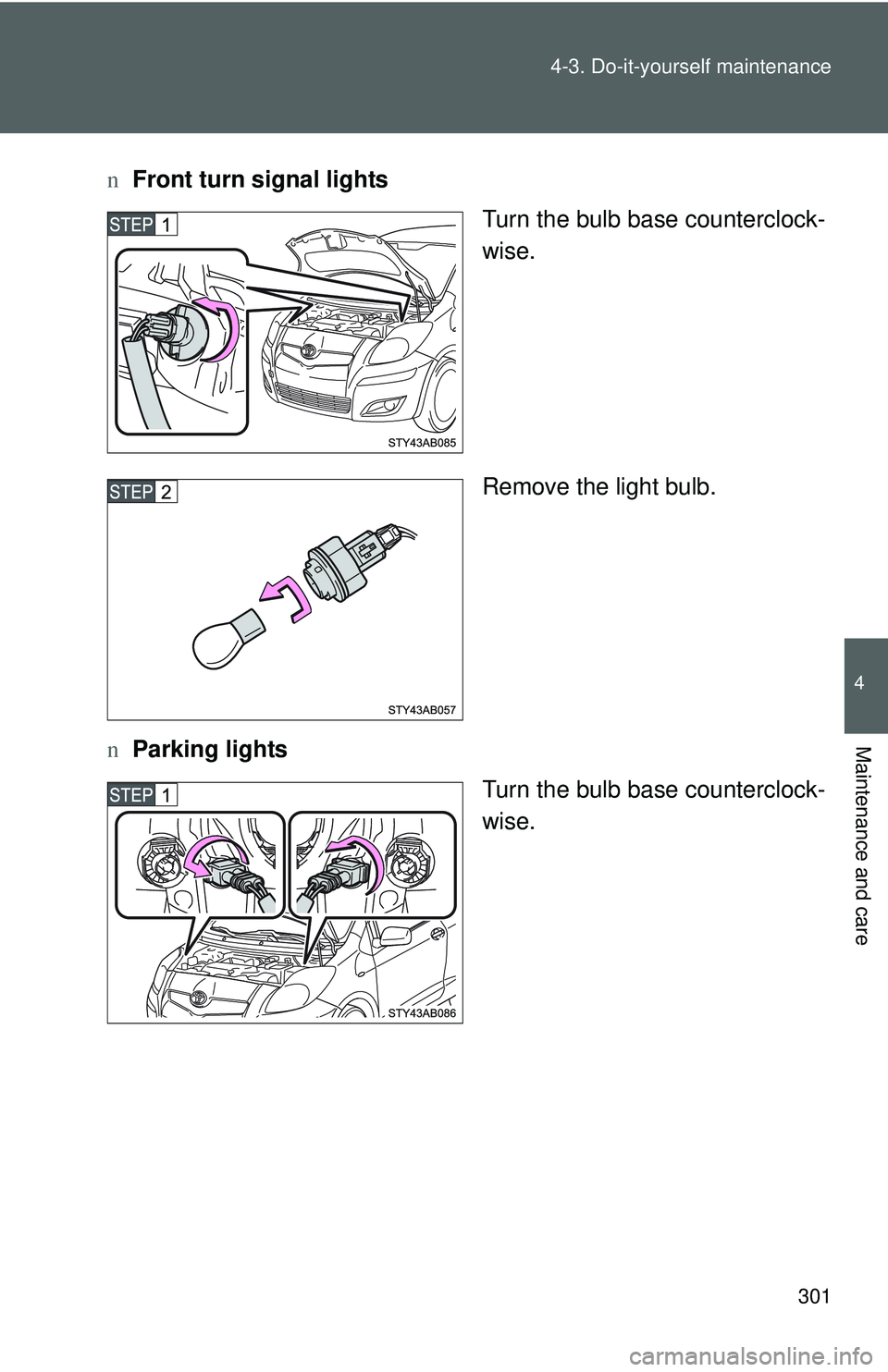

Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n Parking lights
Turn the bulb base counterclock-
wise.

302 4-3. Do-it-yourself maintenance
Remove the light bulb.
n Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the back door and remove
the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light

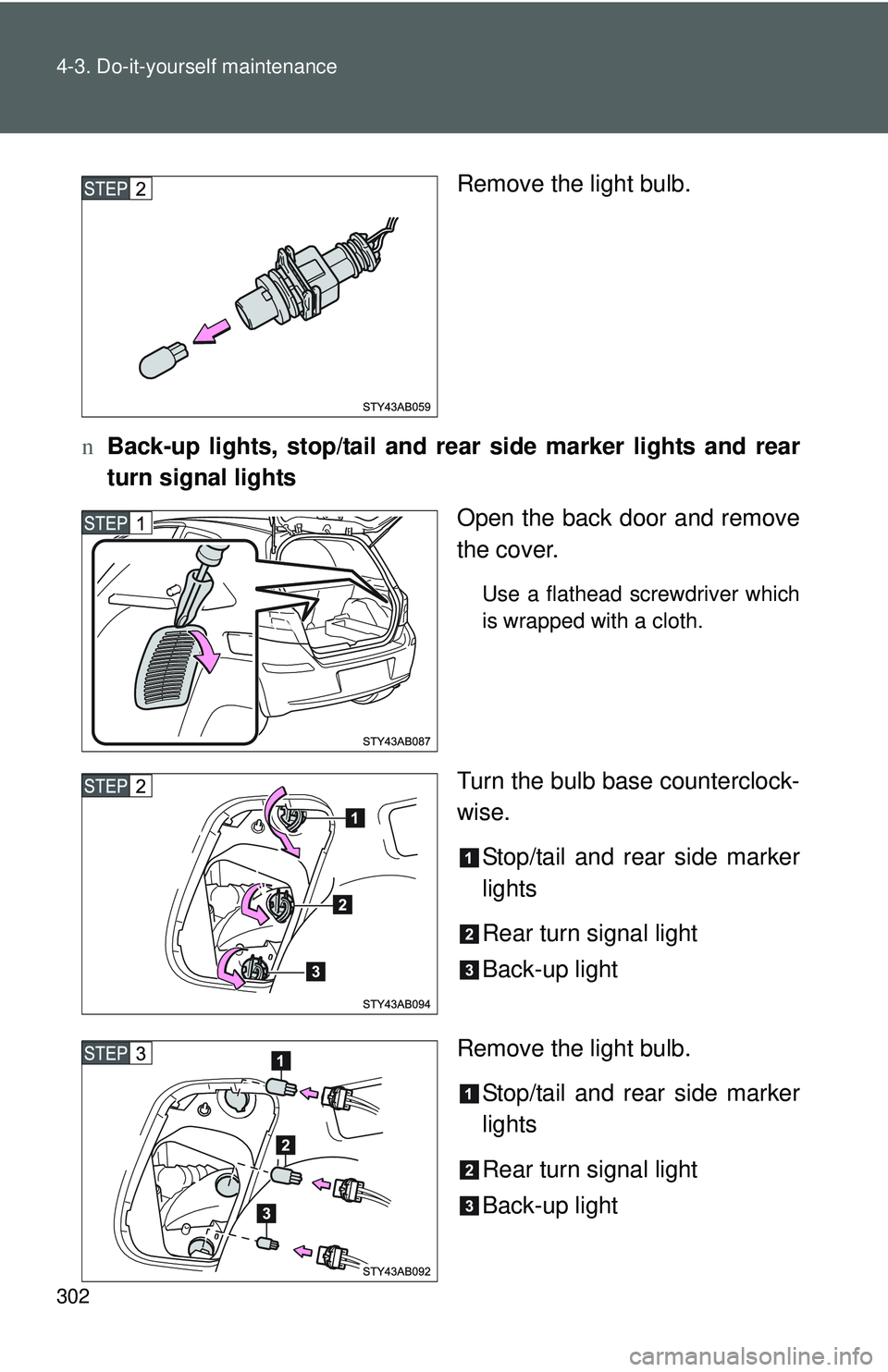

Remove the light bulb. Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light

303
4-3. Do-it-yourself maintenance
4
Maintenance and care
n
License plate light

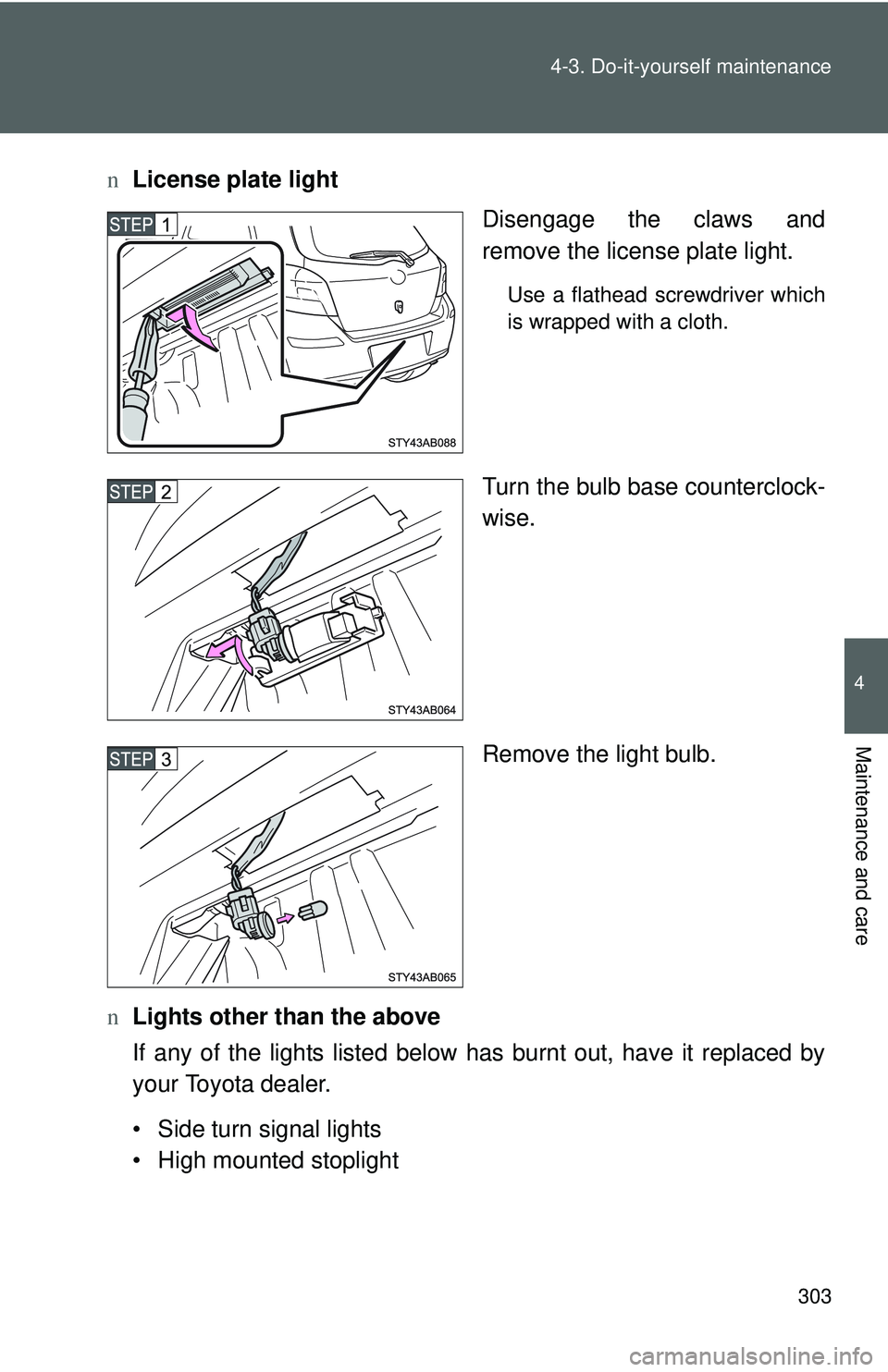

Disengage the claws and
remove the license plate light.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
n Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
• Side turn signal lights
• High mounted stoplight

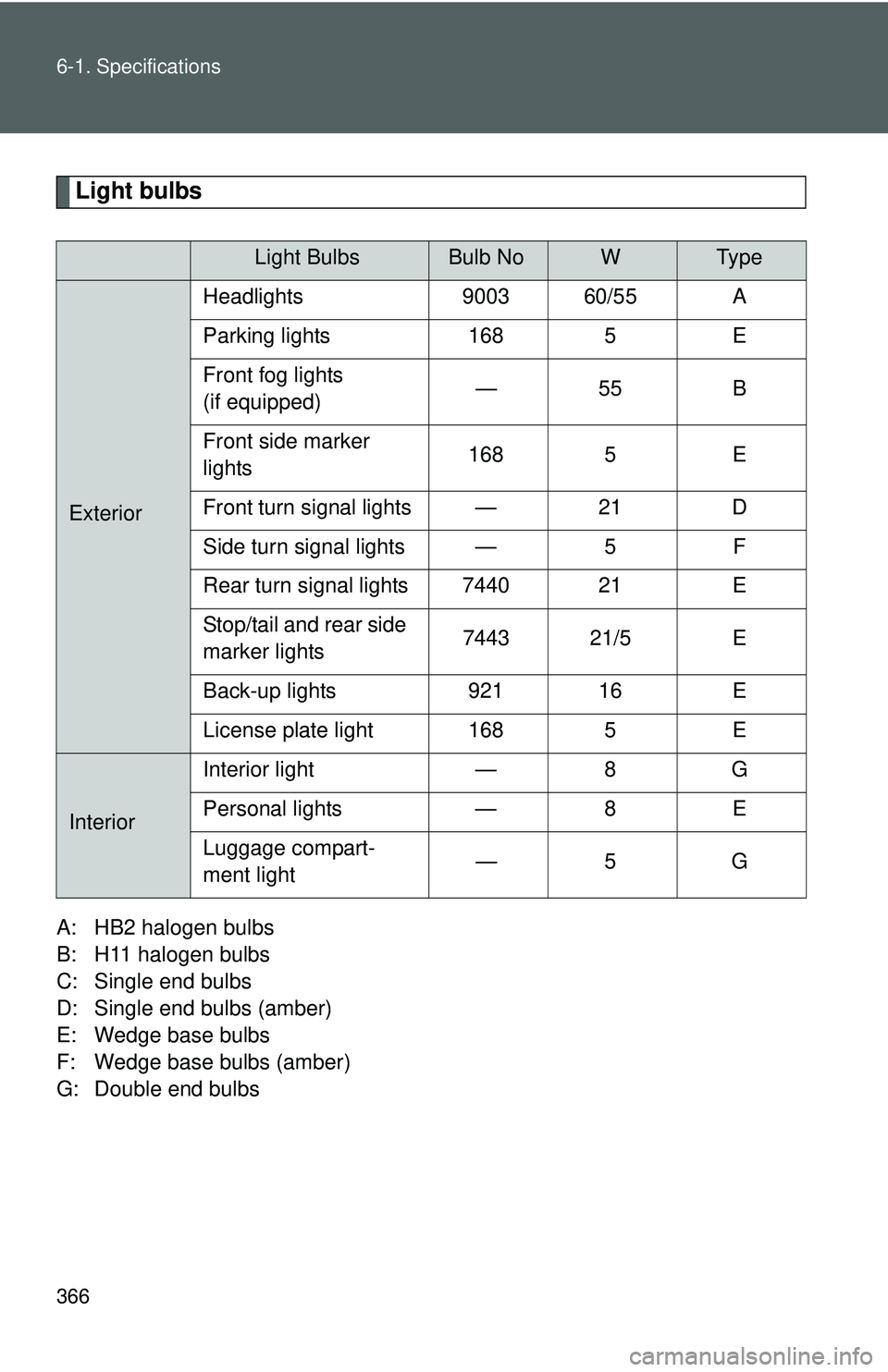

366 6-1. Specifications
Light bulbs
A: HB2 halogen bulbs
B: H11 halogen bulbs
C: Single end bulbs
D: Single end bulbs (amber)
E: Wedge base bulbs
F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb NoWTy p e
ExteriorHeadlights 9003 60/55 A
Parking lights 168 5 E
Front fog lights
(if equipped)
—55 B
Front side marker
lights 168 5 E
Front turn signal lights — 21 D
Side turn signal lights — 5 F
Rear turn signal lights 7440 21 E
Stop/tail and rear side
marker lights 7443 21/5 E
Back-up lights 921 16 E
License plate light 168 5 E
Interior Interior light — 8 G
Personal lights — 8 E
Luggage compart-
ment light
—5 G
