TOYOTA YARIS HATCHBACK 2013 Owners Manual

129
2-1. Driving procedures
2
When driving
YARIS_HB_U_52D44U
Manual transmission∗
∗: If equipped
■Maximum downshifting speed
Observe the downshifting speeds in the following table to prevent over-
revving the engine.
■ Shifting the shift lever
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.
Shift positionMaximum speed mph (km/h)
1 30 (49)
2 57 (92)
3 83 (134)
4 113 (181)

130
2-1. Driving procedures
YARIS_HB_U_52D44U
Turn signal lever
■Turn signals can be operated when
The engine switch is in the “ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

131
2-1. Driving procedures
2
When driving
YARIS_HB_U_52D44U

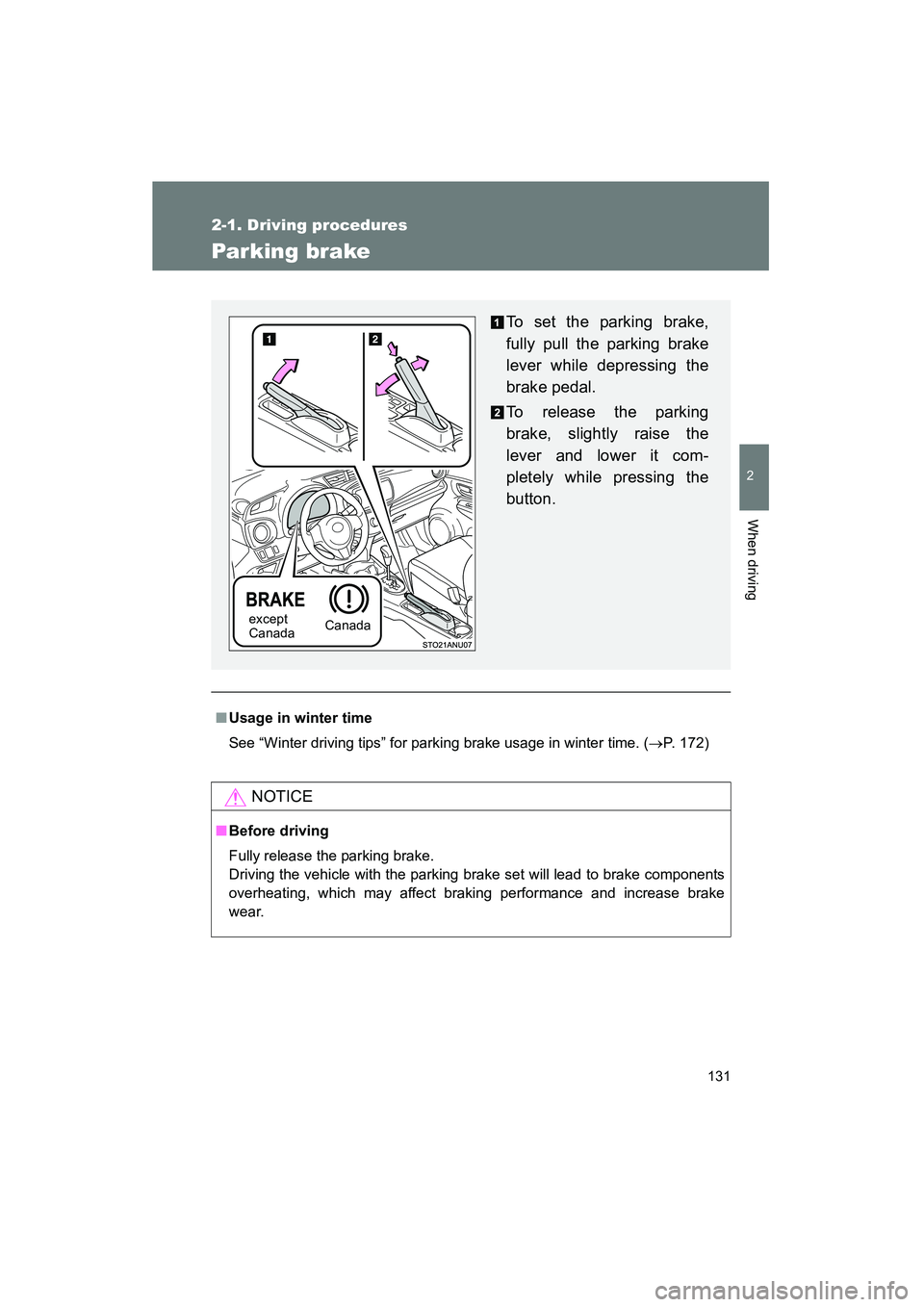

Parking brake
■Usage in winter time
See “Winter driving tips” for park ing brake usage in winter time. (→ P. 172)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake,
fully pull the parking brake
lever while depressing the
brake pedal.
To release the parking
brake, slightly raise the
lever and lower it com-
pletely while pressing the
button.
except
CanadaCanada

132
2-1. Driving procedures
YARIS_HB_U_52D44U
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(→ P. 62)
To sound the horn, press on or
close to the mark.

133
2
When driving
YARIS_HB_U_52D44U
2-2. Instrument cluster
Gauges and meters
Vehicles without a tachometerSpeedometer
Displays the vehicle speed
Outside temperature display
→P. 2 1 1
Fuel gauge
Displays the quantity of fuel remaining in the tank
Display change button
→P. 140
Odometer, trip meter and multi-information display
→P. 140
Clock
→P. 210
Clock adjusting buttons
→P. 210

134 2-2. Instrument cluster
YARIS_HB_U_52D44U

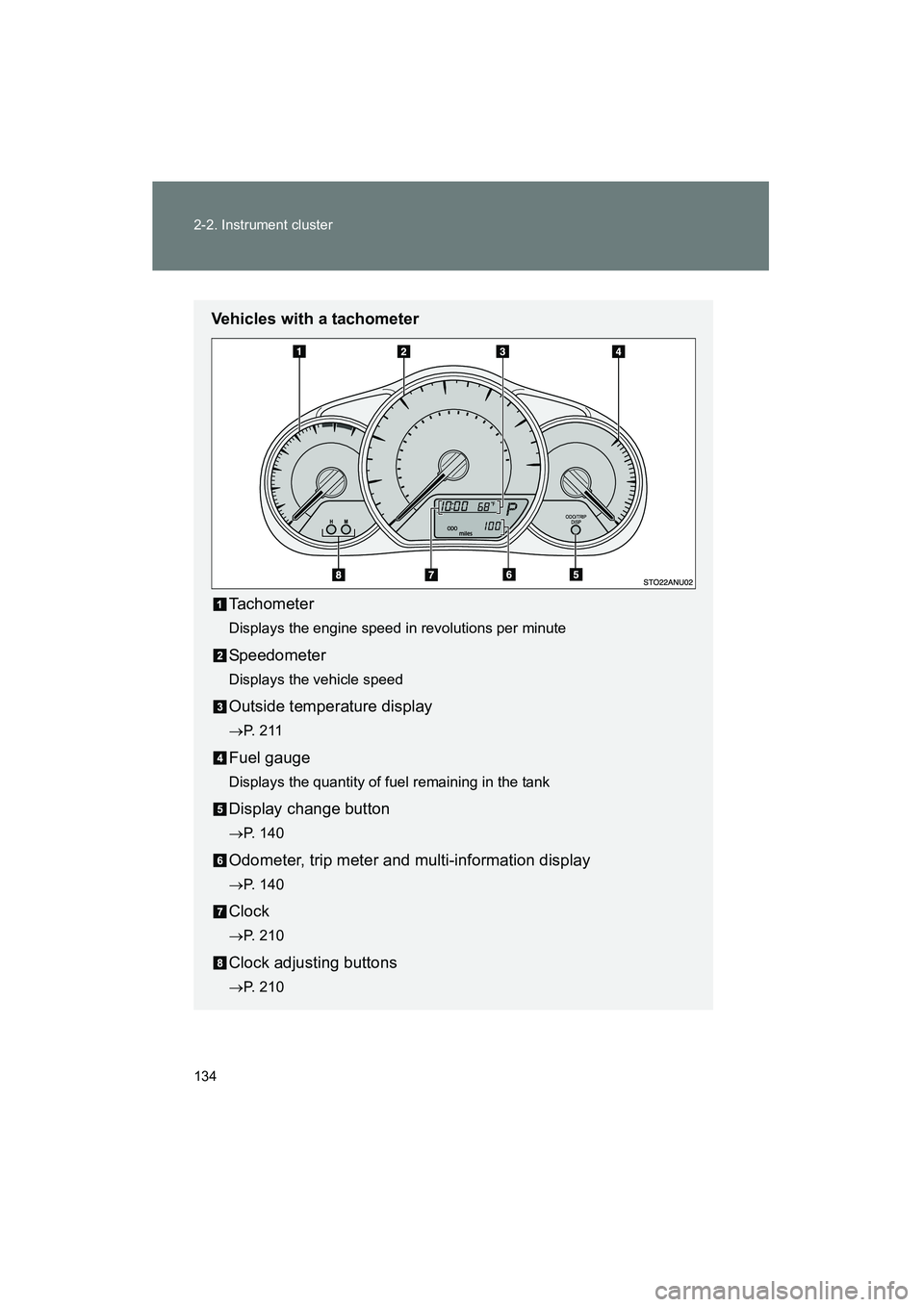

Vehicles with a tachometerTachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Outside temperature display
→P. 2 1 1
Fuel gauge
Displays the quantity of fuel remaining in the tank
Display change button
→P. 140
Odometer, trip meter and multi-information display
→P. 140
Clock
→P. 210
Clock adjusting buttons
→P. 210

135
2-2. Instrument cluster
2
When driving
YARIS_HB_U_52D44U

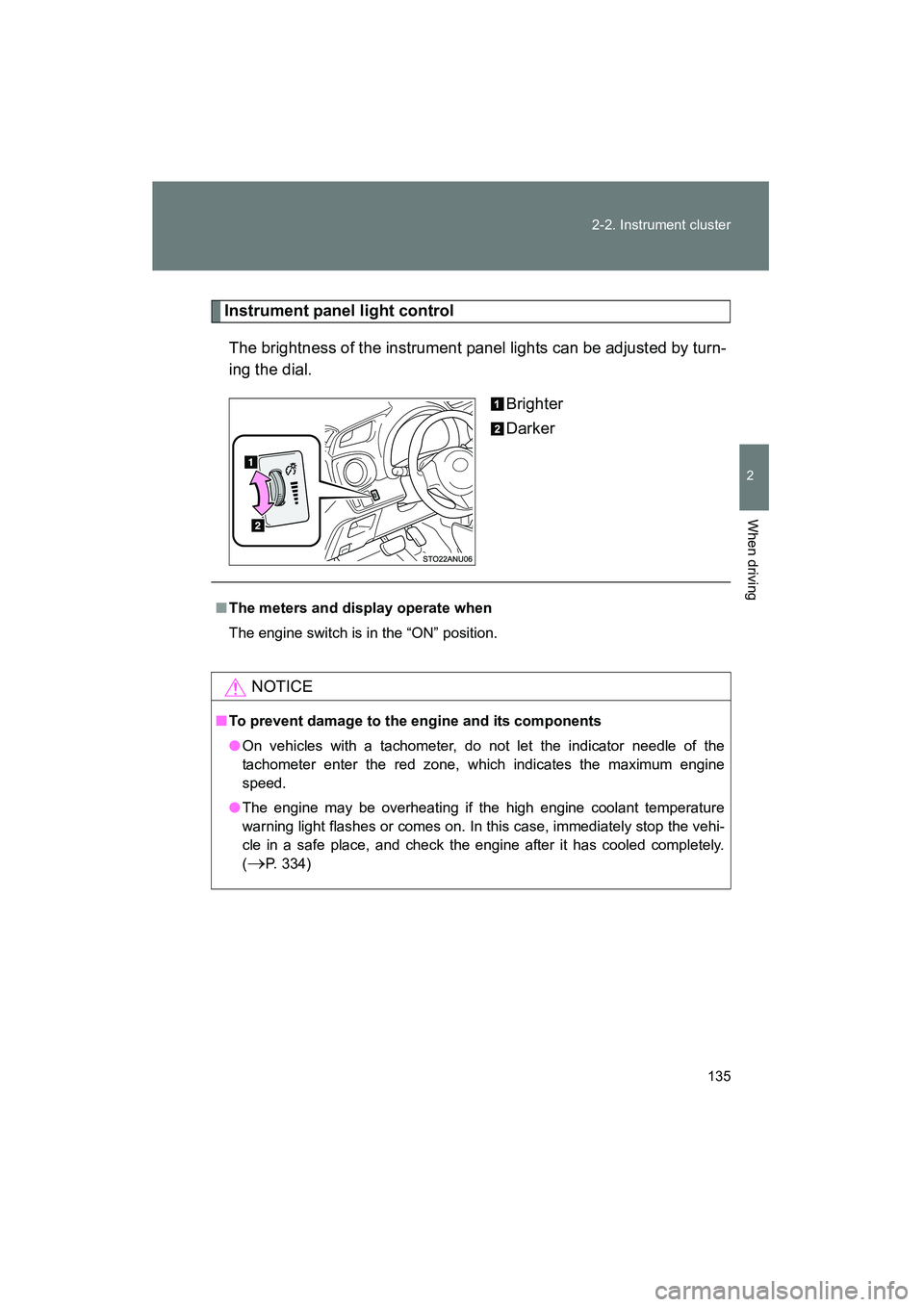

Instrument panel light control
The brightness of the instrument panel lights can be adjusted by turn-
ing the dial. Brighter
Darker
■The meters and display operate when
The engine switch is in the “ON” position.
NOTICE
■To prevent damage to the engine and its components
●On vehicles with a tachometer, do not let the indicator needle of the
tachometer enter the red zone, which indicates the maximum engine
speed.
● The engine may be overheating if the high engine coolant temperature
warning light flashes or comes on. In this case, immediately stop the vehi-
cle in a safe place, and check the engine after it has cooled completely.
(
→P. 334)

136
2-2. Instrument cluster
YARIS_HB_U_52D44U
Indicators and war ning lights
The indicators and warning lights on the instrument cluster, center
panel and dashboard inform the driver of the status of the vehicle’s
various systems.
Instrument cluster (vehicles without a tachometer)
Instrument cluster (vehicles with a tachometer)

137
2-2. Instrument cluster
2
When driving
YARIS_HB_U_52D44U
Center panel
Dashboard

138 2-2. Instrument cluster
YARIS_HB_U_52D44U
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(→ P. 130)
(if equipped)
Cruise control indicator
(→ P. 158)
Headlight high beam
indicator ( →P. 146)
(if equipped)
Cruise control “SET”
indicator (→ P. 158)
(if equipped)
Front fog light indicator
(→ P. 148)*1,2
Slip indicator ( →P. 163)
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.*1VSC OFF indicator
(→ P. 164)
*1“TRAC OFF” indicator
(→ P. 163)
(if equipped)
Engine immobilizer/
alarm system indicator
(→ P. 72, 74)*1“AIR BAG ON” indicator
(→ P. 92)
*1Eco Driving Indicator
Light ( →P. 115)*1“AIR BAG OFF” indica-
tor ( →P. 92)
(vehicles with an automatic transmission)
Shift position and shift
range indicator
(→ P. 127)
(vehicles with an automatic transmission)
