1-2. Opening, closing and locking the doors
1
Before driving
YARIS_HB_U_52D44U
■
When closing the back door
■ Luggage compartment light
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hi t near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.

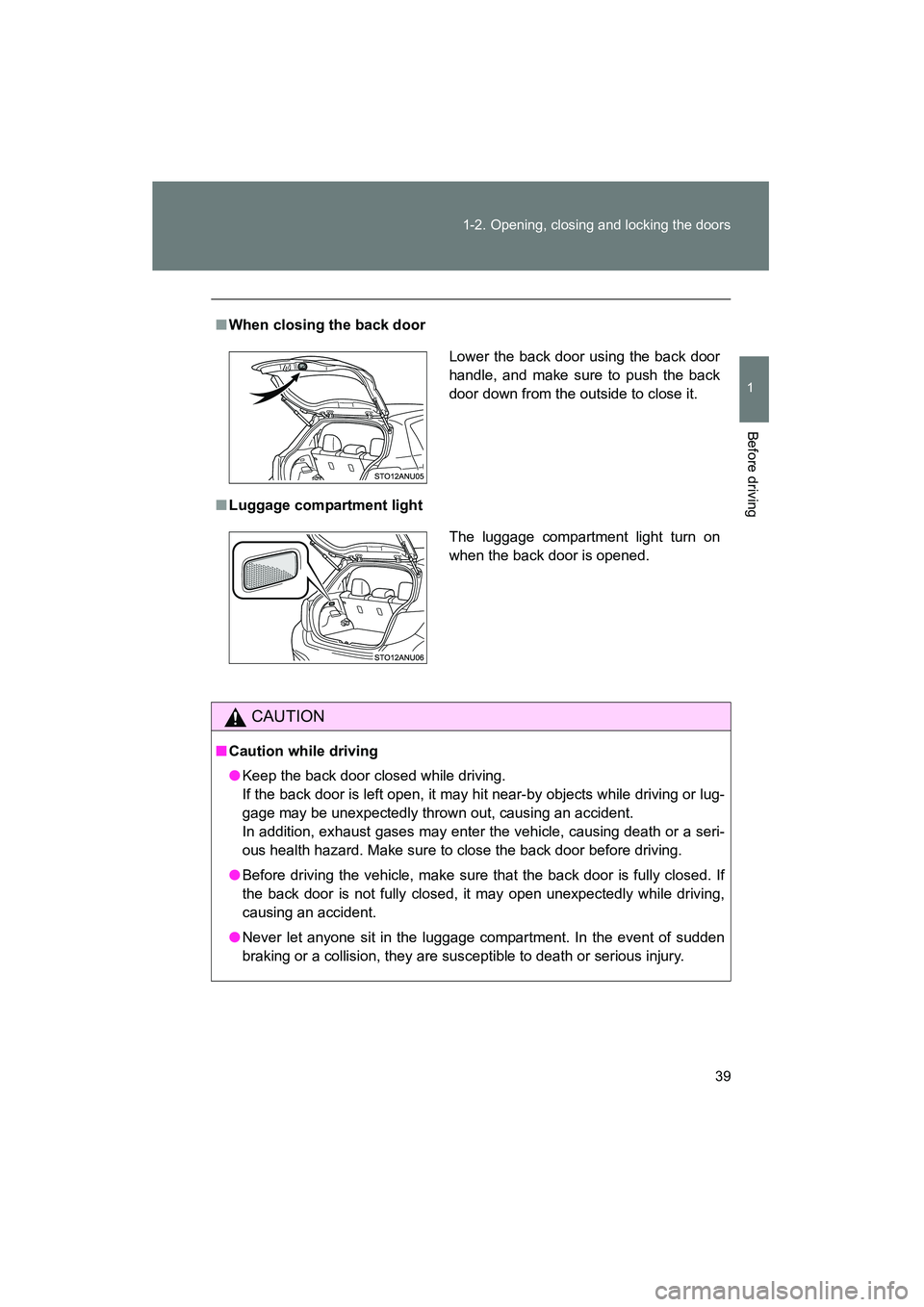

Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
The luggage compartment light turn on
when the back door is opened.

40 1-2. Opening, closing and locking the doors
YARIS_HB_U_52D44U
CAUTION

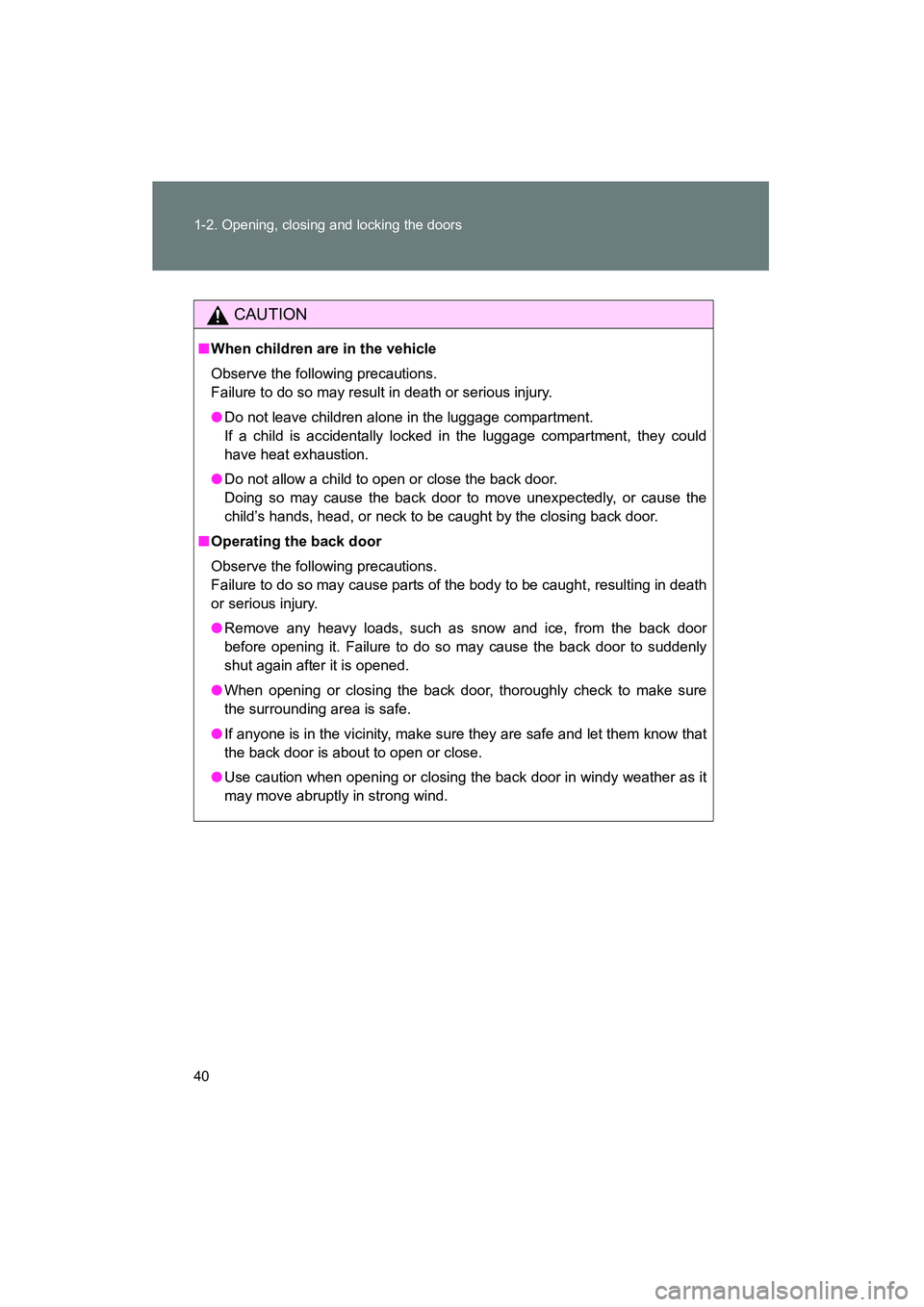

■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

41
1-2. Opening, closing and locking the doors
1
Before driving
YARIS_HB_U_52D44U
CAUTION
●

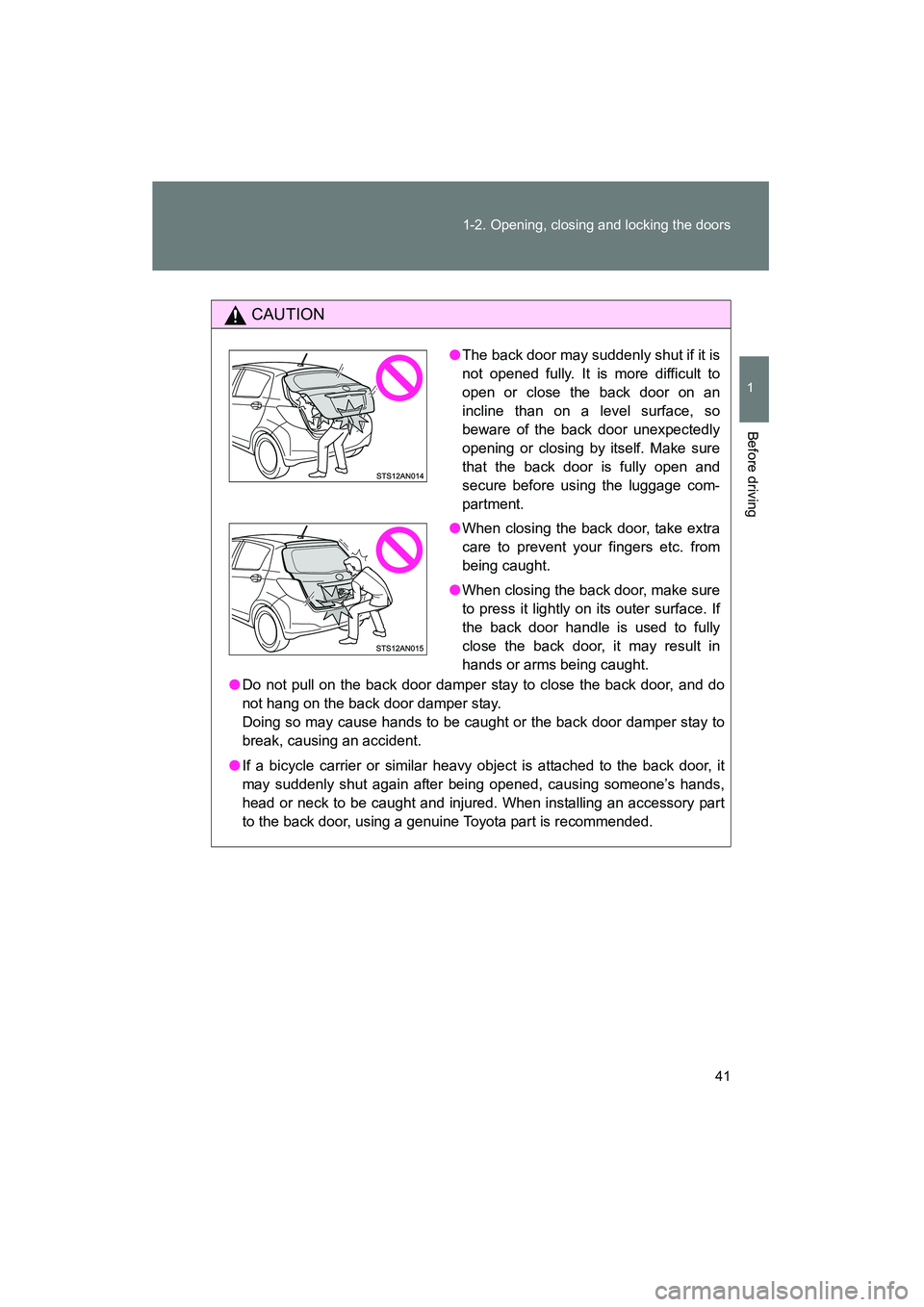

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

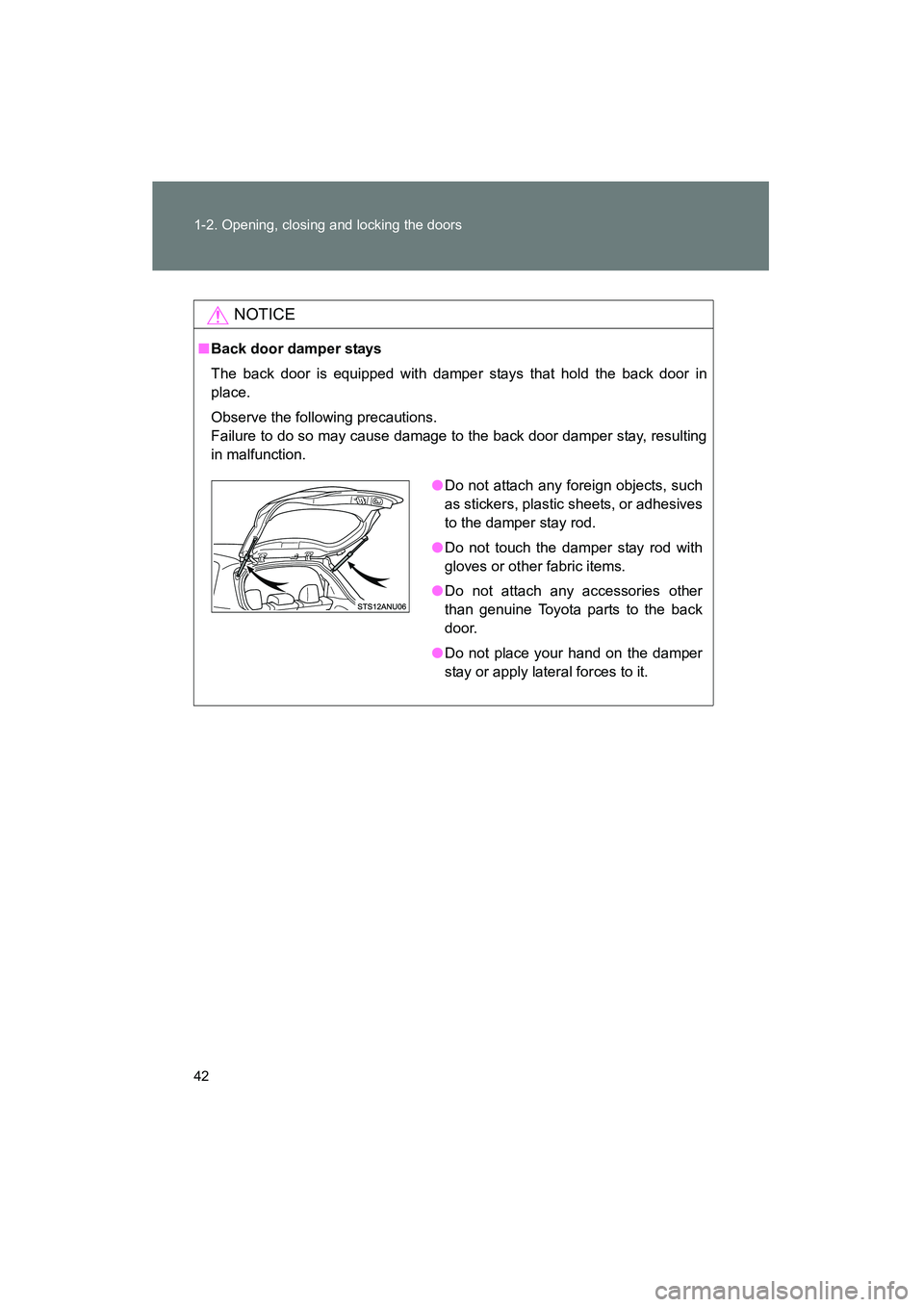

42 1-2. Opening, closing and locking the doors
YARIS_HB_U_52D44U
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.

43
1
Before driving
YARIS_HB_U_52D44U
1-3. Adjustable components (seats, mirrors, steering wheel)

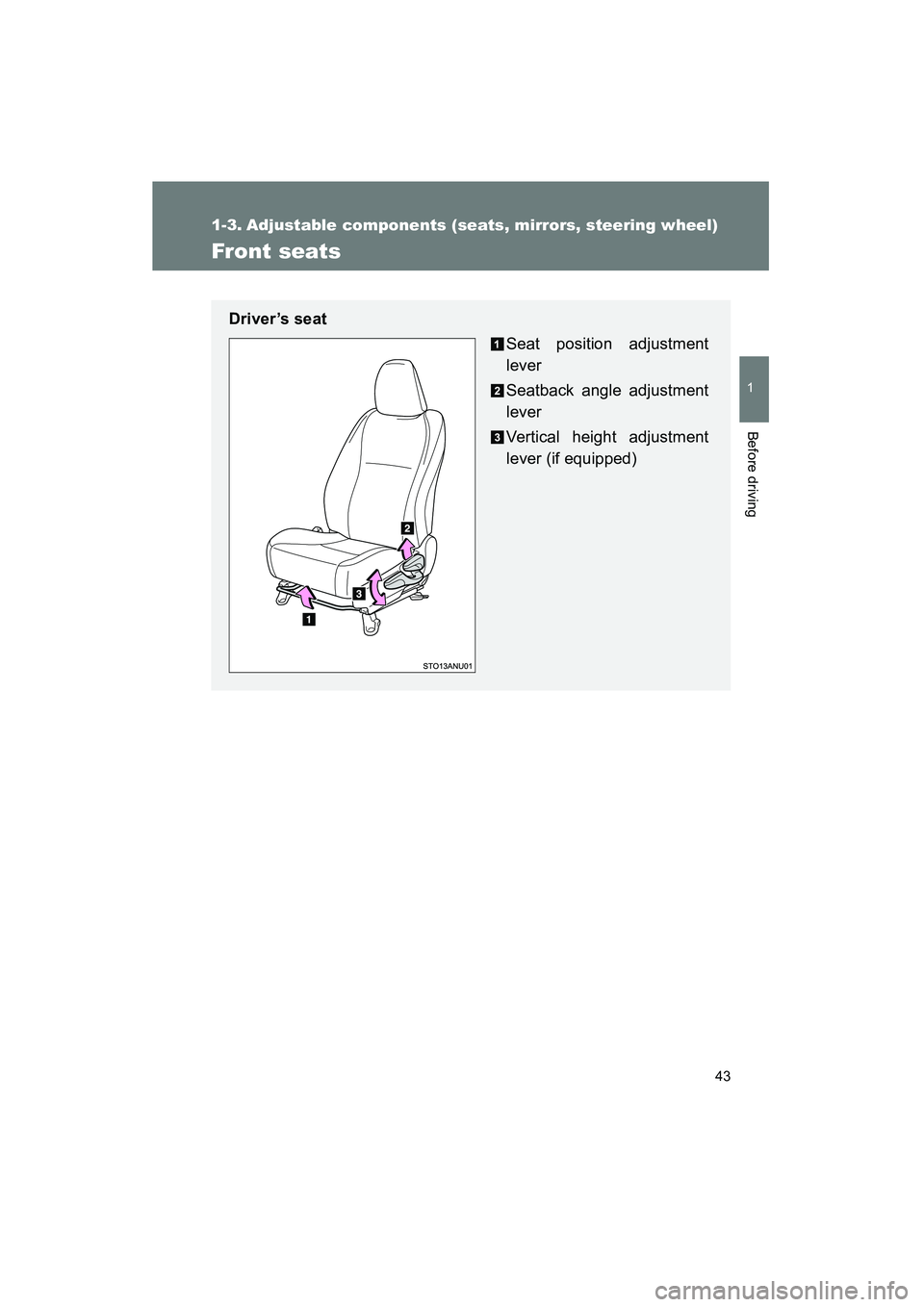

Front seats
Driver’s seatSeat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (if equipped)

44 1-3. Adjustable components (seats, mirrors, steering wheel)
YARIS_HB_U_52D44U

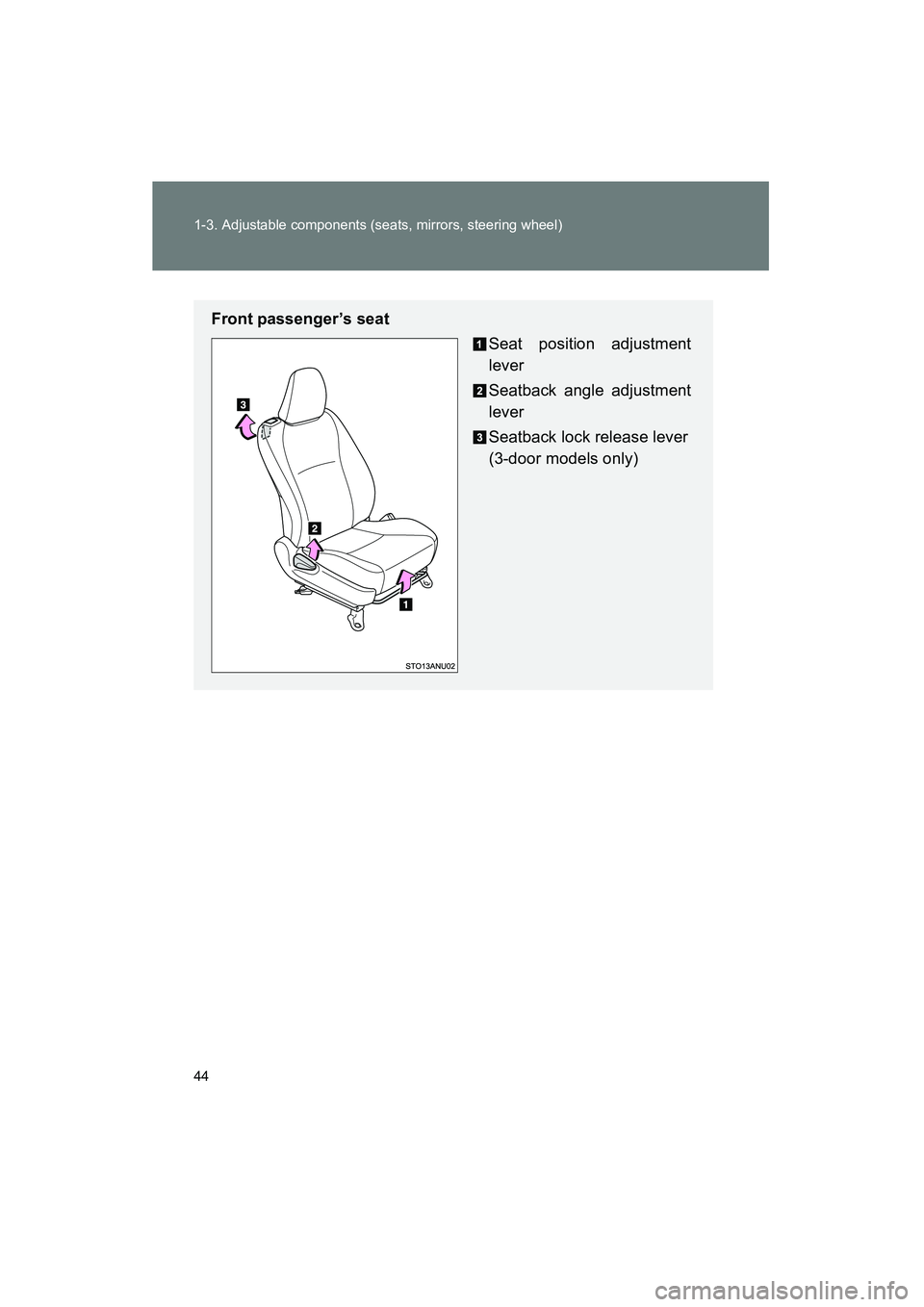

Front passenger’s seatSeat position adjustment
lever
Seatback angle adjustment
lever
Seatback lock release lever
(3-door models only)

45
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
YARIS_HB_U_52D44U

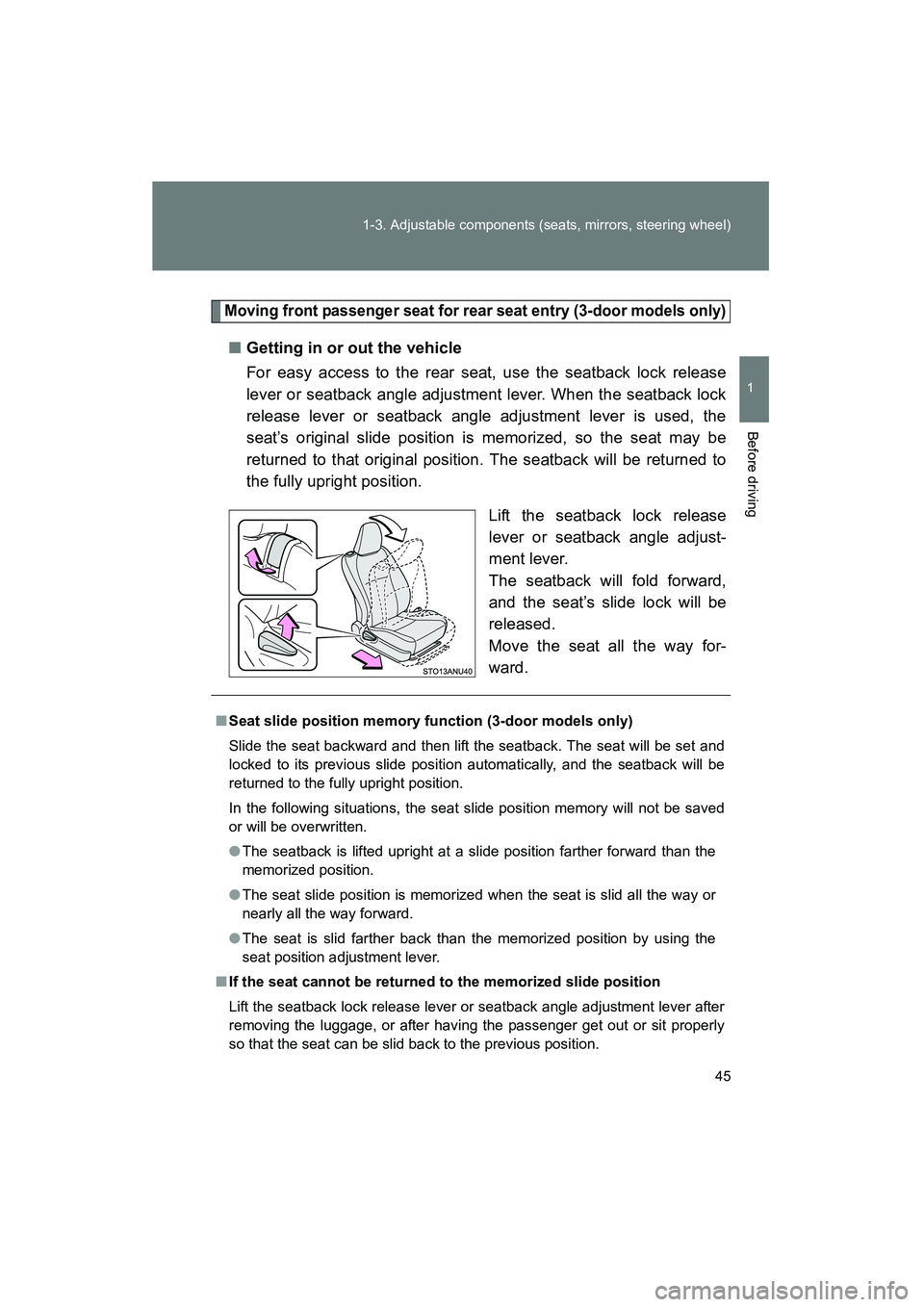

Moving front passenger seat for rear seat entry (3-door models only)
■
Getting in or out the vehicle
For easy access to the rear seat, use the seatback lock release
lever or seatback angle adjustment lever. When the seatback lock
release lever or seatback angle adjustment lever is used, the
seat’s original slide position is memorized, so the seat may be
returned to that original position. The seatback will be returned to
the fully upright position.
Lift the seatback lock release
lever or seatback angle adjust-
ment lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.
■Seat slide position memory function (3-door models only)
Slide the seat backward and then lift the seatback. The seat will be set and
locked to its previous slide position automatically, and the seatback will be
returned to the fully upright position.
In the following situations, the seat slide position memory will not be saved
or will be overwritten.
●The seatback is lifted upright at a slide position farther forward than the
memorized position.
● The seat slide position is memorized when the seat is slid all the way or
nearly all the way forward.
● The seat is slid farther back than the memorized position by using the
seat position adjustment lever.
■ If the seat cannot be returned to the memorized slide position
Lift the seatback lock release lever or seatback angle adjustment lever after
removing the luggage, or after having the passenger get out or sit properly
so that the seat can be slid back to the previous position.

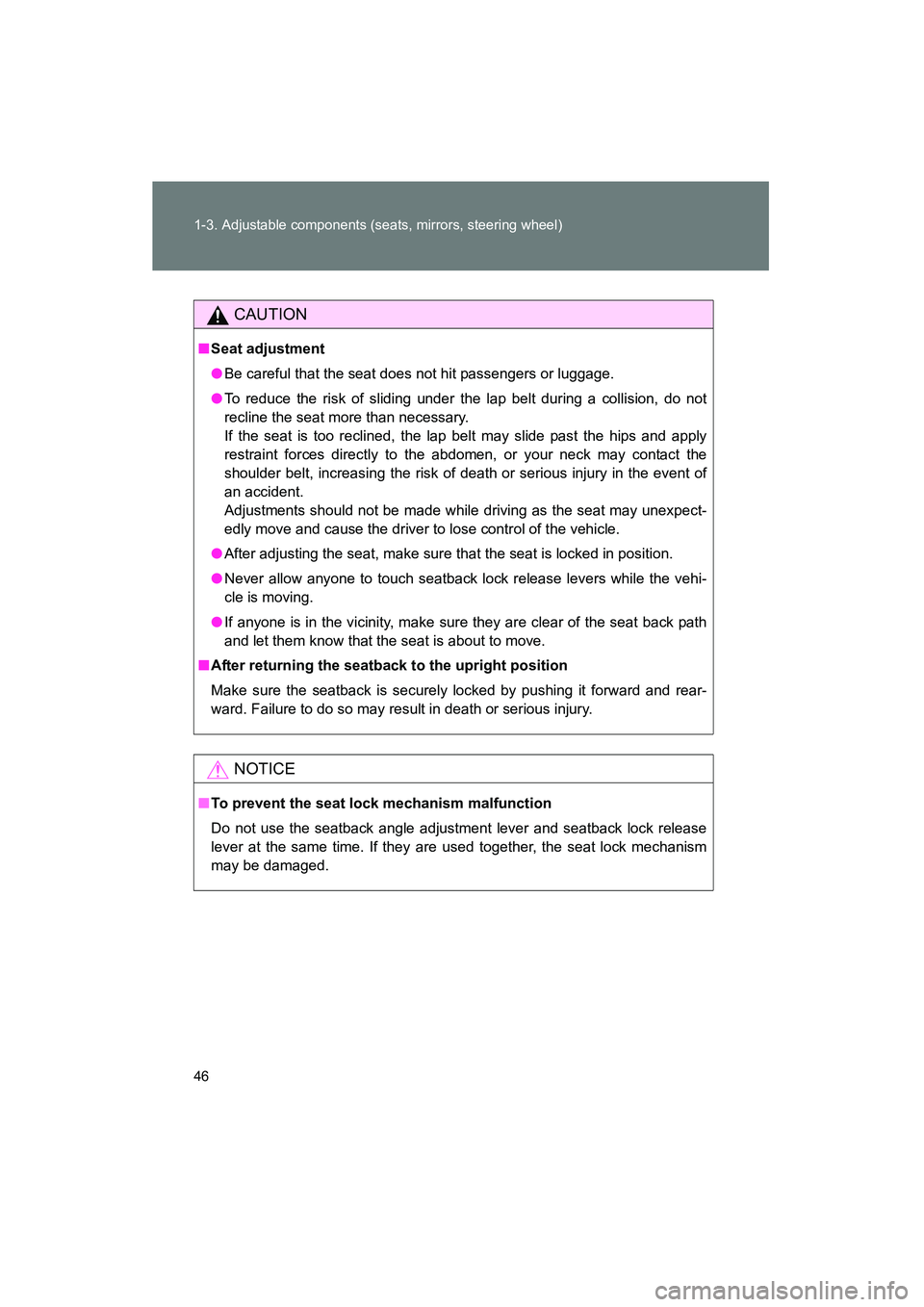

46 1-3. Adjustable components (seats, mirrors, steering wheel)
YARIS_HB_U_52D44U
CAUTION
■Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
● Never allow anyone to touch seatback lock release levers while the vehi-
cle is moving.
● If anyone is in the vicinity, make sure they are clear of the seat back path
and let them know that the seat is about to move.
■ After returning the seatback to the upright position
Make sure the seatback is securely locked by pushing it forward and rear-
ward. Failure to do so may result in death or serious injury.
NOTICE
■To prevent the seat lock mechanism malfunction
Do not use the seatback angle adjustment lever and seatback lock release
lever at the same time. If they are used together, the seat lock mechanism
may be damaged.

47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
YARIS_HB_U_52D44U

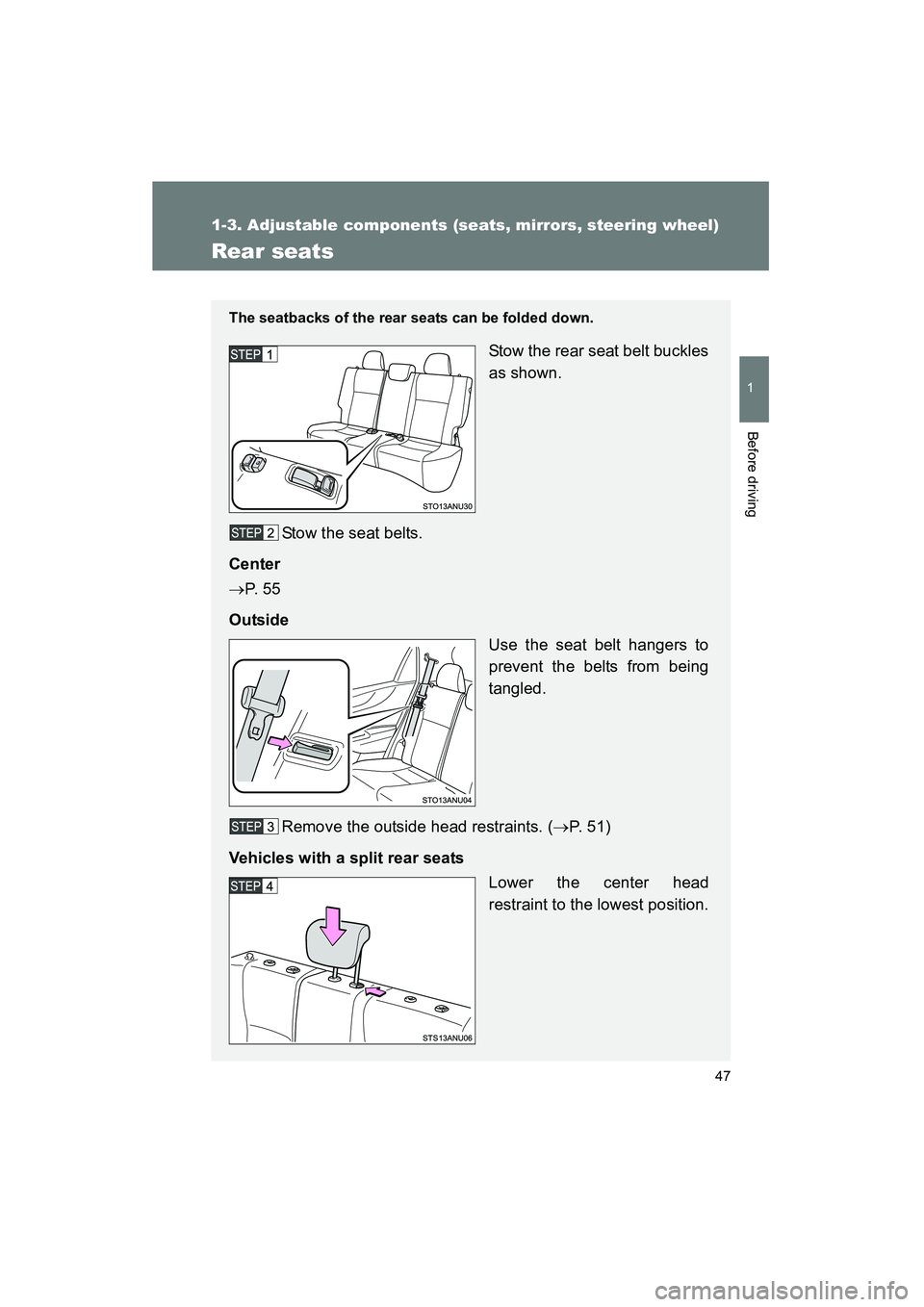

Rear seats
The seatbacks of the rear seats can be folded down.
Stow the rear seat belt buckles
as shown.
Stow the seat belts.
Center
→ P. 5 5
Outside Use the seat belt hangers to
prevent the belts from being
tangled.
Remove the outside head restraints. ( →P. 5 1 )
Vehicles with a split rear seats Lower the center head
restraint to the lowest position.

48 1-3. Adjustable components (seats, mirrors, steering wheel)
YARIS_HB_U_52D44U

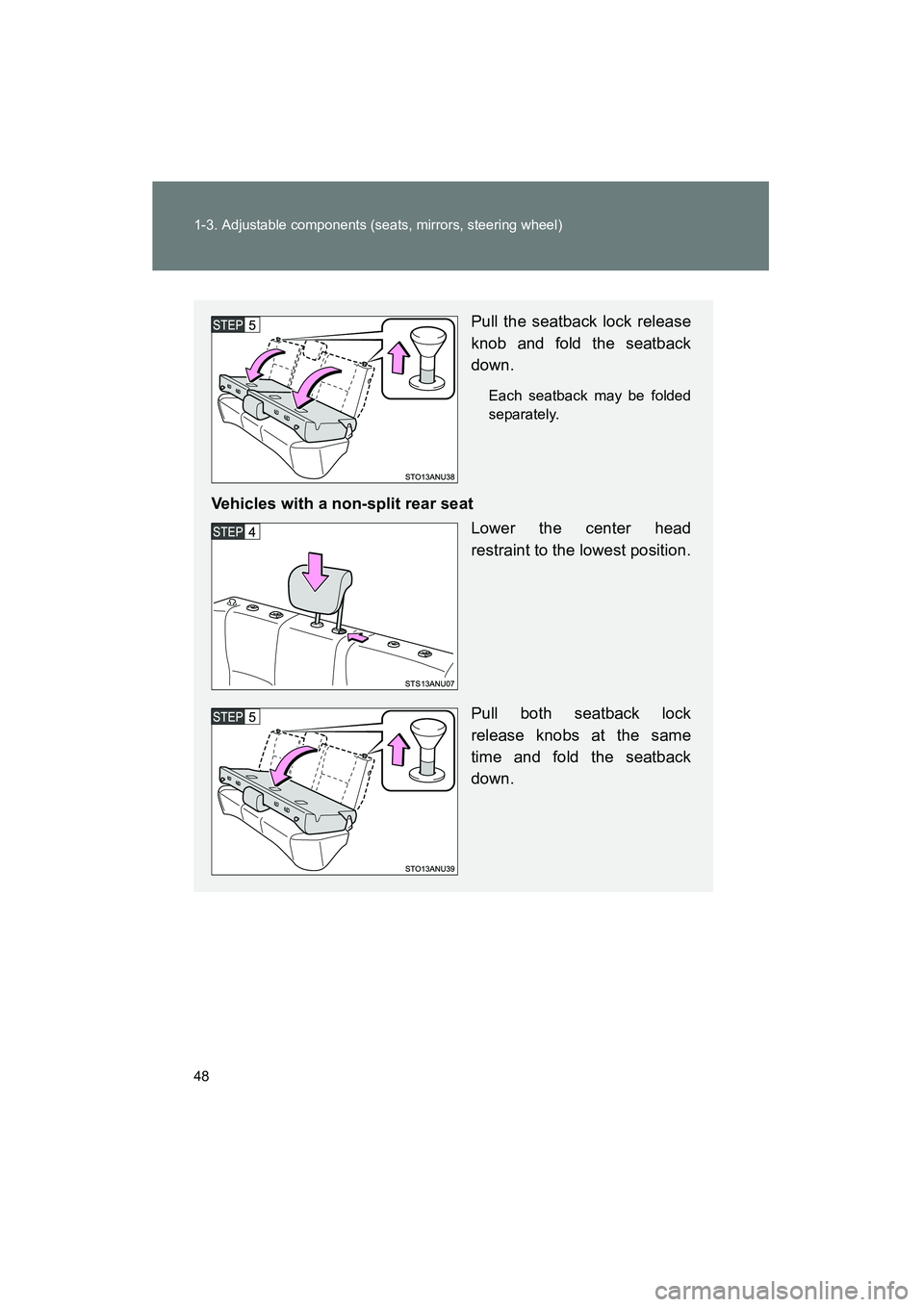

Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded
separately.
Vehicles with a non-split rear seatLower the center head
restraint to the lowest position.
Pull both seatback lock
release knobs at the same
time and fold the seatback
down.
