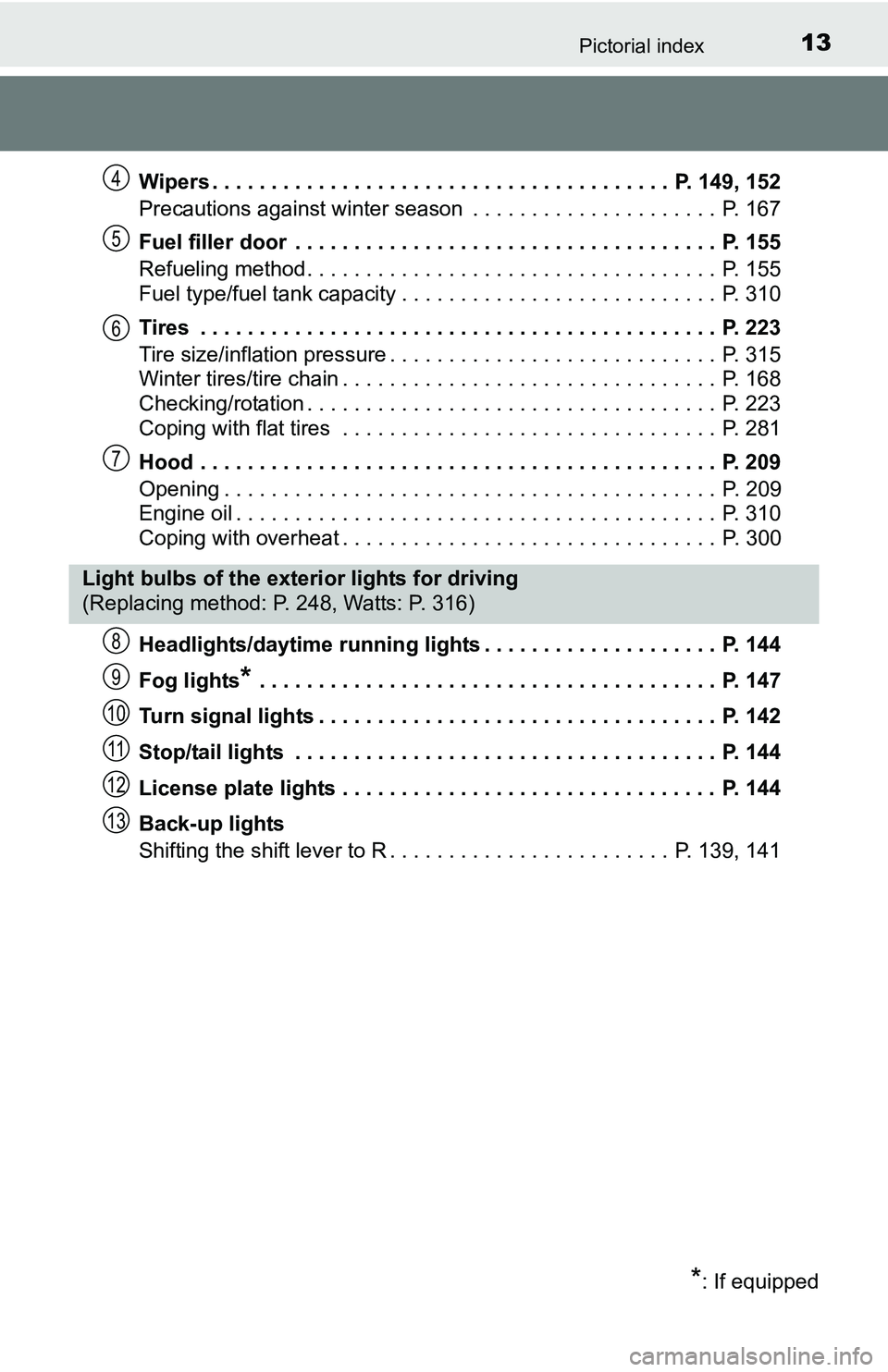

Wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149, 152
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 167
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 310
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Checking/rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 310
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 144
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 144
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 144
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . P. 139, 141
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 248, Watts: P. 316)
*: If equipped
8
9
10
11
12
13

115

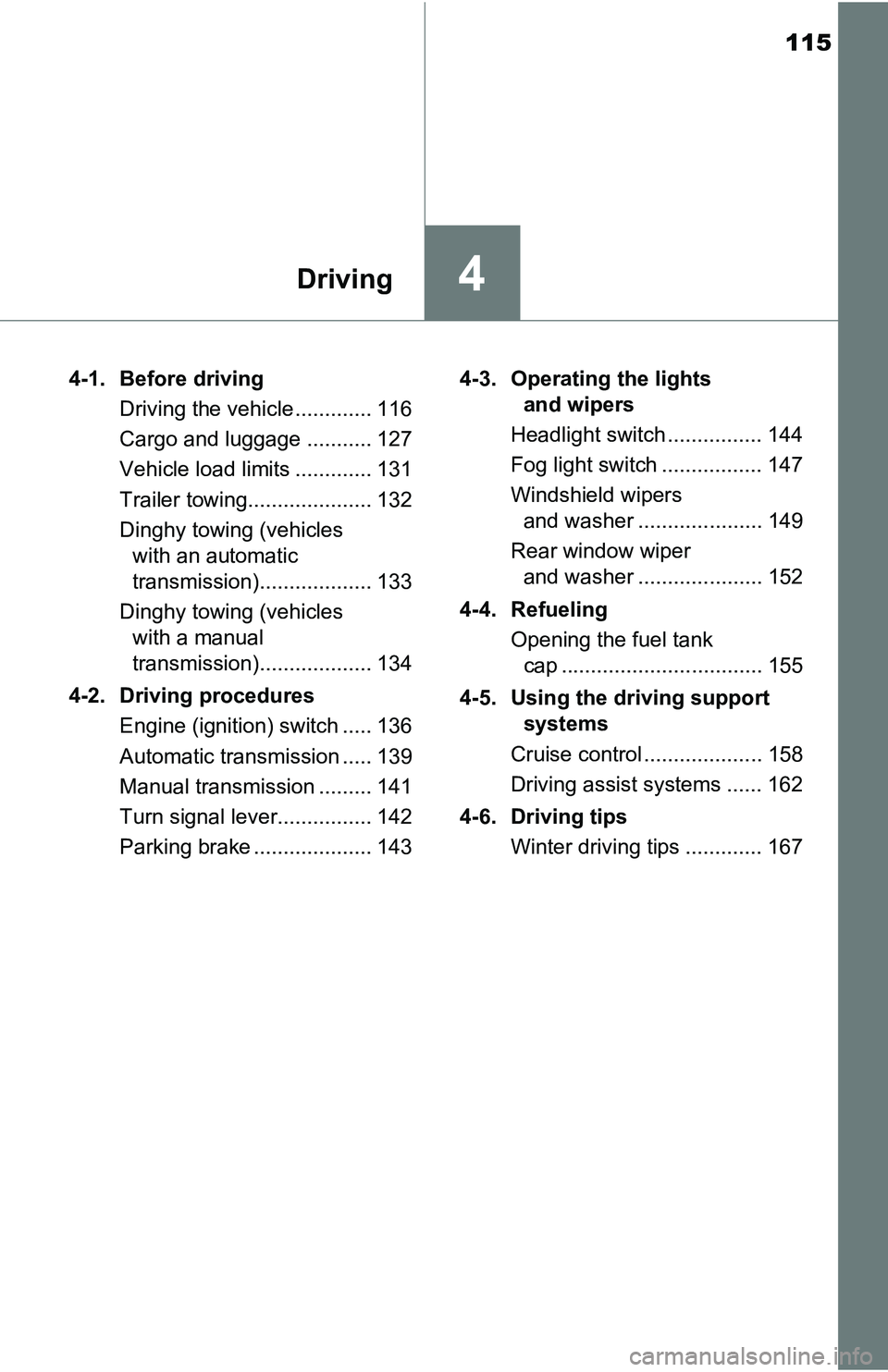

4Driving
4-1. Before drivingDriving the vehicle ............. 116
Cargo and luggage ........... 127
Vehicle load limits ............. 131
Trailer towing..................... 132
Dinghy towing (vehicles with an automatic
transmission)................... 133
Dinghy towing (vehicles with a manual
transmission)................... 134
4-2. Driving procedures Engine (ignition) switch ..... 136
Automatic transmission ..... 139
Manual transmission ......... 141
Turn signal lever................ 142
Parking brake .................... 143 4-3. Operating the lights
and wipers
Headlight switch ................ 144
Fog light switch ................. 147
Windshield wipers and washer ..................... 149
Rear window wiper and washer ..................... 152
4-4. Refueling Opening the fuel tank cap .................................. 155
4-5. Using the driving support systems
Cruise control .................... 158
Driving assist systems ...... 162
4-6. Driving tips Winter driving tips ............. 167

1444-3. Operating the lights and wipers

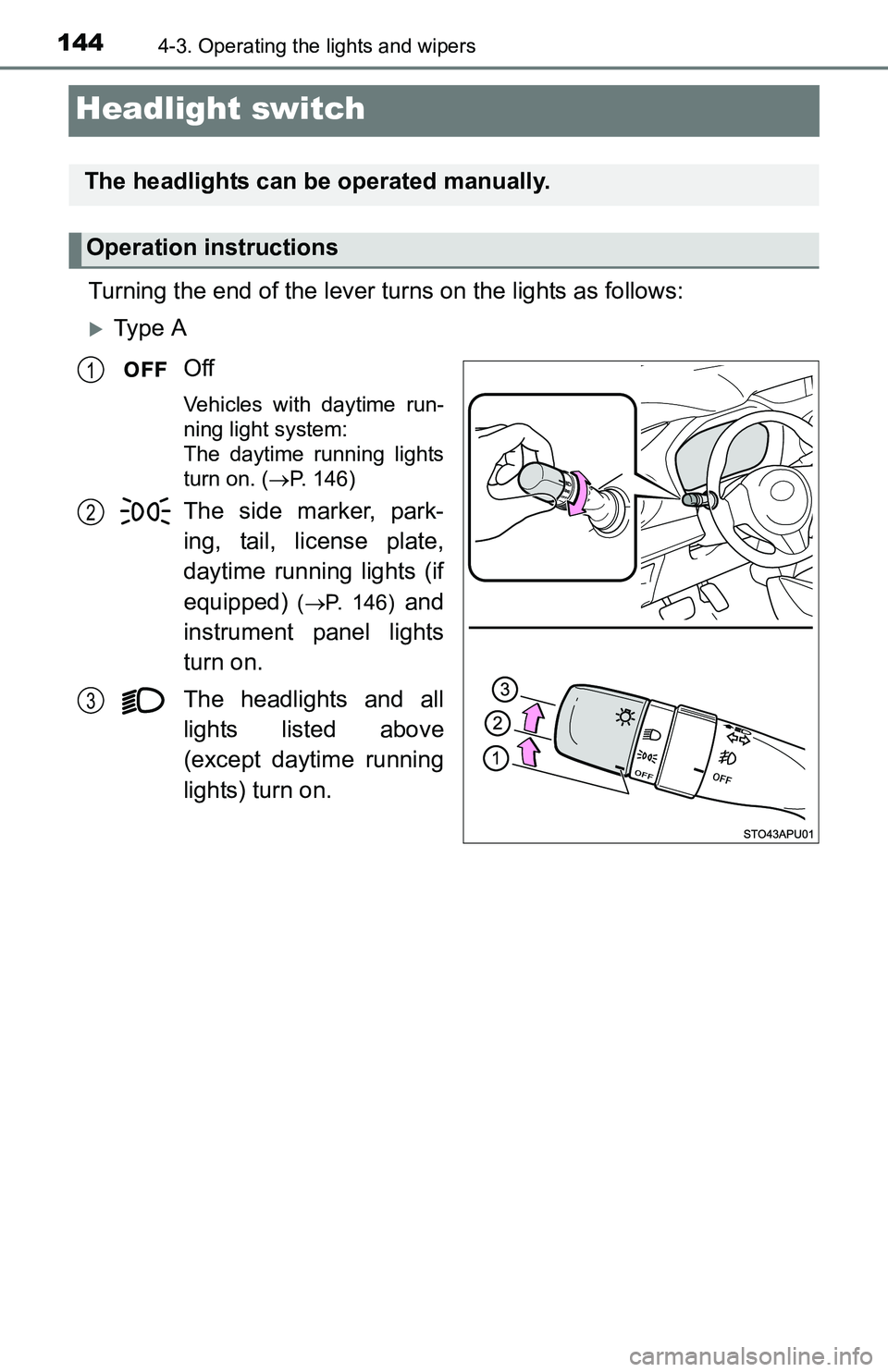

Headlight switch
Turning the end of the lever turns on the lights as follows:
Ty p e AOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 146)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 146) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The headlights can be operated manually.
Operation instructions
1
2
3

1454-3. Operating the lights and wipers
4
Driving
Ty p e BOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 146)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 146) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
Ty p e C
The daytime running
lights turn on.
( P. 146)
The side marker, park-
ing, tail, license plate,
daytime running lights
(P. 146) and instrument
panel lights turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The daytime running
lights turn off.
1
2
3
1
2
3
4

1464-3. Operating the lights and wipers
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
■Daytime running light system (if equipped)
●Vehicles with reflector type headlights: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the position. (Illuminate dimmer
than the headlights.) Daytime running lights are not designed for use at
night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
Vehicles with projector type headlights: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started and the parking brake is
released with the headlight switch off or in the position. Daytime run-
ning lights are not designed for use at night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Light reminder buzzer
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver’s door is opened while the lights are turned on.

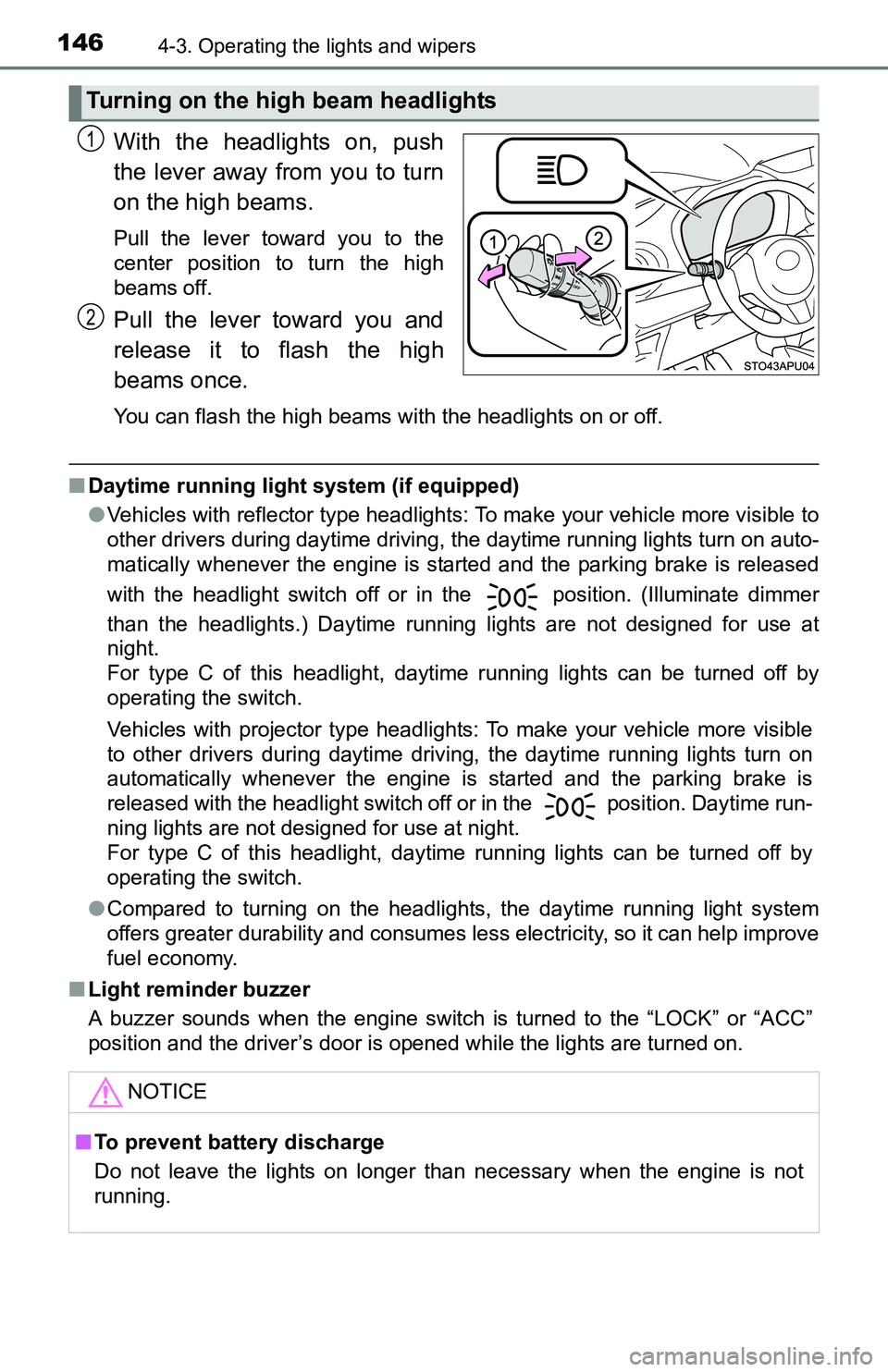

Turning on the high beam headlights
1
2
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

1474-3. Operating the lights and wipers
4
Driving

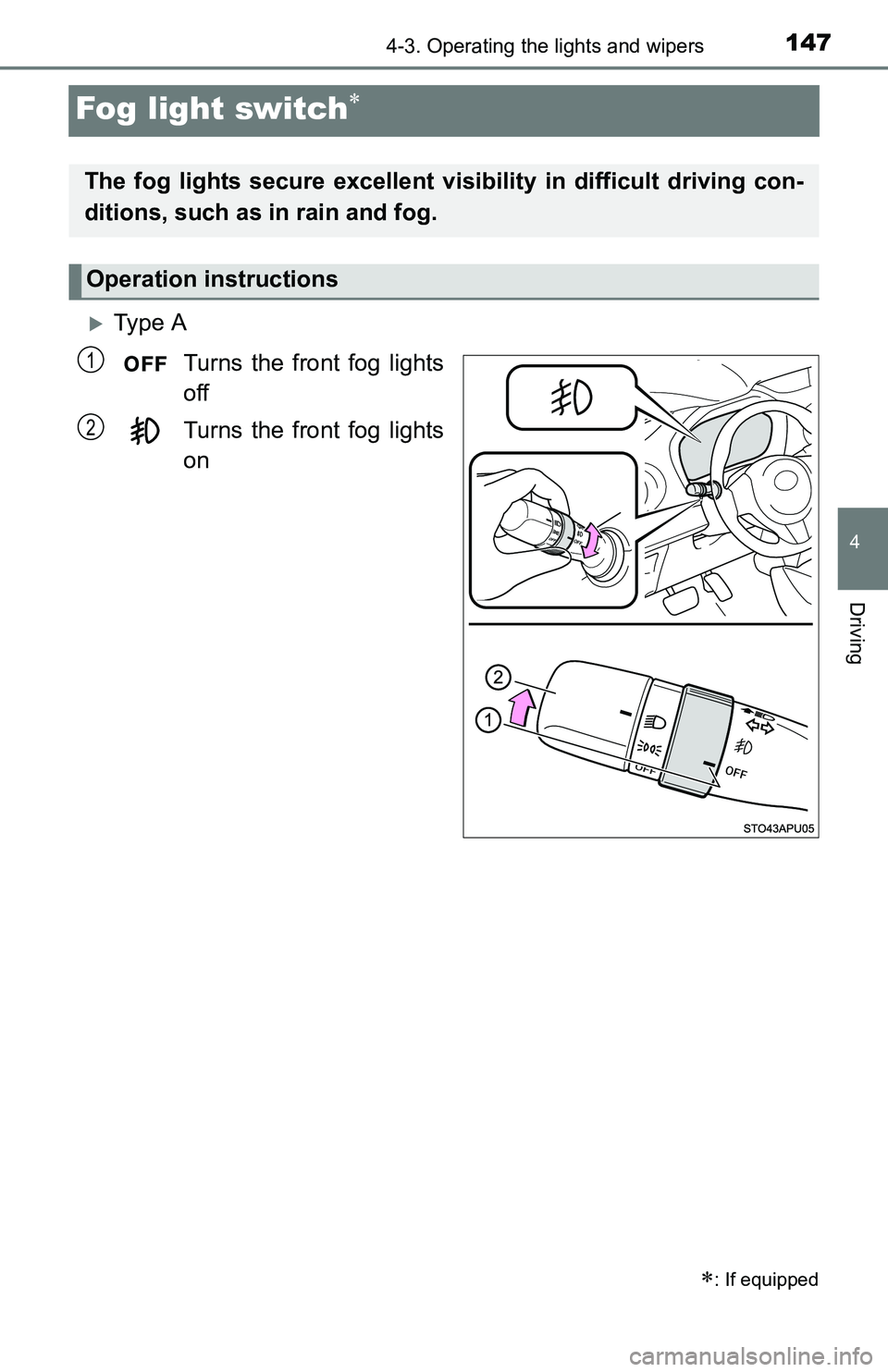

Fog light switch
Ty p e ATurns the front fog lights
off
Turns the front fog lights
on
: If equipped
The fog lights secure excellent visi bility in difficult driving con-
ditions, such as in rain and fog.
Operation instructions
1
2

1484-3. Operating the lights and wipers

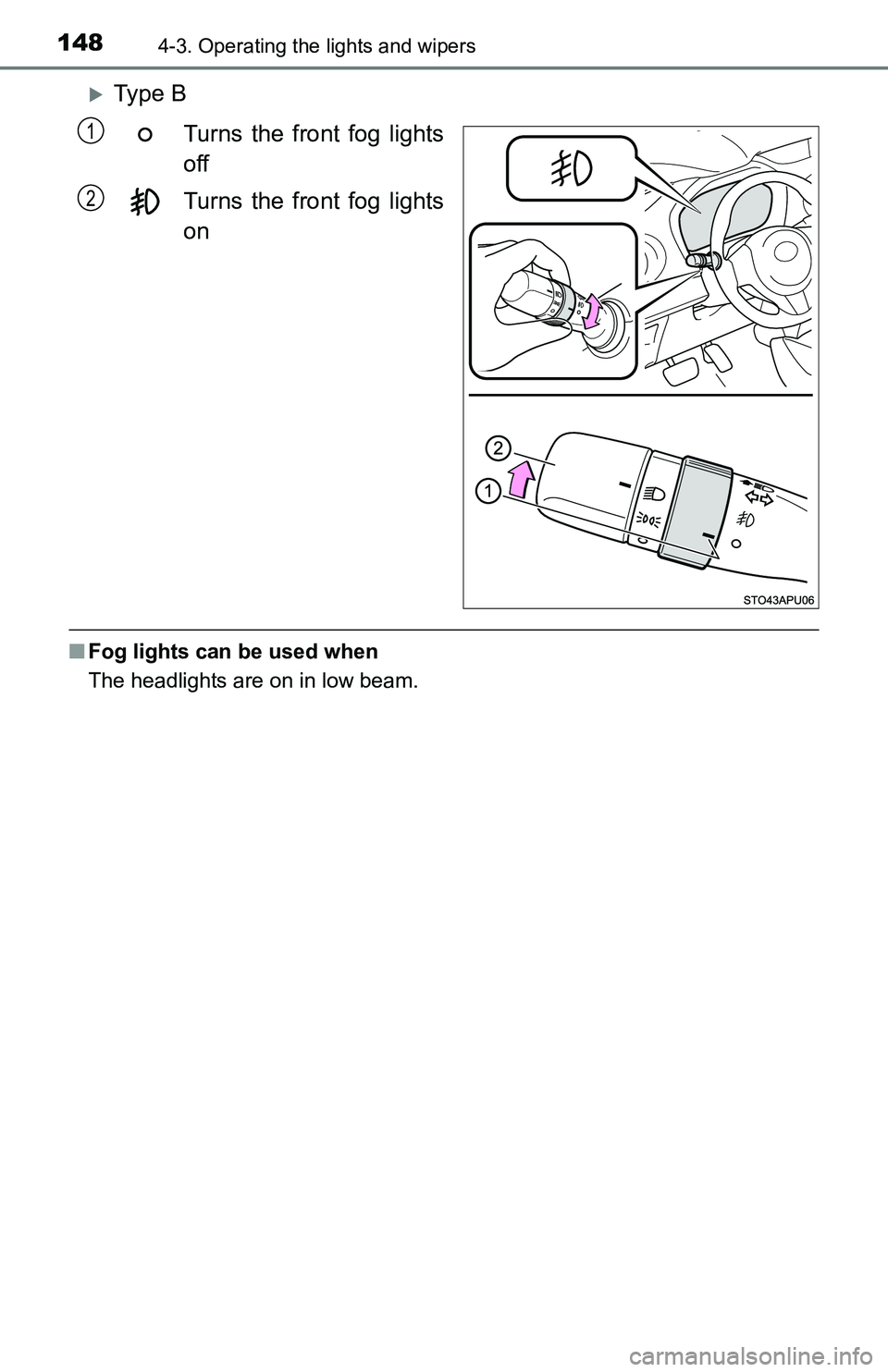

Ty p e BTurns the front fog lights
off
Turns the front fog lights
on
■Fog lights can be used when
The headlights are on in low beam.
1
2

1494-3. Operating the lights and wipers
4
Driving
Windshield wipers and washer

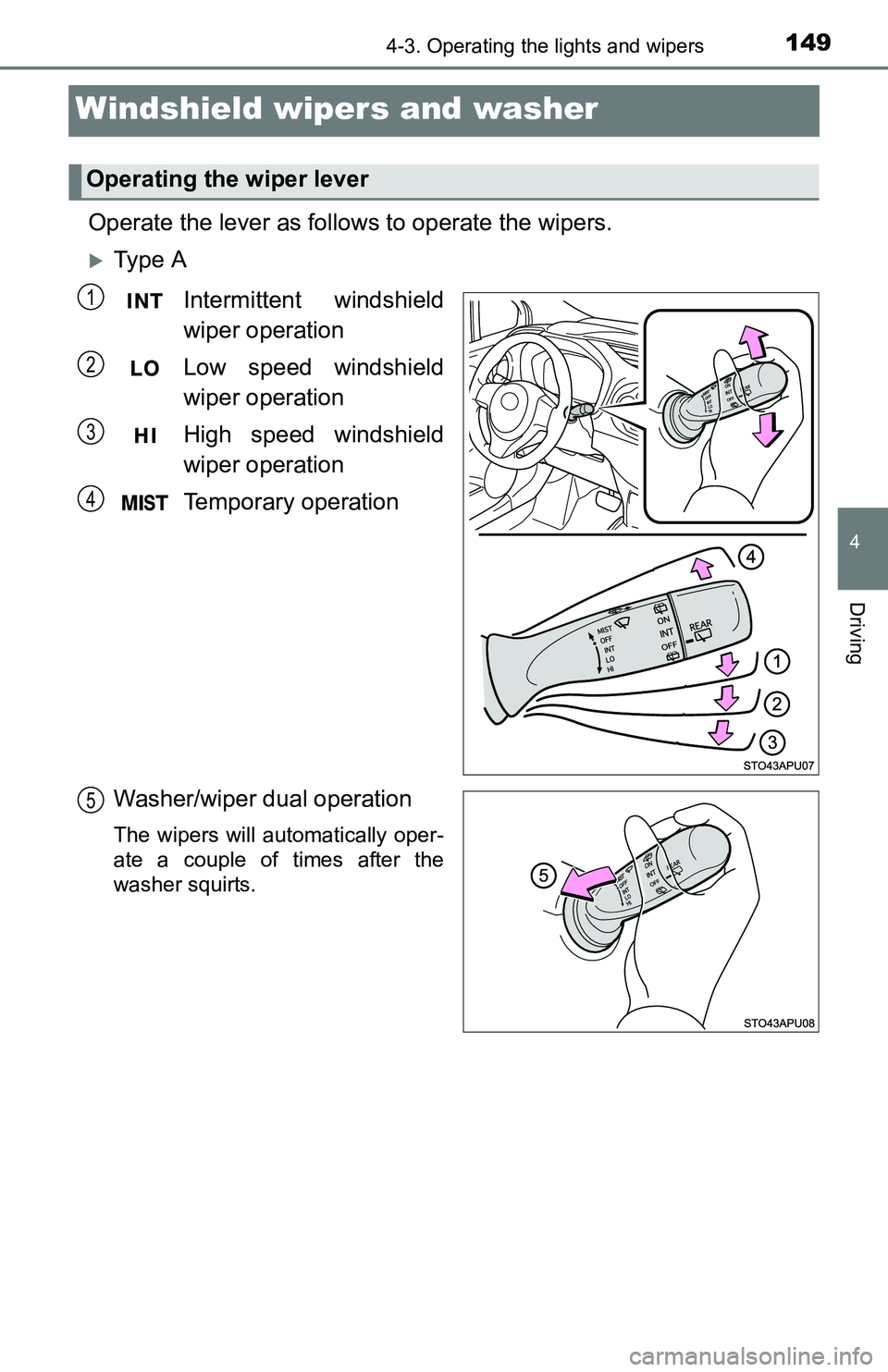

Operate the lever as follows to operate the wipers.
Ty p e AIntermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Operating the wiper lever
1
2
3
4
5

1504-3. Operating the lights and wipers

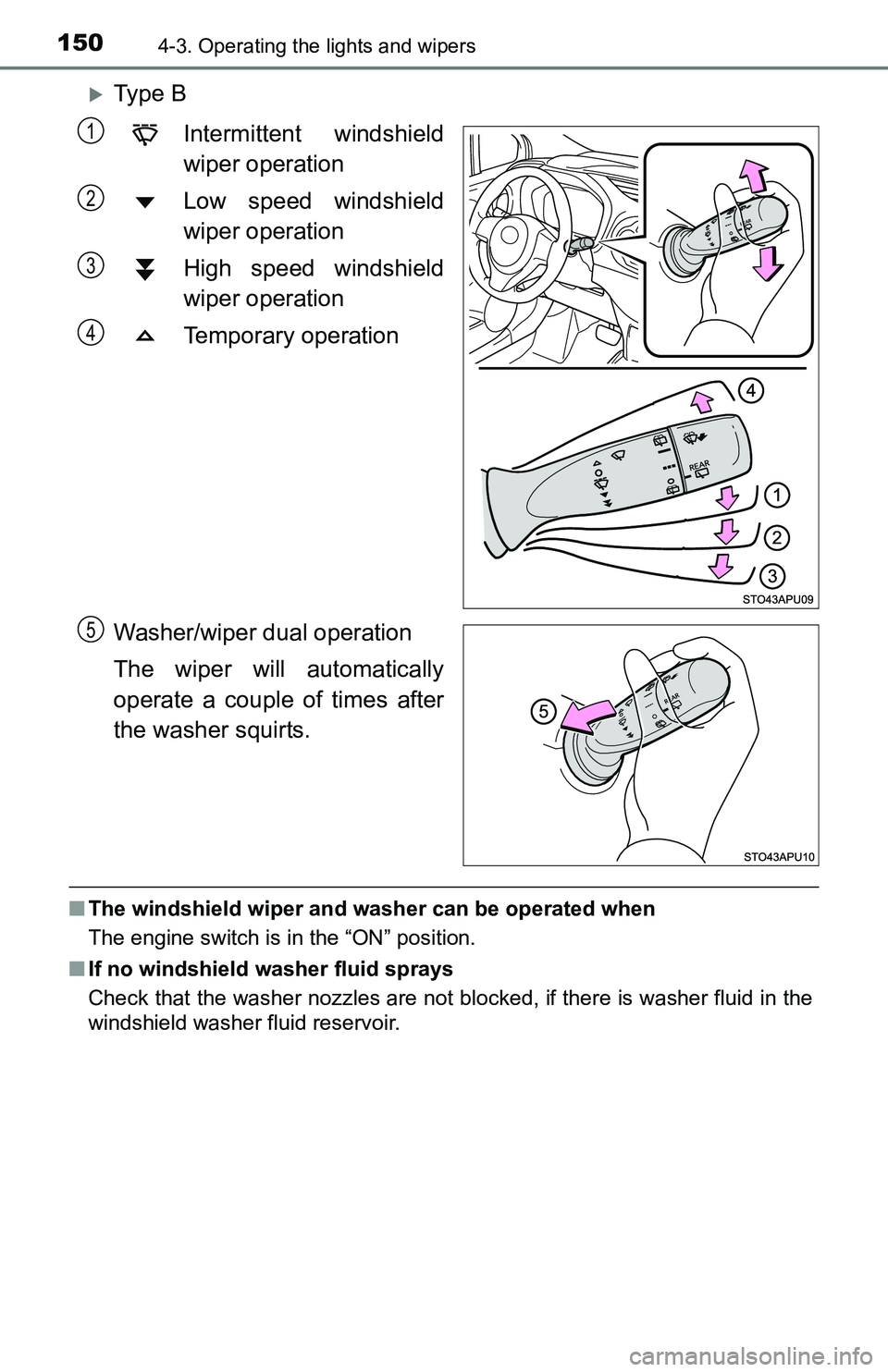

Ty p e BIntermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual operation
The wiper will automatically
operate a couple of times after
the washer squirts.
■ The windshield wiper and washer can be operated when
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the
windshield washer fluid reservoir.
1
2
3
4
5
