TOYOTA YARIS HATCHBACK 2017 Owners Manual

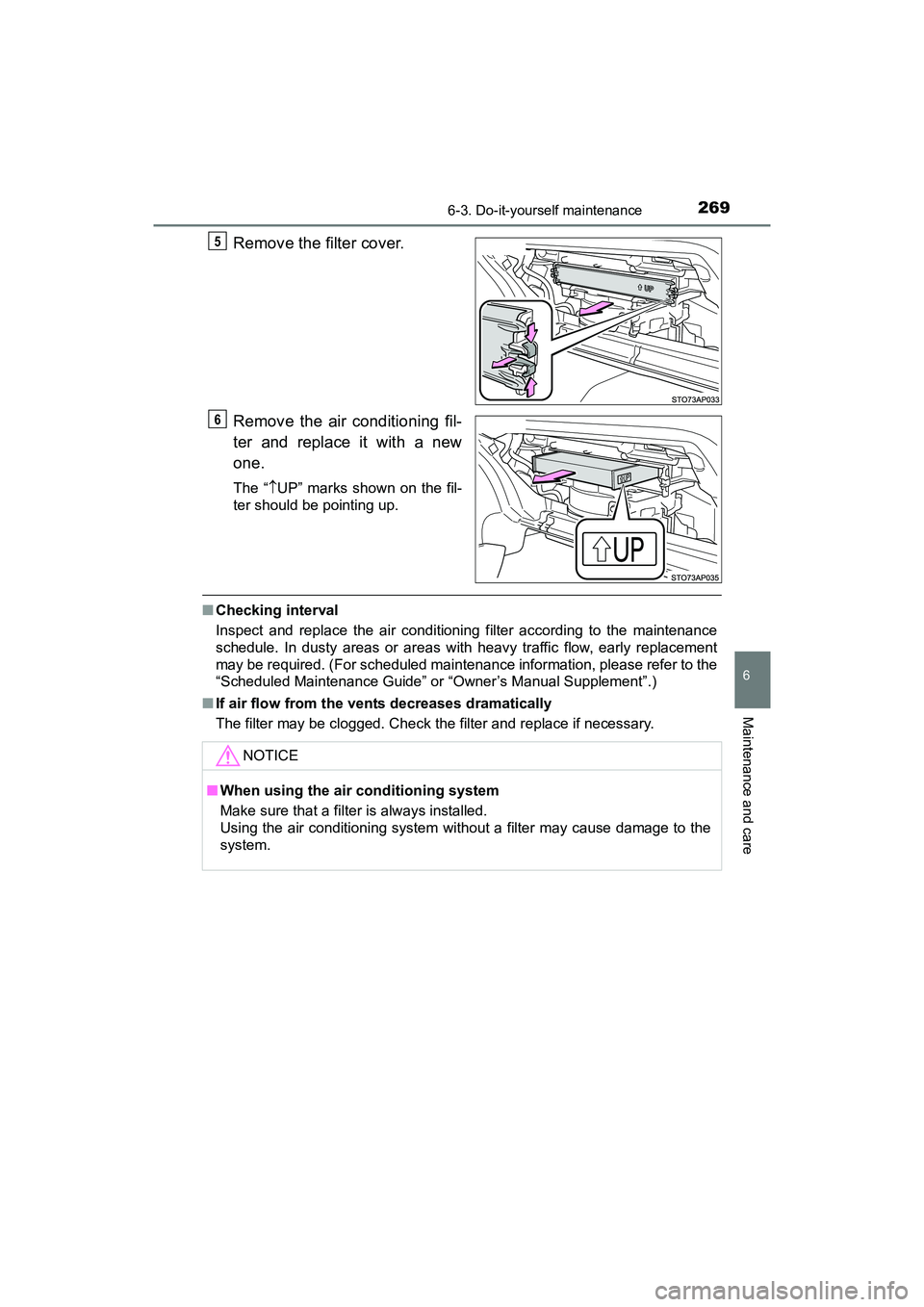

2696-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “UP” marks shown on the fil-
ter should be pointing up.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenanc e information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
6
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
YARIS_HB_OM_USA_OM52G64U.book 269 ページ ２０１６年２月１６日　火曜日　午後３時２０分

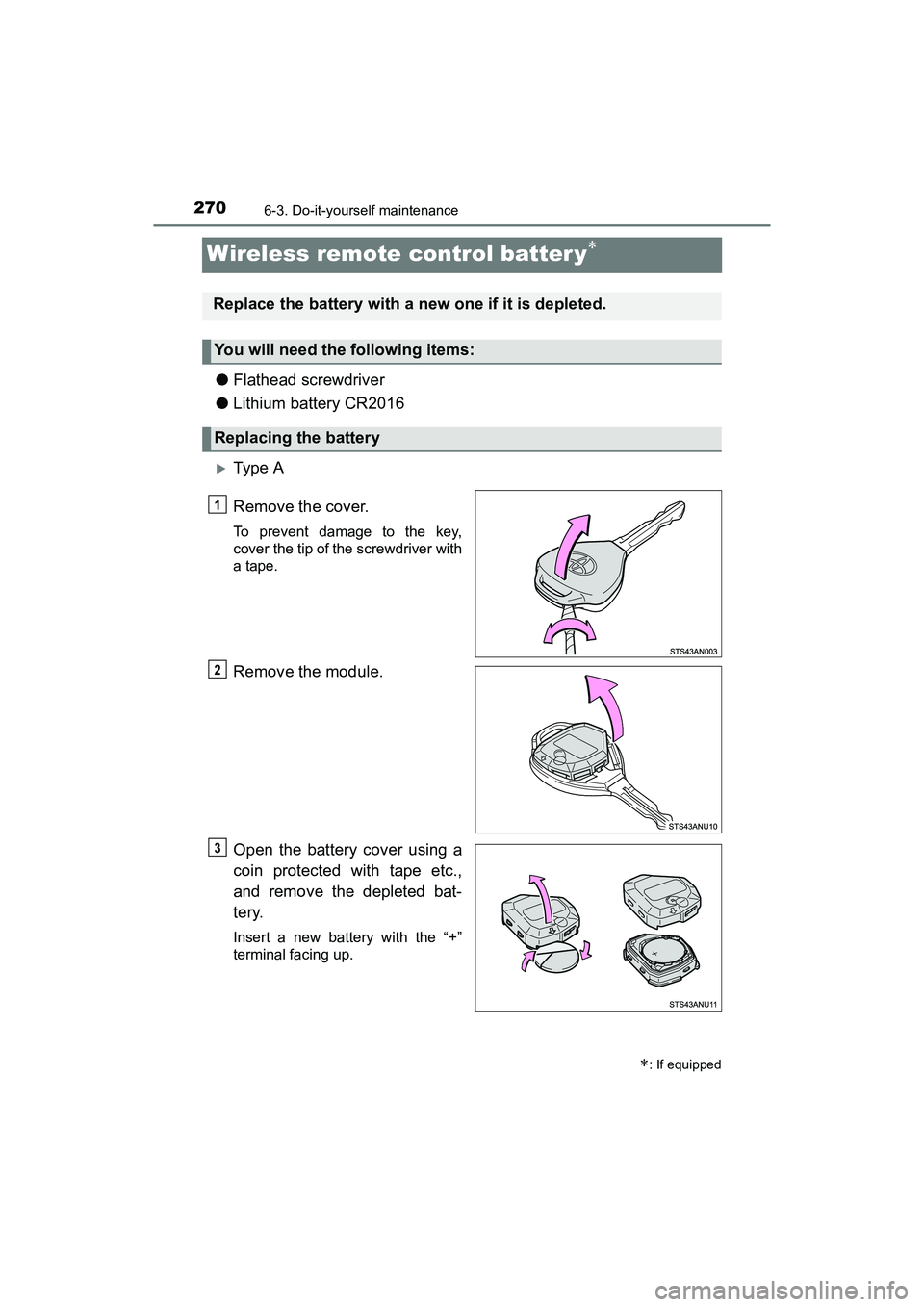

2706-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
Wireless remote control batter y
●Flathead screwdriver
● Lithium battery CR2016
Type A
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a tape.
Remove the module.
Open the battery cover using a
coin protected with tape etc.,
and remove the depleted bat-
tery.
Insert a new battery with the “+”
terminal facing up.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 270 ページ ２０１６年２月１６日　火曜日　午後３時２０分

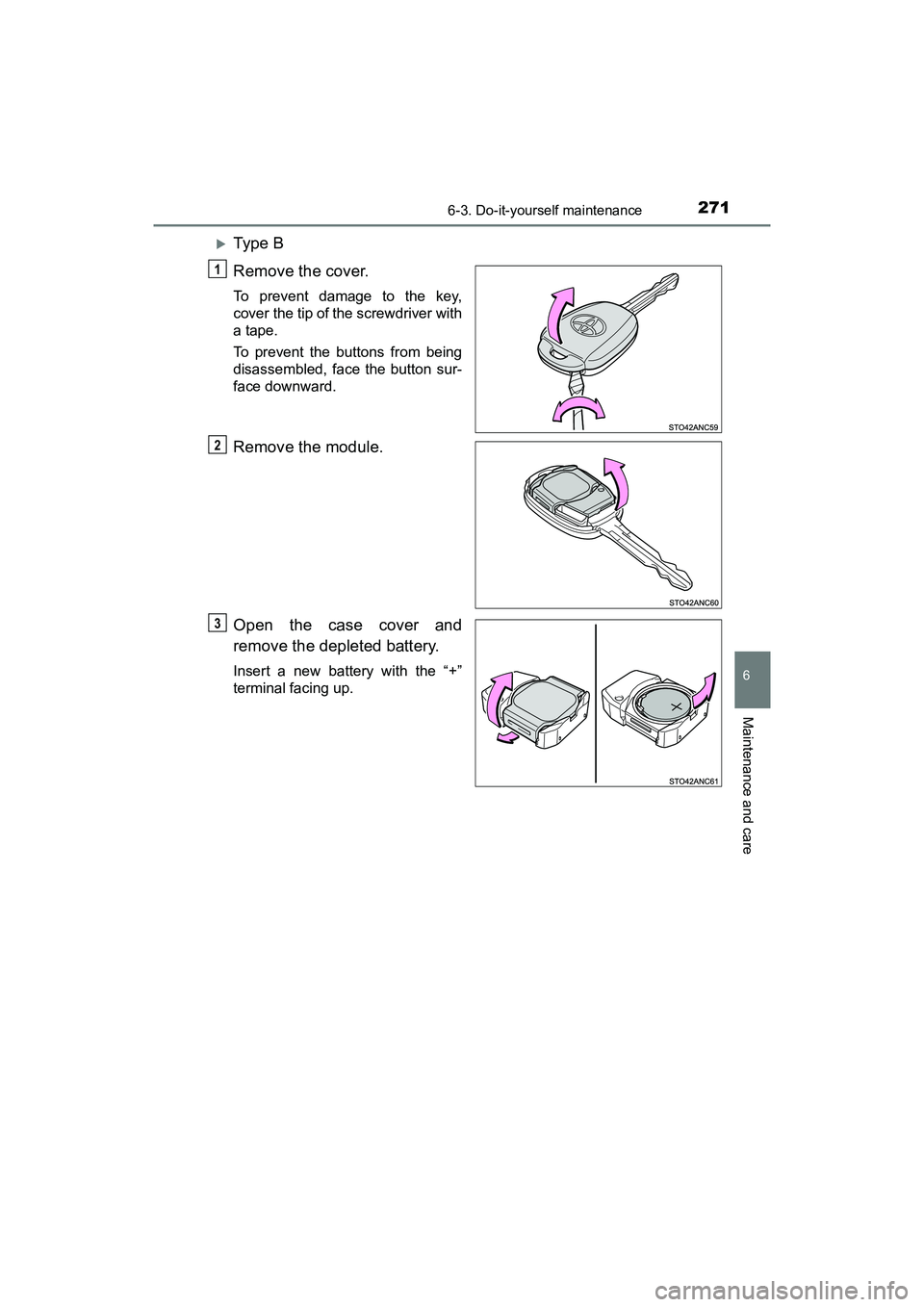

2716-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Type B
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a tape.
To prevent the buttons from being
disassembled, face the button sur-
face downward.
Remove the module.
Open the case cover and
remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 271 ページ ２０１６年２月１６日　火曜日　午後３時２０分

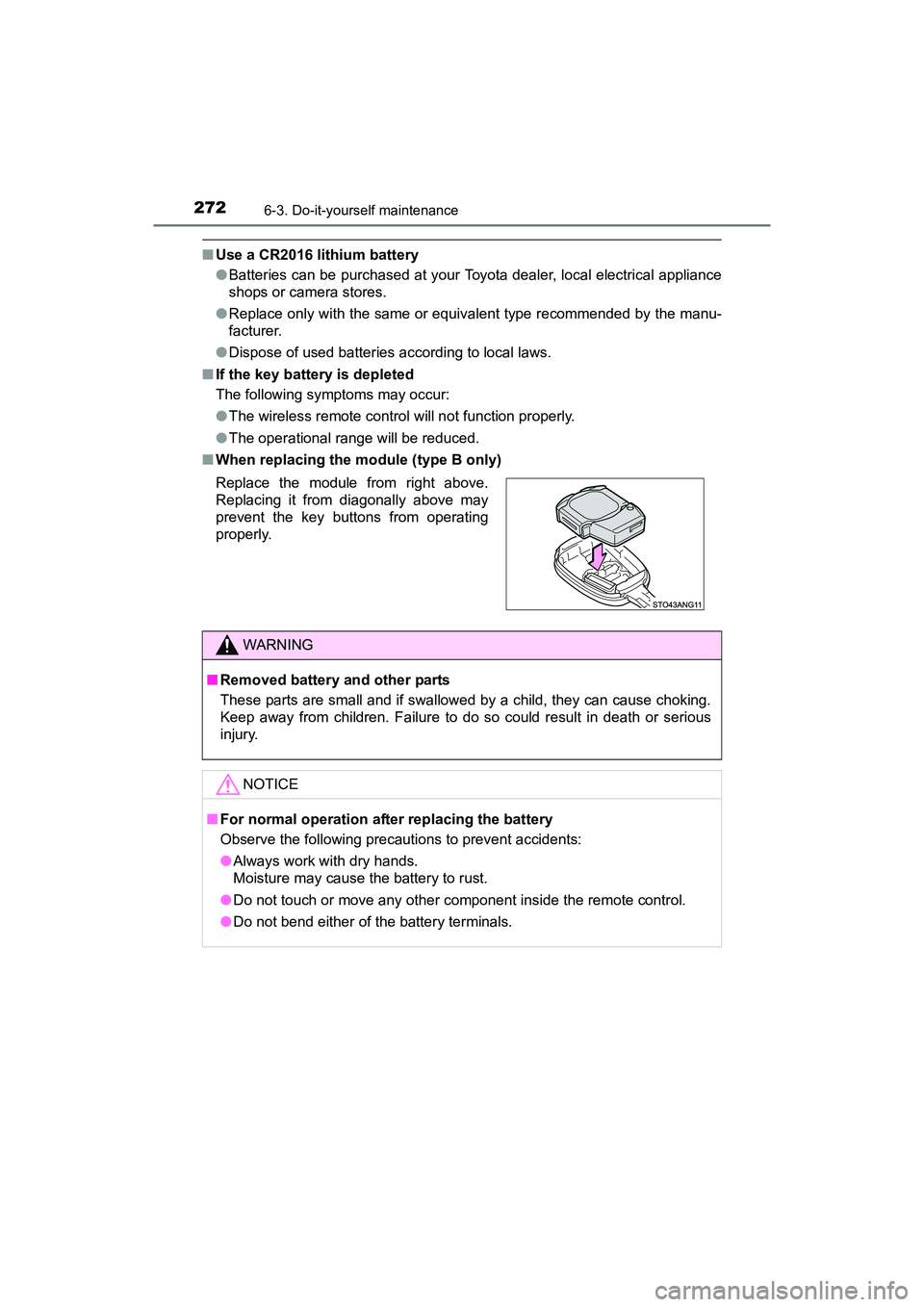

2726-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
■Use a CR2016 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The wireless remote control will not function properly.
● The operational range will be reduced.
■ When replacing the module (type B only)
Replace the module from right above.
Replacing it from diagonally above may
prevent the key buttons from operating
properly.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
YARIS_HB_OM_USA_OM52G64U.book 272 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2736-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Checking and replacing fuses
Turn the engine switch to the “LOCK” position.
Open the fuse box cover.
Engine compartment: type A and B fuse boxesType A fuse box
Push the tab in and lift the lid off.
Type B fuse box
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
1
2
YARIS_HB_OM_USA_OM52G64U.book 273 ページ ２０１６年２月１６日　火曜日　午後３時２０分

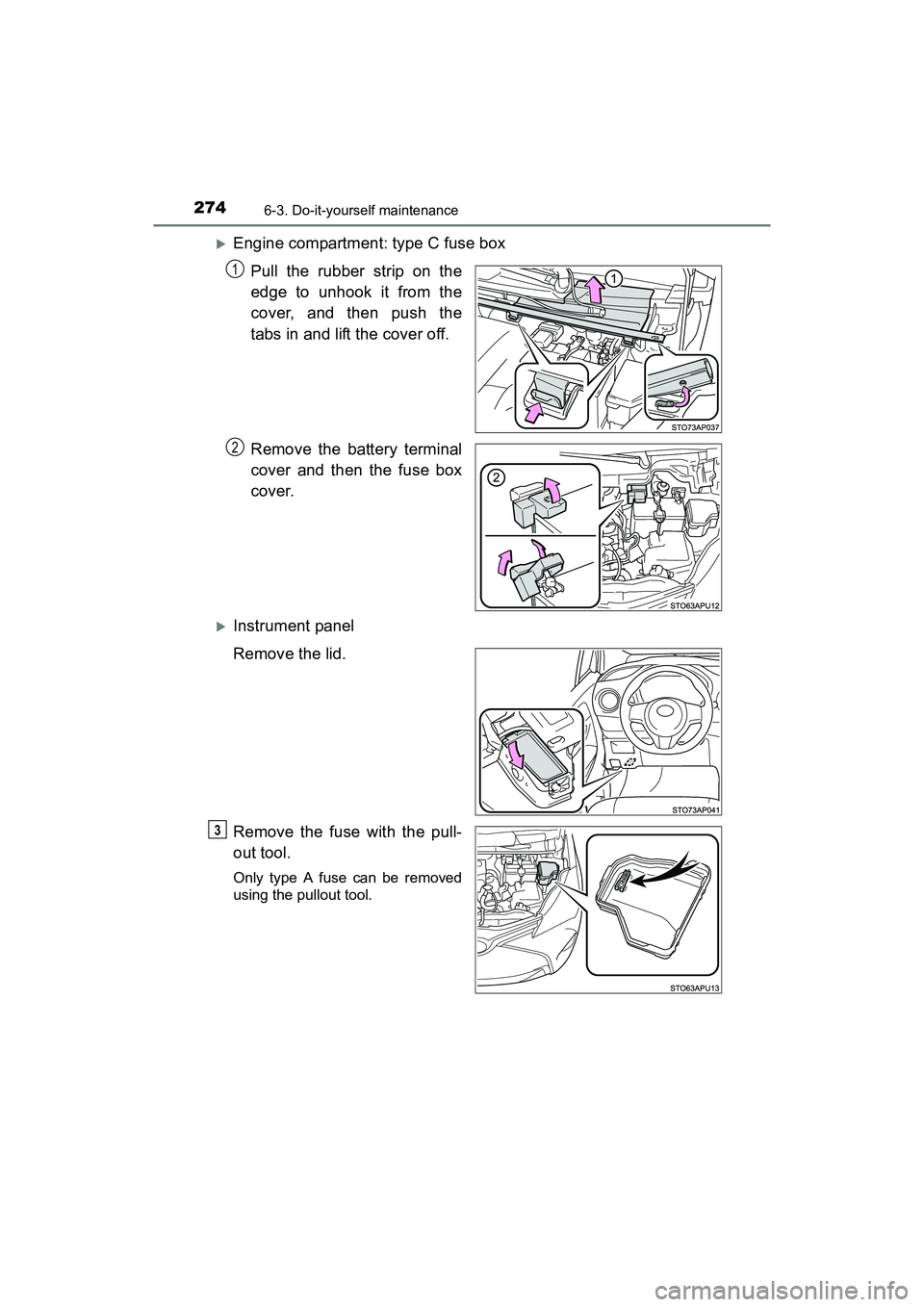

2746-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
Engine compartment: type C fuse boxPull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
Instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 274 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2756-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U

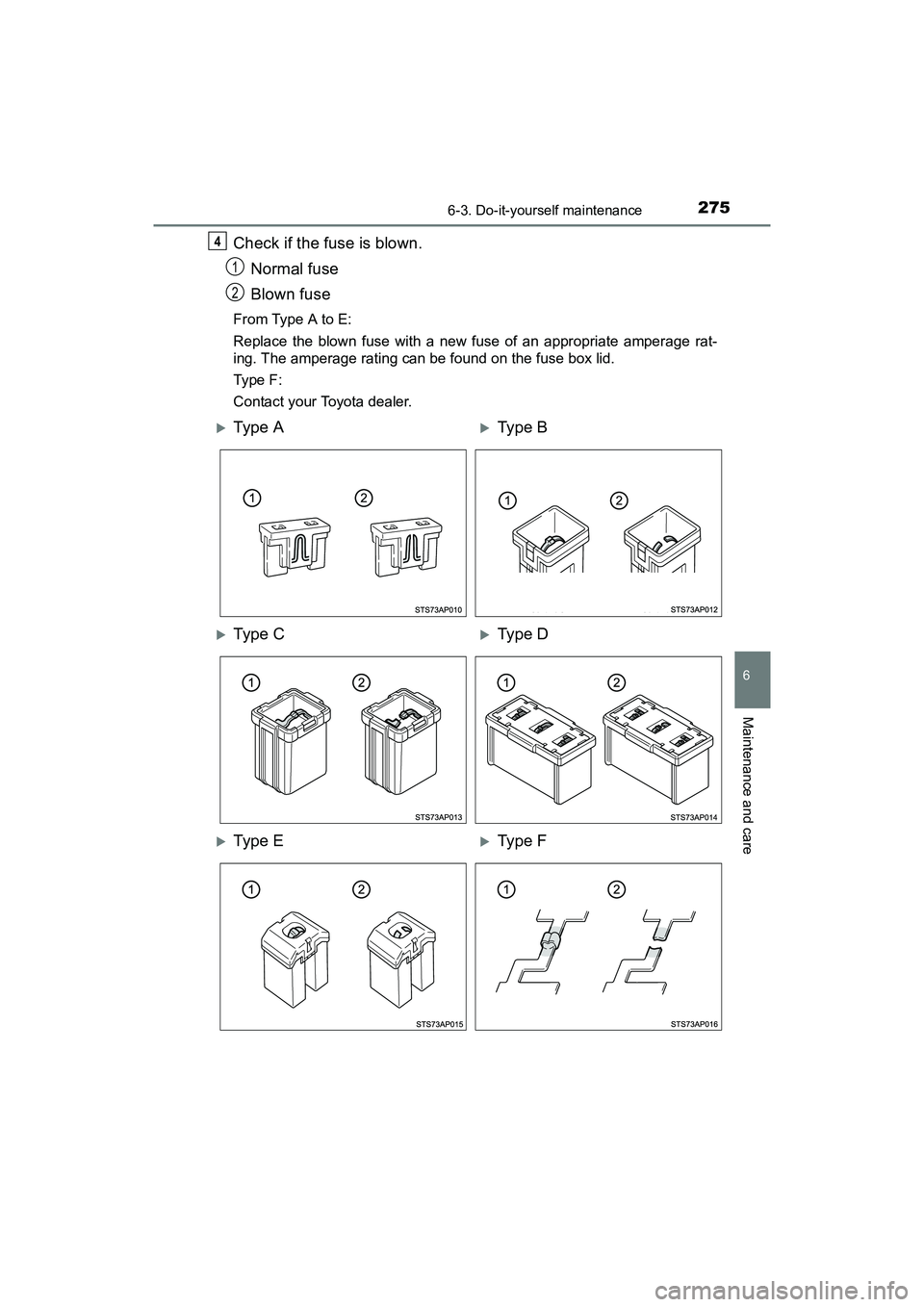

Check if the fuse is blown.Normal fuse
Blown fuse
From Type A to E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type F:
Contact your Toyota dealer.
4
1
2
Type ATy pe B
Type CTy pe D
Type ETy pe F
YARIS_HB_OM_USA_OM52G64U.book 275 ページ ２０１６年２月１６日　火曜日　午後３時２０分

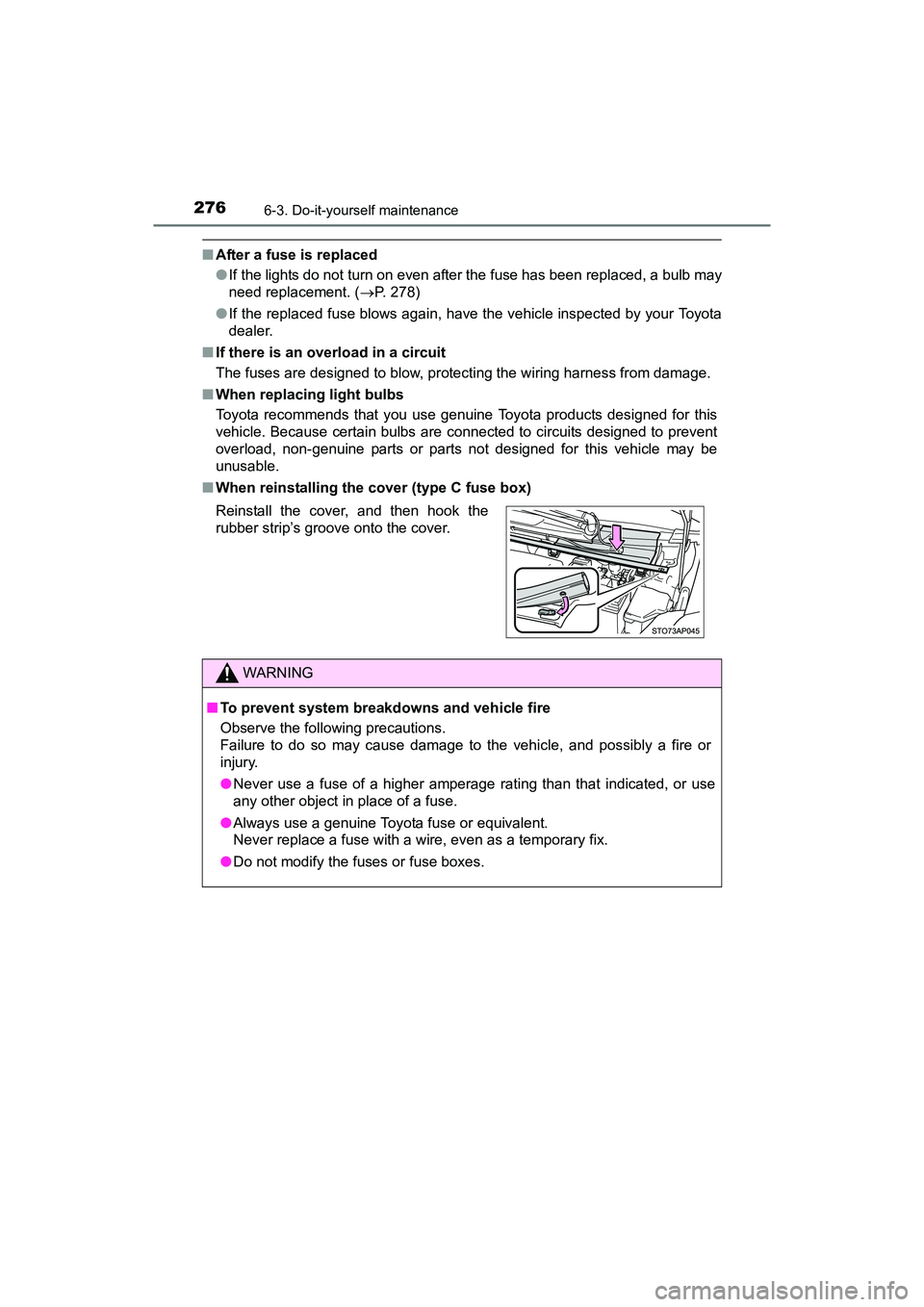

2766-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 278)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
■ When reinstalling the cover (type C fuse box)
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
YARIS_HB_OM_USA_OM52G64U.book 276 ページ ２０１６年２月１６日　火曜日　午後３時２０分

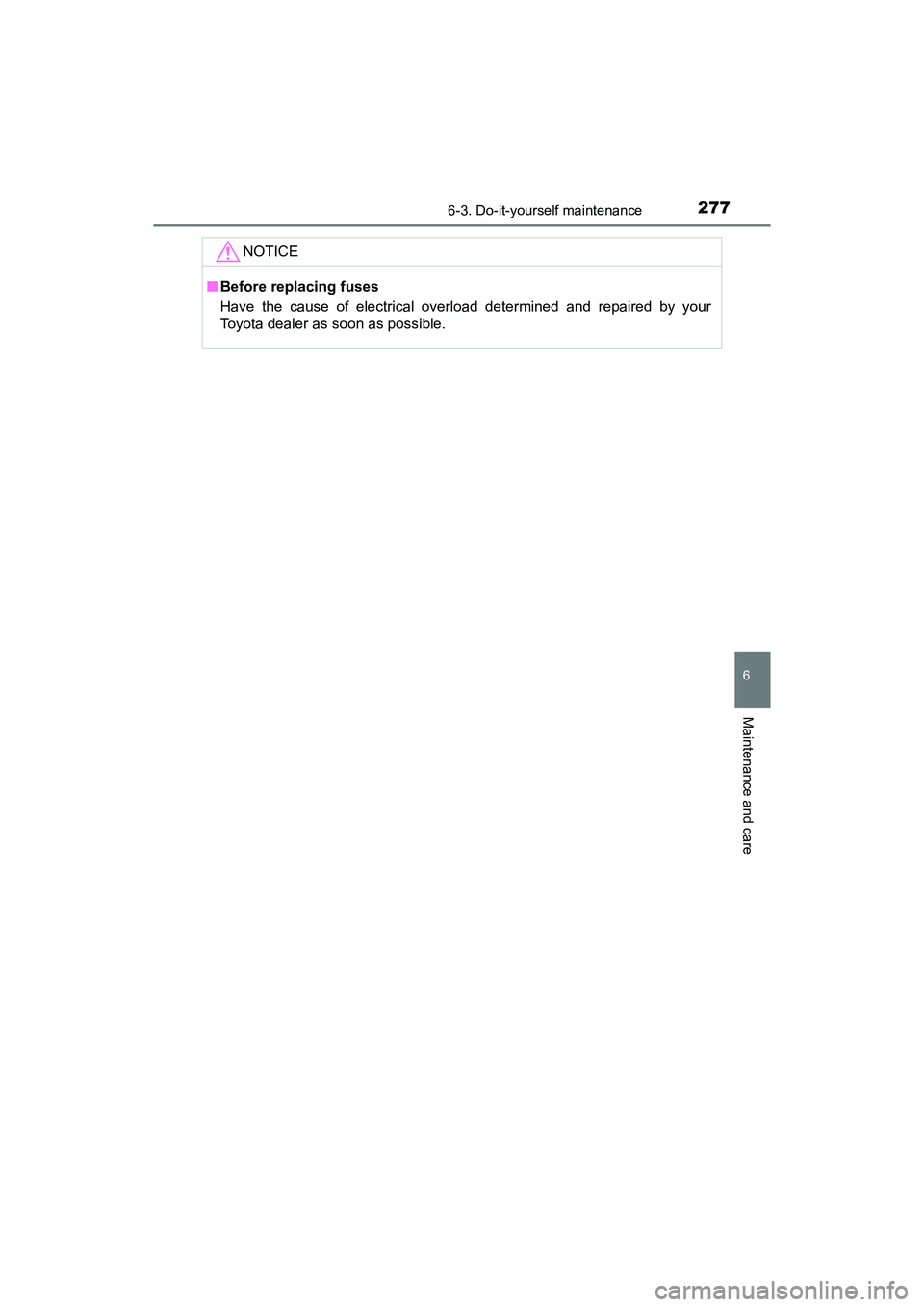

2776-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
YARIS_HB_OM_USA_OM52G64U.book 277 ページ ２０１６年２月１６日　火曜日　午後３時２０分

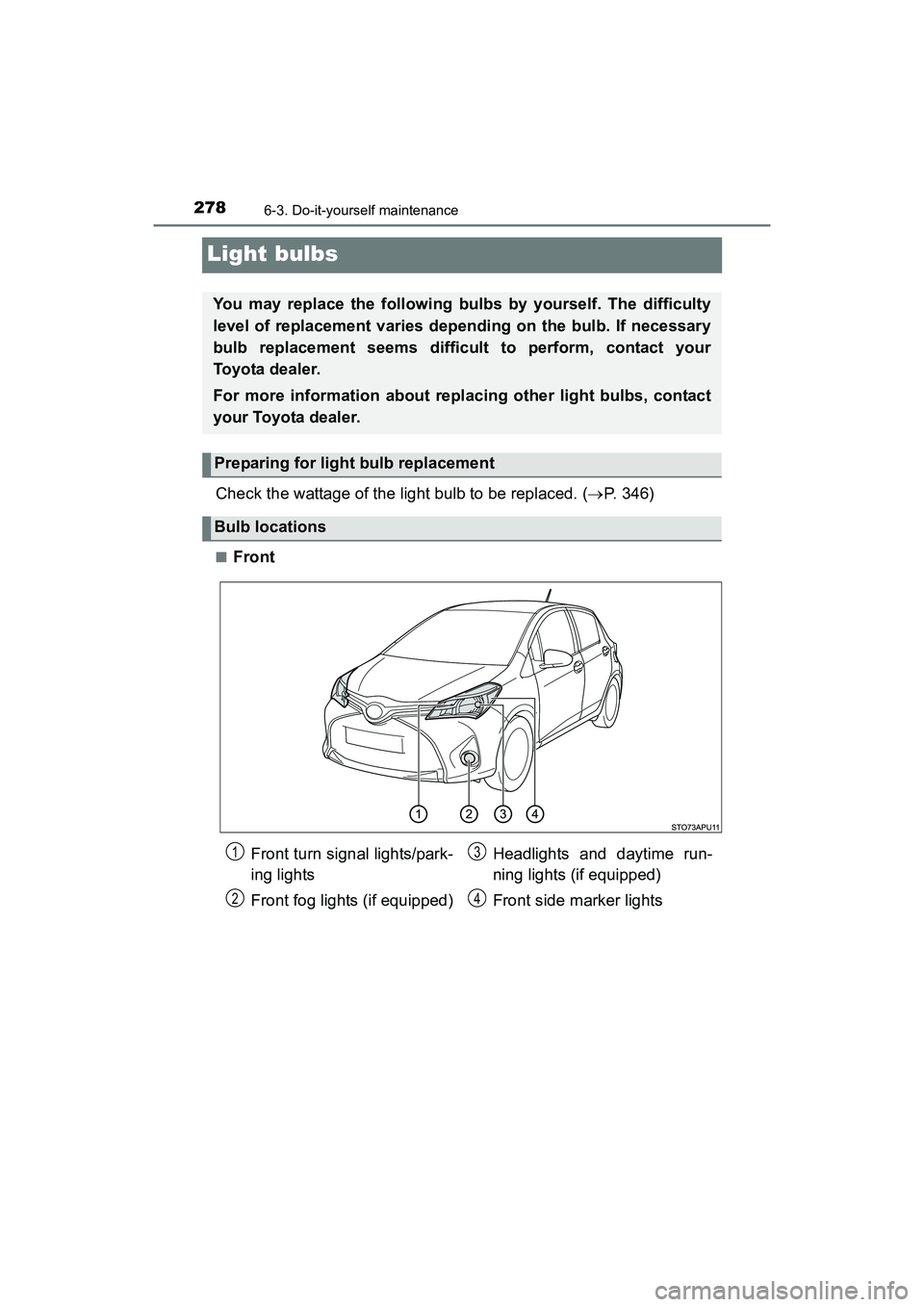

2786-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 346)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Front turn signal lights/park-
ing lights
Front fog lights (if equipped) Headlights and daytime run-
ning lights (if equipped)
Front side marker lights1
2
3
4
