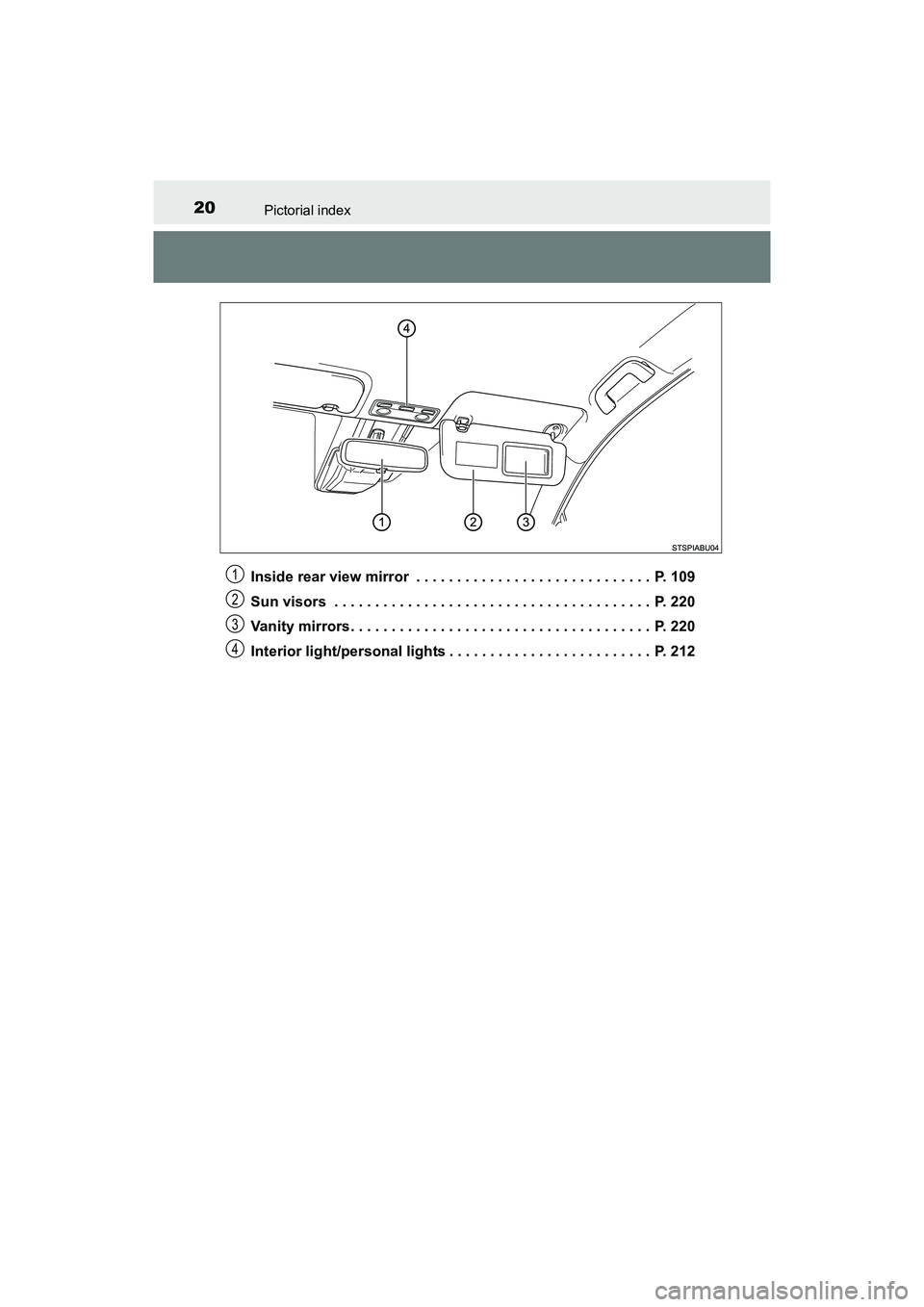

20Pictorial index
YARIS_HB_OM_USA_OM52G64UInside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 20 ページ ２０１６年２月１６日　火曜日　午後３時２０分

21
For safety and security1
YARIS_HB_OM_USA_OM52G64U1-1. For safe use
Before driving ...................... 22
For safety drive ................... 24
Seat belts ............................ 26
SRS airbags ........................ 34
Front passenger occupant classification system ......... 46
Safety information for children ........................ 52
Child restraint systems........ 53
Installing child restraints...... 57
Exhaust gas precautions..... 66
1-2. Theft deterrent system Engine immobilizer system .............................. 67
Theft prevention labels (except Canada) ............... 69
YARIS_HB_OM_USA_OM52G64U.book 21 ページ ２０１６年２月１６日　火曜日　午後３時２０分

221-1. For safe use
YARIS_HB_OM_USA_OM52G64U

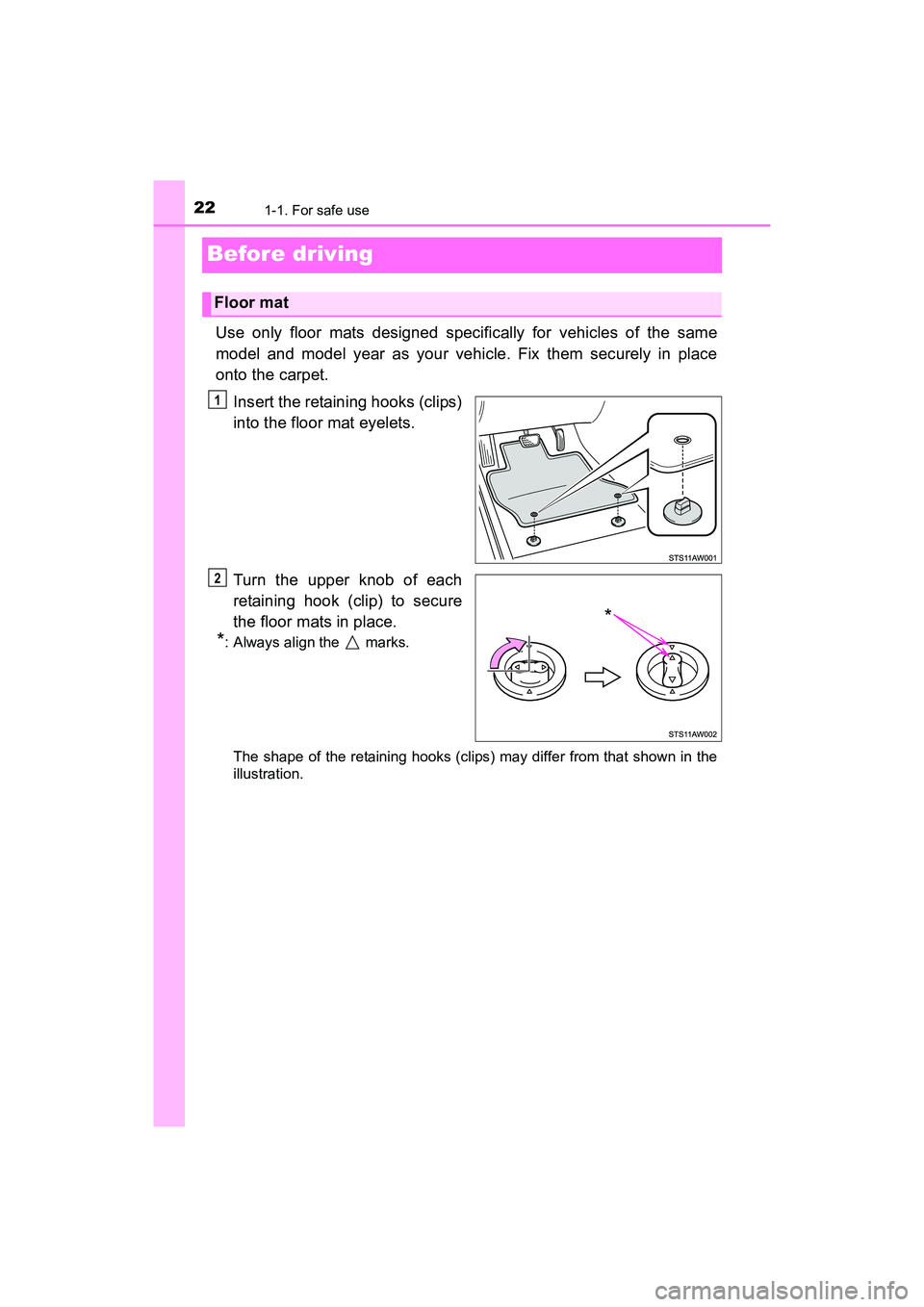

Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2
YARIS_HB_OM_USA_OM52G64U.book 22 ページ ２０１６年２月１６日　火曜日　午後３時２０分

231-1. For safe use
1
For safety and security
YARIS_HB_OM_USA_OM52G64U

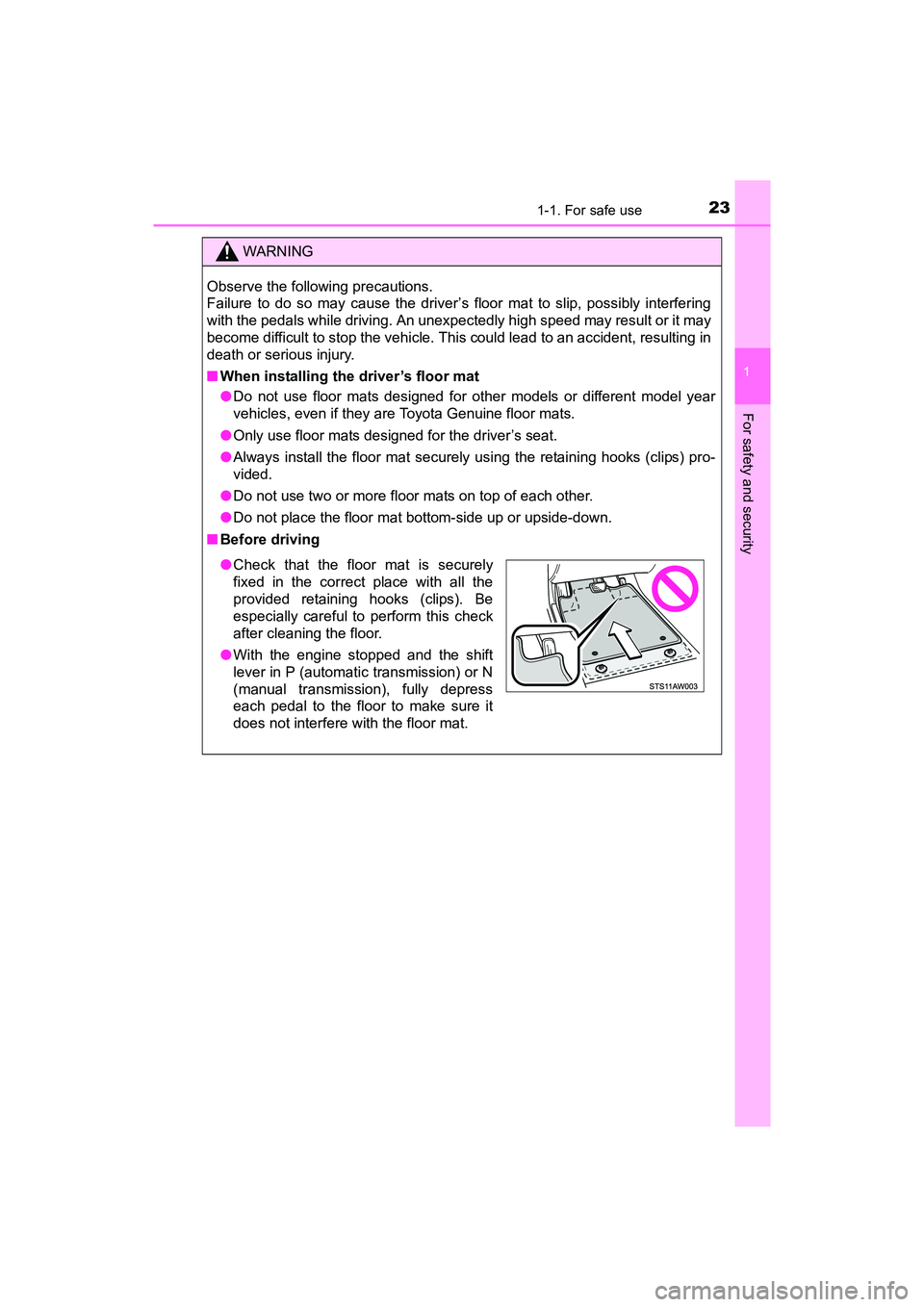

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.
YARIS_HB_OM_USA_OM52G64U.book 23 ページ ２０１６年２月１６日　火曜日　午後３時２０分

241-1. For safe use
YARIS_HB_OM_USA_OM52G64U
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 98)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 98, 107)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( P. 104)
Wear the seat belt correctly. ( P. 2 6 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 2 6 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 5 3 )
Make sure that you can see the rear of the vehicle clearly, by adjust-
ing the inside and outside rear view mirrors properly. ( P. 109, 111)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
YARIS_HB_OM_USA_OM52G64U.book 24 ページ ２０１６年２月１６日　火曜日　午後３時２０分

251-1. For safe use
1
For safety and security
YARIS_HB_OM_USA_OM52G64U
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
YARIS_HB_OM_USA_OM52G64U.book 25 ページ ２０１６年２月１６日　火曜日　午後３時２０分

261-1. For safe use
YARIS_HB_OM_USA_OM52G64U

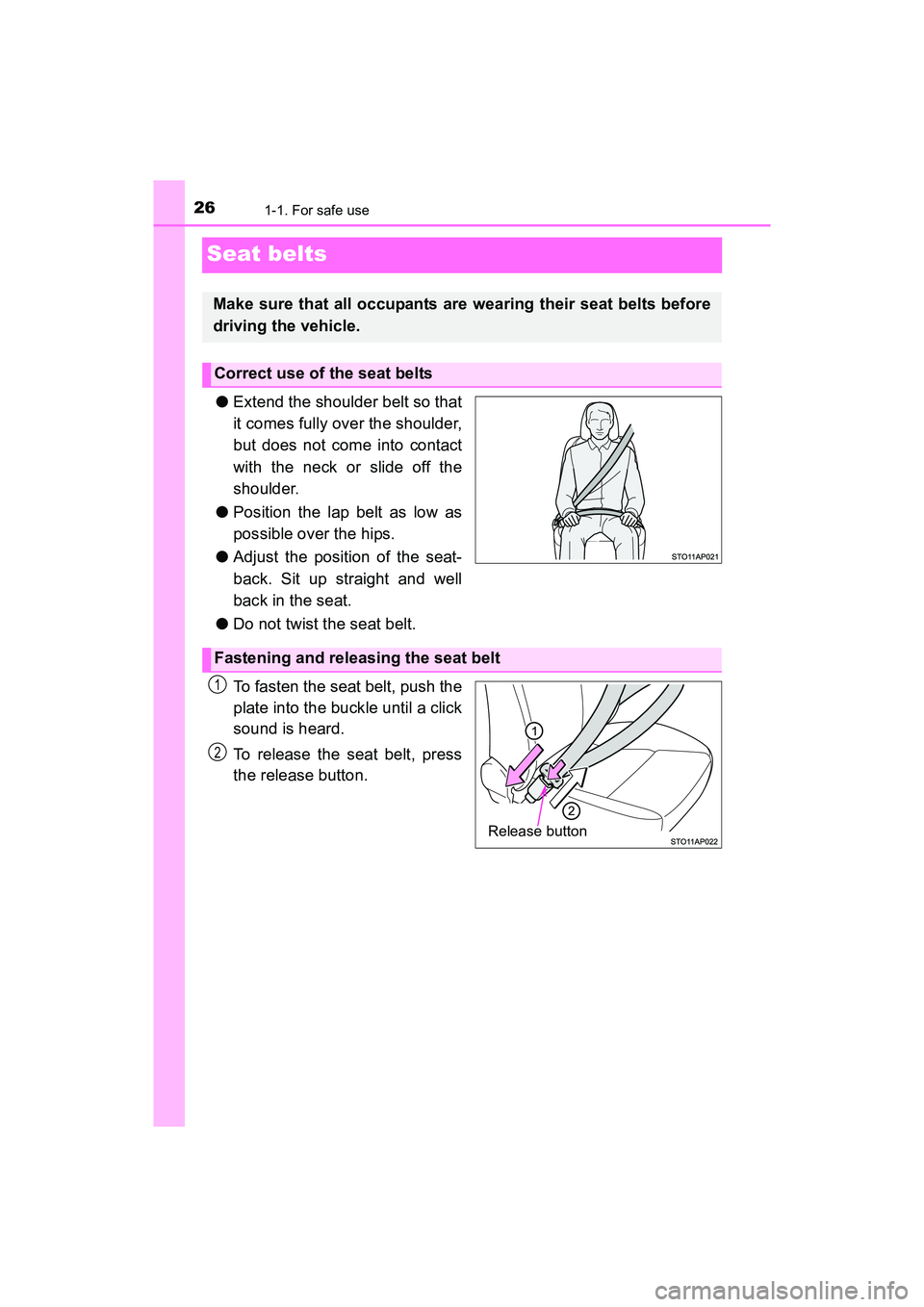

Seat belts
●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
YARIS_HB_OM_USA_OM52G64U.book 26 ページ ２０１６年２月１６日　火曜日　午後３時２０分

271-1. For safe use
1
For safety and security
YARIS_HB_OM_USA_OM52G64U
Take out the plate, and then pull
the seat belt.
Push the plate into the buckle in
the order of plate “A” and plate
“B” until a clicking sound is
heard.Plate “A”, buckle “A”
Plate “B”, buckle “B”

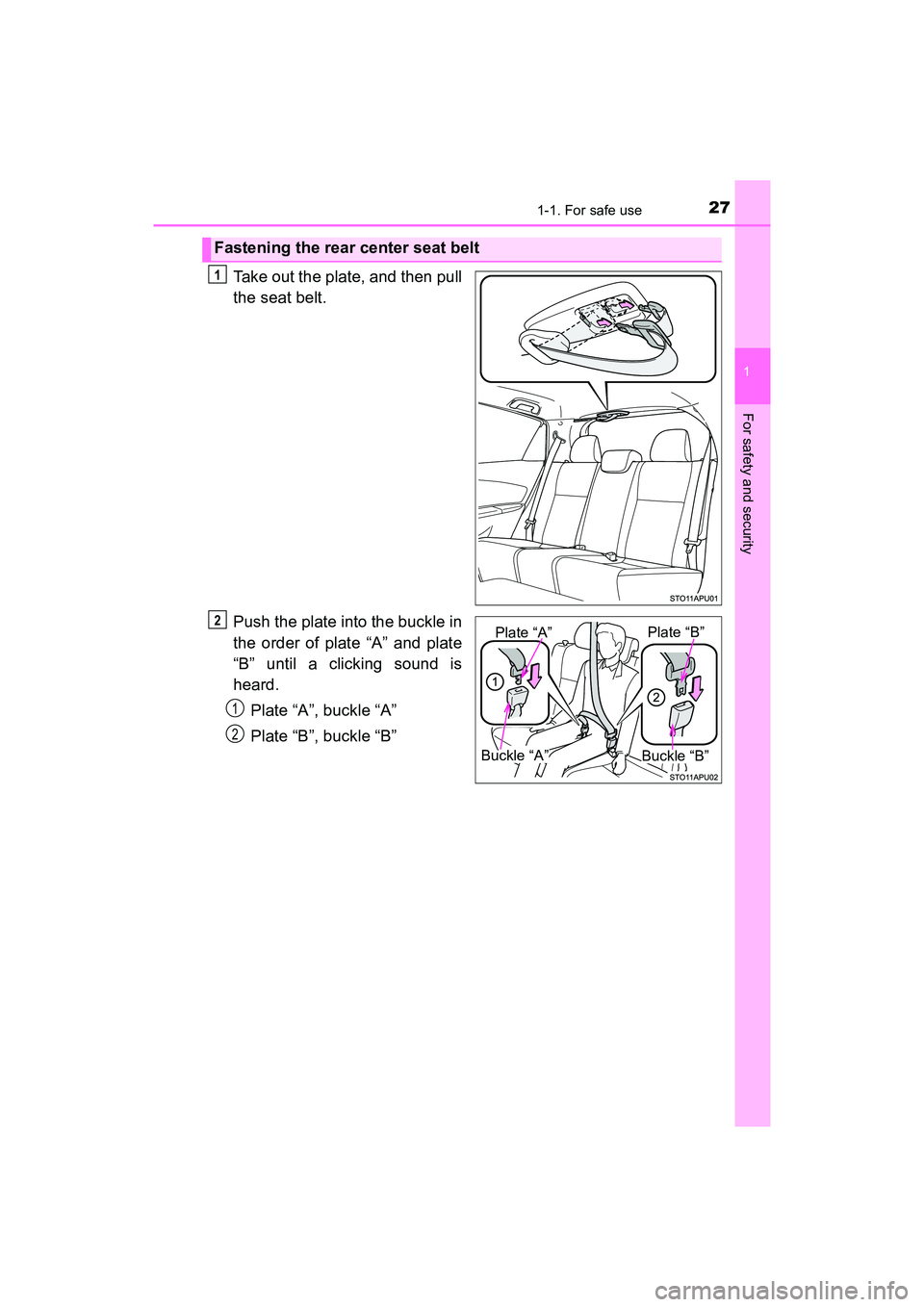

Fastening the rear center seat belt
1
Plate “A”Plate “B”
Buckle “B”Buckle “A”
2
1
2
YARIS_HB_OM_USA_OM52G64U.book 27 ページ ２０１６年２月１６日　火曜日　午後３時２０分

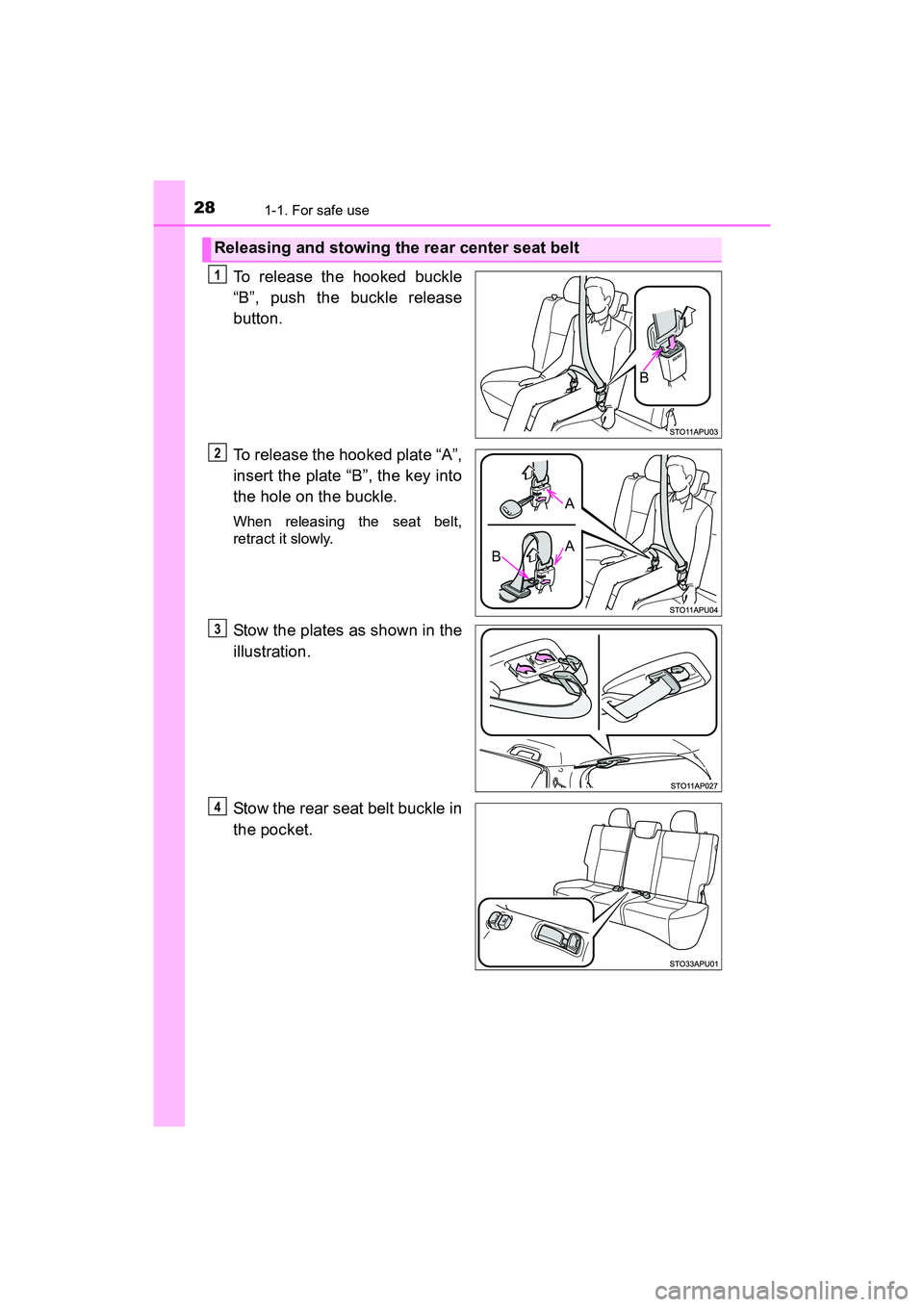

281-1. For safe use
YARIS_HB_OM_USA_OM52G64U
To release the hooked buckle
“B”, push the buckle release
button.
To release the hooked plate “A”,
insert the plate “B”, the key into
the hole on the buckle.
When releasing the seat belt,
retract it slowly.
Stow the plates as shown in the
illustration.
Stow the rear seat belt buckle in
the pocket.
Releasing and stowing the rear center seat belt
B
1
B
A
A
2
3
4
