TOYOTA YARIS HATCHBACK 2019 Owners Manual

4015-5. Using an external device
5
Audio system
YARIS_F_OM_Europe_OM52A54E
WARNING
■Caution while driving
Do not connect USB memory or operate the controls.
Doing so may cause an accident, resulting in death or serious injury.
NOTICE
■ To prevent damage to USB memory or its terminal
● Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected.
● Do not insert foreign objects into the port.

4025-5. Using an external device
YARIS_F_OM_Europe_OM52A54E

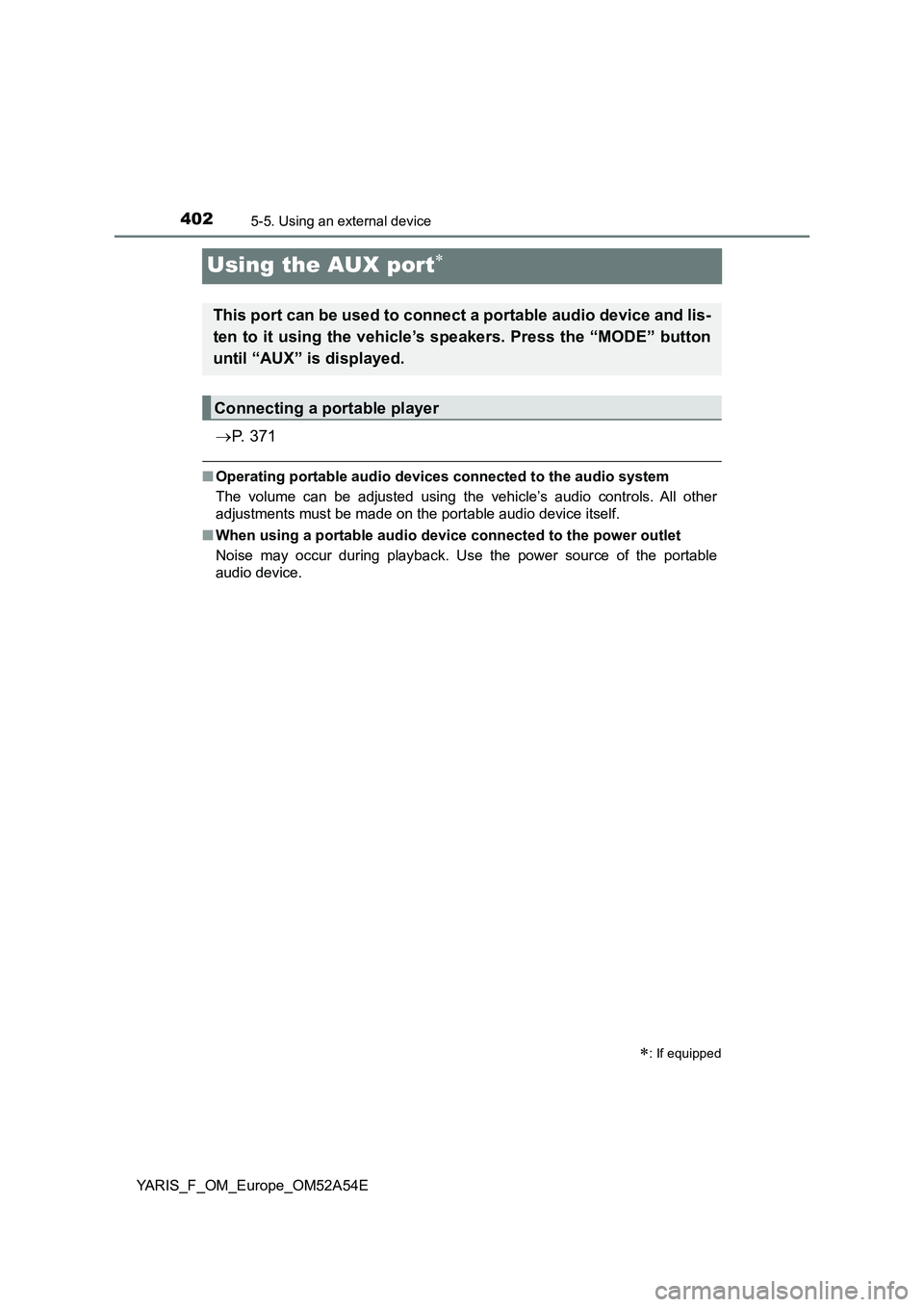

Using the AUX port
P. 3 7 1
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
: If equipped
This port can be used to connect a portable audio device and lis-
ten to it using the vehicle’s speakers. Press the “MODE” button
until “AUX” is displayed.
Connecting a portable player

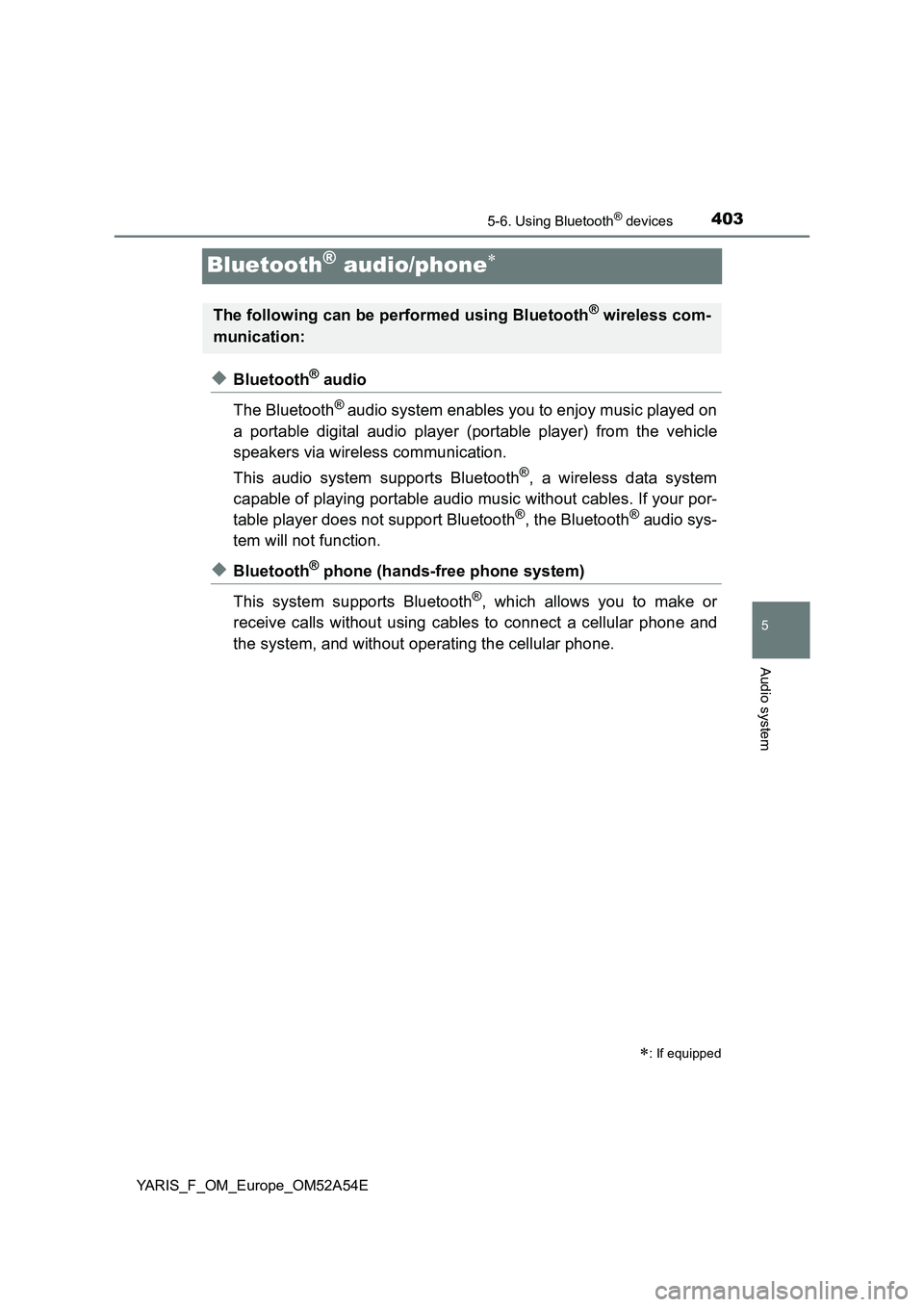

4035-6. Using Bluetooth® devices
5
Audio system
YARIS_F_OM_Europe_OM52A54E
Bluetooth® audio/phone
◆Bluetooth® audio
The Bluetooth
® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
◆Bluetooth® phone (hands-free phone system)
This system supports Bluetooth
®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without operating the cellular phone.
: If equipped
The following can be performed using Bluetooth® wireless com-
munication:

4045-6. Using Bluetooth® devices
YARIS_F_OM_Europe_OM52A54E

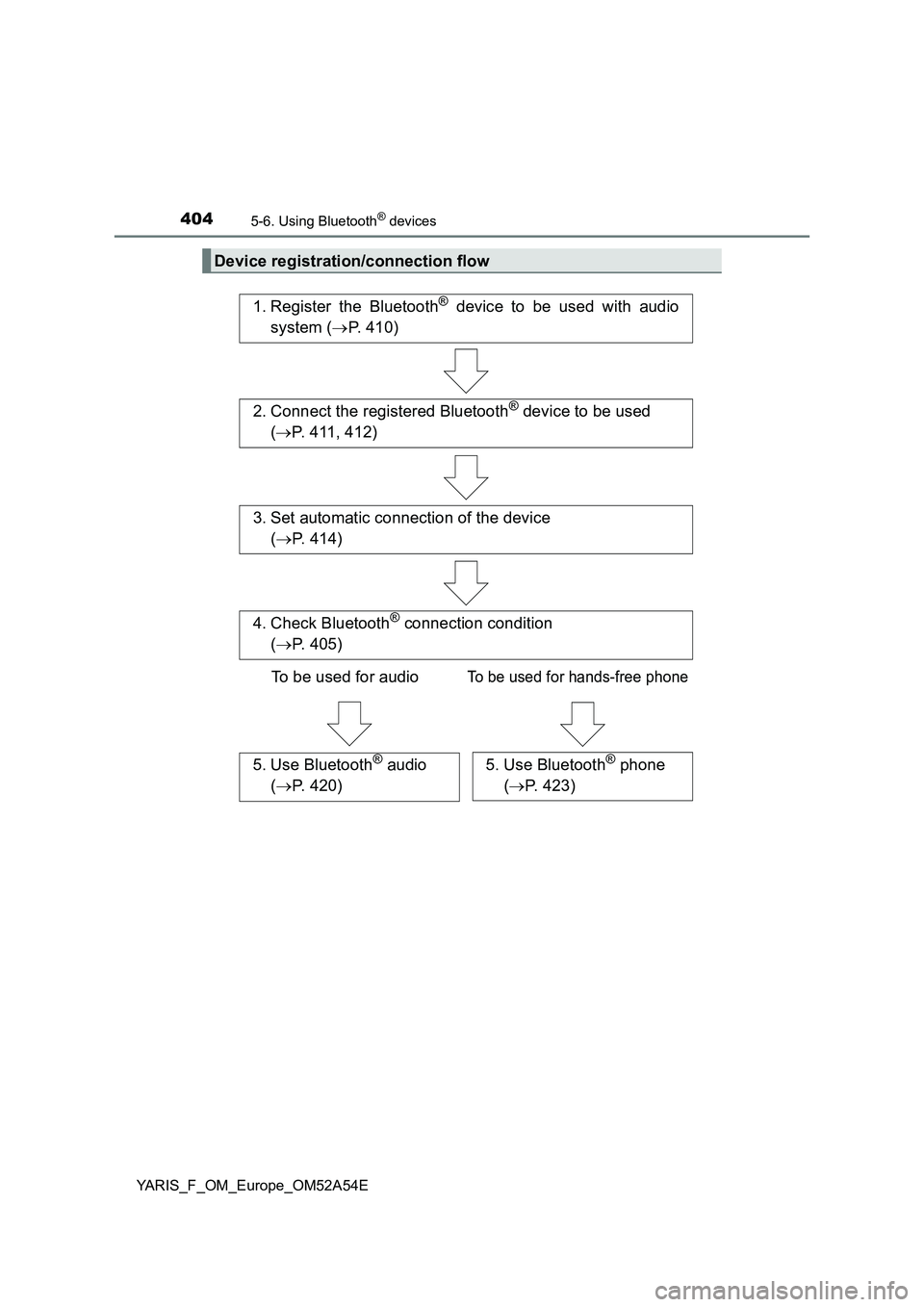

Device registration/connection flow
1. Register the Bluetooth® device to be used with audio
system (P. 410)
2. Connect the registered Bluetooth® device to be used
(P. 411, 412)
5. Use Bluetooth® audio
(P. 420)5. Use Bluetooth® phone
(P. 423)
3. Set automatic connection of the device
(P. 414)
4. Check Bluetooth® connection condition
(P. 405)
To be used for audio
To be used for hands-free phone

4055-6. Using Bluetooth® devices
5
Audio system
YARIS_F_OM_Europe_OM52A54E

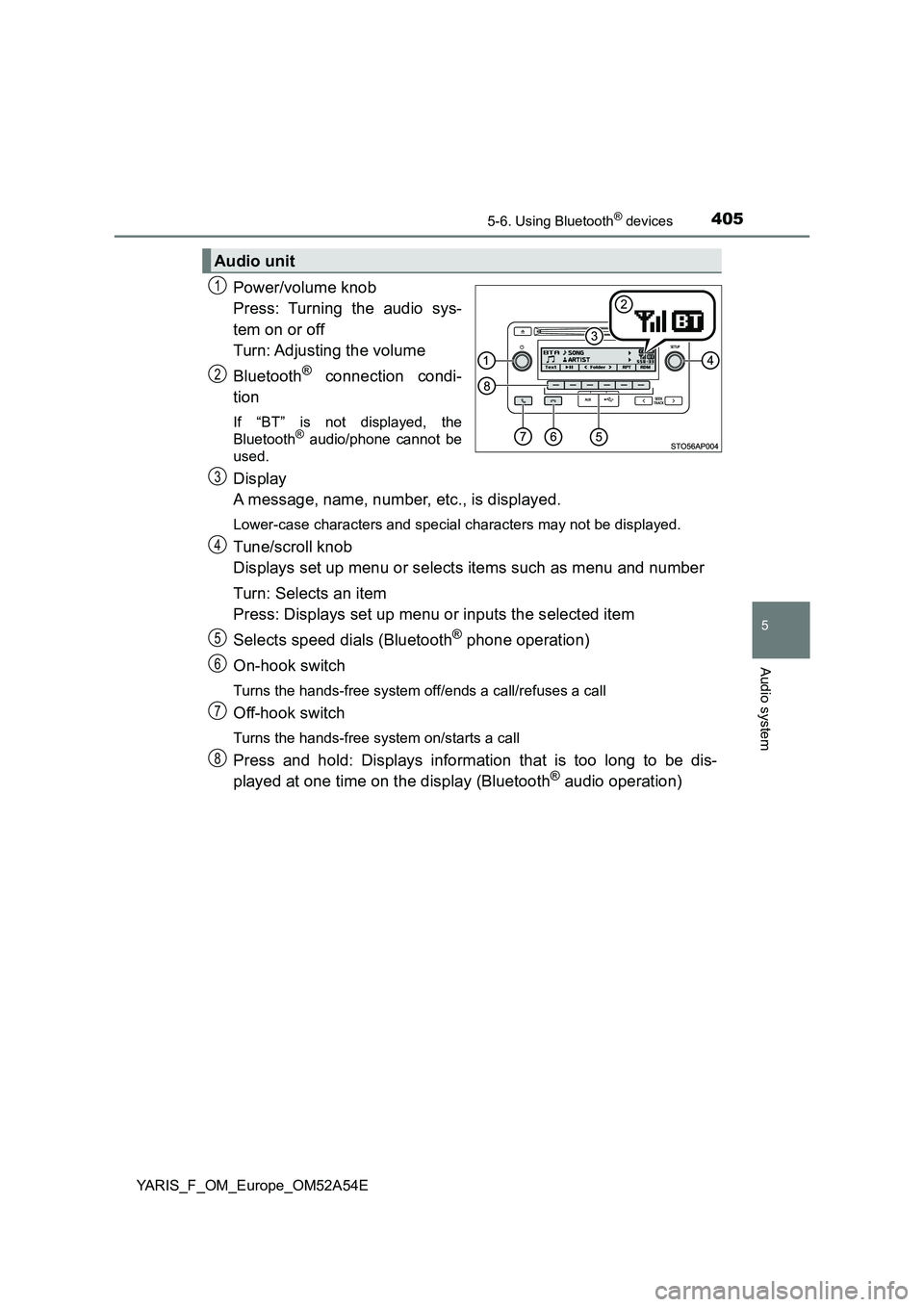

Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
Bluetooth® connection condi-
tion
If “BT” is not displayed, the
Bluetooth® audio/phone cannot be
used.
Display
A message, name, number, etc., is displayed.
Lower-case characters and special characters may not be displayed.
Tune/scroll knob
Displays set up menu or selects items such as menu and number
Turn: Selects an item
Press: Displays set up menu or inputs the selected item
Selects speed dials (Bluetooth® phone operation)
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Off-hook switch
Turns the hands-free system on/starts a call
Press and hold: Displays information that is too long to be dis-
played at one time on the display (Bluetooth® audio operation)
Audio unit
1
2
3
4
5
6
7
8

4065-6. Using Bluetooth® devices
YARIS_F_OM_Europe_OM52A54E

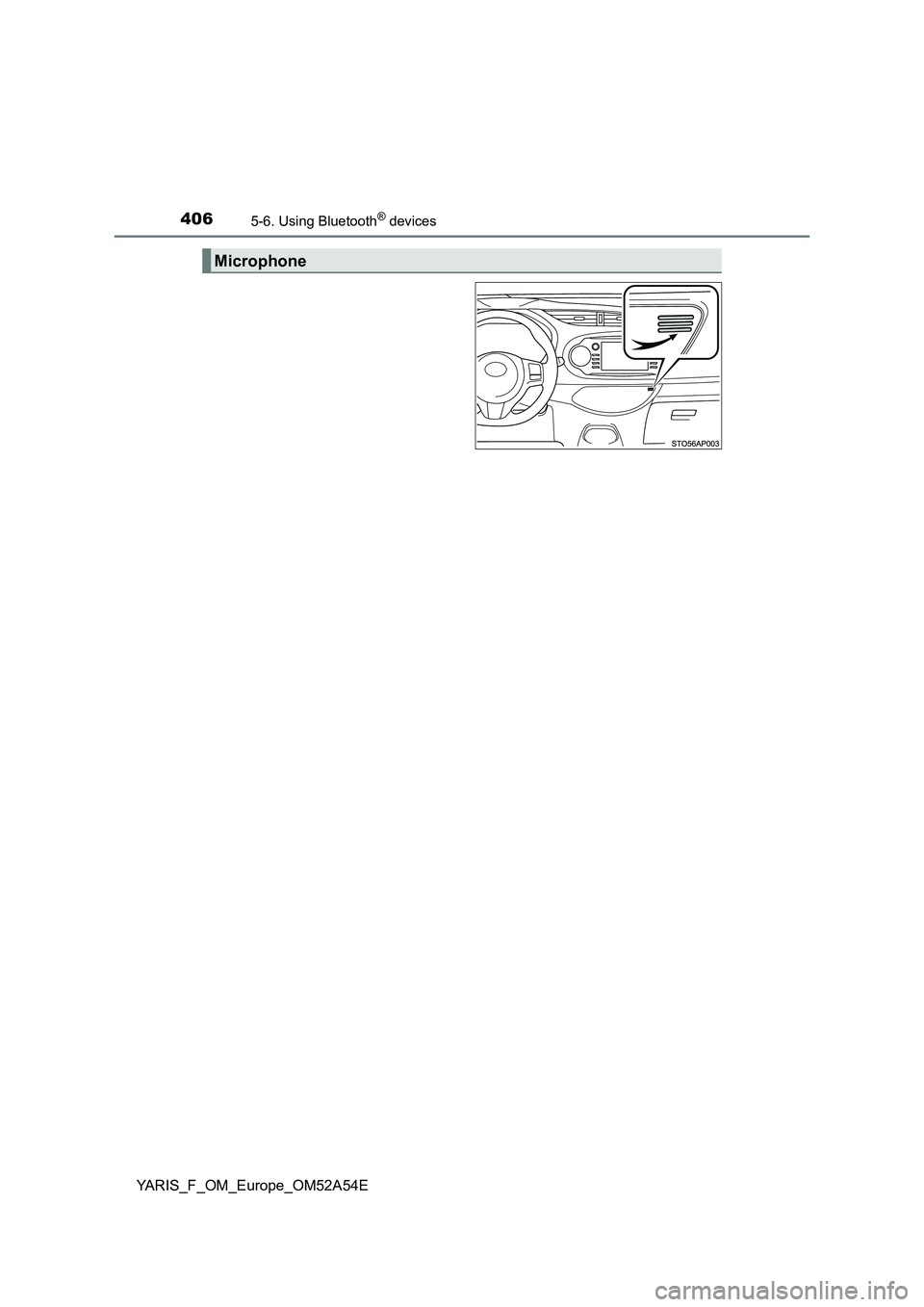

Microphone

4075-6. Using Bluetooth® devices
5
Audio system
YARIS_F_OM_Europe_OM52A54E

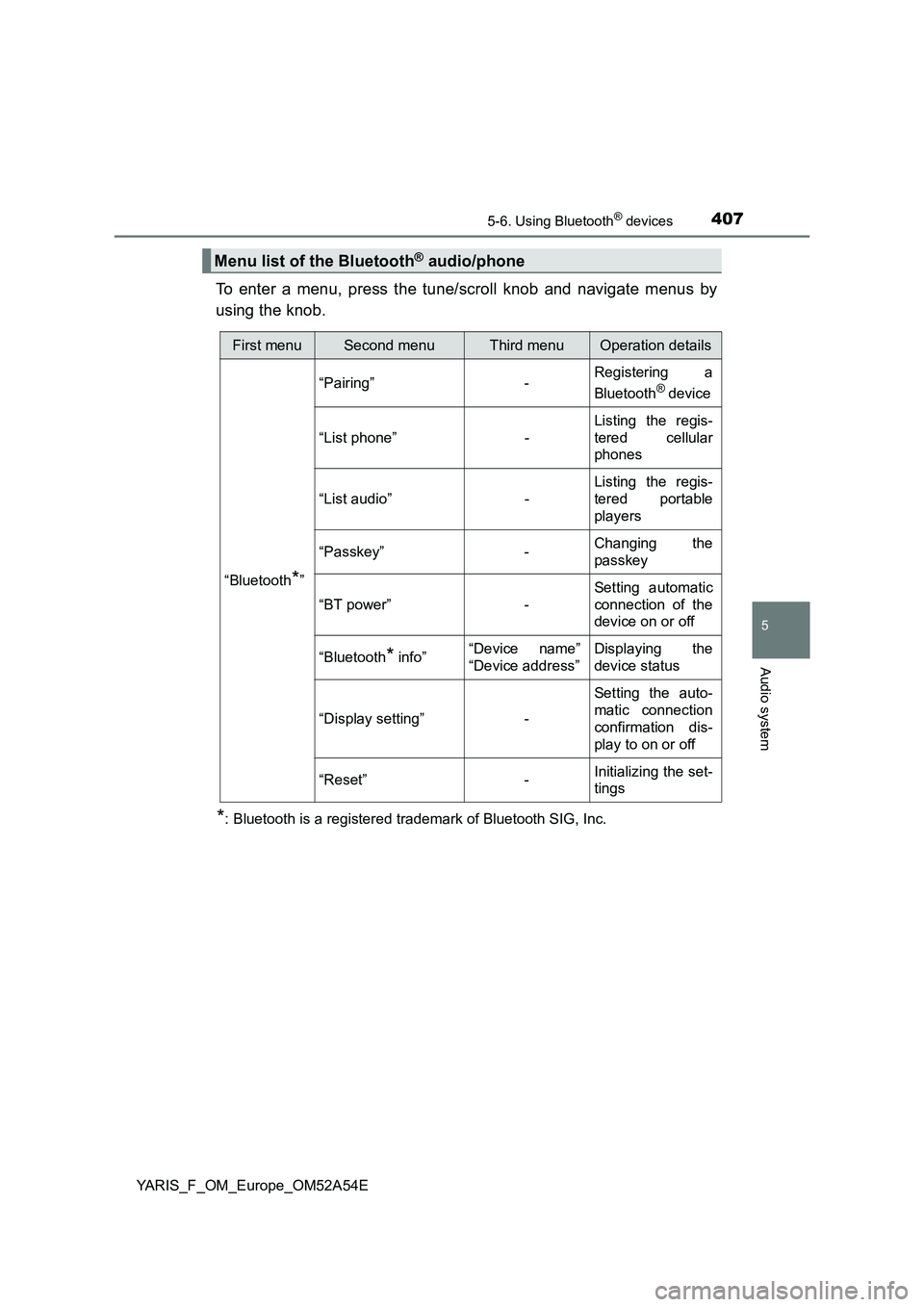

To enter a menu, press the tune/scroll knob and navigate menus by
using the knob.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth
*”“Pairing” -Registering a
Bluetooth
® device
“List phone” -Listing the regis-
tered cellular
phones
“List audio” -Listing the regis-
tered portable
players
“Passkey” -Changing the
passkey
“BT power” -Setting automatic
connection of the
device on or off
“Bluetooth
* info”“Device name”
“Device address”Displaying the
device status
“Display setting” -Setting the auto-
matic connection
confirmation dis-
play to on or off
“Reset” -Initializing the set-
tings

4085-6. Using Bluetooth® devices
YARIS_F_OM_Europe_OM52A54E

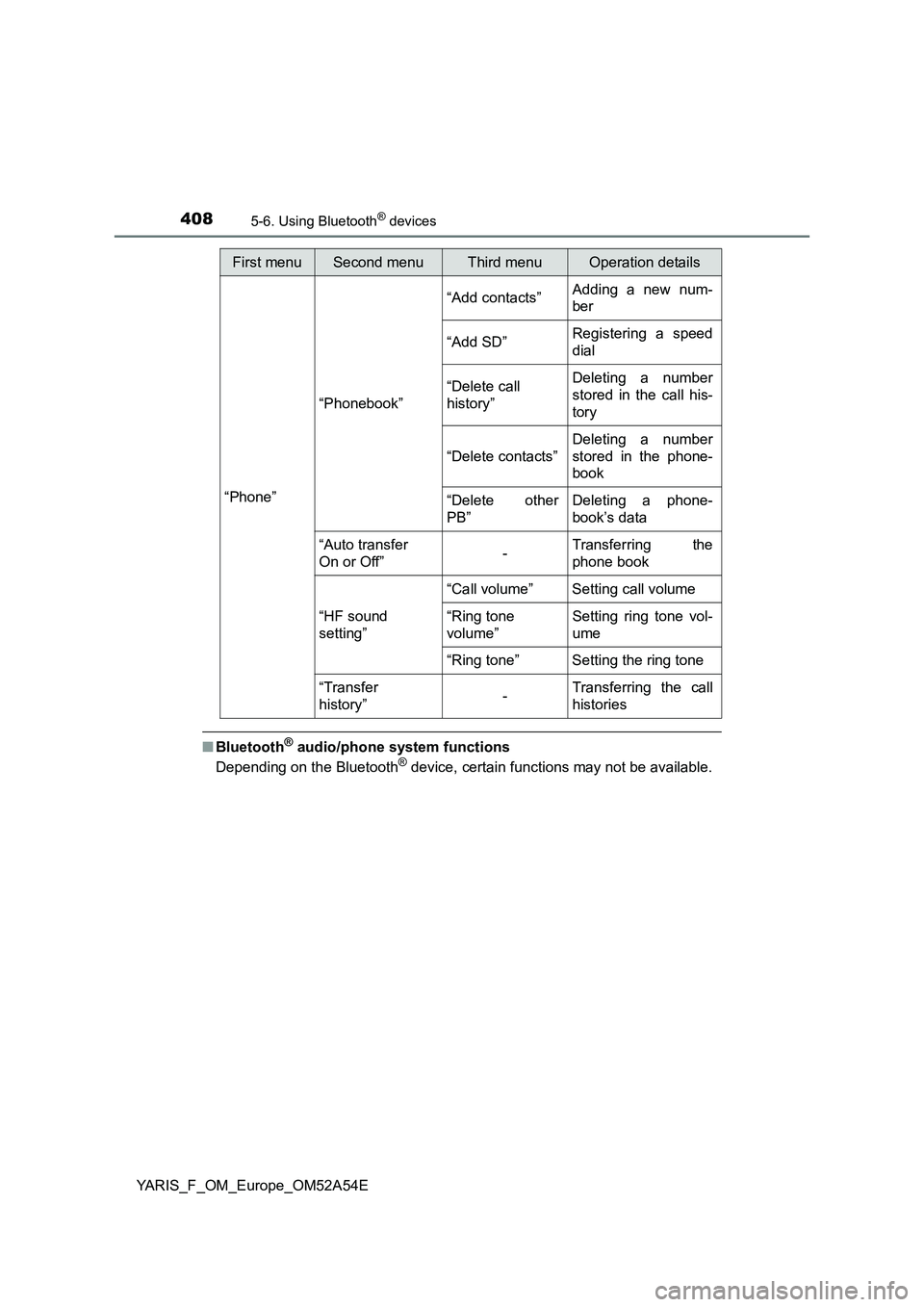

■Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
First menuSecond menuThird menuOperation details
“Phone”“Phonebook”“Add contacts”Adding a new num-
ber
“Add SD”Registering a speed
dial
“Delete call
history”Deleting a number
stored in the call his-
tory
“Delete contacts”Deleting a number
stored in the phone-
book
“Delete other
PB”Deleting a phone-
book’s data
“Auto transfer
On or Off”-Transferring the
phone book
“HF sound
setting”“Call volume” Setting call volume
“Ring tone
volume”Setting ring tone vol-
ume
“Ring tone” Setting the ring tone
“Transfer
history”-Transferring the call
histories

4095-6. Using Bluetooth® devices
5
Audio system
YARIS_F_OM_Europe_OM52A54E

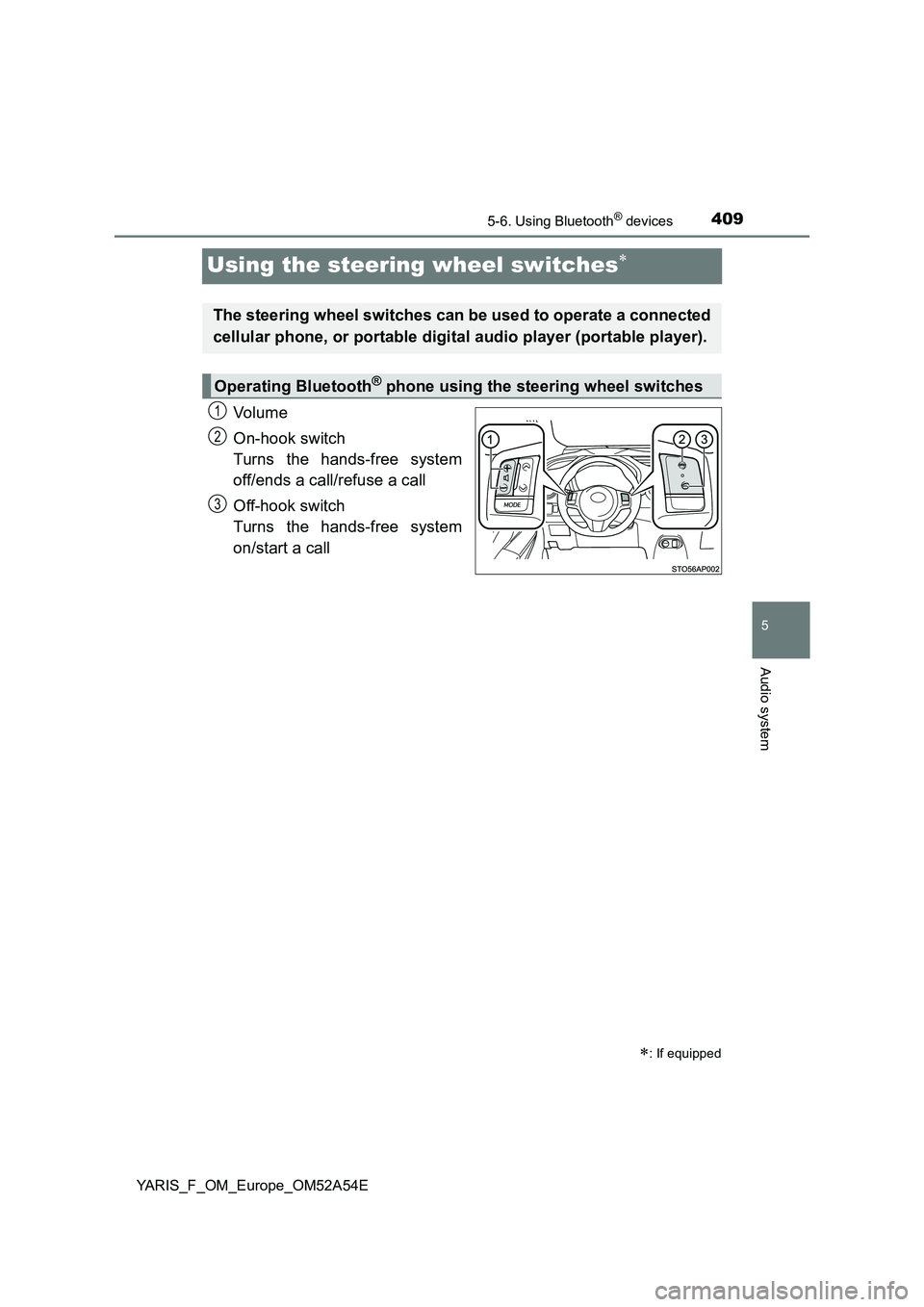

Using the steering wheel switches
Vo lu m e
On-hook switch
Turns the hands-free system
off/ends a call/refuse a call
Off-hook switch
Turns the hands-free system
on/start a call
: If equipped
The steering wheel switches can be used to operate a connected
cellular phone, or portable digital audio player (portable player).
Operating Bluetooth® phone using the steering wheel switches
1
2
3

4105-6. Using Bluetooth® devices
YARIS_F_OM_Europe_OM52A54E

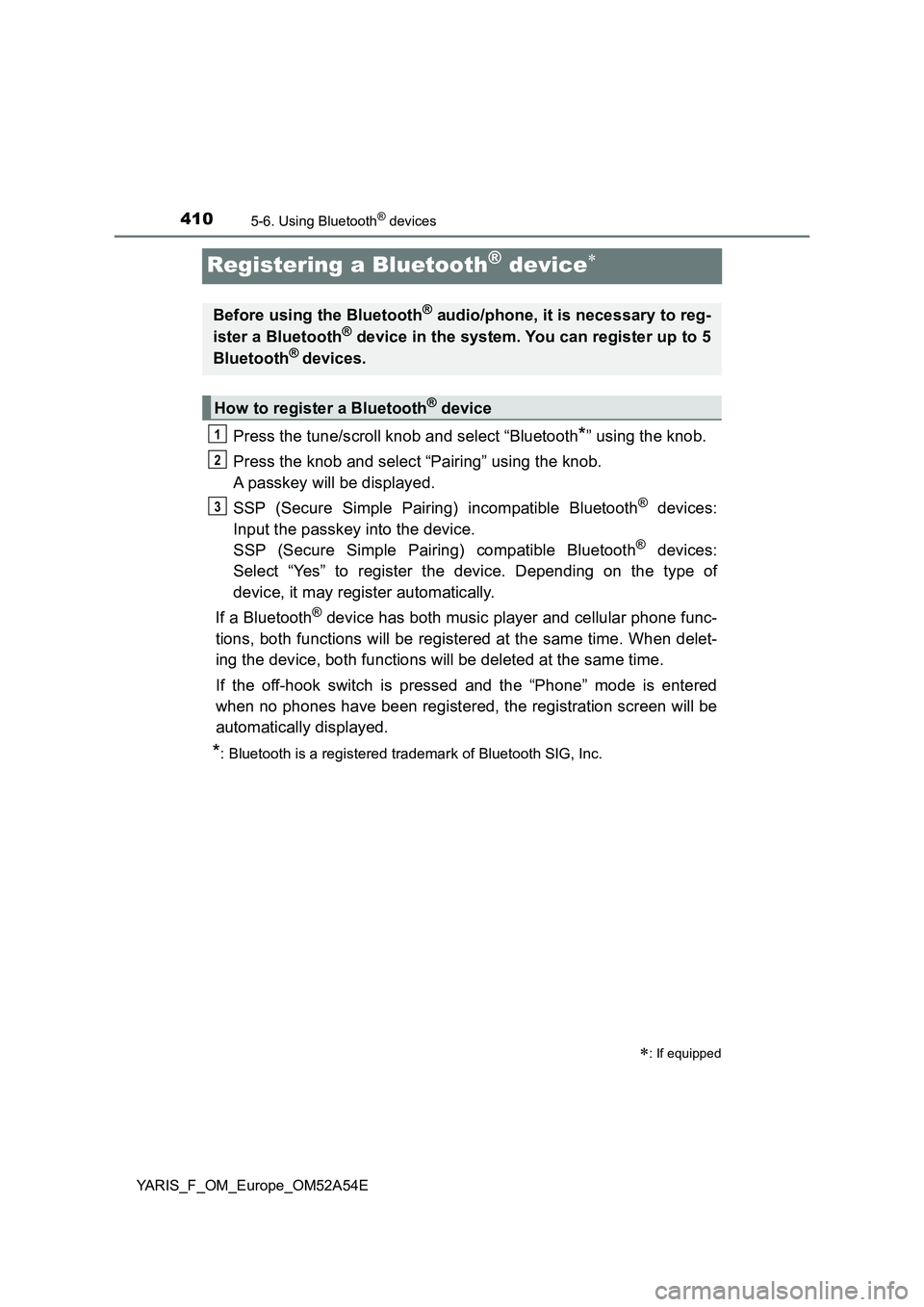

Registering a Bluetooth® device
Press the tune/scroll knob and select “Bluetooth*” using the knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth
® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “Phone” mode is entered
when no phones have been registered, the registration screen will be
automatically displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
: If equipped
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3
