2644-2. Driving procedures
YARIS_F_OM_Europe_OM52A54E
Turn signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4

477
7Maintenance and care
YARIS_F_OM_Europe_OM52A54E7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 478
Cleaning and protecting
the vehicle interior ........... 482
7-2. Maintenance
Maintenance
requirements.................... 4857-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 488
Hood .................................. 491
Positioning a floor jack ....... 493
Engine compartment.......... 495
Tires ................................... 508
Tire inflation pressure ........ 528
Wheels ............................... 530
Air conditioning filter .......... 534
Wireless remote control/
electronic key battery....... 537
Checking and replacing
fuses ................................ 541
Light bulbs ......................... 547

4887-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(P. 504)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine coolant
level (P. 501)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 497)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
(P. 541)• Fuse with same amperage rating as original
Light bulbs
(P. 547)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and con-
denser (P. 503)
Tire inflation
pressure
(P. 528)• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 507)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

5457-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 547)
●If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
Ty pe EType F
Ty pe G

5477-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 663)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
For more information about replacing other light bulbs, contact
any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
Preparing for light bulb replacement

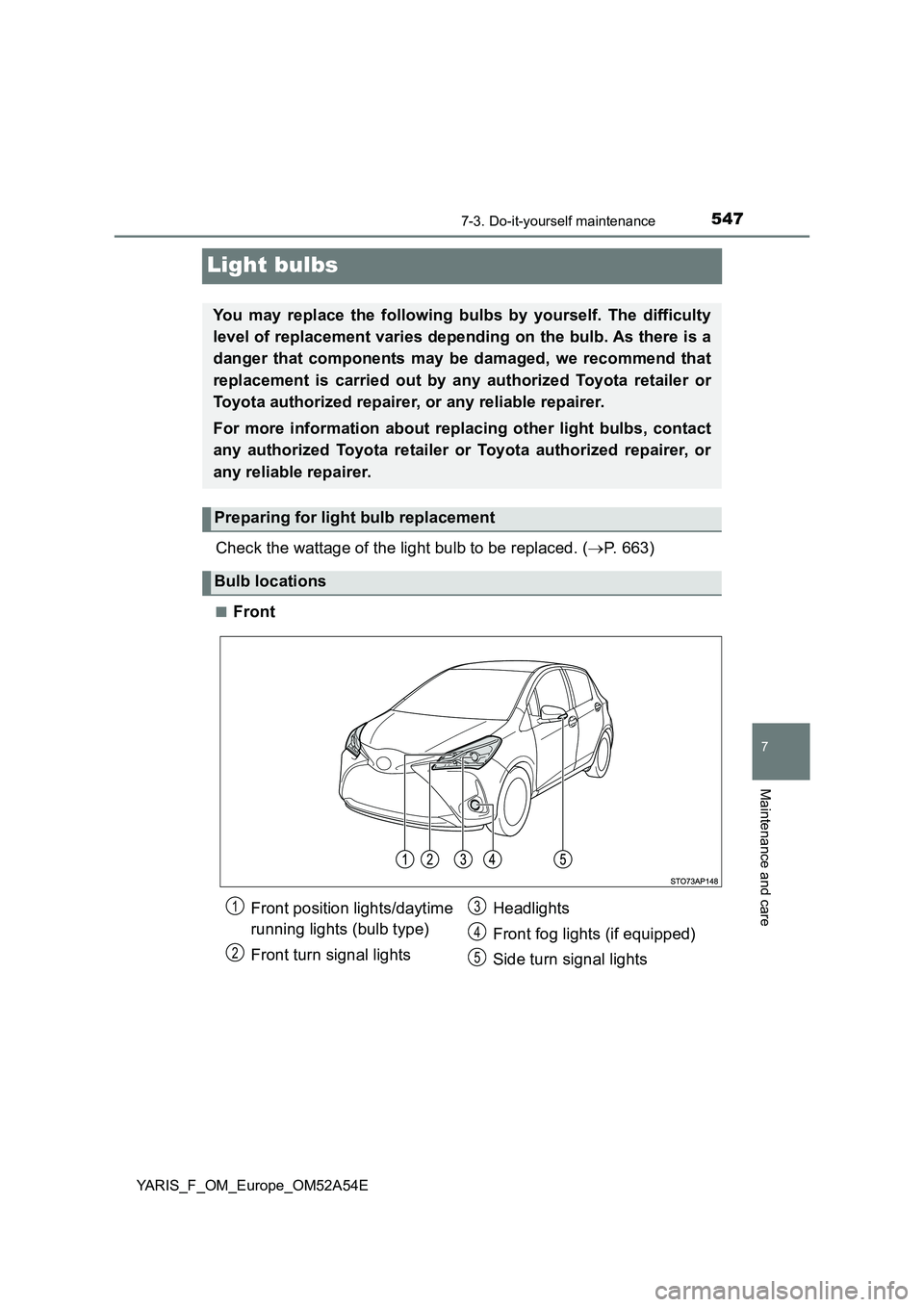

Bulb locations
Front position lights/daytime
running lights (bulb type)
Front turn signal lights
Headlights
Front fog lights (if equipped)
Side turn signal lights
1
2
3
4
5

5487-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E■

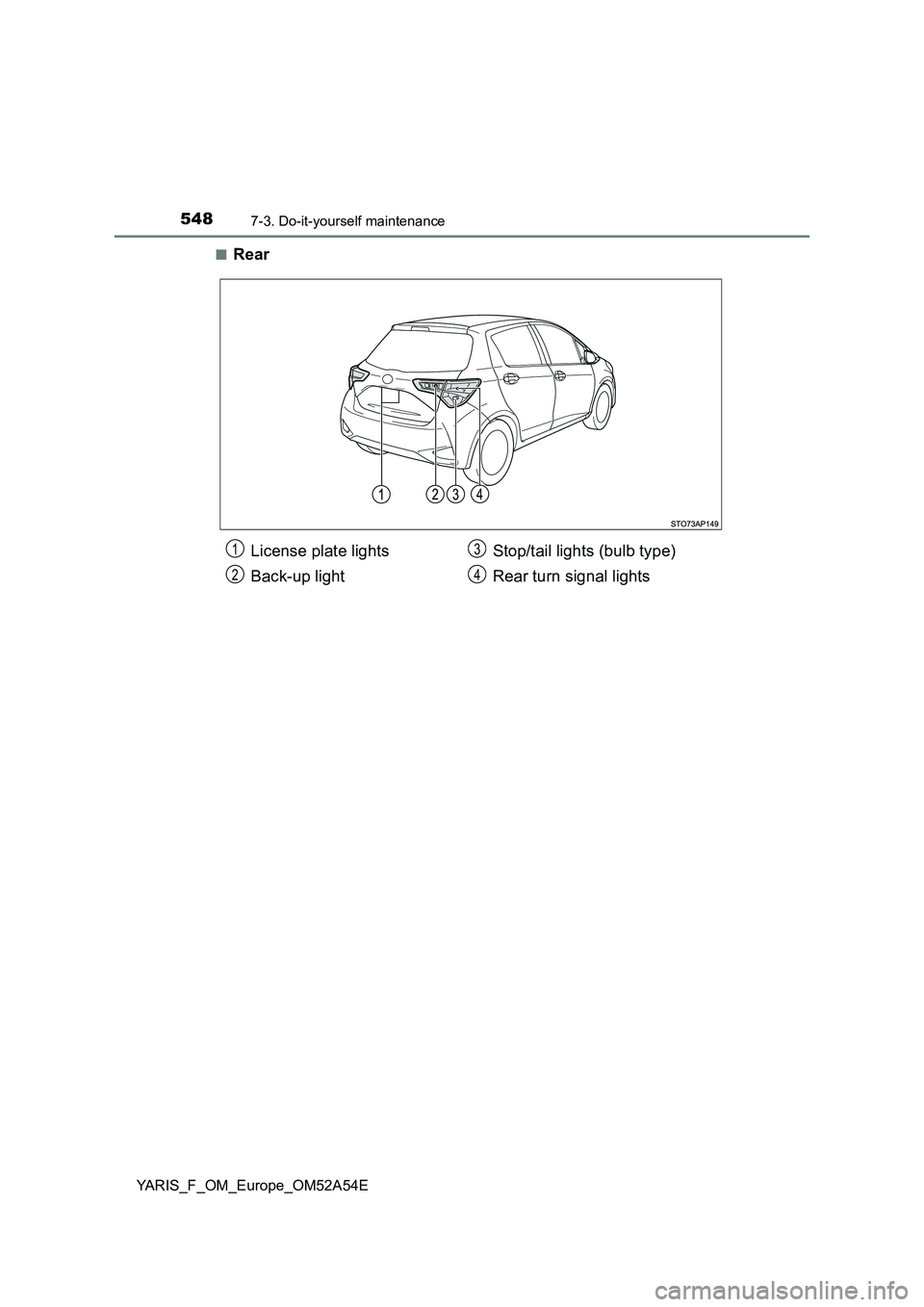

Rear
License plate lights
Back-up lightStop/tail lights (bulb type)
Rear turn signal lights1
2
3
4

5497-3. Do-it-yourself maintenance
7
Maintenance and care
YARIS_F_OM_Europe_OM52A54E■

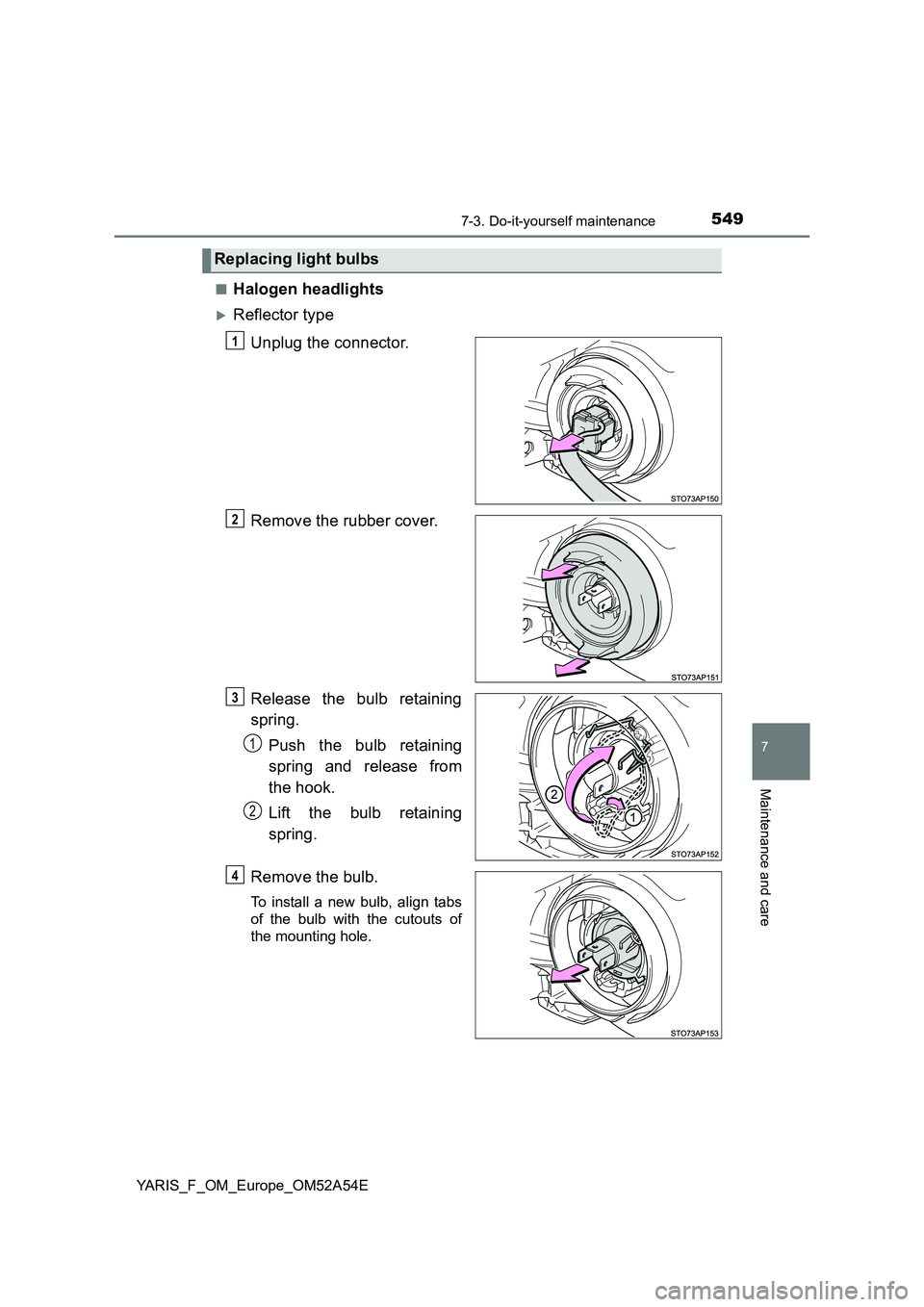

Halogen headlights
Reflector type
Unplug the connector.
Remove the rubber cover.
Release the bulb retaining
spring.
Push the bulb retaining
spring and release from
the hook.
Lift the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align tabs
of the bulb with the cutouts of
the mounting hole.
Replacing light bulbs
1
2
3
1
2
4

5507-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52A54E

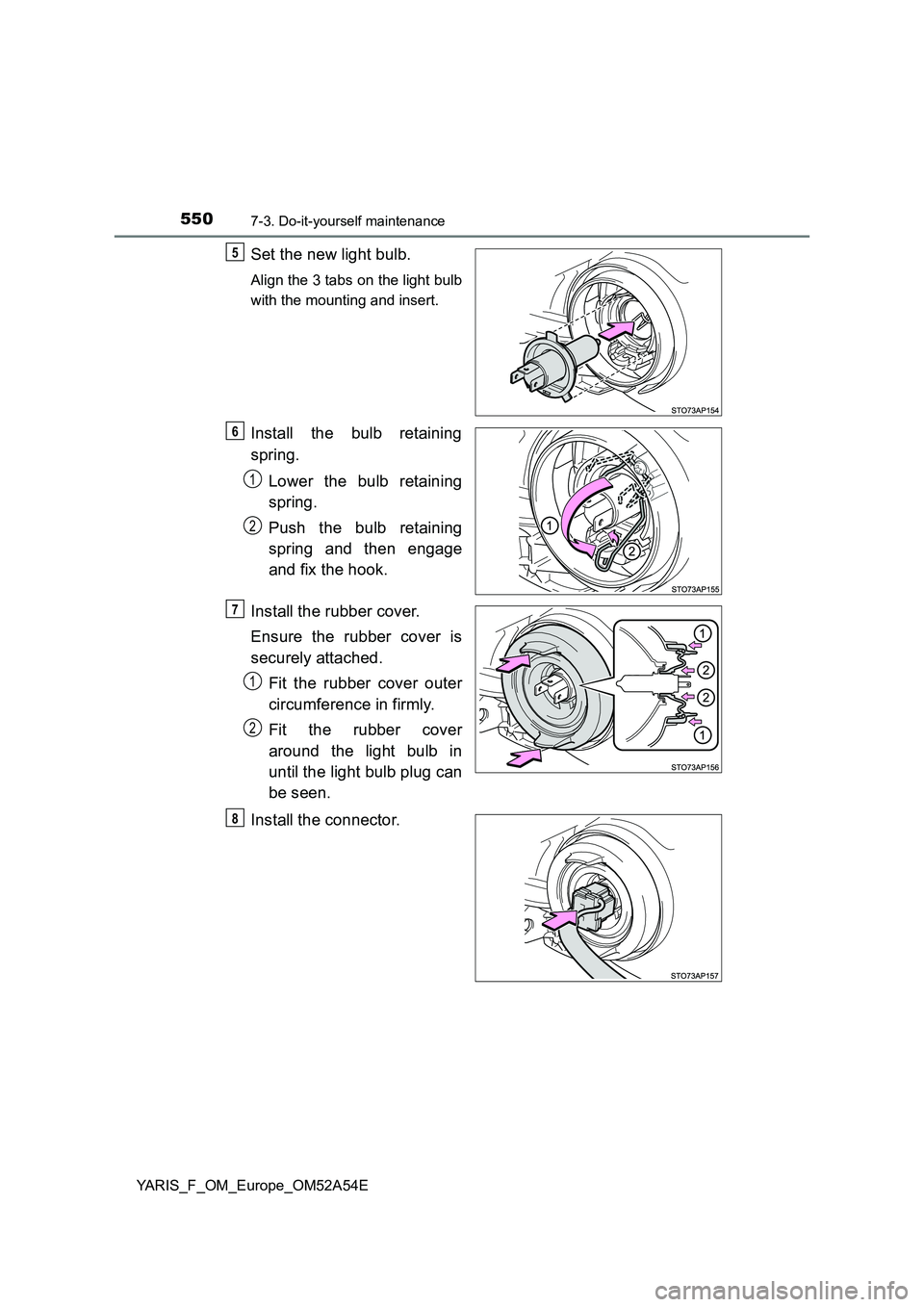

Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Install the bulb retaining
spring.
Lower the bulb retaining
spring.
Push the bulb retaining
spring and then engage
and fix the hook.
Install the rubber cover.
Ensure the rubber cover is
securely attached.
Fit the rubber cover outer
circumference in firmly.
Fit the rubber cover
around the light bulb in
until the light bulb plug can
be seen.
Install the connector.
5
6
1
2
7
1
2
8
