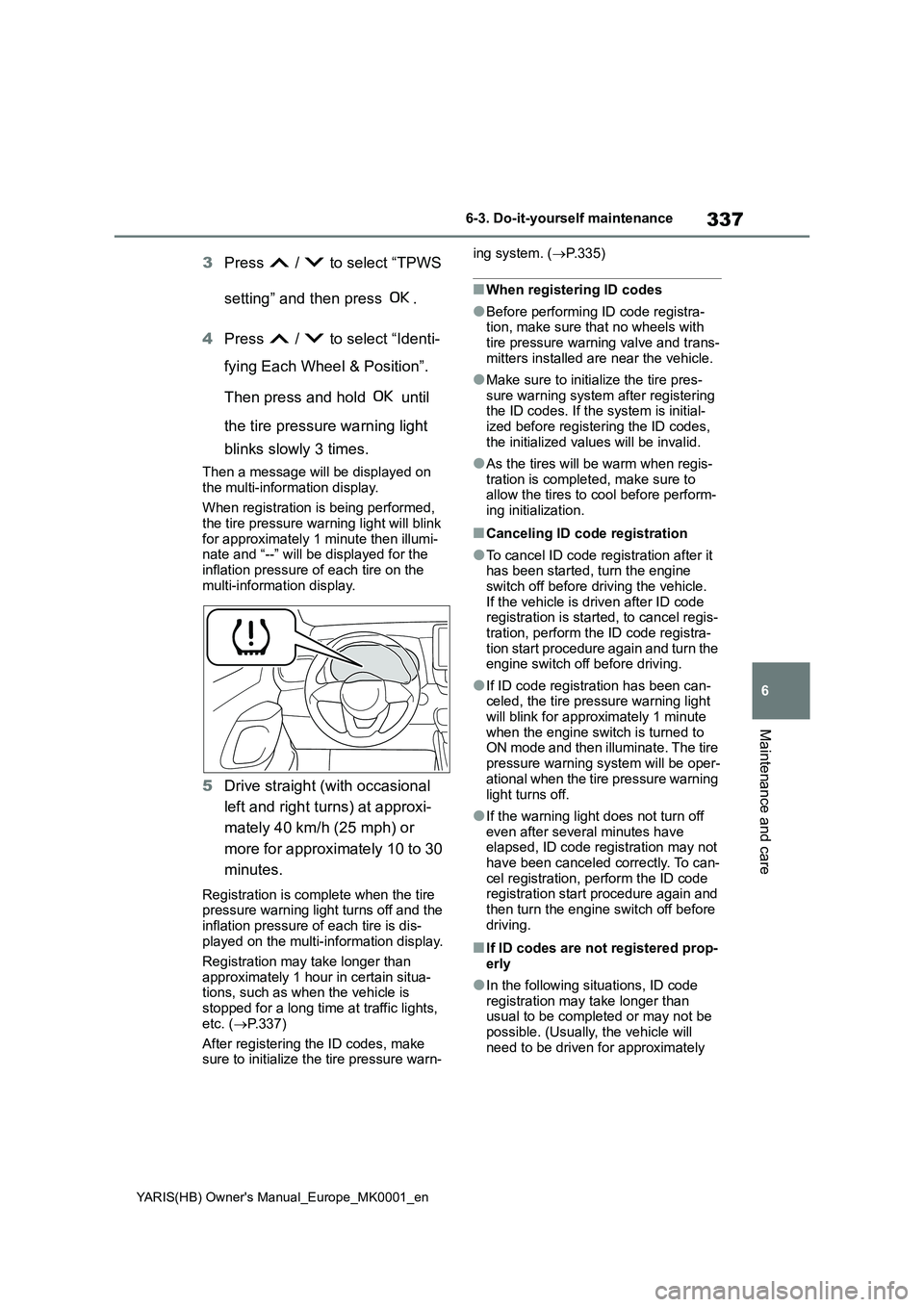

337
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
3Press / to select “TPWS
setting” and then press .
4Press / to select “Identi-
fying Each Wheel & Position”.
Then press and hold until
the tire pressure warning light
blinks slowly 3 times.
Then a message will be displayed on
the multi-information display.
When registration is being performed,
the tire pressure warning light will blink
for approximately 1 minute then illumi-
nate and “--” will be displayed for the
inflation pressure of each tire on the
multi-information display.
5Drive straight (with occasional
left and right turns) at approxi-
mately 40 km/h (25 mph) or
more for approximately 10 to 30
minutes.
Registration is complete when the tire
pressure warning light turns off and the
inflation pressure of each tire is dis-
played on the multi-information display.
Registration may take longer than
approximately 1 hour in certain situa-
tions, such as when the vehicle is
stopped for a long time at traffic lights,
etc. (→P.337)
After registering the ID codes, make
sure to initialize the tire pressure warn-ing system. (→P.335)
■When registering ID codes
●Before performing ID code registra-
tion, make sure that no wheels with
tire pressure warning valve and trans-
mitters installed are near the vehicle.
●Make sure to initialize the tire pres-
sure warning system after registering
the ID codes. If the system is initial-
ized before registering the ID codes,
the initialized values will be invalid.
●As the tires will be warm when regis-
tration is completed, make sure to
allow the tires to cool before perform-
ing initialization.
■Canceling ID code registration
●To cancel ID code registration after it
has been started, turn the engine
switch off before driving the vehicle.
If the vehicle is driven after ID code
registration is started, to cancel regis-
tration, perform the ID code registra-
tion start procedure again and turn the
engine switch off before driving.
●If ID code registration has been can-
celed, the tire pressure warning light
will blink for approximately 1 minute
when the engine switch is turned to
ON mode and then illuminate. The tire
pressure warning system will be oper-
ational when the tire pressure warning
light turns off.
●If the warning light does not turn off
even after several minutes have
elapsed, ID code registration may not
have been canceled correctly. To can-
cel registration, perform the ID code
registration start procedure again and
then turn the engine switch off before
driving.
■If ID codes are not registered prop-
erly
●In the following situations, ID code
registration may take longer than
usual to be completed or may not be
possible. (Usually, the vehicle will
need to be driven for approximately

7

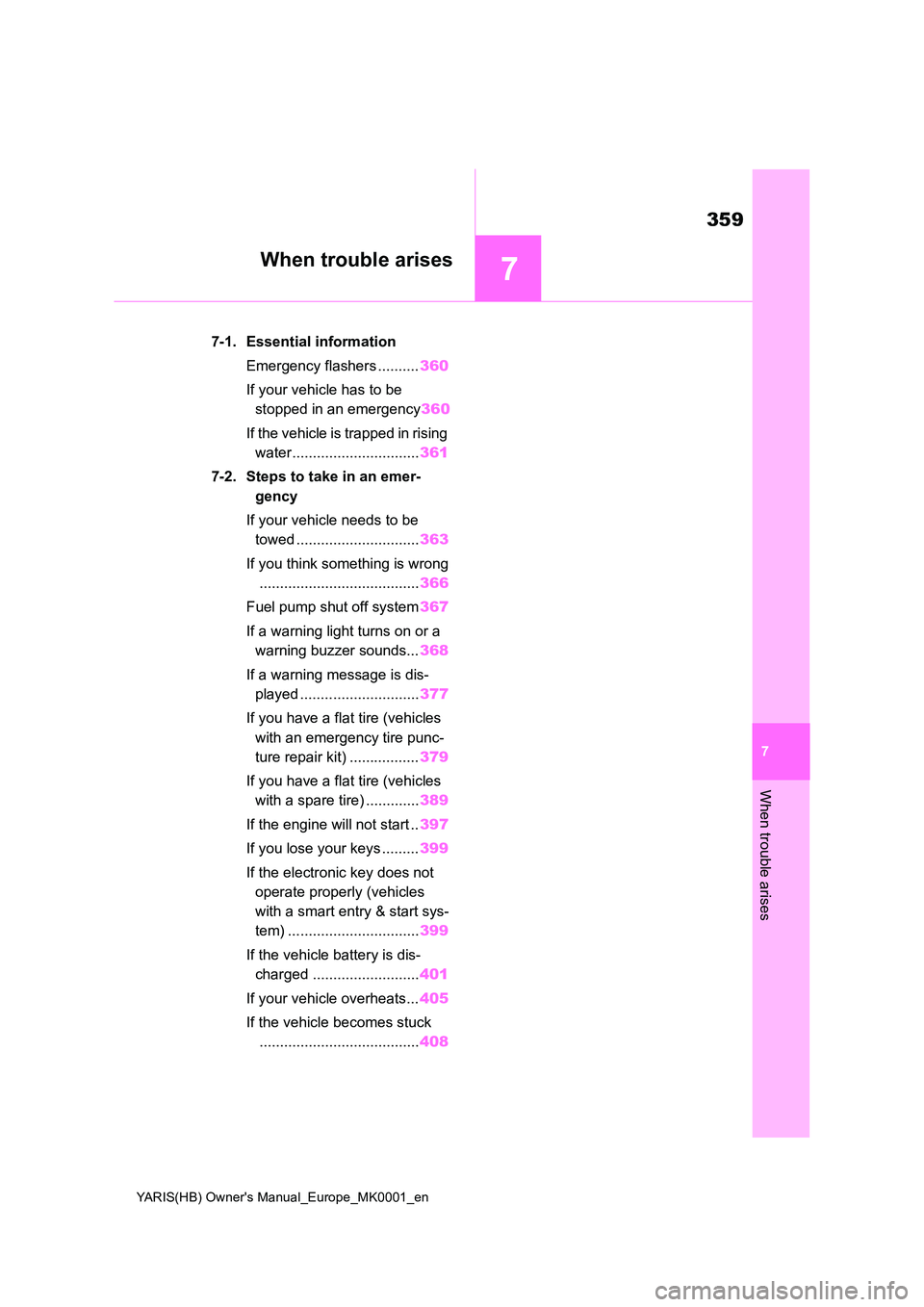

359
YARIS(HB) Owner's Manual_Europe_MK0001_en
7
When trouble arises
When trouble arises
7-1. Essential information
Emergency flashers .......... 360
If your vehicle has to be
stopped in an emergency 360
If the vehicle is trapped in rising
water............................... 361
7-2. Steps to take in an emer-
gency
If your vehicle needs to be
towed .............................. 363
If you think something is wrong
....................................... 366
Fuel pump shut off system 367
If a warning light turns on or a
warning buzzer sounds... 368
If a warning message is dis-
played ............................. 377
If you have a flat tire (vehicles
with an emergency tire punc-
ture repair kit) ................. 379
If you have a flat tire (vehicles
with a spare tire) ............. 389
If the engine will not start .. 397
If you lose your keys ......... 399
If the electronic key does not
operate properly (vehicles
with a smart entry & start sys-
tem) ................................ 399
If the vehicle battery is dis-
charged .......................... 401
If your vehicle overheats... 405
If the vehicle becomes stuck
....................................... 408

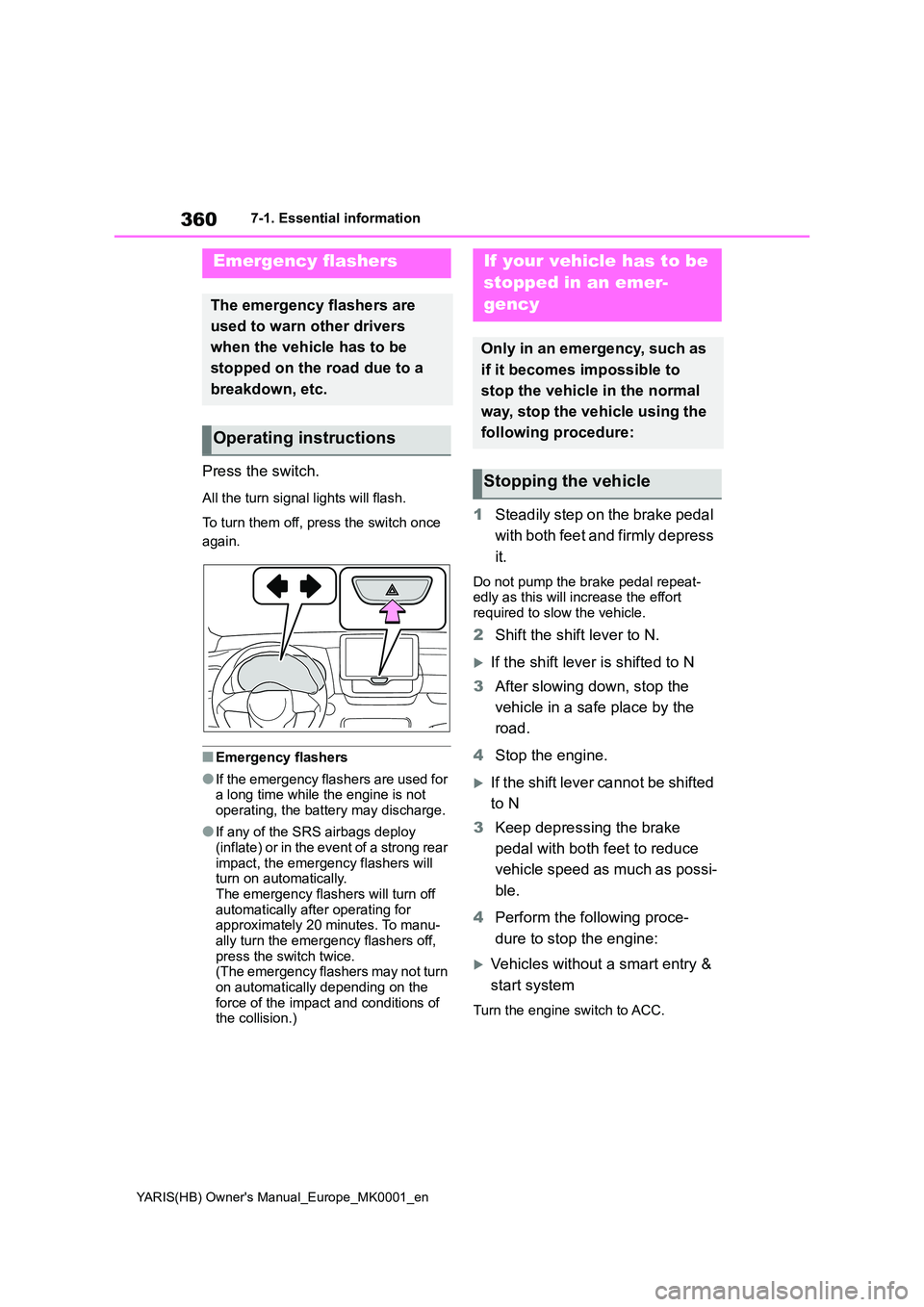

360
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-1. Essential information
7-1.Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
●If any of the SRS airbags deploy
(inflate) or in the event of a strong rear impact, the emergency flashers will turn on automatically.
The emergency flashers will turn off automatically after operating for approximately 20 minutes. To manu-
ally turn the emergency flashers off, press the switch twice.(The emergency flashers may not turn
on automatically depending on the force of the impact and conditions of the collision.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat- edly as this will increase the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the engine.
If the shift lever cannot be shifted
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 Perform the following proce-
dure to stop the engine:
Vehicles without a smart entry &
start system
Turn the engine switch to ACC.
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

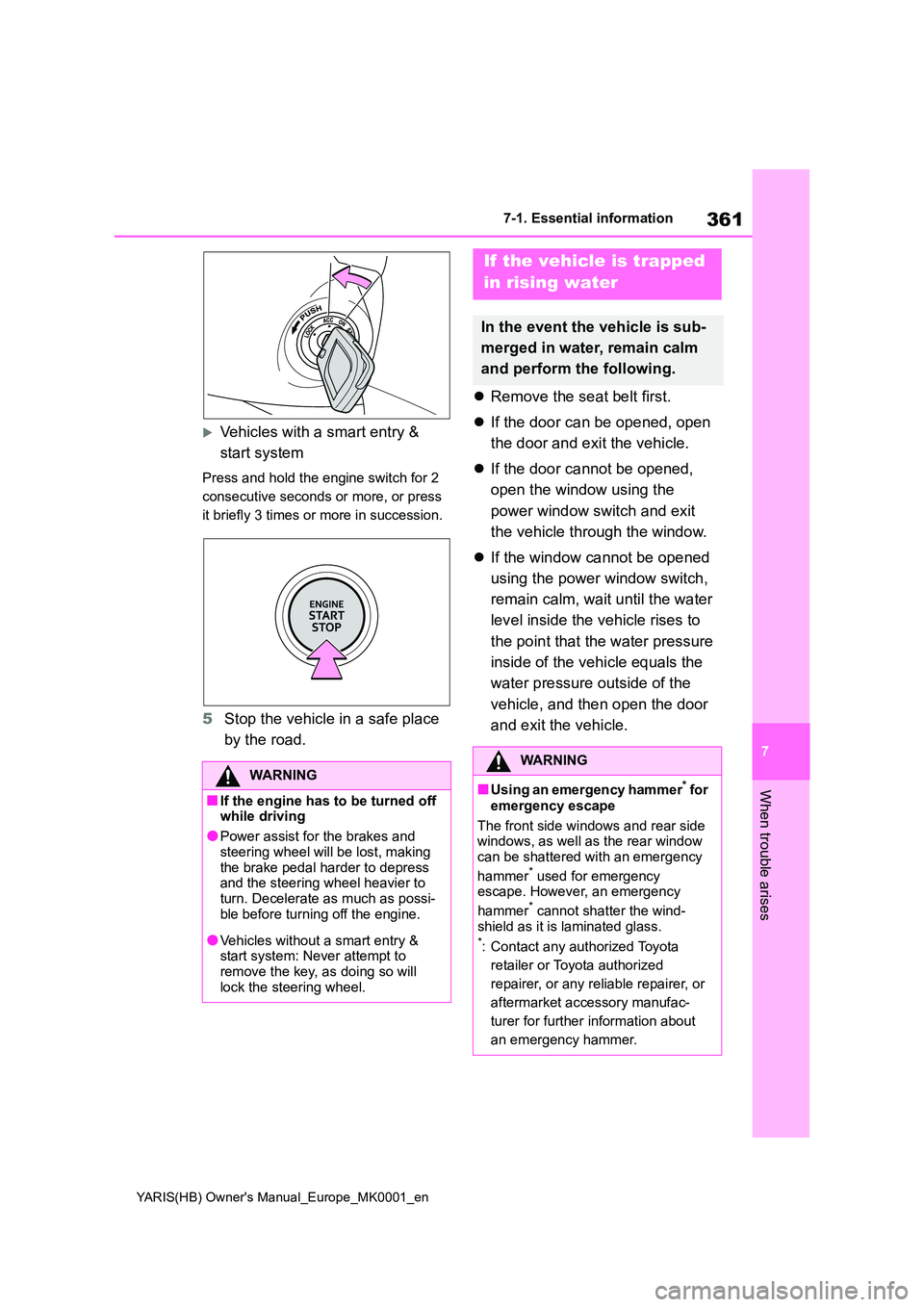

361
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-1. Essential information
When trouble arises
Vehicles with a smart entry &
start system
Press and hold the engine switch for 2
consecutive seconds or more, or press
it briefly 3 times or more in succession.
5 Stop the vehicle in a safe place
by the road.
z Remove the seat belt first.
z If the door can be opened, open
the door and exit the vehicle.
z If the door cannot be opened,
open the window using the
power window switch and exit
the vehicle through the window.
z If the window cannot be opened
using the power window switch,
remain calm, wait until the water
level inside the vehicle rises to
the point that the water pressure
inside of the vehicle equals the
water pressure outside of the
vehicle, and then open the door
and exit the vehicle.
WARNING
■If the engine has to be turned off while driving
●Power assist for the brakes and
steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to
turn. Decelerate as much as possi- ble before turning off the engine.
●Vehicles without a smart entry & start system: Never attempt to remove the key, as doing so will
lock the steering wheel.
If the vehicle is trapped
in rising water
In the event the vehicle is sub-
merged in water, remain calm
and perform the following.
WARNING
■Using an emergency hammer* for
emergency escape
The front side windows and rear side windows, as well as the rear window
can be shattered with an emergency
hammer* used for emergency escape. However, an emergency
hammer* cannot shatter the wind- shield as it is laminated glass.*: Contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer, or
aftermarket accessory manufac-
turer for further information about
an emergency hammer.

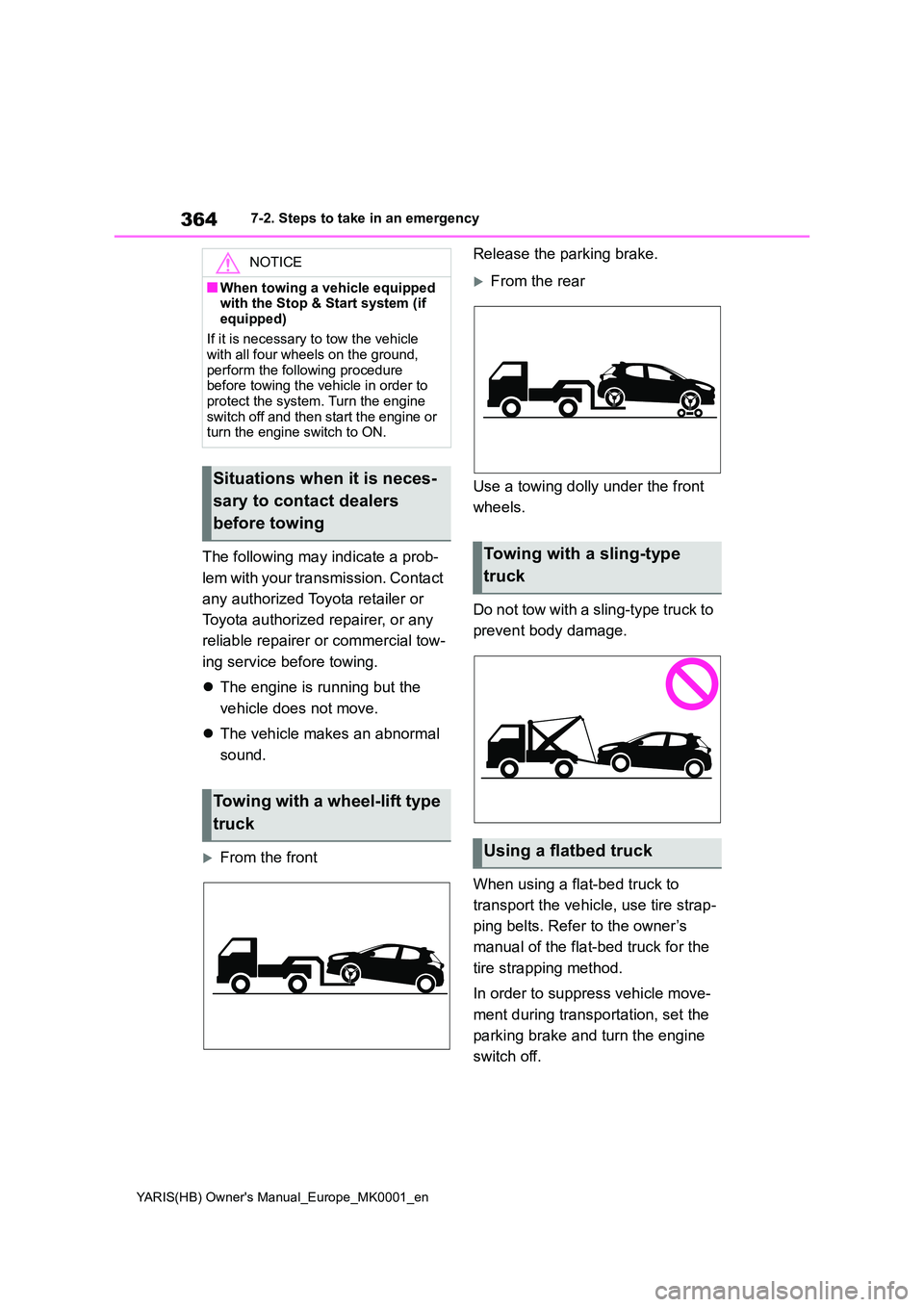

364
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
The following may indicate a prob-
lem with your transmission. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer or commercial tow-
ing service before towing.
z The engine is running but the
vehicle does not move.
z The vehicle makes an abnormal
sound.
From the front
Release the parking brake.
From the rear
Use a towing dolly under the front
wheels.
Do not tow with a sling-type truck to
prevent body damage.
When using a flat-bed truck to
transport the vehicle, use tire strap-
ping belts. Refer to the owner’s
manual of the flat-bed truck for the
tire strapping method.
In order to suppress vehicle move-
ment during transportation, set the
parking brake and turn the engine
switch off.
NOTICE
■When towing a vehicle equipped with the Stop & Start system (if
equipped)
If it is necessary to tow the vehicle with all four wheels on the ground,
perform the following procedure before towing the vehicle in order to protect the system. Turn the engine
switch off and then start the engine or turn the engine switch to ON.
Situations when it is neces-
sary to contact dealers
before towing
Towing with a wheel-lift type
truck
Towing with a sling-type
truck
Using a flatbed truck

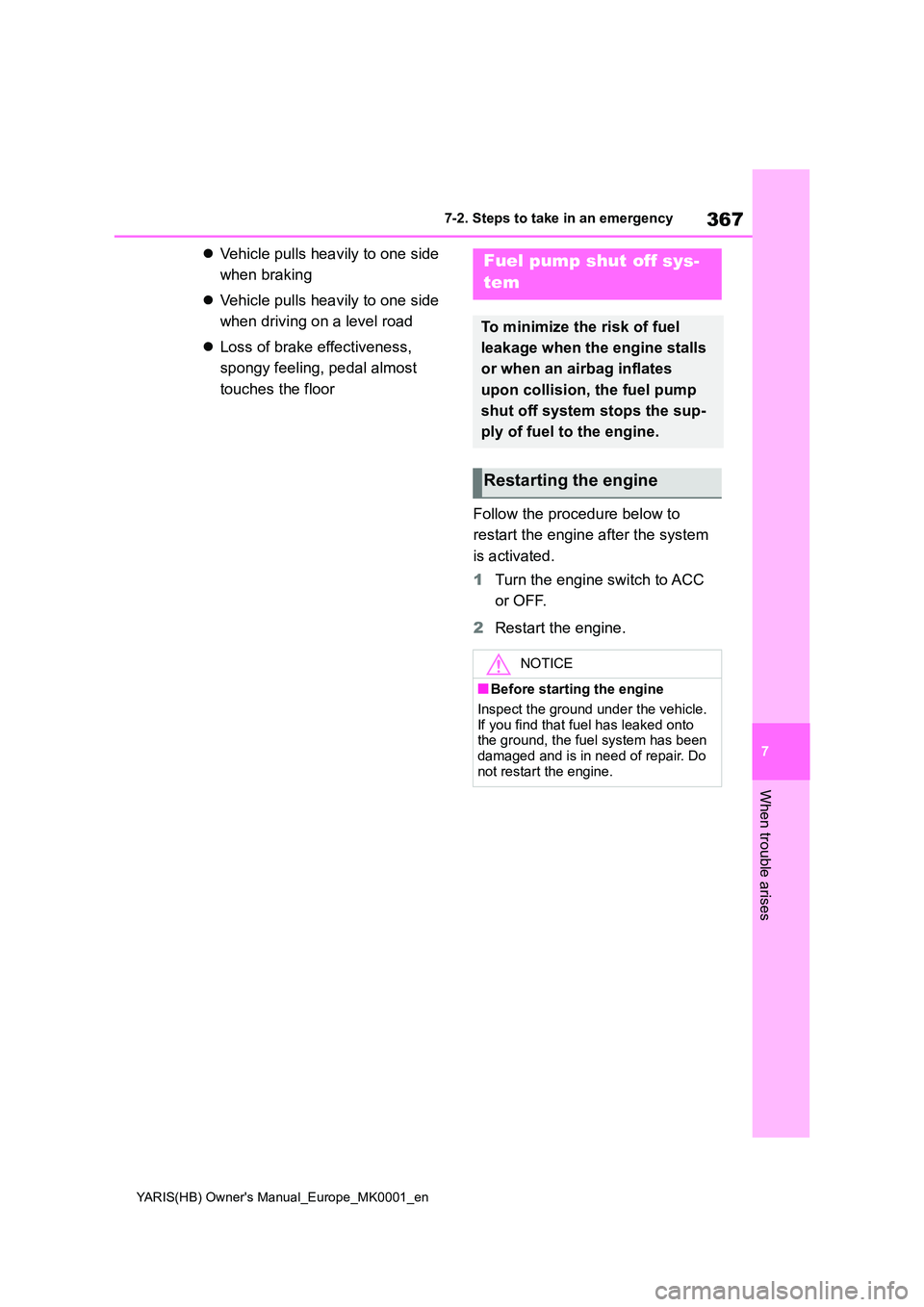

367
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
When trouble arises
zVehicle pulls heavily to one side
when braking
z Vehicle pulls heavily to one side
when driving on a level road
z Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor
Follow the procedure below to
restart the engine after the system
is activated.
1 Turn the engine switch to ACC
or OFF.
2 Restart the engine.
Fuel pump shut off sys-
tem
To minimize the risk of fuel
leakage when the engine stalls
or when an airbag inflates
upon collision, the fuel pump
shut off system stops the sup-
ply of fuel to the engine.
Restarting the engine
NOTICE
■Before starting the engine
Inspect the ground under the vehicle. If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.

372
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
■Tire pressure warning light
■LTA indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
■Stop & Start cancel indicator (warning buzzer)
Warning lightDetails/Actions
When the light comes on after blinking for approximately 1 minute
(a buzzer does not sounds):
Malfunction in the tire pressure warning system
→ Have the system checked by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
When the light comes on (a buzzer sounds):
Low tire inflation pressure from natural causes
→ Adjust the tire inflation pressure to the specified cold tire
inflation pressure level. ( →P.417)
Low tire inflation pressure from flat tire
→ Immediately stop the vehicle in a safe place.
Handling method ( →P.375)
Warning lightDetails/Actions
(Orange)
(if equipped)
Indicates a malfunction in the LTA (Lane Tracing Assist)
→ Follow the instructions displayed on the multi-information
display. ( →P.212)
Warning lightDetails/Actions
(Flashes)
(if equipped)
Indicates a malfunction in the Stop & Start system
→ Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.

377
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
When trouble arises
■Warning messages
The warning messages explained below
may differ from the actual messages according to operation conditions and vehicle specifications.
■Warning buzzer
A buzzer may sound when a message is displayed.The buzzer may not be audible if the
vehicle is in a noisy location or if the audio system volume is high.
■If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level is low. Check the
level of the engine oil, and add if neces-
sary.
This message may appear if the vehicle is stopped on a slope. Move the vehicle
to a level surface and check to see if the message disappears.
■If “Engine Stopped Steering Power Low” is displayed
This message is displayed if the engine is stopped while driving.
When steering wheel operations are
heavier than usual, grip the steering wheel firmly and operate it using more force than usual.
■If “Auto Power OFF to Conserve
Battery” is displayed
Power was cut off due to the automatic power off function. Next time when start-
ing the engine, increase the engine speed slightly and maintain that level for approximately 5 minutes to recharge the
battery.
■If “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunc-
tioning. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
●The LED headlight system (if
equipped)
●Automatic High Beam (if equipped)
■If “Front Camera Out of Tempera-
ture Range Unavailable Wait until Normal Temperature”, “Front Cam-era Low Visibility Unavailable See
Owner’s Manual” or “Front Camera Unavailable See Owner’s Manual” is displayed
The following systems may be sus- pended until the problem shown in the message is resolved. ( →P.191, 368)
●PCS (Pre-Collision system) (if equipped)
●LTA (Lane Tracing Assist) (if equipped)
●Automatic High Beam (if equipped)
If a warning message is
displayed
The multi-information display
shows warnings for system
malfunctions and incorrectly
performed operations, and
messages that indicate a need
for maintenance. When a mes-
sage is displayed, perform the
appropriate corrective action
for the message.
If a warning message is dis-
played again after the appro-
priate actions have been
performed, contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Additionally, if a warning light
comes on or flashes at the
same time that a warning mes-
sage is displayed, take the
appropriate corrective action
for the warning light. ( →P.368)

378
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control (if equipped)
■If “Pre-Collision System Unavail-
able See Owner’s Manual”, “Pre- Collision System Out of Tempera-ture Range Unavailable See
Owner’s Manual” or “Pre-Collision System Radar In Self Calibration Unavailable See Owner’s Manual”
is displayed
The following systems may be sus- pended until the problem shown in the
message is resolved. ( →P.191, 368)
●PCS (Pre-Collision system)
●LTA (Lane Tracing Assist)
●Dynamic radar cruise control
■If “Oil Maintenance Required Soon” is displayed
Indicates that the engine oil should be
scheduled to be changed.
Check the engine oil and change it if necessary.
After changing the engine oil, make sure to reset the message. ( →P.323)
■If “Oil Maintenance Required Visit Your Dealer” is displayed
Indicates that the engine oil should be changed.
Check and change the engine oil, and
oil filter by any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer. After changing the engine
oil, make sure to reset the message. ( →P.323)
■If “Radar Cruise Control Unavail- able See Owner’s Manual” is dis-
played (if equipped)
The dynamic radar cruise control sys- tem is suspended temporarily or until
the problem shown in the message is resolved. (causes and coping methods: → P.191)
■If “Radar Cruise Control Unavail-
able” is displayed (if equipped)
The dynamic radar cruise control sys-
tem cannot be used temporarily. Use the
system when it becomes available again.
■If a message that indicates the need for visiting your Toyota dealer
is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-ual is displayed
●If “Engine Coolant Temp High” is dis-played, follow the instructions accord-
ingly. ( →P.405)
●If “Transmission Oil Temp. High” is
displayed, follow the instructions accordingly. ( →P.164)
●If “Exhaust Filter Full” is displayed, fol- low the instructions accordingly. ( →P.267)
●If any of the following messages are displayed on the multi-information dis-
play, it may indicate a malfunction. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.• “Smart Entry & Start System Malfunc-
tion”
●If any of the following messages are
displayed on the multi-information dis- play, it may indicate a malfunction. Immediately stop the vehicle and con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer.
• “Braking Power Low” • “12-Volt Battery Charging System Malfunction”
•“Oil Pressure Low”

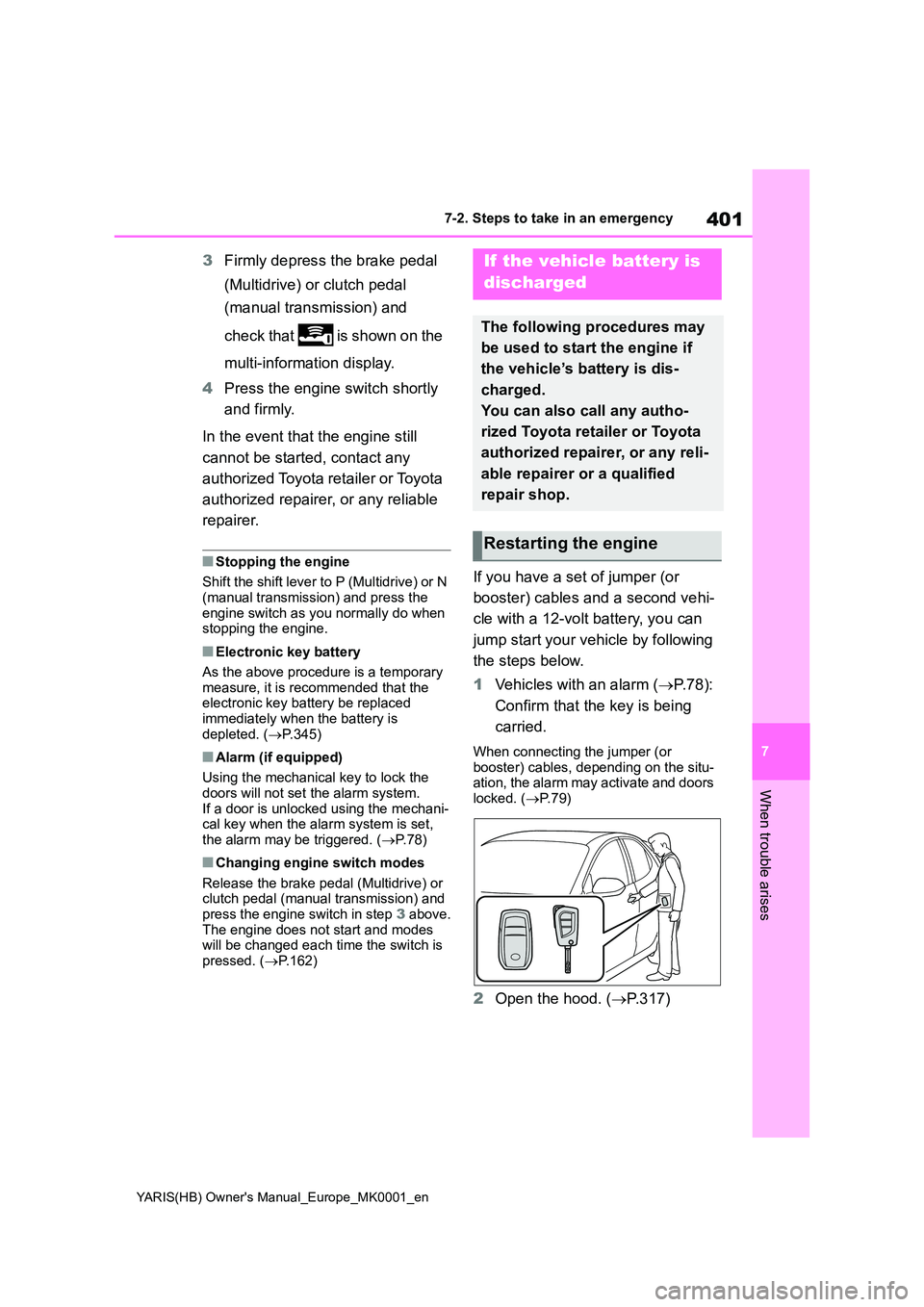

401
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
When trouble arises
3Firmly depress the brake pedal
(Multidrive) or clutch pedal
(manual transmission) and
check that is shown on the
multi-information display.
4 Press the engine switch shortly
and firmly.
In the event that the engine still
cannot be started, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Stopping the engine
Shift the shift lever to P (Multidrive) or N (manual transmission) and press the
engine switch as you normally do when stopping the engine.
■Electronic key battery
As the above procedure is a temporary
measure, it is recommended that the electronic key battery be replaced immediately when the battery is
depleted. ( →P.345)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechani- cal key when the alarm system is set, the alarm may be triggered. ( →P. 7 8 )
■Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission) and press the engine switch in step 3 above.
The engine does not start and modes will be changed each time the switch is pressed. ( →P.162)
If you have a set of jumper (or
booster) cables and a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Vehicles with an alarm (→P. 7 8 ) :
Confirm that the key is being
carried.
When connecting the jumper (or
booster) cables, depending on the situ- ation, the alarm may activate and doors locked. ( →P. 7 9 )
2Open the hood. (→P.317)
If the vehicle battery is
discharged
The following procedures may
be used to start the engine if
the vehicle’s battery is dis-
charged.
You can also call any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer or a qualified
repair shop.
Restarting the engine
