88
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If “Clock : 00” is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)
Adjusting the clock (vehi-
cles with navigation/multi-
media system)

92
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select .
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select .
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)Adjusting the clock (vehi-
cles with navigation/multi-
media system)

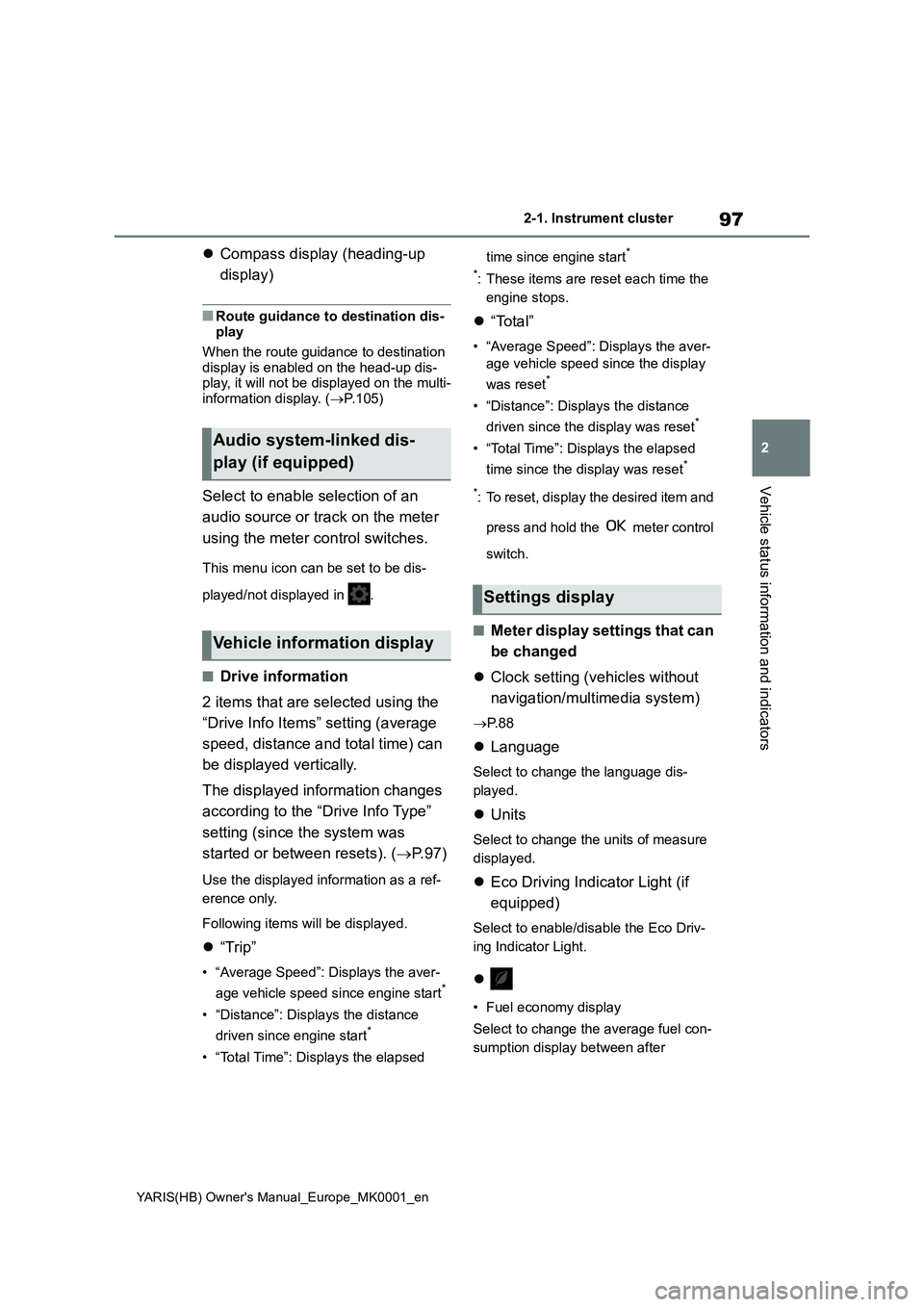

97
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
zCompass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination
display is enabled on the head-up dis-
play, it will not be displayed on the multi-
information display. (→P.105)
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Drive information
2 items that are selected using the
“Drive Info Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info Type”
setting (since the system was
started or between resets). (→P. 9 7 )
Use the displayed information as a ref-
erence only.
Following items will be displayed.
z“Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since engine start*
• “Distance”: Displays the distance
driven since engine start*
• “Total Time”: Displays the elapsed time since engine start
*
*
: These items are reset each time the
engine stops.
z“Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset
*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*
: To reset, display the desired item and
press and hold the meter control
switch.
■Meter display settings that can
be changed
zClock setting (vehicles without
navigation/multimedia system)
→P. 8 8
zLanguage
Select to change the language dis-
played.
zUnits
Select to change the units of measure
displayed.
zEco Driving Indicator Light (if
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.
z
• Fuel economy display
Select to change the average fuel con-
sumption display between after
Audio system-linked dis-
play (if equipped)
Vehicle information display
Settings display

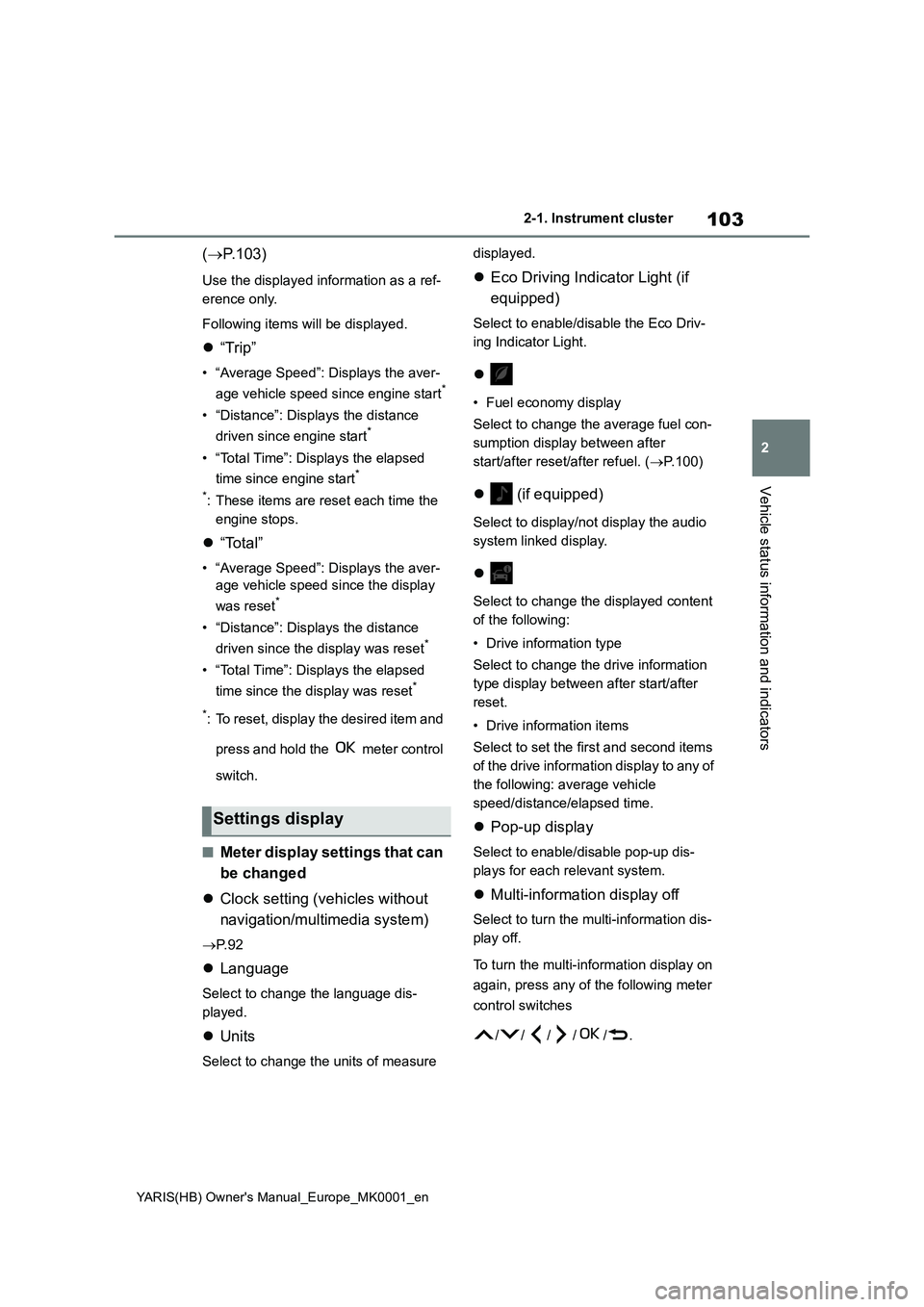

103
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
(→P.103)
Use the displayed information as a ref-
erence only.
Following items will be displayed.
z“Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since engine start*
• “Distance”: Displays the distance
driven since engine start*
• “Total Time”: Displays the elapsed
time since engine start*
*
: These items are reset each time the
engine stops.
z“Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset
*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*
: To reset, display the desired item and
press and hold the meter control
switch.
■Meter display settings that can
be changed
zClock setting (vehicles without
navigation/multimedia system)
→P. 9 2
zLanguage
Select to change the language dis-
played.
zUnits
Select to change the units of measure displayed.
zEco Driving Indicator Light (if
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.
z
• Fuel economy display
Select to change the average fuel con-
sumption display between after
start/after reset/after refuel. (→P.100)
z (if equipped)
Select to display/not display the audio
system linked display.
z
Select to change the displayed content
of the following:
• Drive information type
Select to change the drive information
type display between after start/after
reset.
• Drive information items
Select to set the first and second items
of the drive information display to any of
the following: average vehicle
speed/distance/elapsed time.
zPop-up display
Select to enable/disable pop-up dis-
plays for each relevant system.
zMulti-information display off
Select to turn the multi-information dis-
play off.
To turn the multi-information display on
again, press any of the following meter
control switches
//// /.
Settings display

279

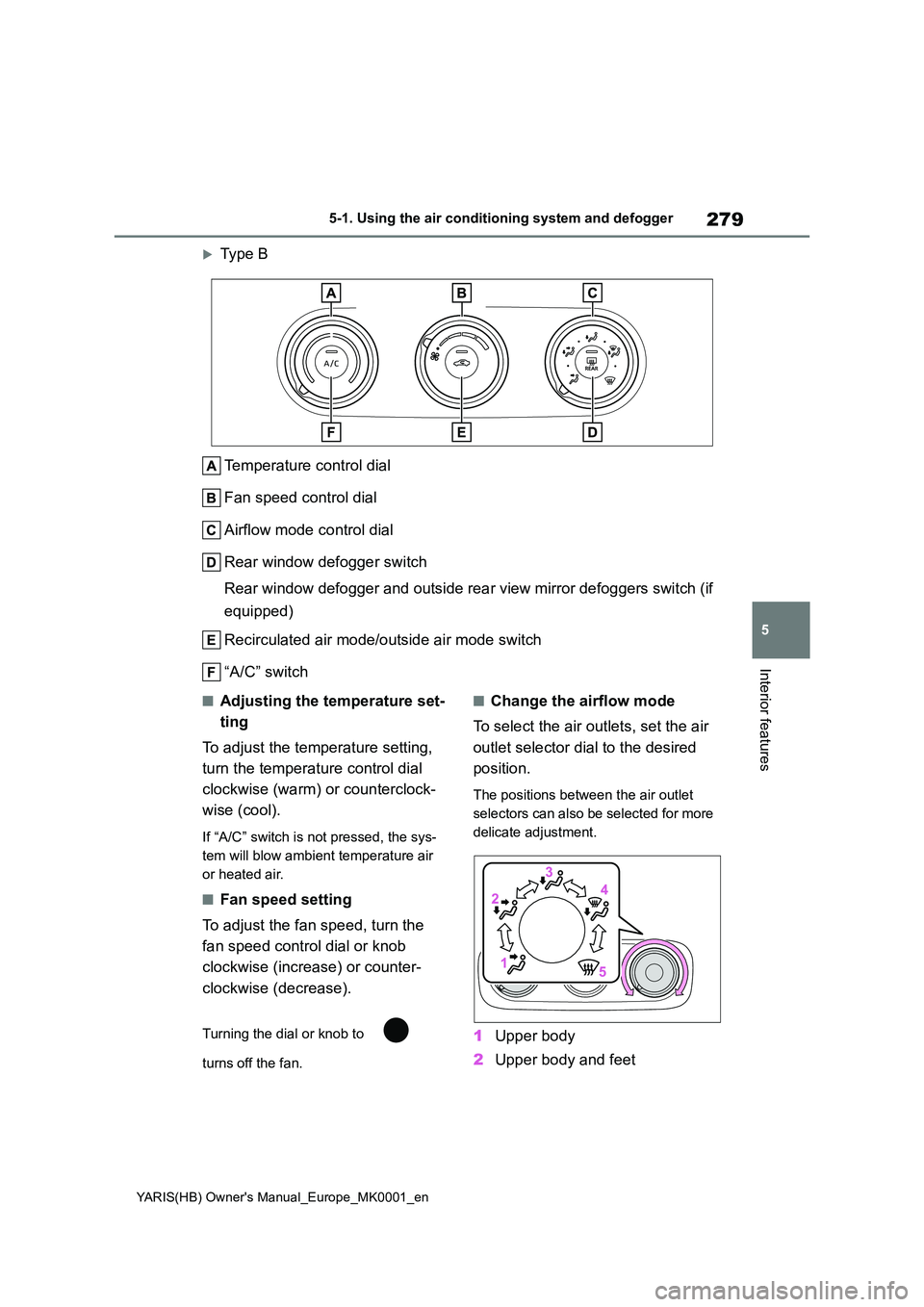

5
YARIS(HB) Owner's Manual_Europe_MK0001_en
5-1. Using the air conditioning system and defogger
Interior features
Type B
Temperature control dial
Fan speed control dial
Airflow mode control dial
Rear window defogger switch
Rear window defogger and outside rear view mirror defoggers switch (if
equipped)
Recirculated air mode/outside air mode switch
“A/C” switch
■Adjusting the temperature set-
ting
To adjust the temperature setting,
turn the temperature control dial
clockwise (warm) or counterclock-
wise (cool).
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.
■Fan speed setting
To adjust the fan speed, turn the
fan speed control dial or knob
clockwise (increase) or counter-
clockwise (decrease).
Turning the dial or knob to
turns off the fan.
■Change the airflow mode
To select the air outlets, set the air
outlet selector dial to the desired
position.
The positions between the air outlet
selectors can also be selected for more
delicate adjustment.
1 Upper body
2 Upper body and feet

284

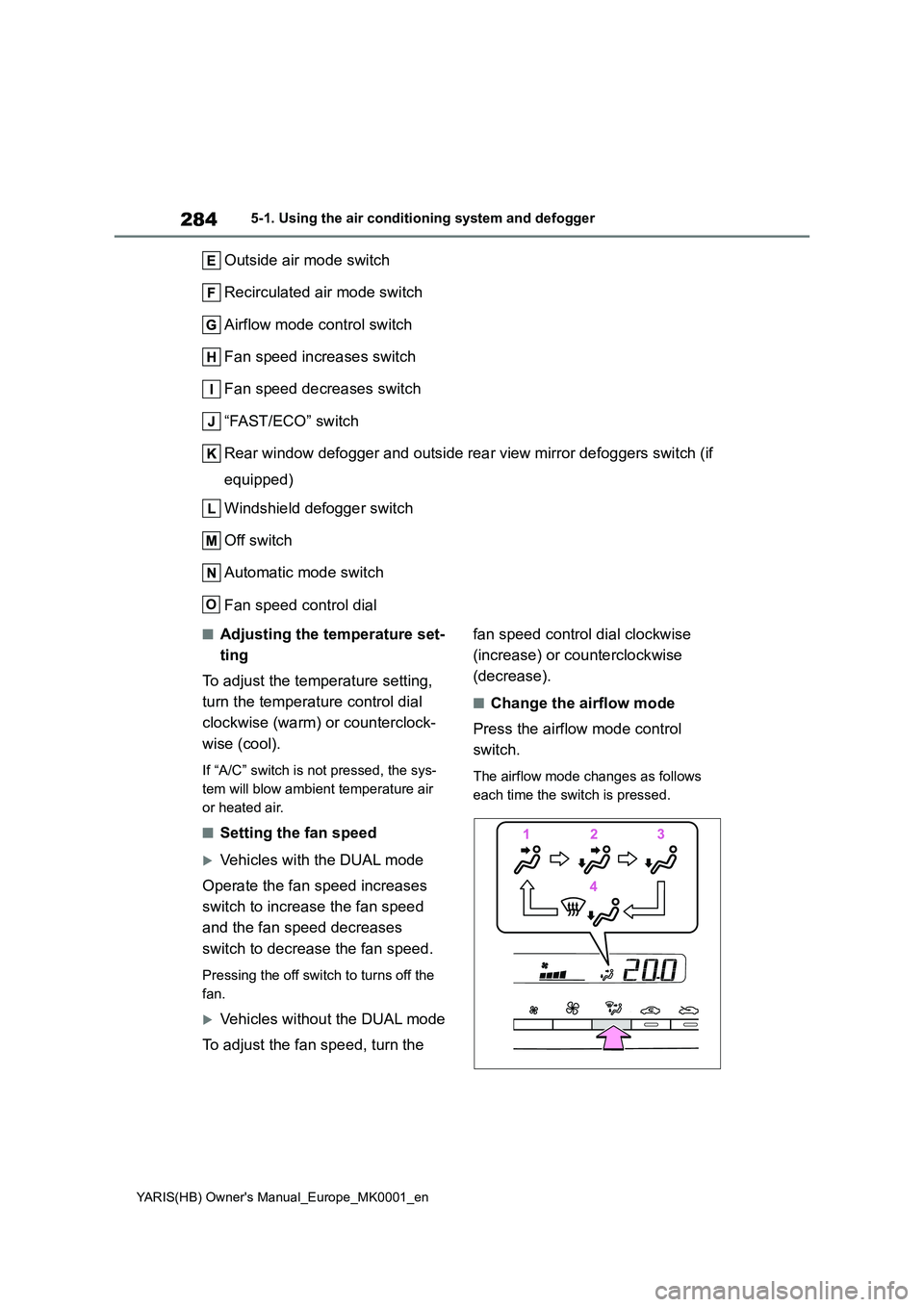

YARIS(HB) Owner's Manual_Europe_MK0001_en
5-1. Using the air conditioning system and defogger
Outside air mode switch
Recirculated air mode switch
Airflow mode control switch
Fan speed increases switch
Fan speed decreases switch
“FAST/ECO” switch
Rear window defogger and outside rear view mirror defoggers switch (if
equipped)
Windshield defogger switch
Off switch
Automatic mode switch
Fan speed control dial
■Adjusting the temperature set-
ting
To adjust the temperature setting,
turn the temperature control dial
clockwise (warm) or counterclock-
wise (cool).
If “A/C” switch is not pressed, the sys-
tem will blow ambient temperature air
or heated air.
■Setting the fan speed
Vehicles with the DUAL mode
Operate the fan speed increases
switch to increase the fan speed
and the fan speed decreases
switch to decrease the fan speed.
Pressing the off switch to turns off the
fan.
Vehicles without the DUAL mode
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise
(decrease).
■Change the airflow mode
Press the airflow mode control
switch.
The airflow mode changes as follows
each time the switch is pressed.
O

323
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
3Install the oil filler cap by turning
it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be refilled in between oil maintenance inter-
vals.
●When the engine is new, for example
directly after purchasing the vehicle or after replacing the engine
●If low quality oil or oil of an inappropri-ate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing (vehicles with towing packages), or
when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through heavy traffic
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following proce-dures:
1 Press / (vertical display) or
/ (horizontal display) of the
meter control switch to select .
2 Press / (vertical display) or
/ (horizontal display) to
select “Vehicle Settings” and then
press and hold .
3 Press / to select “Oil Mainte-
nance” and then press .
4 Press / to select “Yes” and
then press .
A message will be displayed on the
multi-information display when the reset procedure has been completed.
WARNING
■Used engine oil
●Used engine oil contains poten-tially harmful contaminants which may cause skin disorders such as
inflammation and skin cancer, so care should be taken to avoid pro-longed and repeated contact. To
remove used engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner.
Do not dispose of used oil and fil- ters in household trash, in sewers or onto the ground.
Call any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer, service station
or auto parts store for information concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine dam-age
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

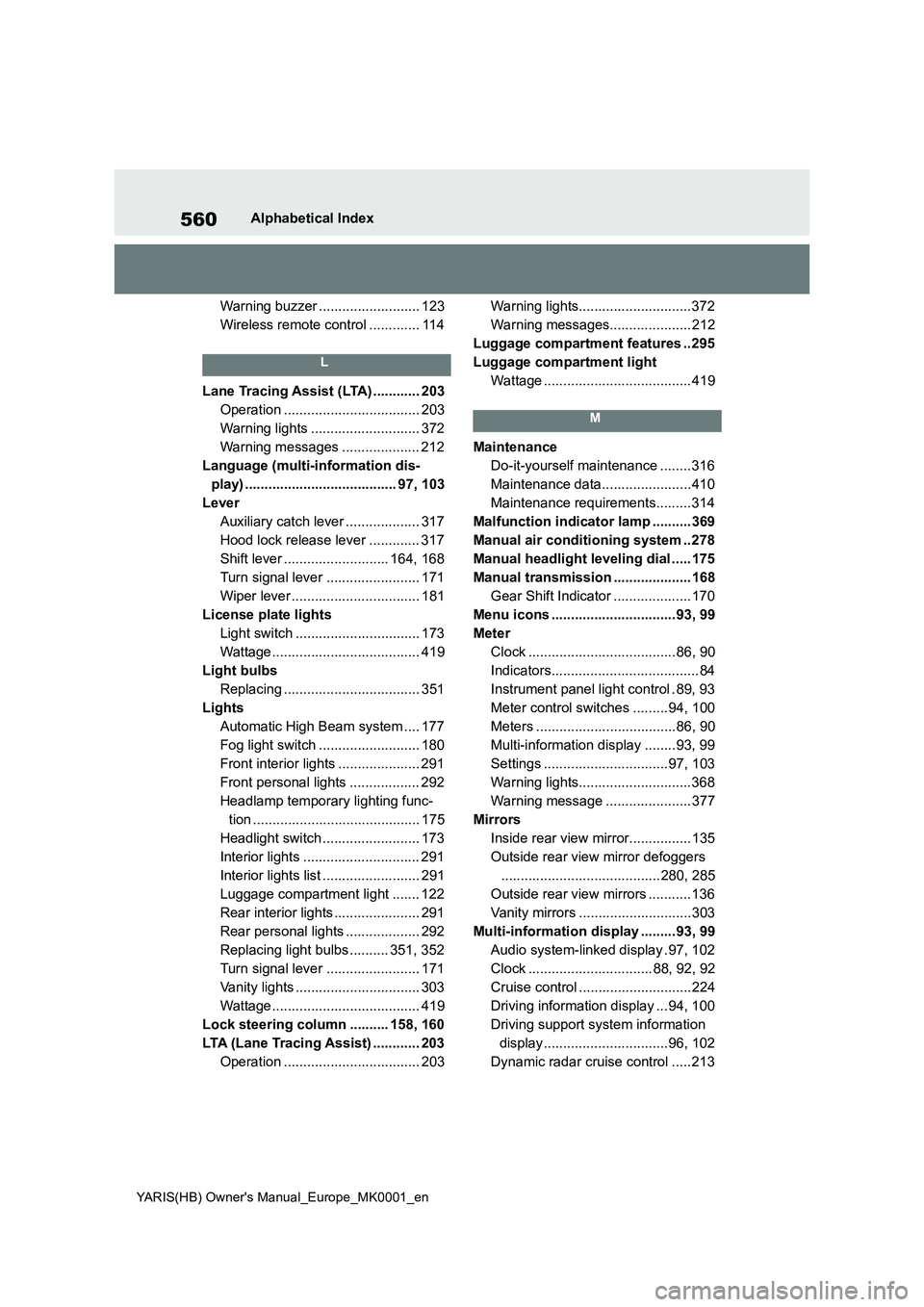

560
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Warning buzzer .......................... 123
Wireless remote control ............. 114
L
Lane Tracing Assist (LTA) ............ 203
Operation ................................... 203
Warning lights ............................ 372
Warning messages .................... 212
Language (multi-information dis-
play) ....................................... 97, 103
Lever
Auxiliary catch lever ................... 317
Hood lock release lever ............. 317
Shift lever ........................... 164, 168
Turn signal lever ........................ 171
Wiper lever ................................. 181
License plate lights
Light switch ................................ 173
Wattage ...................................... 419
Light bulbs
Replacing ................................... 351
Lights
Automatic High Beam system .... 177
Fog light switch .......................... 180
Front interior lights ..................... 291
Front personal lights .................. 292
Headlamp temporary lighting func-
tion ........................................... 175
Headlight switch ......................... 173
Interior lights .............................. 291
Interior lights list ......................... 291
Luggage compartment light ....... 122
Rear interior lights ...................... 291
Rear personal lights ................... 292
Replacing light bulbs .......... 351, 352
Turn signal lever ........................ 171
Vanity lights ................................ 303
Wattage ...................................... 419
Lock steering column .......... 158, 160
LTA (Lane Tracing Assist) ............ 203
Operation ................................... 203Warning lights.............................372
Warning messages..................... 212
Luggage compartment features .. 295
Luggage compartment light
Wattage ...................................... 419
M
Maintenance
Do-it-yourself maintenance ........ 316
Maintenance data.......................410
Maintenance requirements......... 314
Malfunction indicator lamp .......... 369
Manual air conditioning system .. 278
Manual headlight leveling dial ..... 175
Manual transmission .................... 168
Gear Shift Indicator .................... 170
Menu icons ................................ 93, 99
Meter
Clock ...................................... 86, 90
Indicators...................................... 84
Instrument panel light control . 89, 93
Meter control switches .........94, 100
Meters ....................................86, 90
Multi-information display ........93, 99
Settings ................................97, 103
Warning lights.............................368
Warning message ...................... 377
Mirrors
Inside rear view mirror................ 135
Outside rear view mirror defoggers
......................................... 280, 285
Outside rear view mirrors ........... 136
Vanity mirrors .............................303
Multi-information display ......... 93, 99
Audio system-linked display .97, 102
Clock ................................ 88, 92, 92
Cruise control .............................224
Driving information display ...94, 100
Driving support system information
display ................................96, 102
Dynamic radar cruise control ..... 213
