Page 321 of 568

321
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
Washer fluid tank (→P.329)
Fuse boxes (→P.348)
Engine oil filler cap (→P.322)
Engine oil level dipstick (→P.321)
Battery (→P.325)
Engine coolant reservoir (→P. 3 2 4 )
Radiator (→P.324)
Condenser (→P.324)
Electric cooling fan
With the engine at operating tem-
perature and turned off, check the
oil level on the dipstick.
■Checking the engine oil
1Park the vehicle on level
ground. After warming up the
engine and turning it off, wait
more than 5 minutes for the oil
to drain back into the bottom of
the engine.
2Holding a rag under the end,
pull the dipstick out.
1KR-FE engine
M15A-FKS engine
3Wipe the dipstick clean.
4Reinsert the dipstick fully.
Checking and adding the
engine oil
Page 348 of 568

348
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
1Turn the engine switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box
Push the tabs in and lift the lid off.
Engine compartment: type B
fuse box
Push the tabs in and lift the lid off.
NOTICE
■When replacing the battery
Use a flathead screwdriver of appro-
priate size. Applying excessive force may deform or damage the cover.
■For normal operation after replacing the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote con-trol.
●Do not bend either of the battery terminals.
■When removing the battery cover (vehicles without a smart entry &
start system)
Do not forcibly remove the battery cover, otherwise it may be damaged.
If the battery cover is difficult to remove, lift the edge to remove it.
Checking and replacing
fuses
If any of the electrical compo-
nents do not operate, a fuse
may have blown. If this hap-
pens, check and replace the
fuses as necessary.
Checking and replacing
fuses
Page 349 of 568

349
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care

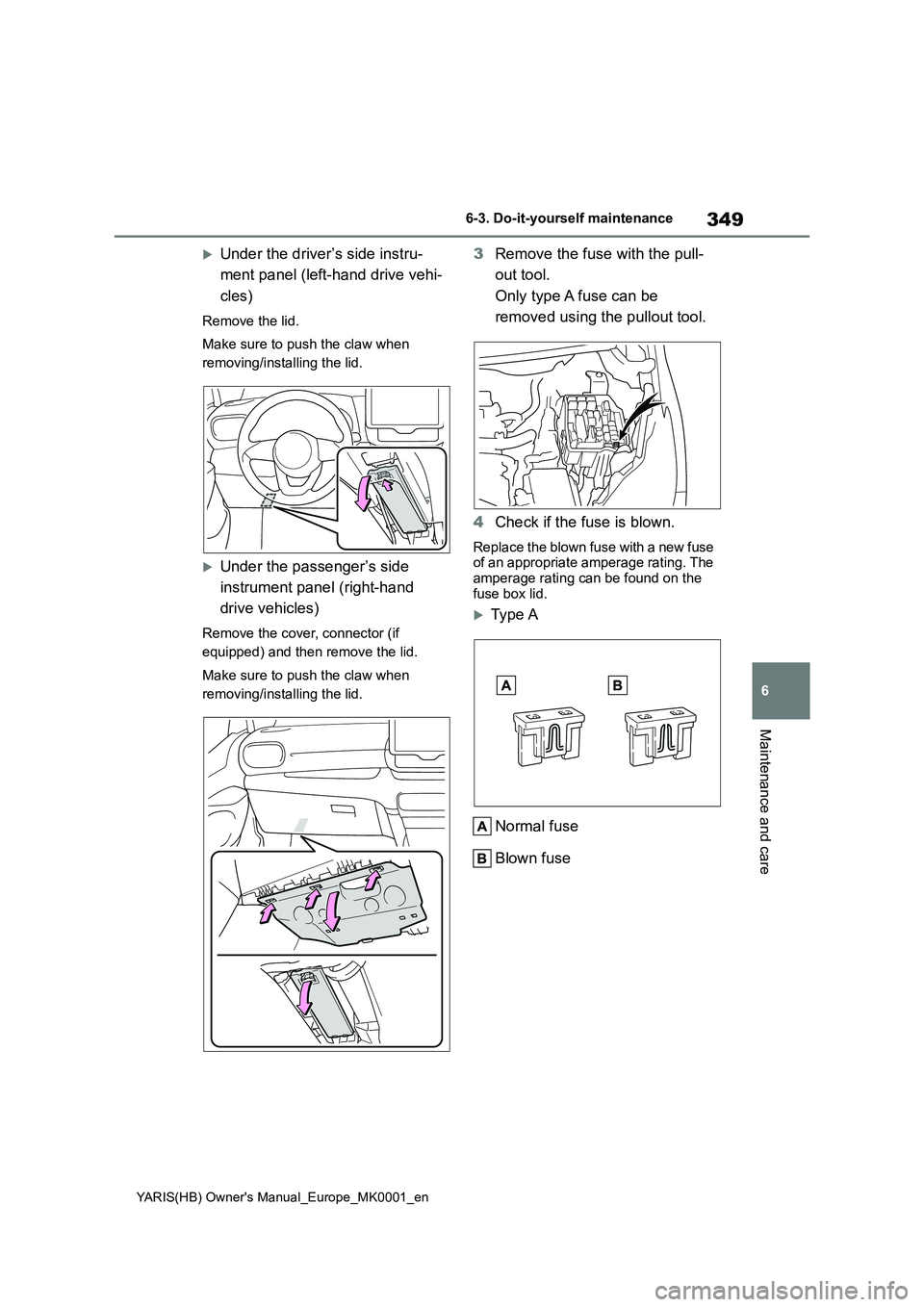

Under the driver’s side instru-
ment panel (left-hand drive vehi-
cles)
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Under the passenger’s side
instrument panel (right-hand
drive vehicles)
Remove the cover, connector (if
equipped) and then remove the lid.
Make sure to push the claw when
removing/installing the lid.
3 Remove the fuse with the pull-
out tool.
Only type A fuse can be
removed using the pullout tool.
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Typ e A
Normal fuse
Blown fuse
Page 351 of 568

351
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. ( →P.419)
Front
Front position lights (bulb type)
Front turn signal lights (bulb
type)
Front fog lights (bulb type)
Headlights (bulb type)
WARNING
●Never use a fuse of a higher amperage rating than that indi-
cated, or use any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.Never replace a fuse with a wire,
even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
■When installing the fuse box
cover (Engine compartment: type A and type B fuse boxes)
Press the fuse box cover, when
installing, after aligning all of the claw positions. Otherwise, the claws may
be damaged.
Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Bulb locations
Page 558 of 568

558
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Warning light .............................. 369
Engine oil maintenance data ....... 323
Engine switch ....................... 158, 159
Auto power off function .............. 162
Changing the engine switch modes
......................................... 158, 162
If your vehicle has to be stopped in
an emergency .......................... 360
EPS (Electric Power Steering) ..... 269
Warning light .............................. 370
F
Flat tire
Tire pressure warning system .... 332
Vehicles with a spare tire ........... 389
Vehicles without a spare tire ...... 379
Floor mats ....................................... 30
Fluid
Brake.......................................... 417
Clutch ......................................... 417
Multidrive.................................... 416
Washer ....................................... 329
Fog lights
Replacing light bulbs .......... 351, 352
Switch ........................................ 180
Wattage ...................................... 419
Front fog lights
Replacing light bulbs .......... 351, 352
Switch ........................................ 180
Wattage ...................................... 419
Front position lights
Replacing light bulbs .......... 351, 352
Wattage ...................................... 419
Front seat center airbags............... 36
Front seats .................................... 128
Adjustment ................................. 128
Cleaning ..................................... 311
Correct driving posture................. 31
Head restraints........................... 130
Seat heaters............................... 289
Front turn signal lights ................ 171Replacing light bulbs ..........351, 352
Turn signal lever ......................... 171
Wattage ...................................... 419
Fuel ................................................ 186
Capacity ..................................... 413
Fuel gauge ............................. 86, 90
Fuel pump shut off system ......... 367
Information ................................. 420
Refueling .................................... 186
Type ........................................... 413
Warning light .............................. 371
Fuel consumption
Average fuel economy .........95, 100
Current fuel consumption .....95, 100
Fuel economy..........................95, 100
Fuel filler door ............................... 186
Refueling .................................... 186
Fuel gauge ................................. 86, 90
Fuel pump shut off system .......... 367
Fuses ............................................. 348
G
Gauges....................................... 86, 90
Gear Shift Indicator ...................... 170
Glove box ...................................... 293
GPF (Gasoline Particulate Filter)
system ......................................... 267
Grocery bag hooks .......................295
H
Head restraints.............................. 130
Head-up display ............................ 105
Driving information display area .105
Driving support system display area
................................................. 107
Eco Driving Indicator ..................108
Navigation system-linked display
area .......................................... 107
Pop-up display ........................... 107
Settings ...................................... 106
