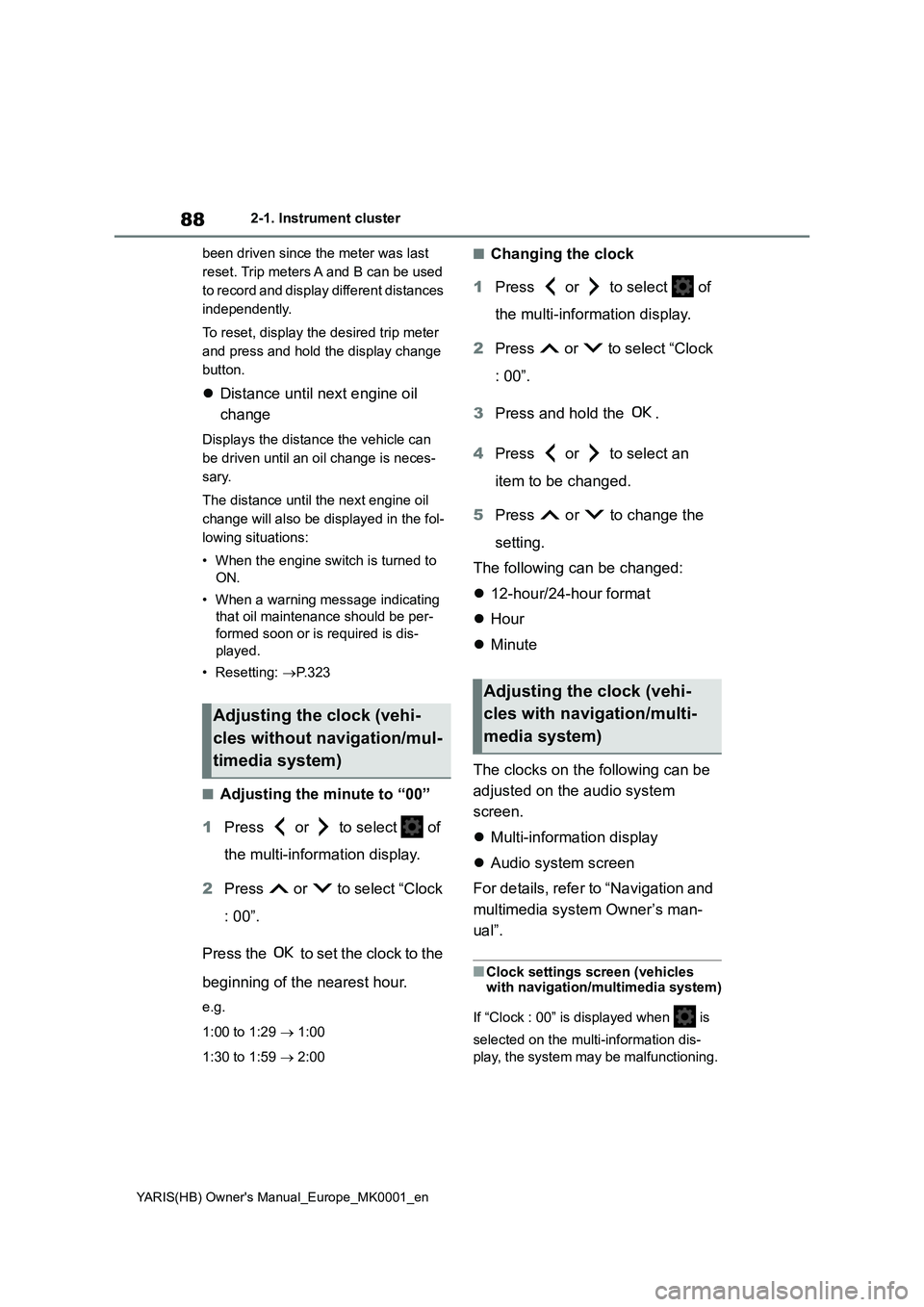

88
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If “Clock : 00” is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)
Adjusting the clock (vehi-
cles with navigation/multi-
media system)

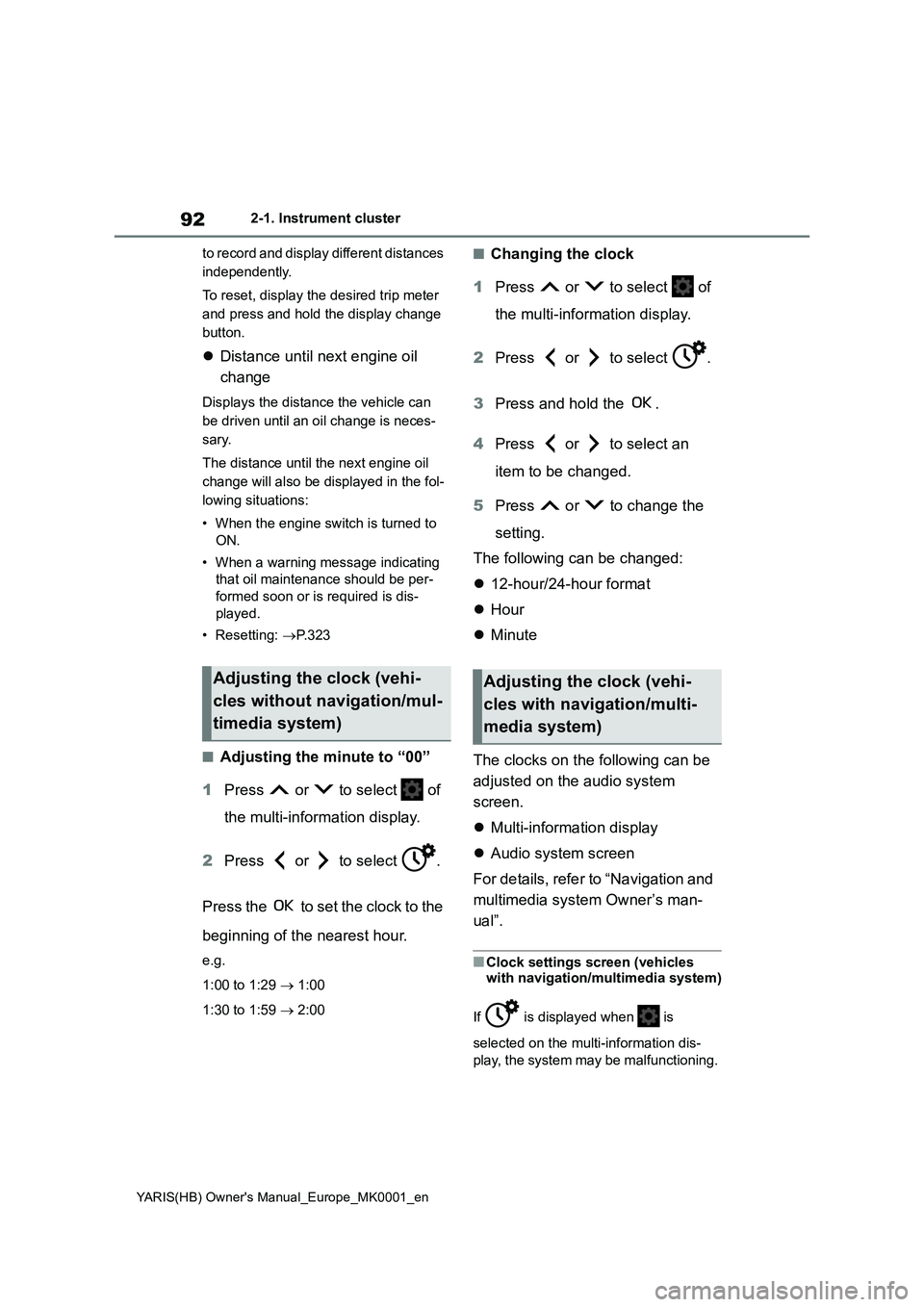

92
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select .
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select .
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)Adjusting the clock (vehi-
cles with navigation/multi-
media system)

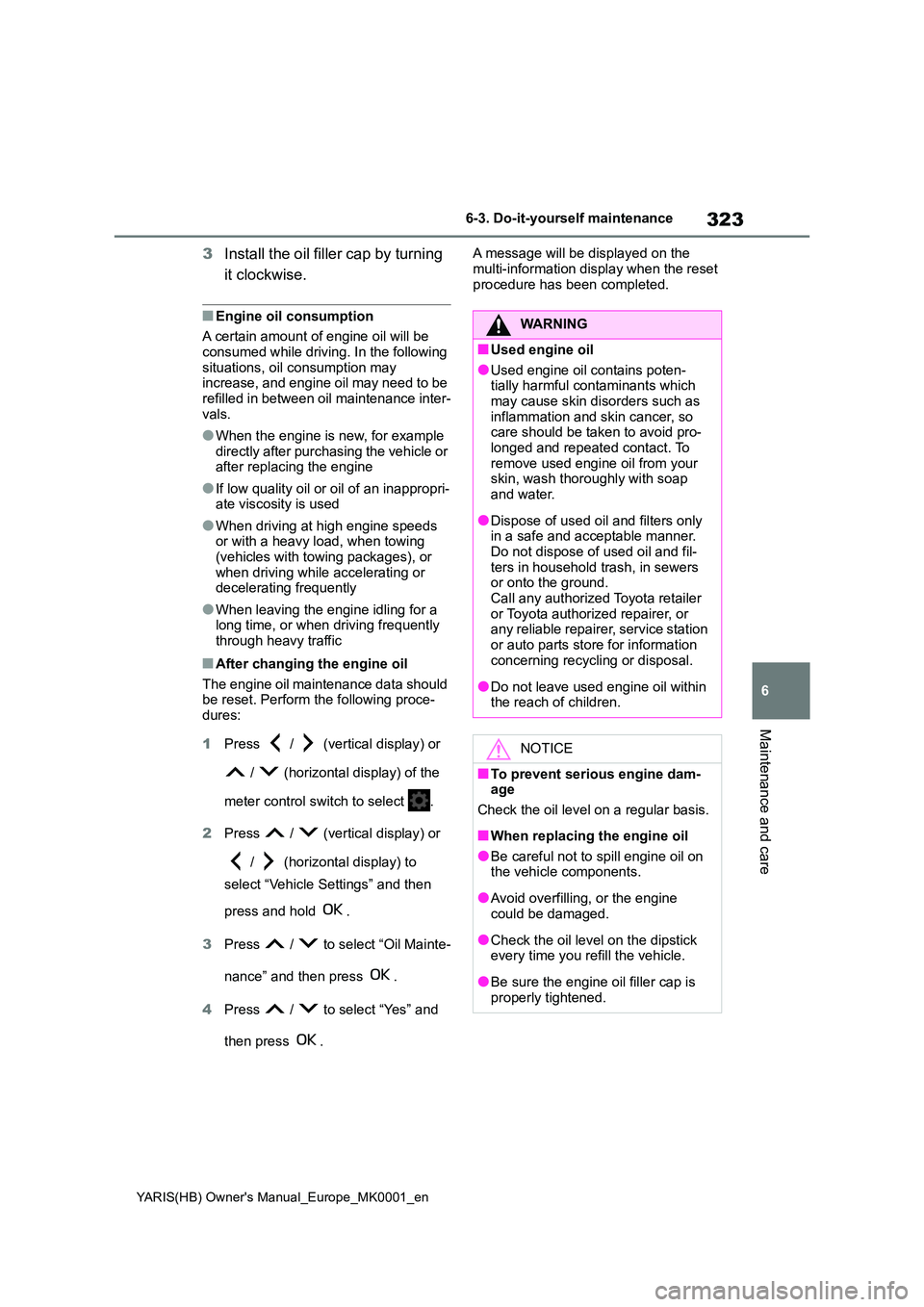

323
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
3Install the oil filler cap by turning
it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be refilled in between oil maintenance inter-
vals.
●When the engine is new, for example
directly after purchasing the vehicle or after replacing the engine
●If low quality oil or oil of an inappropri-ate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing (vehicles with towing packages), or
when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through heavy traffic
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following proce-dures:
1 Press / (vertical display) or
/ (horizontal display) of the
meter control switch to select .
2 Press / (vertical display) or
/ (horizontal display) to
select “Vehicle Settings” and then
press and hold .
3 Press / to select “Oil Mainte-
nance” and then press .
4 Press / to select “Yes” and
then press .
A message will be displayed on the
multi-information display when the reset procedure has been completed.
WARNING
■Used engine oil
●Used engine oil contains poten-tially harmful contaminants which may cause skin disorders such as
inflammation and skin cancer, so care should be taken to avoid pro-longed and repeated contact. To
remove used engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner.
Do not dispose of used oil and fil- ters in household trash, in sewers or onto the ground.
Call any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer, service station
or auto parts store for information concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine dam-age
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

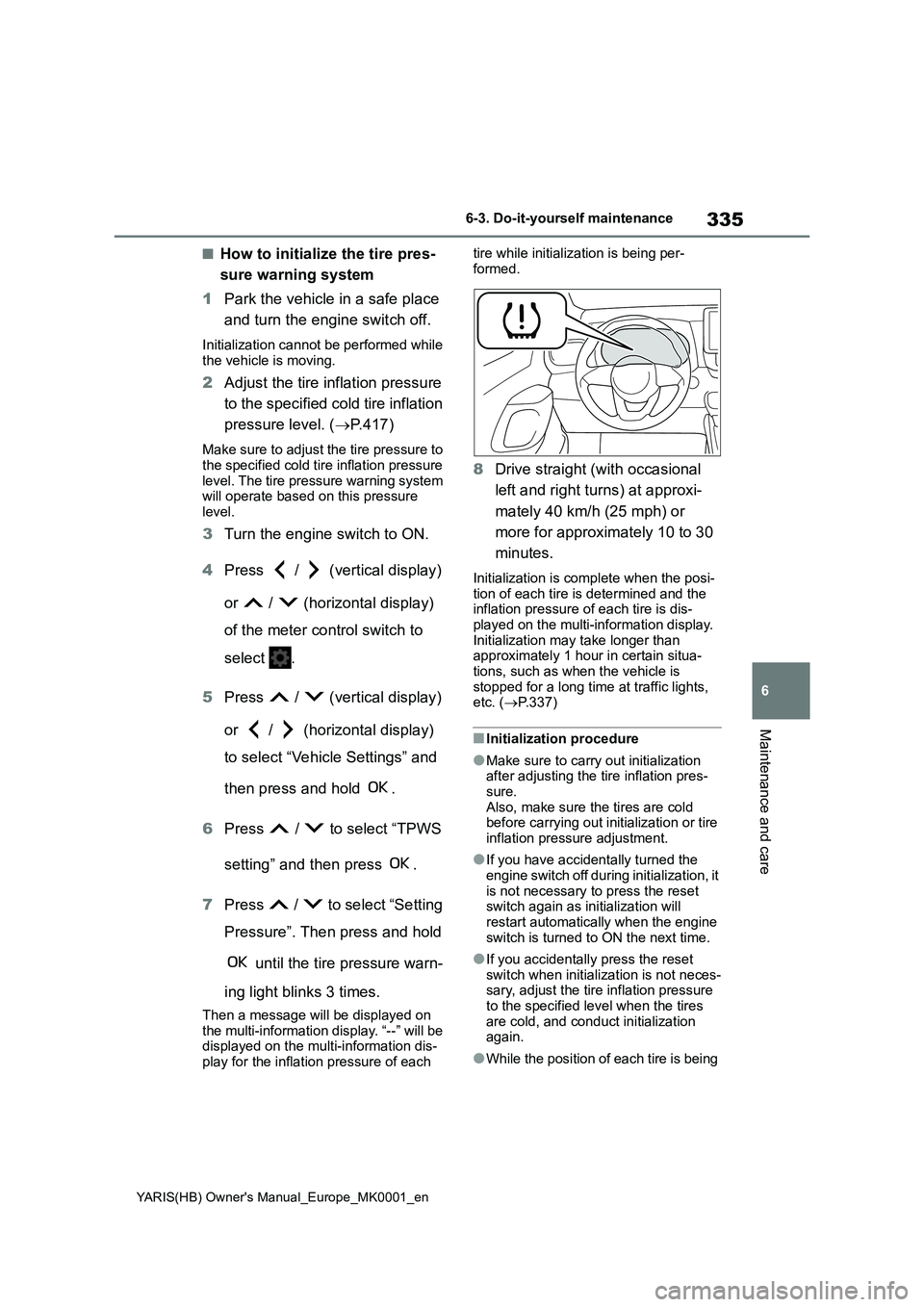

335
6
YARIS(HB) Owner's Manual_Europe_MK0001_en
6-3. Do-it-yourself maintenance
Maintenance and care
■How to initialize the tire pres-
sure warning system
1Park the vehicle in a safe place
and turn the engine switch off.
Initialization cannot be performed while
the vehicle is moving.
2Adjust the tire inflation pressure
to the specified cold tire inflation
pressure level. (→P.417)
Make sure to adjust the tire pressure to
the specified cold tire inflation pressure
level. The tire pressure warning system
will operate based on this pressure
level.
3Turn the engine switch to ON.
4Press / (vertical display)
or / (horizontal display)
of the meter control switch to
select .
5Press / (vertical display)
or / (horizontal display)
to select “Vehicle Settings” and
then press and hold .
6Press / to select “TPWS
setting” and then press .
7Press / to select “Setting
Pressure”. Then press and hold
until the tire pressure warn-
ing light blinks 3 times.
Then a message will be displayed on
the multi-information display. “--” will be
displayed on the multi-information dis-
play for the inflation pressure of each tire while initialization is being per-
formed.
8Drive straight (with occasional
left and right turns) at approxi-
mately 40 km/h (25 mph) or
more for approximately 10 to 30
minutes.
Initialization is complete when the posi-
tion of each tire is determined and the
inflation pressure of each tire is dis-
played on the multi-information display.
Initialization may take longer than
approximately 1 hour in certain situa-
tions, such as when the vehicle is
stopped for a long time at traffic lights,
etc. (→P.337)
■Initialization procedure
●Make sure to carry out initialization
after adjusting the tire inflation pres-
sure.
Also, make sure the tires are cold
before carrying out initialization or tire
inflation pressure adjustment.
●If you have accidentally turned the
engine switch off during initialization, it
is not necessary to press the reset
switch again as initialization will
restart automatically when the engine
switch is turned to ON the next time.
●If you accidentally press the reset
switch when initialization is not neces-
sary, adjust the tire inflation pressure
to the specified level when the tires
are cold, and conduct initialization
again.
●While the position of each tire is being

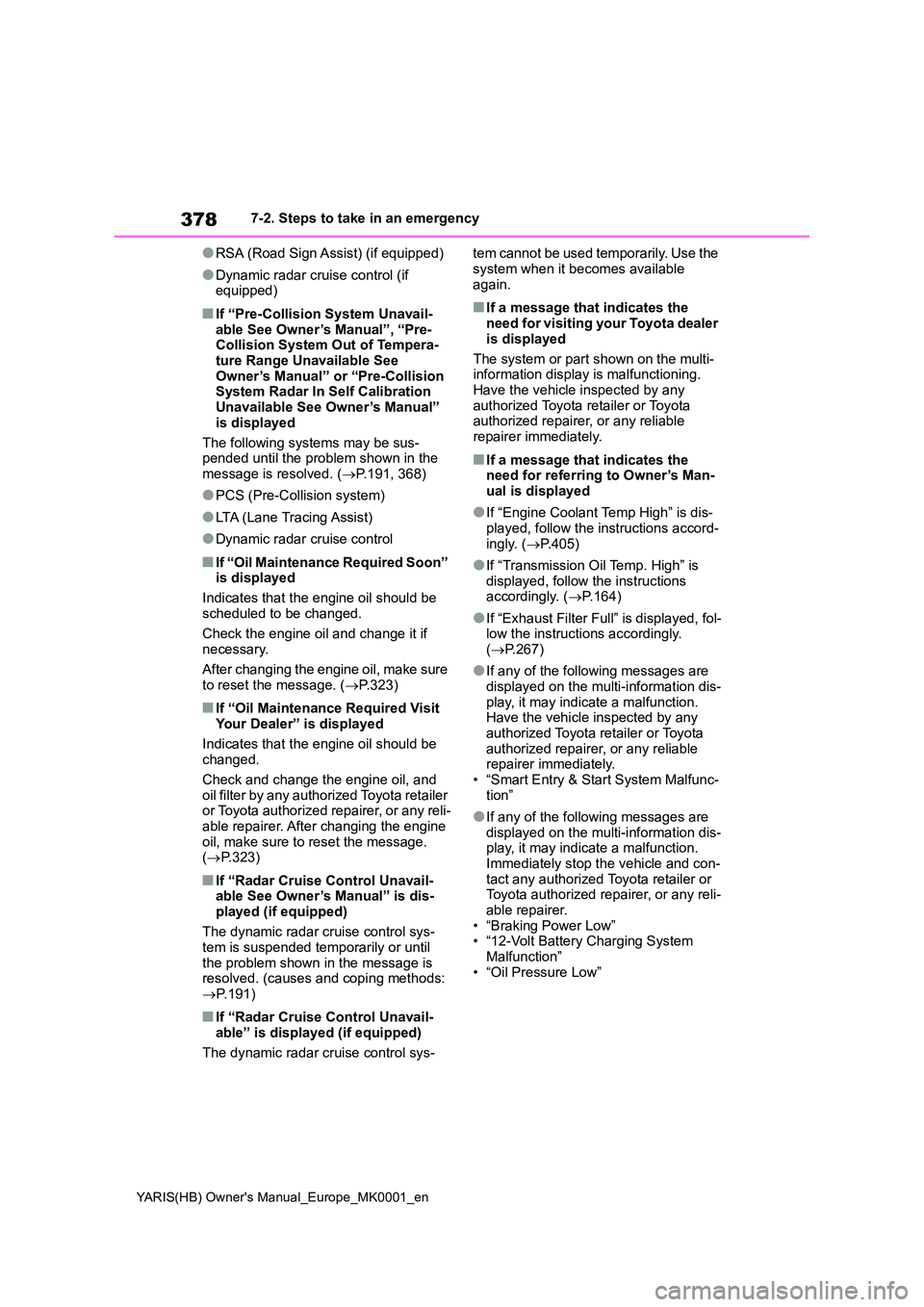

378
YARIS(HB) Owner's Manual_Europe_MK0001_en
7-2. Steps to take in an emergency
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control (if equipped)
■If “Pre-Collision System Unavail-
able See Owner’s Manual”, “Pre- Collision System Out of Tempera-ture Range Unavailable See
Owner’s Manual” or “Pre-Collision System Radar In Self Calibration Unavailable See Owner’s Manual”
is displayed
The following systems may be sus- pended until the problem shown in the
message is resolved. ( →P.191, 368)
●PCS (Pre-Collision system)
●LTA (Lane Tracing Assist)
●Dynamic radar cruise control
■If “Oil Maintenance Required Soon” is displayed
Indicates that the engine oil should be
scheduled to be changed.
Check the engine oil and change it if necessary.
After changing the engine oil, make sure to reset the message. ( →P.323)
■If “Oil Maintenance Required Visit Your Dealer” is displayed
Indicates that the engine oil should be changed.
Check and change the engine oil, and
oil filter by any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer. After changing the engine
oil, make sure to reset the message. ( →P.323)
■If “Radar Cruise Control Unavail- able See Owner’s Manual” is dis-
played (if equipped)
The dynamic radar cruise control sys- tem is suspended temporarily or until
the problem shown in the message is resolved. (causes and coping methods: → P.191)
■If “Radar Cruise Control Unavail-
able” is displayed (if equipped)
The dynamic radar cruise control sys-
tem cannot be used temporarily. Use the
system when it becomes available again.
■If a message that indicates the need for visiting your Toyota dealer
is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-ual is displayed
●If “Engine Coolant Temp High” is dis-played, follow the instructions accord-
ingly. ( →P.405)
●If “Transmission Oil Temp. High” is
displayed, follow the instructions accordingly. ( →P.164)
●If “Exhaust Filter Full” is displayed, fol- low the instructions accordingly. ( →P.267)
●If any of the following messages are displayed on the multi-information dis-
play, it may indicate a malfunction. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.• “Smart Entry & Start System Malfunc-
tion”
●If any of the following messages are
displayed on the multi-information dis- play, it may indicate a malfunction. Immediately stop the vehicle and con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer.
• “Braking Power Low” • “12-Volt Battery Charging System Malfunction”
•“Oil Pressure Low”
