TOYOTA YARIS HYBRID 2012 Owners Manual

111 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

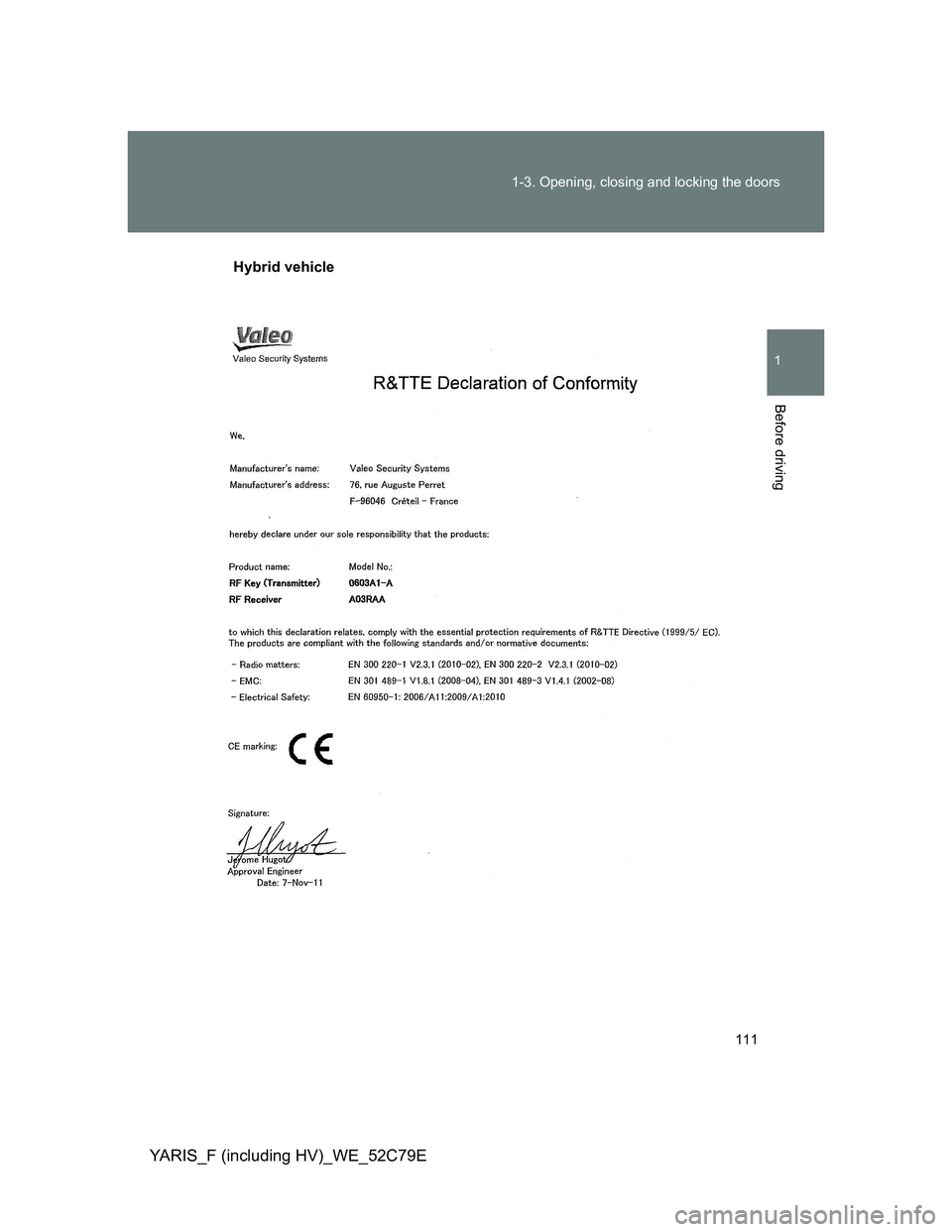

Hybrid vehicle

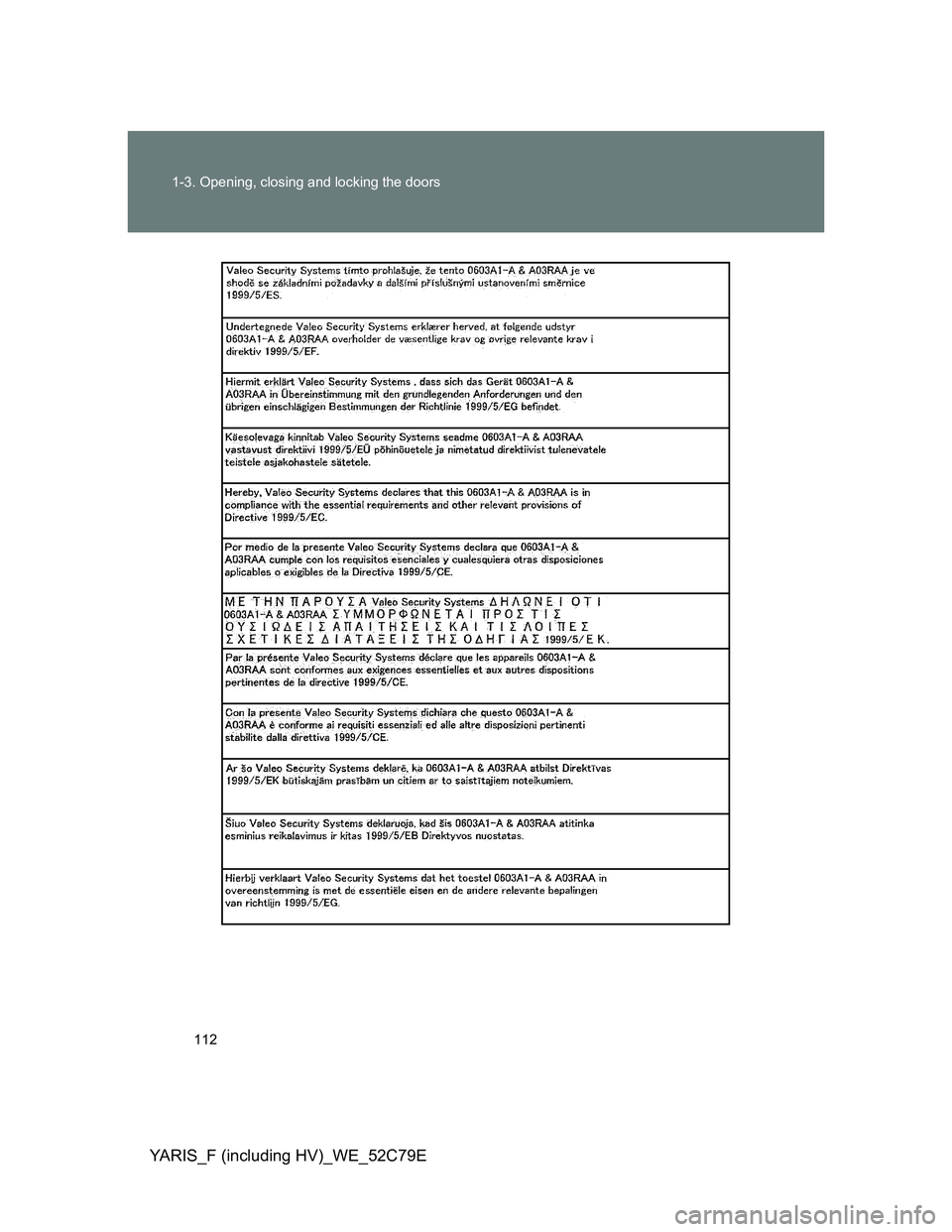

112 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

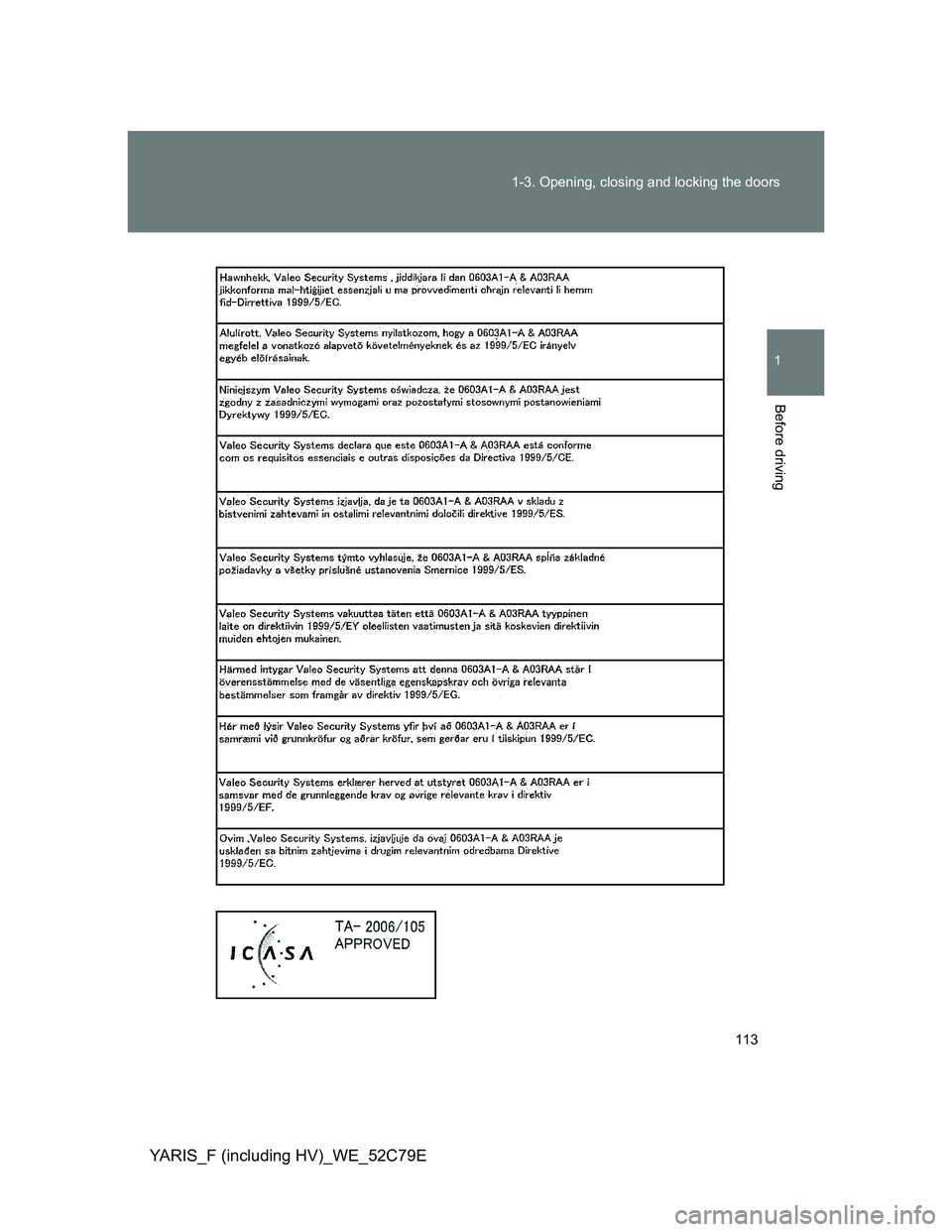

113 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

114
1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

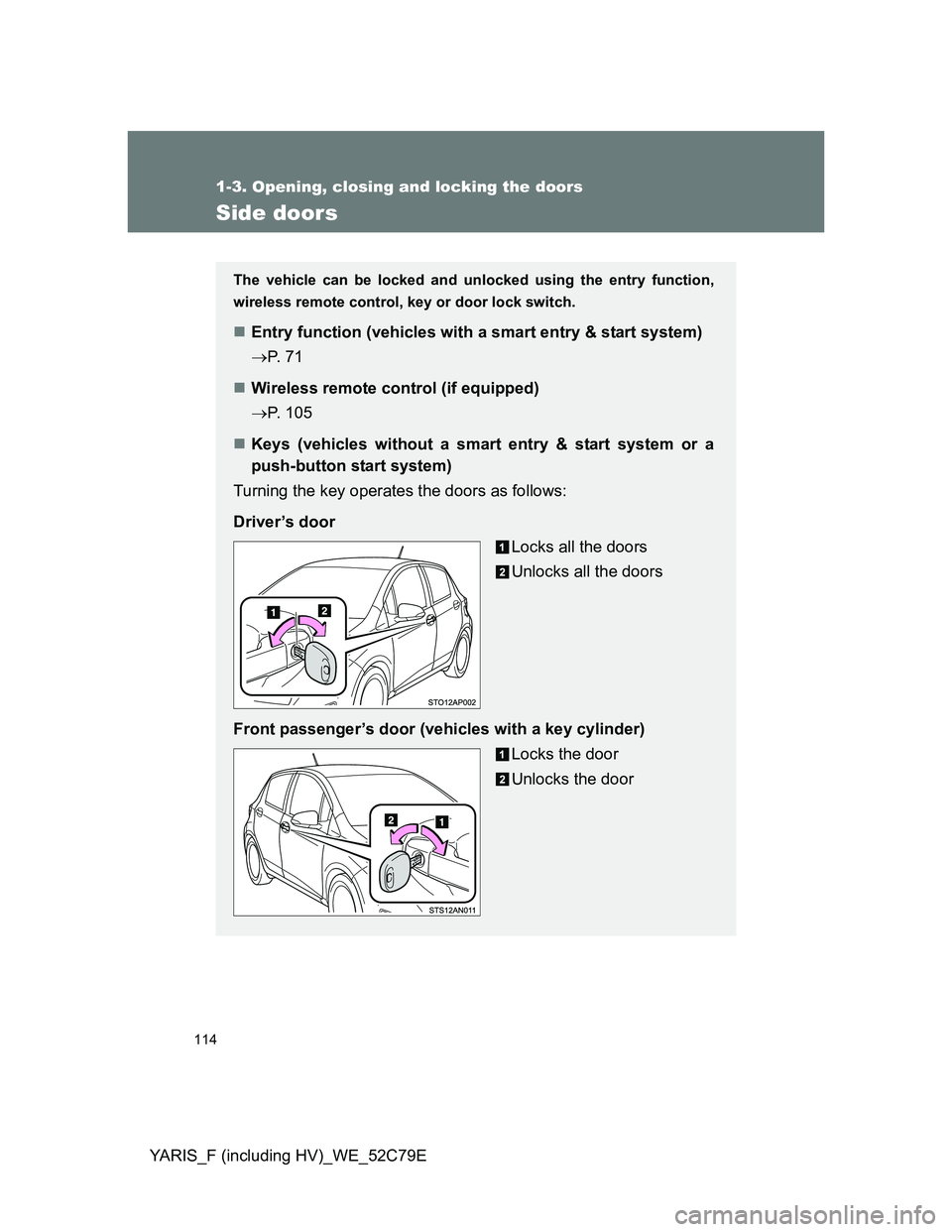

Side doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
Entry function (vehicles with a smart entry & start system)
P. 7 1
Wireless remote control (if equipped)
P. 105
Keys (vehicles without a smart entry & start system or a
push-button start system)
Turning the key operates the doors as follows:
Driver’s door
Locks all the doors
Unlocks all the doors
Front passenger’s door (vehicles with a key cylinder)
Locks the door
Unlocks the door

115 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

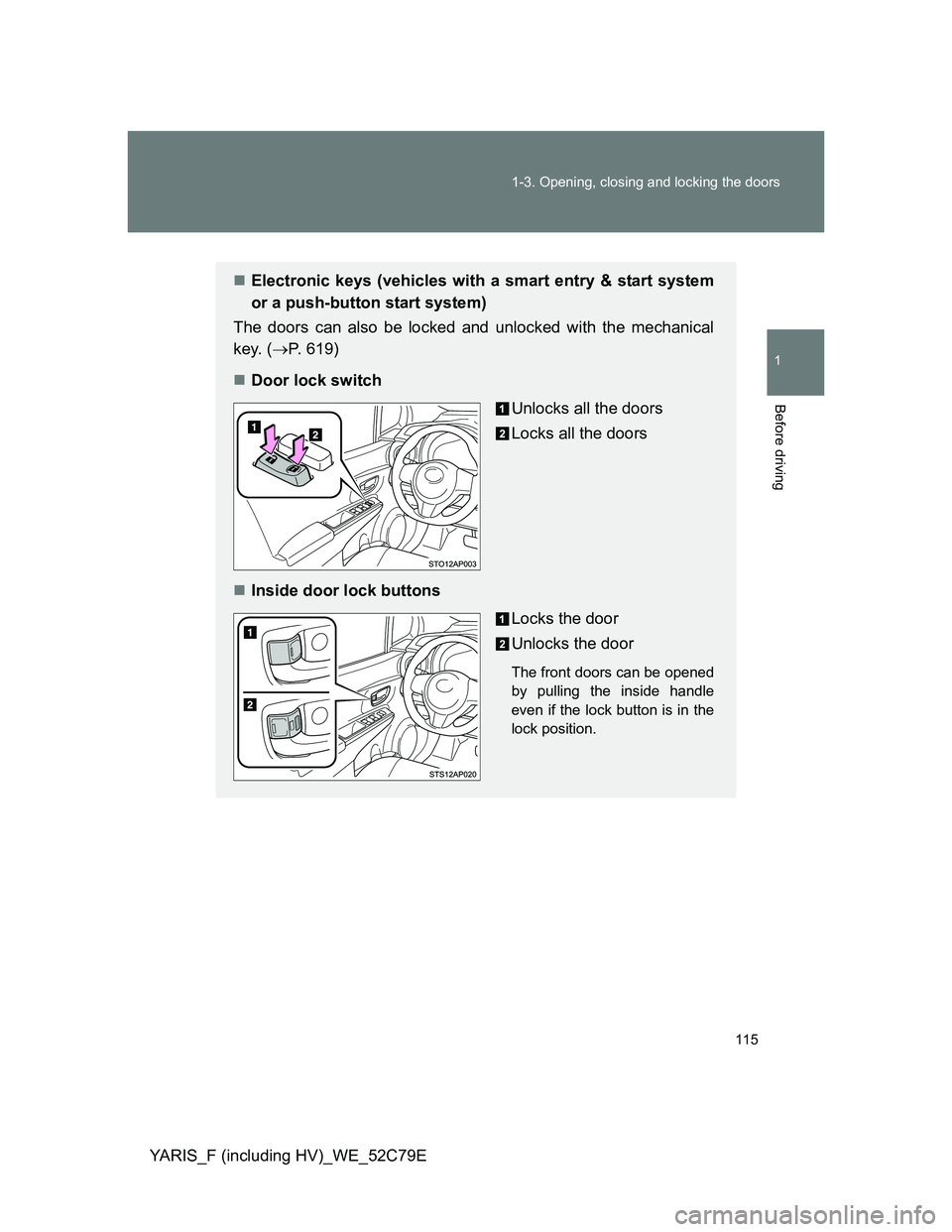

Electronic keys (vehicles with a smart entry & start system
or a push-button start system)
The doors can also be locked and unlocked with the mechanical
key. (P. 619)
Door lock switch
Unlocks all the doors
Locks all the doors
Inside door lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.

116 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

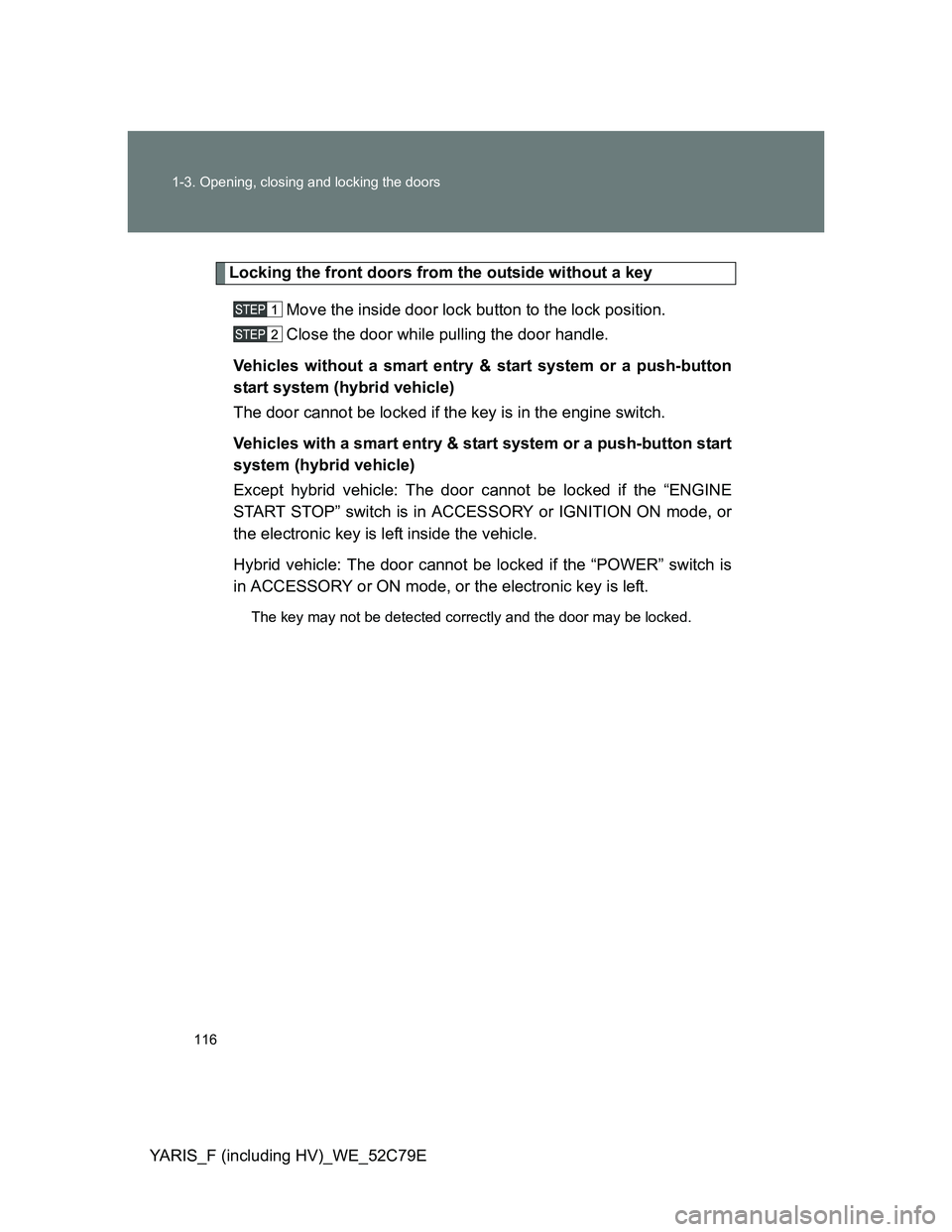

Locking the front doors from the outside without a key
Move the inside door lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system or a push-button
start system (hybrid vehicle)
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system or a push-button start
system (hybrid vehicle)
Except hybrid vehicle: The door cannot be locked if the “ENGINE
START STOP” switch is in ACCESSORY or IGNITION ON mode, or
the electronic key is left inside the vehicle.
Hybrid vehicle: The door cannot be locked if the “POWER” switch is
in ACCESSORY or ON mode, or the electronic key is left.
The key may not be detected correctly and the door may be locked.

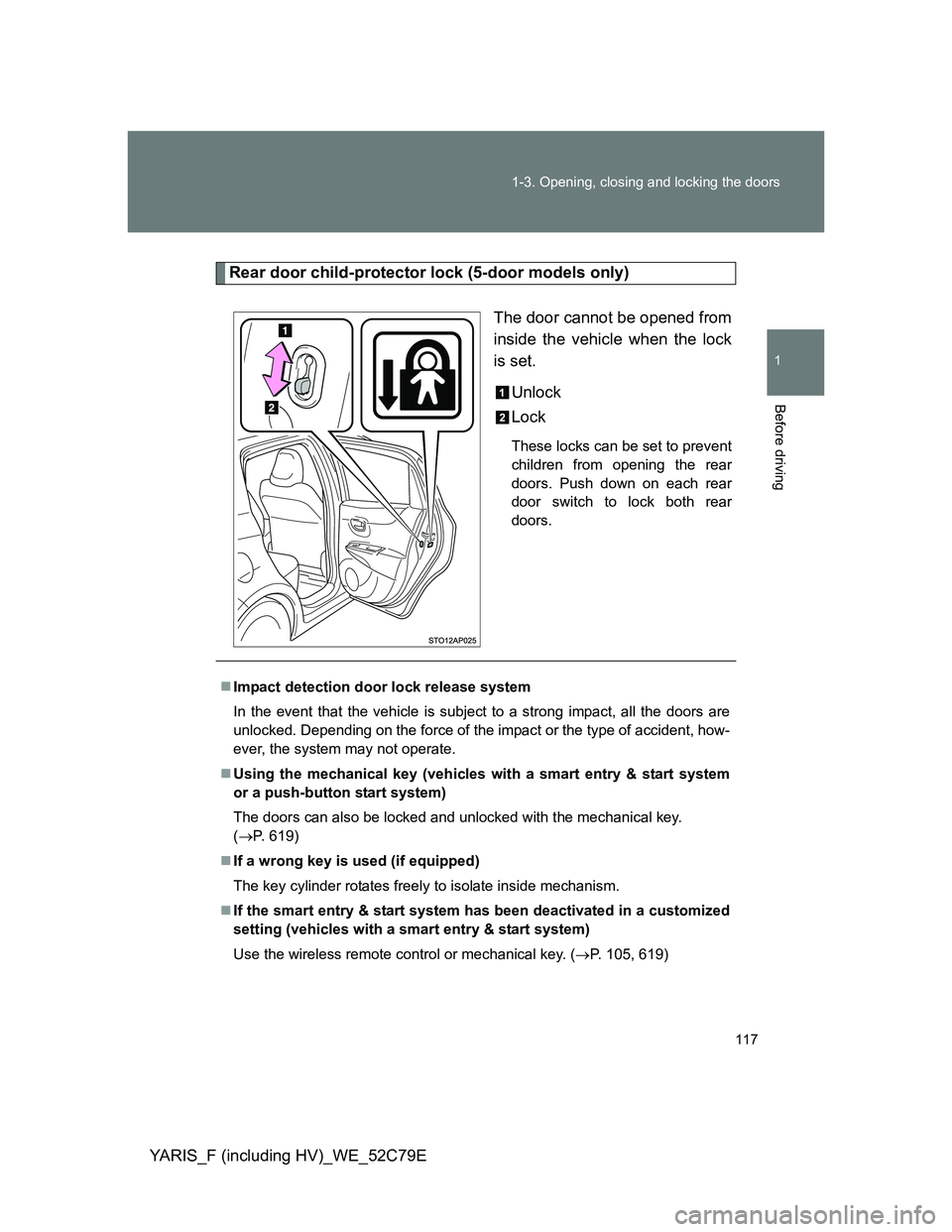

117 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E
Rear door child-protector lock (5-door models only)
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
Using the mechanical key (vehicles with a smart entry & start system
or a push-button start system)
The doors can also be locked and unlocked with the mechanical key.
(P. 619)
If a wrong key is used (if equipped)
The key cylinder rotates freely to isolate inside mechanism.
If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. (P. 105, 619)

118 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

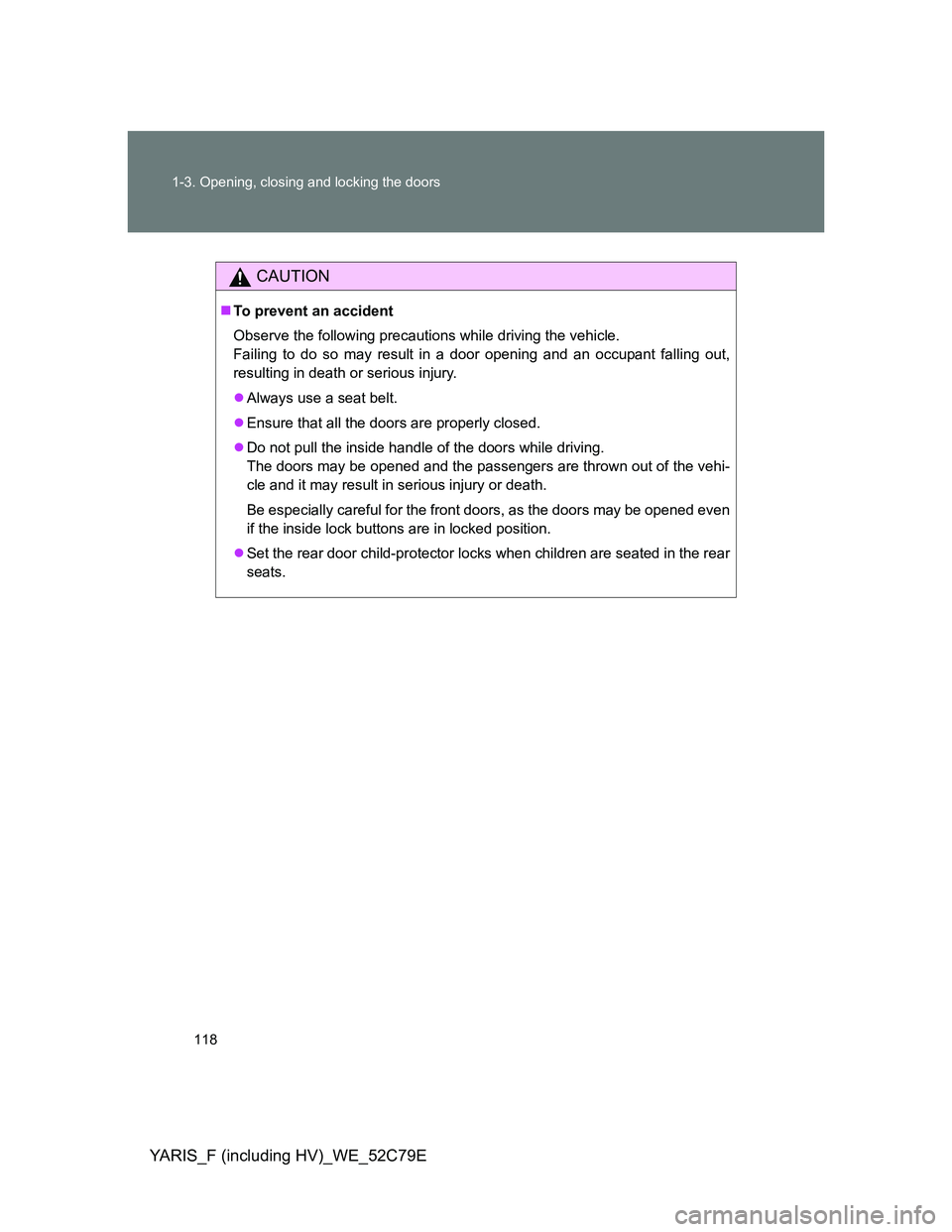

CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all the doors are properly closed.
Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
Set the rear door child-protector locks when children are seated in the rear
seats.

119
1
1-3. Opening, closing and locking the doors
Before driving
YARIS_F (including HV)_WE_52C79E

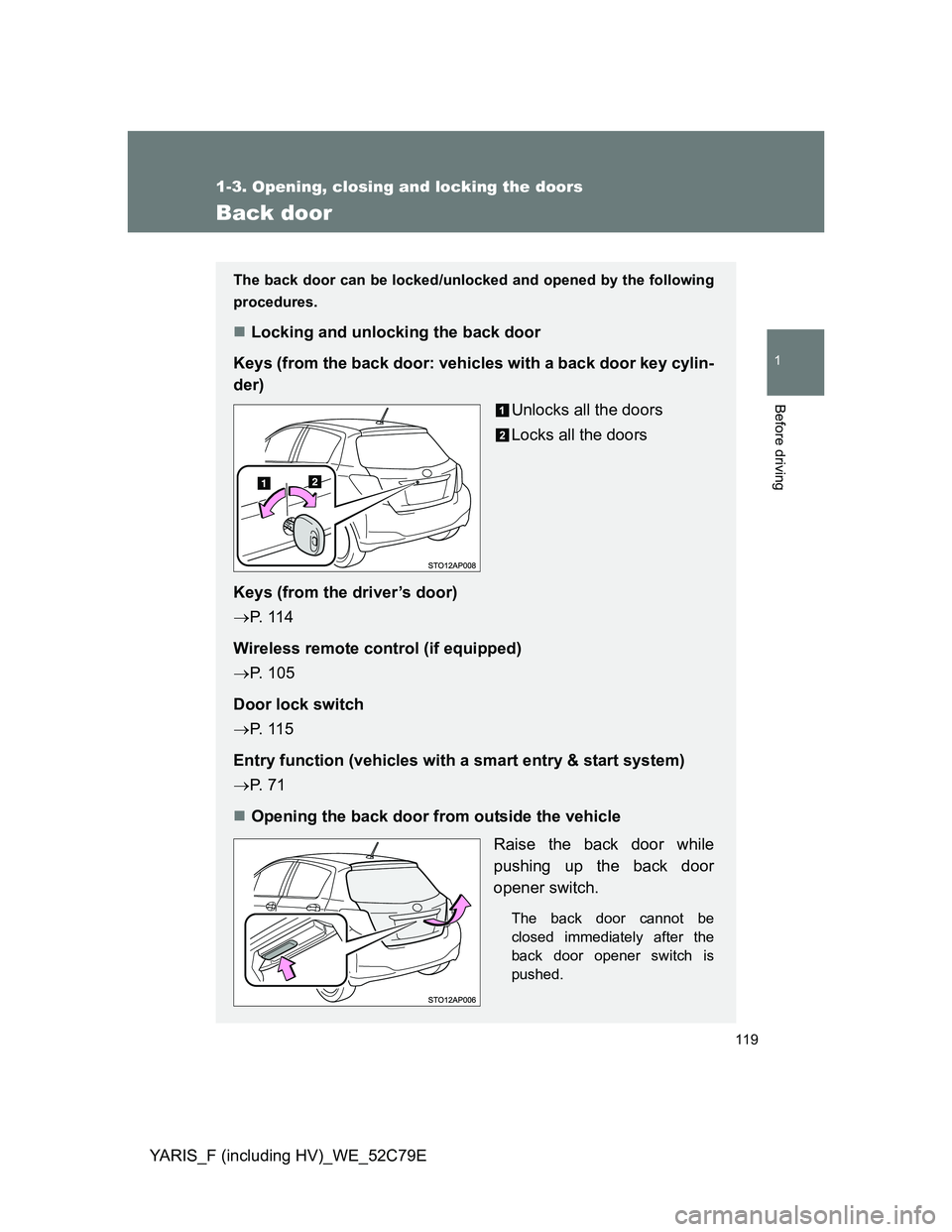

Back door
The back door can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the back door
Keys (from the back door: vehicles with a back door key cylin-
der)
Unlocks all the doors
Locks all the doors
Keys (from the driver’s door)
P. 11 4
Wireless remote control (if equipped)
P. 105
Door lock switch
P. 11 5
Entry function (vehicles with a smart entry & start system)
P. 7 1
Opening the back door from outside the vehicle
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be
closed immediately after the
back door opener switch is
pushed.

120 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

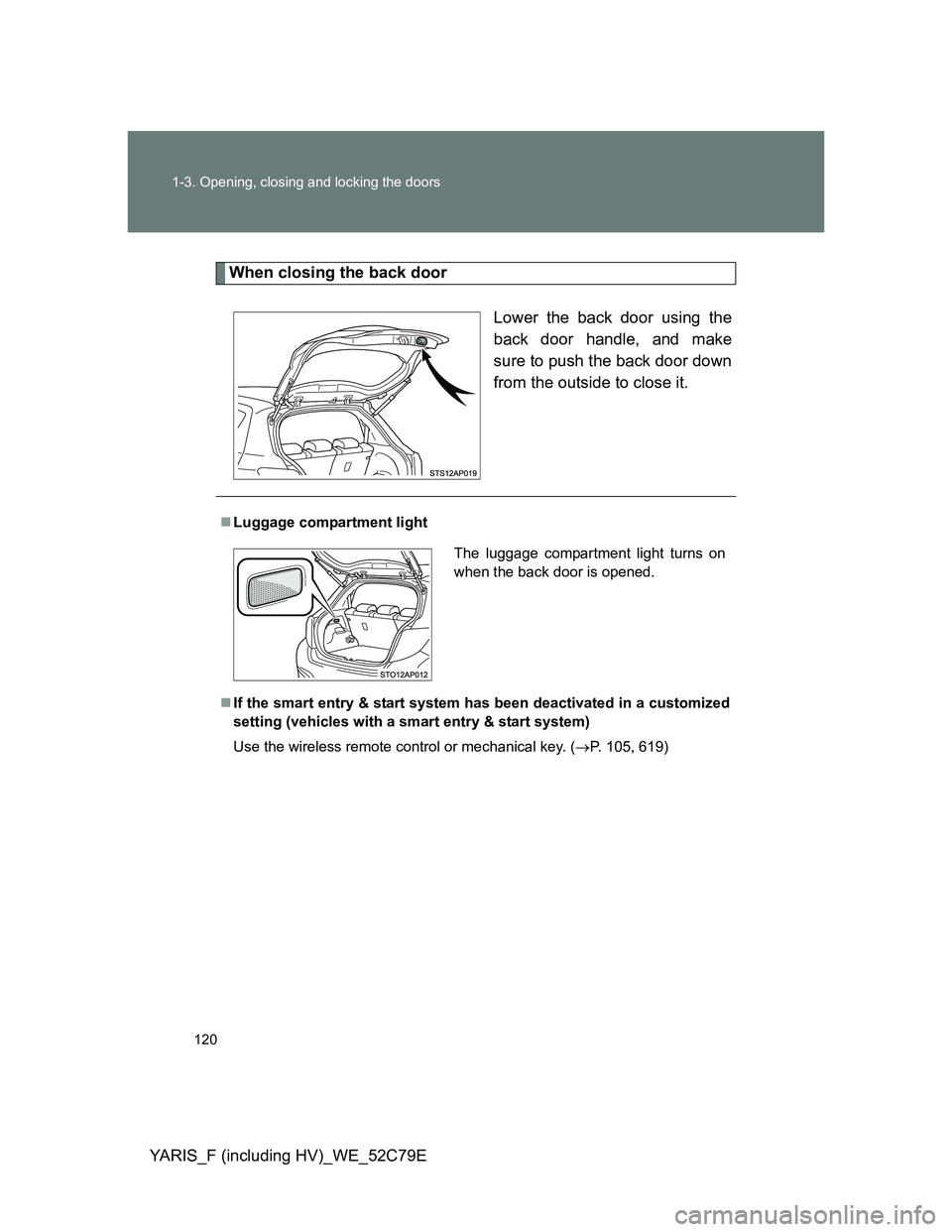

When closing the back door
Lower the back door using the
back door handle, and make
sure to push the back door down
from the outside to close it.
Luggage compartment light
If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. (P. 105, 619)
The luggage compartment light turns on
when the back door is opened.
