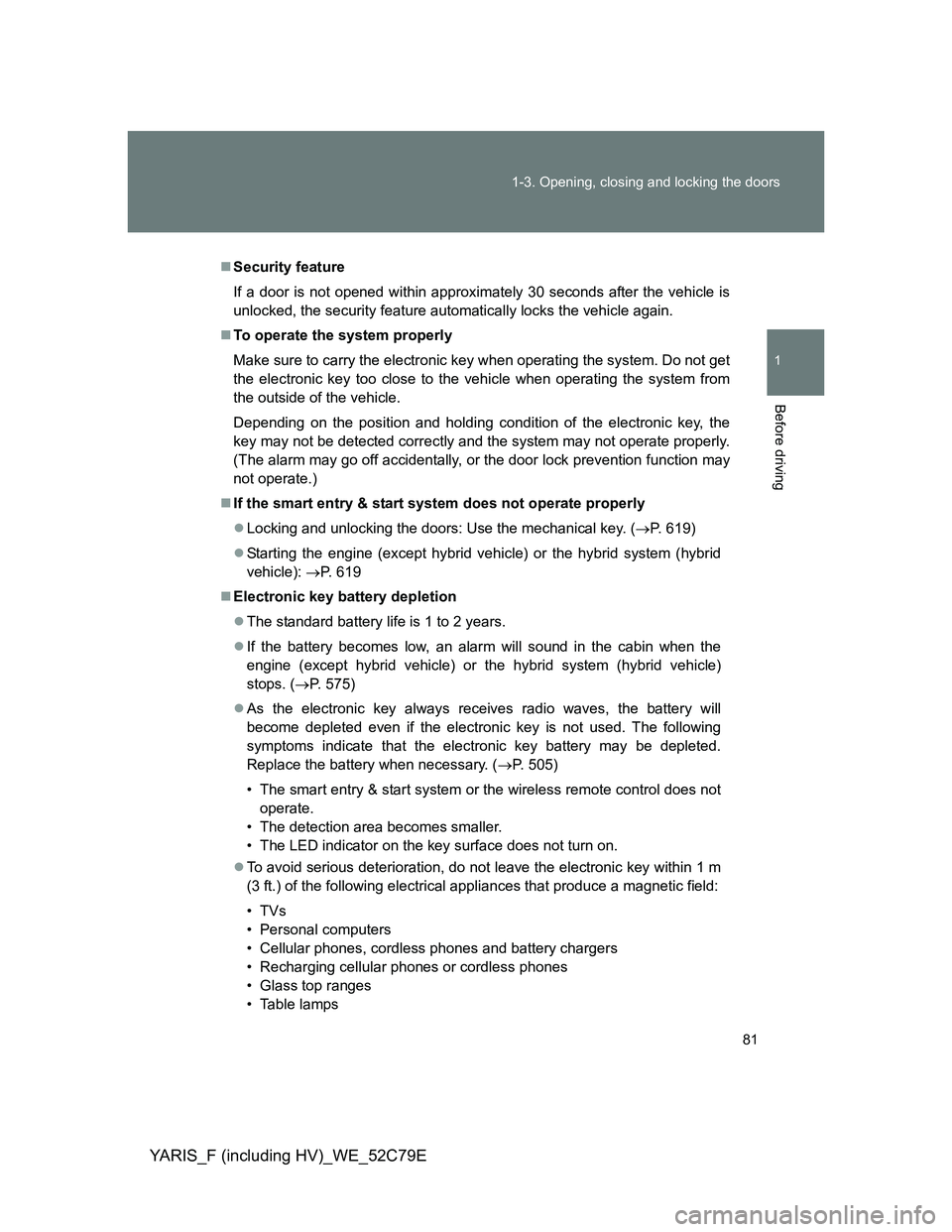

81 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention function may
not operate.)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 619)
Starting the engine (except hybrid vehicle) or the hybrid system (hybrid
vehicle): P. 619
Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the
engine (except hybrid vehicle) or the hybrid system (hybrid vehicle)
stops. (P. 575)
As the electronic key always receives radio waves, the battery will
become depleted even if the electronic key is not used. The following
symptoms indicate that the electronic key battery may be depleted.
Replace the battery when necessary. (P. 505)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps

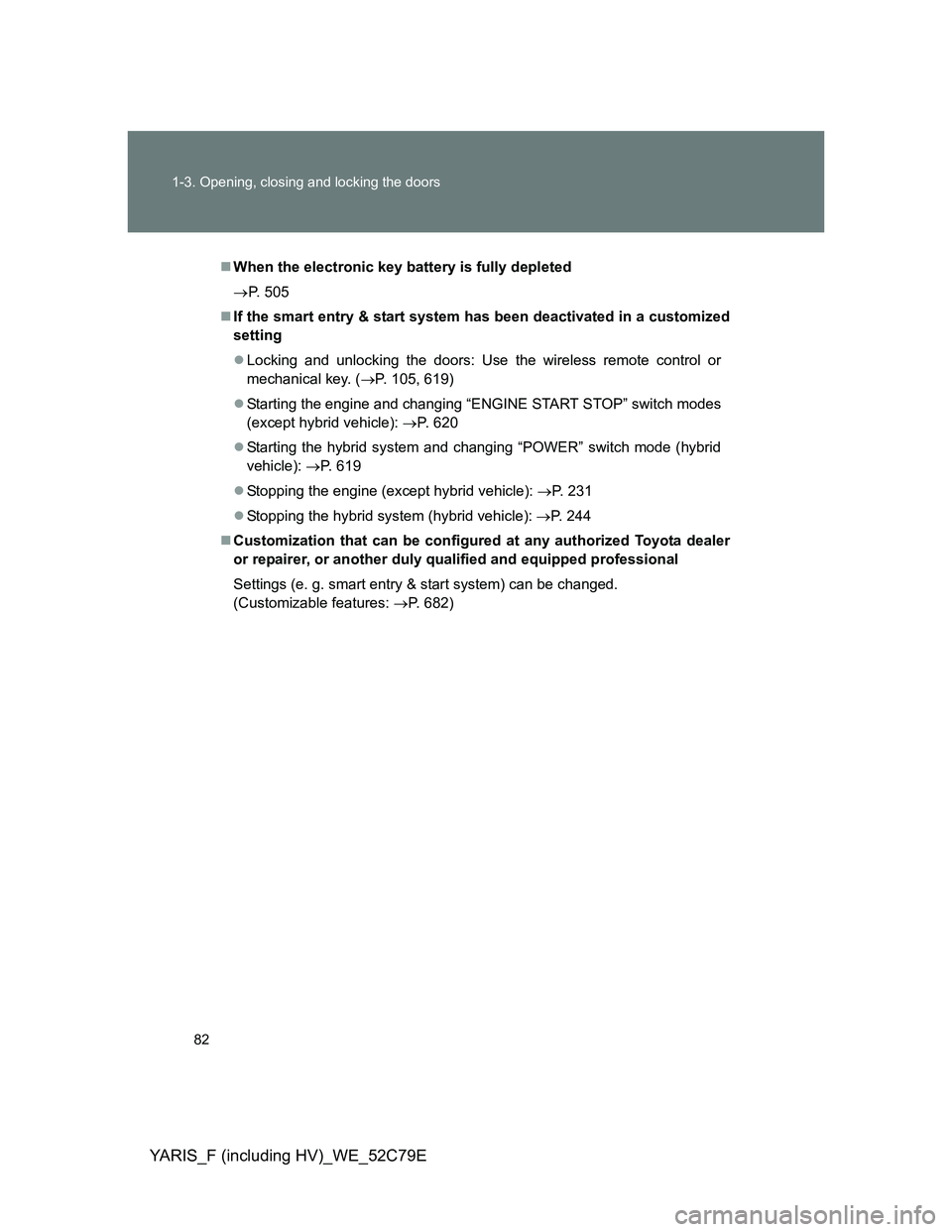

82 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E
When the electronic key battery is fully depleted
P. 505
If the smart entry & start system has been deactivated in a customized
setting
Locking and unlocking the doors: Use the wireless remote control or
mechanical key. (P. 105, 619)
Starting the engine and changing “ENGINE START STOP” switch modes
(except hybrid vehicle): P. 620
Starting the hybrid system and changing “POWER” switch mode (hybrid
vehicle): P. 619
Stopping the engine (except hybrid vehicle): P. 231
Stopping the hybrid system (hybrid vehicle):P. 2 4 4
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: P. 682)

83 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

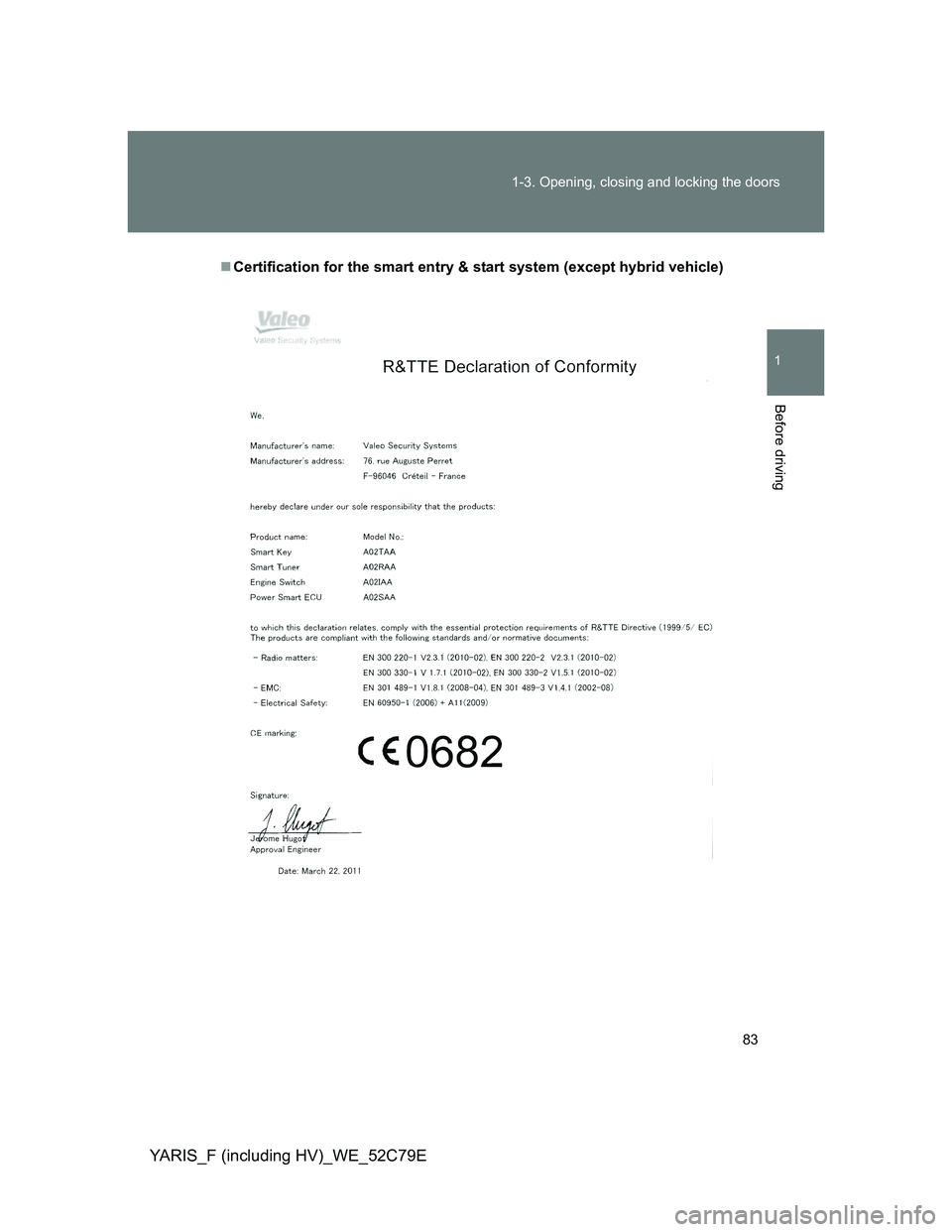

Certification for the smart entry & start system (except hybrid vehicle)

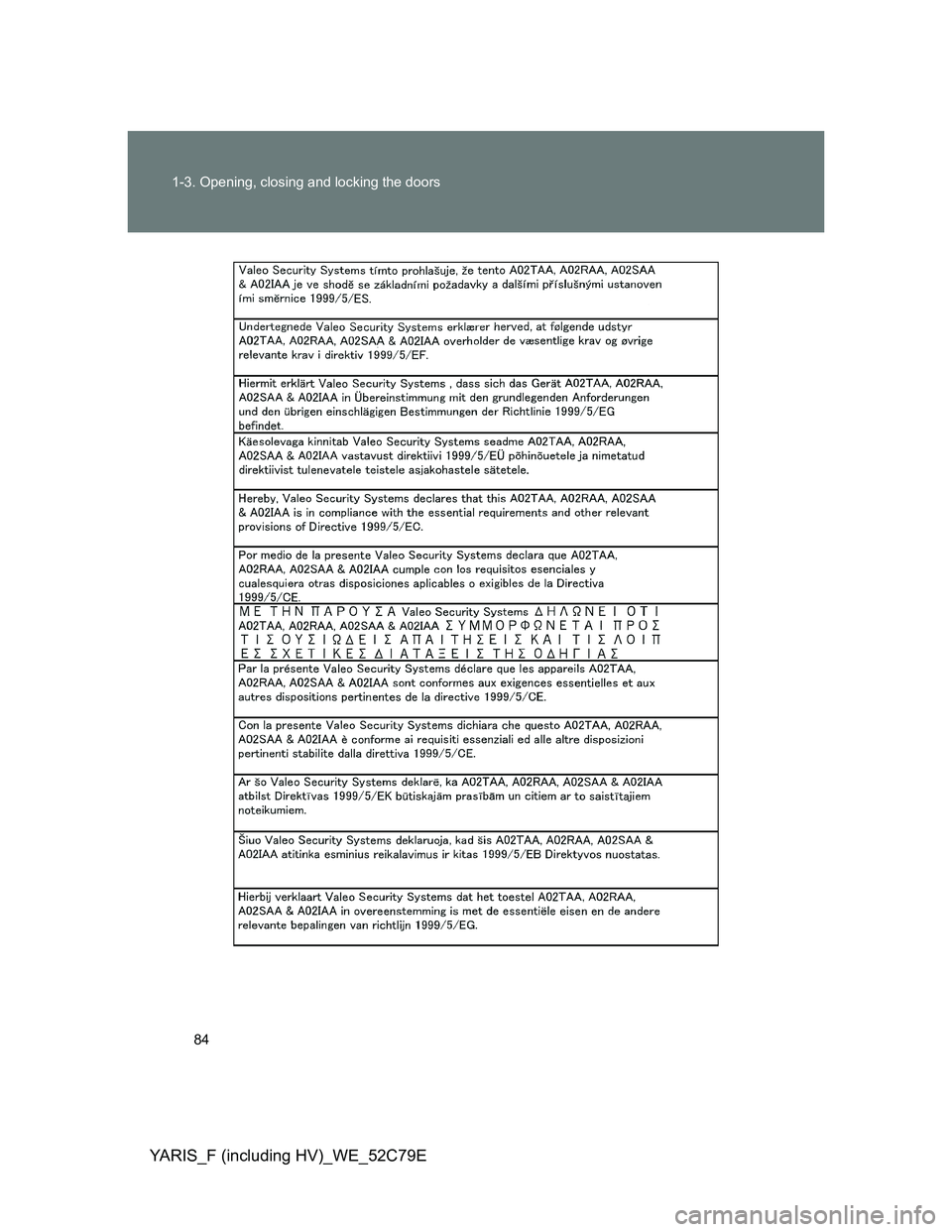

84 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

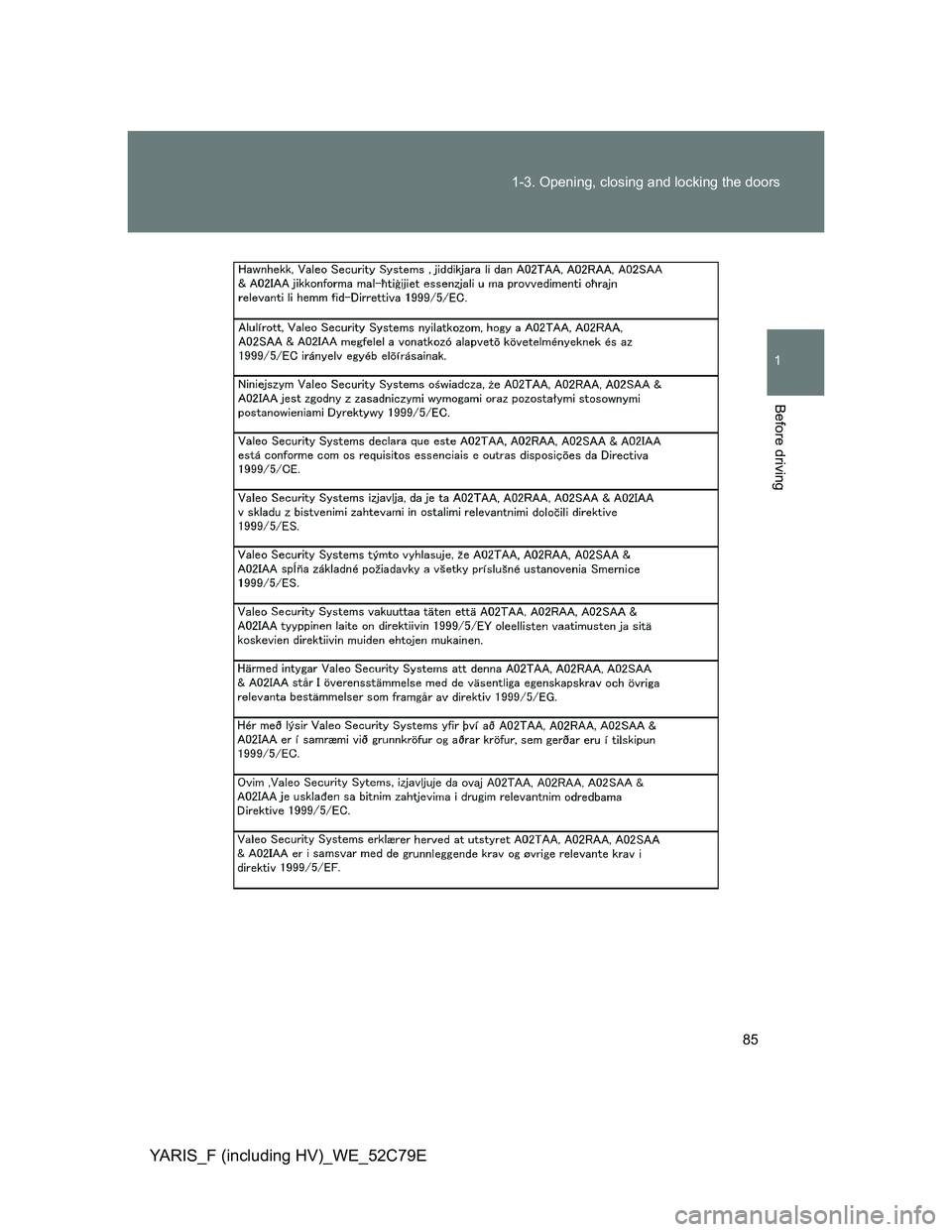

85 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

86 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

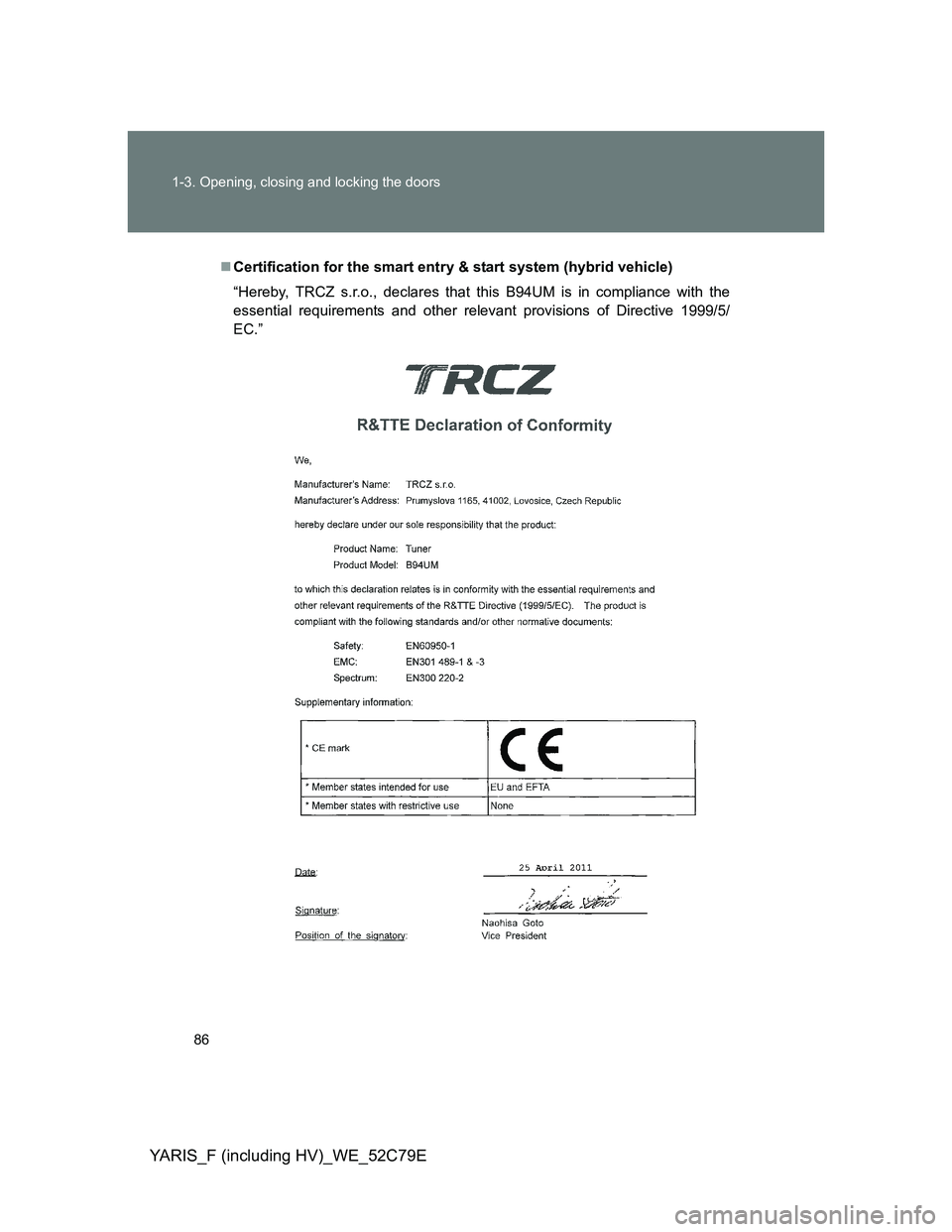

Certification for the smart entry & start system (hybrid vehicle)
“Hereby, TRCZ s.r.o., declares that this B94UM is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/
EC.”
.

87 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

88 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52C79E

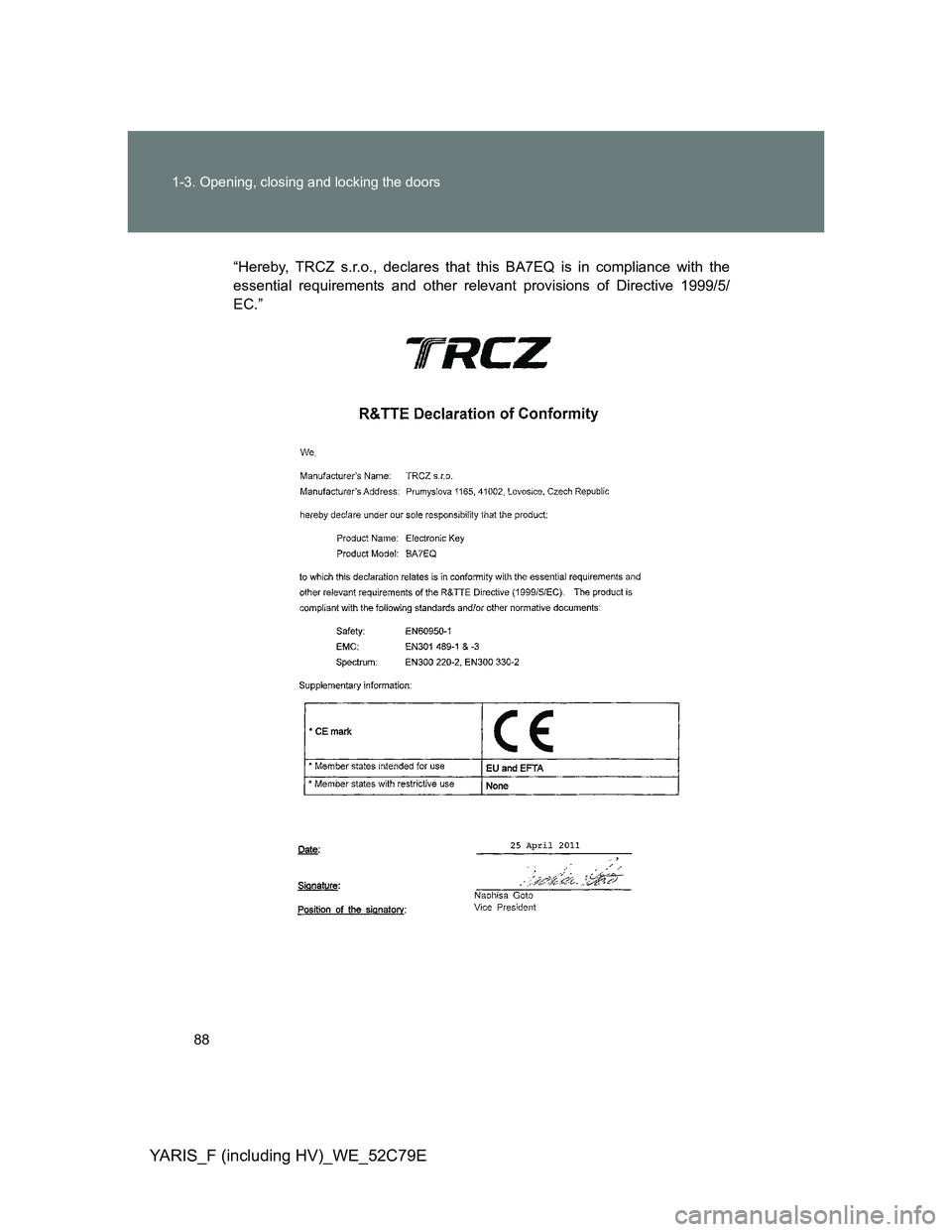

“Hereby, TRCZ s.r.o., declares that this BA7EQ is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/
EC.”

89 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52C79E

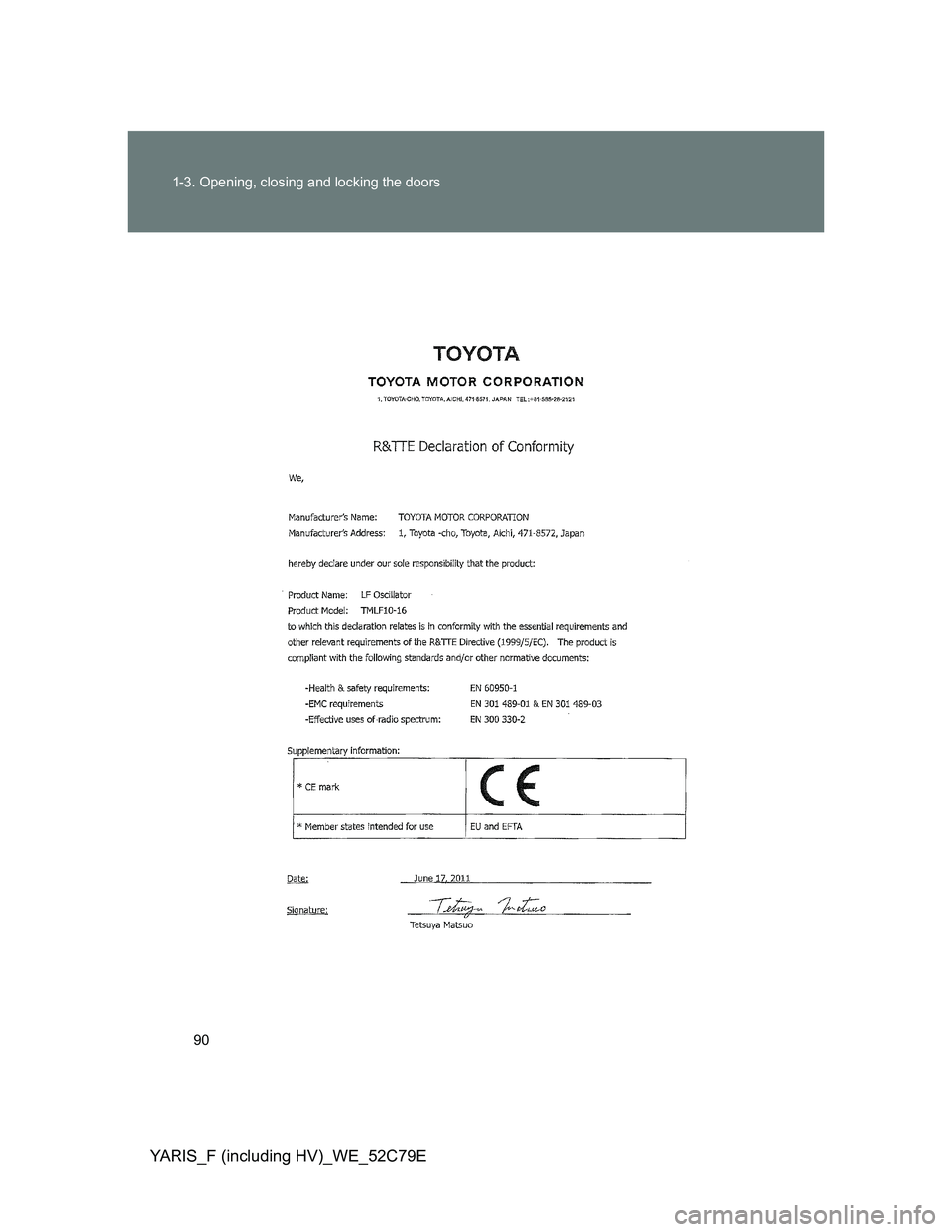

90 1-3. Opening, closing and locking the doors
