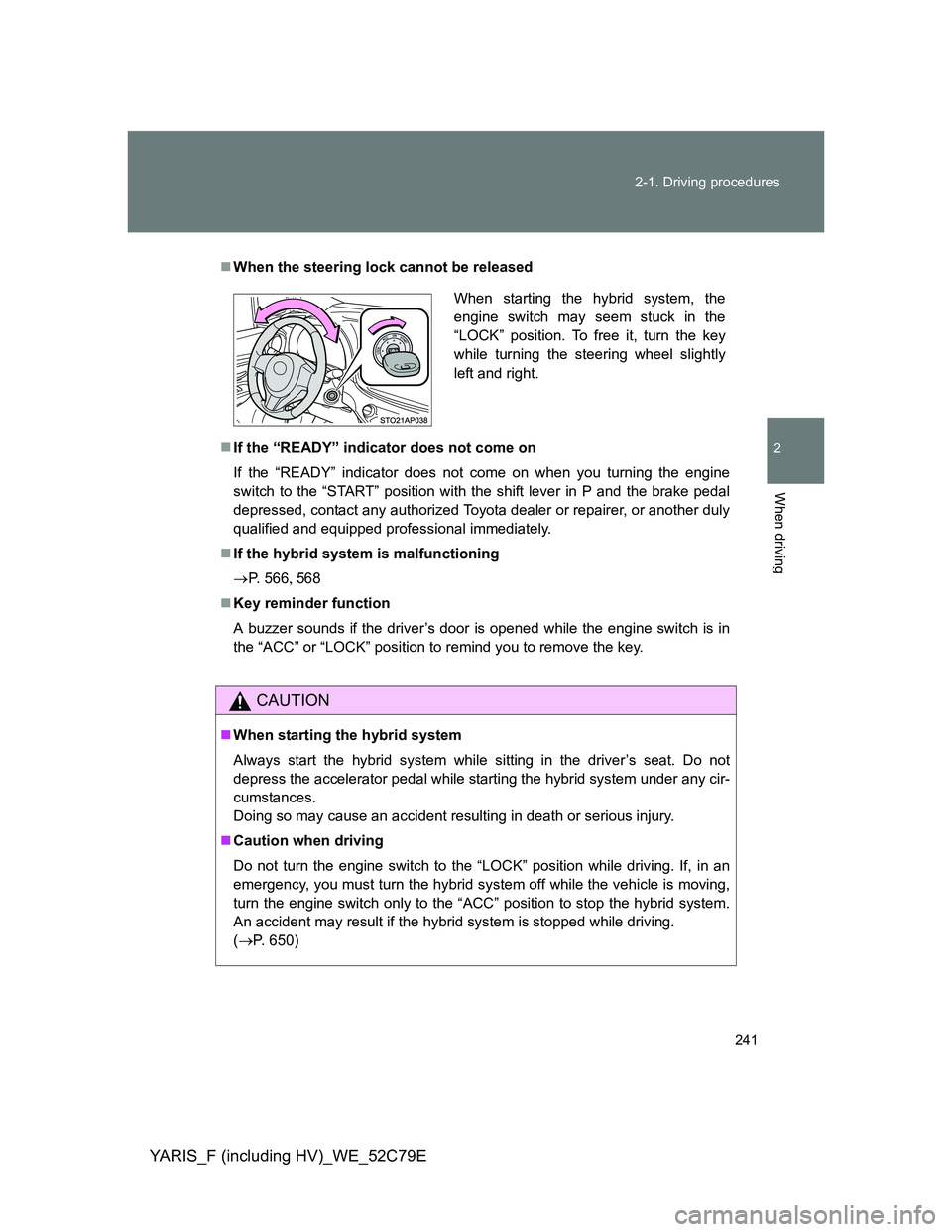

Page 241 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 241 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
When the steering lock cannot be released
If the “READY” indicator does not come on
If the “READY” indicator d

Page 242 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 242 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
NOTICE
To prevent 12-volt battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long periods
of tim

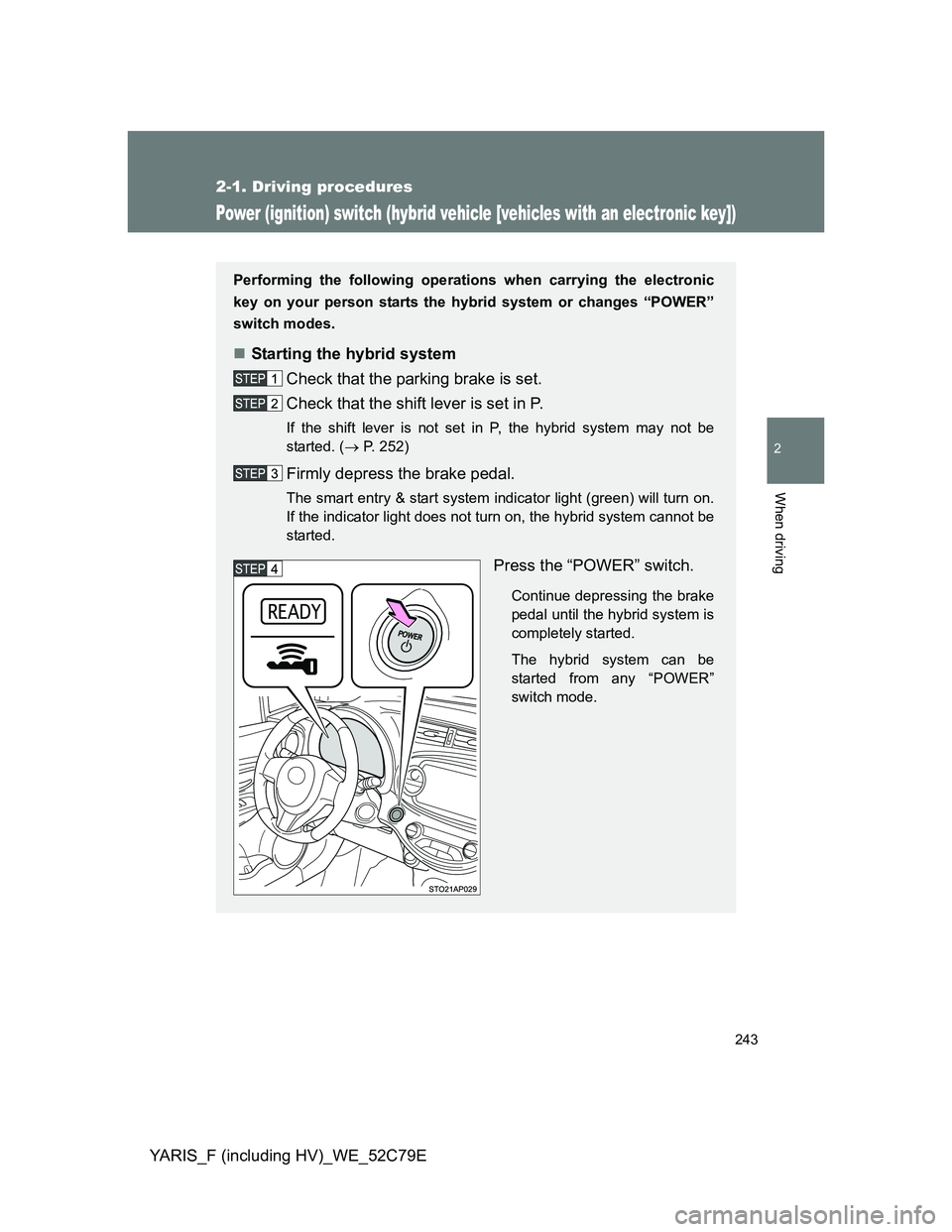

Page 243 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 243
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Power (ignition) switch (hybrid vehicle [vehicles with an electronic key])
Performing the following operations when carrying

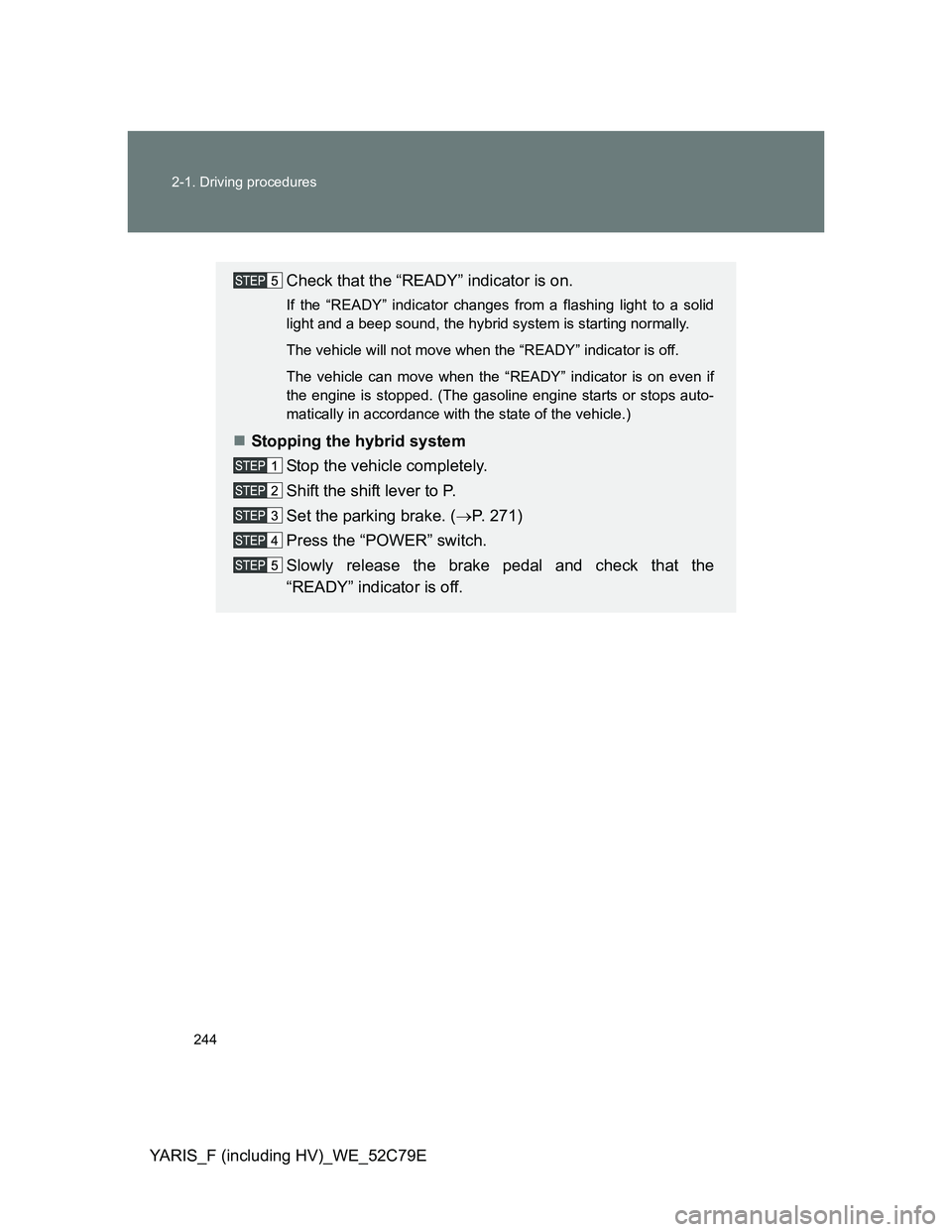

Page 244 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 244 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
Check that the “READY” indicator is on.
If the “READY” indicator changes from a flashing light to a solid
light and a beep sound, t

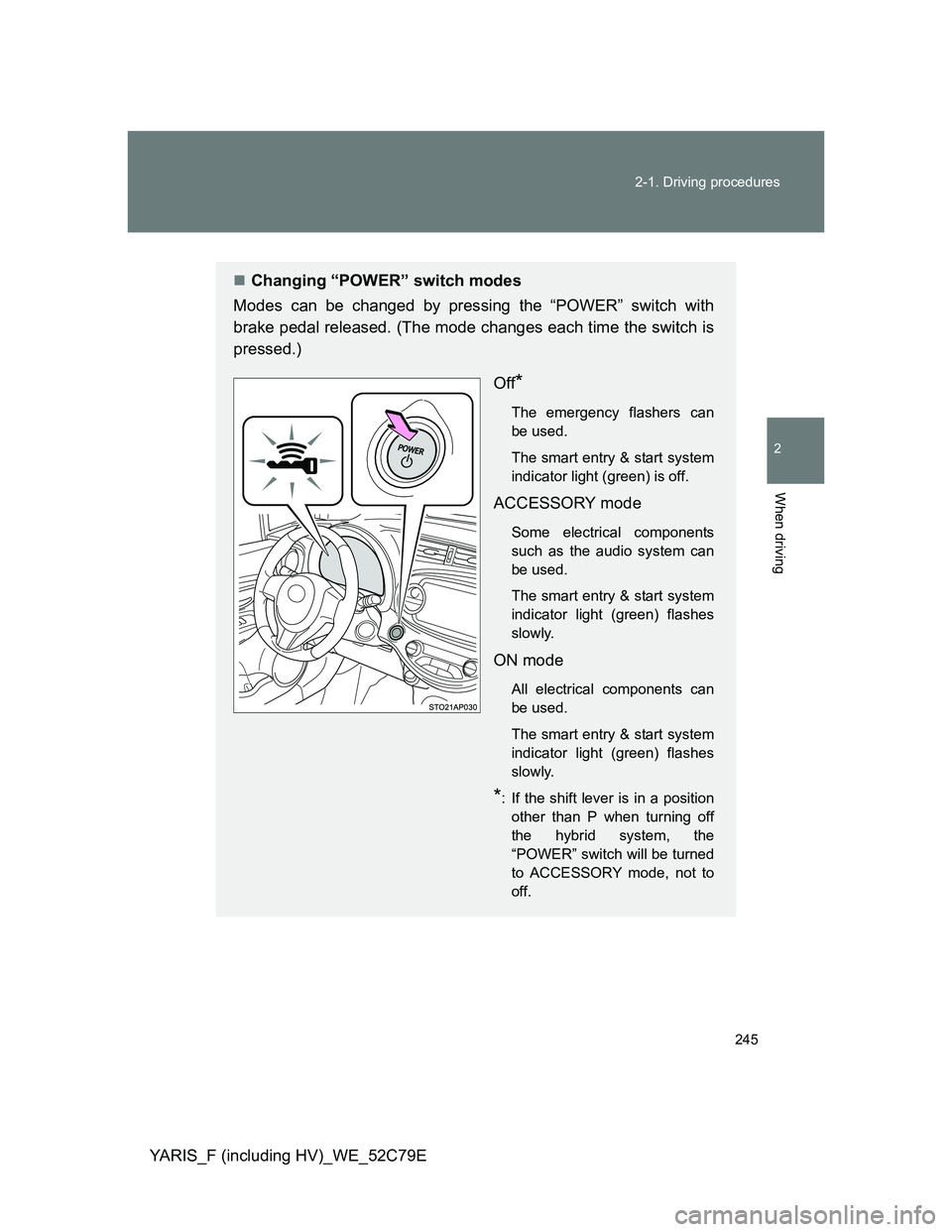

Page 245 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 245 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Changing “POWER” switch modes
Modes can be changed by pressing the “POWER” switch with
brake pedal released. (The

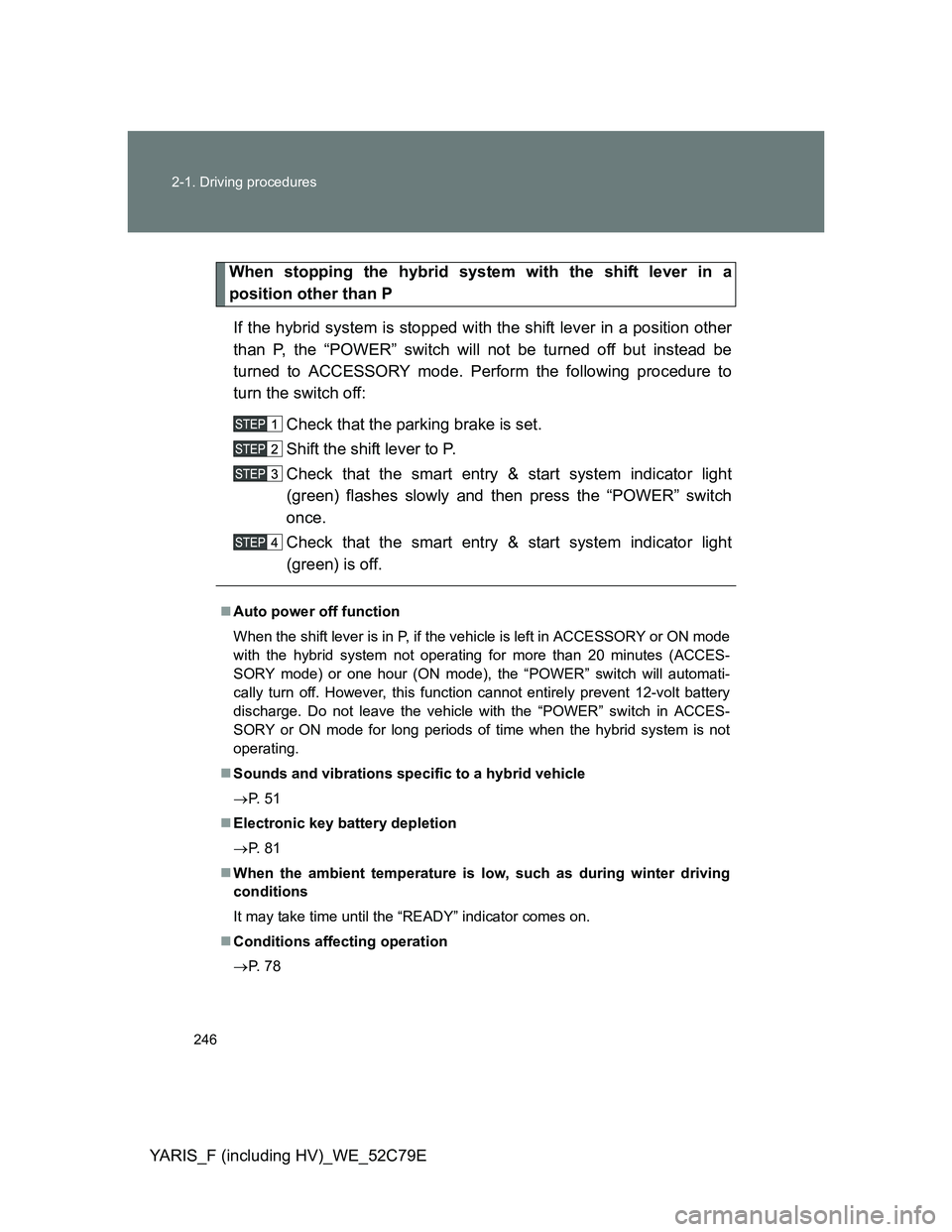

Page 246 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 246 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
When stopping the hybrid system with the shift lever in a
position other than P
If the hybrid system is stopped with the shift lever in a p

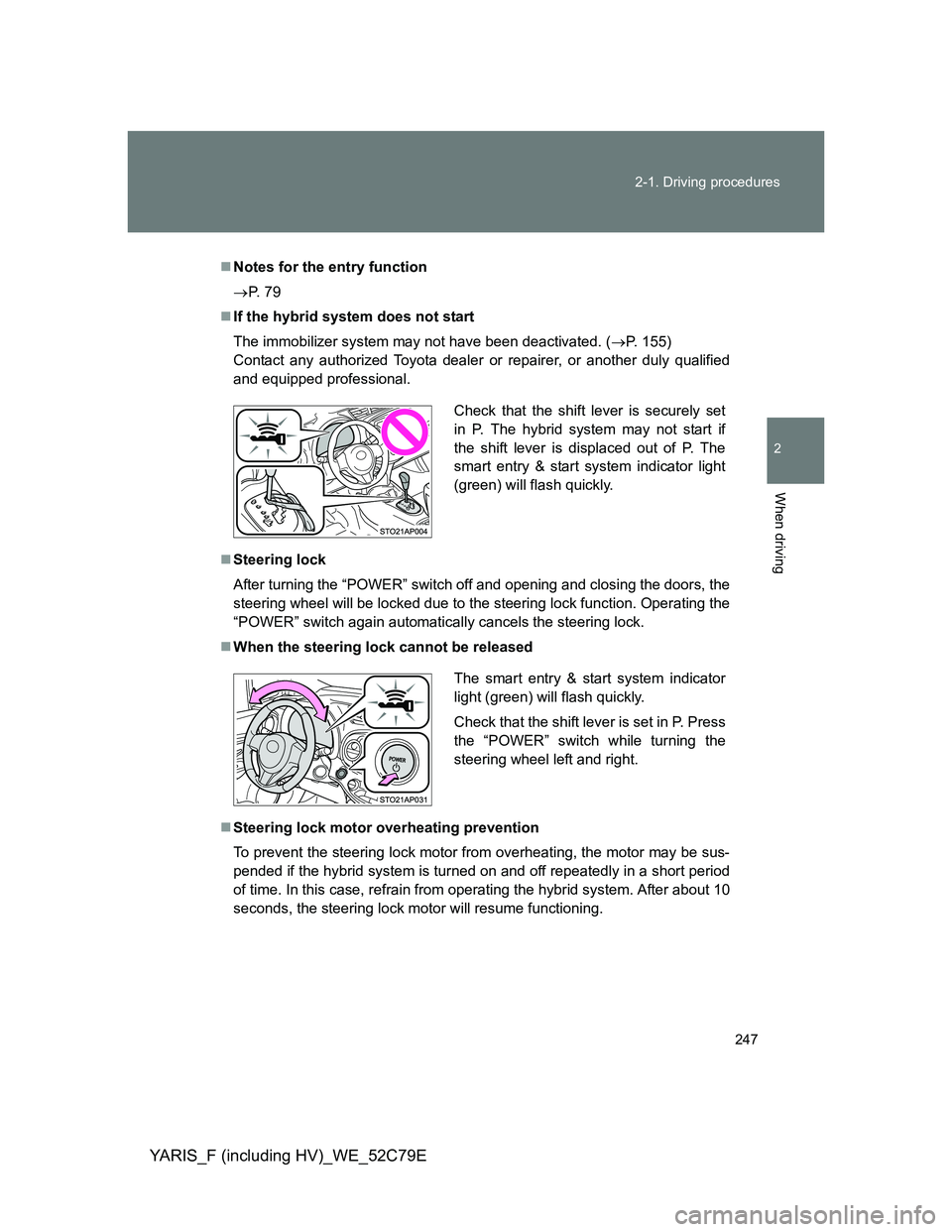

Page 247 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 247 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Notes for the entry function
P.  7 9
If the hybrid system does not start
The immobilizer system may not have been d

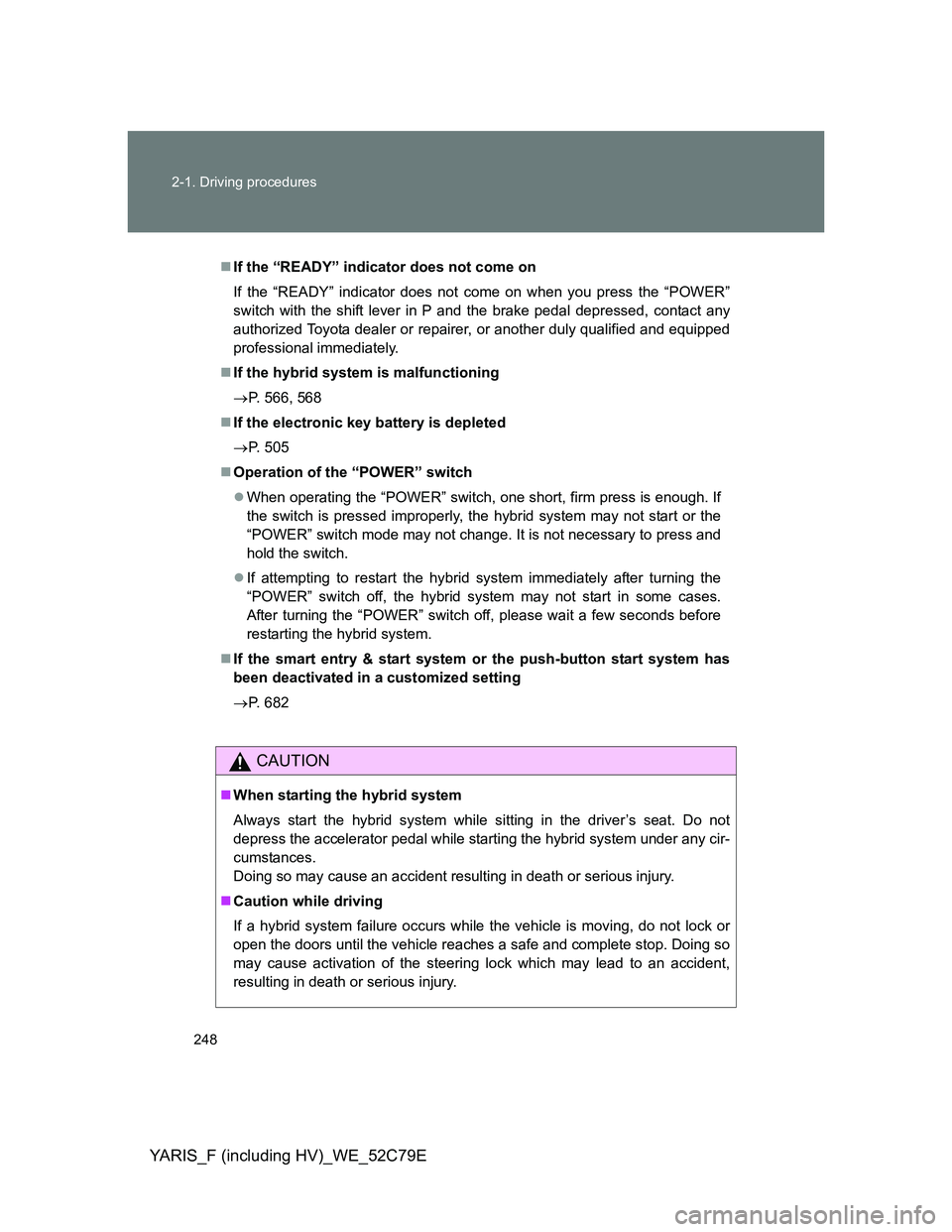

Page 248 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 248 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
If the “READY” indicator does not come on
If the “READY” indicator does not come on when you press the “POWER”
switch with t

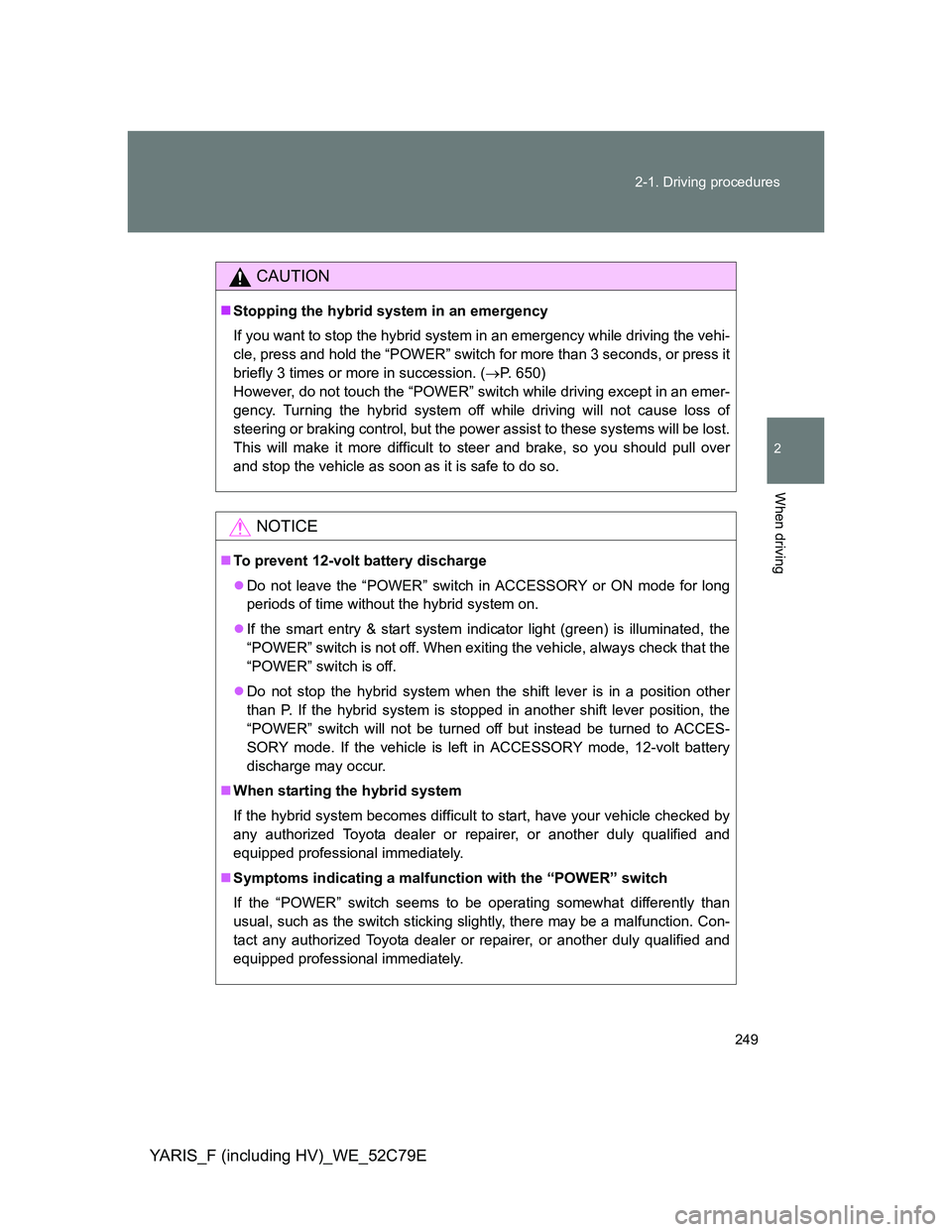

Page 249 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 249 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
CAUTION
Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving th

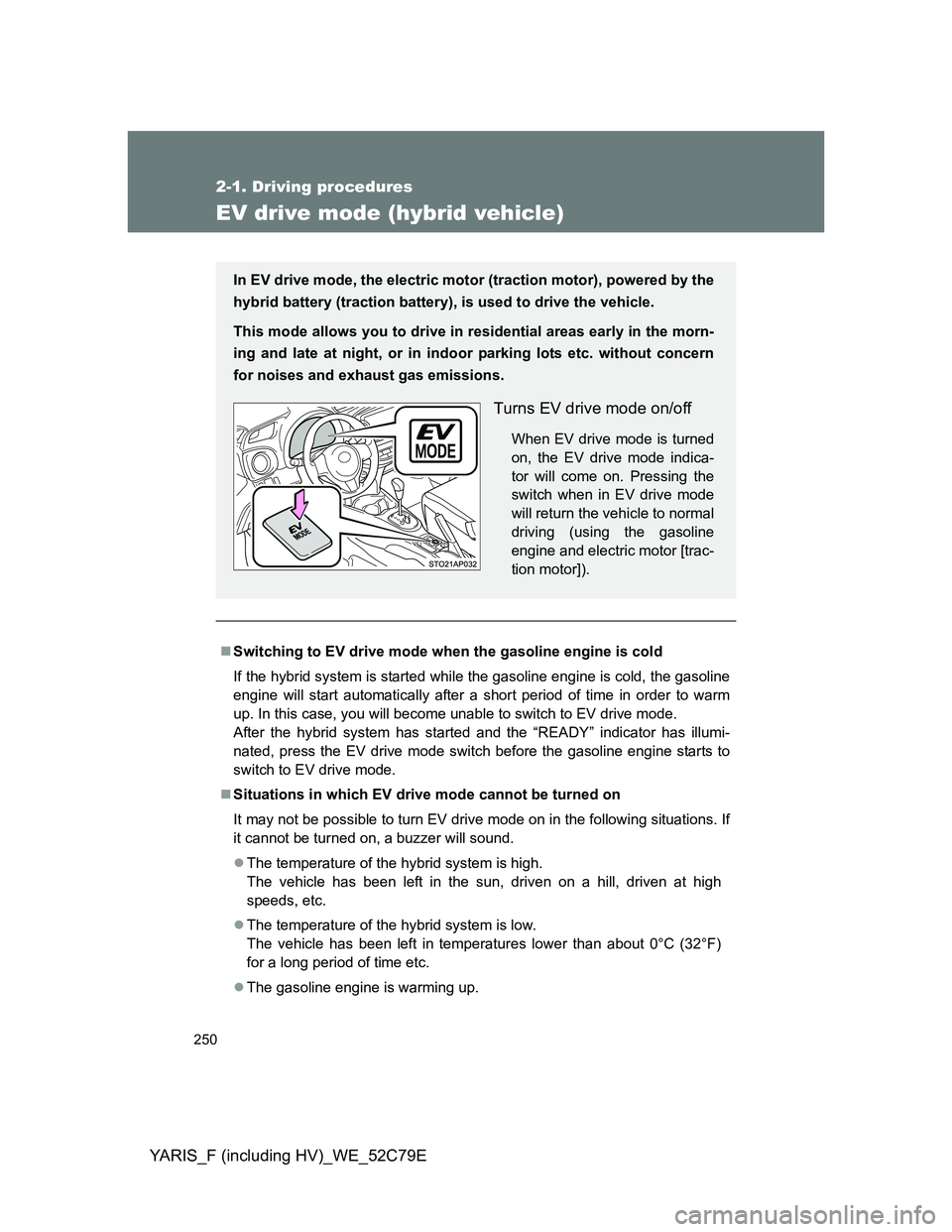

Page 250 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 250
2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
EV drive mode (hybrid vehicle)
Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gas
