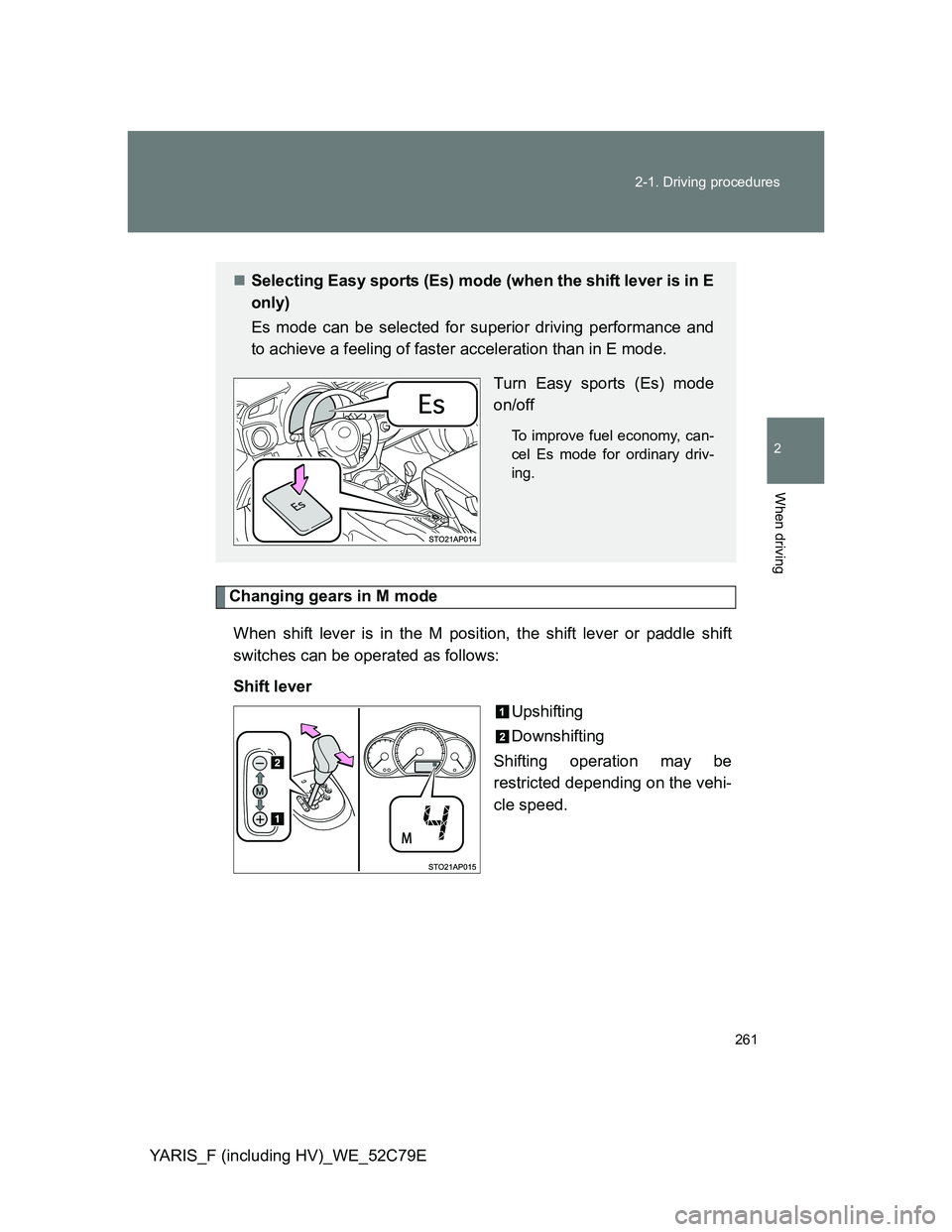

Page 261 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 261 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Changing gears in M mode
When shift lever is in the M position, the shift lever or paddle shift
switches can be operated as

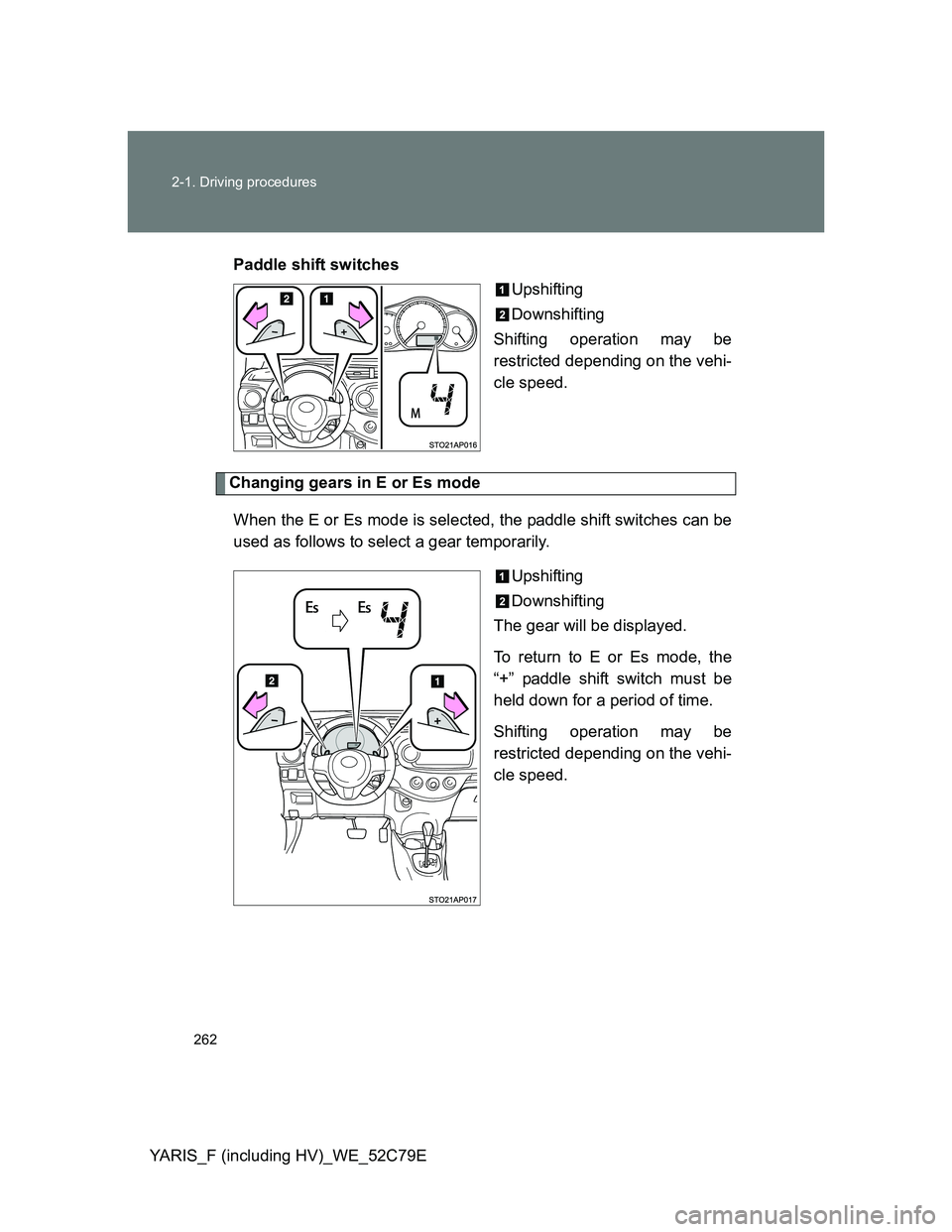

Page 262 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 262 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79EPaddle shift switches
Upshifting
Downshifting
Shifting operation may be
restricted depending on the vehi-
cle speed.
Changing gears in E or

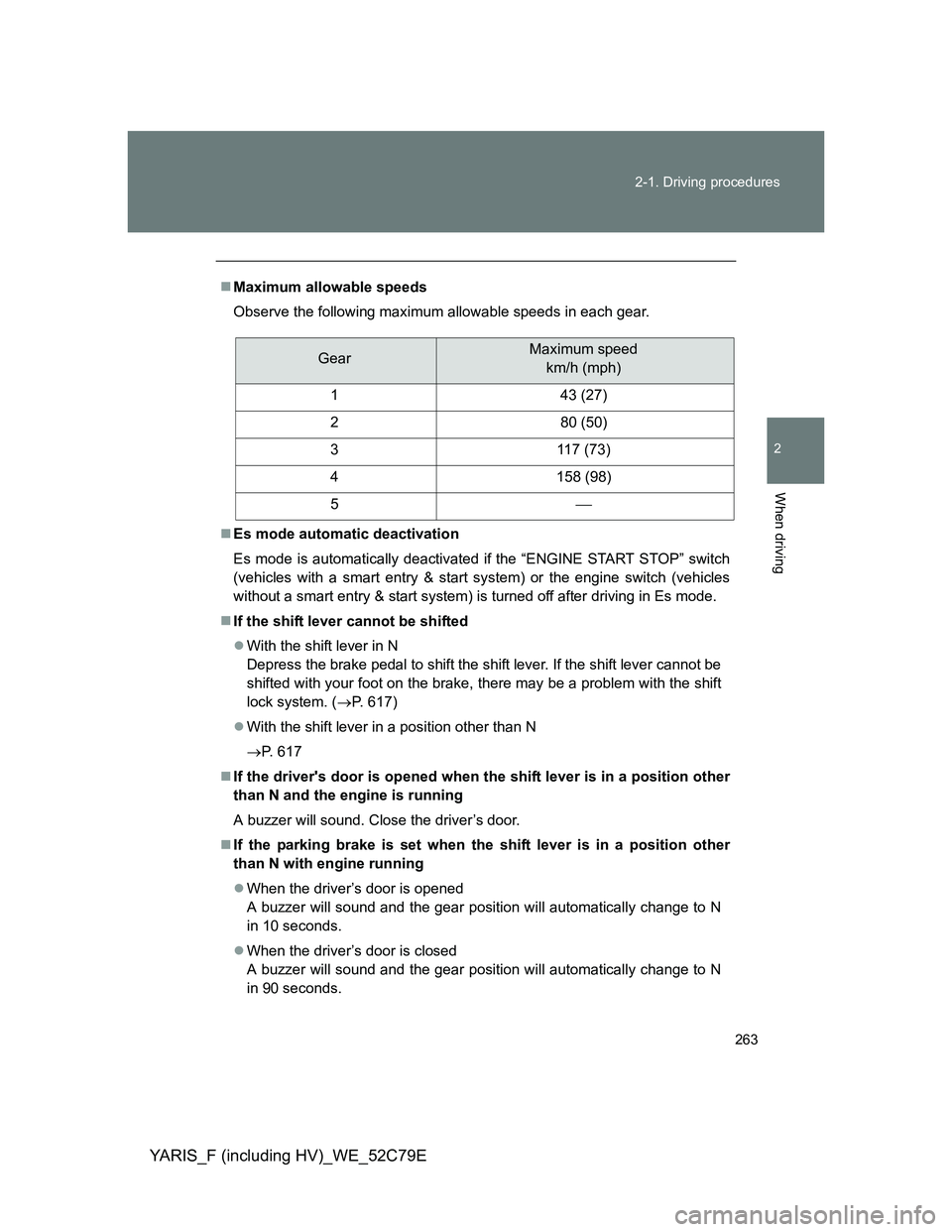

Page 263 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 263 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear.
Es mode automatic deactivation
E

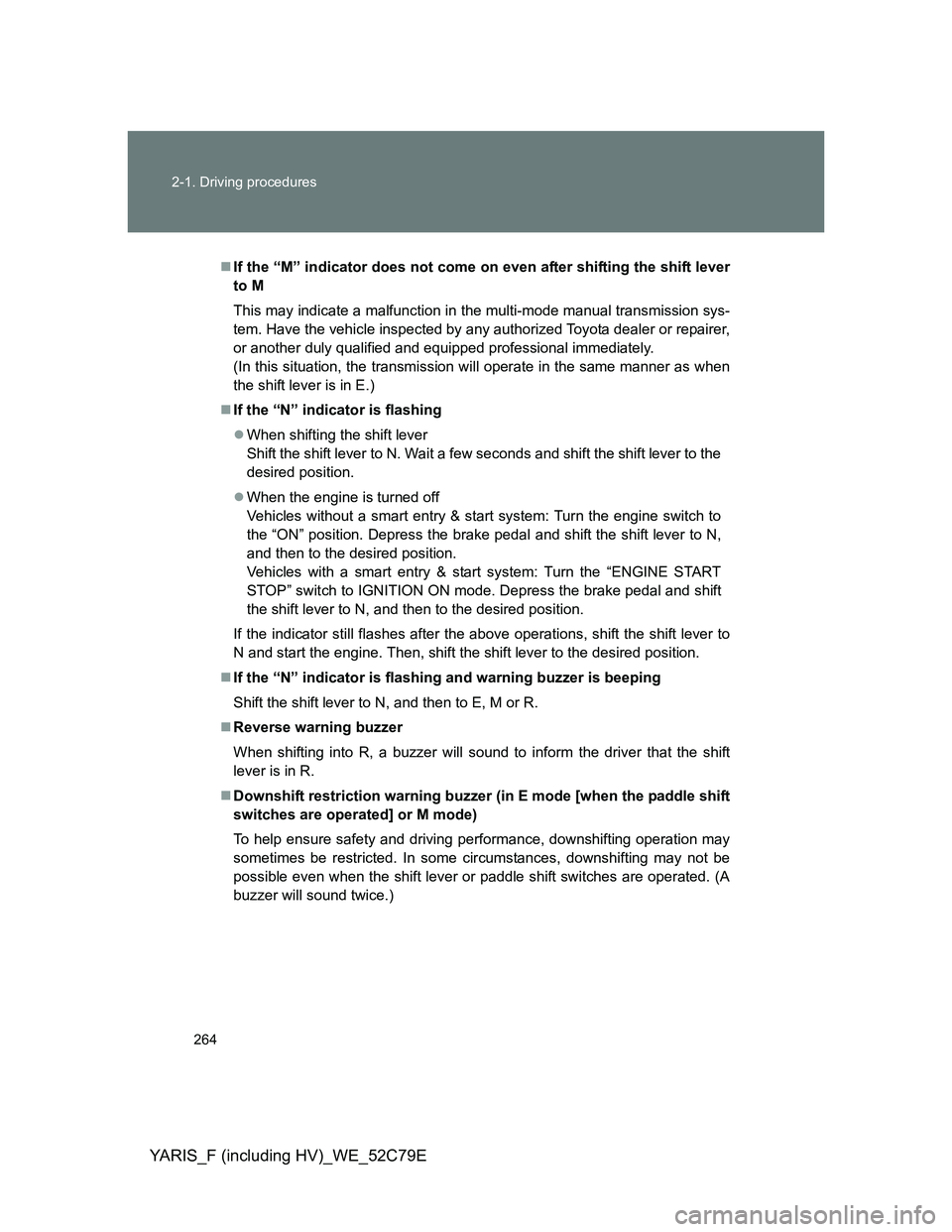

Page 264 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 264 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
If the “M” indicator does not come on even after shifting the shift lever
to M
This may indicate a malfunction in the multi-mode man

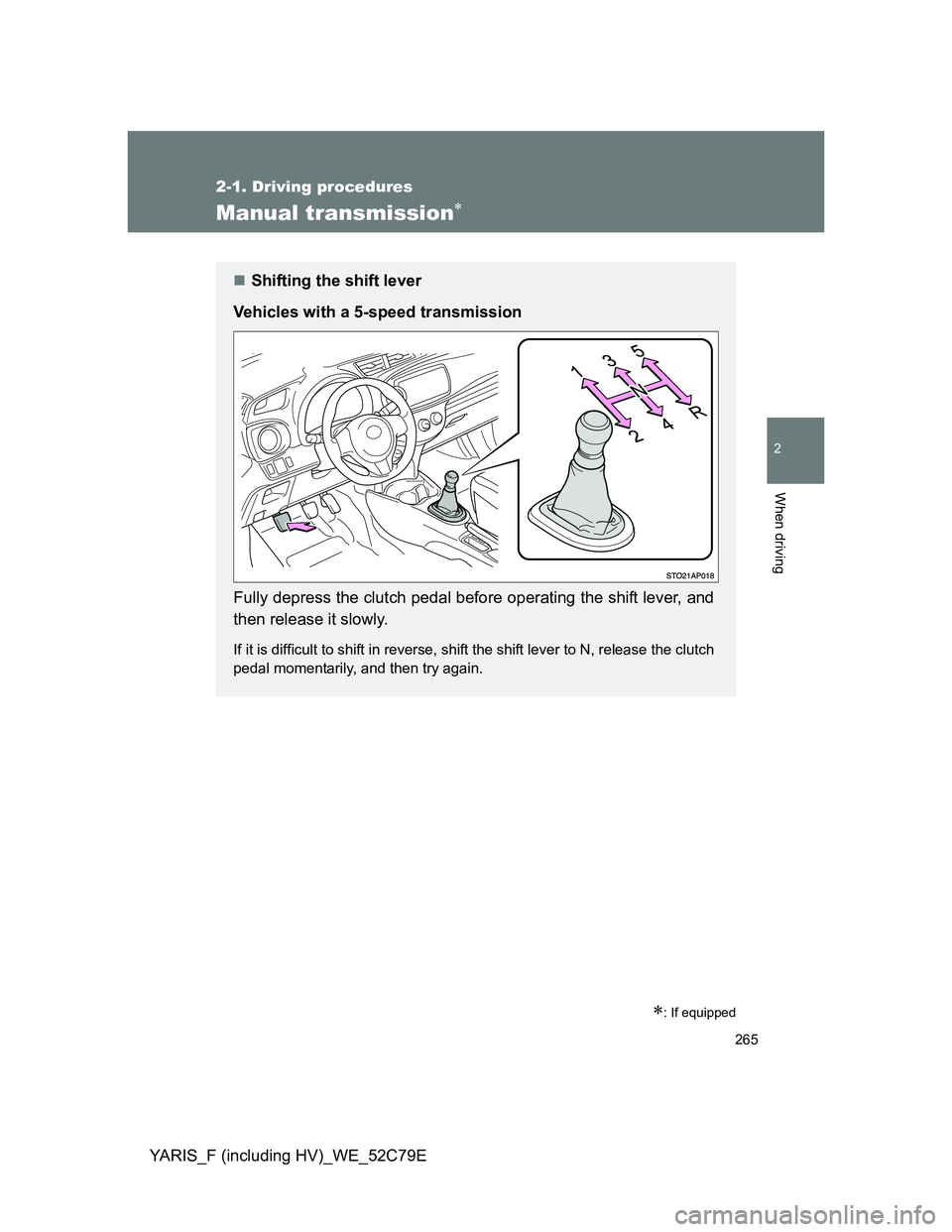

Page 265 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 265
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Manual transmission
: If equipped
Shifting the shift lever
Vehicles with a 5-speed transmission
Fully depress the c

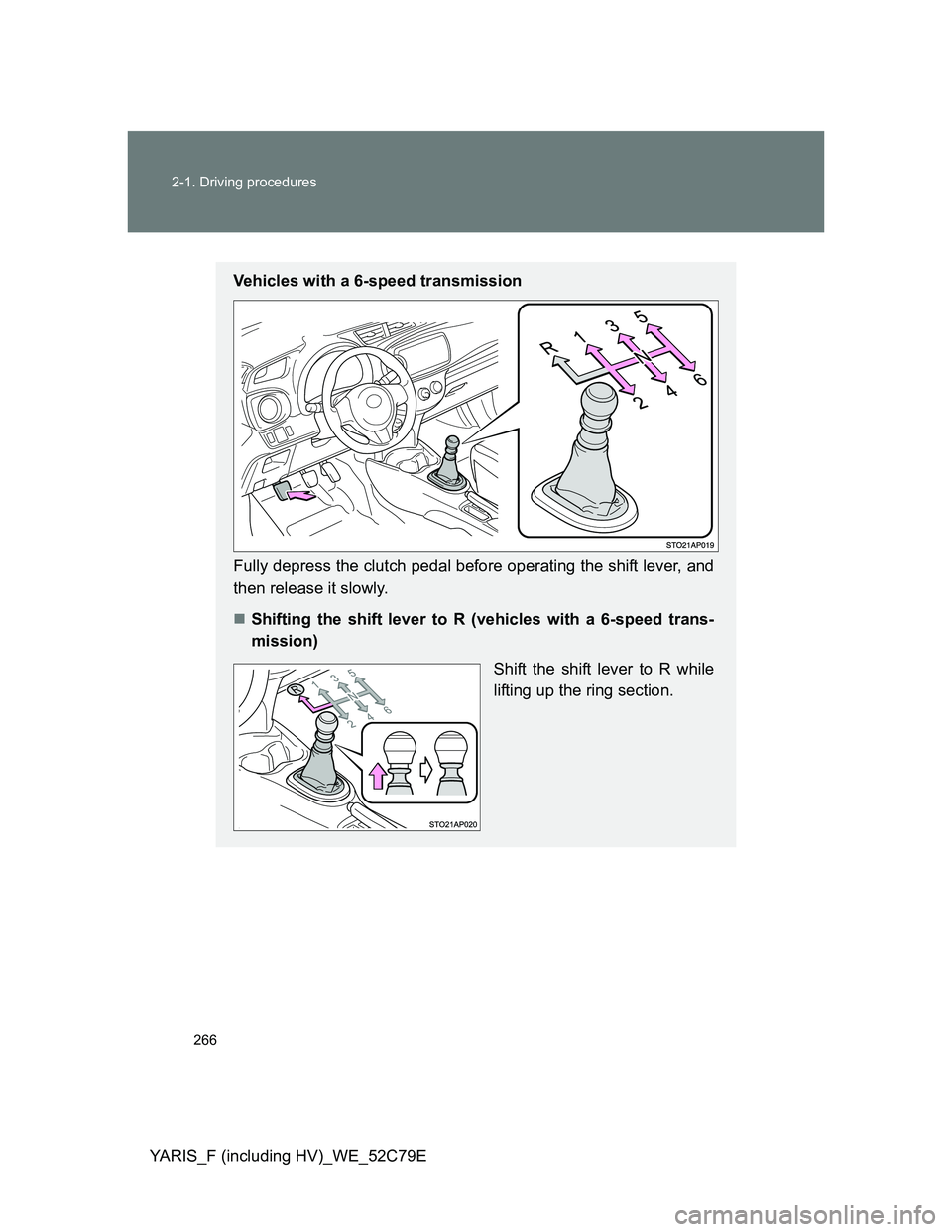

Page 266 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 266 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
Vehicles with a 6-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shifti

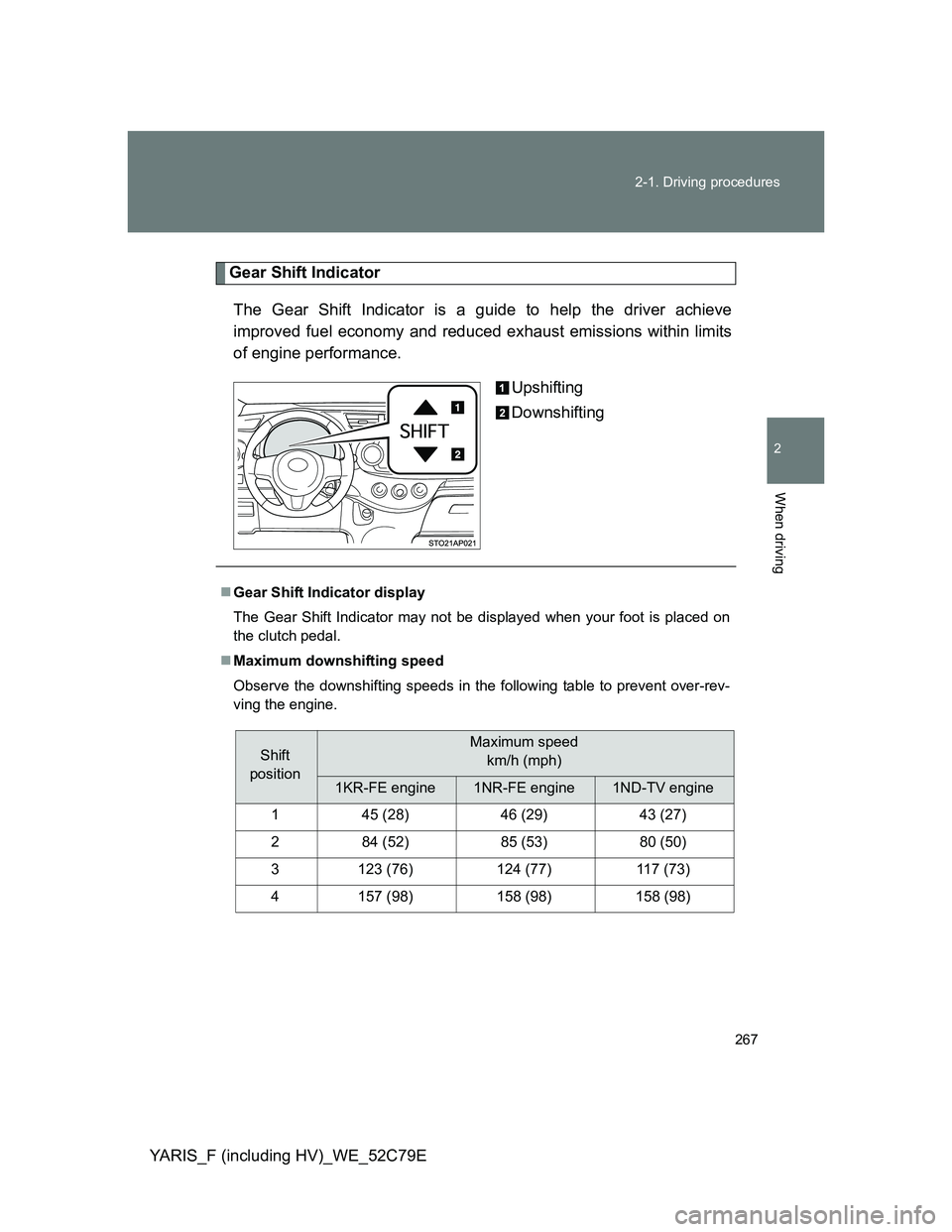

Page 267 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 267 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Gear Shift Indicator
The Gear Shift Indicator is a guide to help the driver achieve
improved fuel economy and reduced exhaus

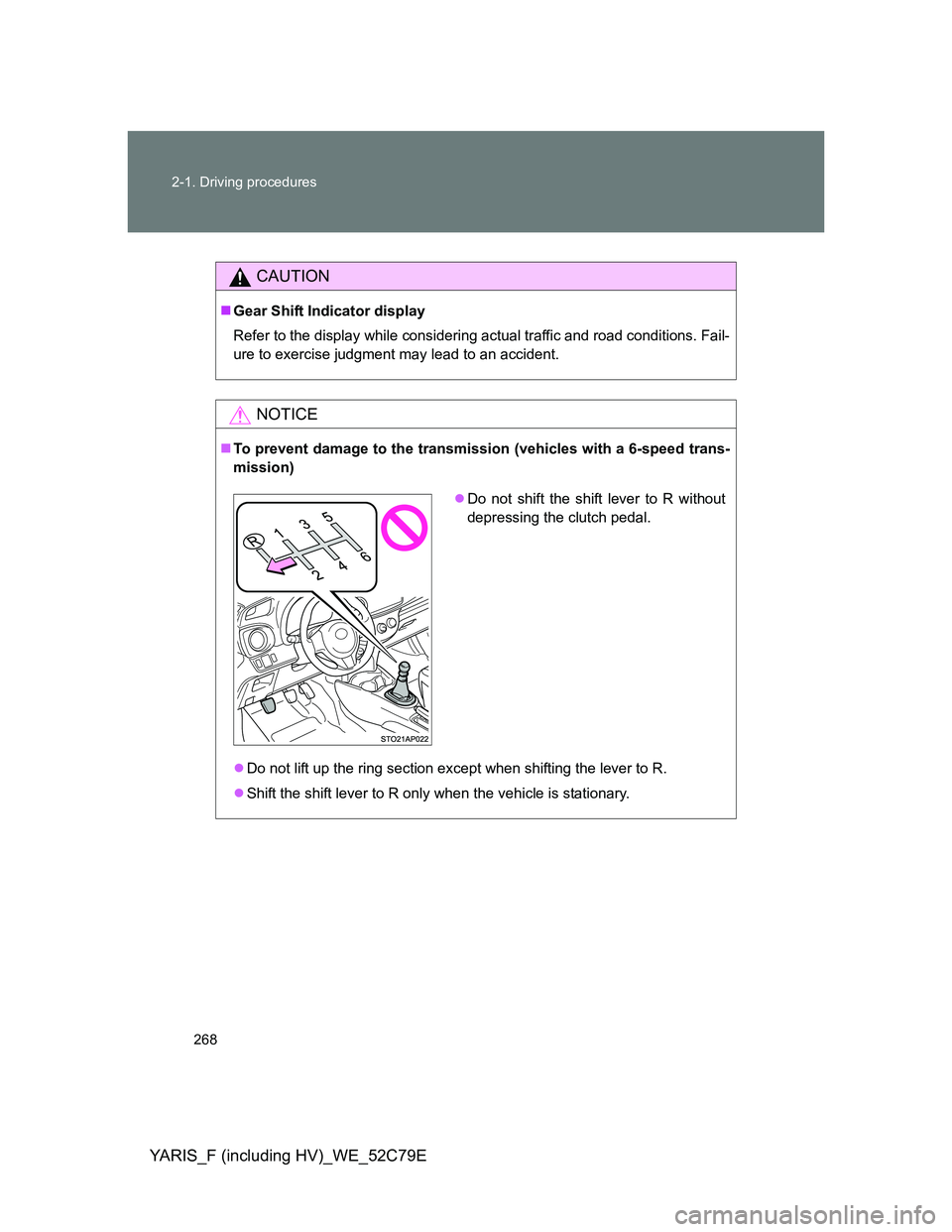

Page 268 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 268 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
CAUTION
Gear Shift Indicator display
Refer to the display while considering actual traffic and road conditions. Fail-
ure to exercise ju

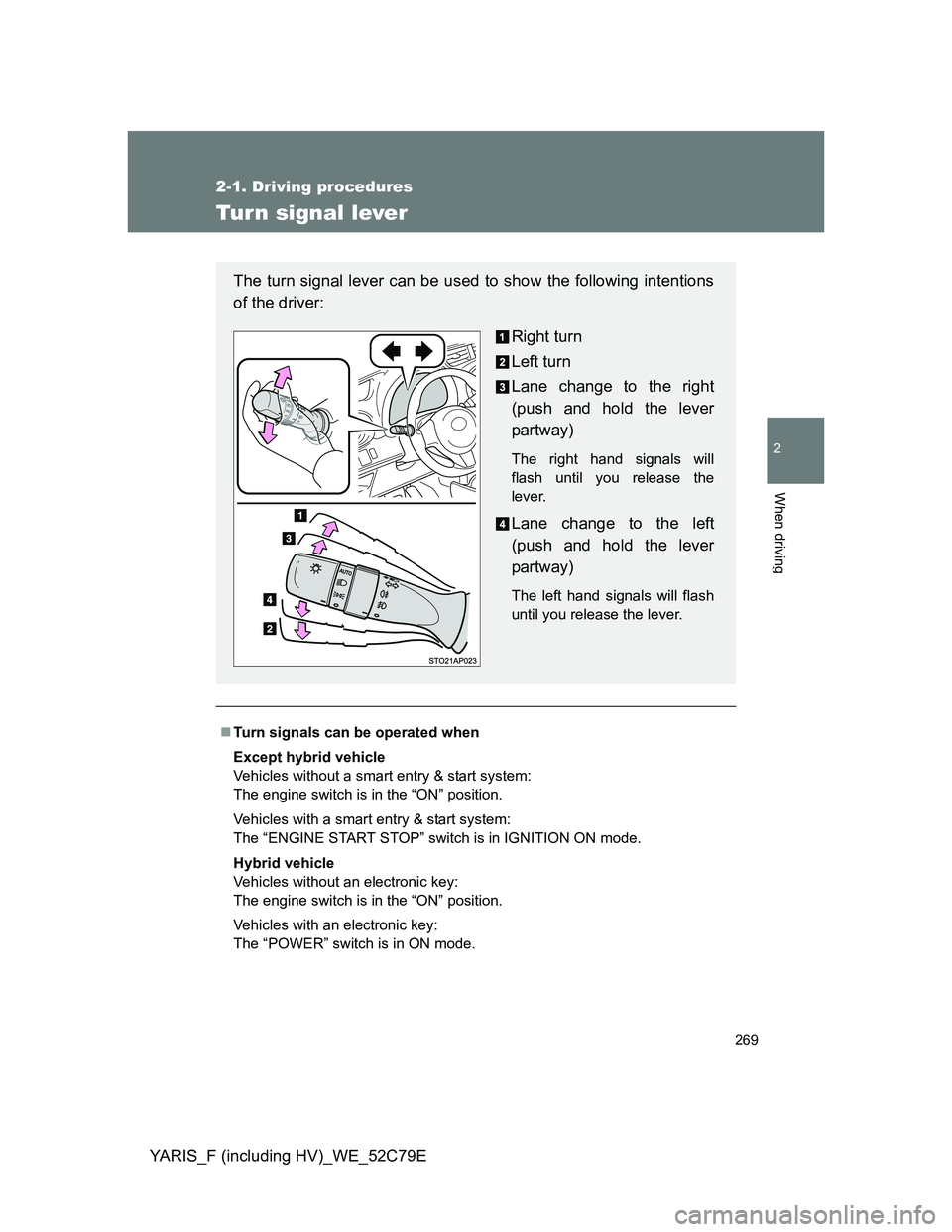

Page 269 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 269
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Turn signal lever
Turn signals can be operated when
Except hybrid vehicle
Vehicles without a smart entry & start system:

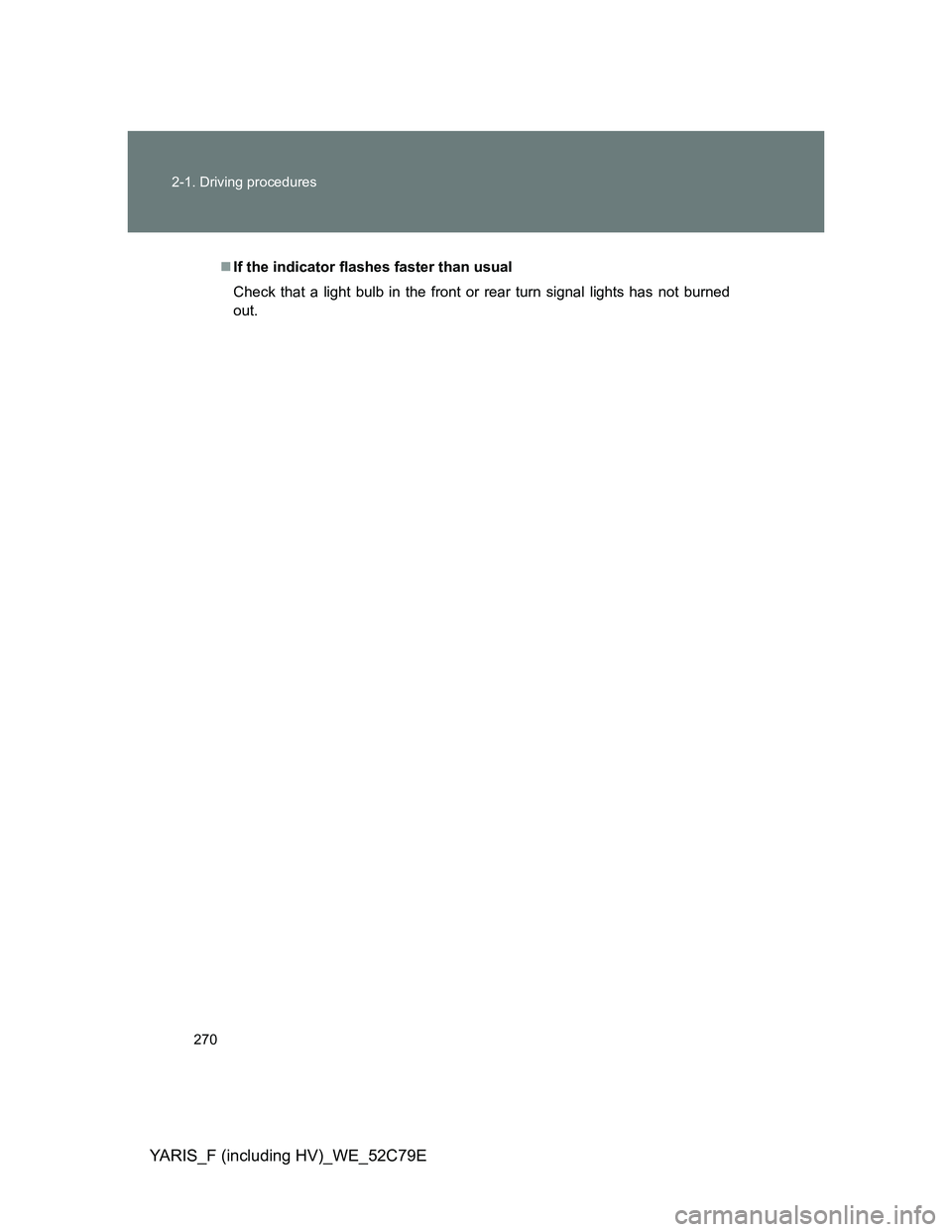

Page 270 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 270 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
