TOYOTA YARIS HYBRID 2012 Owners Manual

411
3-2. Using the audio system
3
Interior features
YARIS_F (including HV)_WE_52C79E

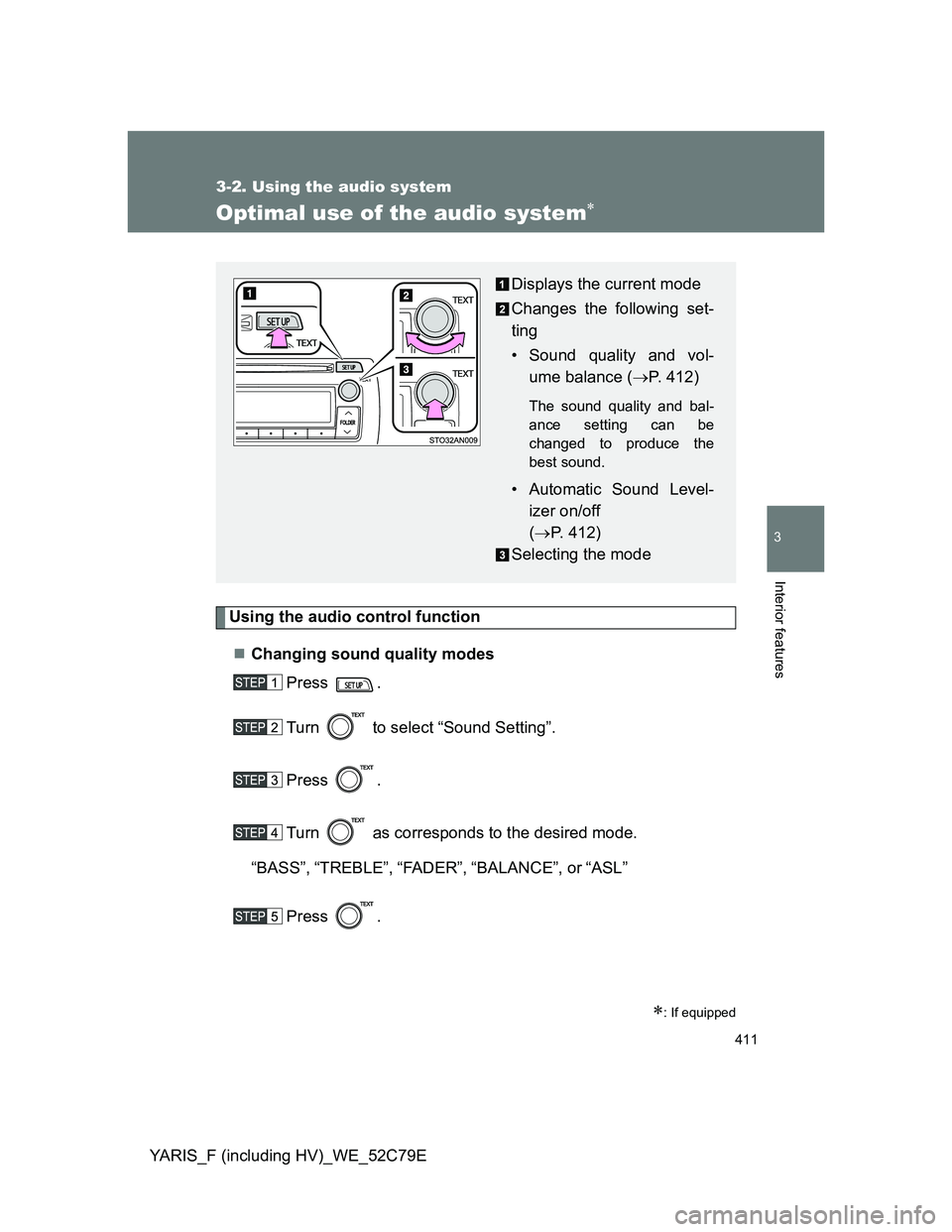

Optimal use of the audio system
Using the audio control function
Changing sound quality modes
Press .
Turn to select “Sound Setting”.
Press .
Turn as corresponds to the desired mode.
“BASS”,“TREBLE”,“FADER”,“BALANCE”, or“ASL”
Press .
: If equipped
Displays the current mode
Changes the following set-
ting
• Sound quality and vol-
ume balance (P. 412)
The sound quality and bal-
ance setting can be
changed to produce the
best sound.
• Automatic Sound Level-
izer on/off
(P. 412)
Selecting the mode

412 3-2. Using the audio system

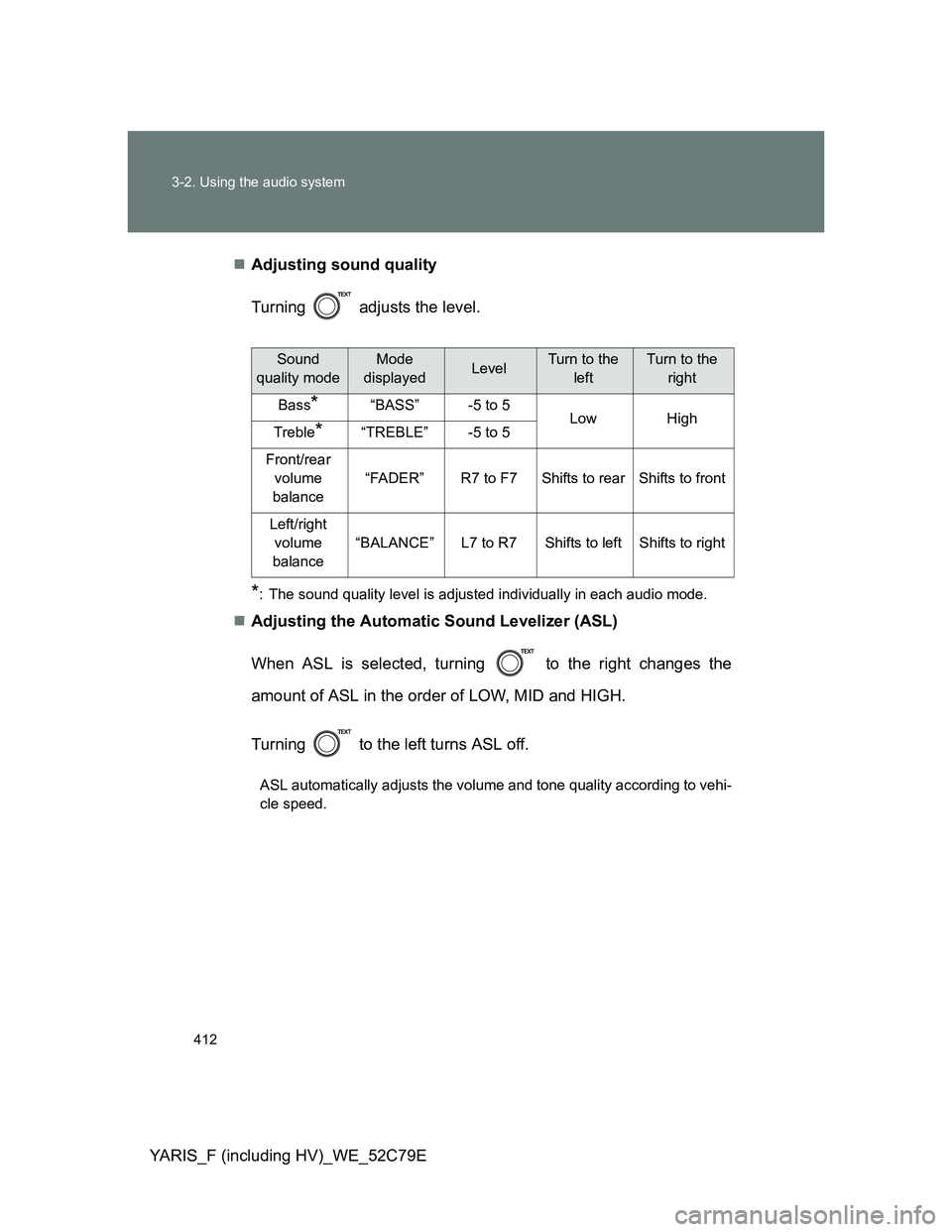

YARIS_F (including HV)_WE_52C79EAdjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turning to the right changes the
amount of ASL in the order of LOW, MID and HIGH.
Turning to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Sound
quality modeMode
displayedLevelTurn to the
leftTurn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear
volume
balance
“FADER”R7 to F7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

413
3-2. Using the audio system
3
Interior features
YARIS_F (including HV)_WE_52C79E

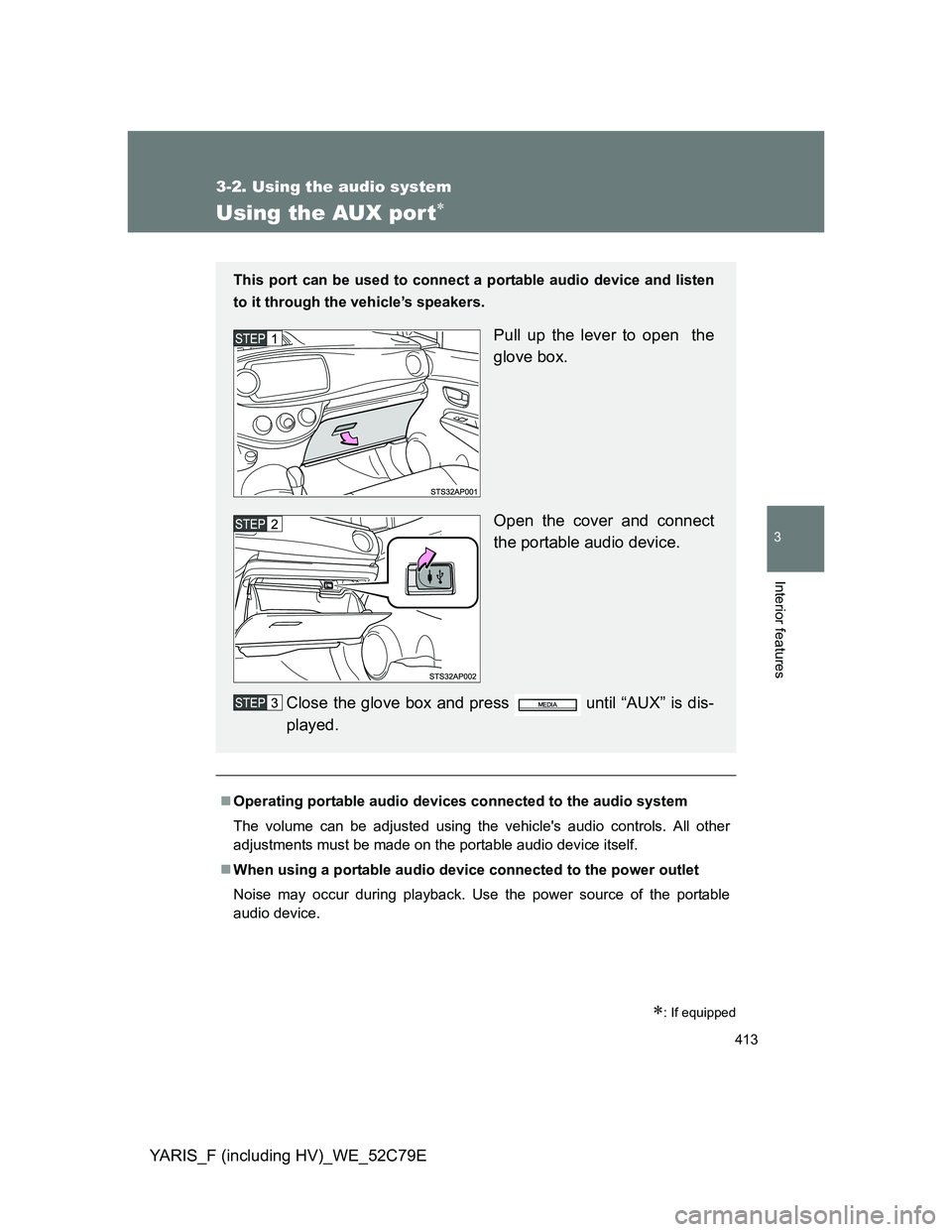

Using the AUX por t
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Pull up the lever to open the
glove box.
Open the cover and connect
the portable audio device.
Close the glove box and press until “AUX” is dis-
played.

414
3-2. Using the audio system
YARIS_F (including HV)_WE_52C79E

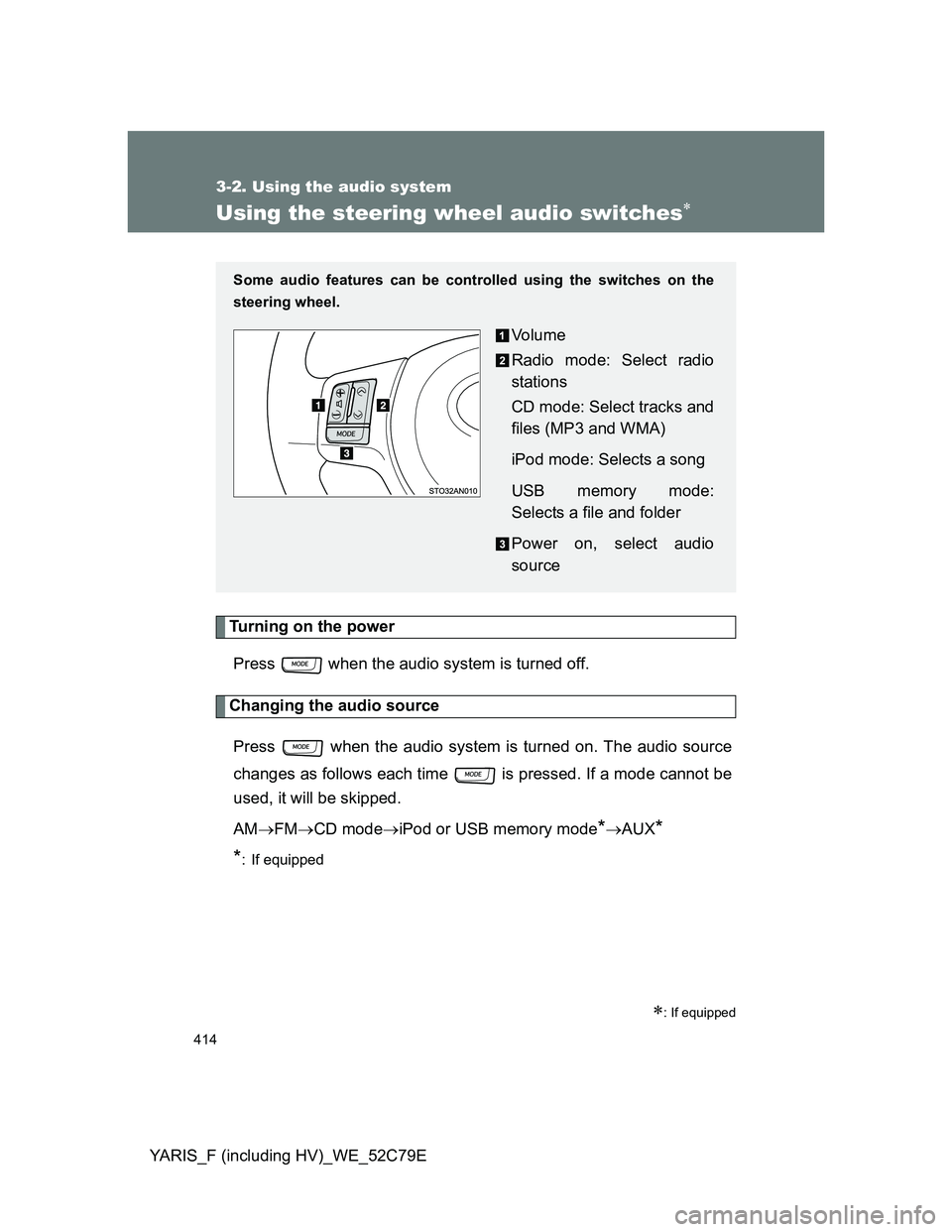

Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AMFMCD modeiPod or USB memory mode
*AUX*
*
: If equipped
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

415 3-2. Using the audio system
3
Interior features
YARIS_F (including HV)_WE_52C79E

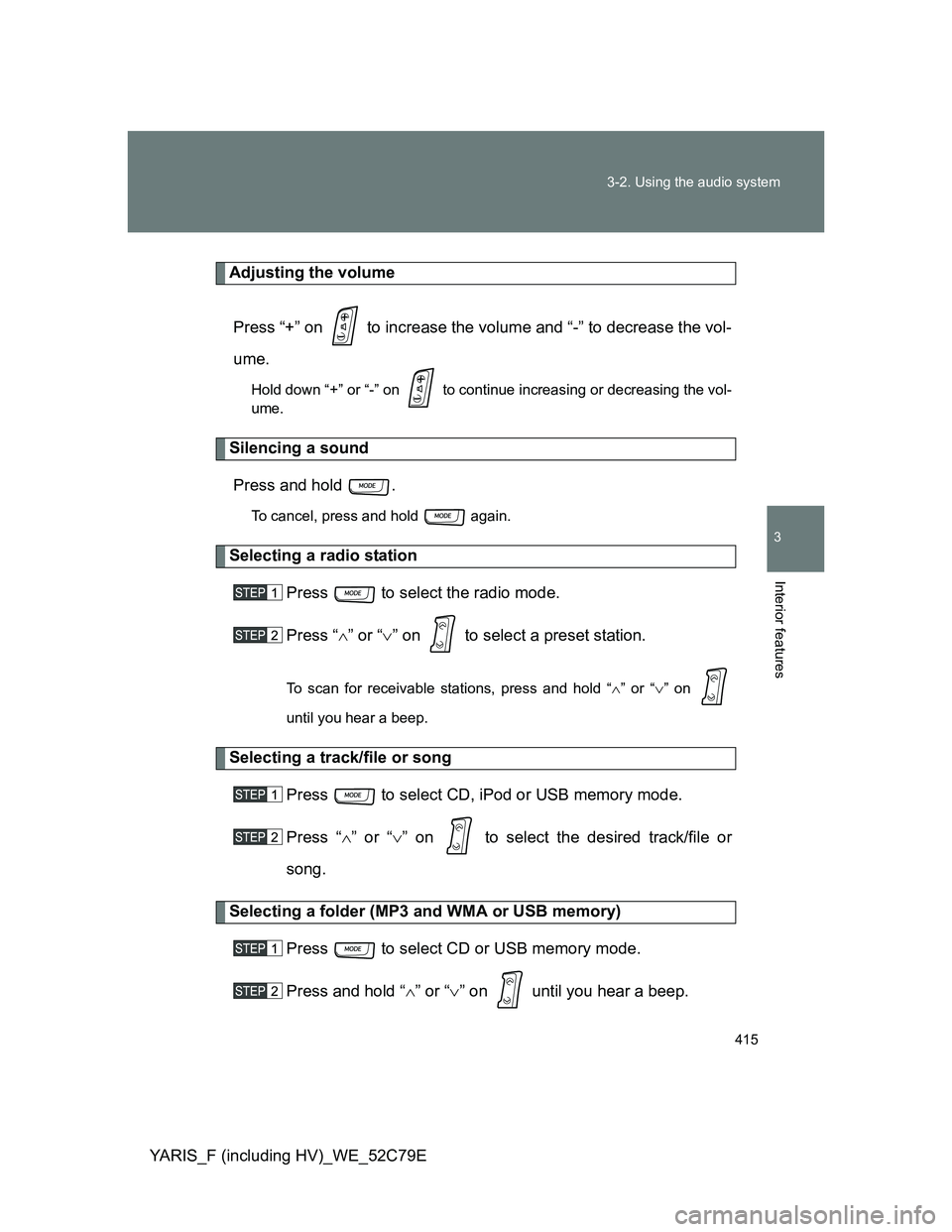

Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Silencing a sound
Press and hold .
To cancel, press and hold again.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on
until you hear a beep.
Selecting a track/file or song
Press to select CD, iPod or USB memory mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder (MP3 and WMA or USB memory)
Press to select CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.

416 3-2. Using the audio system
YARIS_F (including HV)_WE_52C79E

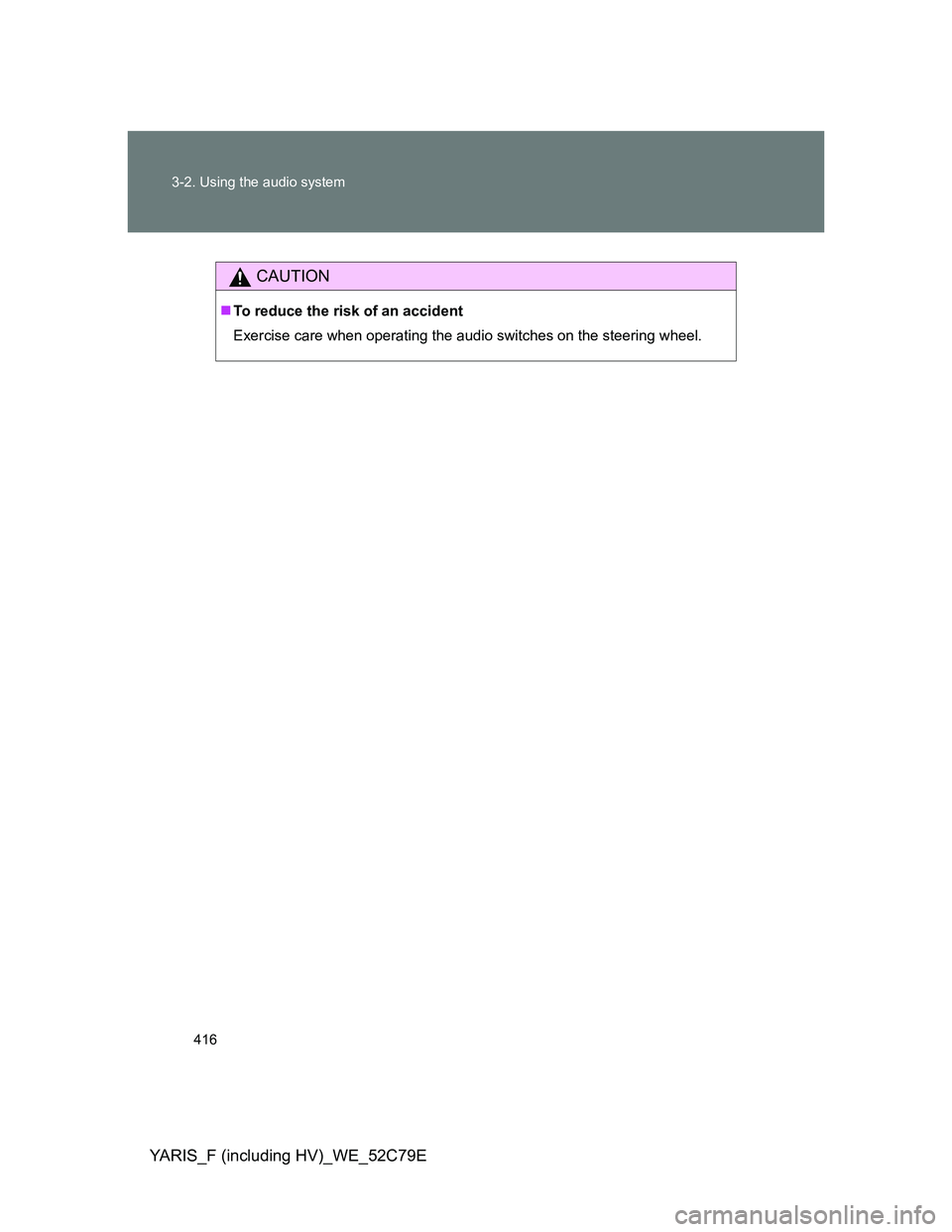

CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

417
3
Interior features
YARIS_F (including HV)_WE_52C79E
3-3. Using the interior lights

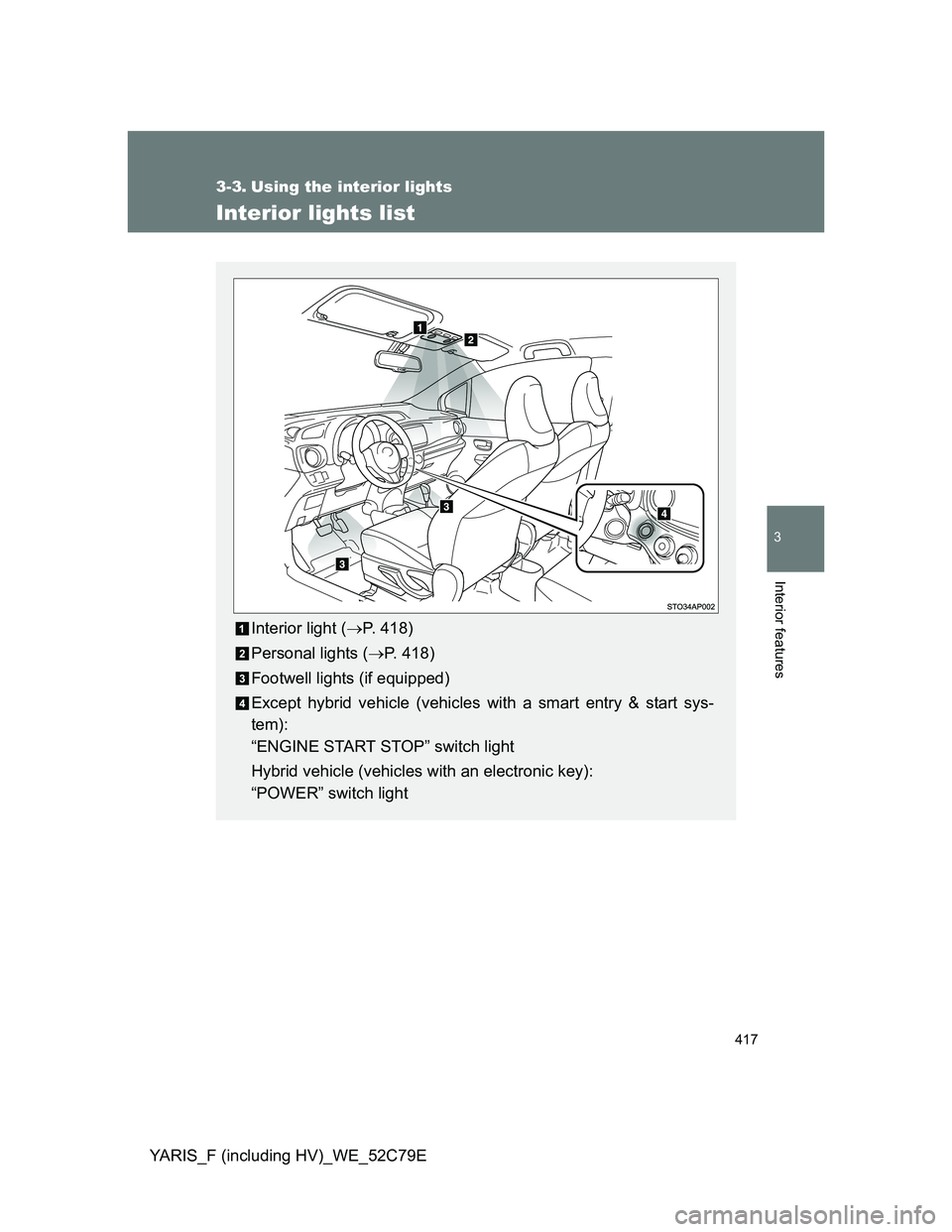

Interior lights list
Interior light (P. 418)
Personal lights (P. 418)
Footwell lights (if equipped)
Except hybrid vehicle (vehicles with a smart entry & start sys-
tem):
“ENGINE START STOP” switch light
Hybrid vehicle (vehicles with an electronic key):
“POWER” switch light

418 3-3. Using the interior lights
YARIS_F (including HV)_WE_52C79E

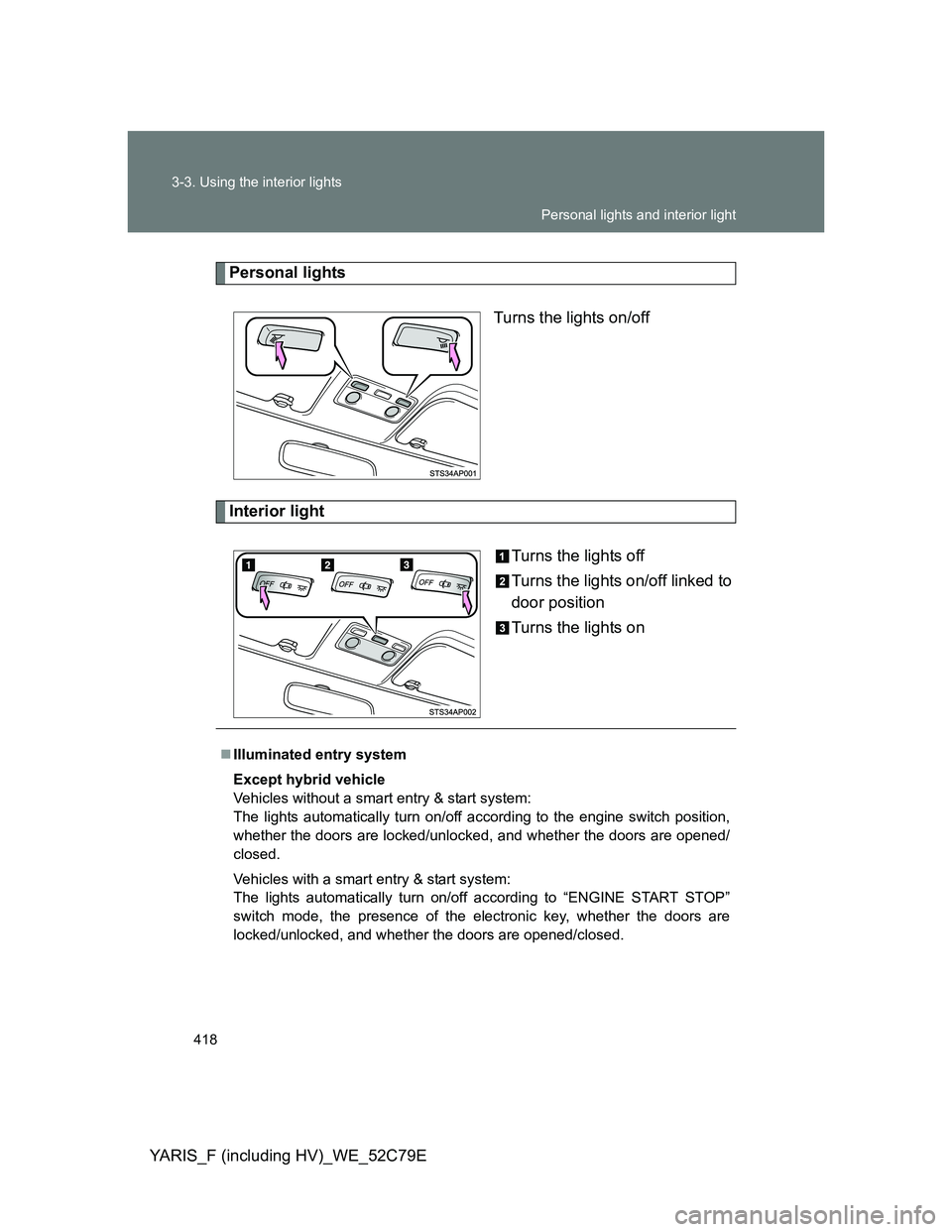

Personal lights
Turns the lights on/off
Interior light
Turns the lights off
Turns the lights on/off linked to
door position
Turns the lights on
Illuminated entry system
Except hybrid vehicle
Vehicles without a smart entry & start system:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system:
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are opened/closed.
Personal lights and interior light

419 3-3. Using the interior lights
3
Interior features
YARIS_F (including HV)_WE_52C79E

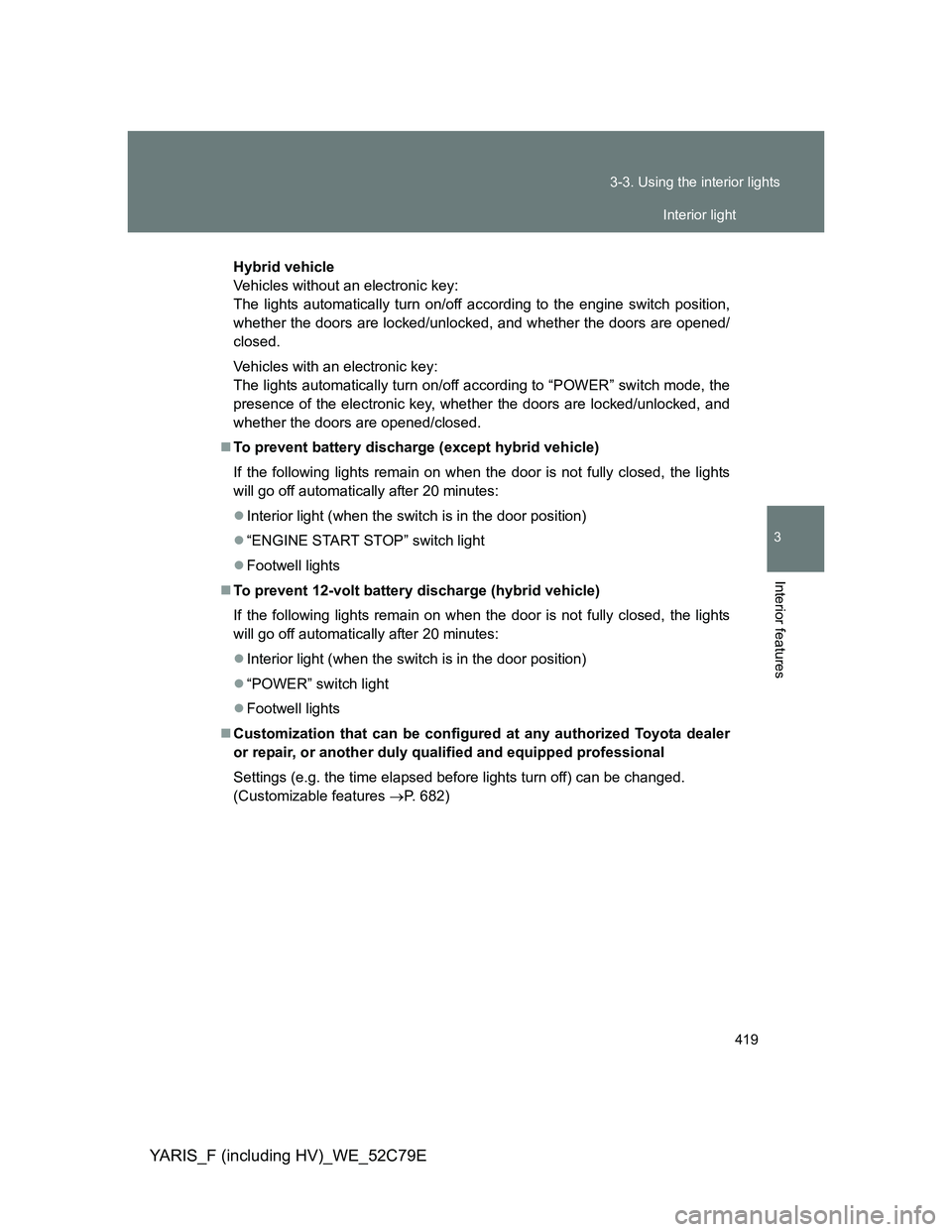

Hybrid vehicle
Vehicles without an electronic key:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with an electronic key:
The lights automatically turn on/off according to “POWER” switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
To prevent battery discharge (except hybrid vehicle)
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“ENGINE START STOP” switch light
Footwell lights
To prevent 12-volt battery discharge (hybrid vehicle)
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“POWER” switch light
Footwell lights
Customization that can be configured at any authorized Toyota dealer
or repair, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 682)
Interior light

420
YARIS_F (including HV)_WE_52C79E

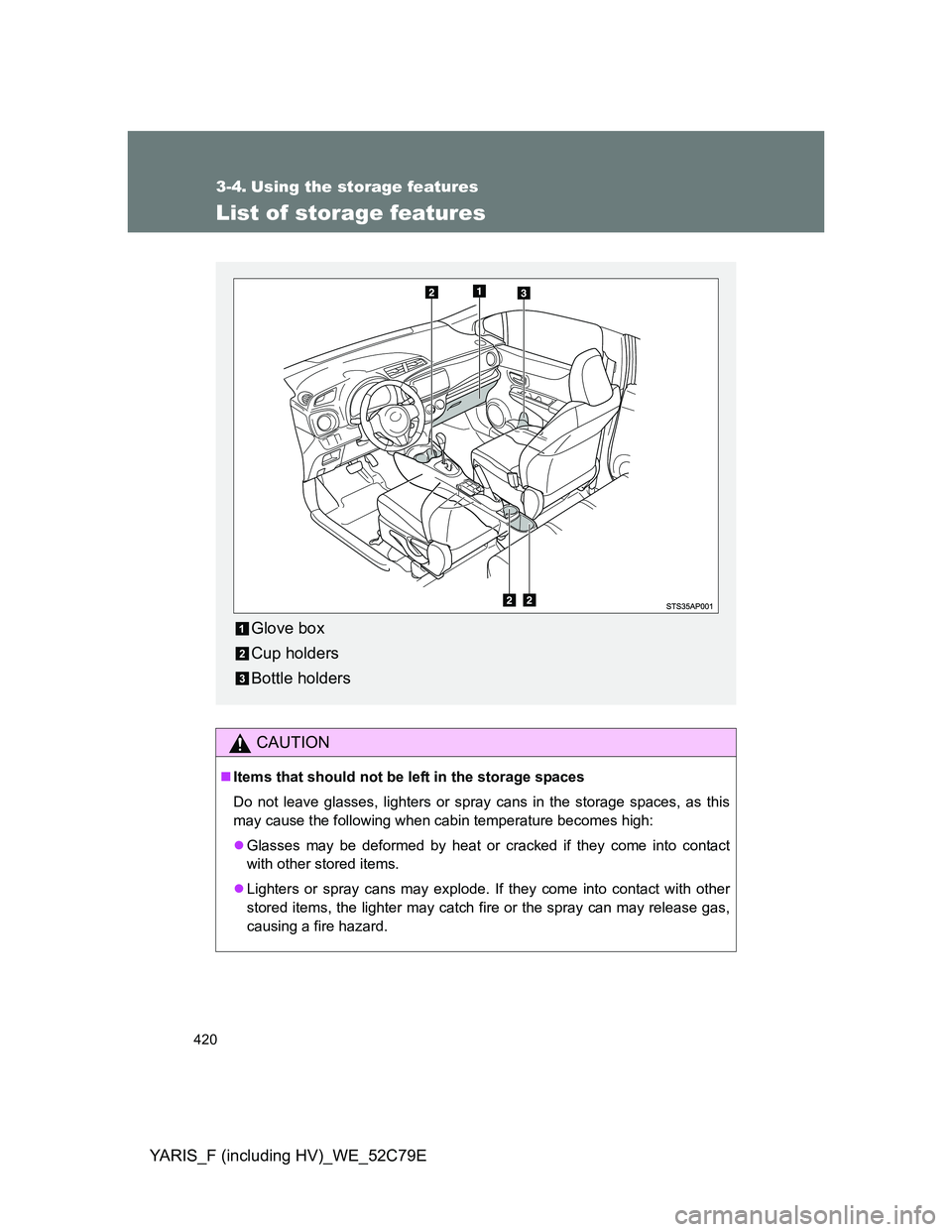

3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Cup holders
Bottle holders
