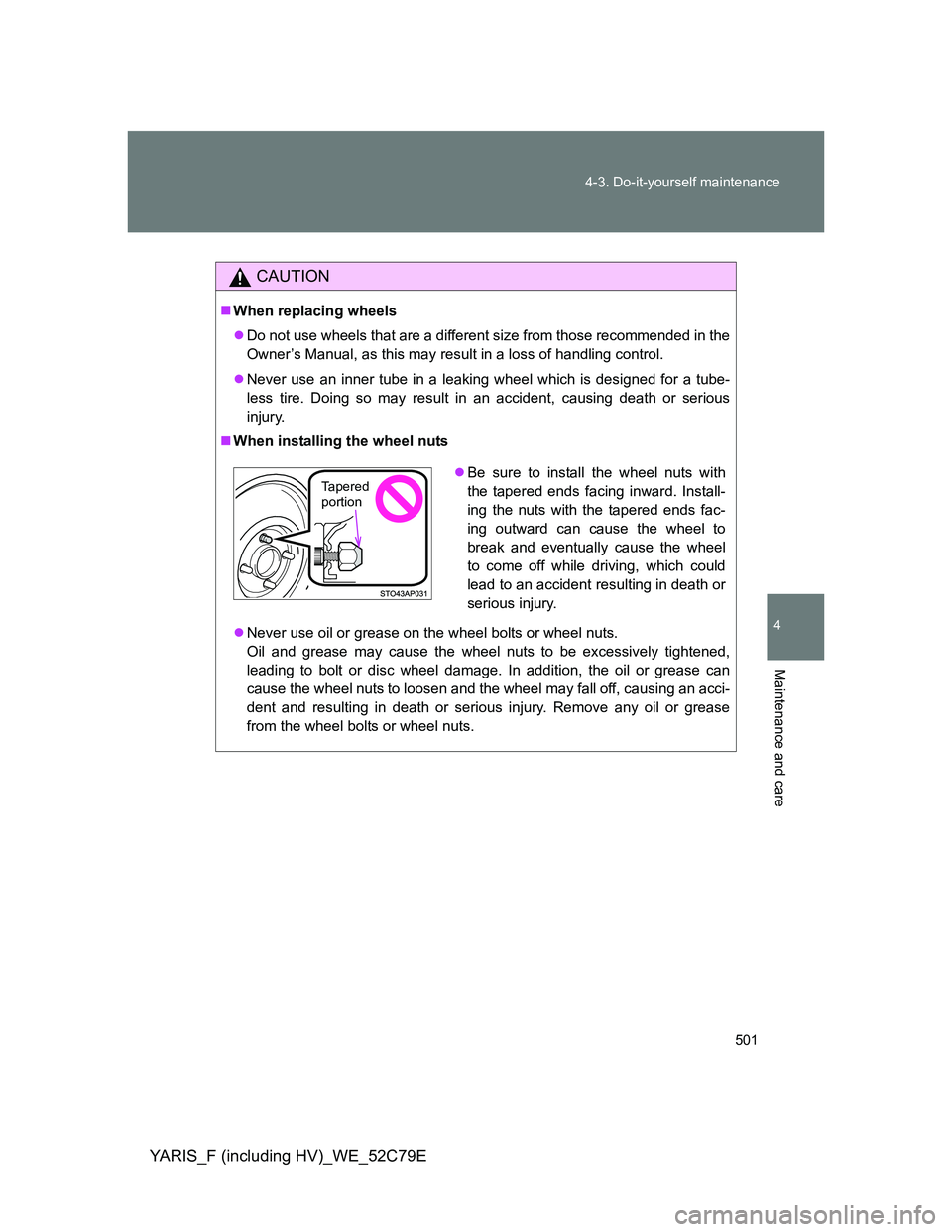

CAUTION
When replacing wheels
Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
When installing the wheel nuts
Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
Be sure to install the wheel nuts with
the tapered ends facing inward. Install-
ing the nuts with the tapered ends fac-
ing outward can cause the wheel to
break and eventually cause the wheel
to come off while driving, which could
lead to an accident resulting in death or
serious injury.Tapered
portion

502
4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.

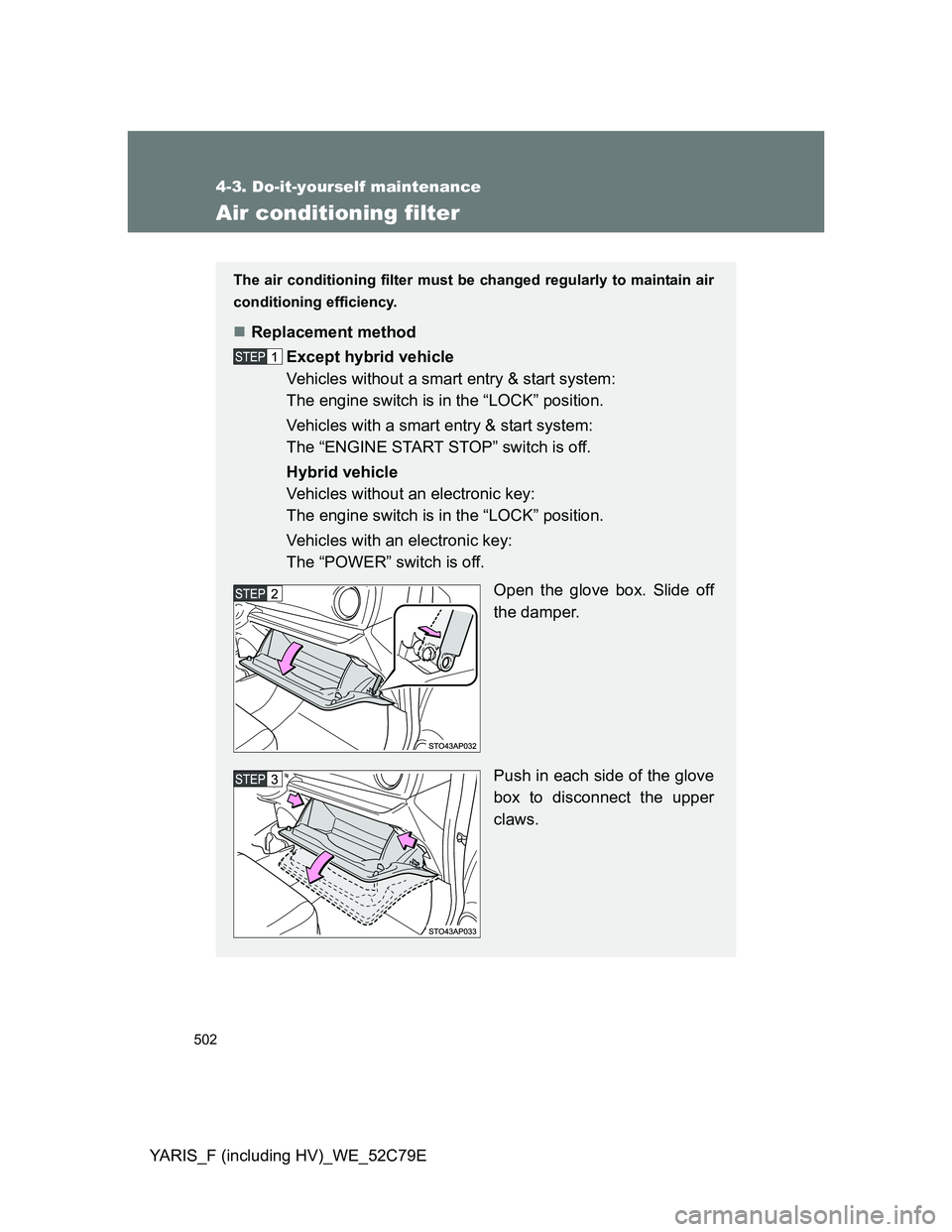

Replacement method
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “LOCK” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is off.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “LOCK” position.
Vehicles with an electronic key:
The “POWER” switch is off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the upper
claws.

503 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

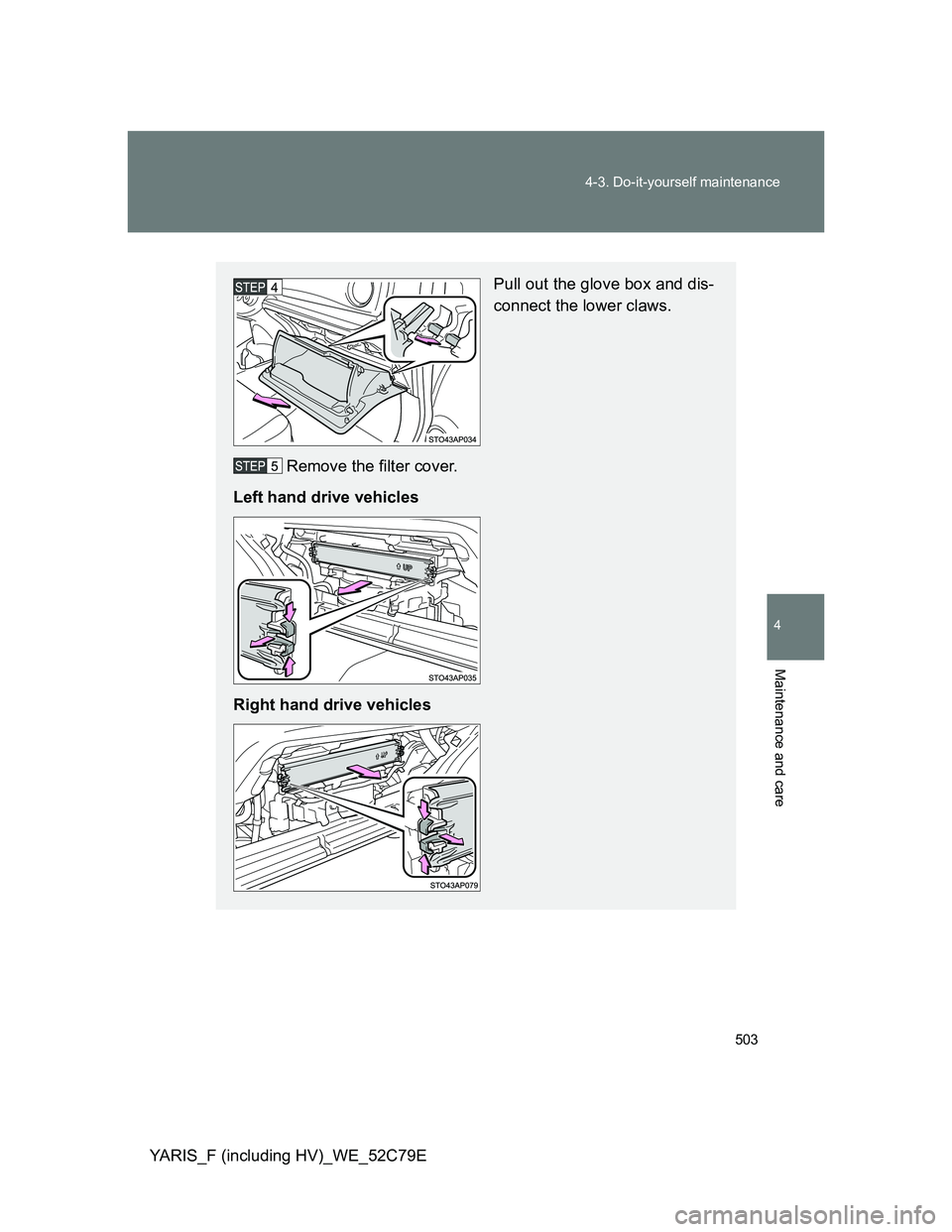

Pull out the glove box and dis-
connect the lower claws.
Remove the filter cover.
Left hand drive vehicles
Right hand drive vehicles

504 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Toyota Service Booklet” or “Toyota Warranty Booklet”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

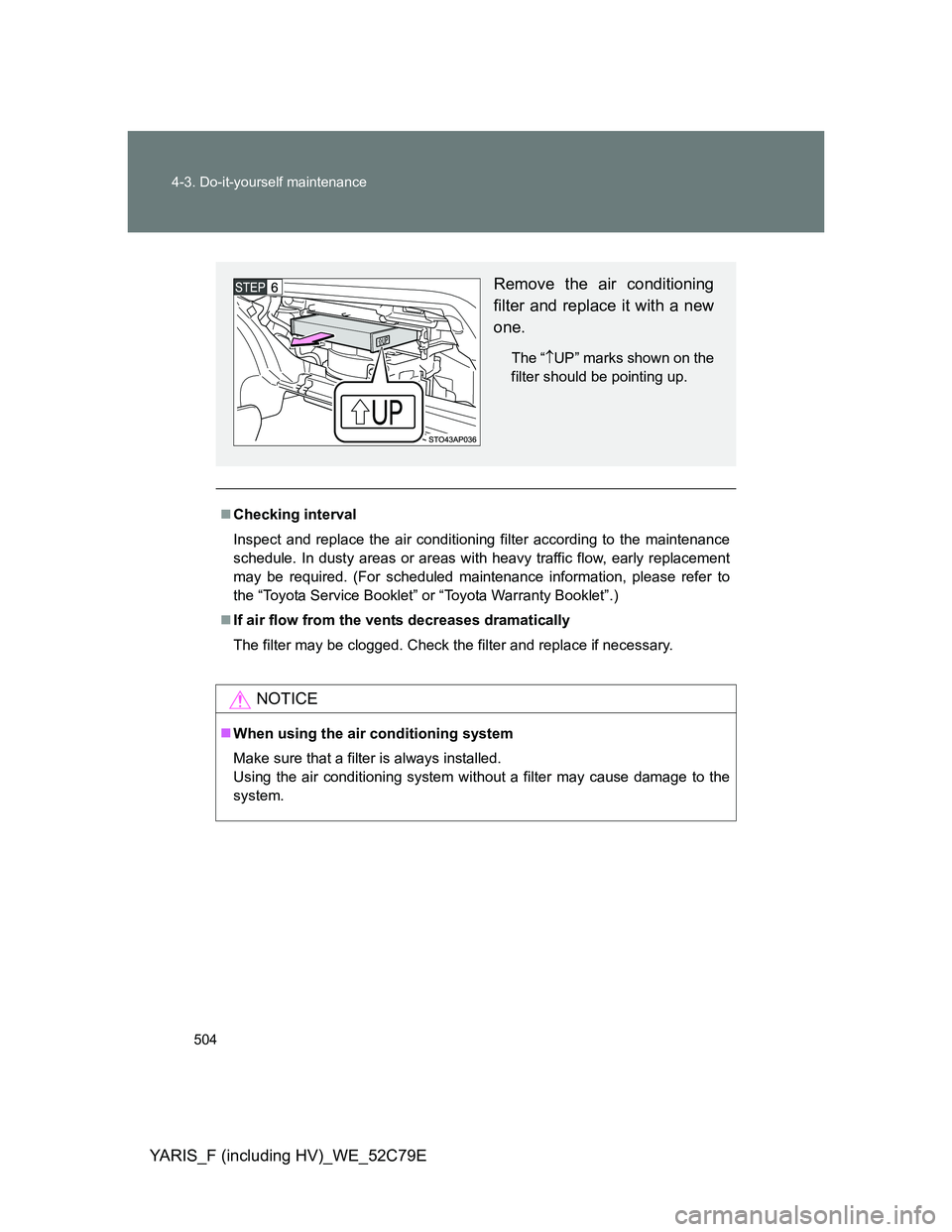

Remove the air conditioning
filter and replace it with a new
one.
The“UP” marks shown on the
filter should be pointing up.

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E
Wireless remote control/electronic key batter y
Replace the battery with a new one if it is depleted.
You will need the following items:
Flathead screwdriver
Lithium battery CR2016 (vehicles without a smart entry & start
system or a push-button start system), or CR2032 (vehicles
with a smart entry & start system or a push-button start sys-
tem)

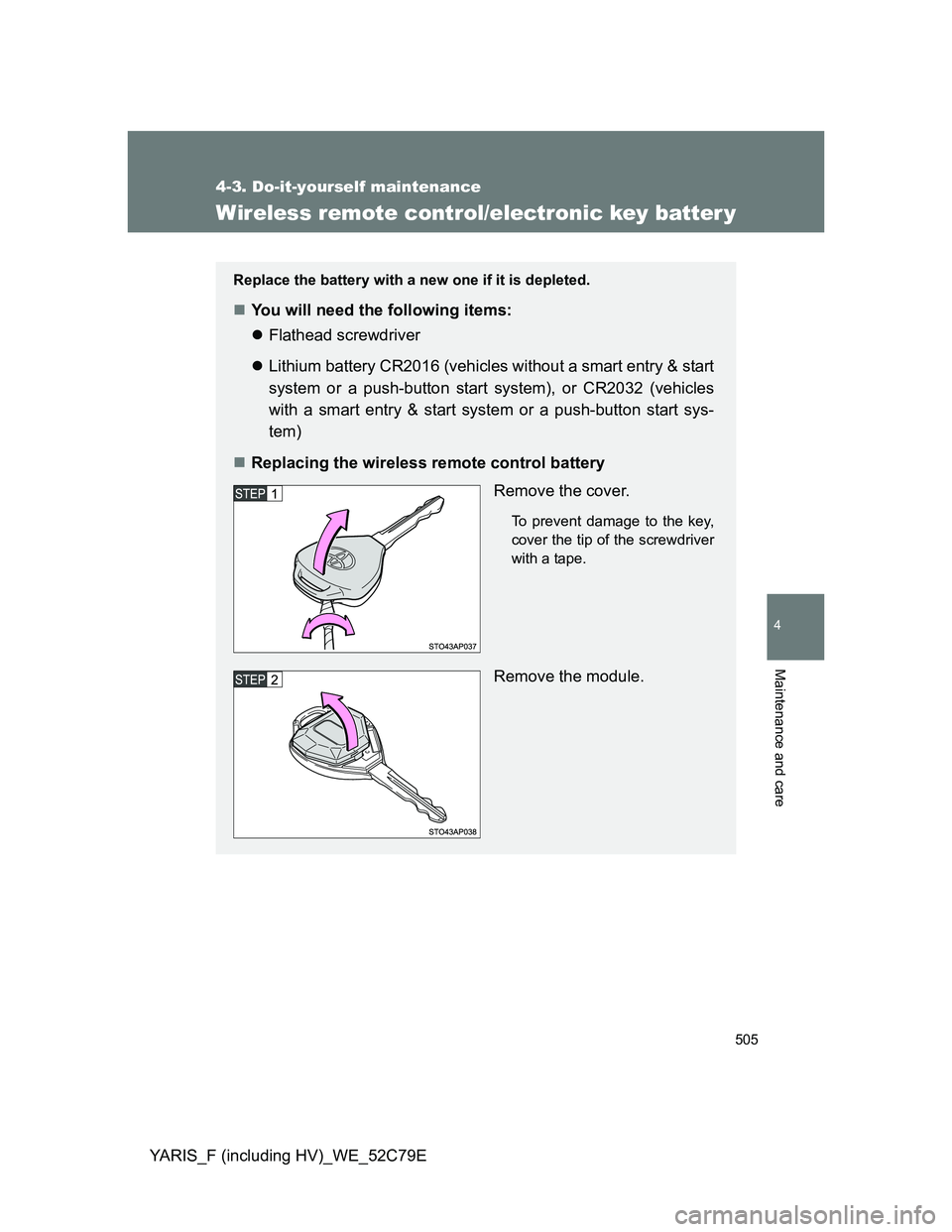

Replacing the wireless remote control battery
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a tape.
Remove the module.

506 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
Remove the battery cover and
the depleted battery.
Insert a new battery with the
“+” terminal facing up.

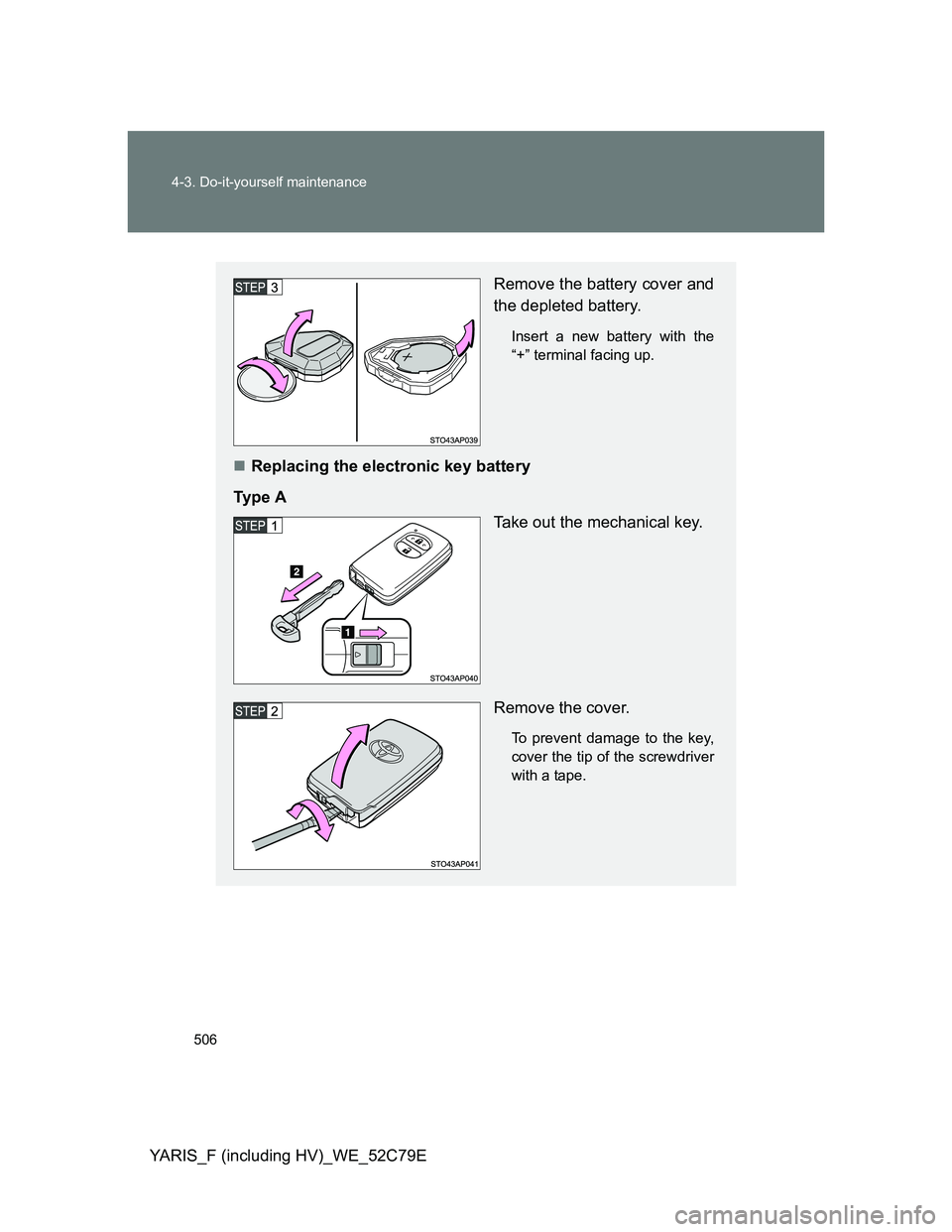

Replacing the electronic key battery
Ty p e A
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a tape.

507 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.

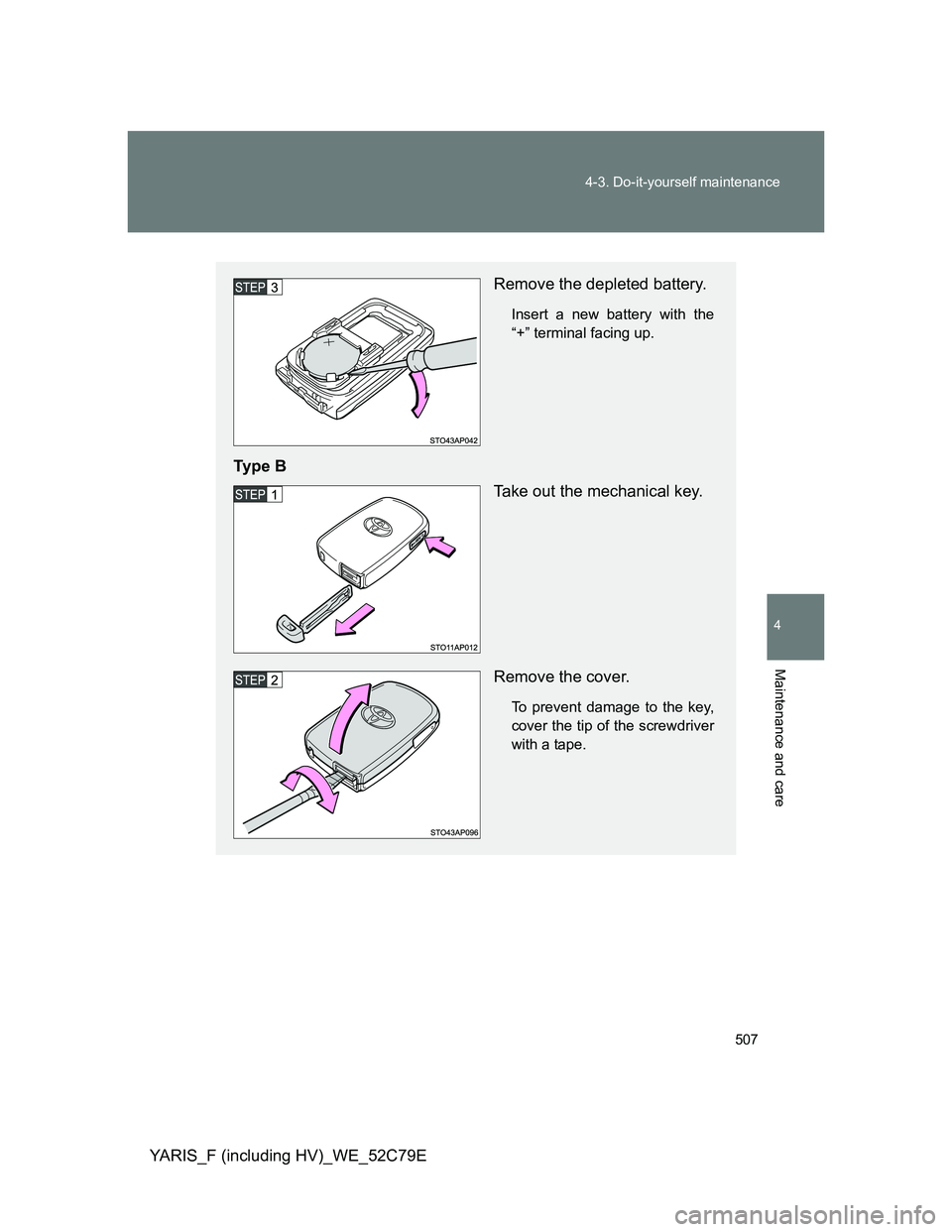

Ty p e B
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a tape.

508 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E
Use a CR2016 (vehicles without a smart entry & start system or a push-
button start system) or CR2032 (vehicles with a smart entry & start sys-
tem or a push-button start system) lithium battery
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, local electrical appli-
ance shops or camera stores.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to local laws.
If the key battery is depleted
The following symptoms may occur:
The smart entry & start system (if equipped), push-button start system (if
equipped) and wireless remote control will not function properly.
The operational range will be reduced.

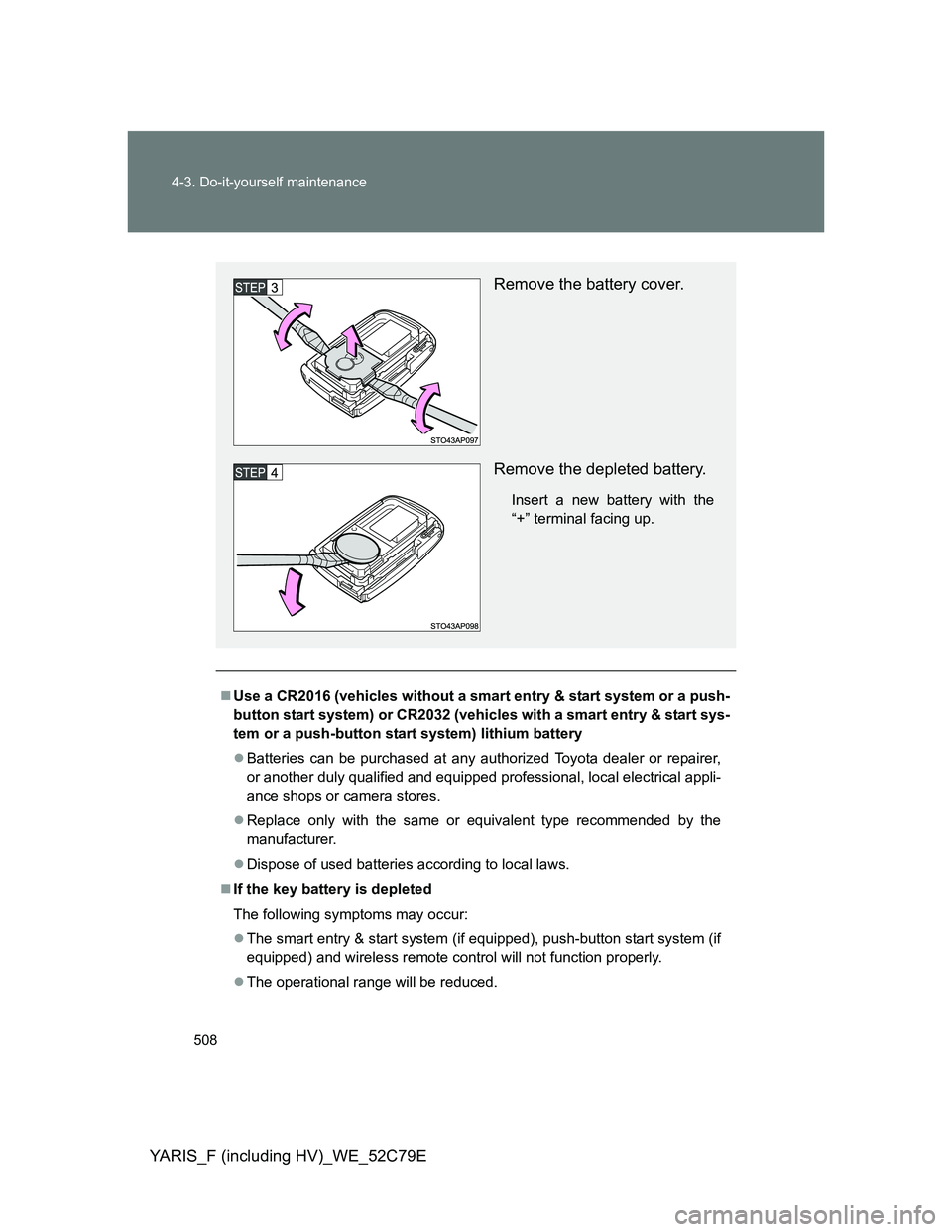

Remove the battery cover.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.

509 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

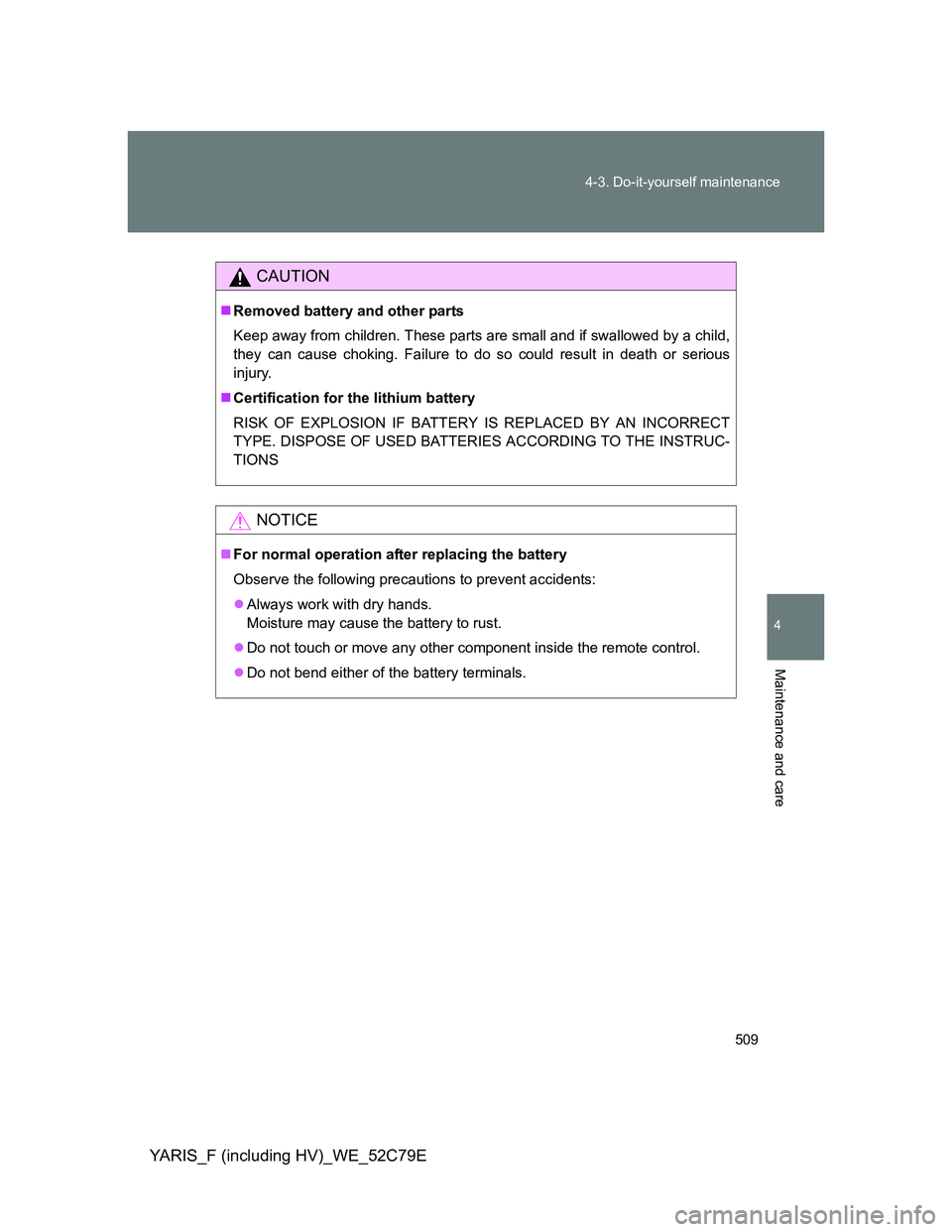

CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Certification for the lithium battery
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other component inside the remote control.
Do not bend either of the battery terminals.

510
4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

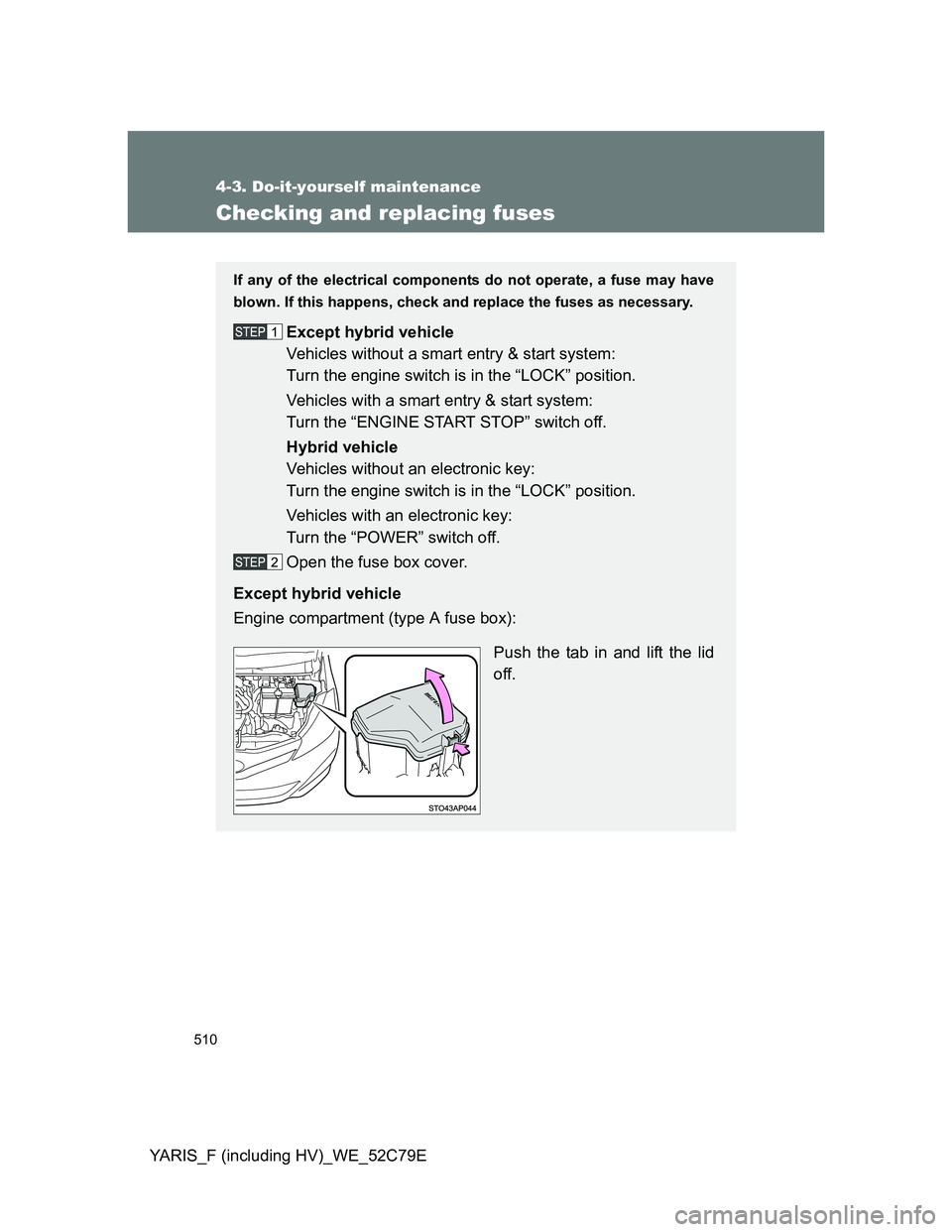

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Except hybrid vehicle
Vehicles without a smart entry & start system:
Turn the engine switch is in the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the “ENGINE START STOP” switch off.
Hybrid vehicle
Vehicles without an electronic key:
Turn the engine switch is in the “LOCK” position.
Vehicles with an electronic key:
Turn the “POWER” switch off.
Open the fuse box cover.
Except hybrid vehicle
Engine compartment (type A fuse box):
Push the tab in and lift the lid
off.
