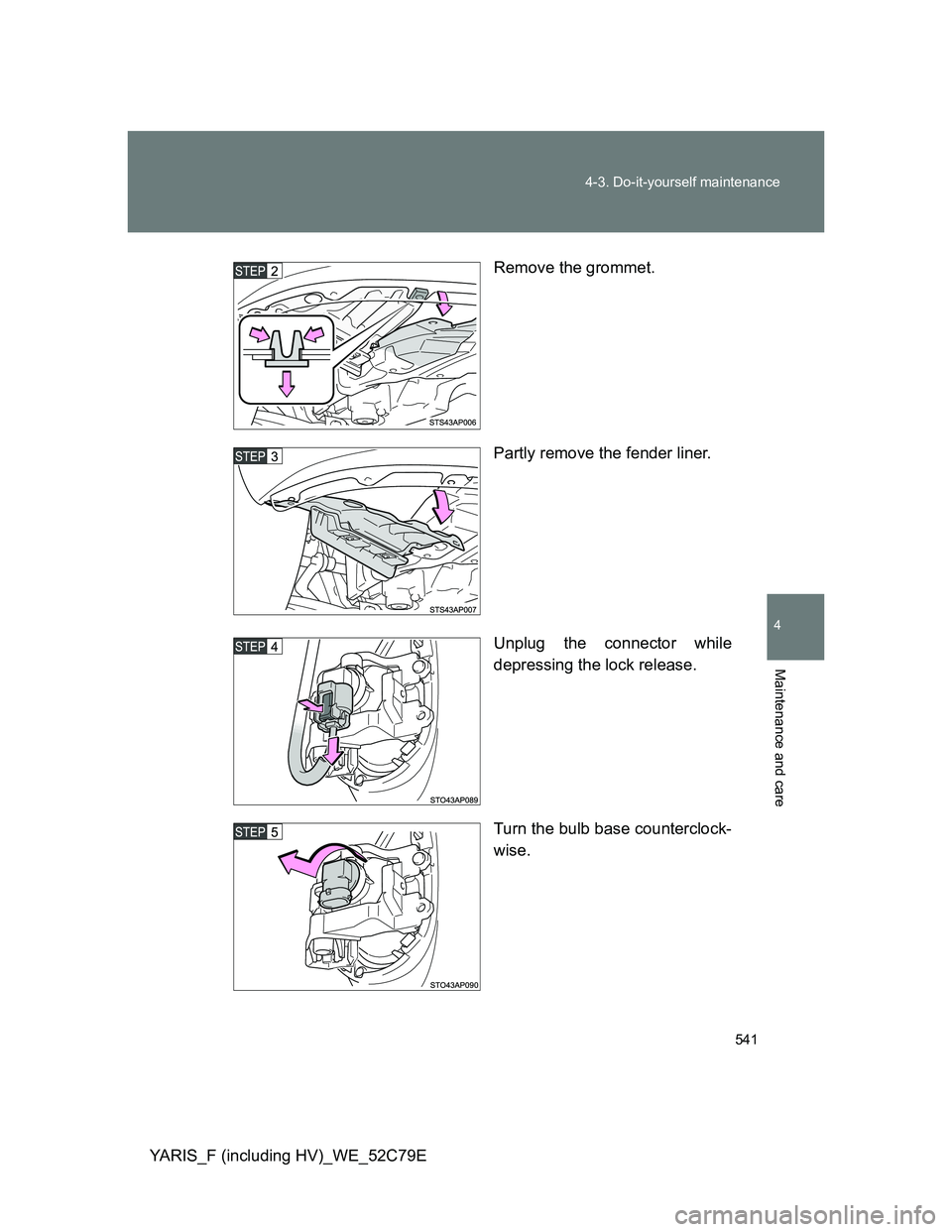

541 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79ERemove the grommet.
Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

542 4-3. Do-it-yourself maintenance

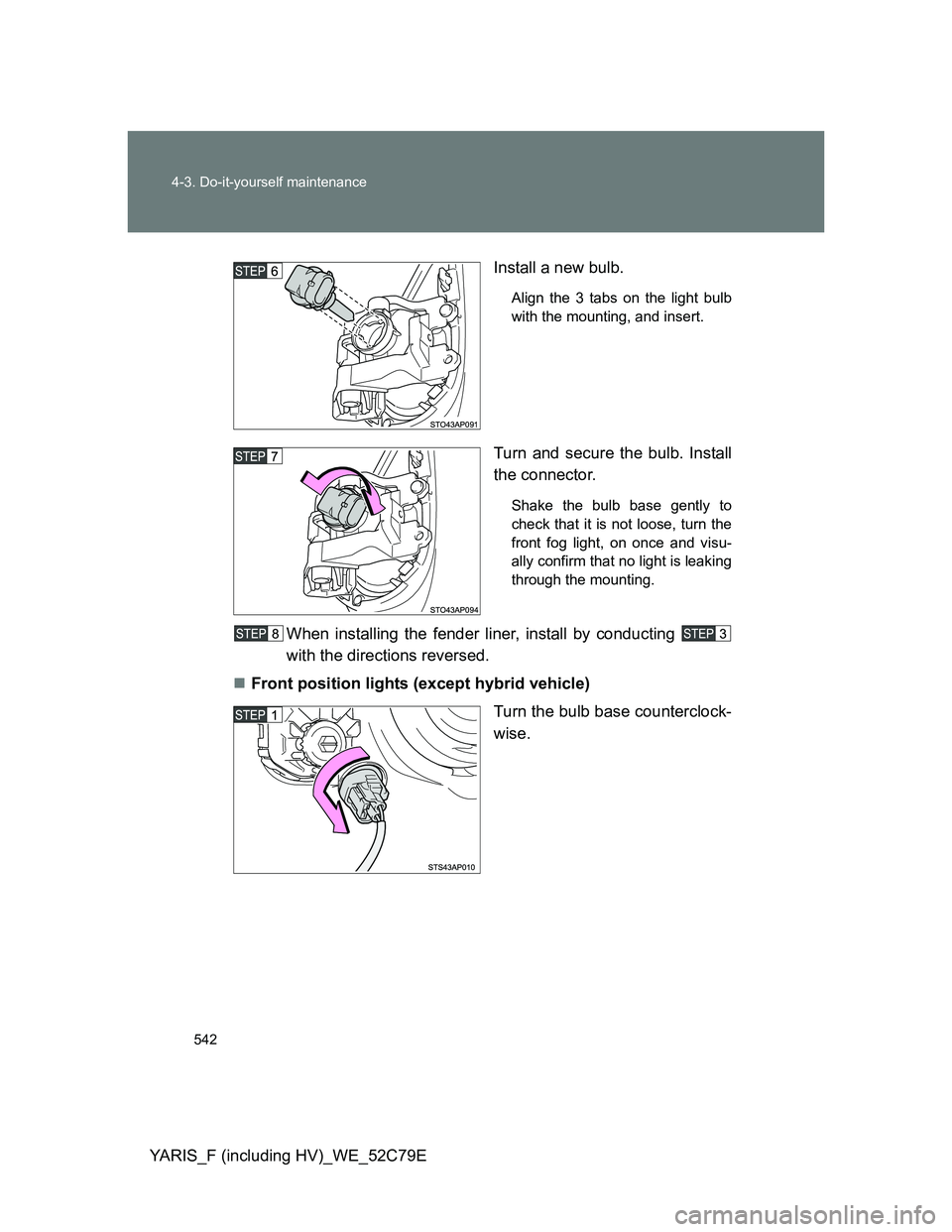

YARIS_F (including HV)_WE_52C79EInstall a new bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light, on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
with the directions reversed.
Front position lights (except hybrid vehicle)
Turn the bulb base counterclock-
wise.

543 4-3. Do-it-yourself maintenance
4
Maintenance and care

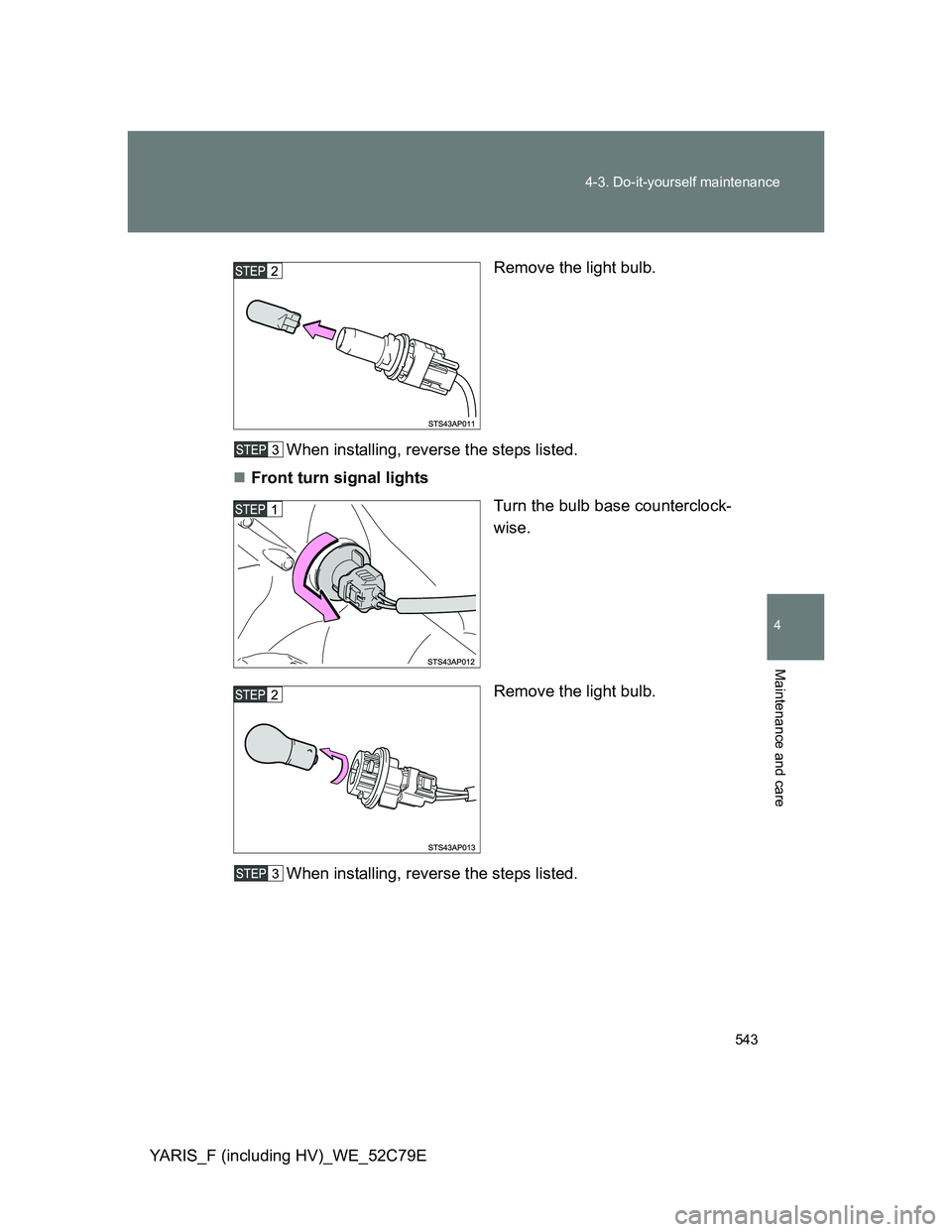

YARIS_F (including HV)_WE_52C79ERemove the light bulb.
When installing, reverse the steps listed.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.

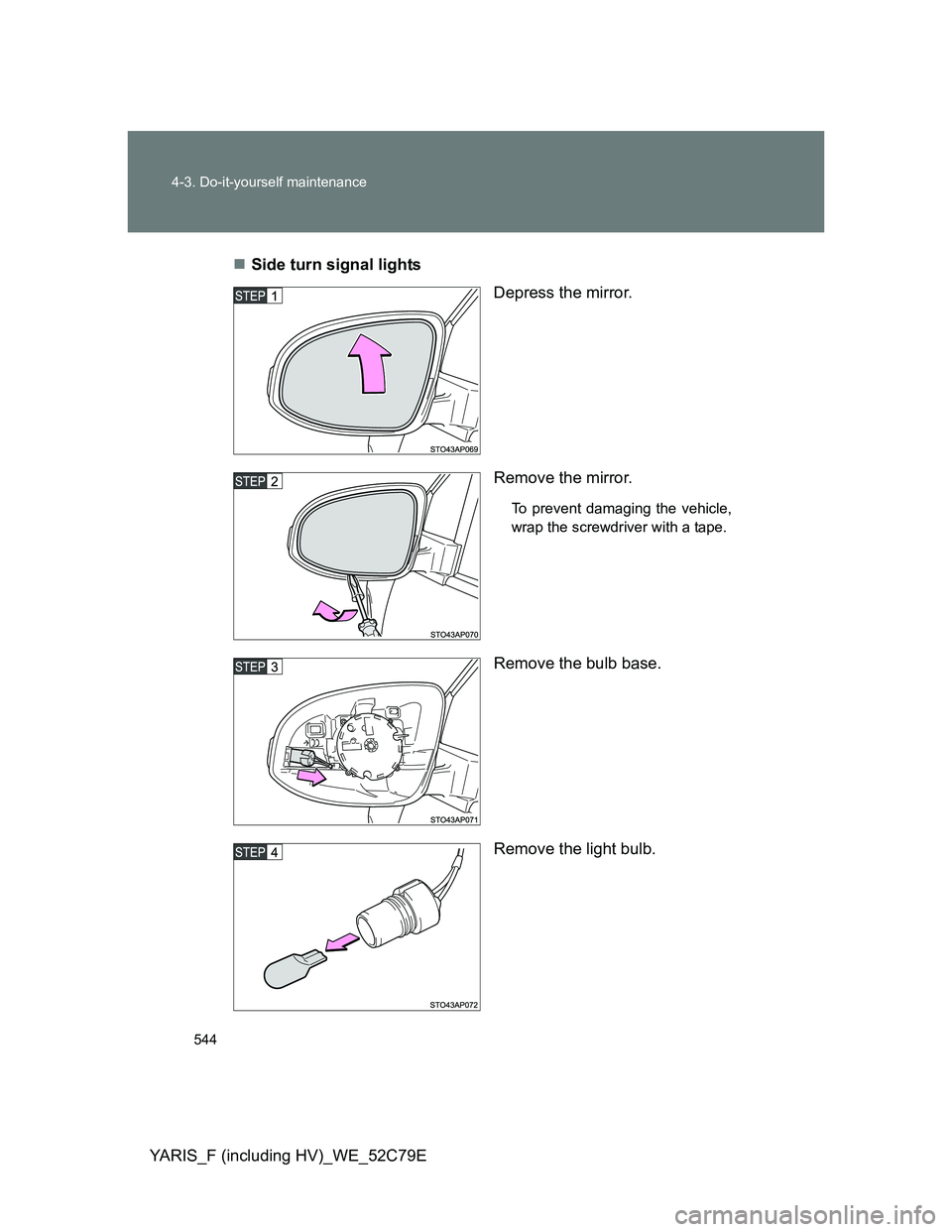

544 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79ESide turn signal lights
Depress the mirror.
Remove the mirror.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the bulb base.
Remove the light bulb.

545 4-3. Do-it-yourself maintenance
4
Maintenance and care

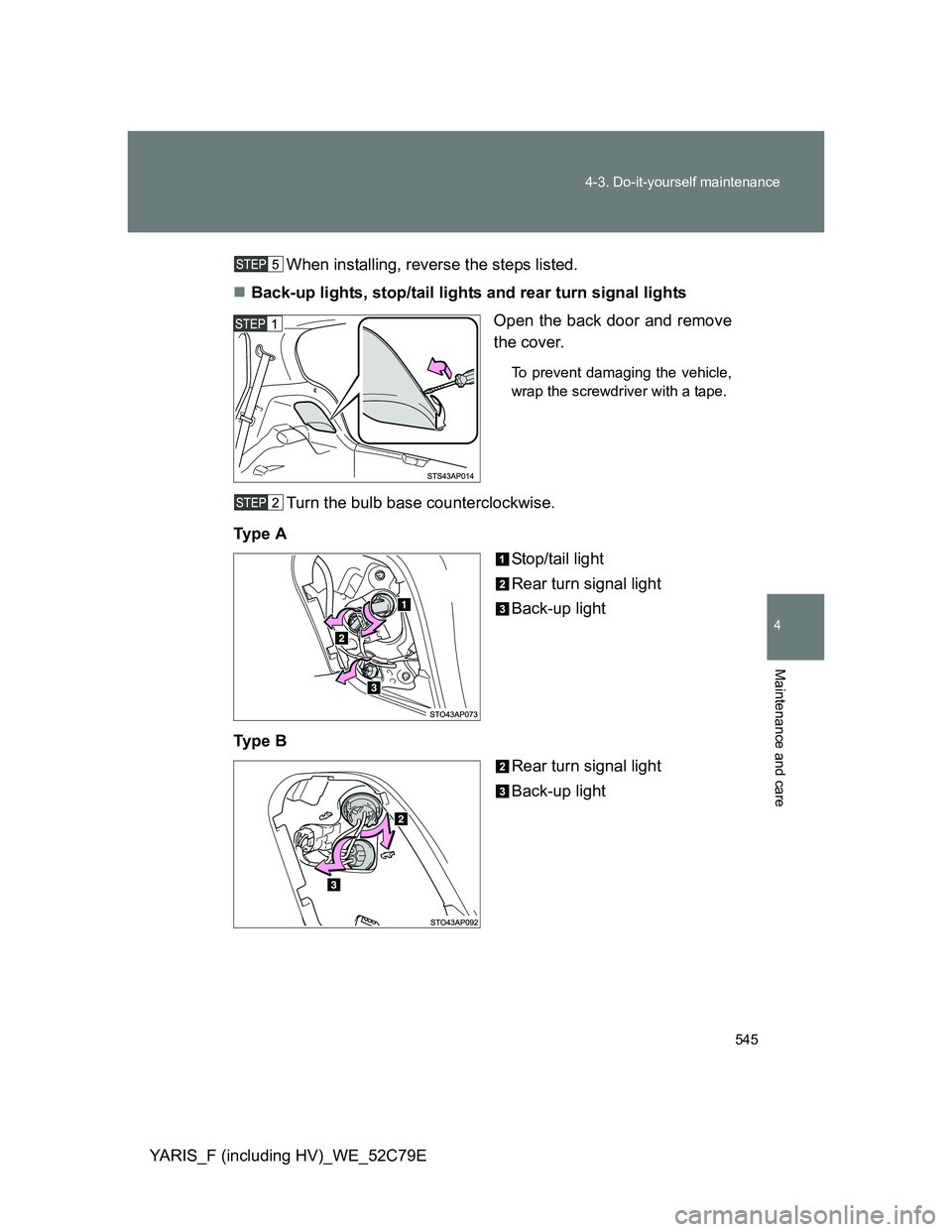

YARIS_F (including HV)_WE_52C79EWhen installing, reverse the steps listed.
Back-up lights, stop/tail lights and rear turn signal lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Turn the bulb base counterclockwise.
Ty p e A
Stop/tail light
Rear turn signal light
Back-up light
Ty p e B
Rear turn signal light
Back-up light

546 4-3. Do-it-yourself maintenance

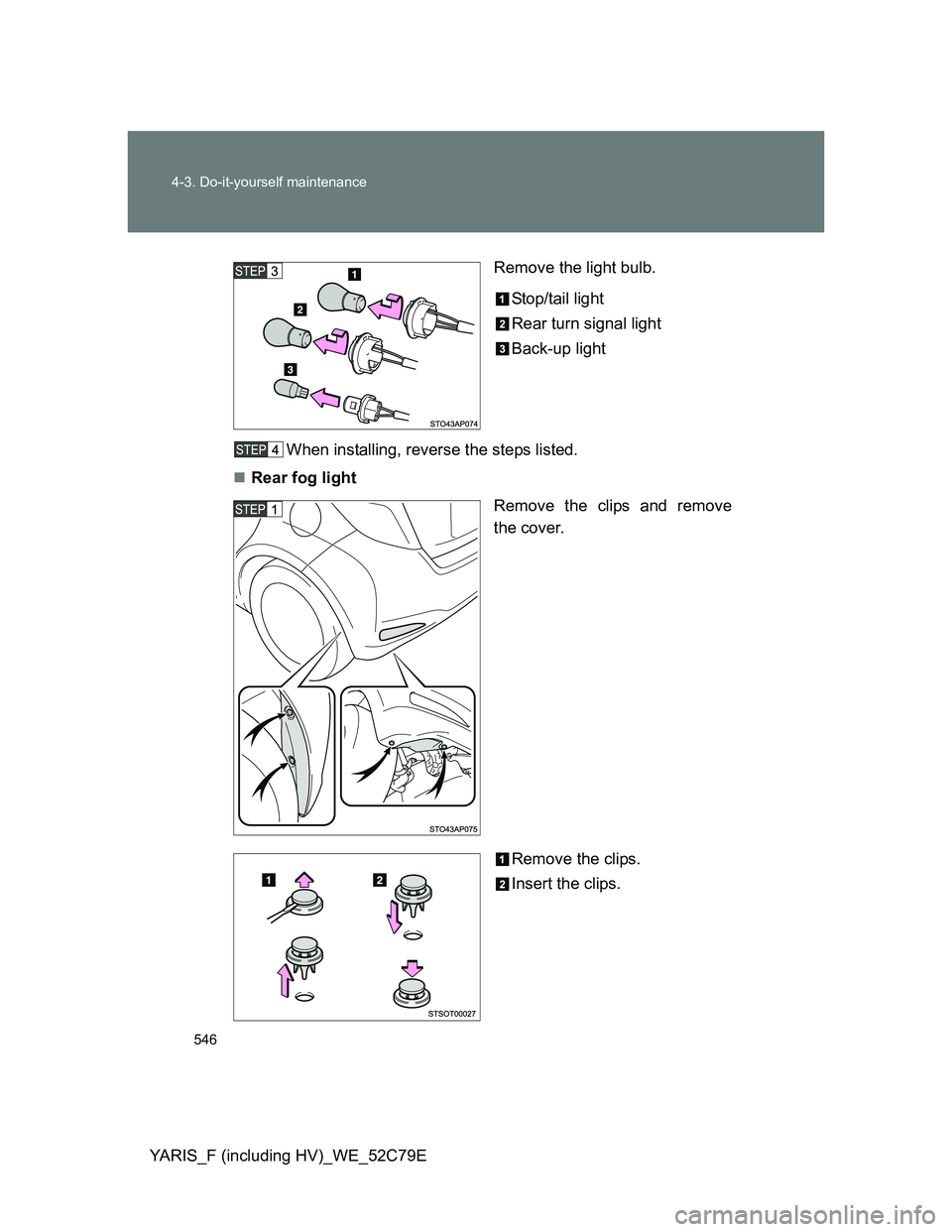

YARIS_F (including HV)_WE_52C79ERemove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light
When installing, reverse the steps listed.
Rear fog light
Remove the clips and remove
the cover.
Remove the clips.
Insert the clips.

547 4-3. Do-it-yourself maintenance
4
Maintenance and care

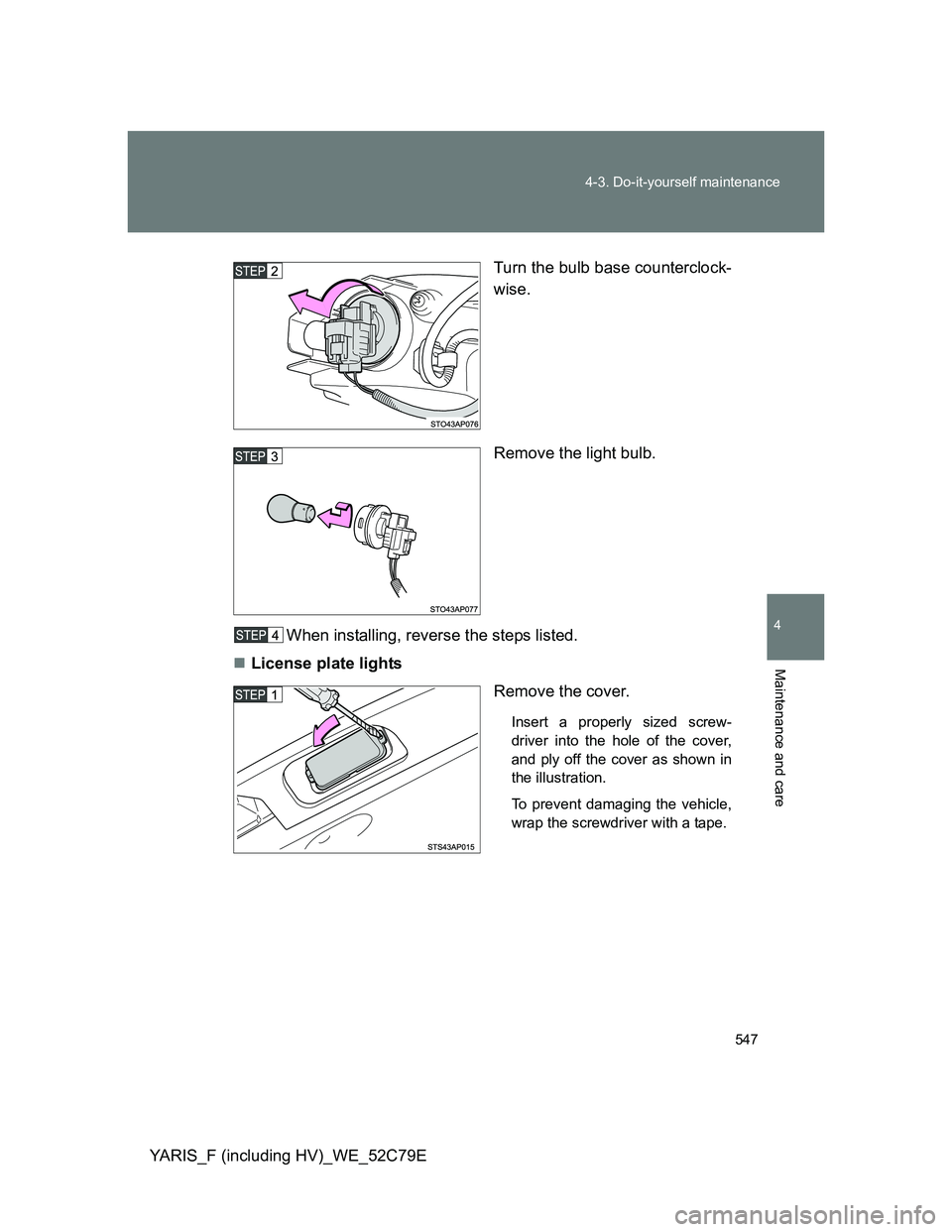

YARIS_F (including HV)_WE_52C79ETurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
License plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.

548 4-3. Do-it-yourself maintenance

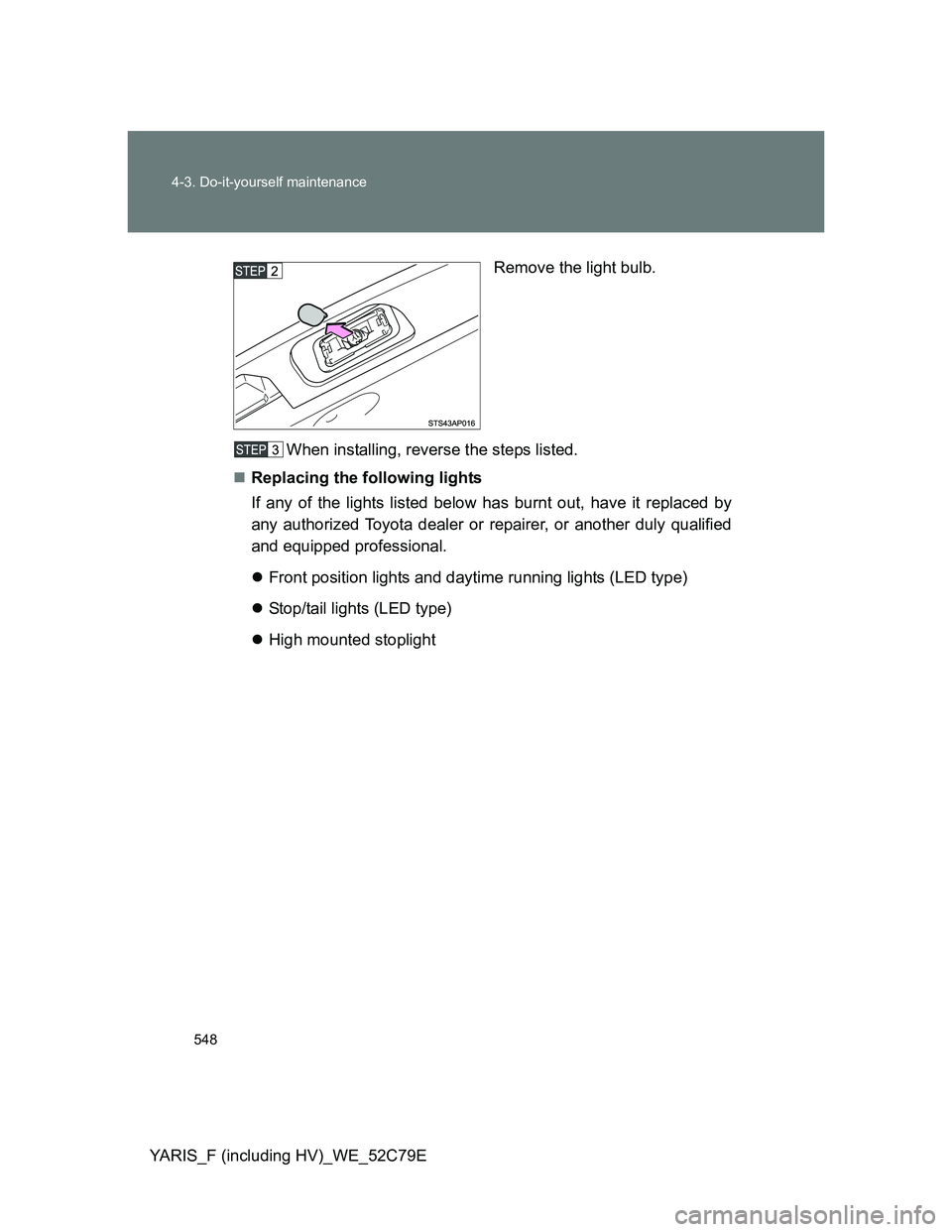

YARIS_F (including HV)_WE_52C79ERemove the light bulb.
When installing, reverse the steps listed.
Replacing the following lights
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Front position lights and daytime running lights (LED type)
Stop/tail lights (LED type)
High mounted stoplight

549 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

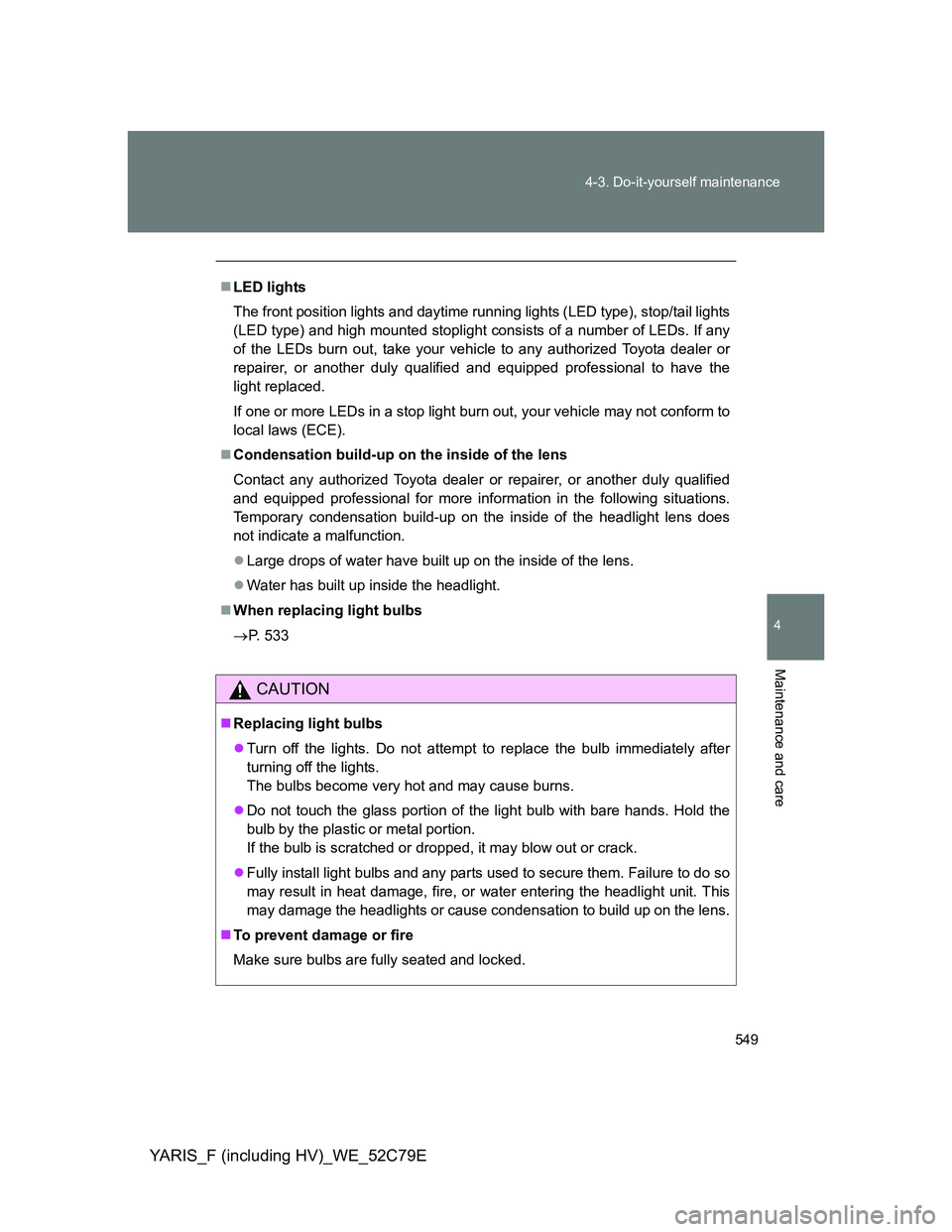

LED lights
The front position lights and daytime running lights (LED type), stop/tail lights
(LED type) and high mounted stoplight consists of a number of LEDs. If any
of the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the
light replaced.
If one or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 533
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
