TOYOTA YARIS HYBRID 2012 Owners Manual

661 6-1. Specifications
6
Vehicle specifications

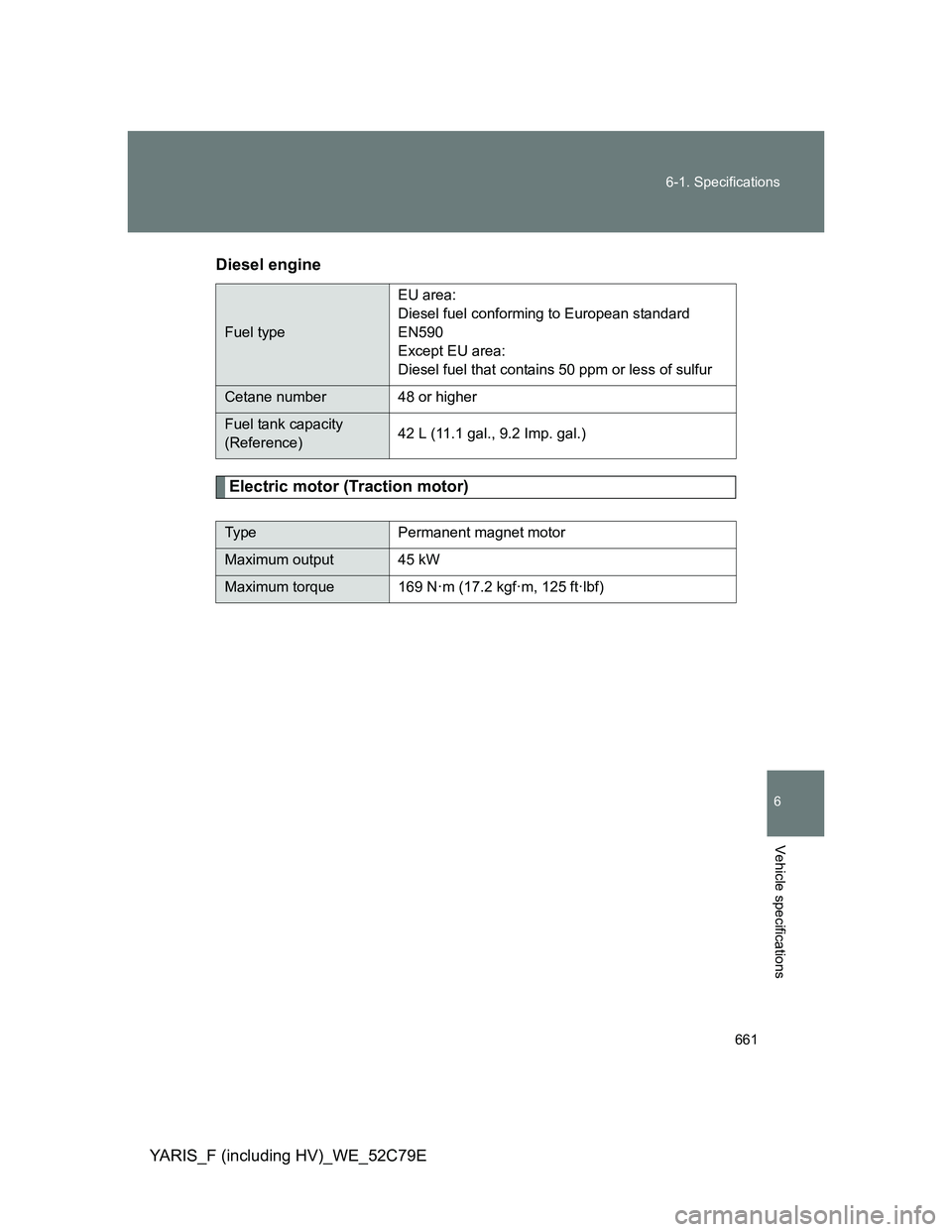

YARIS_F (including HV)_WE_52C79EDiesel engine
Electric motor (Traction motor)
Fuel typeEU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number 48 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp. gal.)
Type Permanent magnet motor
Maximum output 45 kW
Maximum torque 169 N·m (17.2 kgf·m, 125 ft·lbf)

662 6-1. Specifications
YARIS_F (including HV)_WE_52C79E

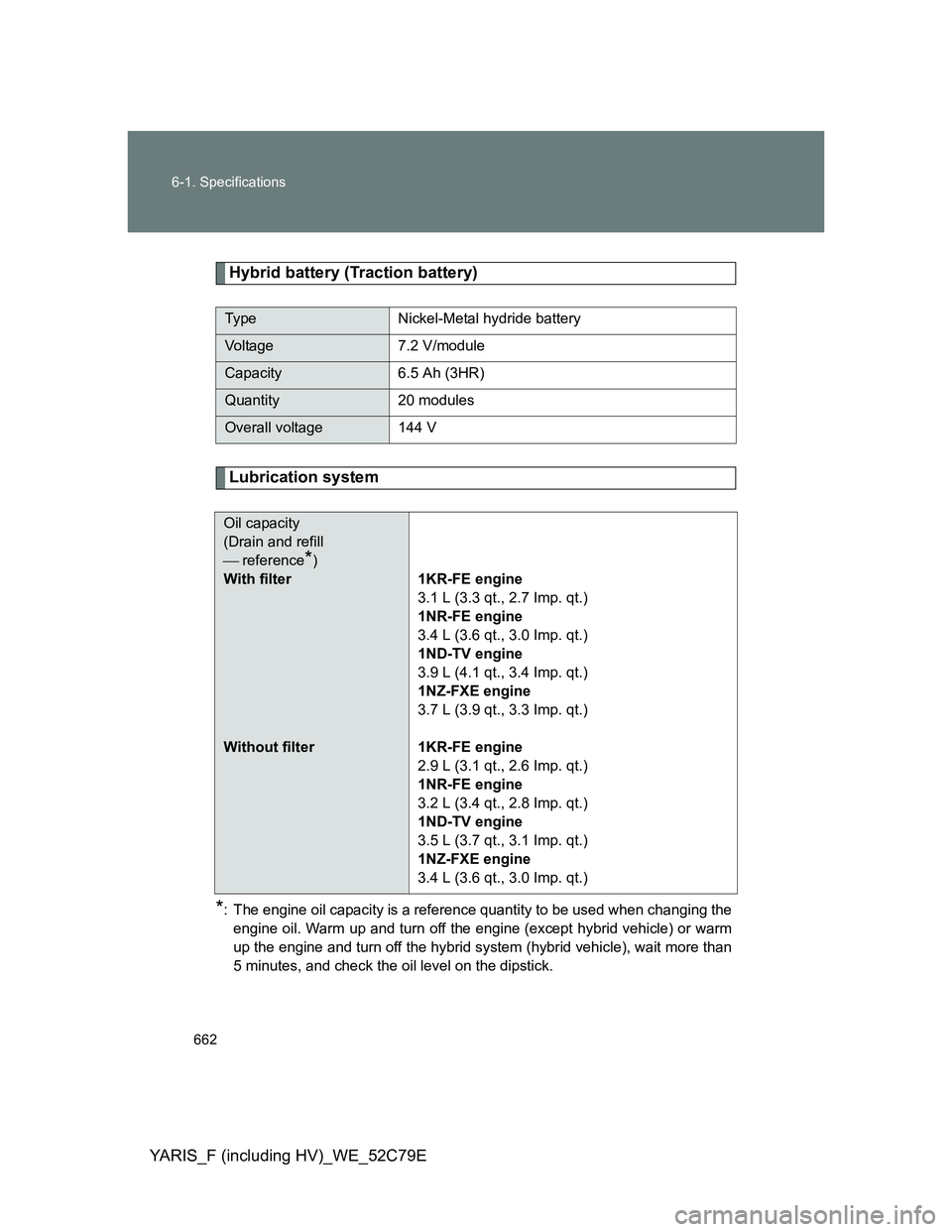

Hybrid battery (Traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine (except hybrid vehicle) or warm
up the engine and turn off the hybrid system (hybrid vehicle), wait more than
5 minutes, and check the oil level on the dipstick.
Type Nickel-Metal hydride battery
Voltage 7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 20 modules
Overall voltage 144 V
Oil capacity
(Drain and refill
 reference
*)
With filter
Without filter1KR-FE engine
3.1 L (3.3 qt., 2.7 Imp. qt.)
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1NZ-FXE engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1KR-FE engine
2.9 L (3.1 qt., 2.6 Imp. qt.)
1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)
1NZ-FXE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)

663 6-1. Specifications
6
Vehicle specifications

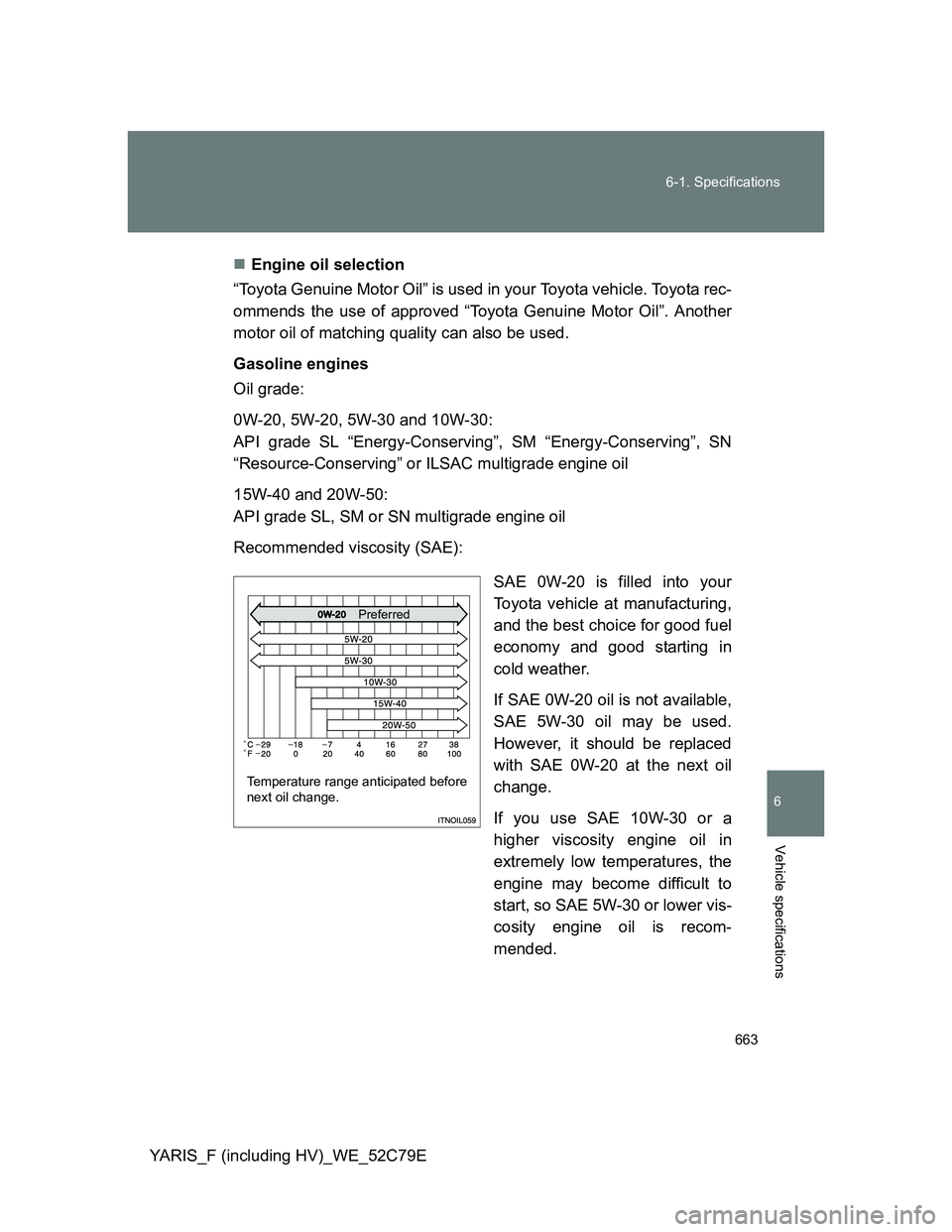

YARIS_F (including HV)_WE_52C79EEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Gasoline engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Temperature range anticipated before
next oil change.
Preferred

664 6-1. Specifications
YARIS_F (including HV)_WE_52C79E
Oil viscosity (0W-20 is explained here as an example):
The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

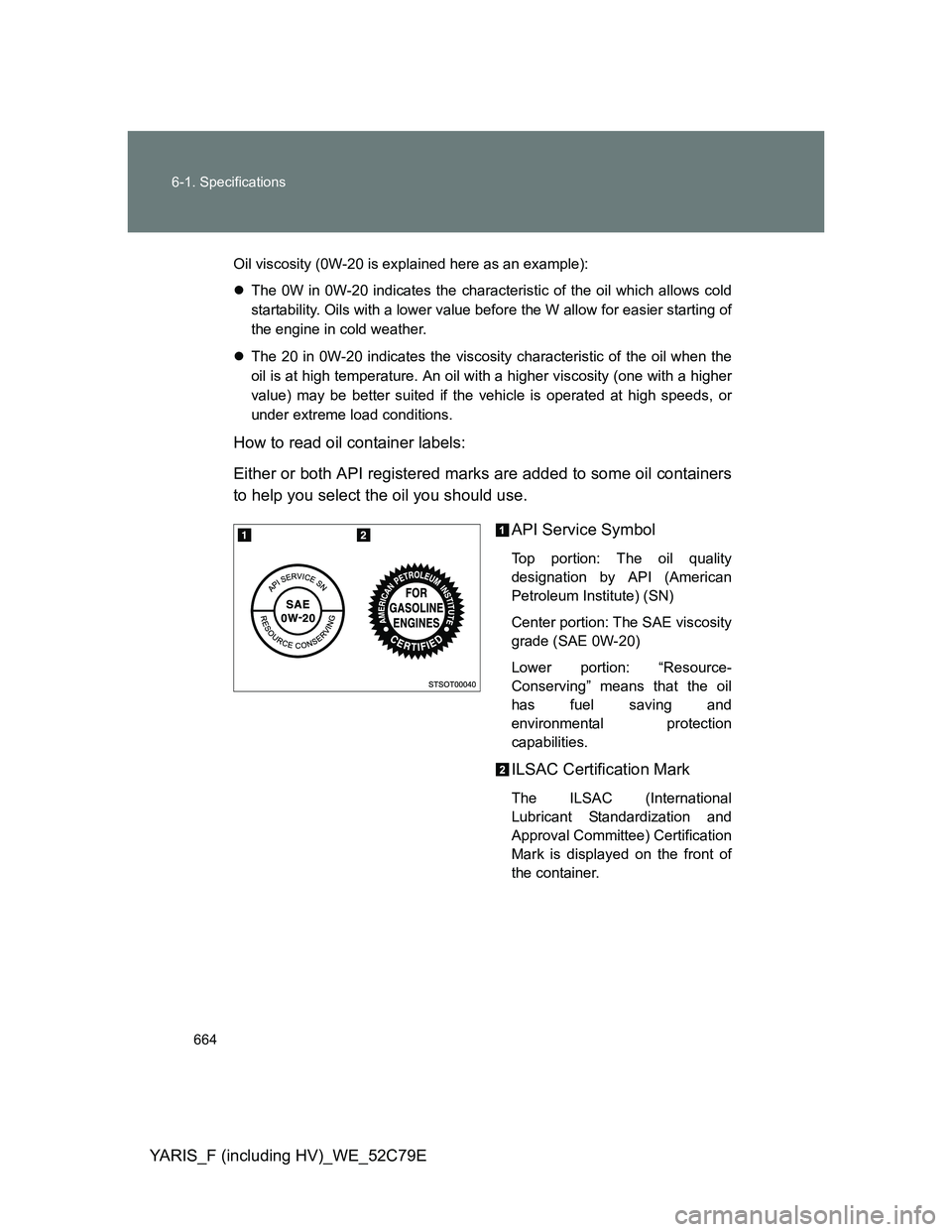

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-
Conserving” means that the oil
has fuel saving and
environmental protection
capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

665 6-1. Specifications
6
Vehicle specifications

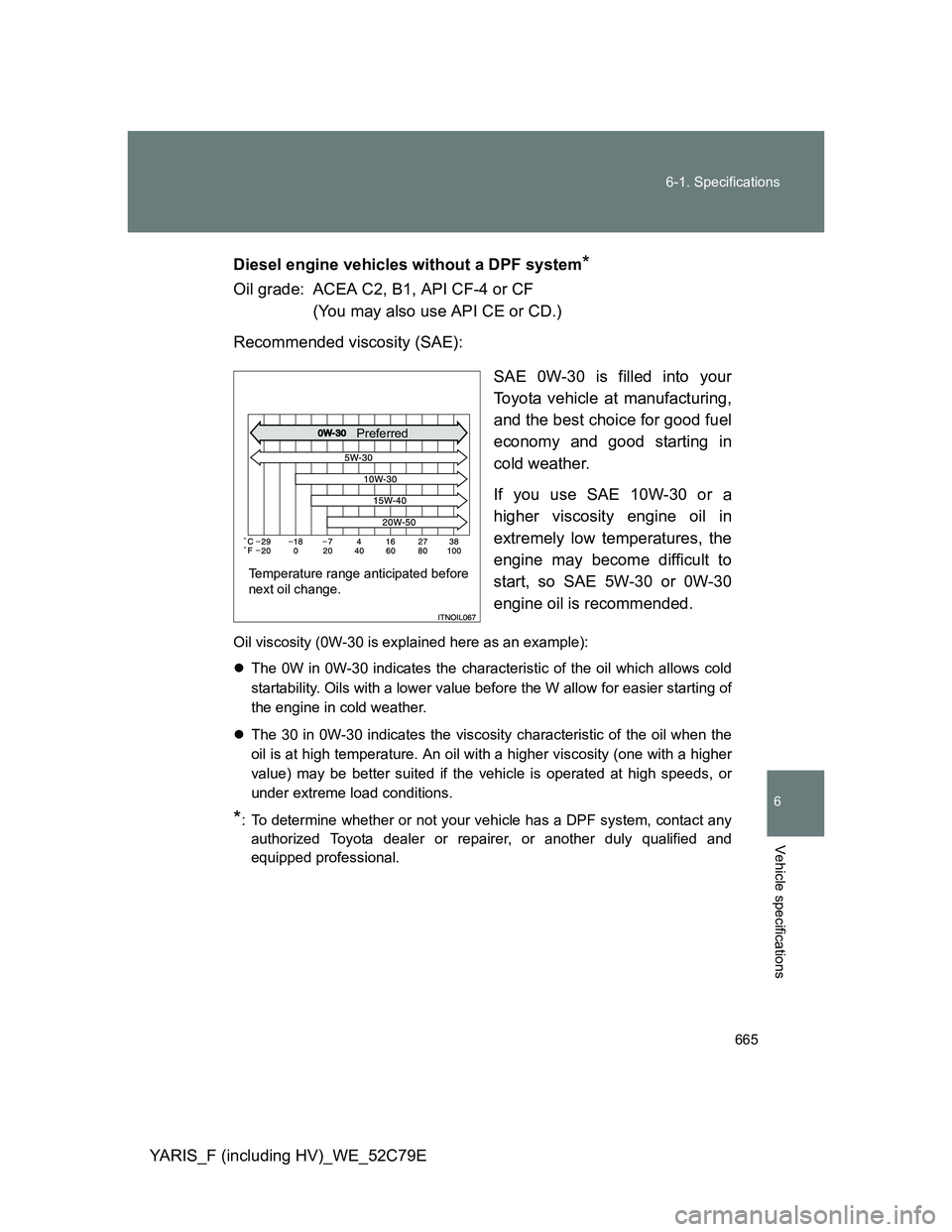

YARIS_F (including HV)_WE_52C79EDiesel engine vehicles without a DPF system
*
Oil grade: ACEA C2, B1, API CF-4 or CF
(You may also use API CE or CD.)
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or 0W-30
engine oil is recommended.
Oil viscosity (0W-30 is explained here as an example):
The 0W in 0W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 30 in 0W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Temperature range anticipated before
next oil change.
Preferred

666 6-1. Specifications

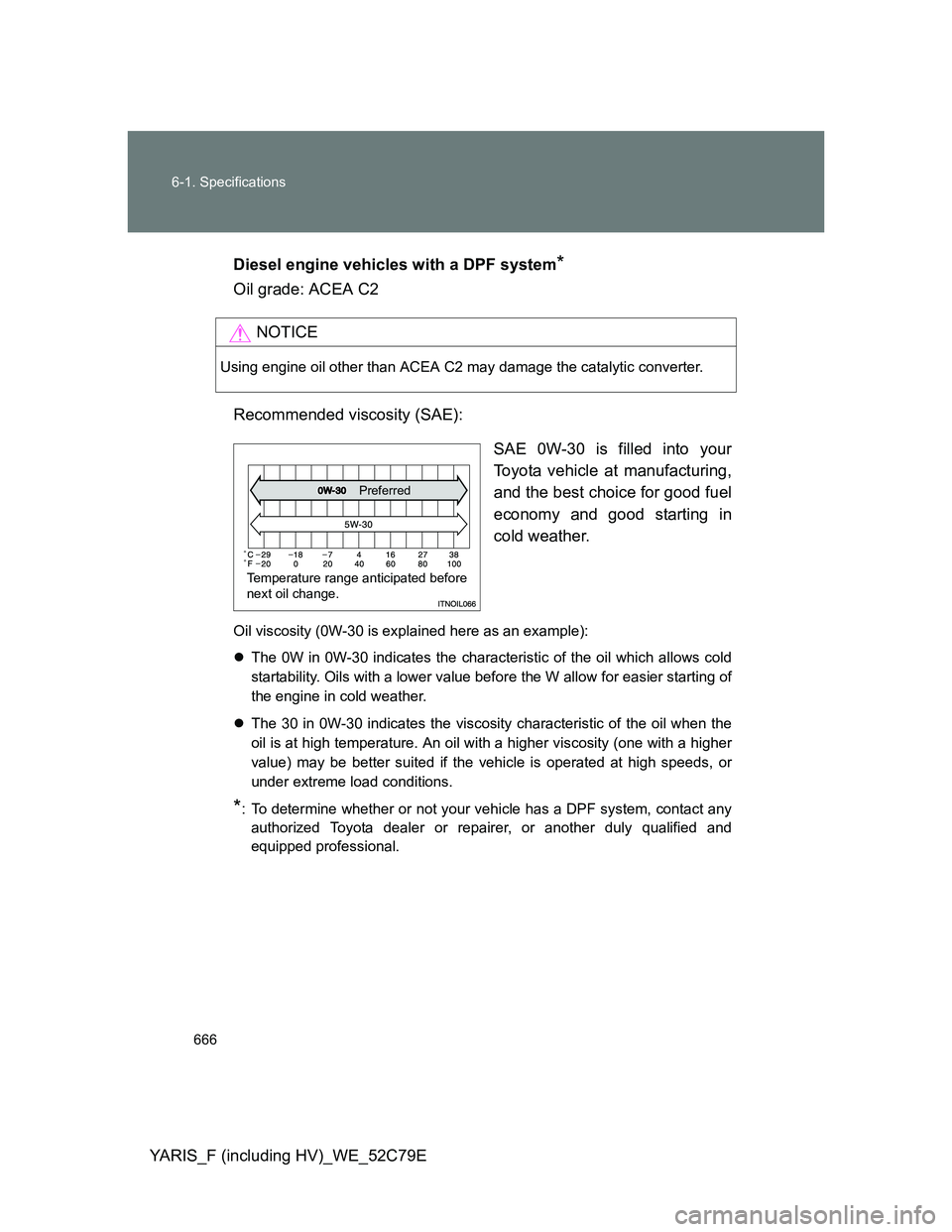

YARIS_F (including HV)_WE_52C79EDiesel engine vehicles with a DPF system
*
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
The 0W in 0W-30 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
The 30 in 0W-30 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
*: To determine whether or not your vehicle has a DPF system, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred

667 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52C79E

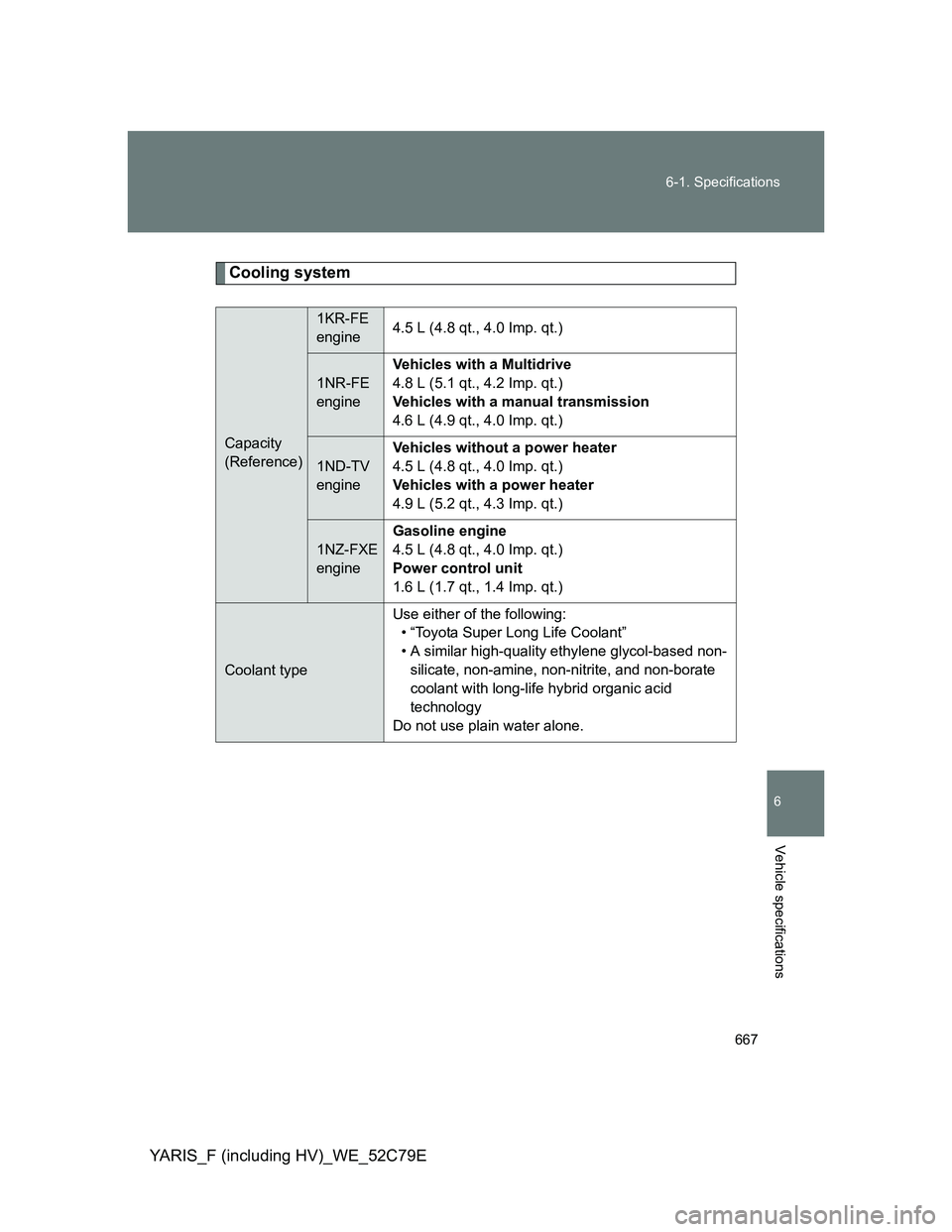

Cooling system
Capacity
(Reference)
1KR-FE
engine4.5 L (4.8 qt., 4.0 Imp. qt.)
1NR-FE
engineVehicles with a Multidrive
4.8 L (5.1 qt., 4.2 Imp. qt.)
Vehicles with a manual transmission
4.6 L (4.9 qt., 4.0 Imp. qt.)
1ND-TV
engineVehicles without a power heater
4.5 L (4.8 qt., 4.0 Imp. qt.)
Vehicles with a power heater
4.9 L (5.2 qt., 4.3 Imp. qt.)
1NZ-FXE
engineGasoline engine
4.5 L (4.8 qt., 4.0 Imp. qt.)
Power control unit
1.6 L (1.7 qt., 1.4 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid
technology
Do not use plain water alone.

668 6-1. Specifications
YARIS_F (including HV)_WE_52C79E

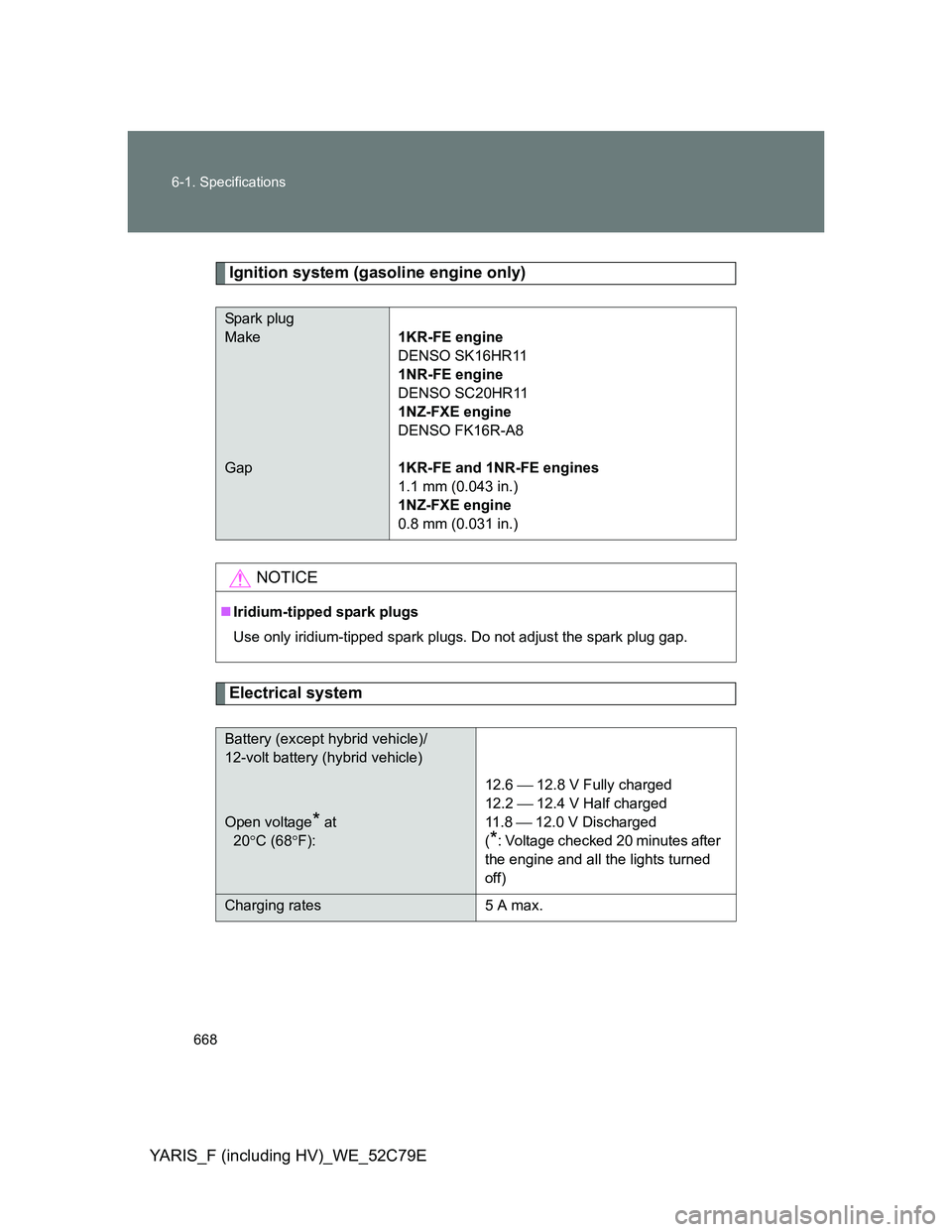

Ignition system (gasoline engine only)
Electrical system
Spark plug
Make
Gap1KR-FE engine
DENSO SK16HR11
1NR-FE engine
DENSO SC20HR11
1NZ-FXE engine
DENSO FK16R-A8
1KR-FE and 1NR-FE engines
1.1 mm (0.043 in.)
1NZ-FXE engine
0.8 mm (0.031 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery (except hybrid vehicle)/
12-volt battery (hybrid vehicle)
Open voltage* at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(
*: Voltage checked 20 minutes after
the engine and all the lights turned
off)
Charging rates 5 A max.

669 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52C79E

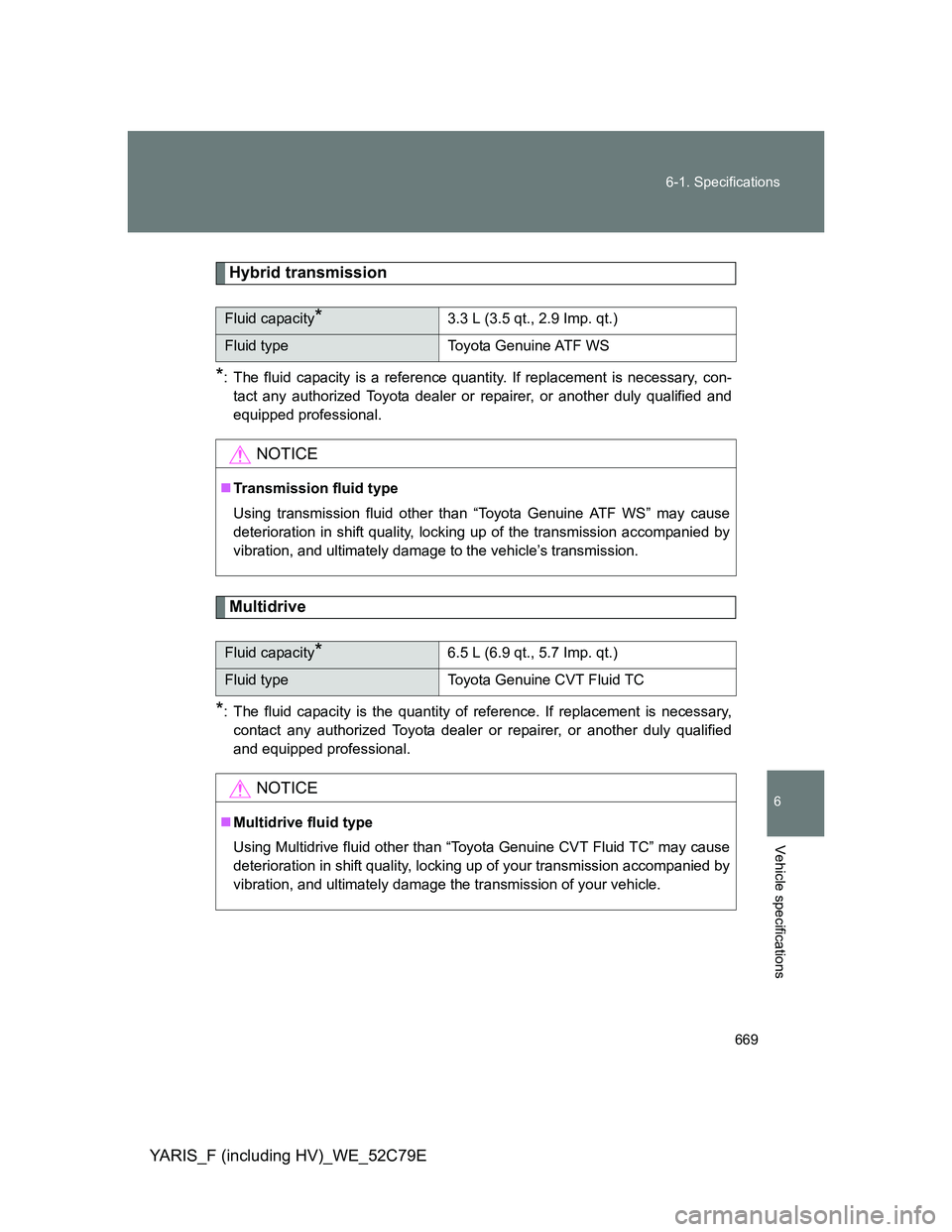

Hybrid transmission
*: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Multidrive
*: The fluid capacity is the quantity of reference. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Fluid capacity*3.3 L (3.5 qt., 2.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Fluid capacity*6.5 L (6.9 qt., 5.7 Imp. qt.)
Fluid type Toyota Genuine CVT Fluid TC
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid TC” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

670 6-1. Specifications
YARIS_F (including HV)_WE_52C79E

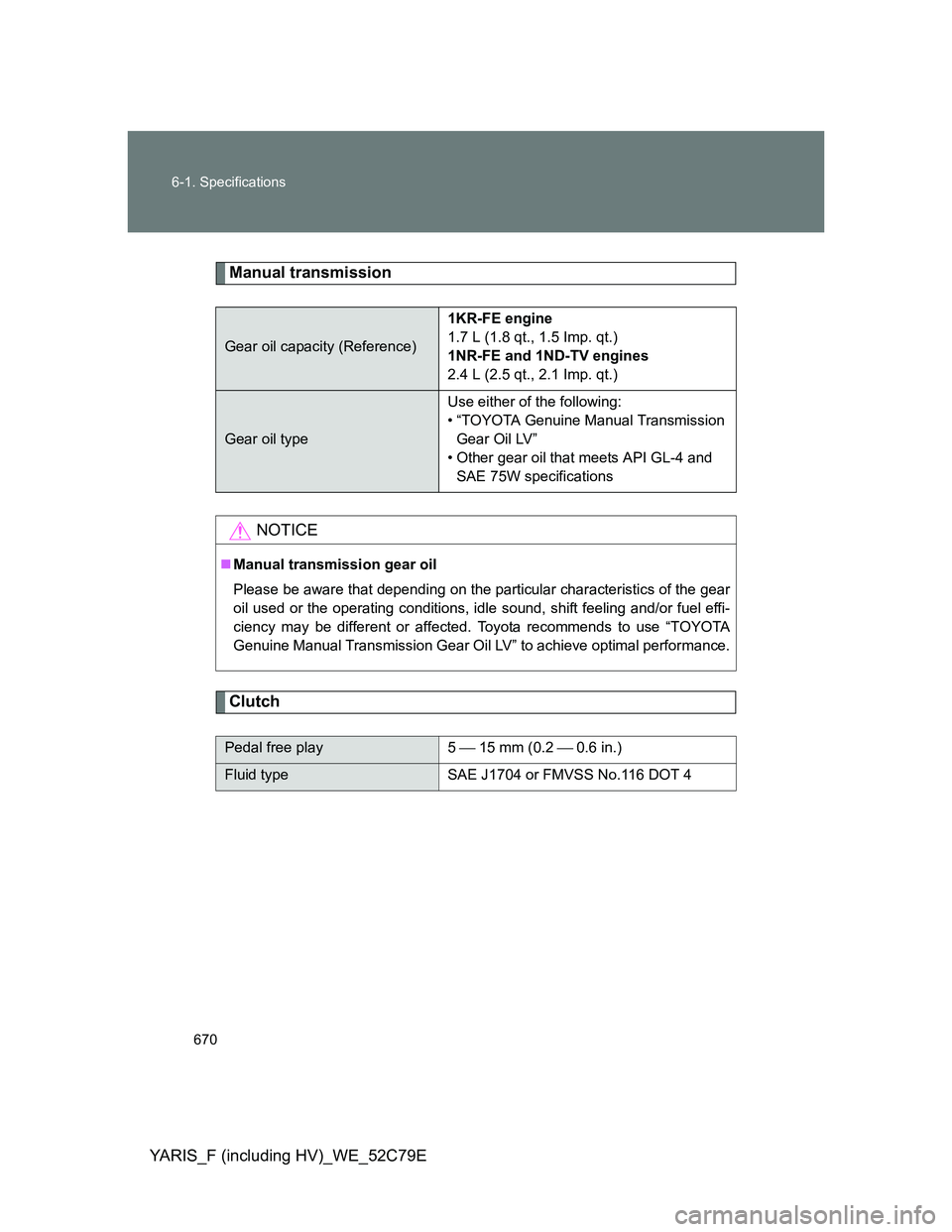

Manual transmission
Clutch
Gear oil capacity (Reference)1KR-FE engine
1.7 L (1.8 qt., 1.5 Imp. qt.)
1NR-FE and 1ND-TV engines
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid type SAE J1704 or FMVSS No.116 DOT 4
