Vehicle specifications
YARIS_F (including HV)_WE_52C79E

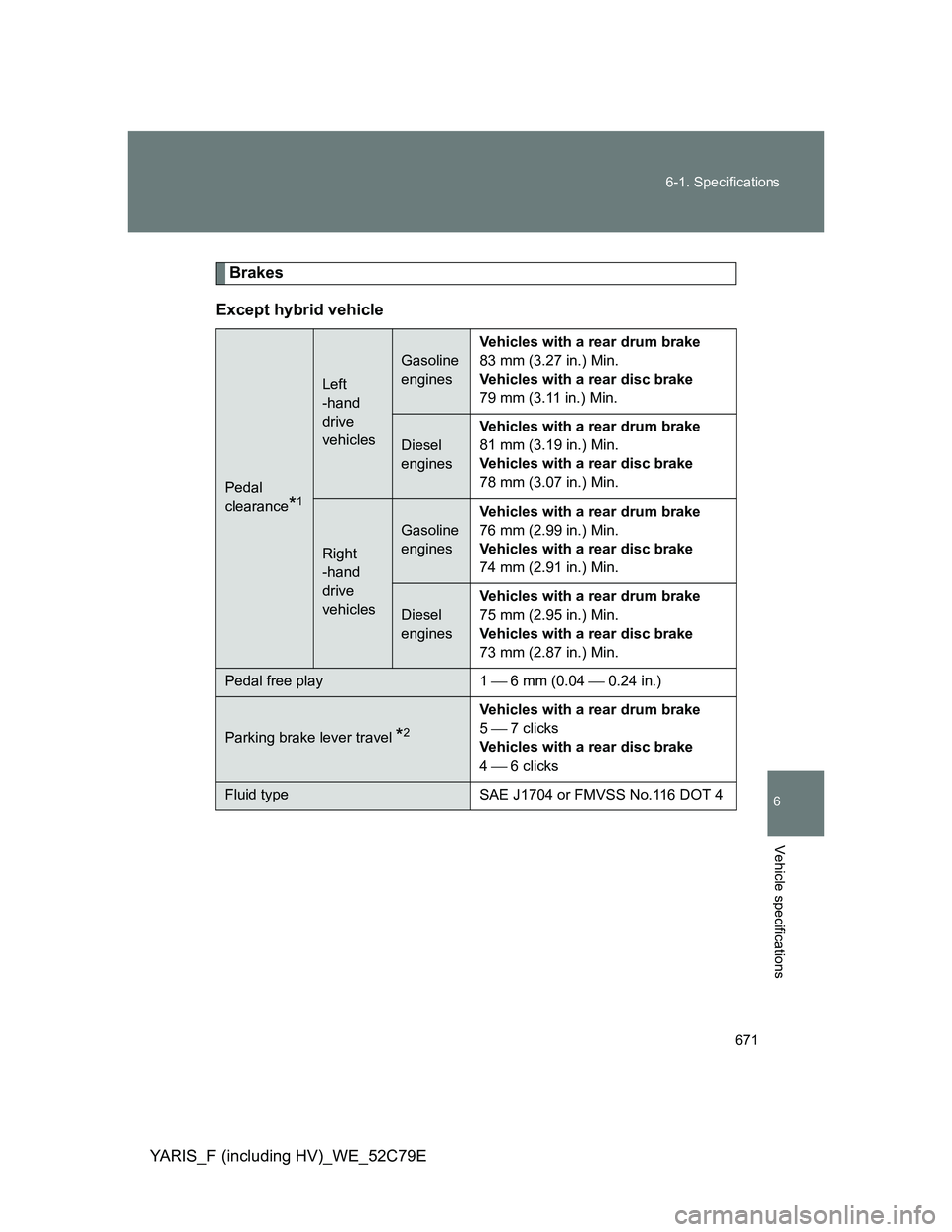

Brakes
Except hybrid vehicle
Pedal
clearance
*1
Left
-hand
drive
vehicles
Gasoline
enginesVehicles with a rear drum brake
83 mm (3.27 in.) Min.
Vehicles with a rear disc brake
79 mm (3.11 in.) Min.
Diesel
enginesVehicles with a rear drum brake
81 mm (3.19 in.) Min.
Vehicles with a rear disc brake
78 mm (3.07 in.) Min.
Right
-hand
drive
vehicles
Gasoline
enginesVehicles with a rear drum brake
76 mm (2.99 in.) Min.
Vehicles with a rear disc brake
74 mm (2.91 in.) Min.
Diesel
enginesVehicles with a rear drum brake
75 mm (2.95 in.) Min.
Vehicles with a rear disc brake
73 mm (2.87 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *2
Vehicles with a rear drum brake
5  7 clicks
Vehicles with a rear disc brake
4  6 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4

672 6-1. Specifications

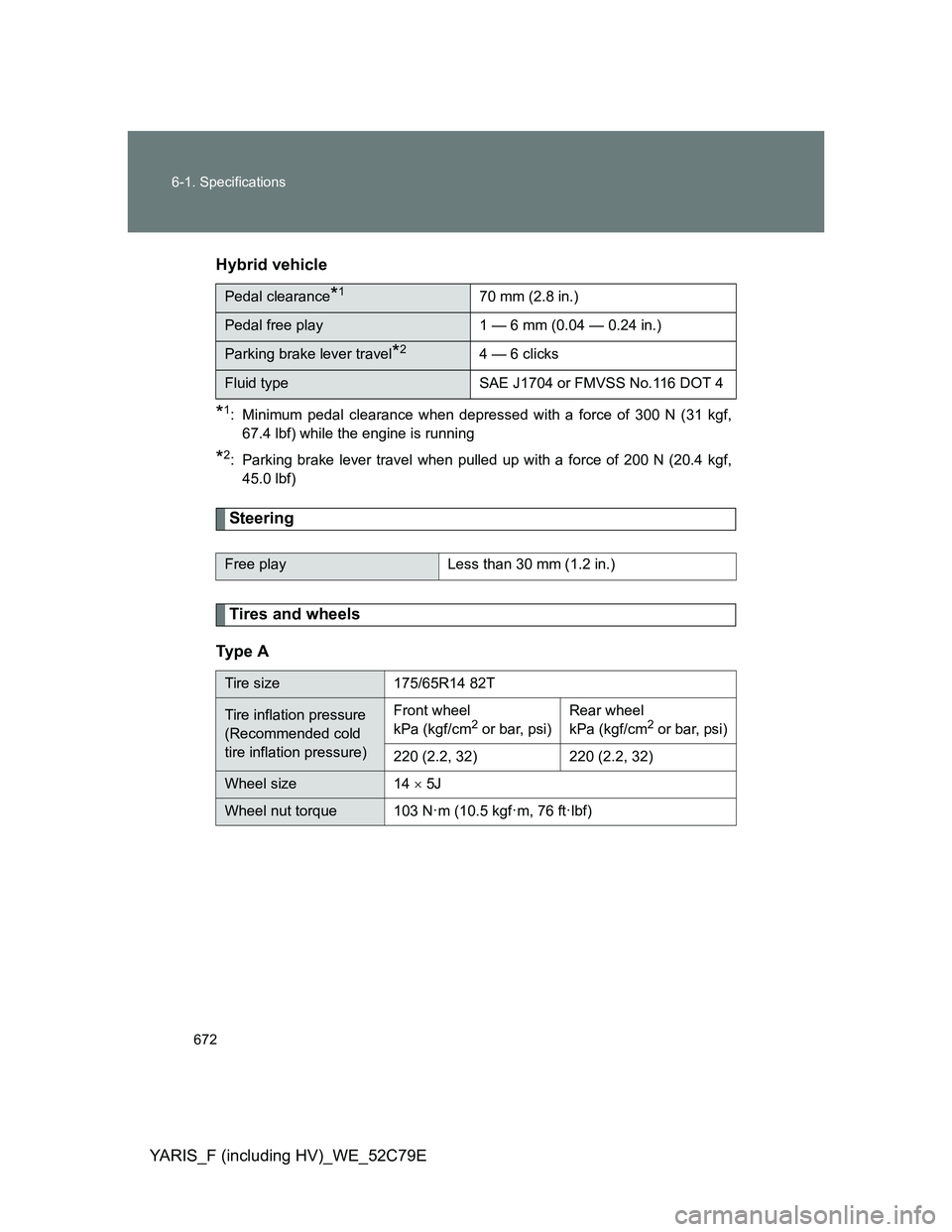

YARIS_F (including HV)_WE_52C79EHybrid vehicle
*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Steering
Tires and wheels
Ty p e A
Pedal clearance*170 mm (2.8 in.)
Pedal free play 1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*24 — 6 clicks
Fluid type SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)
Tire size 175/65R14 82T
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
220 (2.2, 32) 220 (2.2, 32)
Wheel size 14  5J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

673 6-1. Specifications
6
Vehicle specifications

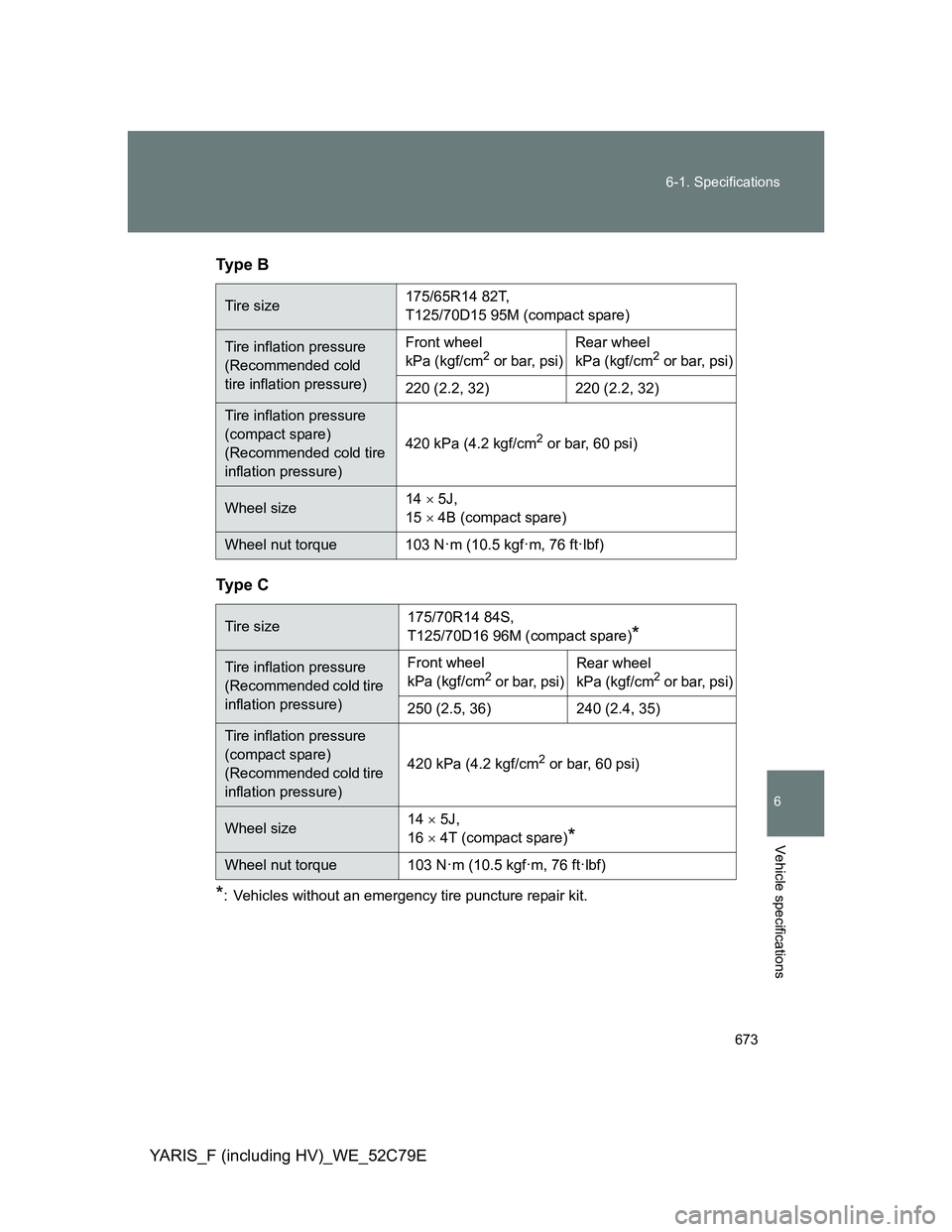

YARIS_F (including HV)_WE_52C79ETy p e B
Ty p e C
*: Vehicles without an emergency tire puncture repair kit.
Tire size175/65R14 82T,
T125/70D15 95M (compact spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
220 (2.2, 32) 220 (2.2, 32)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size14  5J,
15  4B (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/70R14 84S,
T125/70D16 96M (compact spare)*
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)Rear wheel
kPa (kgf/cm2 or bar, psi)
250 (2.5, 36) 240 (2.4, 35)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size14  5J,
16  4T (compact spare)*
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

674 6-1. Specifications

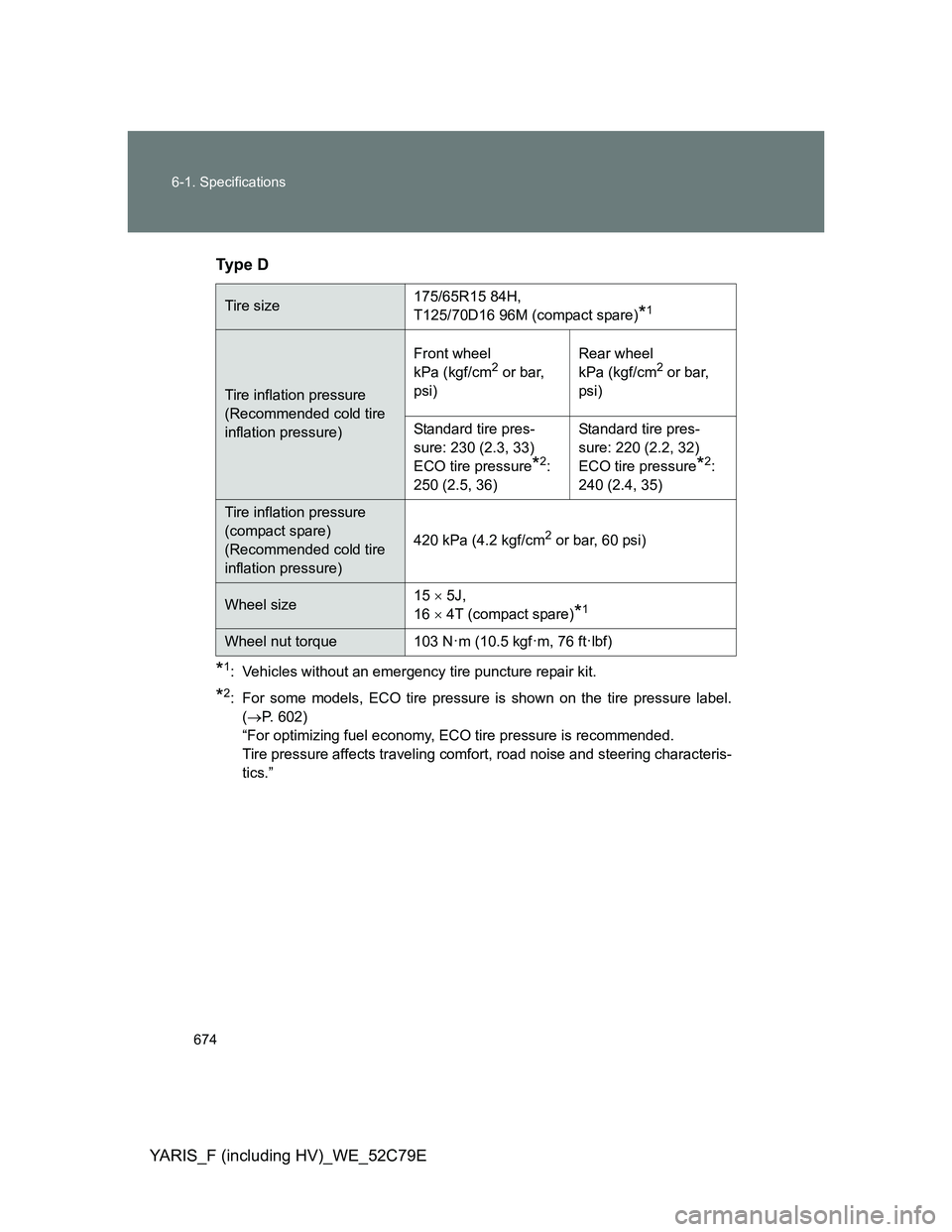

YARIS_F (including HV)_WE_52C79ETy p e D
*1: Vehicles without an emergency tire puncture repair kit.
*2: For some models, ECO tire pressure is shown on the tire pressure label.
(P. 602)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering characteris-
tics.”
Tire size175/65R15 84H,
T125/70D16 96M (compact spare)*1
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front wheel
kPa (kgf/cm
2 or bar,
psi)Rear wheel
kPa (kgf/cm2 or bar,
psi)
Standard tire pres-
sure: 230 (2.3, 33)
ECO tire pressure
*2:
250 (2.5, 36)Standard tire pres-
sure: 220 (2.2, 32)
ECO tire pressure*2:
240 (2.4, 35)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size15  5J,
16  4T (compact spare)*1
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

675 6-1. Specifications
6
Vehicle specifications

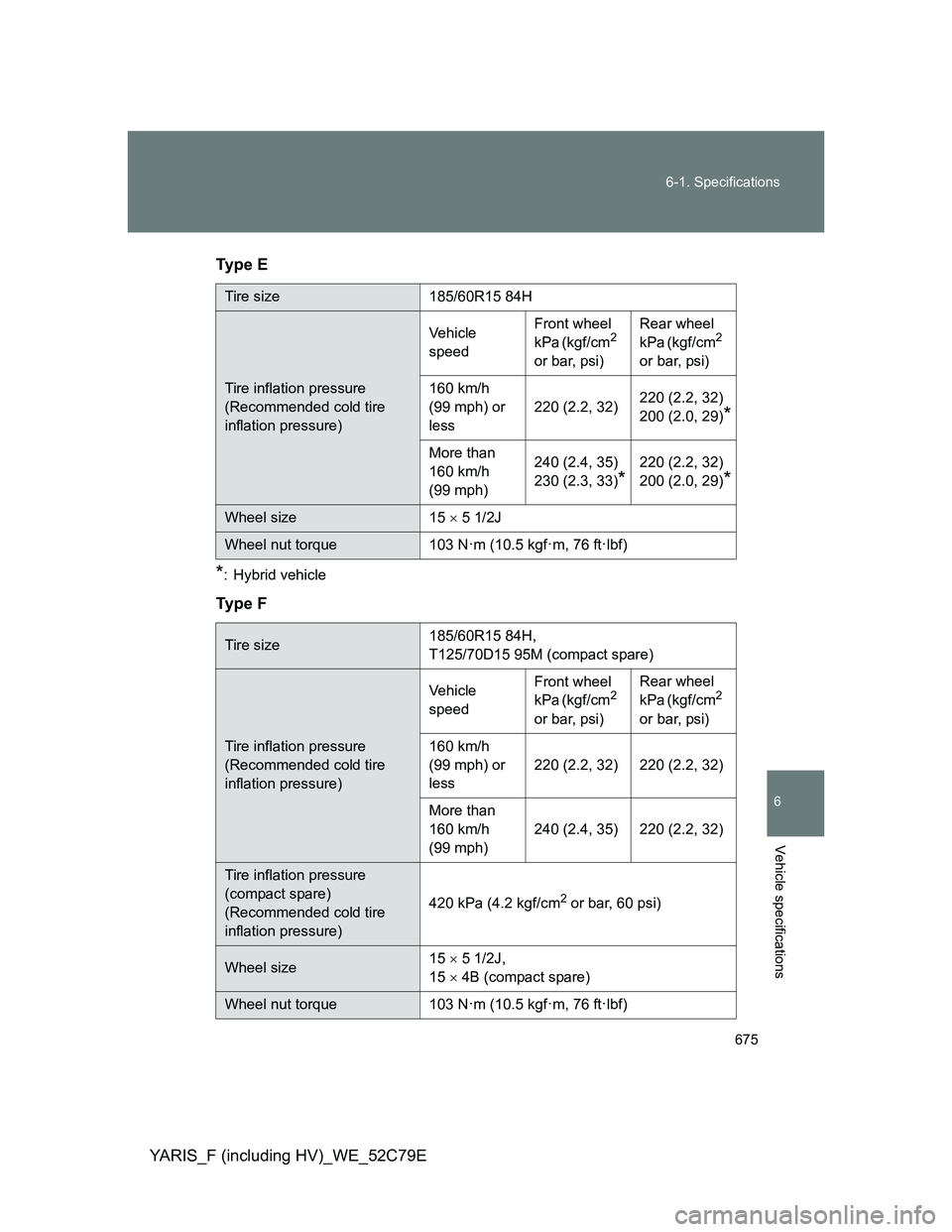

YARIS_F (including HV)_WE_52C79ETy p e E
*: Hybrid vehicle
Ty p e F
Tire size 185/60R15 84H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32)220 (2.2, 32)
200 (2.0, 29)
*
More than
160 km/h
(99 mph)240 (2.4, 35)
230 (2.3, 33)
*
220 (2.2, 32)
200 (2.0, 29)
*
Wheel size 15  5 1/2J
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H,
T125/70D15 95M (compact spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32) 220 (2.2, 32)
More than
160 km/h
(99 mph)240 (2.4, 35) 220 (2.2, 32)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size15  5 1/2J,
15  4B (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

676 6-1. Specifications

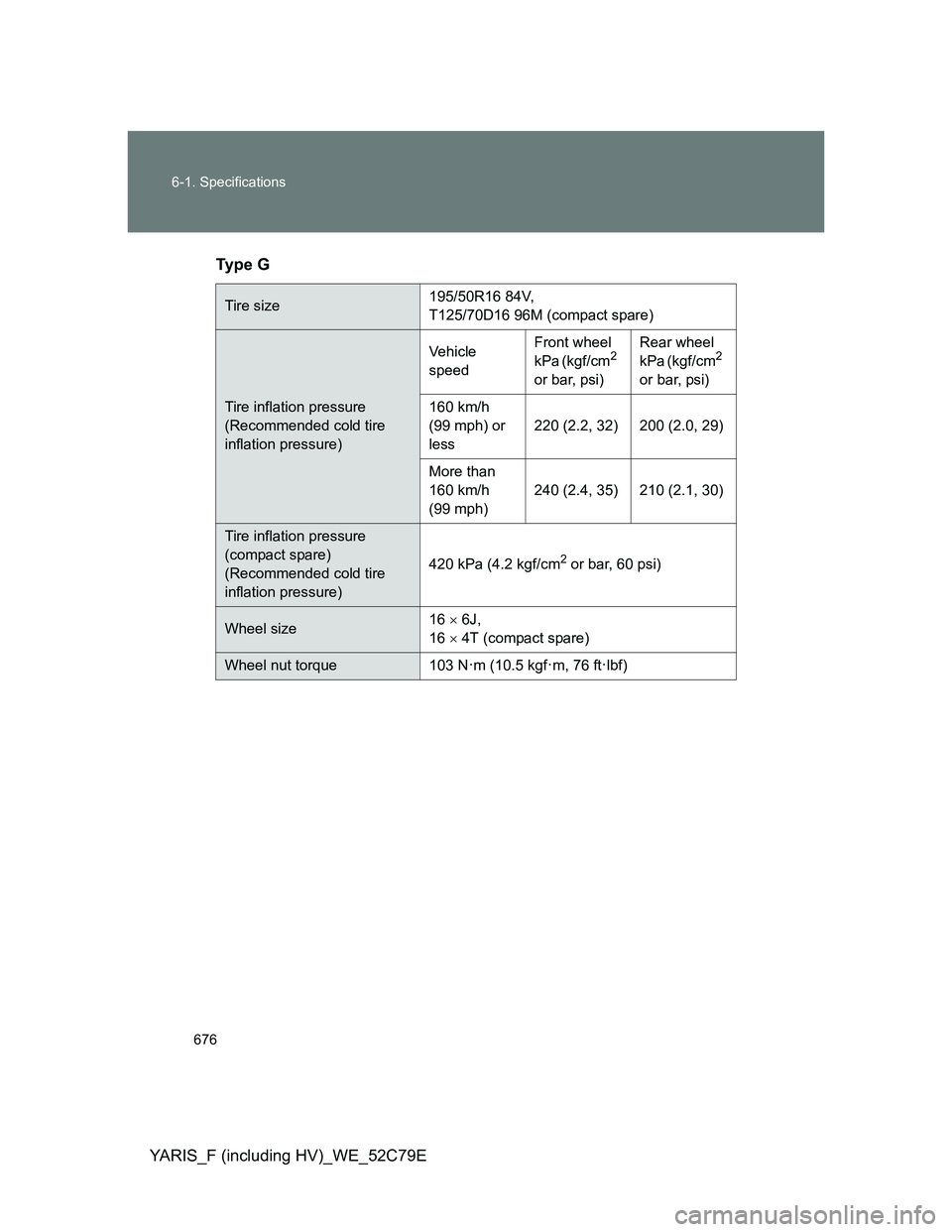

YARIS_F (including HV)_WE_52C79ETy p e G
Tire size195/50R16 84V,
T125/70D16 96M (compact spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less220 (2.2, 32) 200 (2.0, 29)
More than
160 km/h
(99 mph)240 (2.4, 35) 210 (2.1, 30)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size16  6J,
16  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

677 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52C79E

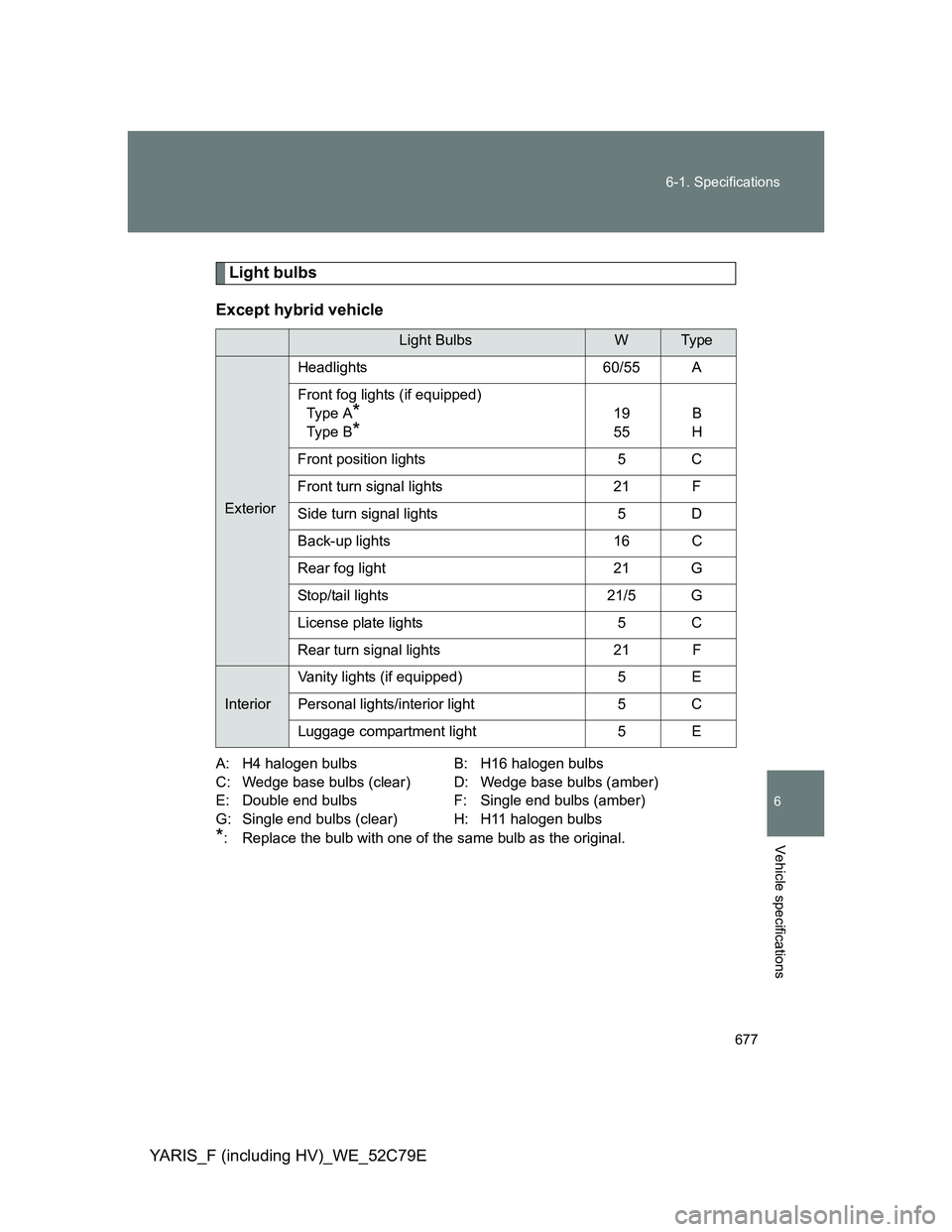

Light bulbs
Except hybrid vehicle
A: H4 halogen bulbs B: H16 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs F: Single end bulbs (amber)
G: Single end bulbs (clear) H: H11 halogen bulbs
*: Replace the bulb with one of the same bulb as the original.
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front fog lights (if equipped)
Type A
*
Type B*
19
55B
H
Front position lights 5 C
Front turn signal lights 21 F
Side turn signal lights 5 D
Back-up lights 16 C
Rear fog light 21 G
Stop/tail lights 21/5 G
License plate lights 5 C
Rear turn signal lights 21 F
InteriorVanity lights (if equipped) 5 E
Personal lights/interior light 5 C
Luggage compartment light 5 E

678 6-1. Specifications

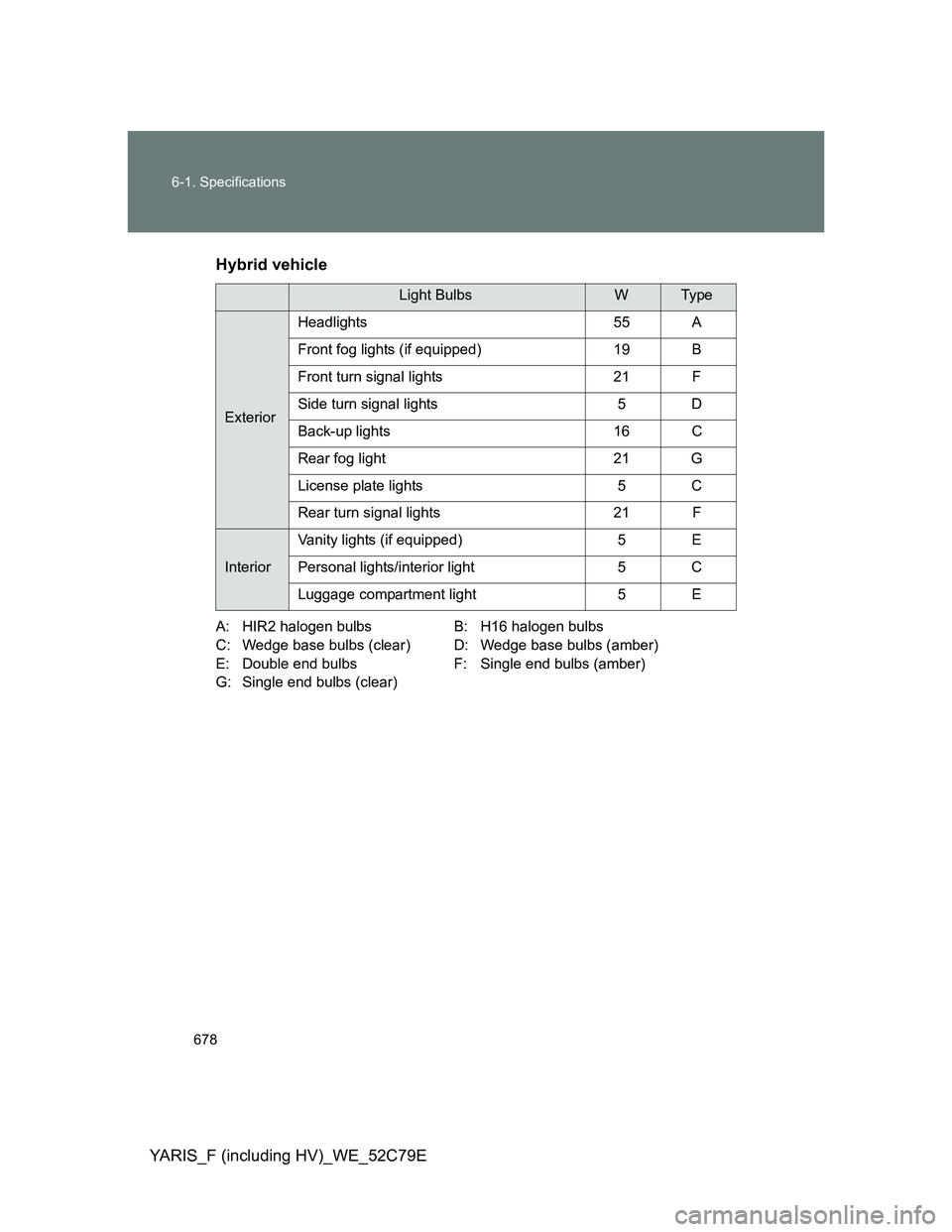

YARIS_F (including HV)_WE_52C79EHybrid vehicle
A: HIR2 halogen bulbs B: H16 halogen bulbs
C: Wedge base bulbs (clear) D: Wedge base bulbs (amber)
E: Double end bulbs F: Single end bulbs (amber)
G: Single end bulbs (clear)
Light BulbsWTy p e
ExteriorHeadlights 55 A
Front fog lights (if equipped) 19 B
Front turn signal lights 21 F
Side turn signal lights 5 D
Back-up lights 16 C
Rear fog light 21 G
License plate lights 5 C
Rear turn signal lights 21 F
InteriorVanity lights (if equipped) 5 E
Personal lights/interior light 5 C
Luggage compartment light 5 E

679
6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52C79E

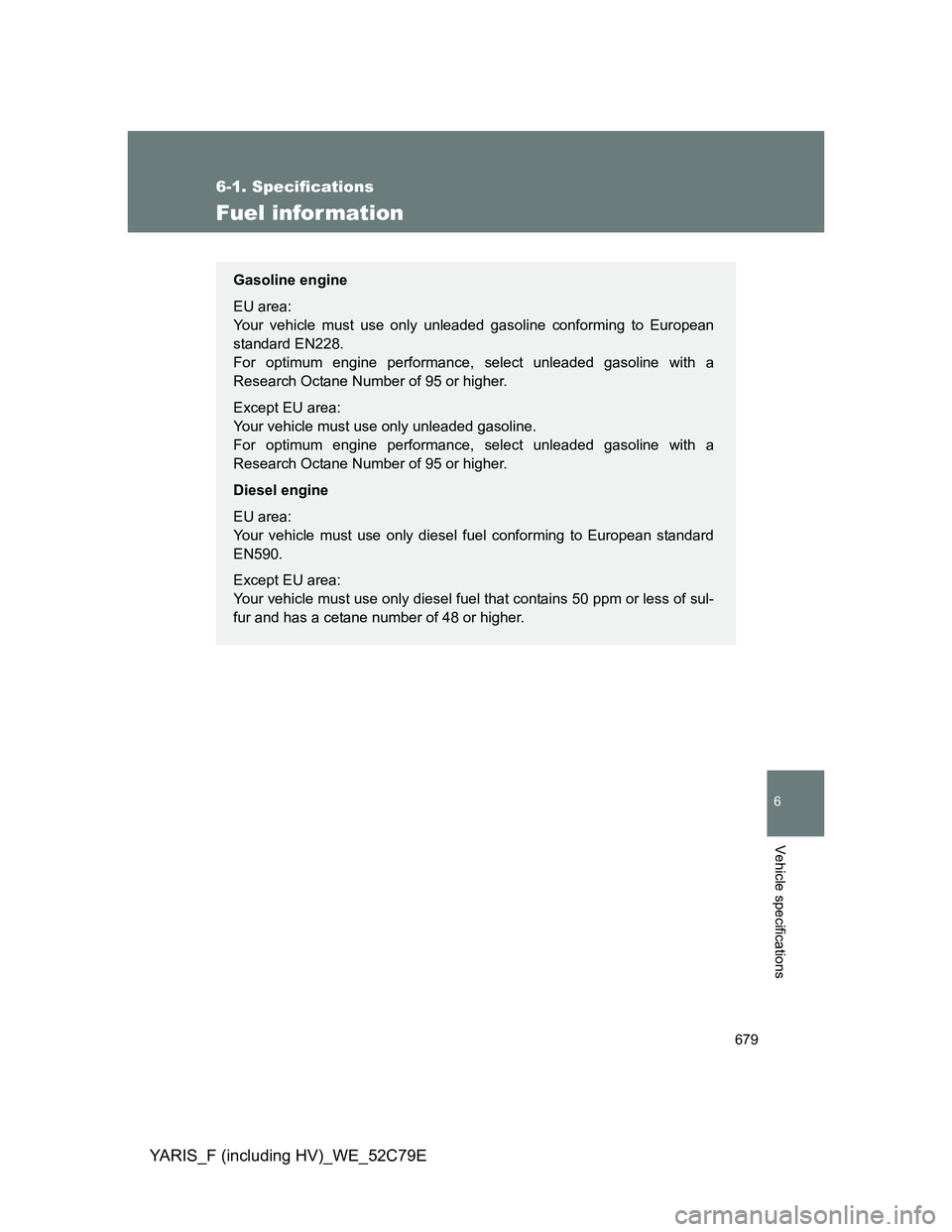

Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European standard
EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or less of sul-
fur and has a cetane number of 48 or higher.

680 6-1. Specifications
YARIS_F (including HV)_WE_52C79E

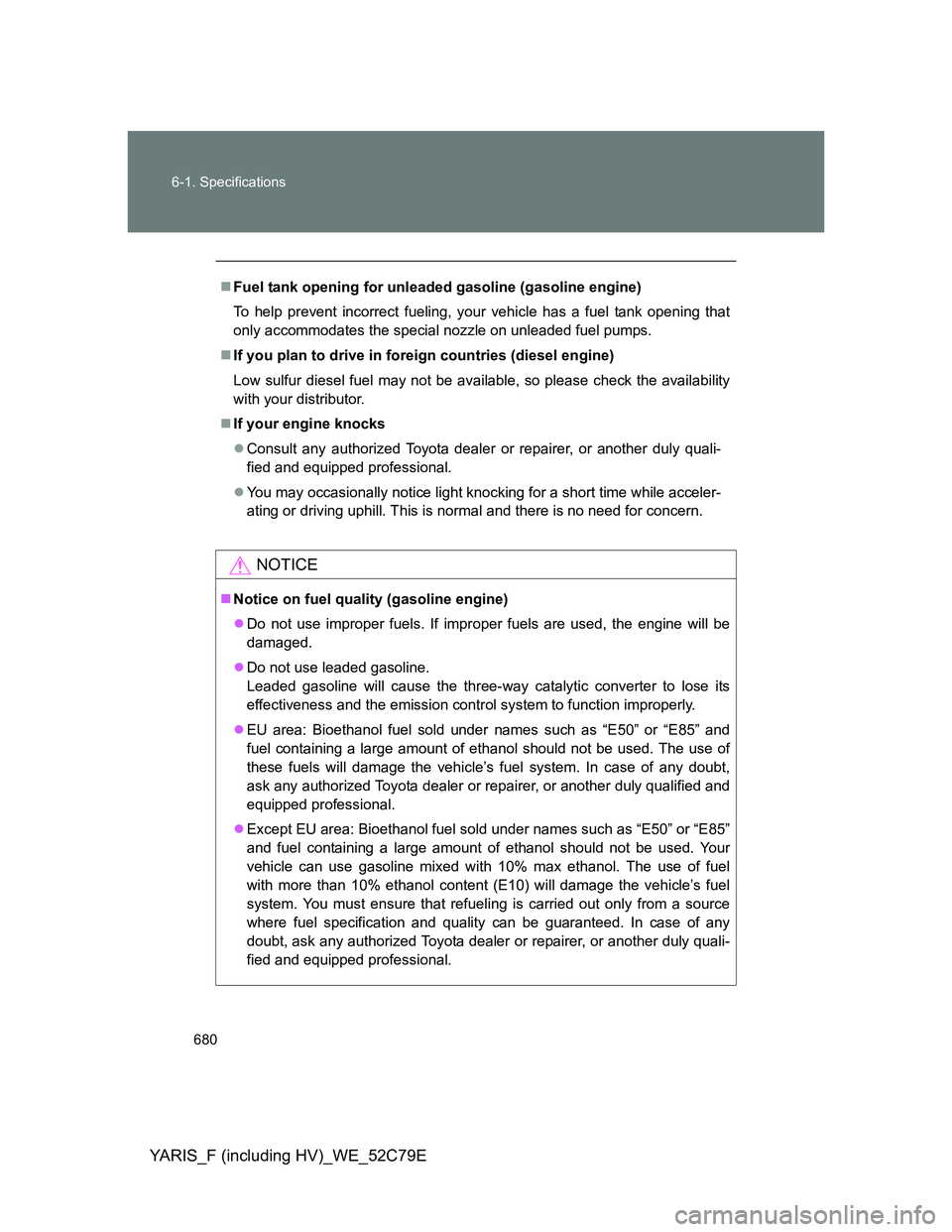

Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality (gasoline engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
