TOYOTA YARIS HYBRID 2013 Owners Manual

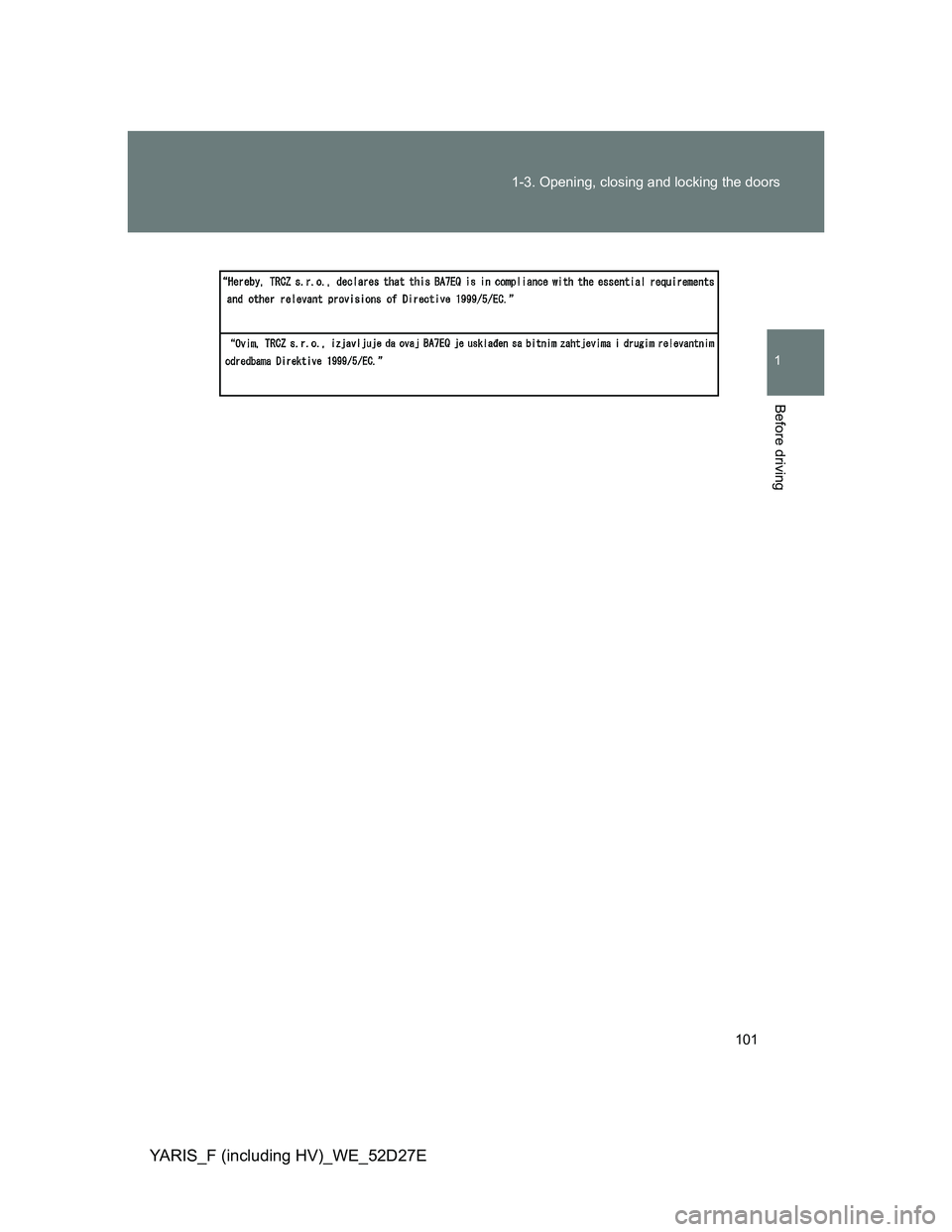

101 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E

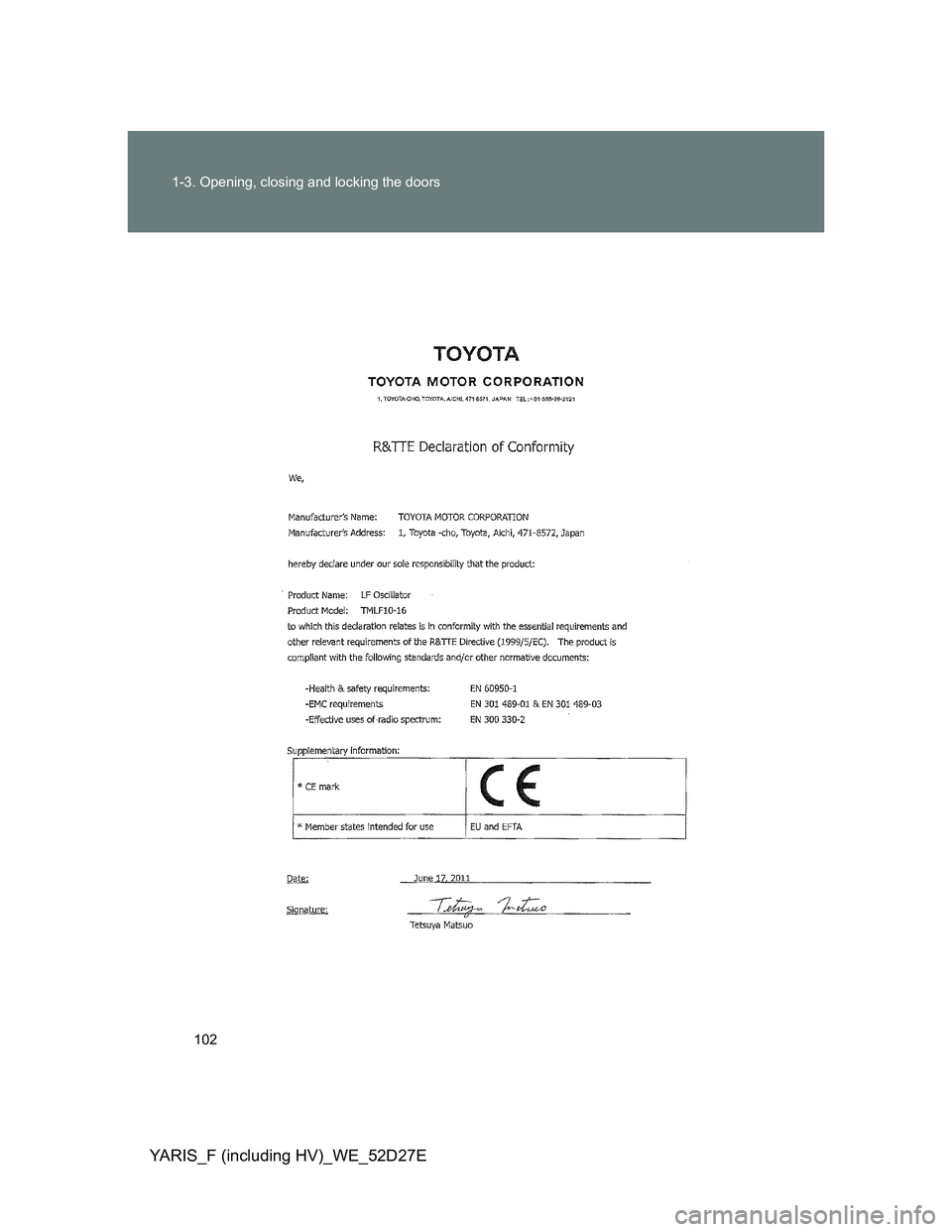

102 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E

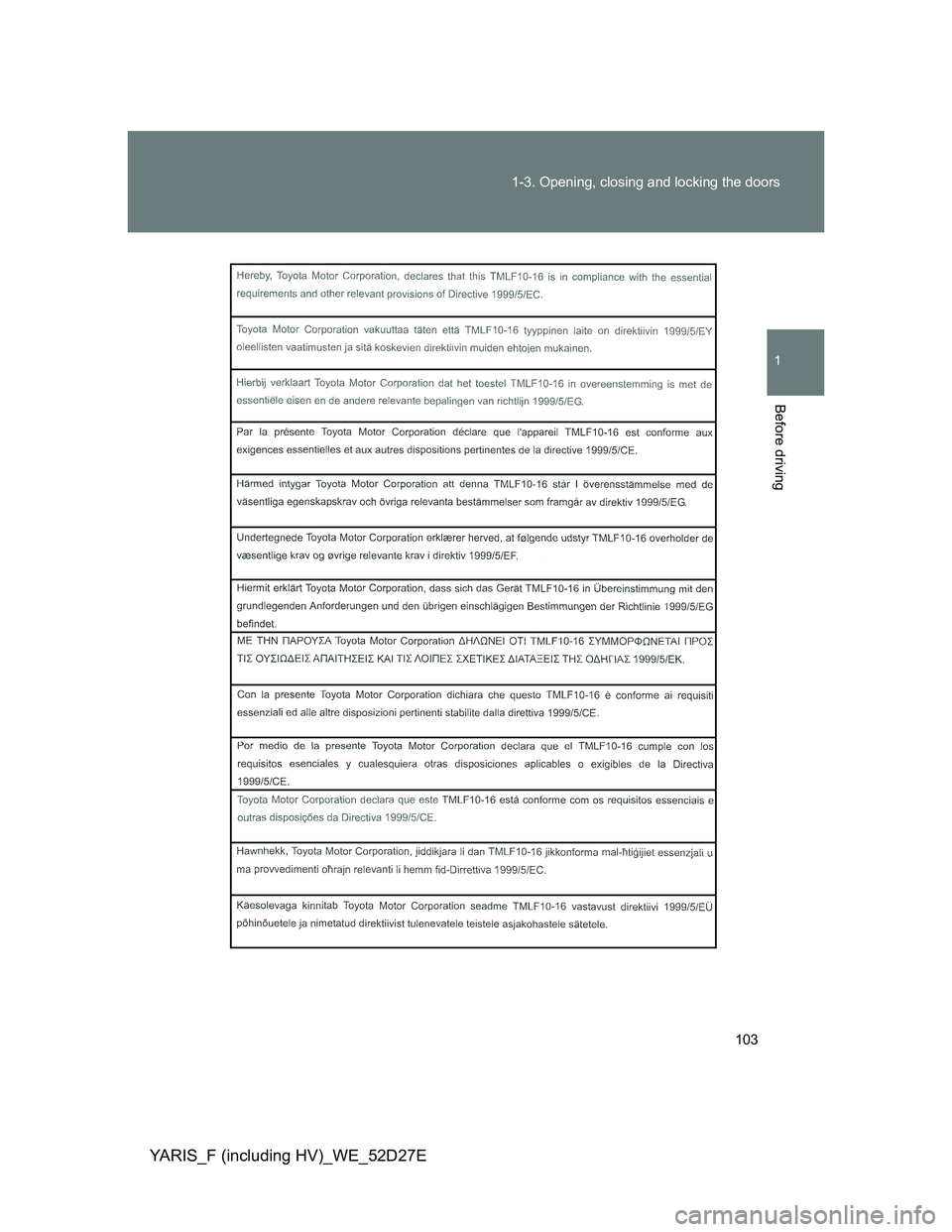

103 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E

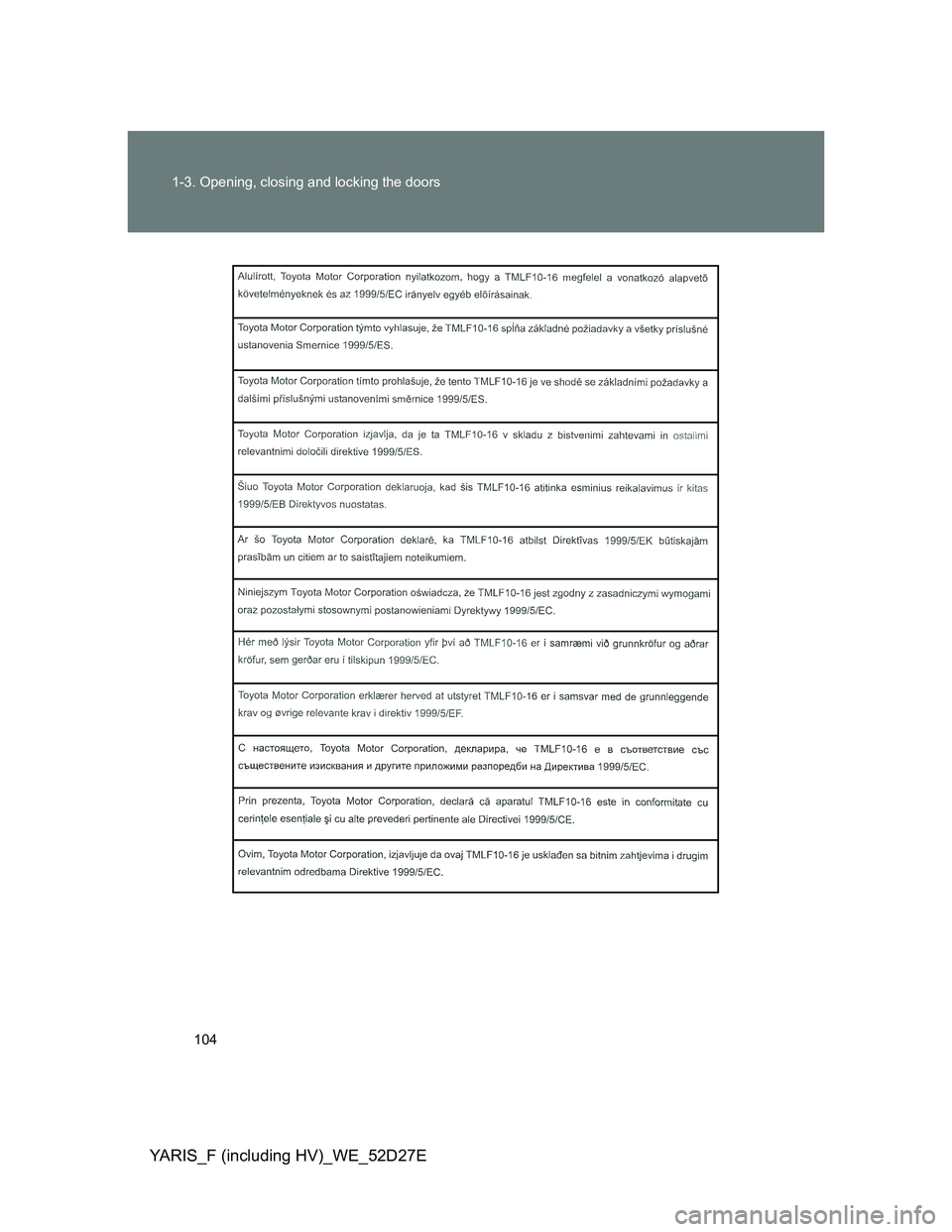

104 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E

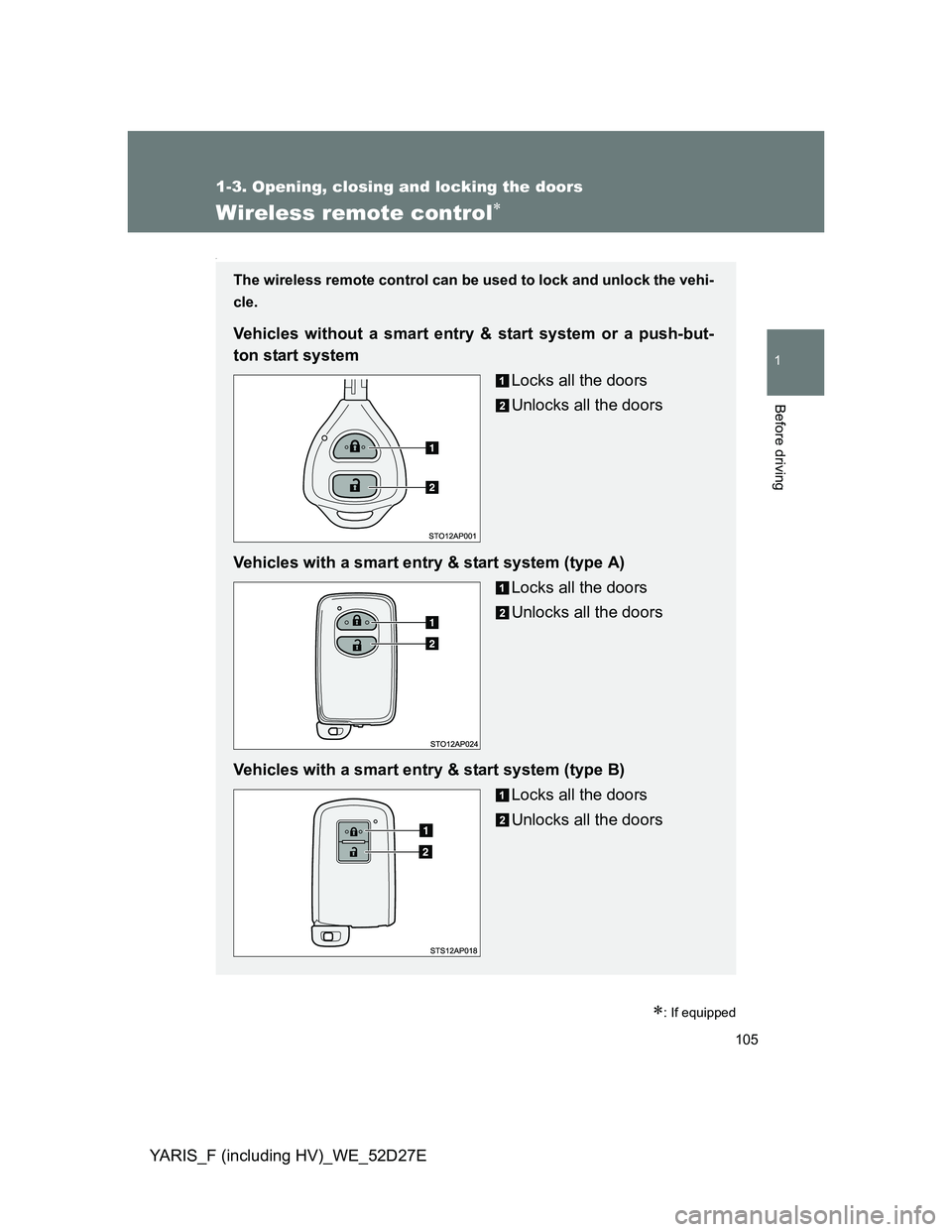

105
1
1-3. Opening, closing and locking the doors
Before driving
YARIS_F (including HV)_WE_52D27E
Wireless remote control
*
: If equipped
The wireless remote control can be used to lock and unlock the vehi-
cle.
Vehicles without a smart entry & start system or a push-but-
ton start system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system (type A)
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system (type B)
Locks all the doors
Unlocks all the doors

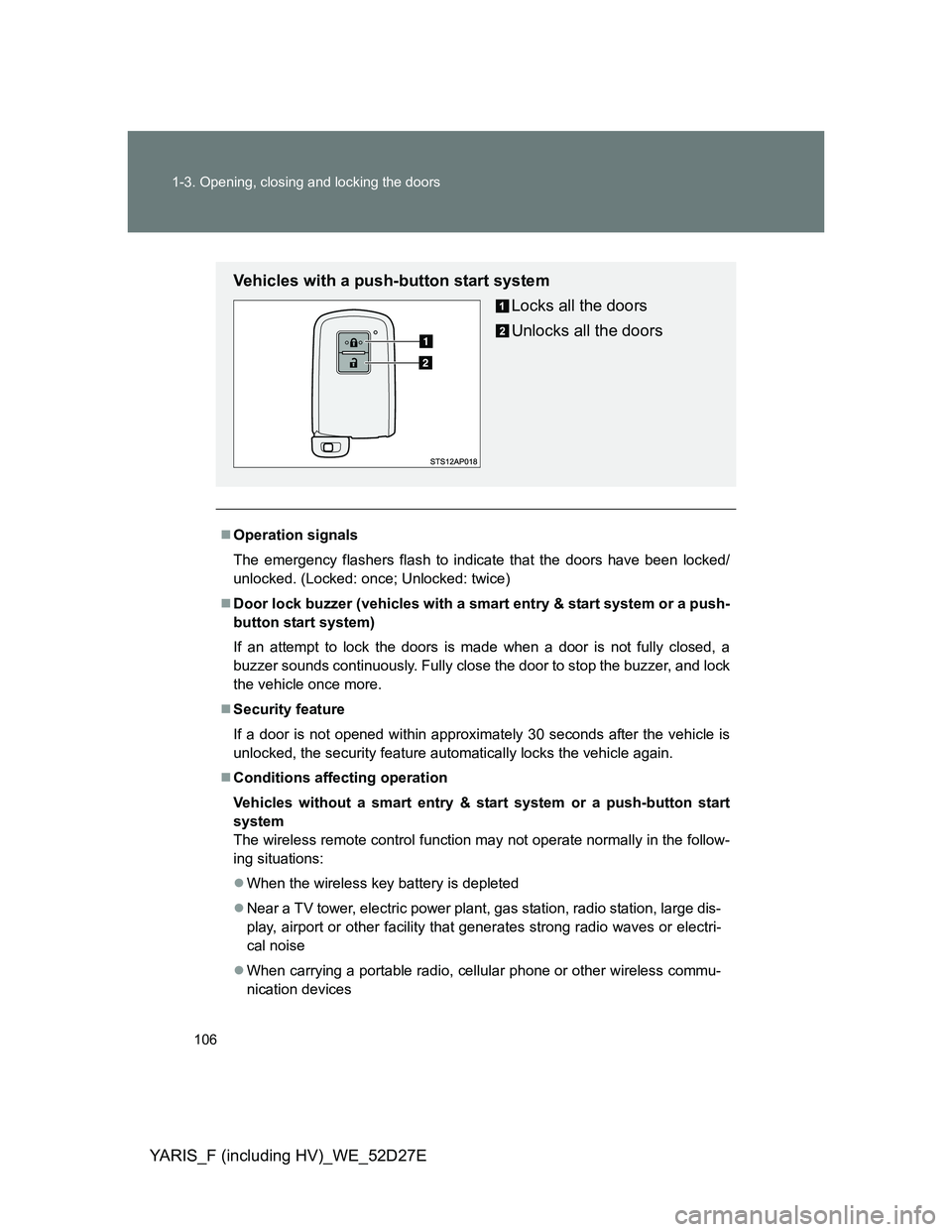

106 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E
Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
Door lock buzzer (vehicles with a smart entry & start system or a push-
button start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Conditions affecting operation
Vehicles without a smart entry & start system or a push-button start
system
The wireless remote control function may not operate normally in the follow-
ing situations:
When the wireless key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
When carrying a portable radio, cellular phone or other wireless commu-
nication devices
Vehicles with a push-button start system
Locks all the doors
Unlocks all the doors

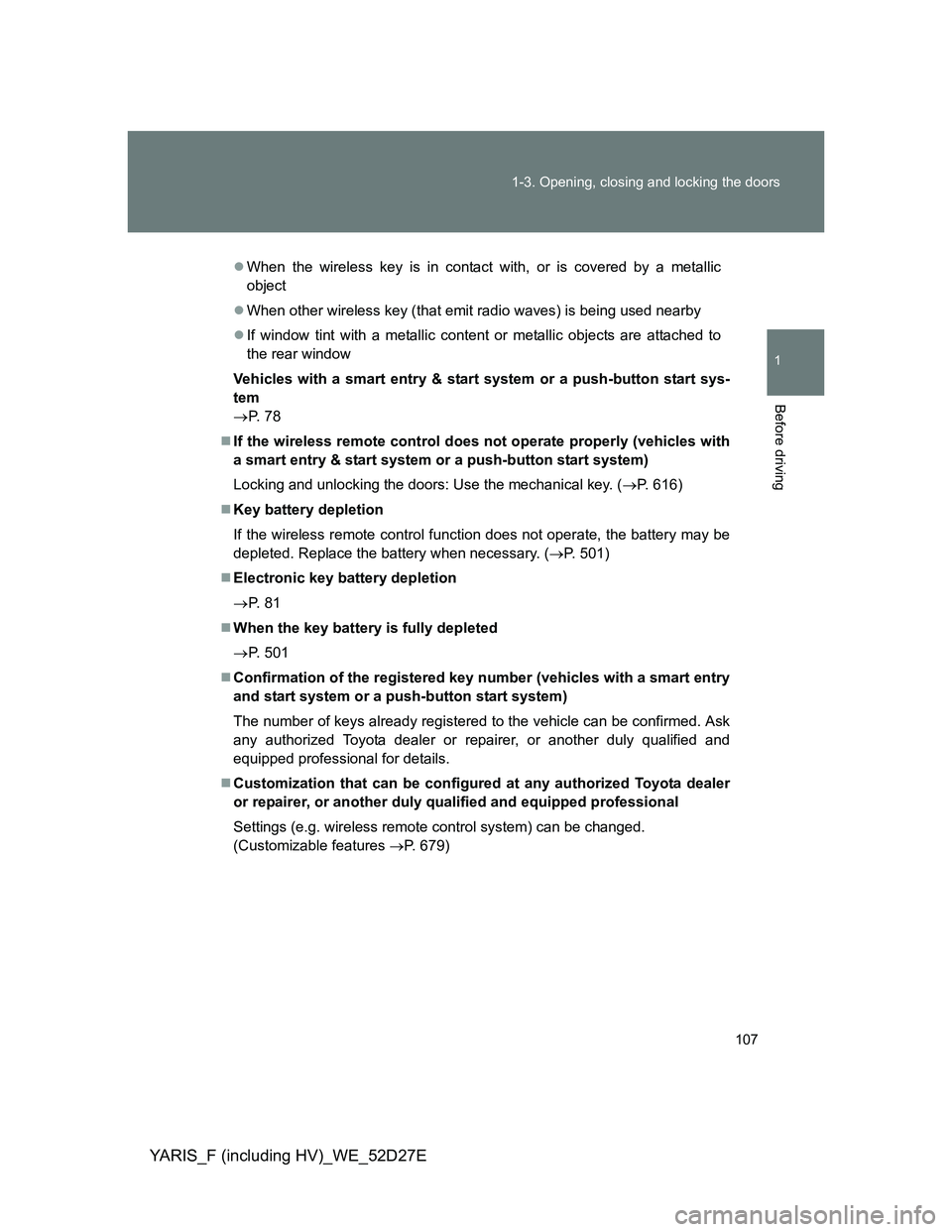

107 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E
When the wireless key is in contact with, or is covered by a metallic
object
When other wireless key (that emit radio waves) is being used nearby
If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with a smart entry & start system or a push-button start sys-
tem
P. 7 8
If the wireless remote control does not operate properly (vehicles with
a smart entry & start system or a push-button start system)
Locking and unlocking the doors: Use the mechanical key. (P. 616)
Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 501)
Electronic key battery depletion
P. 8 1
When the key battery is fully depleted
P. 501
Confirmation of the registered key number (vehicles with a smart entry
and start system or a push-button start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 679)

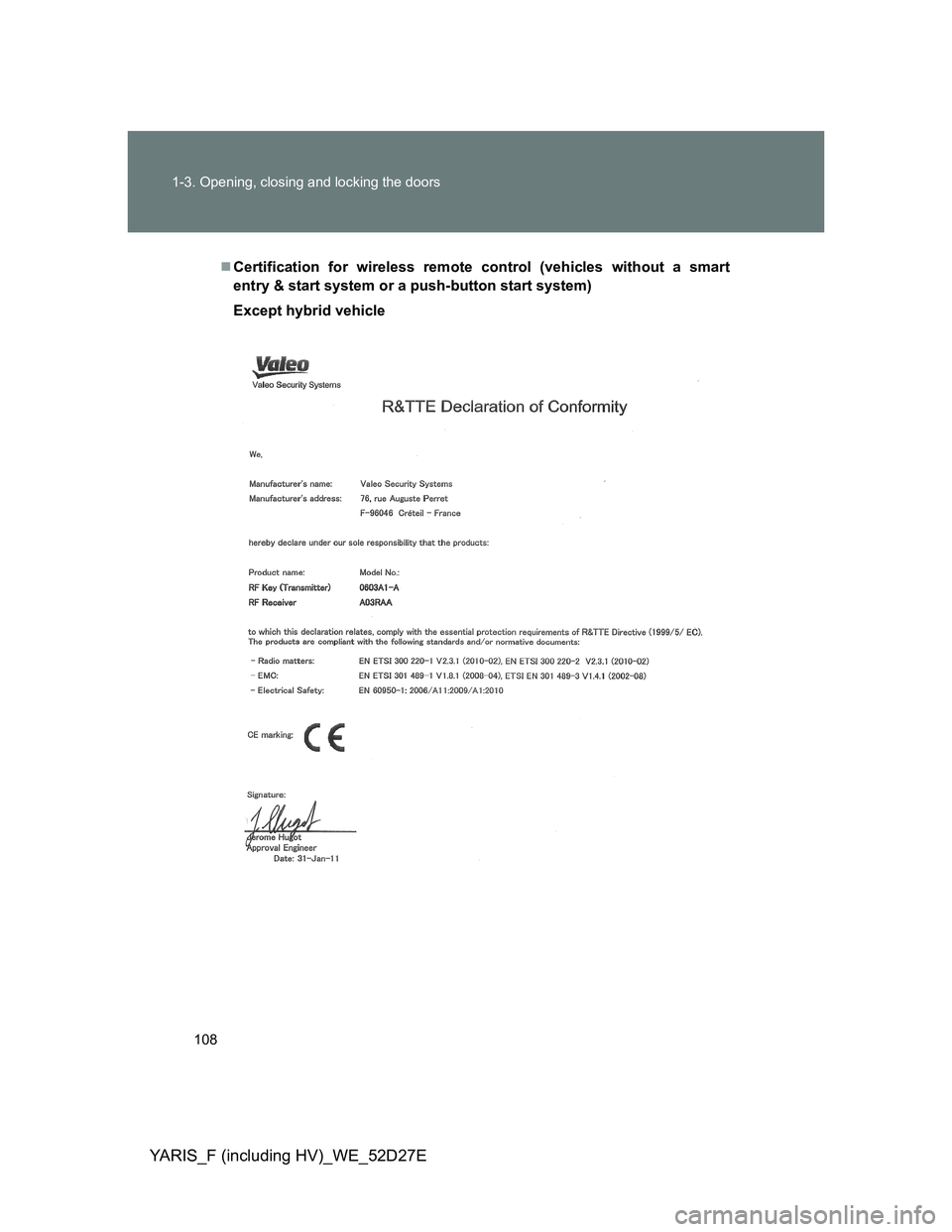

108 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E

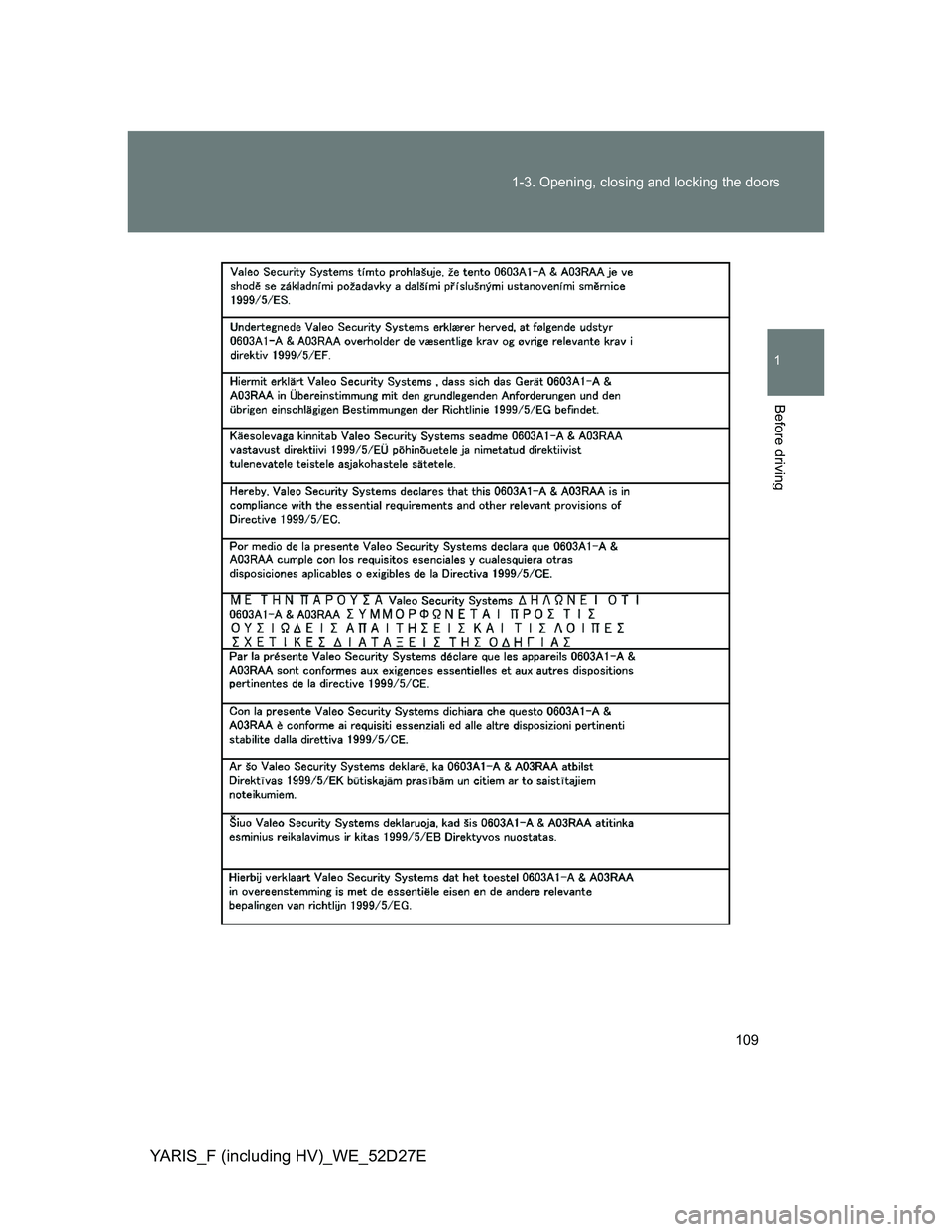

Certification for wireless remote control (vehicles without a smart
entry & start system or a push-button start system)
Except hybrid vehicle

109 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E

110 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E
