TOYOTA YARIS HYBRID 2013 Owners Manual

121 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E

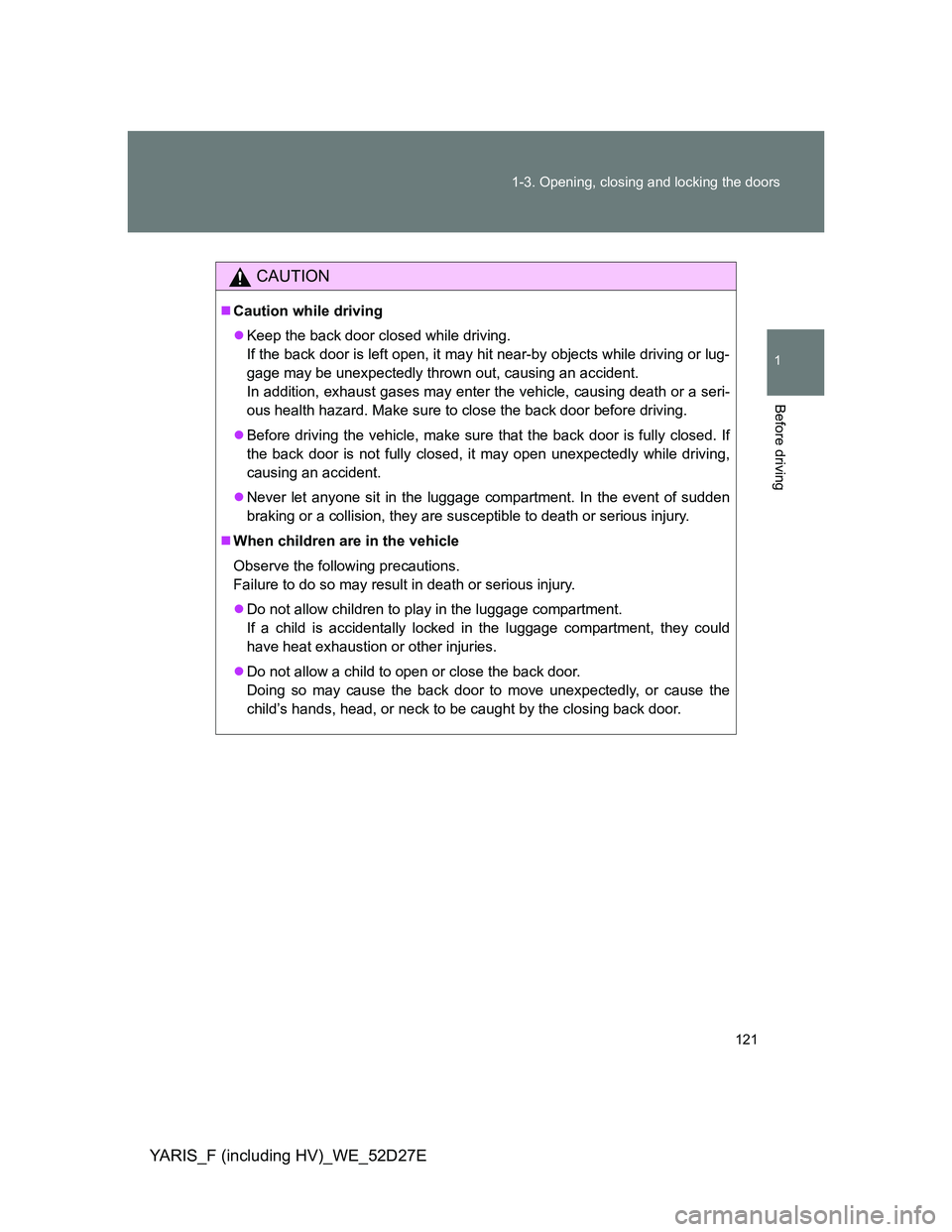

CAUTION
Caution while driving
Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

122 1-3. Opening, closing and locking the doors
YARIS_F (including HV)_WE_52D27E

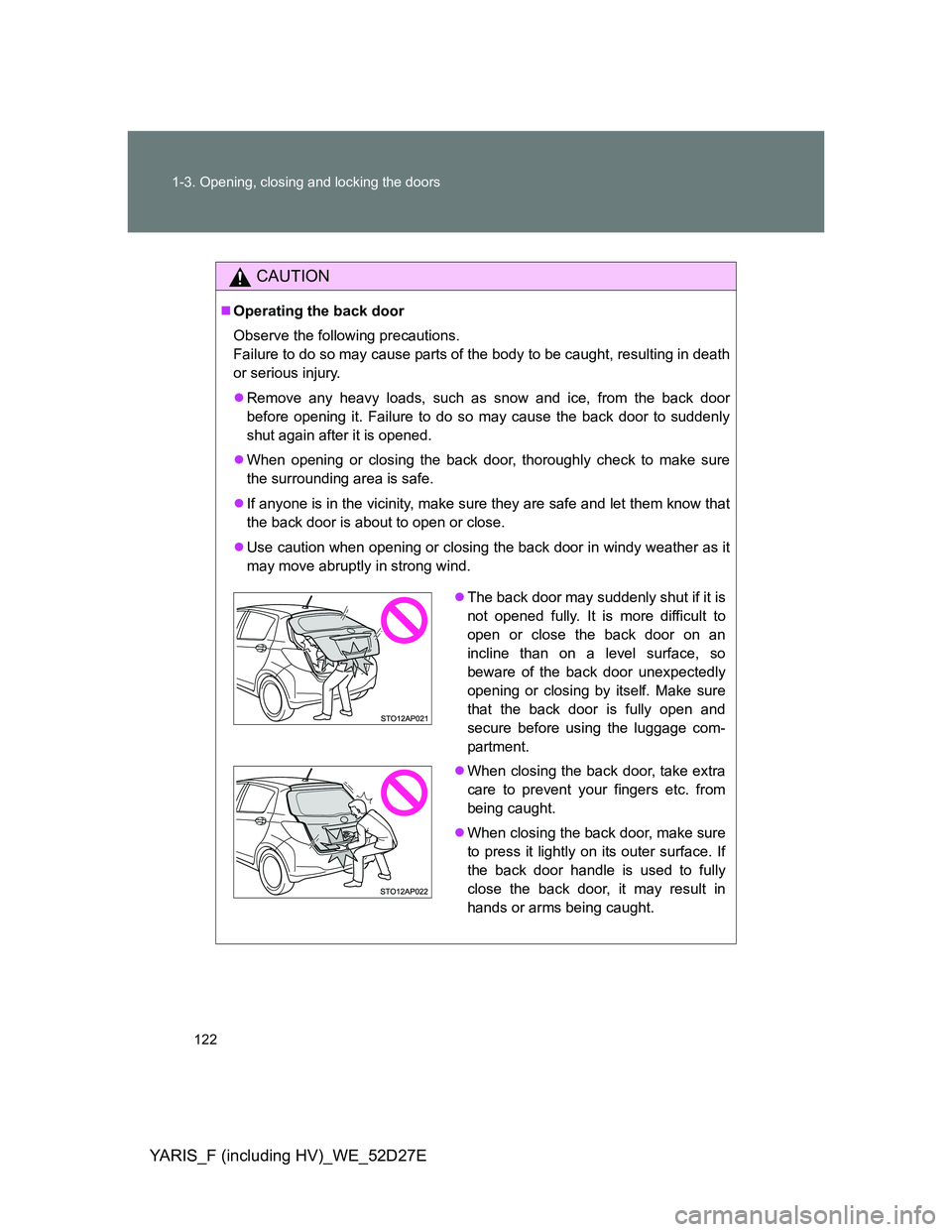

CAUTION
Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

123 1-3. Opening, closing and locking the doors
1
Before driving
YARIS_F (including HV)_WE_52D27E

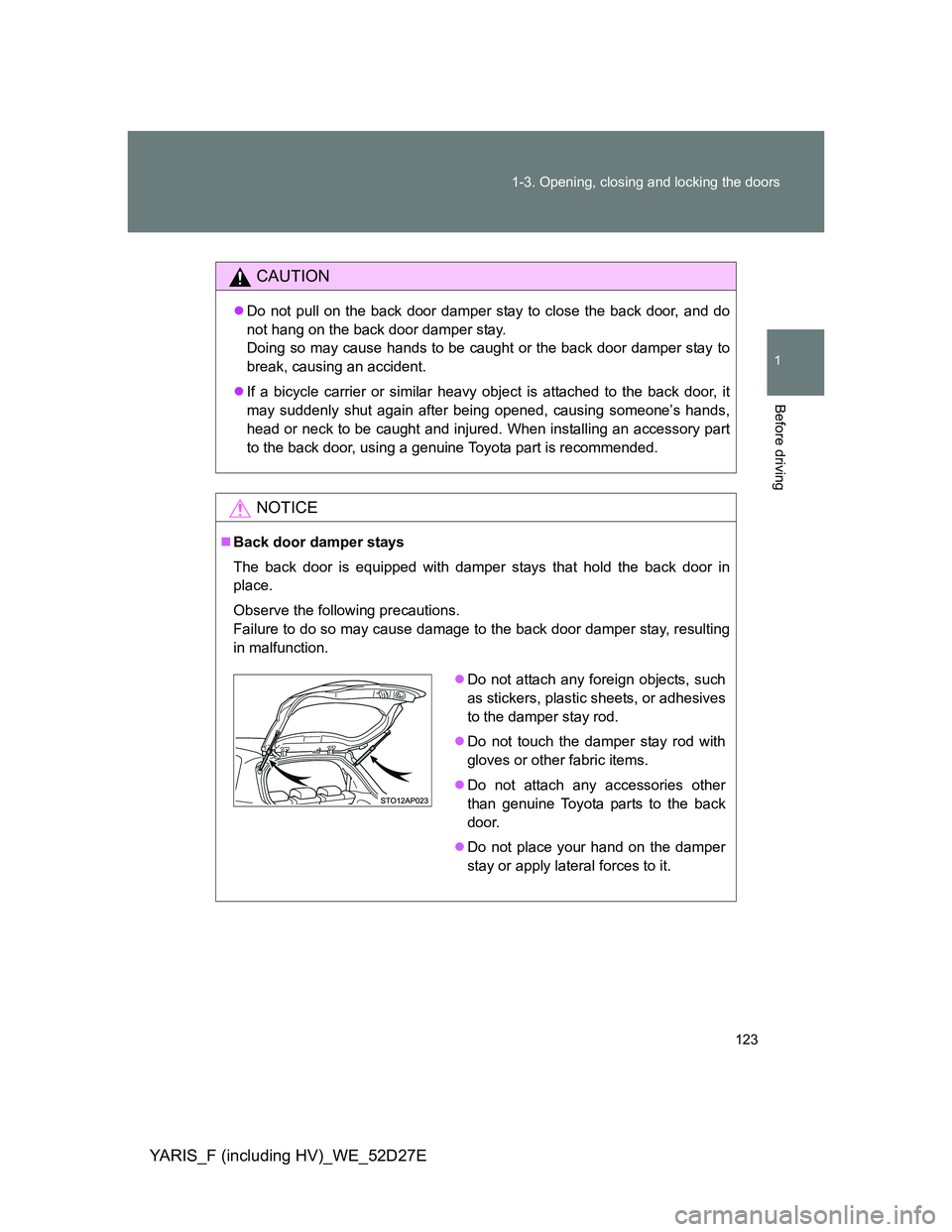

CAUTION
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
NOTICE
Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
Do not touch the damper stay rod with
gloves or other fabric items.
Do not attach any accessories other
than genuine Toyota parts to the back
door.
Do not place your hand on the damper
stay or apply lateral forces to it.

124
YARIS_F (including HV)_WE_52D27E
1-4. Adjustable components (seats, mirrors, steering wheel)

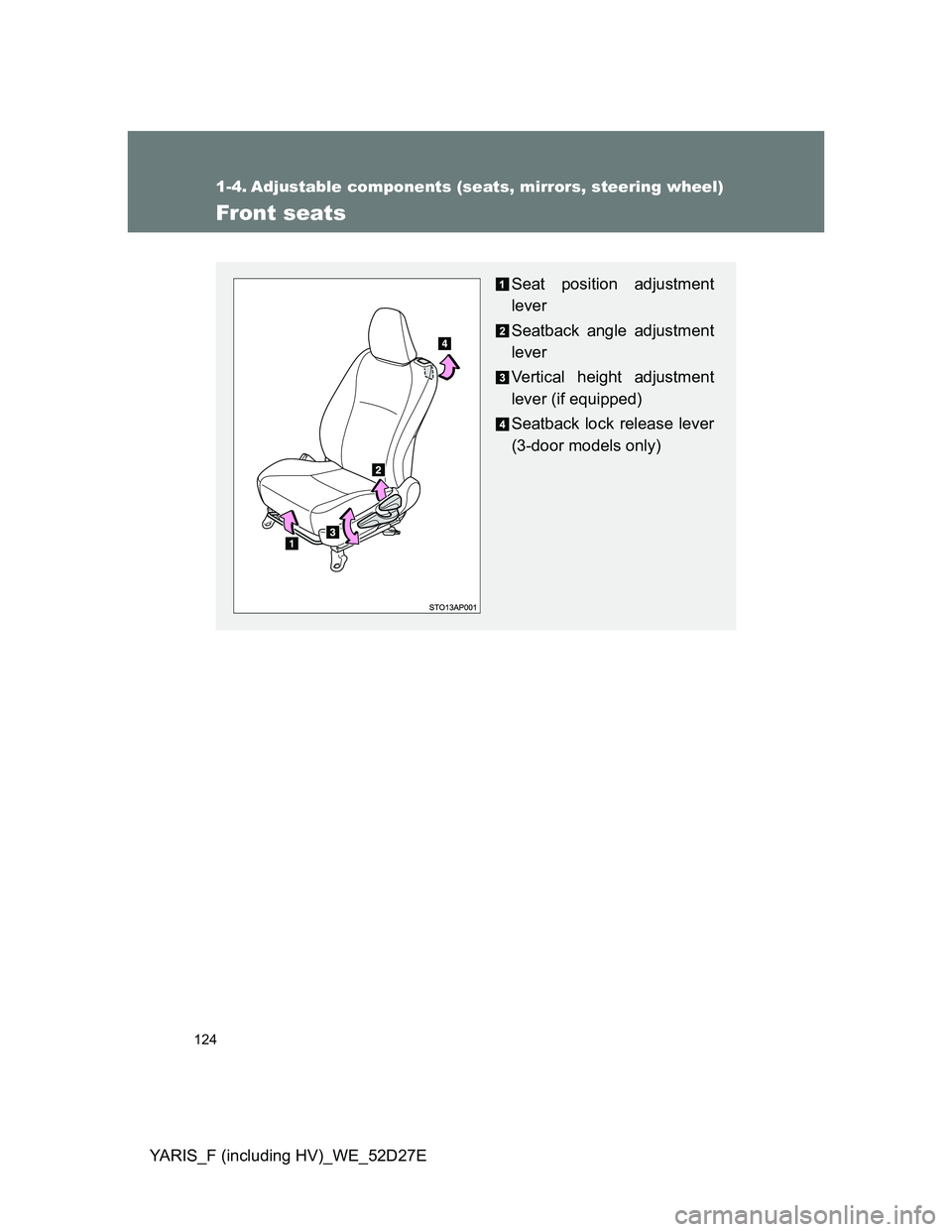

Front seats
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (if equipped)
Seatback lock release lever
(3-door models only)

125 1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
YARIS_F (including HV)_WE_52D27E

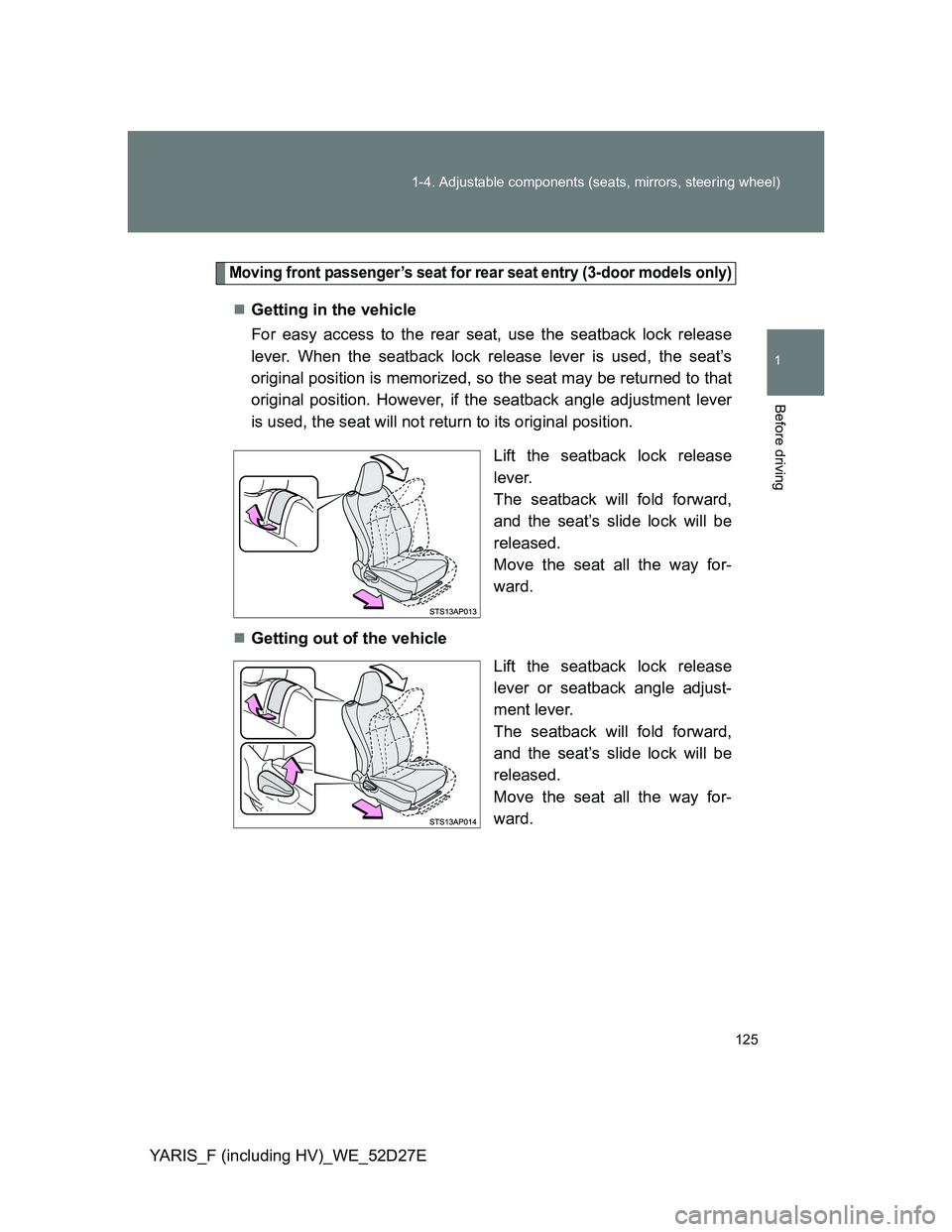

Moving front passenger’s seat for rear seat entry (3-door models only)
Getting in the vehicle
For easy access to the rear seat, use the seatback lock release
lever. When the seatback lock release lever is used, the seat’s
original position is memorized, so the seat may be returned to that
original position. However, if the seatback angle adjustment lever
is used, the seat will not return to its original position.
Lift the seatback lock release
lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.
Getting out of the vehicle
Lift the seatback lock release
lever or seatback angle adjust-
ment lever.
The seatback will fold forward,
and the seat’s slide lock will be
released.
Move the seat all the way for-
ward.

126 1-4. Adjustable components (seats, mirrors, steering wheel)
YARIS_F (including HV)_WE_52D27E

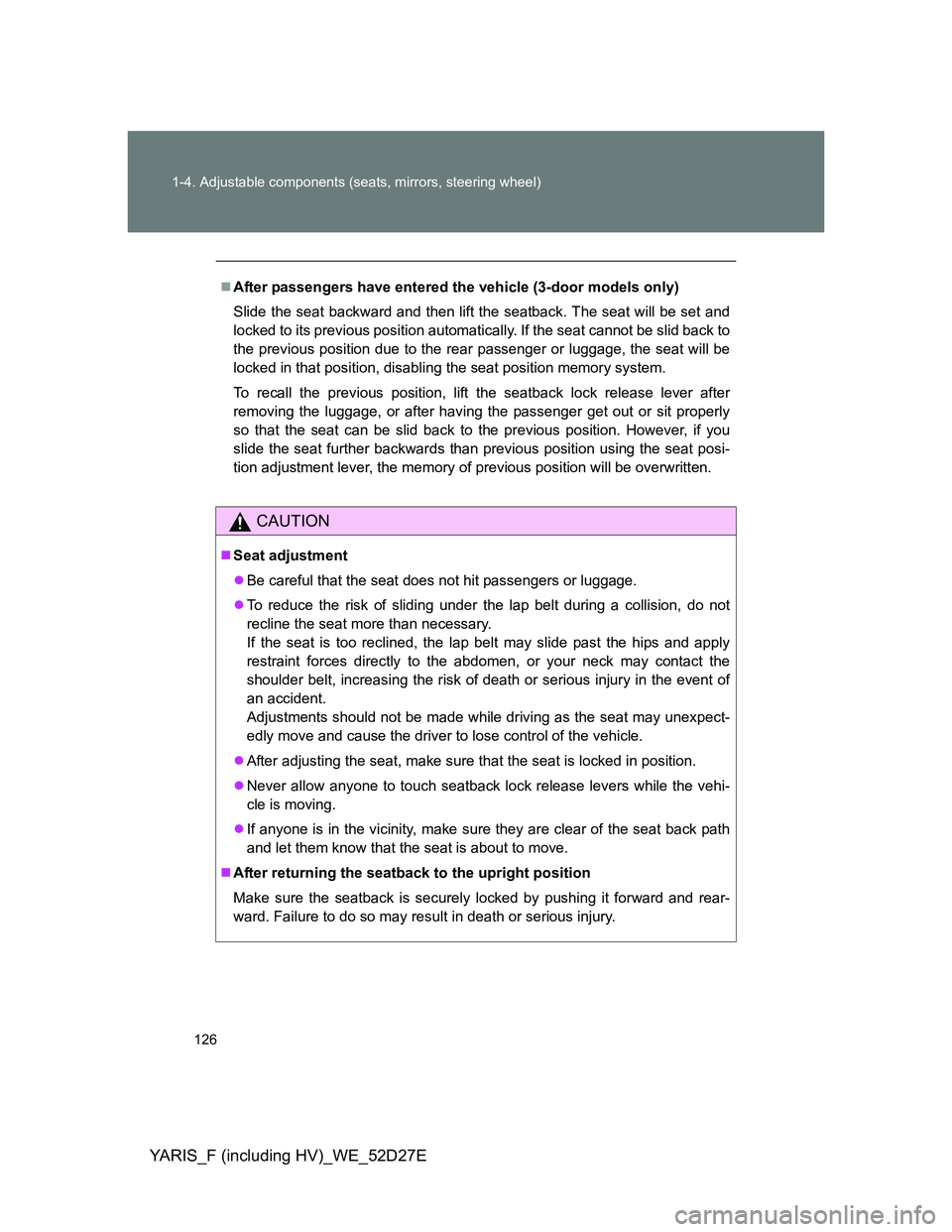

After passengers have entered the vehicle (3-door models only)
Slide the seat backward and then lift the seatback. The seat will be set and
locked to its previous position automatically. If the seat cannot be slid back to
the previous position due to the rear passenger or luggage, the seat will be
locked in that position, disabling the seat position memory system.
To recall the previous position, lift the seatback lock release lever after
removing the luggage, or after having the passenger get out or sit properly
so that the seat can be slid back to the previous position. However, if you
slide the seat further backwards than previous position using the seat posi-
tion adjustment lever, the memory of previous position will be overwritten.
CAUTION
Seat adjustment
Be careful that the seat does not hit passengers or luggage.
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
After adjusting the seat, make sure that the seat is locked in position.
Never allow anyone to touch seatback lock release levers while the vehi-
cle is moving.
If anyone is in the vicinity, make sure they are clear of the seat back path
and let them know that the seat is about to move.
After returning the seatback to the upright position
Make sure the seatback is securely locked by pushing it forward and rear-
ward. Failure to do so may result in death or serious injury.

127
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
YARIS_F (including HV)_WE_52D27E

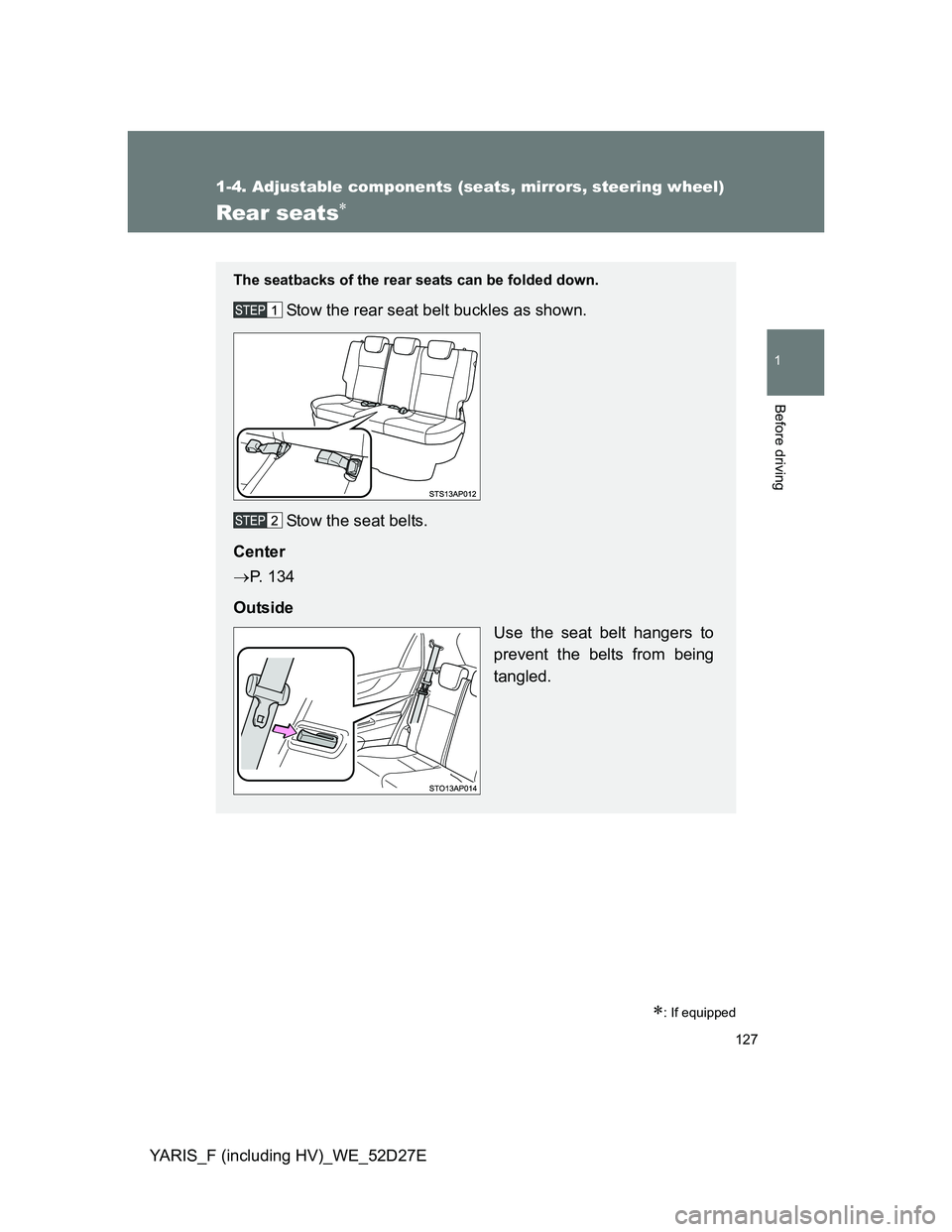

Rear seats
: If equipped
The seatbacks of the rear seats can be folded down.
Stow the rear seat belt buckles as shown.
Stow the seat belts.
Center
P. 134
Outside
Use the seat belt hangers to
prevent the belts from being
tangled.

128 1-4. Adjustable components (seats, mirrors, steering wheel)
YARIS_F (including HV)_WE_52D27E

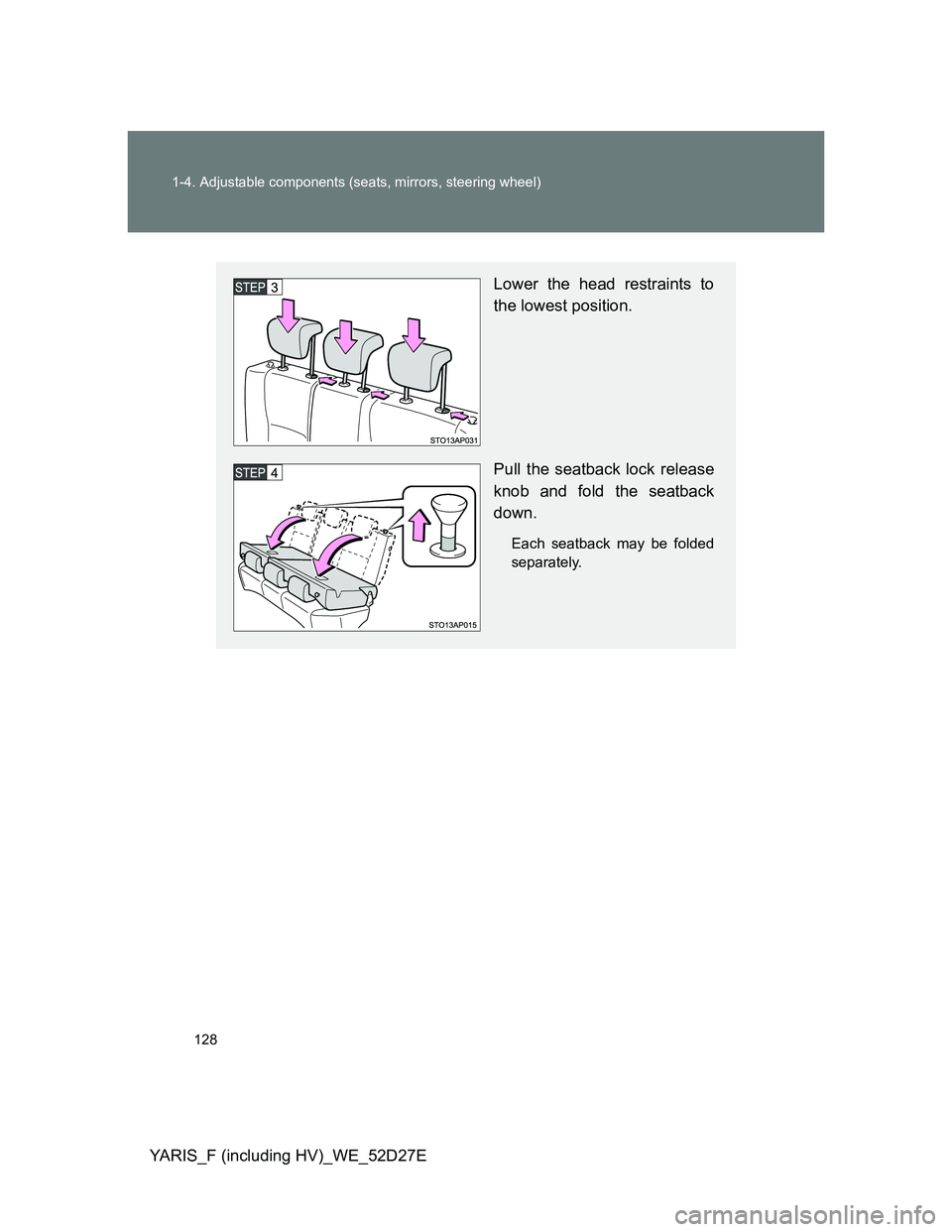

Lower the head restraints to
the lowest position.
Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded
separately.

129 1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
YARIS_F (including HV)_WE_52D27E

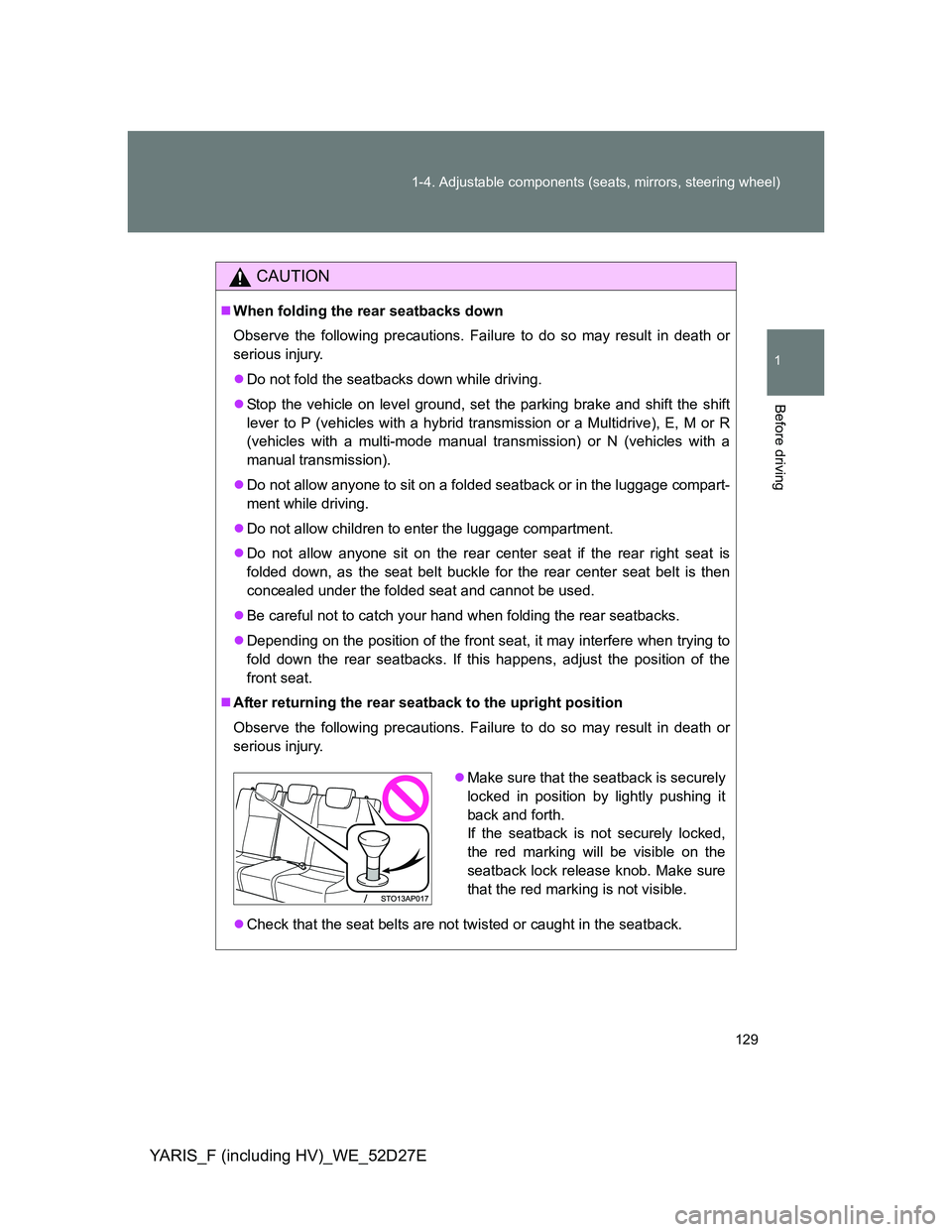

CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (vehicles with a hybrid transmission or a Multidrive), E, M or R
(vehicles with a multi-mode manual transmission) or N (vehicles with a
manual transmission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Do not allow anyone sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
Be careful not to catch your hand when folding the rear seatbacks.
Depending on the position of the front seat, it may interfere when trying to
fold down the rear seatbacks. If this happens, adjust the position of the
front seat.
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Check that the seat belts are not twisted or caught in the seatback.
Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.

130 1-4. Adjustable components (seats, mirrors, steering wheel)
YARIS_F (including HV)_WE_52D27E
NOTICE
Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
