TOYOTA YARIS HYBRID 2013 Owners Manual

151
1
Before driving
YARIS_F (including HV)_WE_52D27E

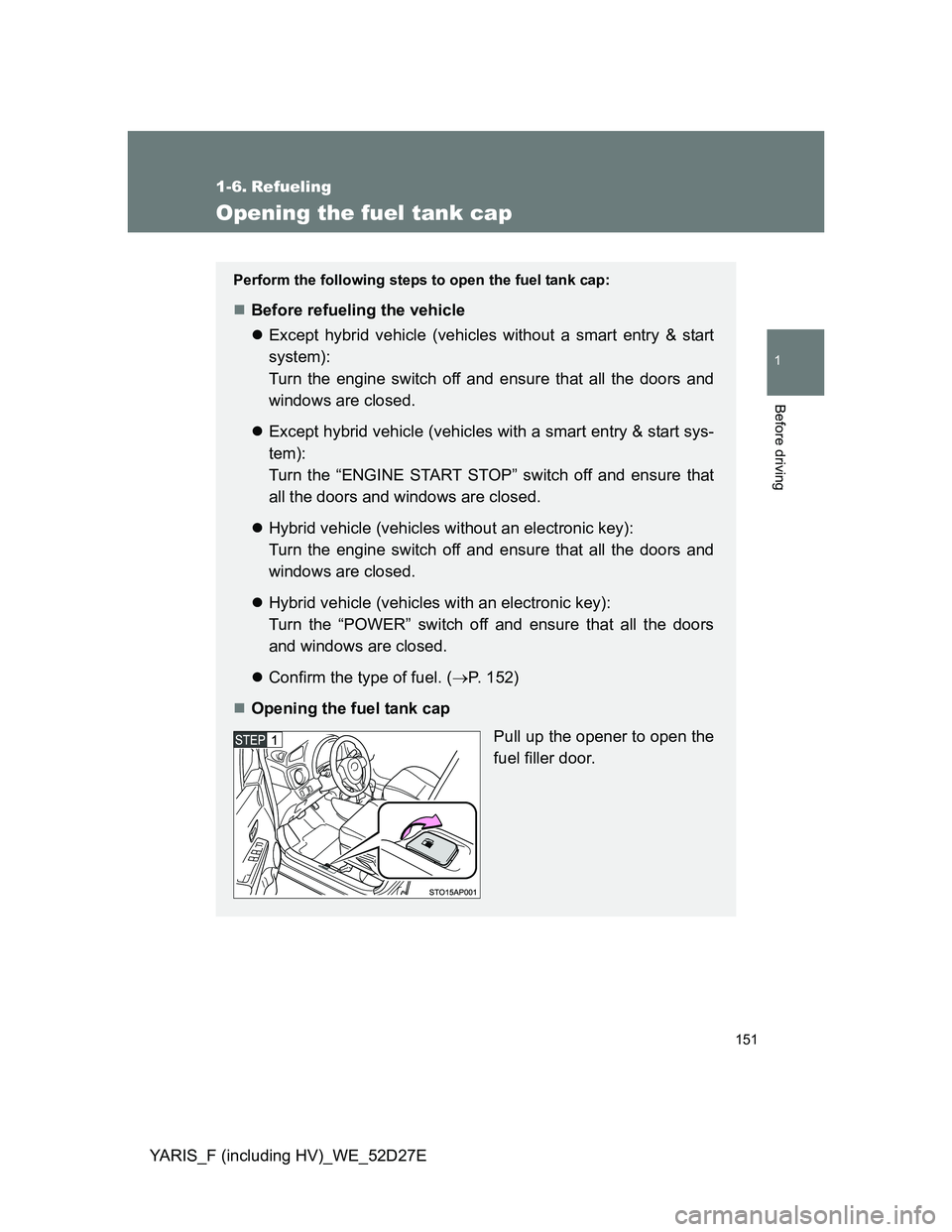

1-6. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
Except hybrid vehicle (vehicles without a smart entry & start
system):
Turn the engine switch off and ensure that all the doors and
windows are closed.
Except hybrid vehicle (vehicles with a smart entry & start sys-
tem):
Turn the “ENGINE START STOP” switch off and ensure that
all the doors and windows are closed.
Hybrid vehicle (vehicles without an electronic key):
Turn the engine switch off and ensure that all the doors and
windows are closed.
Hybrid vehicle (vehicles with an electronic key):
Turn the “POWER” switch off and ensure that all the doors
and windows are closed.
Confirm the type of fuel. (P. 152)
Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.

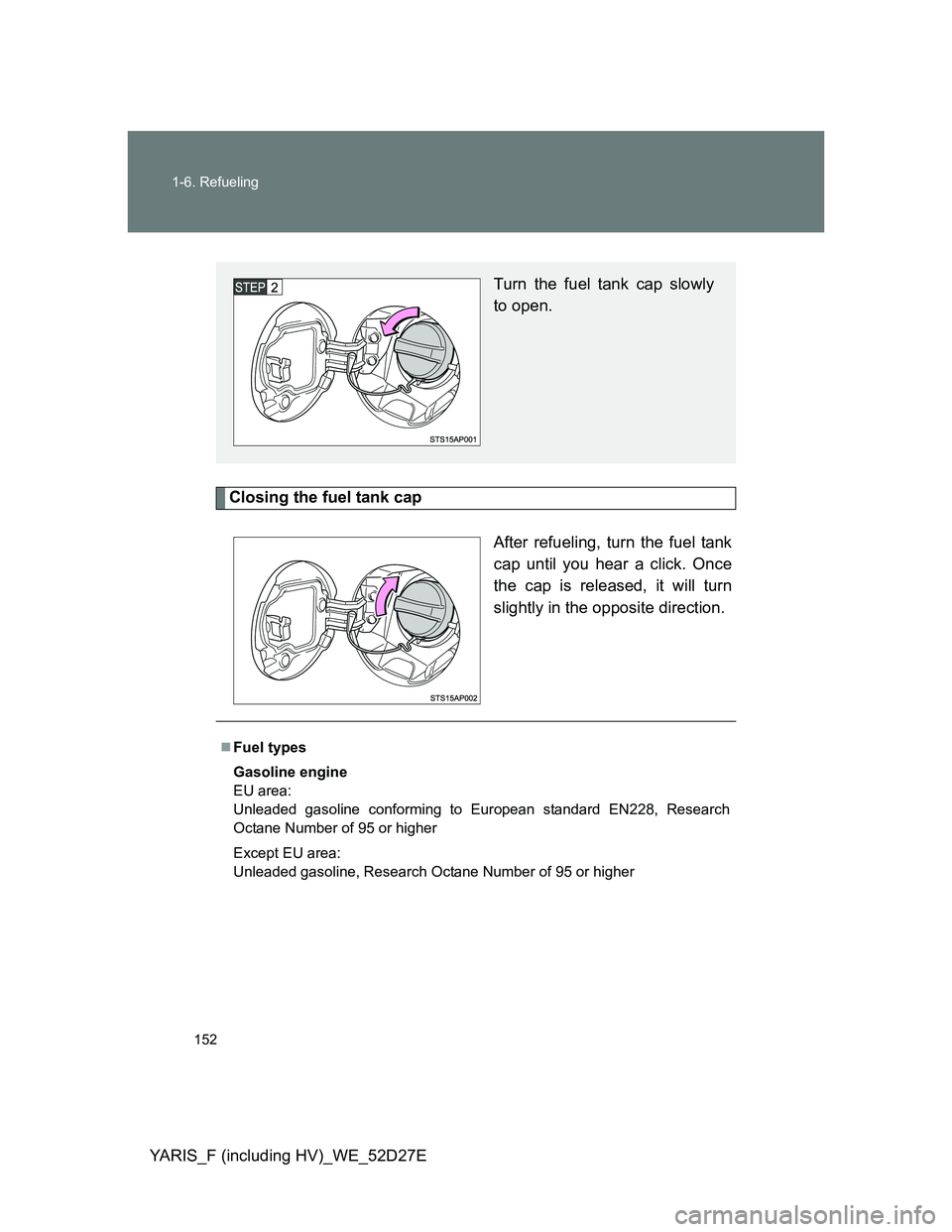

152 1-6. Refueling
YARIS_F (including HV)_WE_52D27E
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Turn the fuel tank cap slowly
to open.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher

153 1-6. Refueling
1
Before driving
YARIS_F (including HV)_WE_52D27E

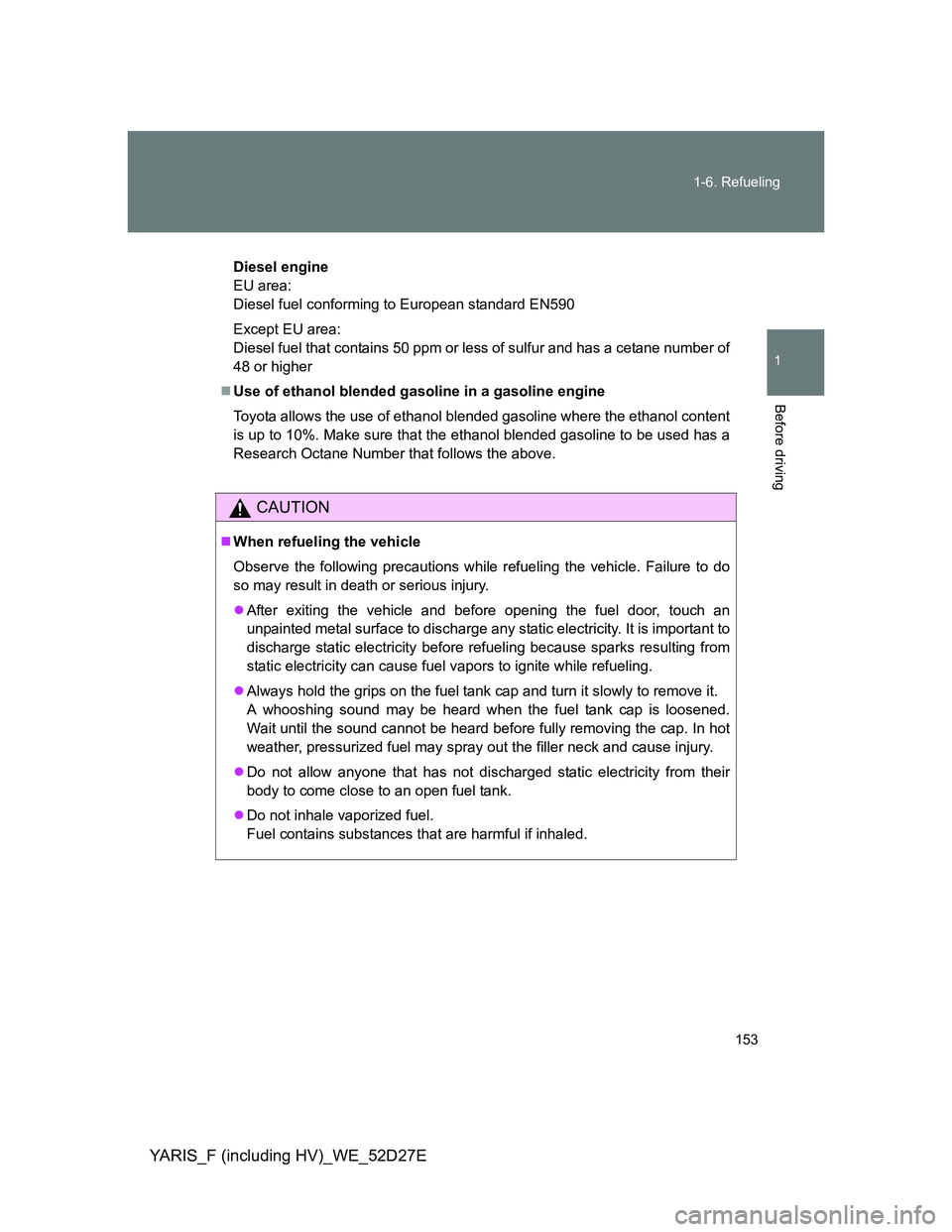

Diesel engine
EU area:
Diesel fuel conforming to European standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number of
48 or higher
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

154 1-6. Refueling
YARIS_F (including HV)_WE_52D27E

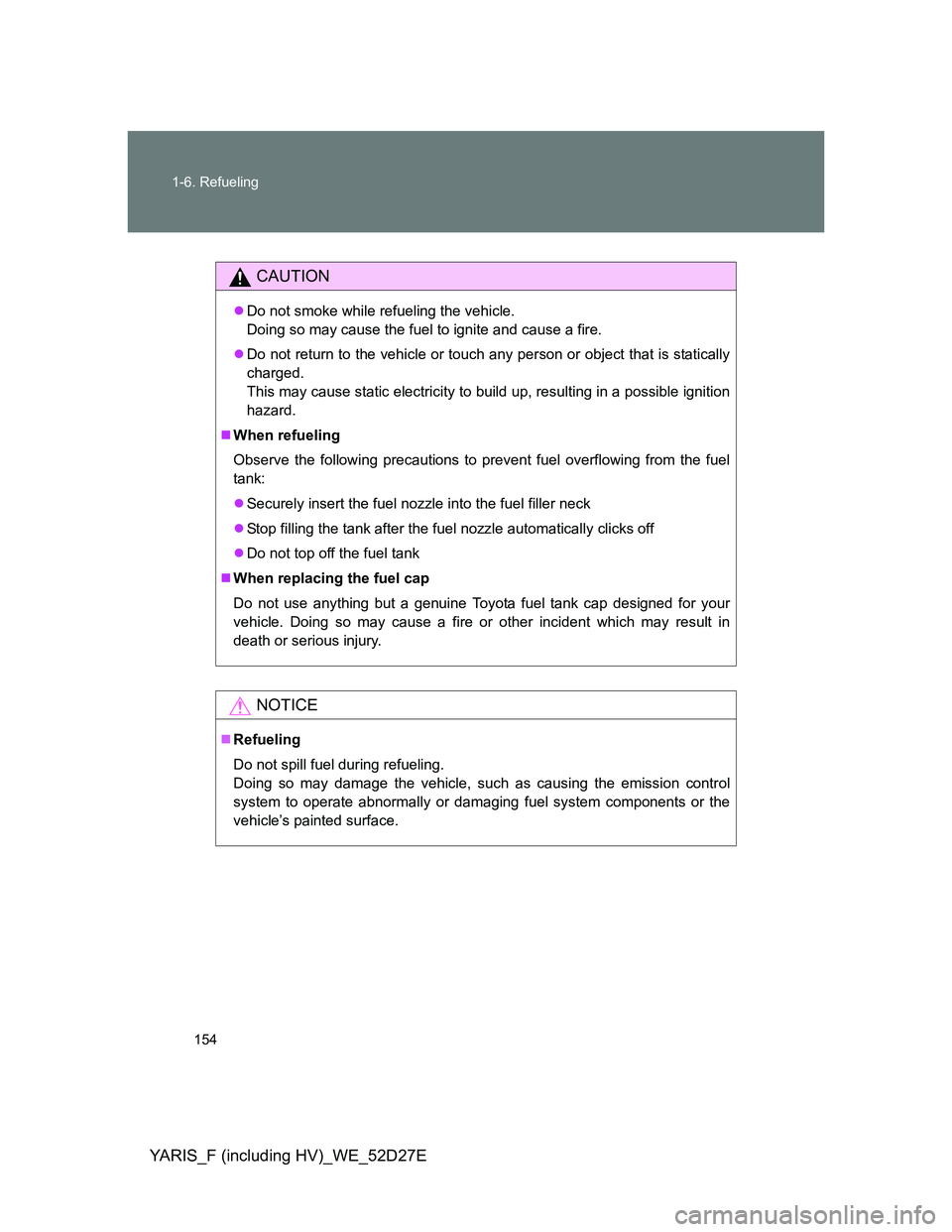

CAUTION
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
Securely insert the fuel nozzle into the fuel filler neck
Stop filling the tank after the fuel nozzle automatically clicks off
Do not top off the fuel tank
When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

155
1
Before driving
YARIS_F (including HV)_WE_52D27E

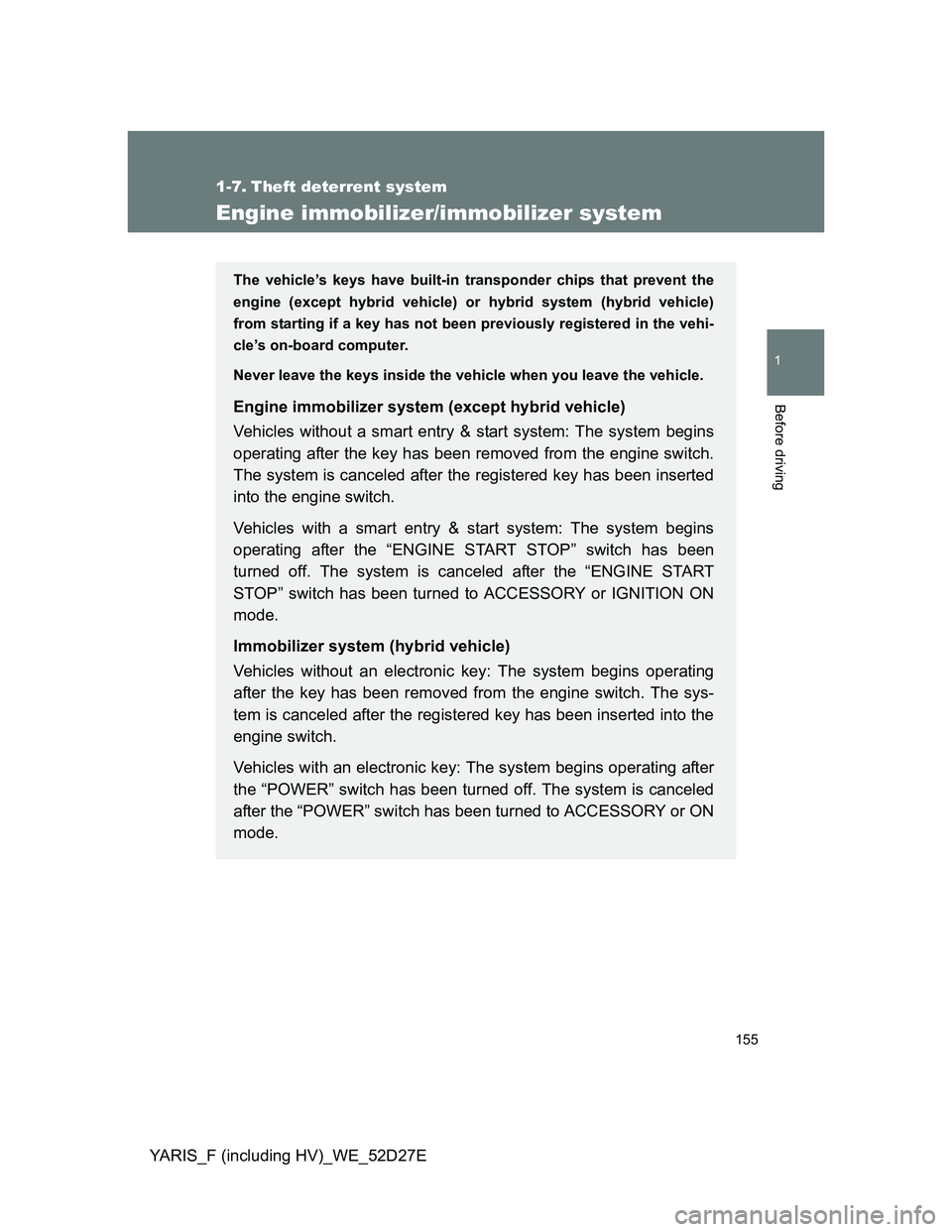

1-7. Theft deterrent system
Engine immobilizer/immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine (except hybrid vehicle) or hybrid system (hybrid vehicle)
from starting if a key has not been previously registered in the vehi-
cle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Engine immobilizer system (except hybrid vehicle)
Vehicles without a smart entry & start system: The system begins
operating after the key has been removed from the engine switch.
The system is canceled after the registered key has been inserted
into the engine switch.
Vehicles with a smart entry & start system: The system begins
operating after the “ENGINE START STOP” switch has been
turned off. The system is canceled after the “ENGINE START
STOP” switch has been turned to ACCESSORY or IGNITION ON
mode.
Immobilizer system (hybrid vehicle)
Vehicles without an electronic key: The system begins operating
after the key has been removed from the engine switch. The sys-
tem is canceled after the registered key has been inserted into the
engine switch.
Vehicles with an electronic key: The system begins operating after
the “POWER” switch has been turned off. The system is canceled
after the “POWER” switch has been turned to ACCESSORY or ON
mode.

156 1-7. Theft deterrent system
YARIS_F (including HV)_WE_52D27E

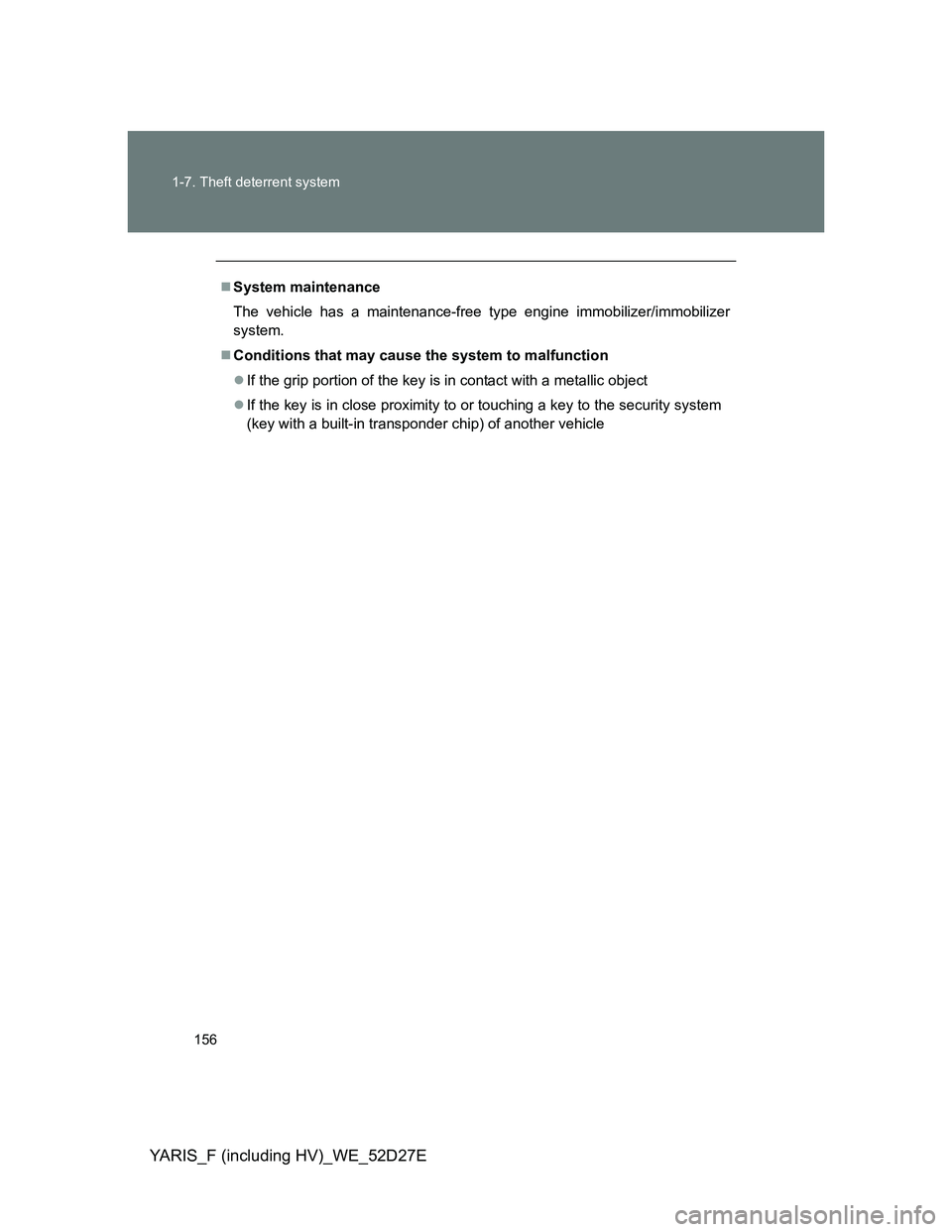

System maintenance
The vehicle has a maintenance-free type engine immobilizer/immobilizer
system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

157 1-7. Theft deterrent system
1
Before driving
YARIS_F (including HV)_WE_52D27E

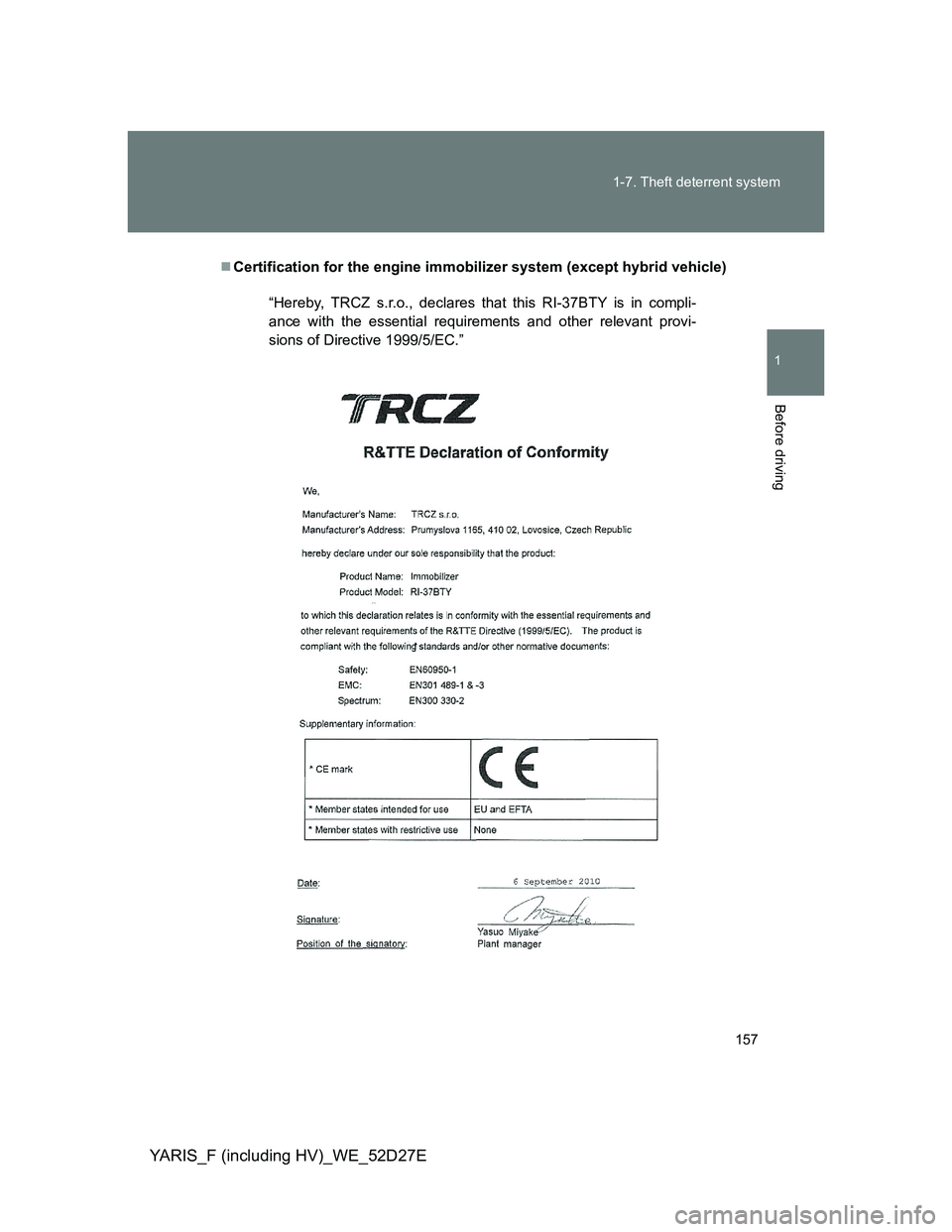

Certification for the engine immobilizer system (except hybrid vehicle)
“Hereby, TRCZ s.r.o., declares that this RI-37BTY is in compli-
ance with the essential requirements and other relevant provi-
sions of Directive 1999/5/EC.”

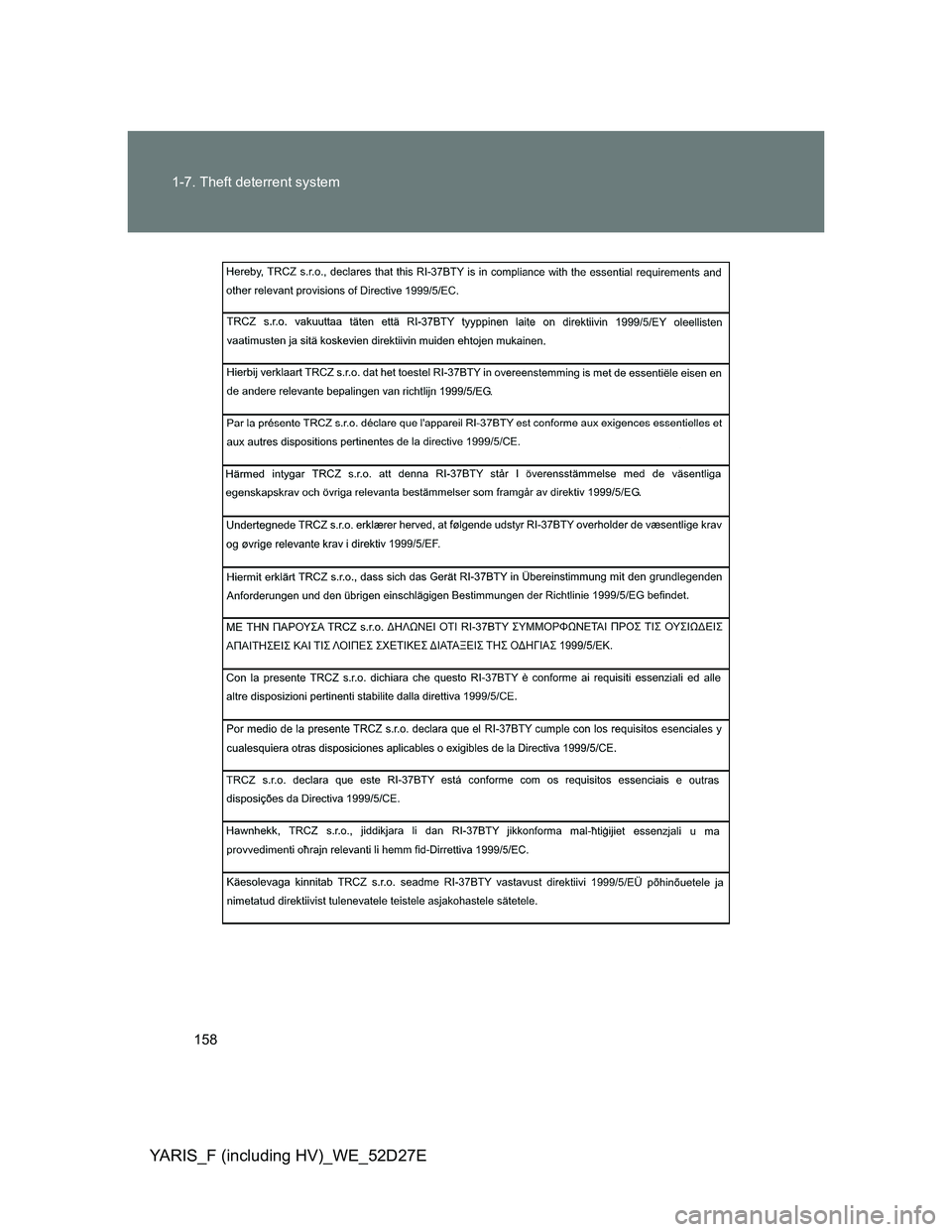

158 1-7. Theft deterrent system
YARIS_F (including HV)_WE_52D27E

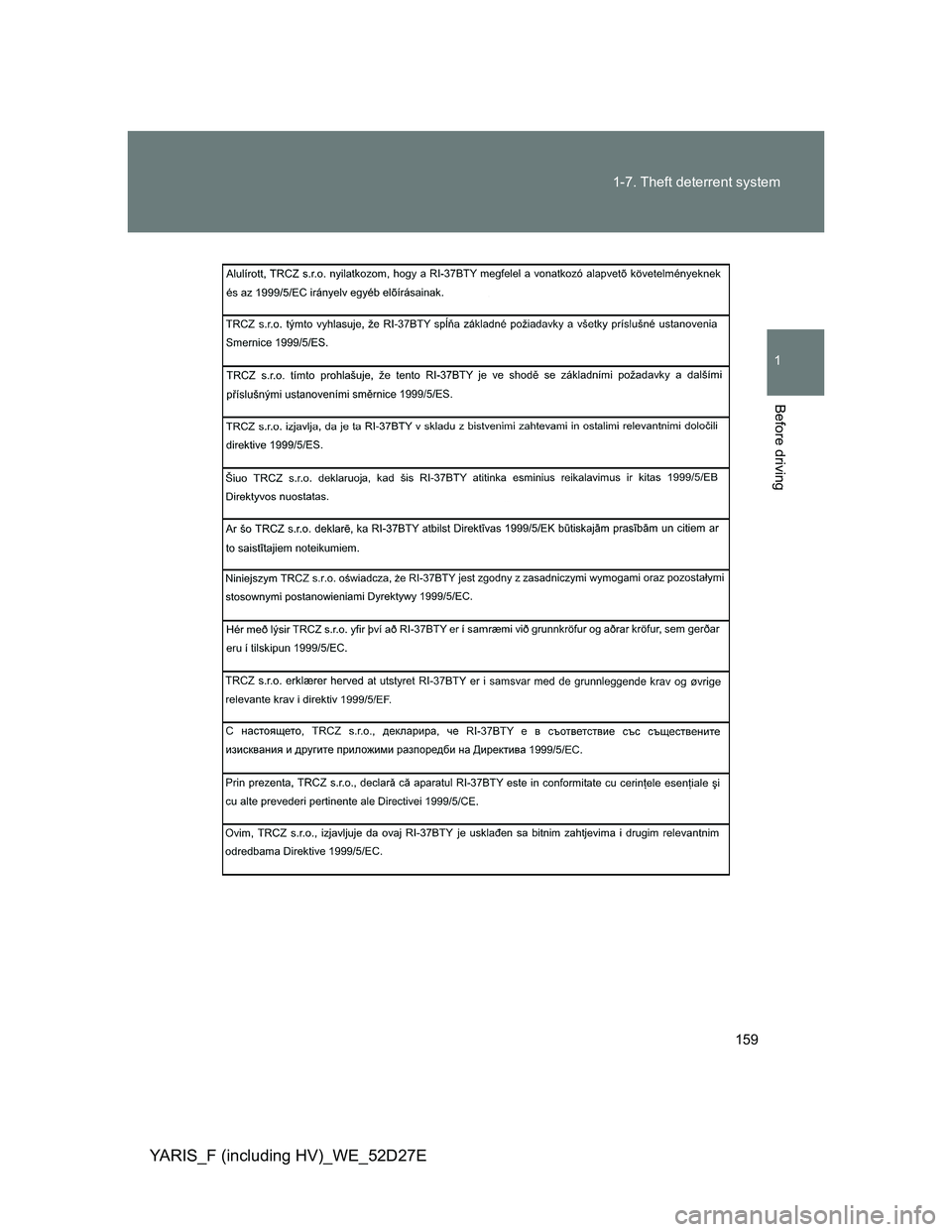

159 1-7. Theft deterrent system
1
Before driving
YARIS_F (including HV)_WE_52D27E

160 1-7. Theft deterrent system
YARIS_F (including HV)_WE_52D27E

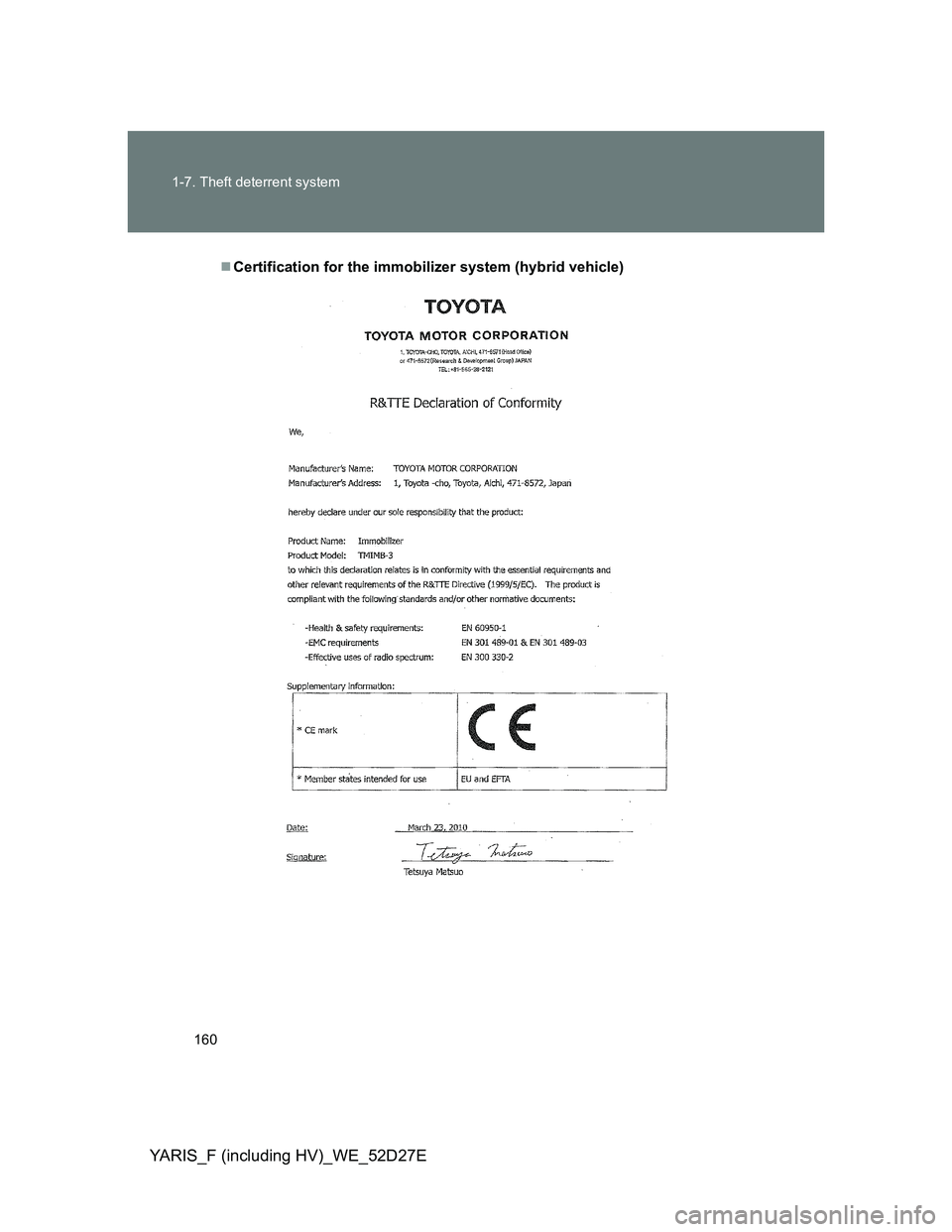

Certification for the immobilizer system (hybrid vehicle)
