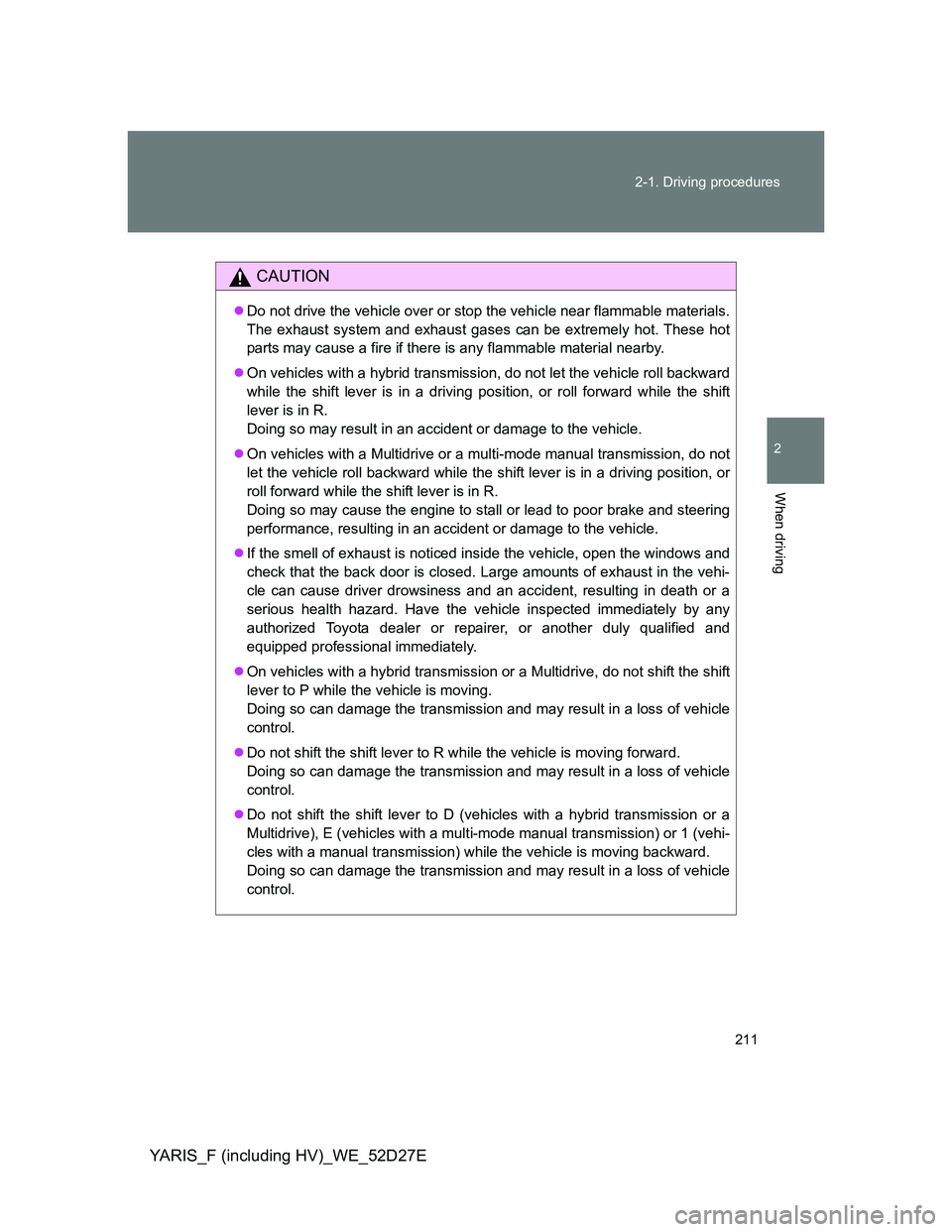

211 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E
CAUTION
Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
On vehicles with a hybrid transmission, do not let the vehicle roll backward
while the shift lever is in a driving position, or roll forward while the shift
lever is in R.
Doing so may result in an accident or damage to the vehicle.
On vehicles with a Multidrive or a multi-mode manual transmission, do not
let the vehicle roll backward while the shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door is closed. Large amounts of exhaust in the vehi-
cle can cause driver drowsiness and an accident, resulting in death or a
serious health hazard. Have the vehicle inspected immediately by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional immediately.
On vehicles with a hybrid transmission or a Multidrive, do not shift the shift
lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to D (vehicles with a hybrid transmission or a
Multidrive), E (vehicles with a multi-mode manual transmission) or 1 (vehi-
cles with a manual transmission) while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.

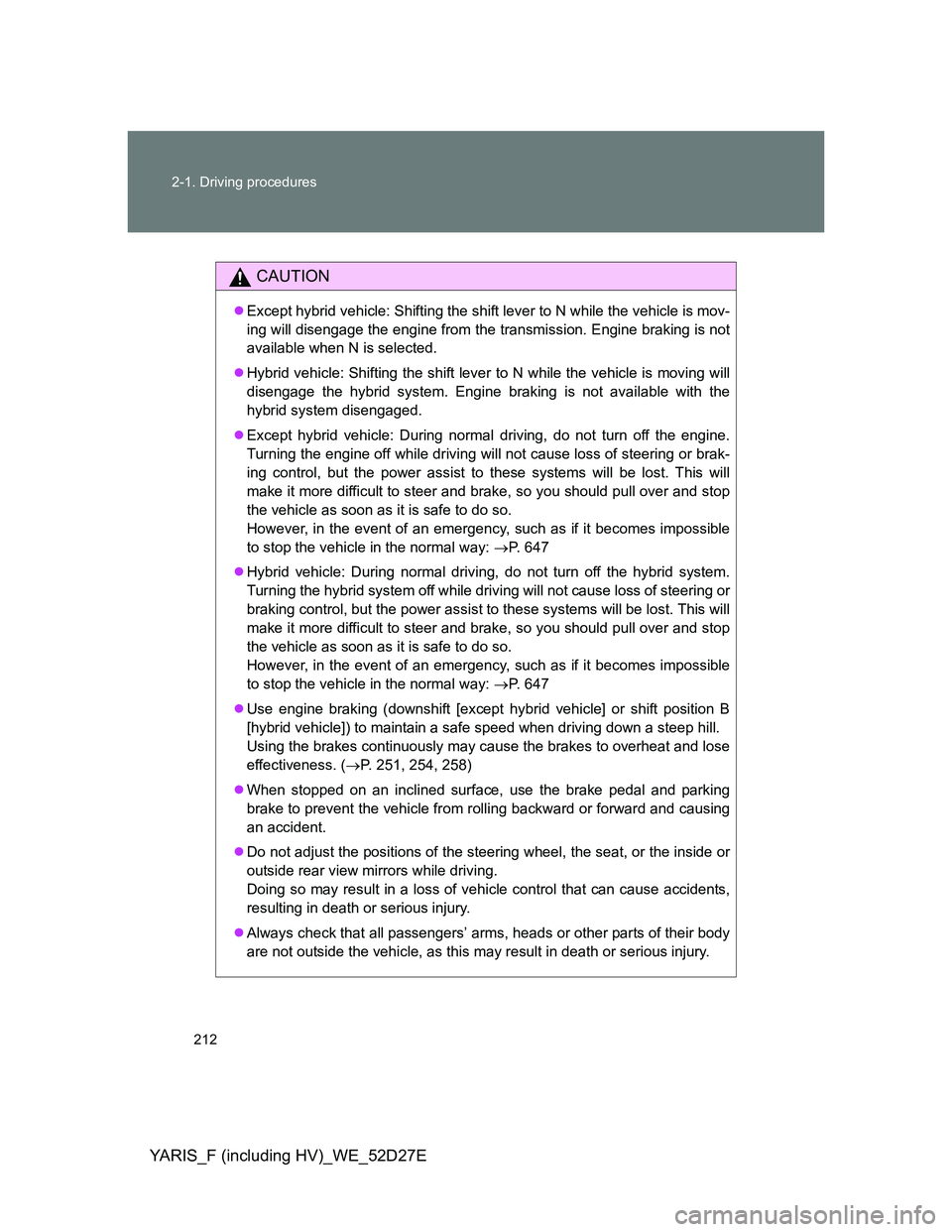

212 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
CAUTION
Except hybrid vehicle: Shifting the shift lever to N while the vehicle is mov-
ing will disengage the engine from the transmission. Engine braking is not
available when N is selected.
Hybrid vehicle: Shifting the shift lever to N while the vehicle is moving will
disengage the hybrid system. Engine braking is not available with the
hybrid system disengaged.
Except hybrid vehicle: During normal driving, do not turn off the engine.
Turning the engine off while driving will not cause loss of steering or brak-
ing control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 647
Hybrid vehicle: During normal driving, do not turn off the hybrid system.
Turning the hybrid system off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 647
Use engine braking (downshift [except hybrid vehicle] or shift position B
[hybrid vehicle]) to maintain a safe speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 251, 254, 258)
When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents,
resulting in death or serious injury.
Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle, as this may result in death or serious injury.

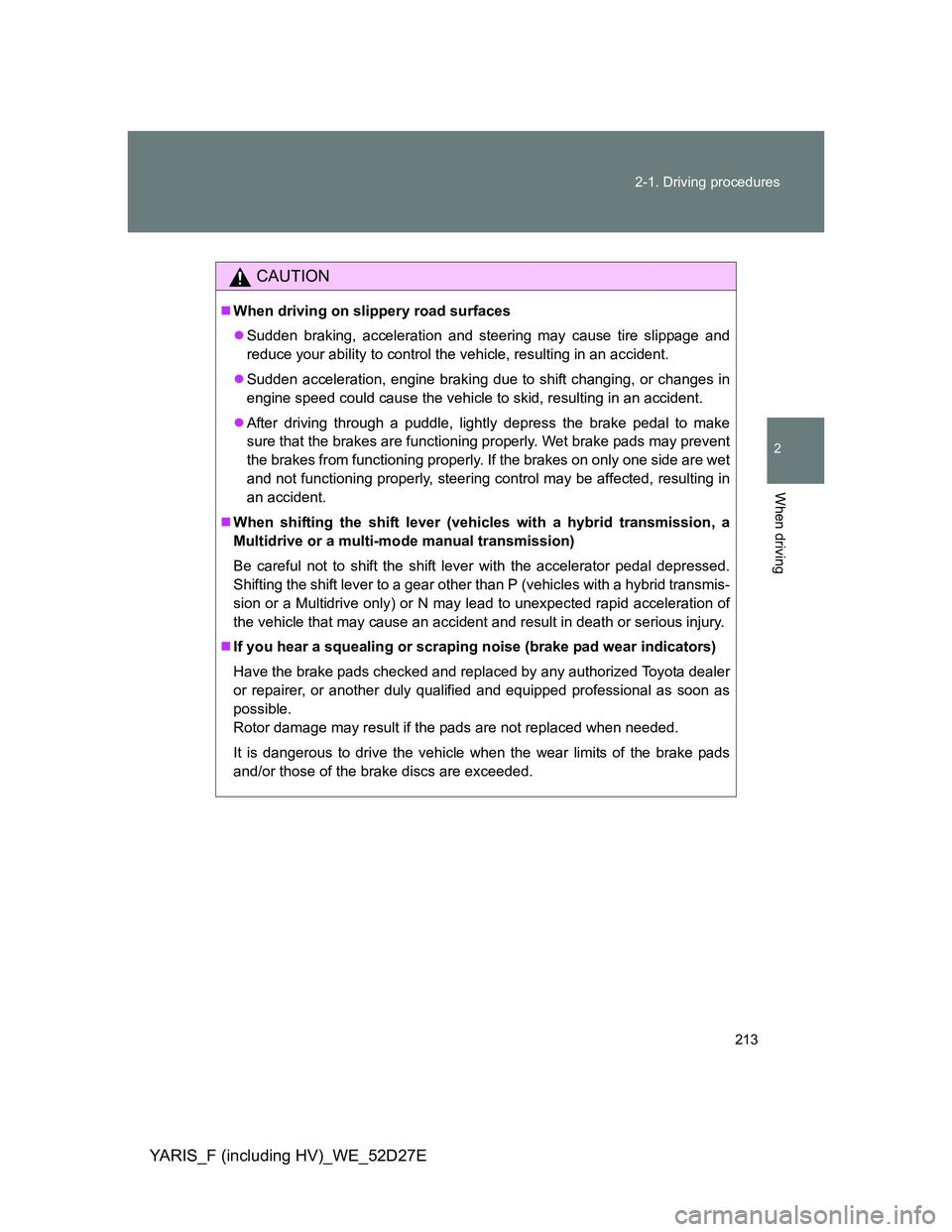

213 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E
CAUTION
When driving on slippery road surfaces
Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle, resulting in an accident.
Sudden acceleration, engine braking due to shift changing, or changes in
engine speed could cause the vehicle to skid, resulting in an accident.
After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected, resulting in
an accident.
When shifting the shift lever (vehicles with a hybrid transmission, a
Multidrive or a multi-mode manual transmission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
Shifting the shift lever to a gear other than P (vehicles with a hybrid transmis-
sion or a Multidrive only) or N may lead to unexpected rapid acceleration of
the vehicle that may cause an accident and result in death or serious injury.
If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional as soon as
possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.

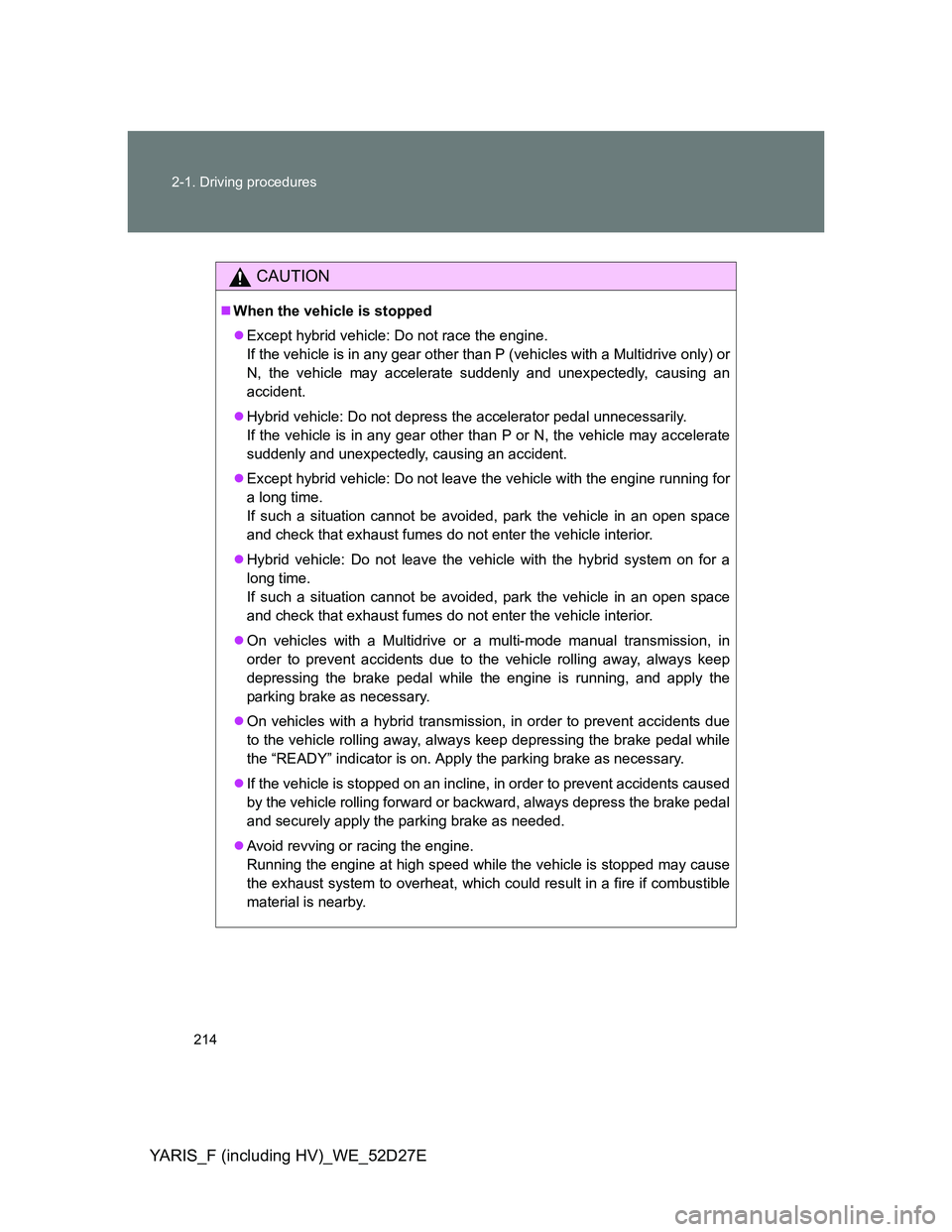

214 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
CAUTION
When the vehicle is stopped
Except hybrid vehicle: Do not race the engine.
If the vehicle is in any gear other than P (vehicles with a Multidrive only) or
N, the vehicle may accelerate suddenly and unexpectedly, causing an
accident.
Hybrid vehicle: Do not depress the accelerator pedal unnecessarily.
If the vehicle is in any gear other than P or N, the vehicle may accelerate
suddenly and unexpectedly, causing an accident.
Except hybrid vehicle: Do not leave the vehicle with the engine running for
a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
Hybrid vehicle: Do not leave the vehicle with the hybrid system on for a
long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
On vehicles with a Multidrive or a multi-mode manual transmission, in
order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the engine is running, and apply the
parking brake as necessary.
On vehicles with a hybrid transmission, in order to prevent accidents due
to the vehicle rolling away, always keep depressing the brake pedal while
the “READY” indicator is on. Apply the parking brake as necessary.
If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.

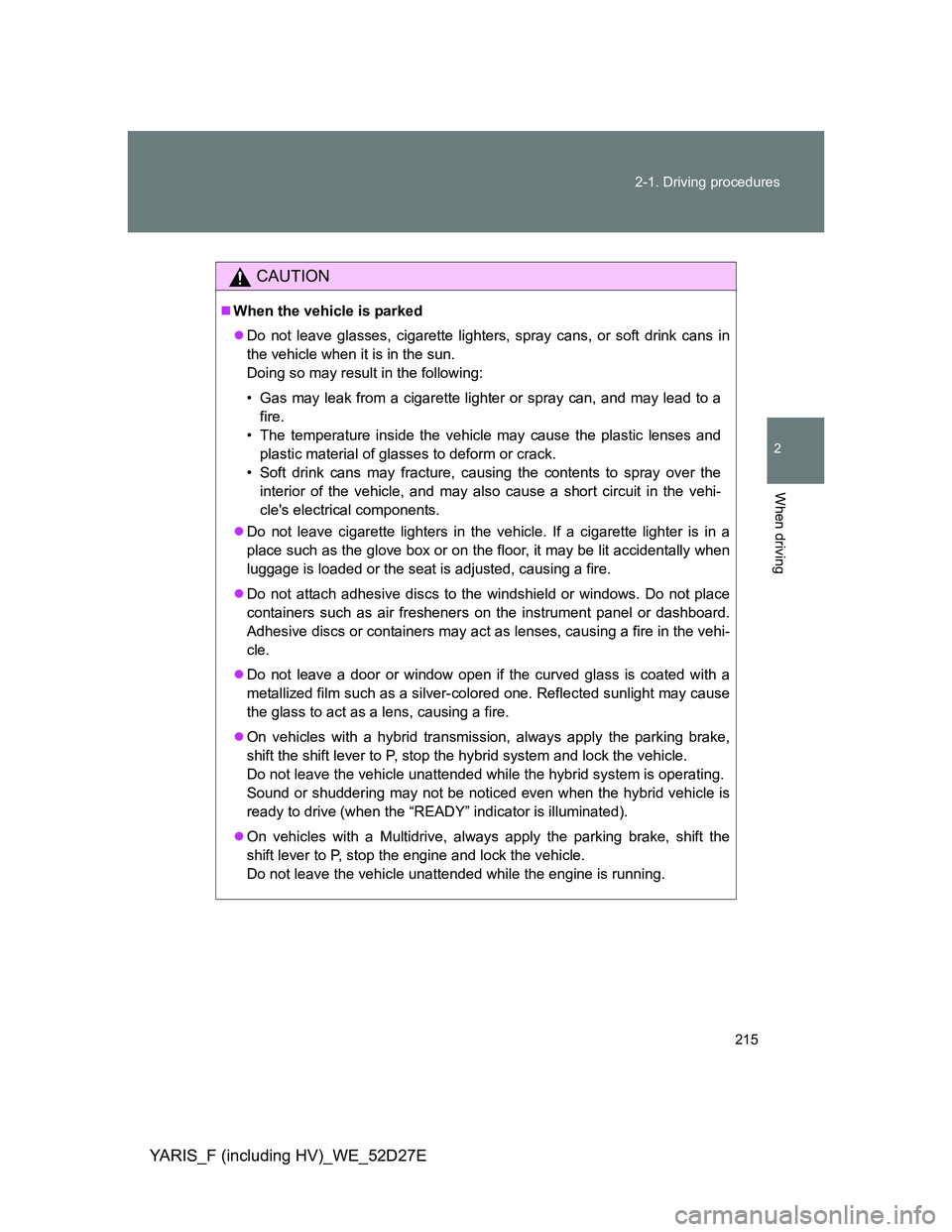

215 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E
CAUTION
When the vehicle is parked
Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehi-
cle's electrical components.
Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
On vehicles with a hybrid transmission, always apply the parking brake,
shift the shift lever to P, stop the hybrid system and lock the vehicle.
Do not leave the vehicle unattended while the hybrid system is operating.
Sound or shuddering may not be noticed even when the hybrid vehicle is
ready to drive (when the “READY” indicator is illuminated).
On vehicles with a Multidrive, always apply the parking brake, shift the
shift lever to P, stop the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.

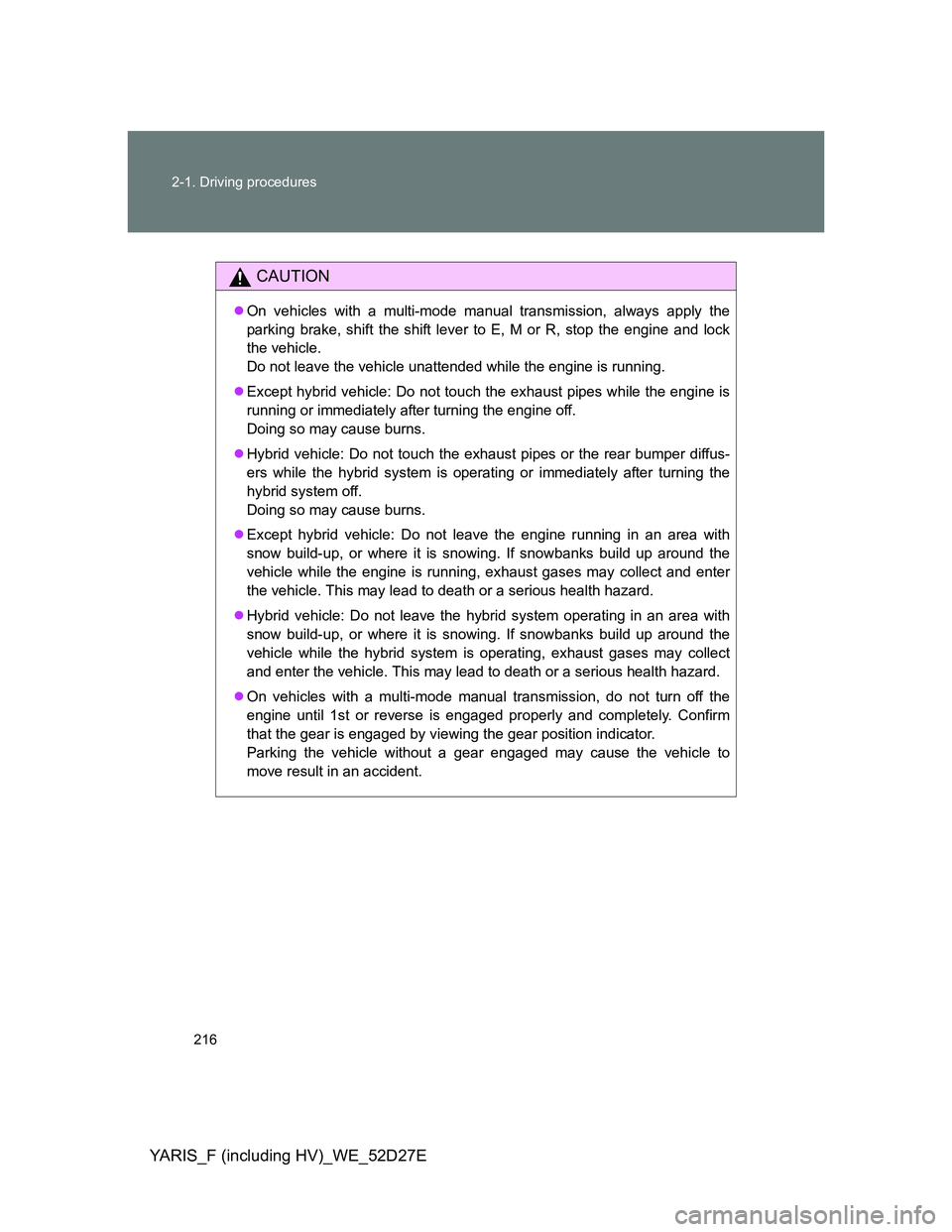

216 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
CAUTION
On vehicles with a multi-mode manual transmission, always apply the
parking brake, shift the shift lever to E, M or R, stop the engine and lock
the vehicle.
Do not leave the vehicle unattended while the engine is running.
Except hybrid vehicle: Do not touch the exhaust pipes while the engine is
running or immediately after turning the engine off.
Doing so may cause burns.
Hybrid vehicle: Do not touch the exhaust pipes or the rear bumper diffus-
ers while the hybrid system is operating or immediately after turning the
hybrid system off.
Doing so may cause burns.
Except hybrid vehicle: Do not leave the engine running in an area with
snow build-up, or where it is snowing. If snowbanks build up around the
vehicle while the engine is running, exhaust gases may collect and enter
the vehicle. This may lead to death or a serious health hazard.
Hybrid vehicle: Do not leave the hybrid system operating in an area with
snow build-up, or where it is snowing. If snowbanks build up around the
vehicle while the hybrid system is operating, exhaust gases may collect
and enter the vehicle. This may lead to death or a serious health hazard.
On vehicles with a multi-mode manual transmission, do not turn off the
engine until 1st or reverse is engaged properly and completely. Confirm
that the gear is engaged by viewing the gear position indicator.
Parking the vehicle without a gear engaged may cause the vehicle to
move result in an accident.

217 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E
CAUTION
Exhaust gases
Exhaust gases include harmful carbon monoxide (CO), which is colorless
and odorless. Inhaling exhaust gases may lead to death or a serious health
hazard.
Except hybrid vehicle: If the vehicle is in a poorly ventilated area, stop the
engine. In a closed area, such as a garage, exhaust gases may collect
and enter the vehicle. This may lead to death or a serious health hazard.
Hybrid vehicle: If the vehicle is in a poorly ventilated area, stop the hybrid
system. In a closed area, such as a garage, exhaust gases may collect
and enter the vehicle. This may lead to death or a serious health hazard.
The exhaust system should be checked occasionally. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise,
be sure to have the vehicle inspected and repaired by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Failure to do so may allow exhaust gases to enter the vehicle,
resulting in death or a serious health hazard.
When taking a nap in the vehicle
Except hybrid vehicle: Always turn the engine off. Otherwise, if you acci-
dentally move the shift lever or depress the accelerator pedal, this could
cause an accident or fire due to engine overheating. Additionally, if the
vehicle is parked in a poorly ventilated area, exhaust gases may collect
and enter the vehicle, leading to death or a serious health hazard.
Hybrid vehicle: Always turn the hybrid system off. Otherwise, if you acci-
dentally move the shift lever or depress the accelerator pedal, this could
cause an accident or fire due to hybrid system overheating. Additionally, if
the vehicle is parked in a poorly ventilated area, exhaust gases may col-
lect and enter the vehicle, leading to death or a serious health hazard.

218 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
CAUTION
When braking
When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also, the
parking brake may not securely hold the vehicle.
If the brake actuator (hybrid vehicle) or brake booster (except hybrid vehi-
cle) does not operate, do not follow other vehicles closely and avoid hills
or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
Except hybrid vehicle: The brake system consists of 2 individual hydraulic
systems; if one of the systems fails, the other will still operate. In this case,
the brake pedal should be depressed more firmly than usual and the brak-
ing distance will increase. If this happens, do not continue to drive the
vehicle. Have your brakes fixed immediately.
Hybrid vehicle: The brake system consists of 2 individual hydraulic sys-
tems; if one of the systems fails, the others will still operate. In this case,
the brake pedal should be depressed more firmly than usual and the brak-
ing distance will increase. If this happens, do not continue to drive the
vehicle. If the brake system warning light (red indicator) comes on together
with the buzzer sound while driving, immediately stop the vehicle in a safe
place and contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.

219 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E
NOTICE
When driving the vehicle
Vehicles with a hybrid transmission or a Multidrive
Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
Vehicles with a multi-mode manual transmission
Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
Do not use the accelerator pedal or starting assist system to hold the vehi-
cle on a hill.
Doing so may damage the clutch.
Vehicles with a manual transmission
Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
Do not shift gears unless the clutch pedal is fully depressed. After shifting,
do not release the clutch pedal abruptly. Doing so may damage the clutch,
transmission and gears.
Observe the following to prevent the clutch from being damaged.
• Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
• Do not use any gears other than the 1st gear when starting off and
moving forward.
Doing so may damage the clutch.
• Do not use the clutch to hold the vehicle when stopping on an uphill
grade.
Doing so may damage the clutch.
Do not shift the shift lever to R when the vehicle is still moving. Doing so
may damage the clutch, transmission and gears.

220 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
NOTICE
When parking the vehicle (vehicles with a hybrid transmission or a
Multidrive)
Always shift the shift lever to P. Failure to do so may cause the vehicle to
move or the vehicle may accelerate suddenly if the accelerator pedal is acci-
dentally depressed.
Avoiding damage to vehicle parts
Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
Diesel engine only: Make sure to idle the engine immediately after high-
speed driving or hill climbing. Stop the engine only after the turbocharger
has cooled down.
Failure to do so may cause damage to the turbocharger.
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle.
It may be difficult to control your vehicle.
The vehicle will make abnormal sounds or vibrations.
The vehicle will lean abnormally.
Information on what to do in case of a flat tire (P. 578, 591)
