TOYOTA YARIS HYBRID 2013 Owners Manual

261 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E

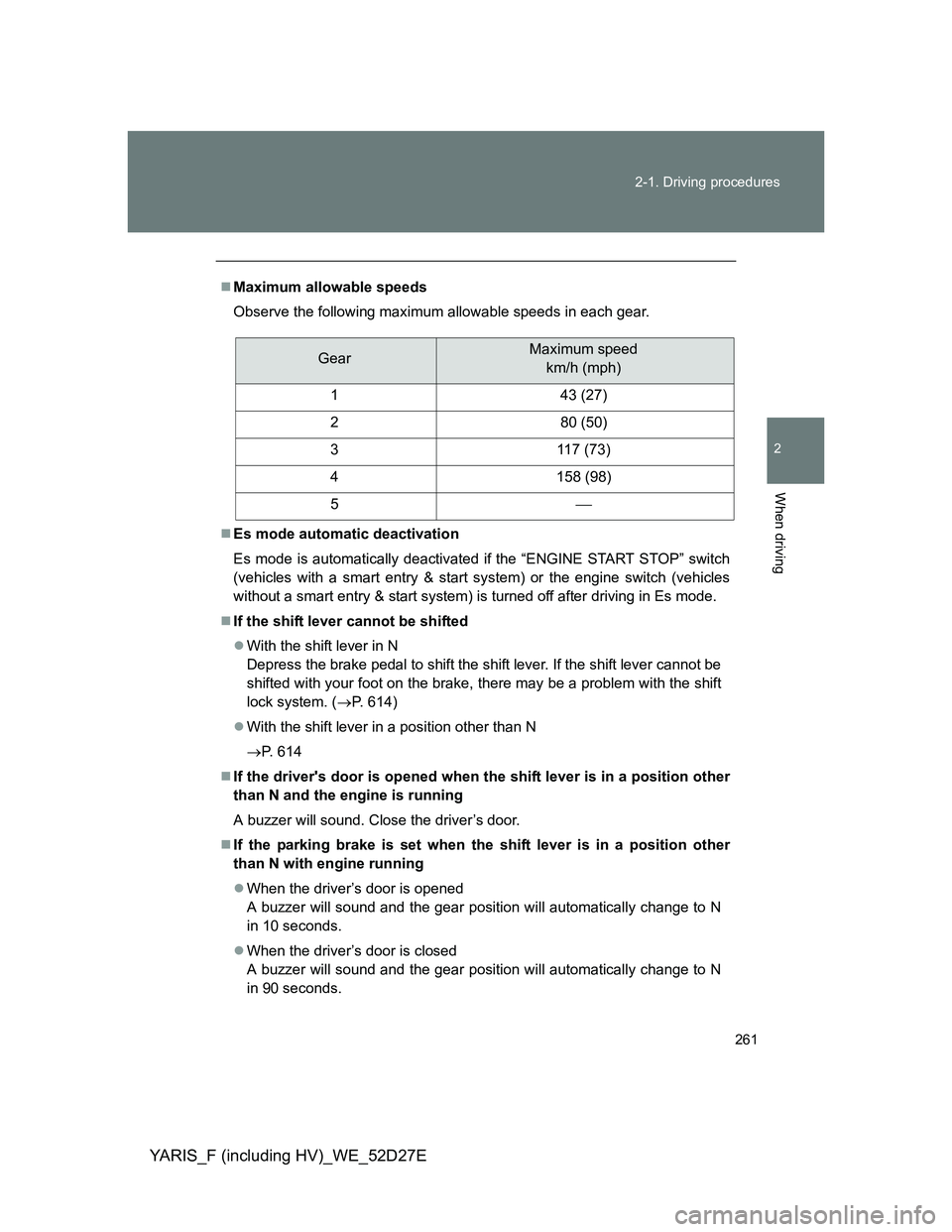

Maximum allowable speeds
Observe the following maximum allowable speeds in each gear.
Es mode automatic deactivation
Es mode is automatically deactivated if the “ENGINE START STOP” switch
(vehicles with a smart entry & start system) or the engine switch (vehicles
without a smart entry & start system) is turned off after driving in Es mode.
If the shift lever cannot be shifted
With the shift lever in N
Depress the brake pedal to shift the shift lever. If the shift lever cannot be
shifted with your foot on the brake, there may be a problem with the shift
lock system. (P. 614)
With the shift lever in a position other than N
P. 614
If the driver's door is opened when the shift lever is in a position other
than N and the engine is running
A buzzer will sound. Close the driver’s door.
If the parking brake is set when the shift lever is in a position other
than N with engine running
When the driver’s door is opened
A buzzer will sound and the gear position will automatically change to N
in 10 seconds.
When the driver’s door is closed
A buzzer will sound and the gear position will automatically change to N
in 90 seconds.
GearMaximum speed
km/h (mph)
1 43 (27)
2 80 (50)
3 117 (73)
4 158 (98)
5

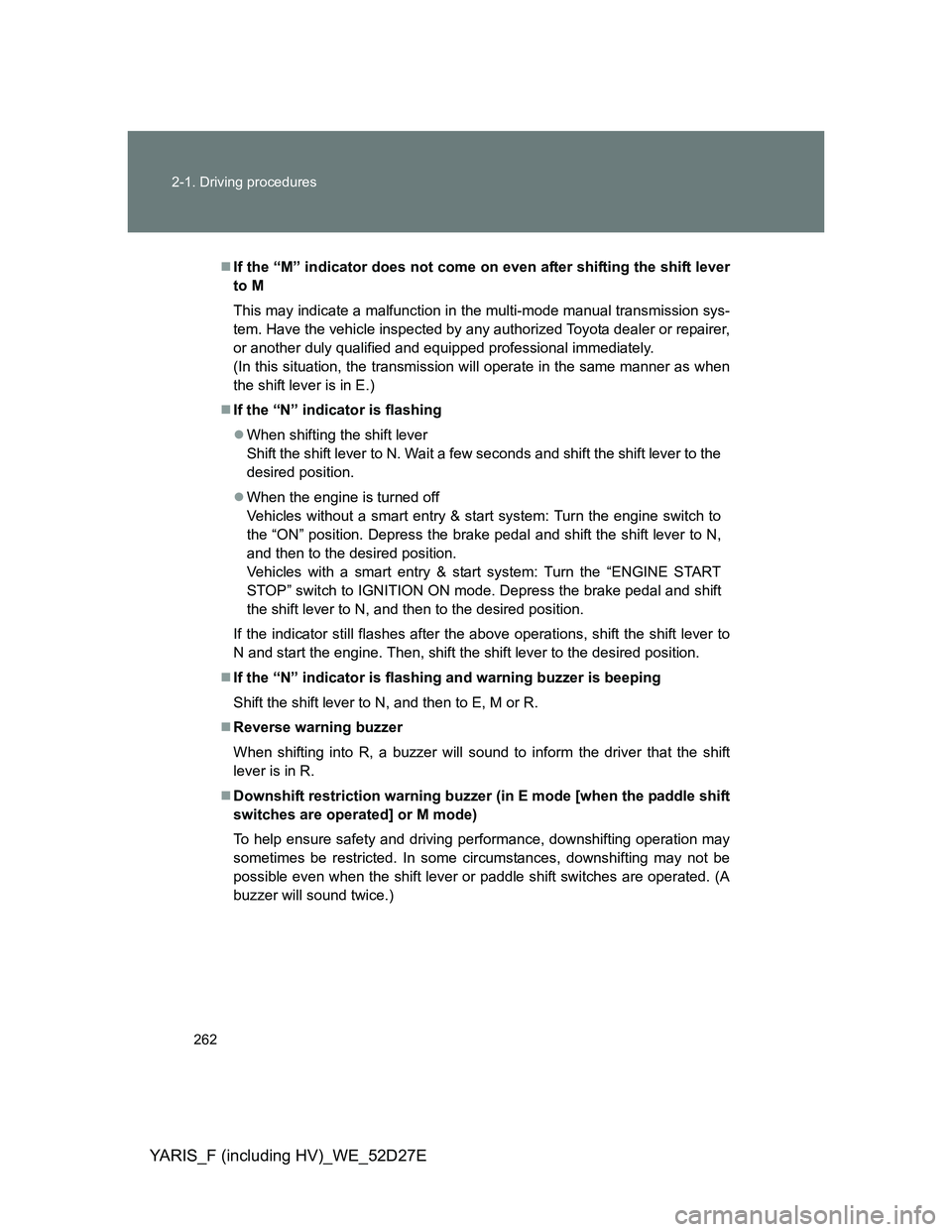

262 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
If the “M” indicator does not come on even after shifting the shift lever
to M
This may indicate a malfunction in the multi-mode manual transmission sys-
tem. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in E.)
If the “N” indicator is flashing
When shifting the shift lever
Shift the shift lever to N. Wait a few seconds and shift the shift lever to the
desired position.
When the engine is turned off
Vehicles without a smart entry & start system: Turn the engine switch to
the “ON” position. Depress the brake pedal and shift the shift lever to N,
and then to the desired position.
Vehicles with a smart entry & start system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode. Depress the brake pedal and shift
the shift lever to N, and then to the desired position.
If the indicator still flashes after the above operations, shift the shift lever to
N and start the engine. Then, shift the shift lever to the desired position.
If the “N” indicator is flashing and warning buzzer is beeping
Shift the shift lever to N, and then to E, M or R.
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Downshift restriction warning buzzer (in E mode [when the paddle shift
switches are operated] or M mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)

263
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E

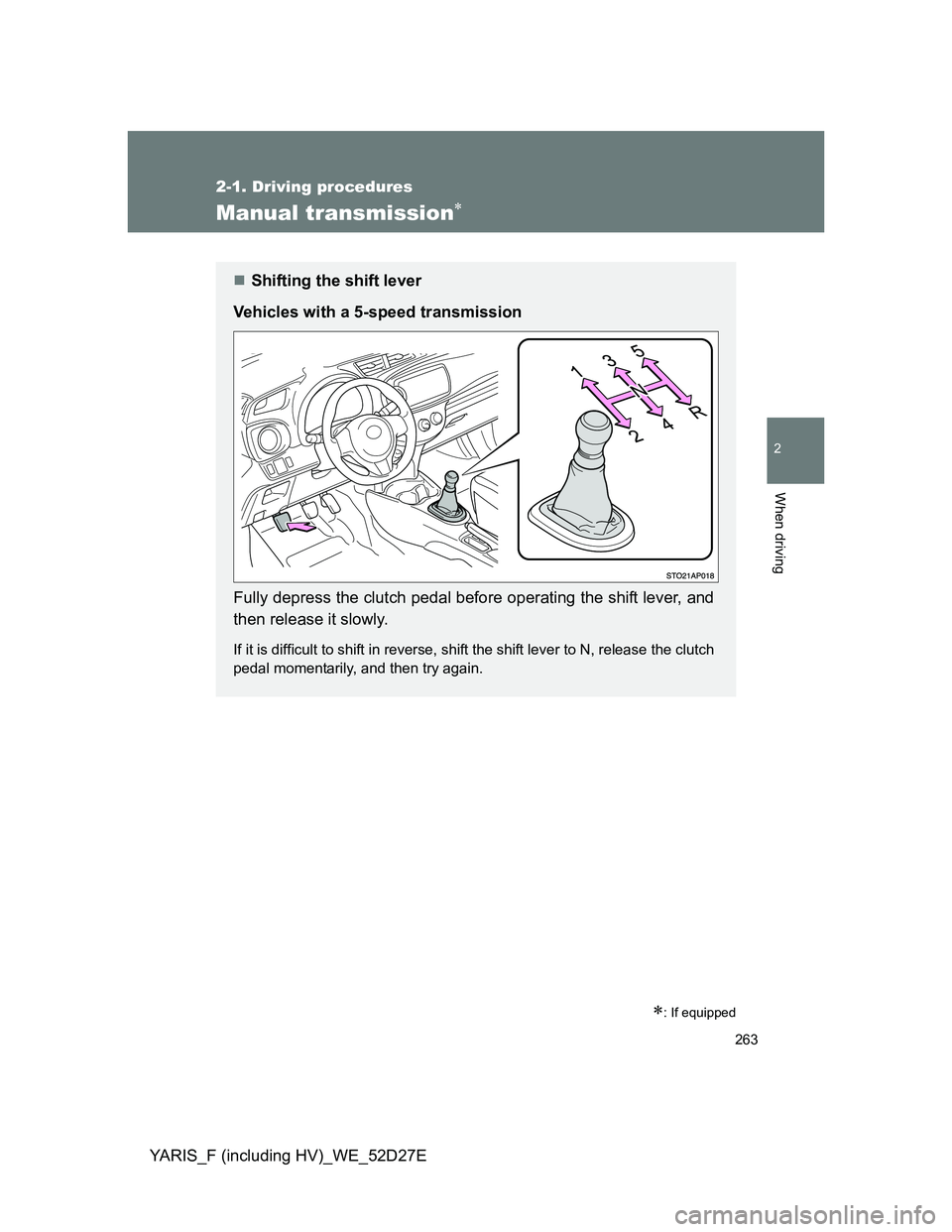

Manual transmission
: If equipped
Shifting the shift lever
Vehicles with a 5-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.

264 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E

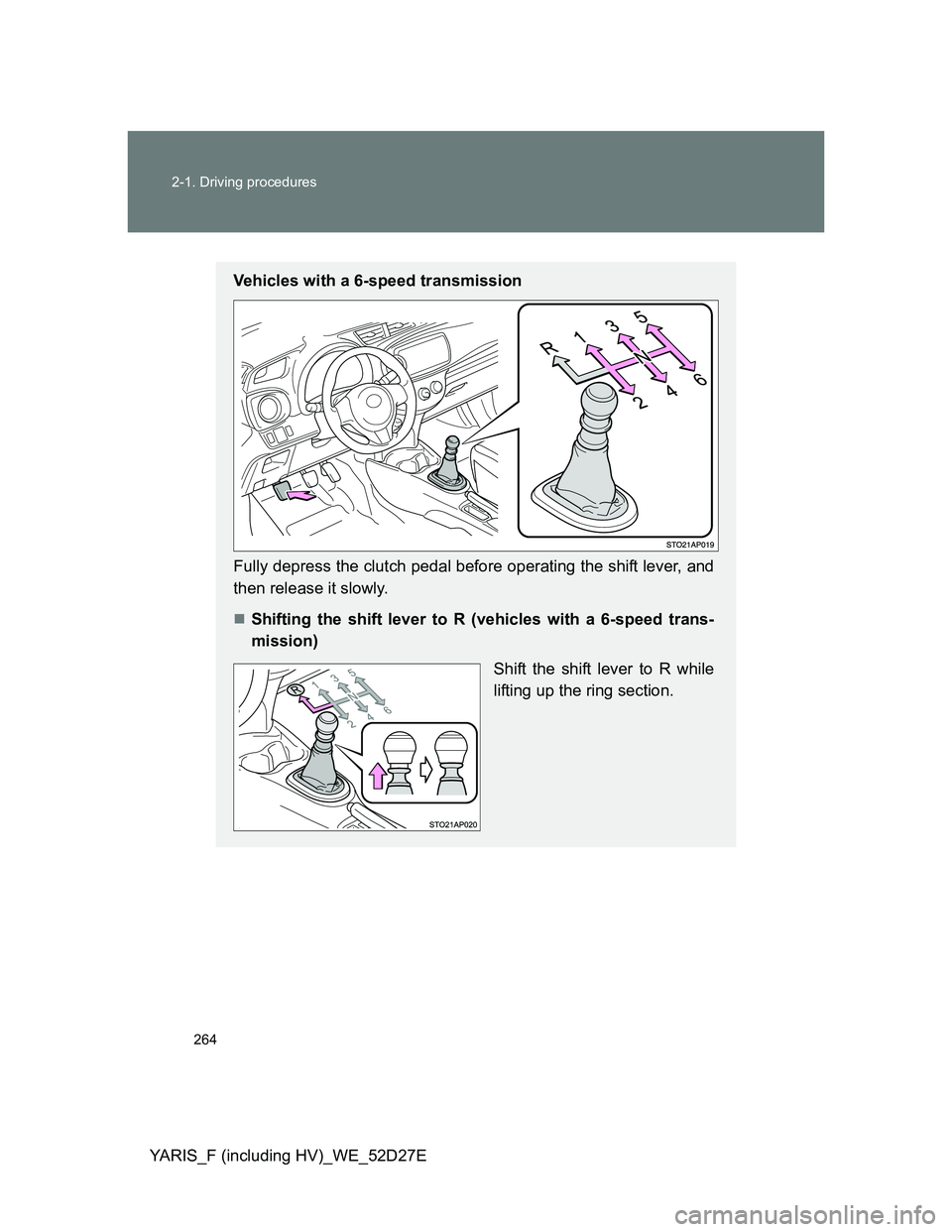

Vehicles with a 6-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shifting the shift lever to R (vehicles with a 6-speed trans-
mission)
Shift the shift lever to R while
lifting up the ring section.

265 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E

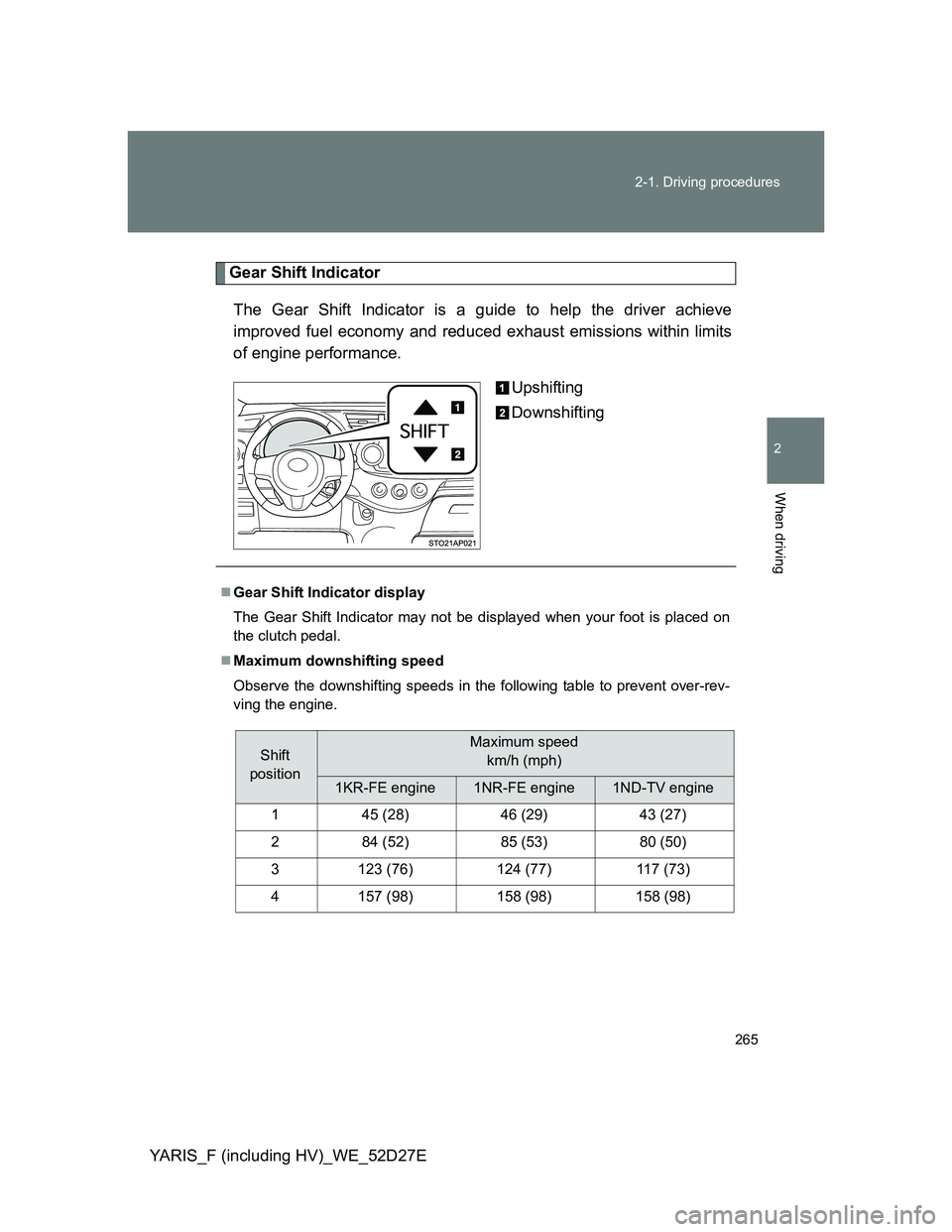

Gear Shift Indicator
The Gear Shift Indicator is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance.
Upshifting
Downshifting
Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
Maximum downshifting speed
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
Shift
positionMaximum speed
km/h (mph)
1KR-FE engine1NR-FE engine1ND-TV engine
1 45 (28) 46 (29) 43 (27)
2 84 (52) 85 (53) 80 (50)
3 123 (76) 124 (77) 117 (73)
4 157 (98) 158 (98) 158 (98)

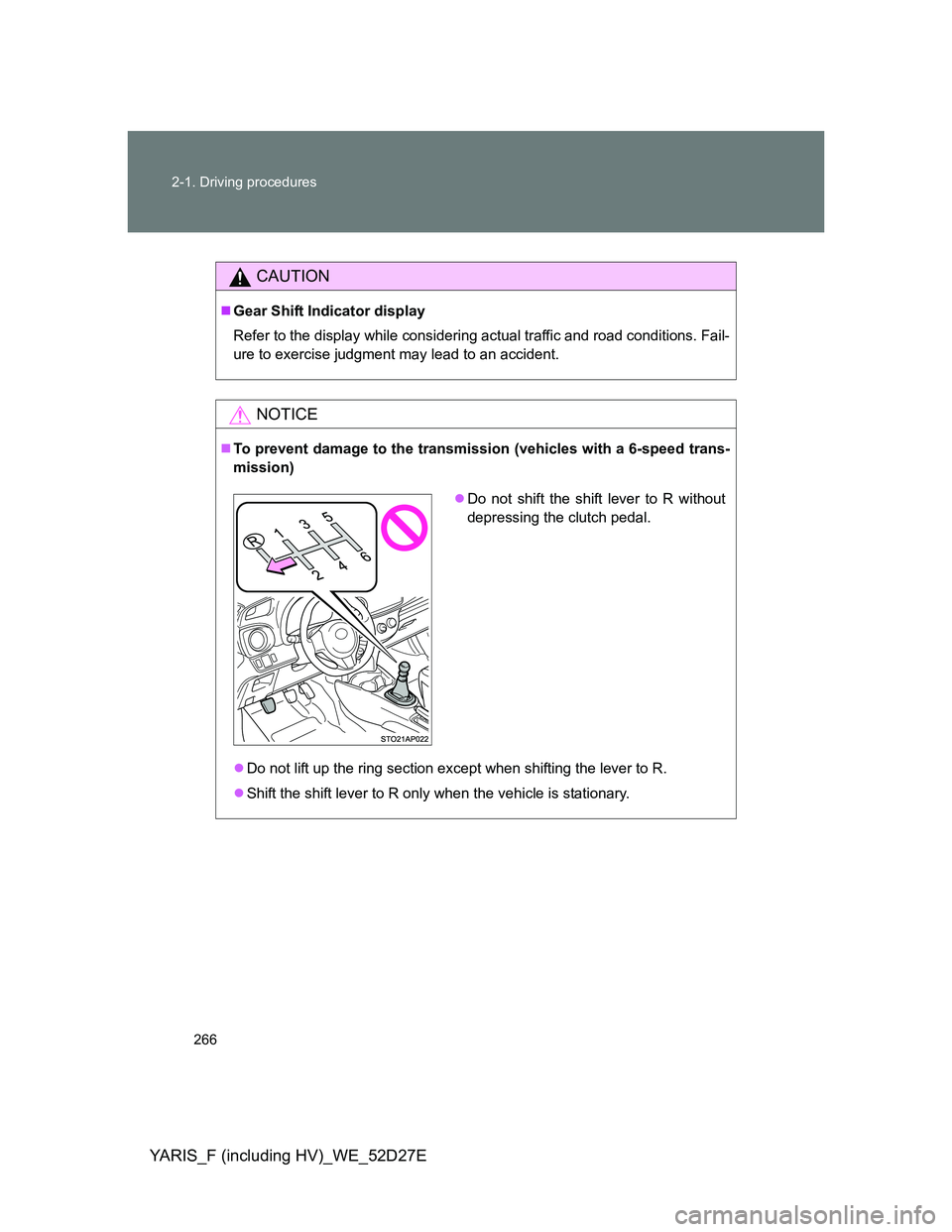

266 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
CAUTION
Gear Shift Indicator display
Refer to the display while considering actual traffic and road conditions. Fail-
ure to exercise judgment may lead to an accident.
NOTICE
To prevent damage to the transmission (vehicles with a 6-speed trans-
mission)
Do not lift up the ring section except when shifting the lever to R.
Shift the shift lever to R only when the vehicle is stationary.
Do not shift the shift lever to R without
depressing the clutch pedal.

267
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E

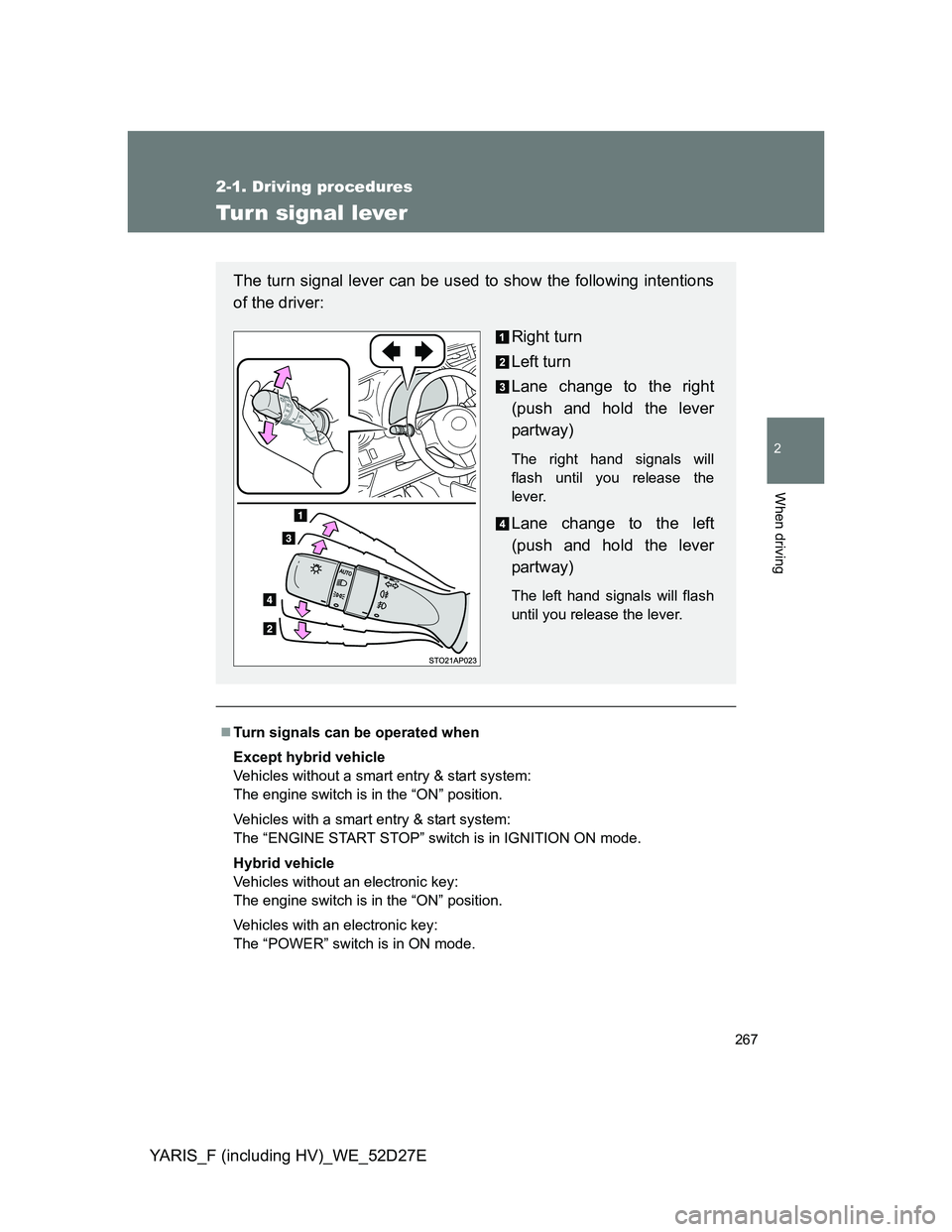

Turn signal lever
Turn signals can be operated when
Except hybrid vehicle
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
Hybrid vehicle
Vehicles without an electronic key:
The engine switch is in the “ON” position.
Vehicles with an electronic key:
The “POWER” switch is in ON mode.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

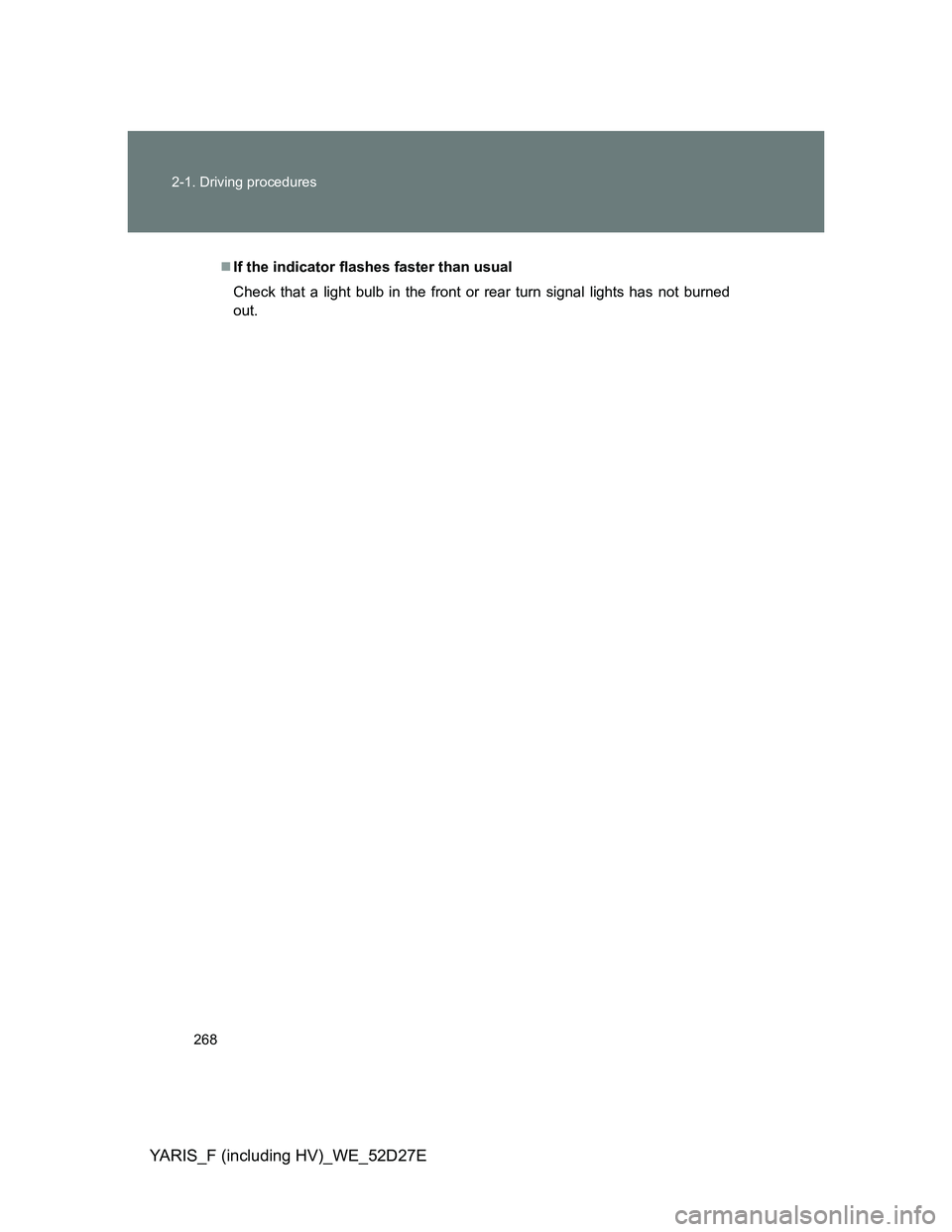

268 2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.

269
2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52D27E

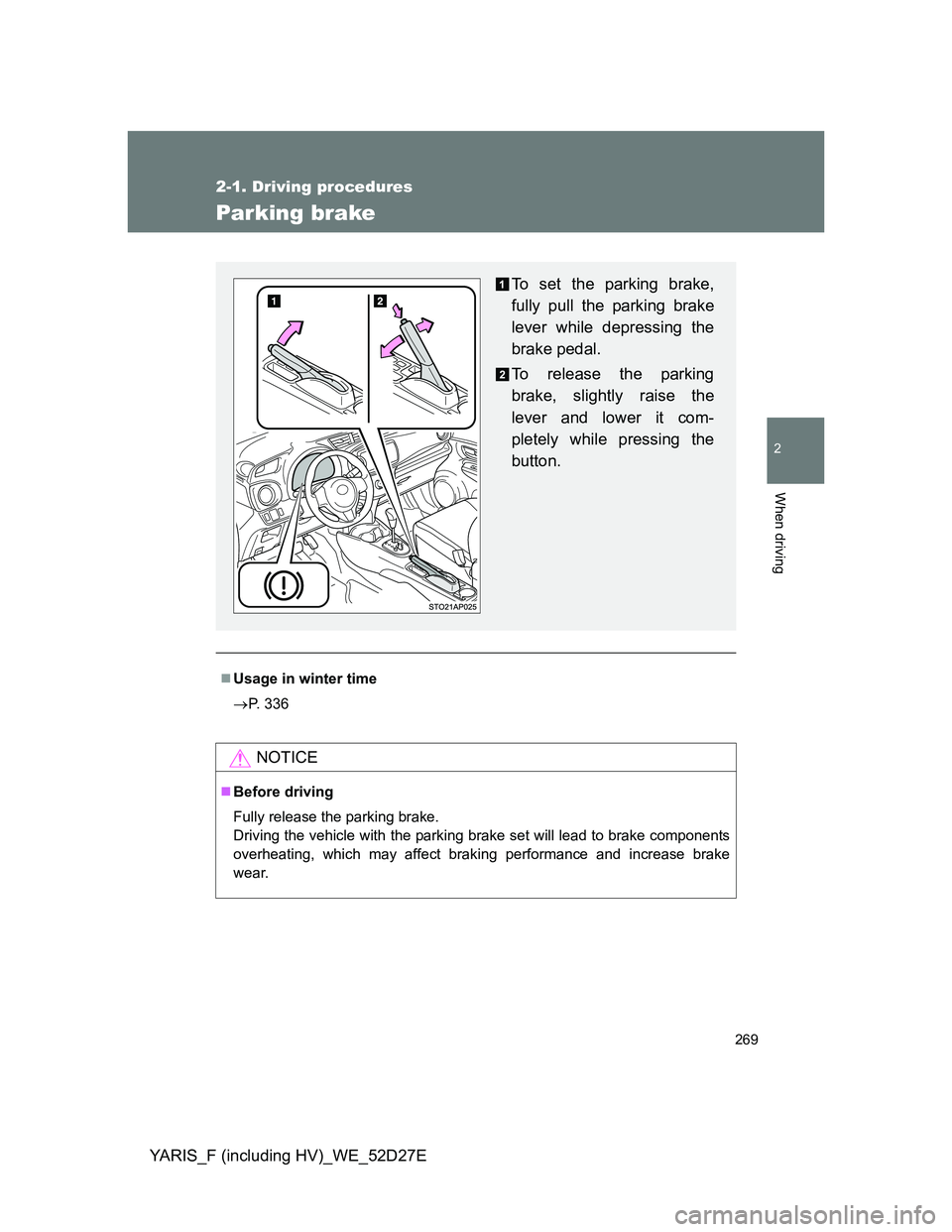

Parking brake
Usage in winter time
P. 336
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake,
fully pull the parking brake
lever while depressing the
brake pedal.
To release the parking
brake, slightly raise the
lever and lower it com-
pletely while pressing the
button.

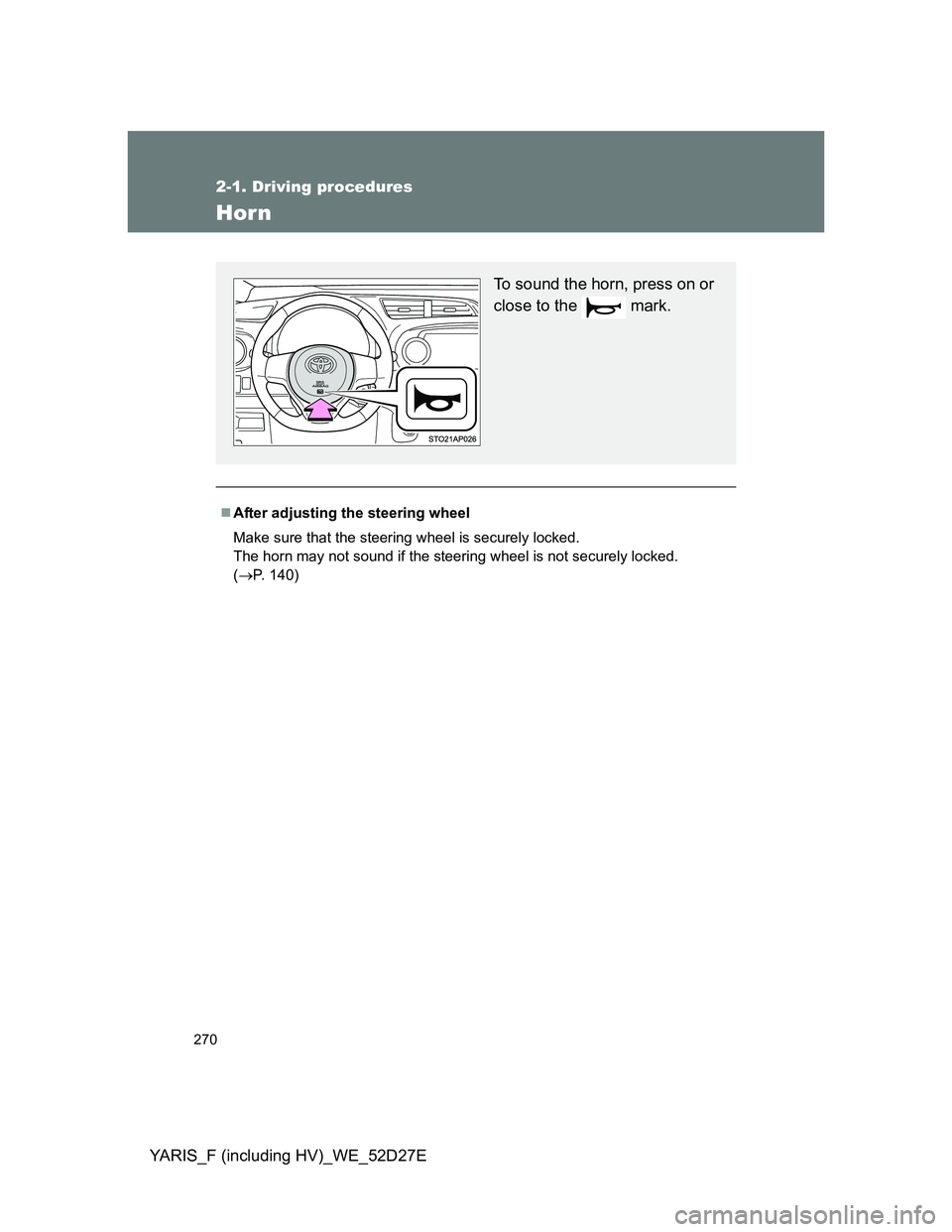

270
2-1. Driving procedures
YARIS_F (including HV)_WE_52D27E
Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 140)
To sound the horn, press on or
close to the mark.
