281 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27E
*2: Hybrid vehicle: These lights turn on when the engine switch is
turned to the “ON” position (vehicles without an electronic key) or
the “POWER” switch is turned to ON mode (vehicles with an elec-
tronic key) to indicate that a system check is being performed. They
will turn off after the hybrid system on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*3: The light turns on when the engine coolant temperature is low.
*4: The light flashes to indicate that the system is operating.

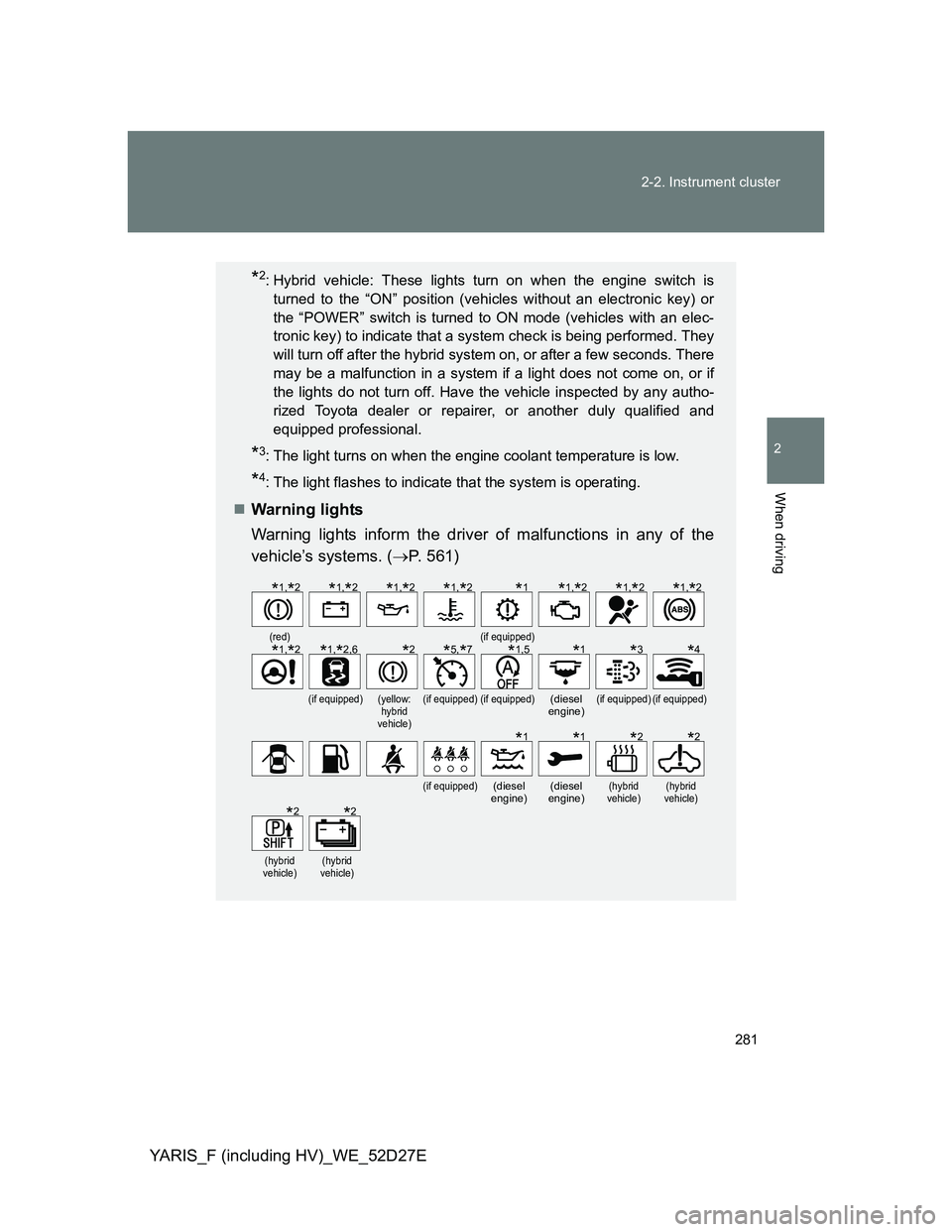

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 561)
(red)(if equipped)
(if equipped)(yellow:
hybrid
vehicle)(if equipped)(if equipped)(diesel
engine)(if equipped)(if equipped)
(if equipped)(diesel
engine)(diesel
engine)(hybrid
vehicle)(hybrid
vehicle)
(hybrid
vehicle)(hybrid
vehicle)
*1,*2*1,*2*1,*2*1,*2*1*1,*2*1,*2*1,*2
*1,*2*1,*2,6*2*5,*7*1,5*1*3*4
*1*1*2*2
*2*2

282 2-2. Instrument cluster
YARIS_F (including HV)_WE_52D27E

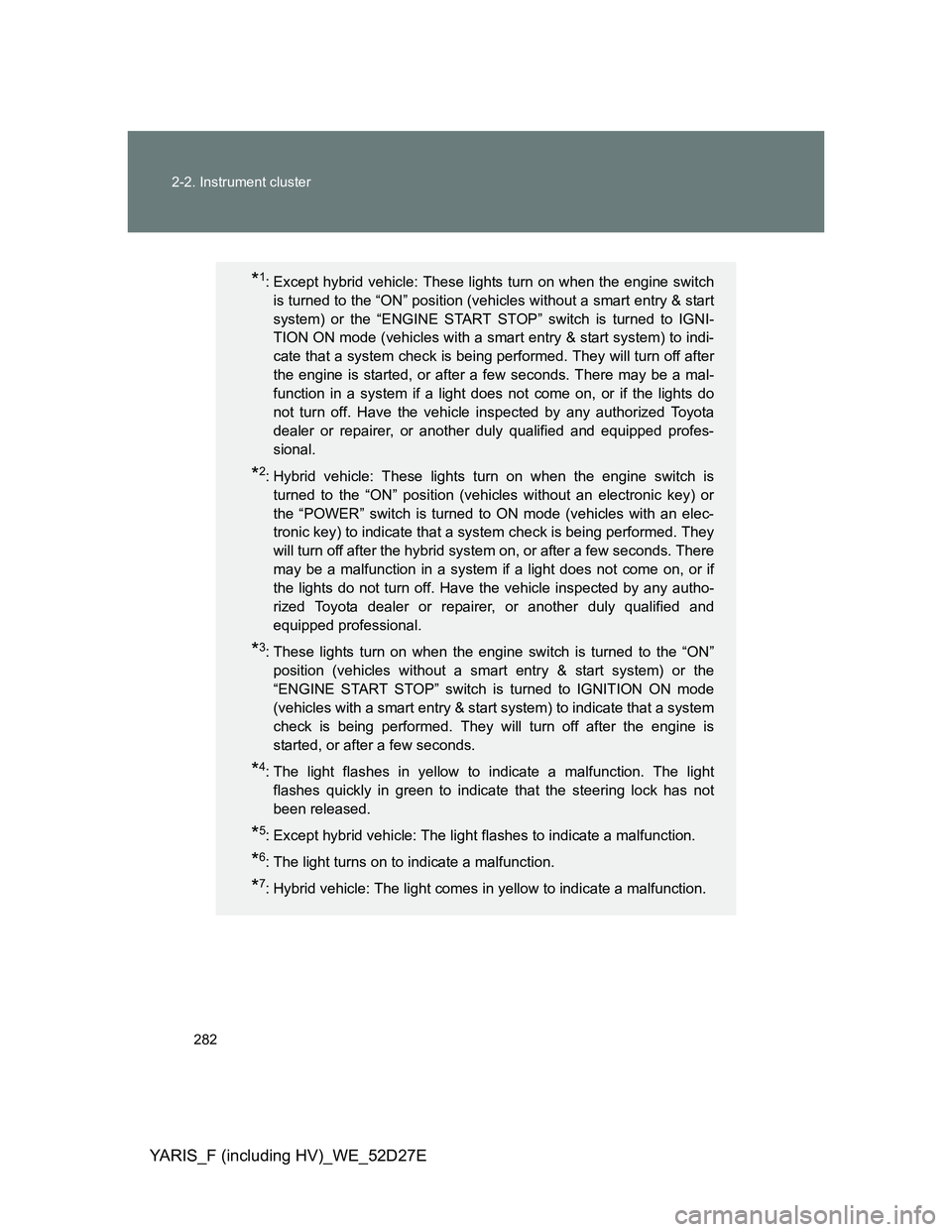

*1: Except hybrid vehicle: These lights turn on when the engine switch
is turned to the “ON” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode (vehicles with a smart entry & start system) to indi-
cate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: Hybrid vehicle: These lights turn on when the engine switch is
turned to the “ON” position (vehicles without an electronic key) or
the “POWER” switch is turned to ON mode (vehicles with an elec-
tronic key) to indicate that a system check is being performed. They
will turn off after the hybrid system on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*3: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system
check is being performed. They will turn off after the engine is
started, or after a few seconds.
*4: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*5: Except hybrid vehicle: The light flashes to indicate a malfunction.
*6: The light turns on to indicate a malfunction.
*7: Hybrid vehicle: The light comes in yellow to indicate a malfunction.

283 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27E

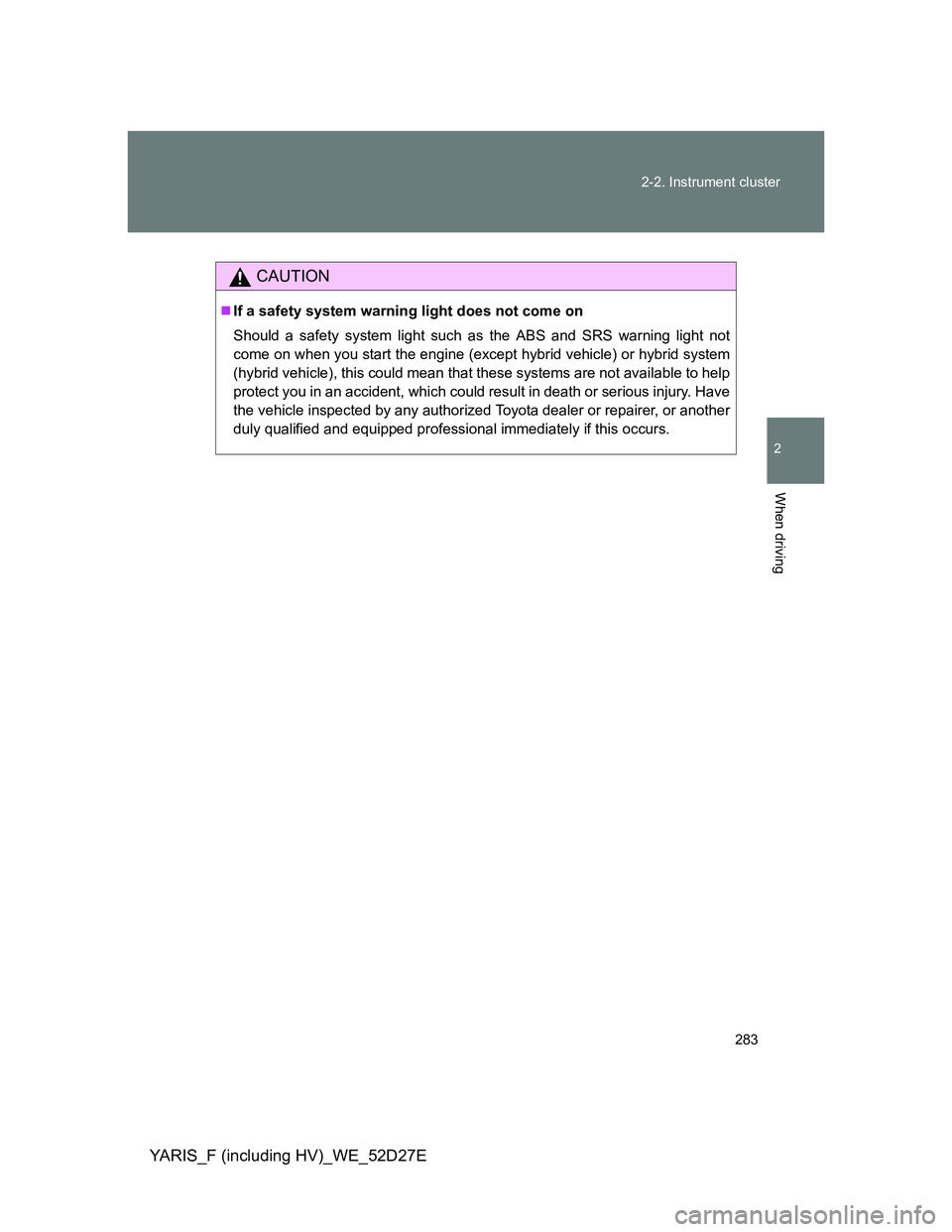

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle), this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately if this occurs.

284
2-2. Instrument cluster
YARIS_F (including HV)_WE_52D27E
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 285)
Trip meter (P. 286)
Stop & Start system opera-
tion time (if equipped)
(P. 286)
Stop & Start system total
operation time (if equipped)
(P. 287)
Trip information (P. 285)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Instrument panel light con-
trol (P. 289)
Eco Driving Indicator Light
customization (except
hybrid vehicle [if equipped])
(P. 289)
EV indicator customization
(hybrid vehicle) (P. 290)

285 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27E
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
Ty p e ADisplays the total distance the vehicle has been
driven.
Ty p e B

286 2-2. Instrument cluster

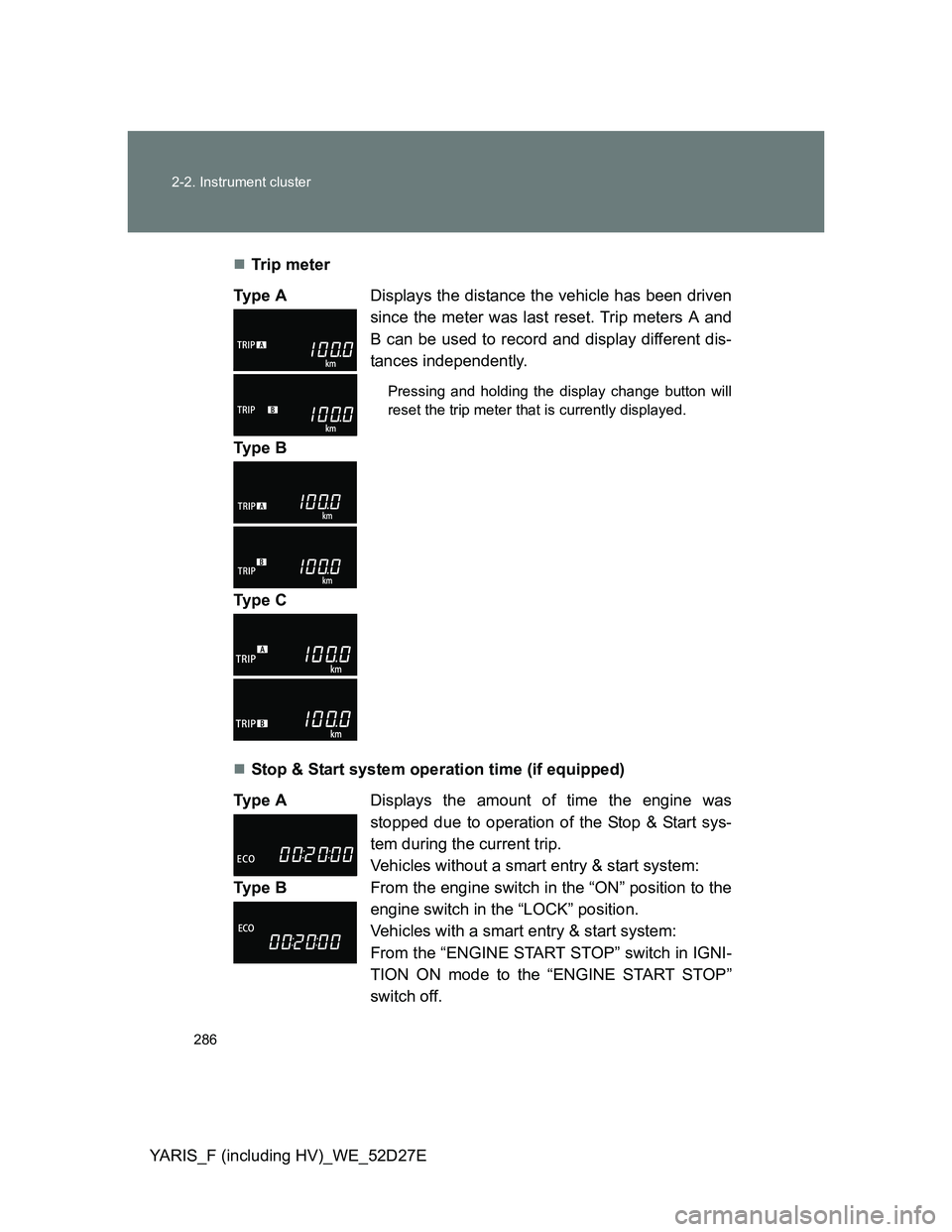

YARIS_F (including HV)_WE_52D27ETr ip m eter
Stop & Start system operation time (if equipped) Ty p e ADisplays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Ty p e B
Ty p e C
Ty p e ADisplays the amount of time the engine was
stopped due to operation of the Stop & Start sys-
tem during the current trip.
Vehicles without a smart entry & start system:
From the engine switch in the “ON” position to the
engine switch in the “LOCK” position.
Vehicles with a smart entry & start system:
From the “ENGINE START STOP” switch in IGNI-
TION ON mode to the “ENGINE START STOP”
switch off. Ty p e B

287 2-2. Instrument cluster
2
When driving

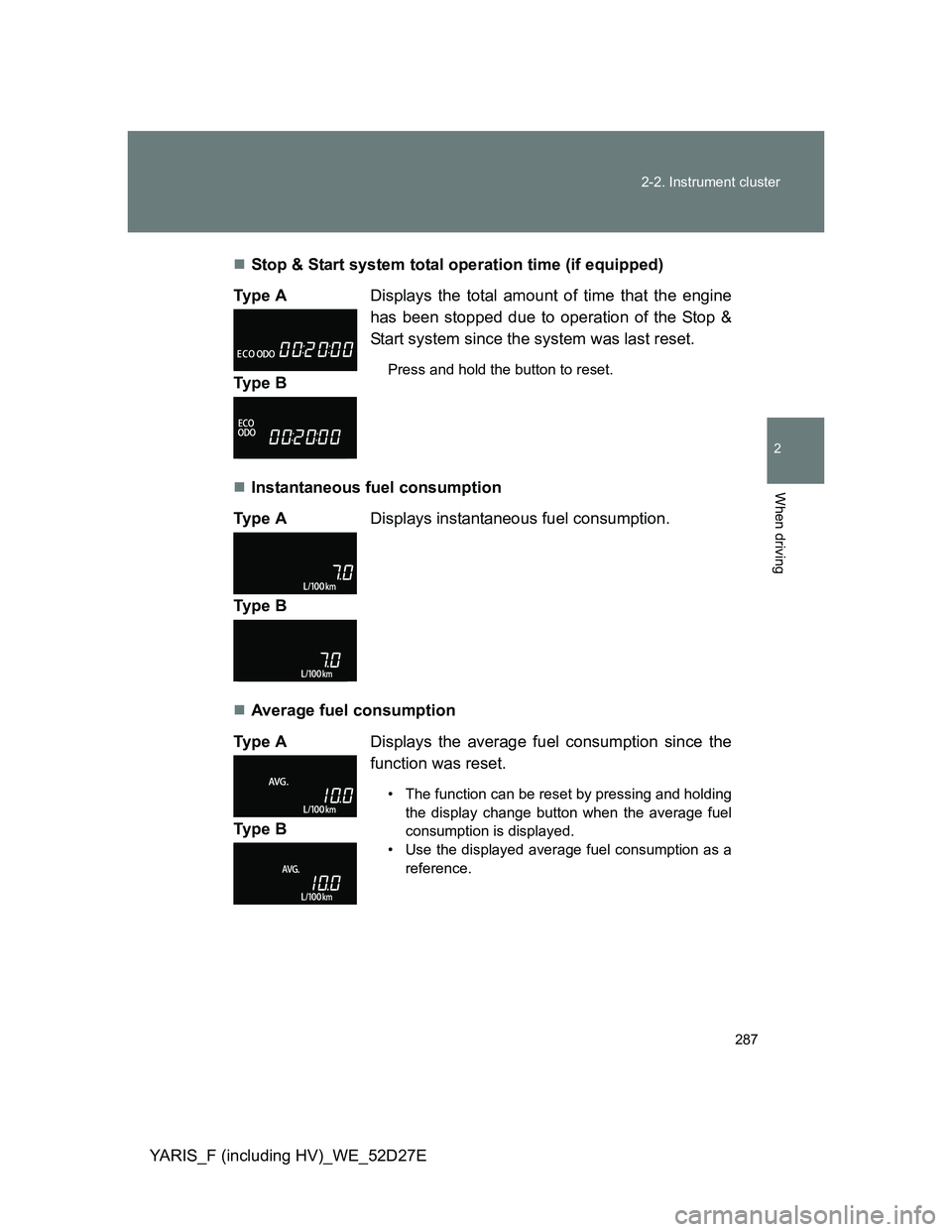

YARIS_F (including HV)_WE_52D27EStop & Start system total operation time (if equipped)
Instantaneous fuel consumption
Average fuel consumption Ty p e ADisplays the total amount of time that the engine
has been stopped due to operation of the Stop &
Start system since the system was last reset.
Press and hold the button to reset.Ty p e B
Ty p e ADisplays instantaneous fuel consumption.
Ty p e B
Ty p e ADisplays the average fuel consumption since the
function was reset.
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Ty p e B

288 2-2. Instrument cluster

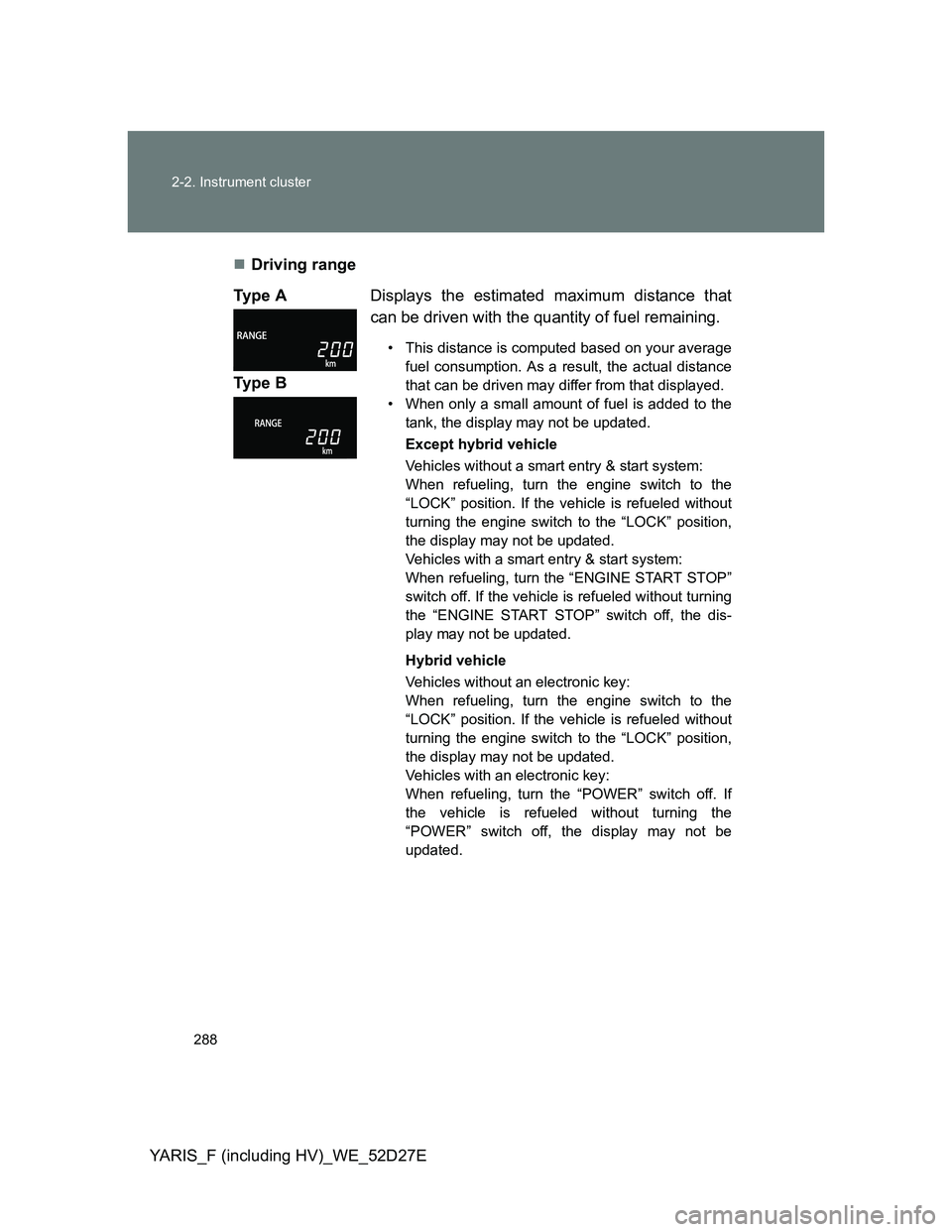

YARIS_F (including HV)_WE_52D27EDriving range
Ty p e ADisplays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
Except hybrid vehicle
Vehicles without a smart entry & start system:
When refueling, turn the engine switch to the
“LOCK” position. If the vehicle is refueled without
turning the engine switch to the “LOCK” position,
the display may not be updated.
Vehicles with a smart entry & start system:
When refueling, turn the “ENGINE START STOP”
switch off. If the vehicle is refueled without turning
the “ENGINE START STOP” switch off, the dis-
play may not be updated.
Hybrid vehicle
Vehicles without an electronic key:
When refueling, turn the engine switch to the
“LOCK” position. If the vehicle is refueled without
turning the engine switch to the “LOCK” position,
the display may not be updated.
Vehicles with an electronic key:
When refueling, turn the “POWER” switch off. If
the vehicle is refueled without turning the
“POWER” switch off, the display may not be
updated.
Ty p e B

289 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52D27EAverage vehicle speed
Instrument panel light control
Eco Driving Indicator Light customization (except hybrid vehicle [if equipped])
Ty p e ADisplays the average vehicle speed since the
engine (except hybrid vehicle) or the hybrid sys-
tem (hybrid vehicle) was started or the function
was reset.
The function can be reset by pressing and holding
the display change button when the average vehicle
speed is displayed.Ty p e B
Displays the brightness of the instrument panel
lights when the headlight switch is on.
Pressing and holding the button will adjust bright-
ness of the instrument panel lights.
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change button
when the Eco Driving Indicator Light customiza-
tion display is displayed.
To change the Eco Driving Indicator Light customiza-
tion display, display the odometer and press and
hold the display change button until the display
changes.

290 2-2. Instrument cluster
YARIS_F (including HV)_WE_52D27E
EV indicator customization (hybrid vehicle)
EV indicator can be activated or deactivated by
pressing the display change button when the EV
indicator customization display is displayed.
To change the EV indicator customization display,
display the odometer and press and hold the display
change button until the display changes.
When disconnecting and reconnecting battery (except hybrid vehicle)
or 12-volt battery (hybrid vehicle) terminals
The following information data will be reset:
Stop & Start system total operation time (if equipped)
Average fuel consumption
Driving range
Average vehicle speed
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
