TOYOTA YARIS HYBRID 2013 Owner's Guide

YARIS_F (including HV)_WE_52D27E
31
Hood lock release lever P. 460
Gauges and meters
Multi-information display P. 271
P. 284
SRS driver knee airbag P. 167
Fuel filler door opener P. 151
Cigarette lighter
Power outlet

P. 429
P. 430
Glove box P. 419
AUX port and USB port
P. 394, 402, 411
Pictorial indexInstrument panel
(Right-hand drive vehicles)
: If equipped

YARIS_F (including HV)_WE_52D27E
32

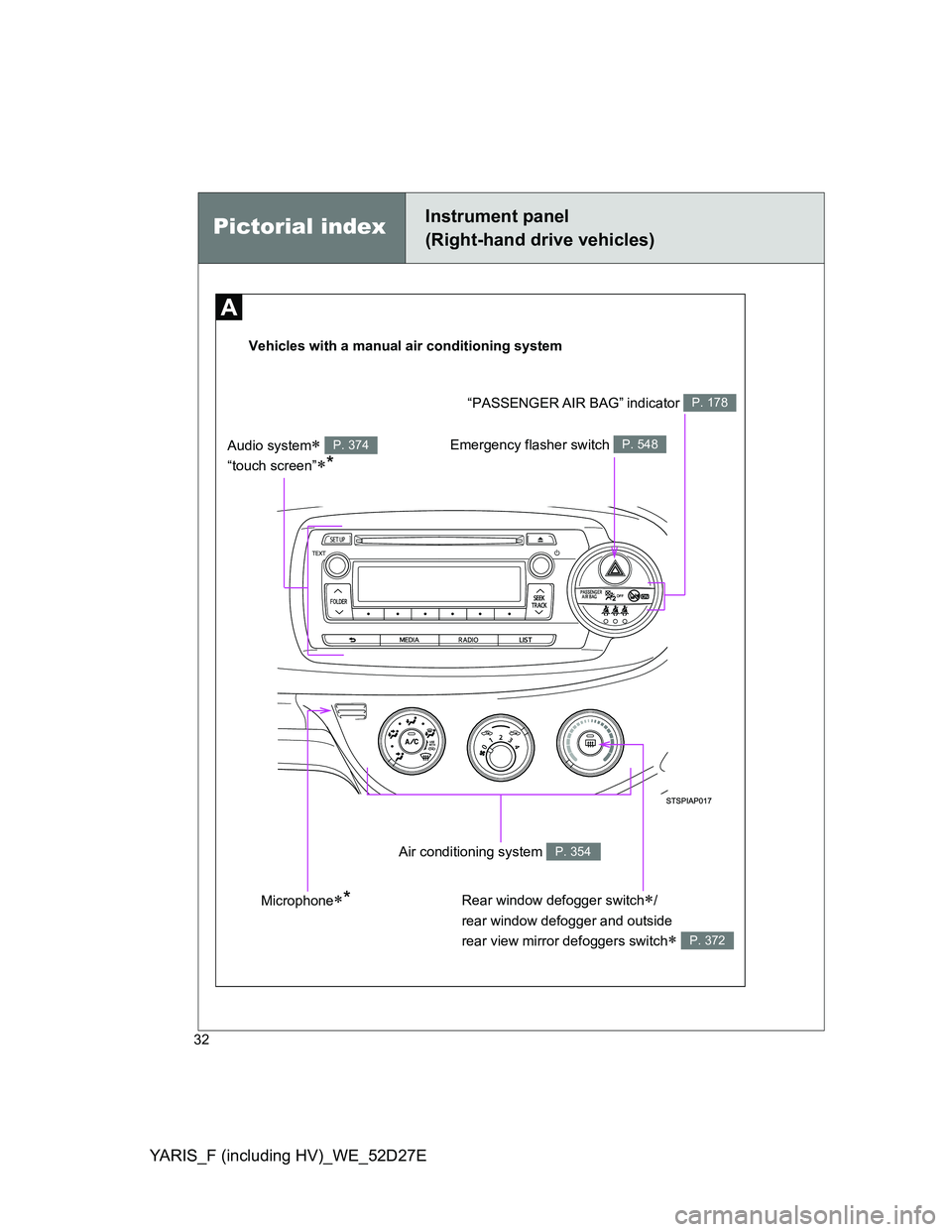

Vehicles with a manual air conditioning system
Air conditioning system P. 354
“PASSENGER AIR BAG” indicatorP. 178
Rear window defogger switch/
rear window defogger and outside
rear view mirror defoggers switch
 P. 372
Audio system
“touch screen”
*
P. 374Emergency flasher switch P. 548
Microphone*
Pictorial indexInstrument panel
(Right-hand drive vehicles)

YARIS_F (including HV)_WE_52D27E
33
Vehicles with an automatic air conditioning system
Air conditioning system
P. 361
“PASSENGER AIR BAG” indicatorP. 178
Rear window defogger switch/
rear window defogger and outside
rear view mirror defoggers switch
 P. 372
Audio system
“touch screen”
*
P. 374Emergency flasher switch P. 548
Microphone*
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

YARIS_F (including HV)_WE_52D27E
34

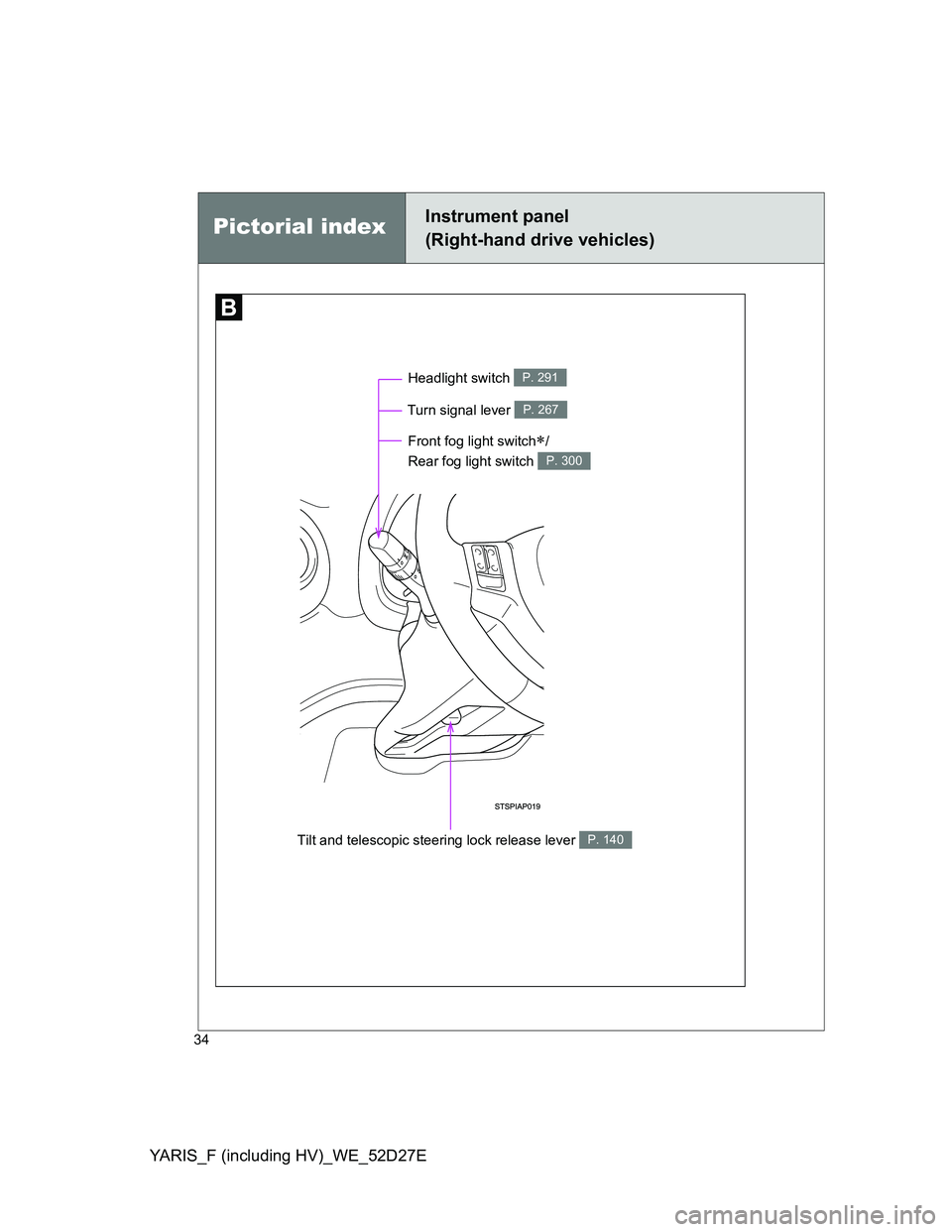

Turn signal lever P. 267
Headlight switch P. 291
Tilt and telescopic steering lock release lever P. 140
Front fog light switch/
Rear fog light switch
P. 300
Pictorial indexInstrument panel
(Right-hand drive vehicles)

YARIS_F (including HV)_WE_52D27E
35

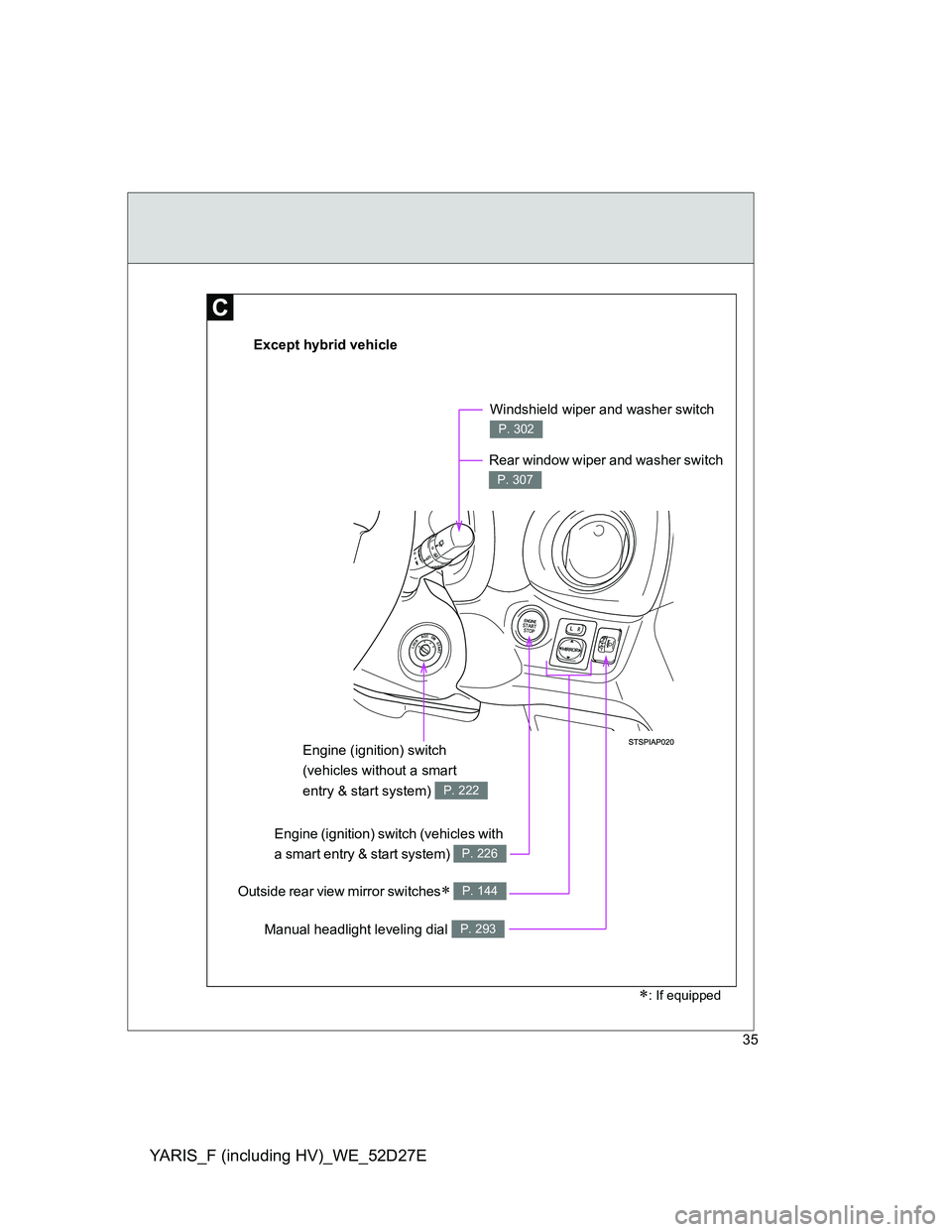

Manual headlight leveling dial P. 293
Outside rear view mirror switches P. 144
Engine (ignition) switch
(vehicles without a smart
entry & start system)
P. 222
Engine (ignition) switch (vehicles with
a smart entry & start system)
P. 226
Rear window wiper and washer switch
P. 307
Windshield wiper and washer switch
P. 302
Except hybrid vehicle
: If equipped

YARIS_F (including HV)_WE_52D27E
36

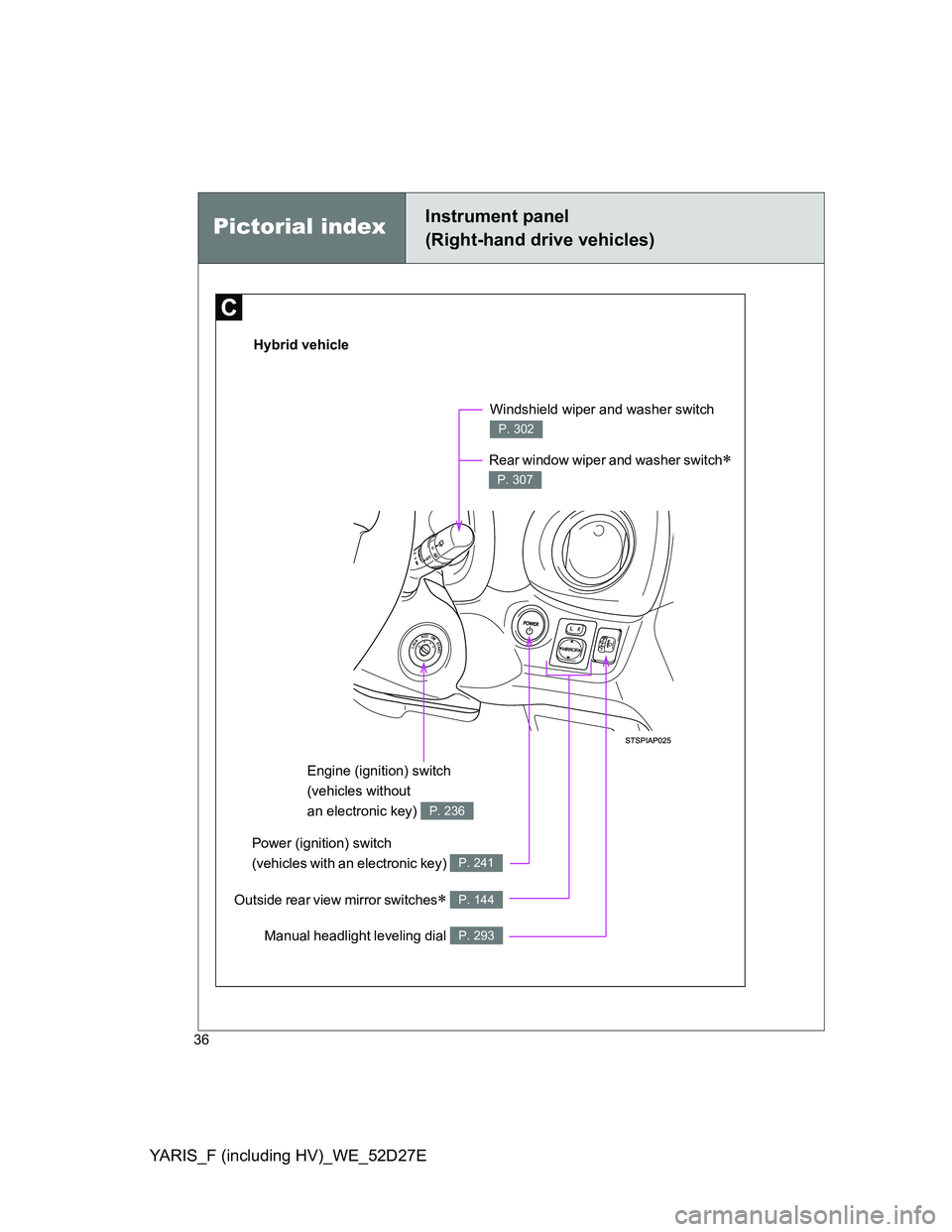

Pictorial indexInstrument panel
(Right-hand drive vehicles)
Manual headlight leveling dial P. 293
Outside rear view mirror switches P. 144
Power (ignition) switch
(vehicles with an electronic key)
P. 241
Rear window wiper and washer switch
P. 307
Windshield wiper and washer switch
P. 302
Hybrid vehicle
Engine (ignition) switch
(vehicles without
an electronic key)
P. 236

YARIS_F (including HV)_WE_52D27E
37

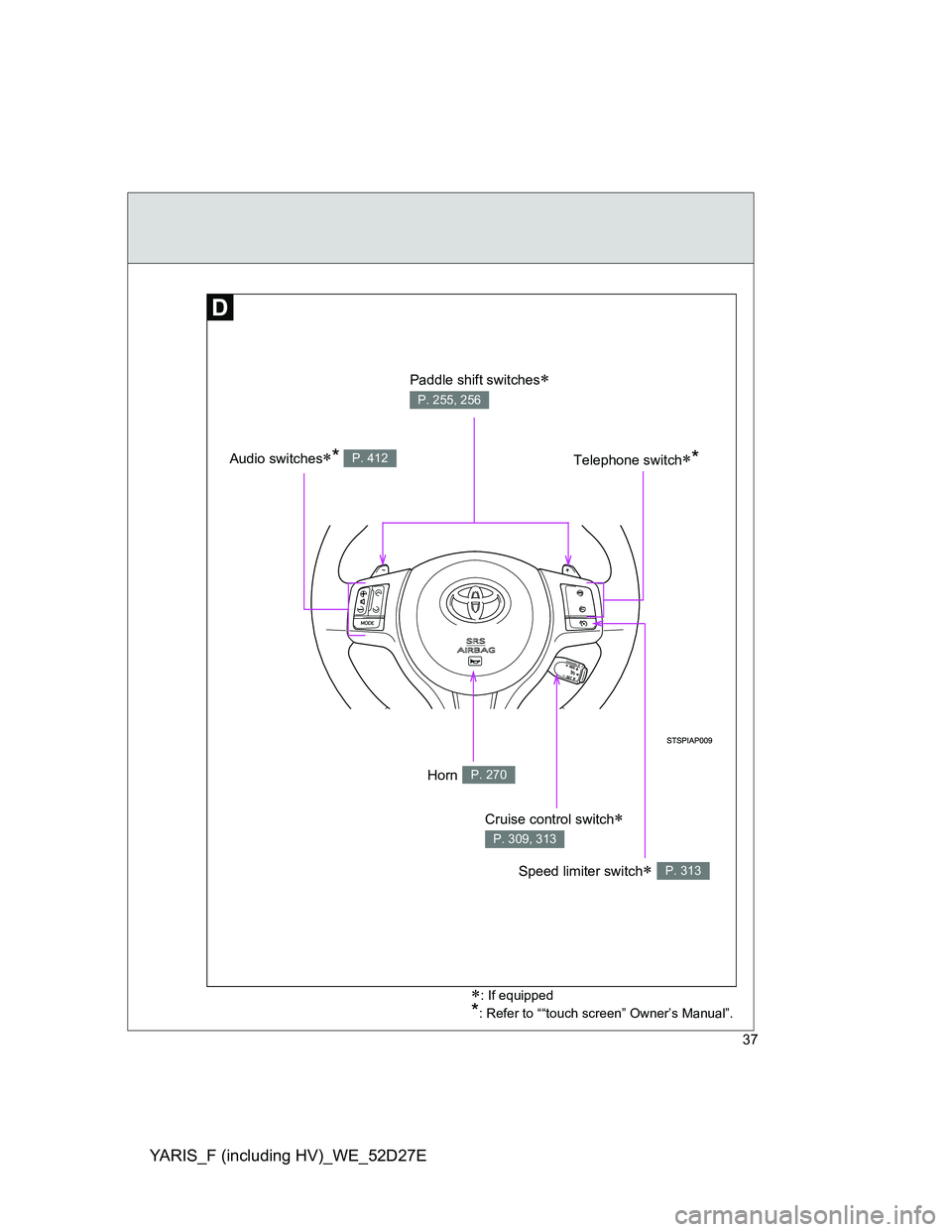

Telephone switch*
Paddle shift switches
P. 255, 256
Audio switches* P. 412
HornP. 270
Cruise control switch
P. 309, 313
Speed limiter switchP. 313

: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

YARIS_F (including HV)_WE_52D27E
38

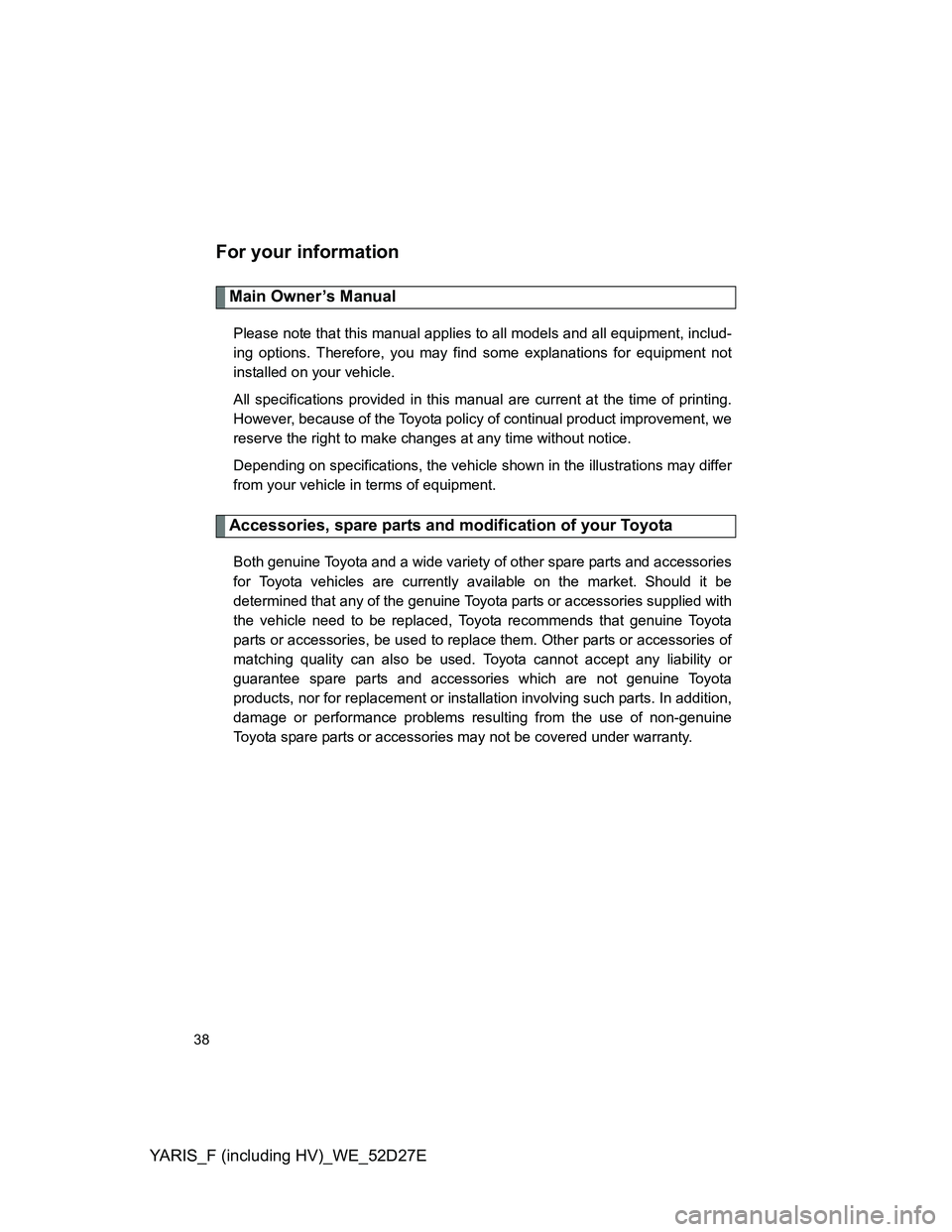

For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be
determined that any of the genuine Toyota parts or accessories supplied with
the vehicle need to be replaced, Toyota recommends that genuine Toyota
parts or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used. Toyota cannot accept any liability or
guarantee spare parts and accessories which are not genuine Toyota
products, nor for replacement or installation involving such parts. In addition,
damage or performance problems resulting from the use of non-genuine
Toyota spare parts or accessories may not be covered under warranty.

YARIS_F (including HV)_WE_52D27E
39

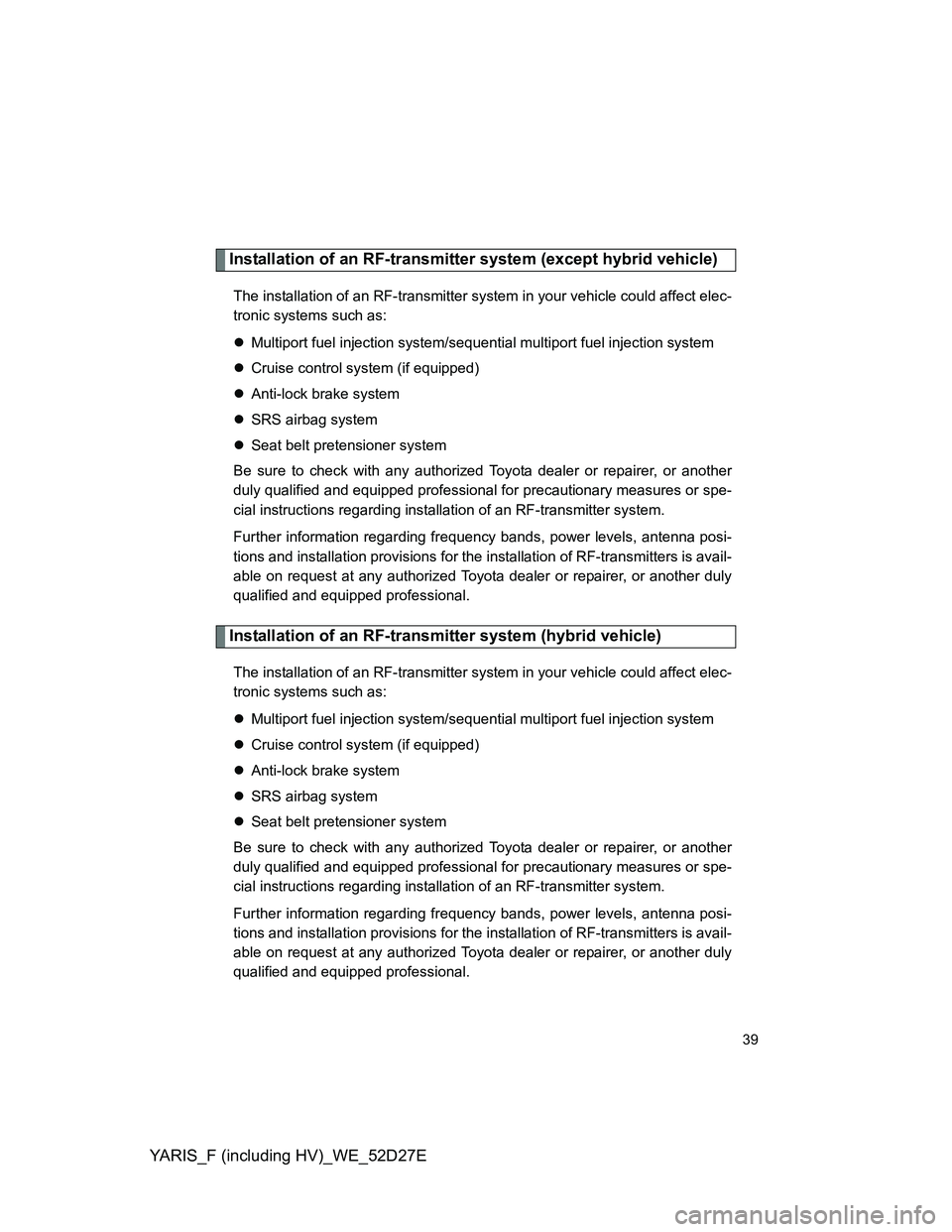

Installation of an RF-transmitter system (except hybrid vehicle)
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Installation of an RF-transmitter system (hybrid vehicle)
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.

YARIS_F (including HV)_WE_52D27E
40

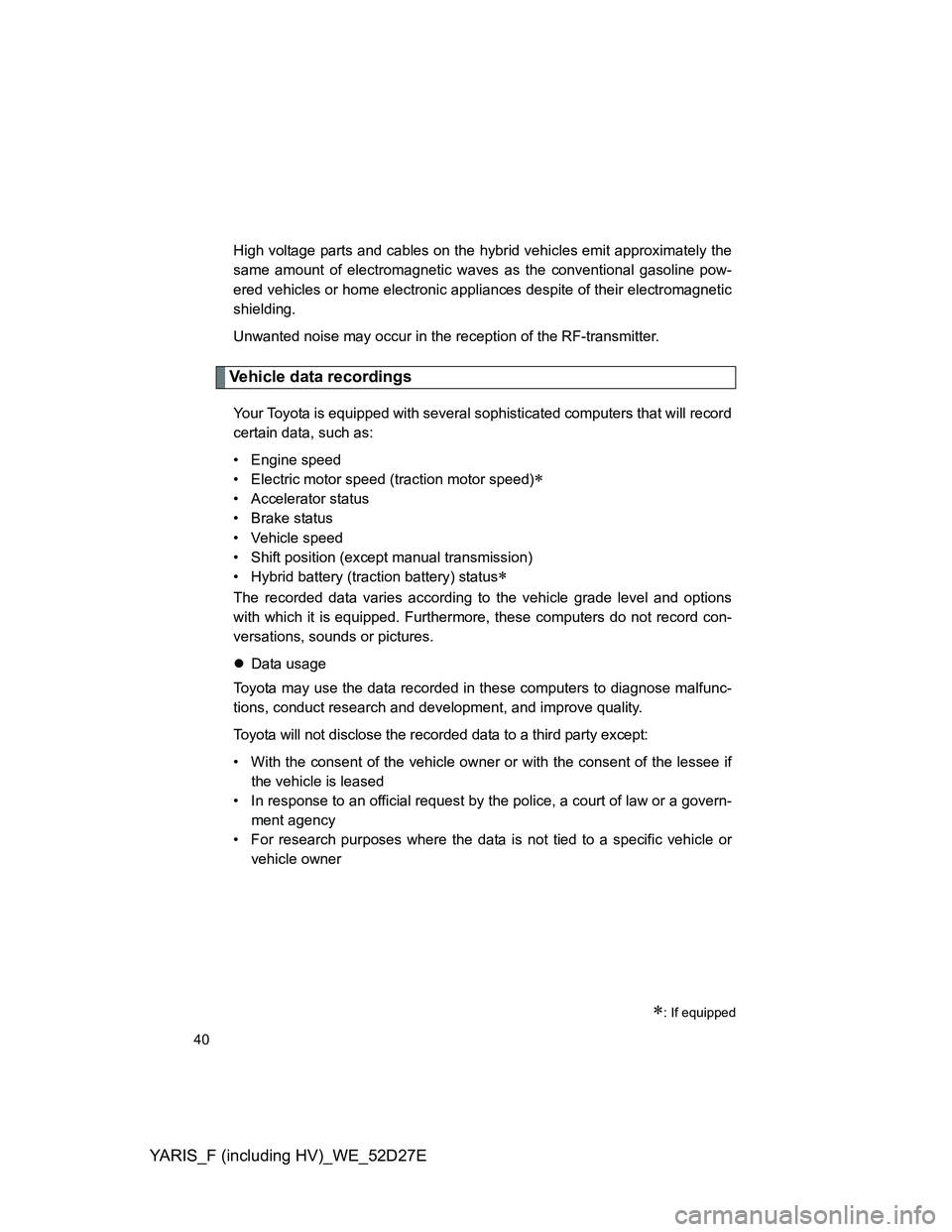

High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow-
ered vehicles or home electronic appliances despite of their electromagnetic
shielding.
Unwanted noise may occur in the reception of the RF-transmitter.
Vehicle data recordings
Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Electric motor speed (traction motor speed)

• Accelerator status
• Brake status
• Vehicle speed
• Shift position (except manual transmission)
• Hybrid battery (traction battery) status

The recorded data varies according to the vehicle grade level and options
with which it is equipped. Furthermore, these computers do not record con-
versations, sounds or pictures.
Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
: If equipped
