TOYOTA YARIS HYBRID 2013 Service Manual

YARIS_F (including HV)_WE_52D27E
41

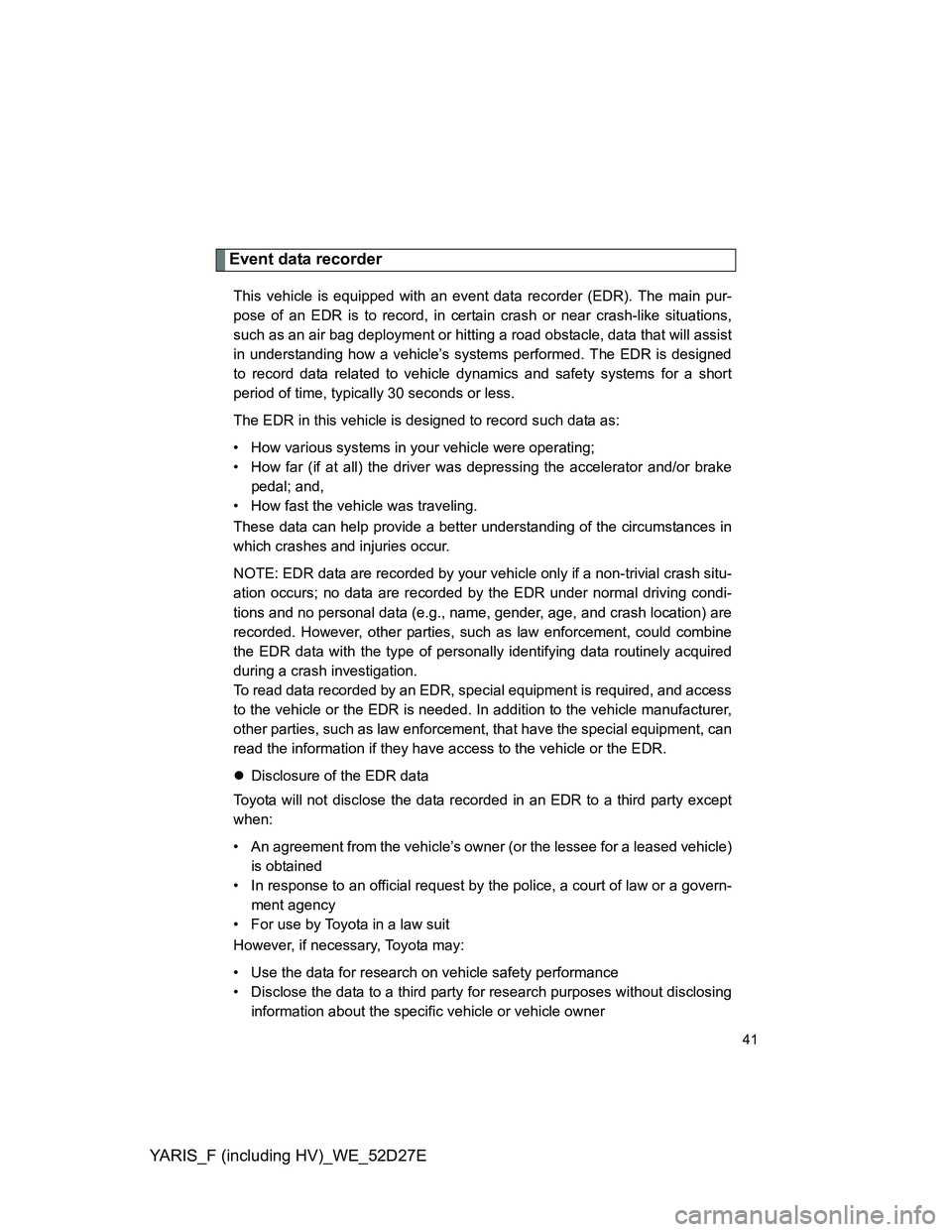

Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle)
is obtained
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a law suit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner

YARIS_F (including HV)_WE_52D27E
42

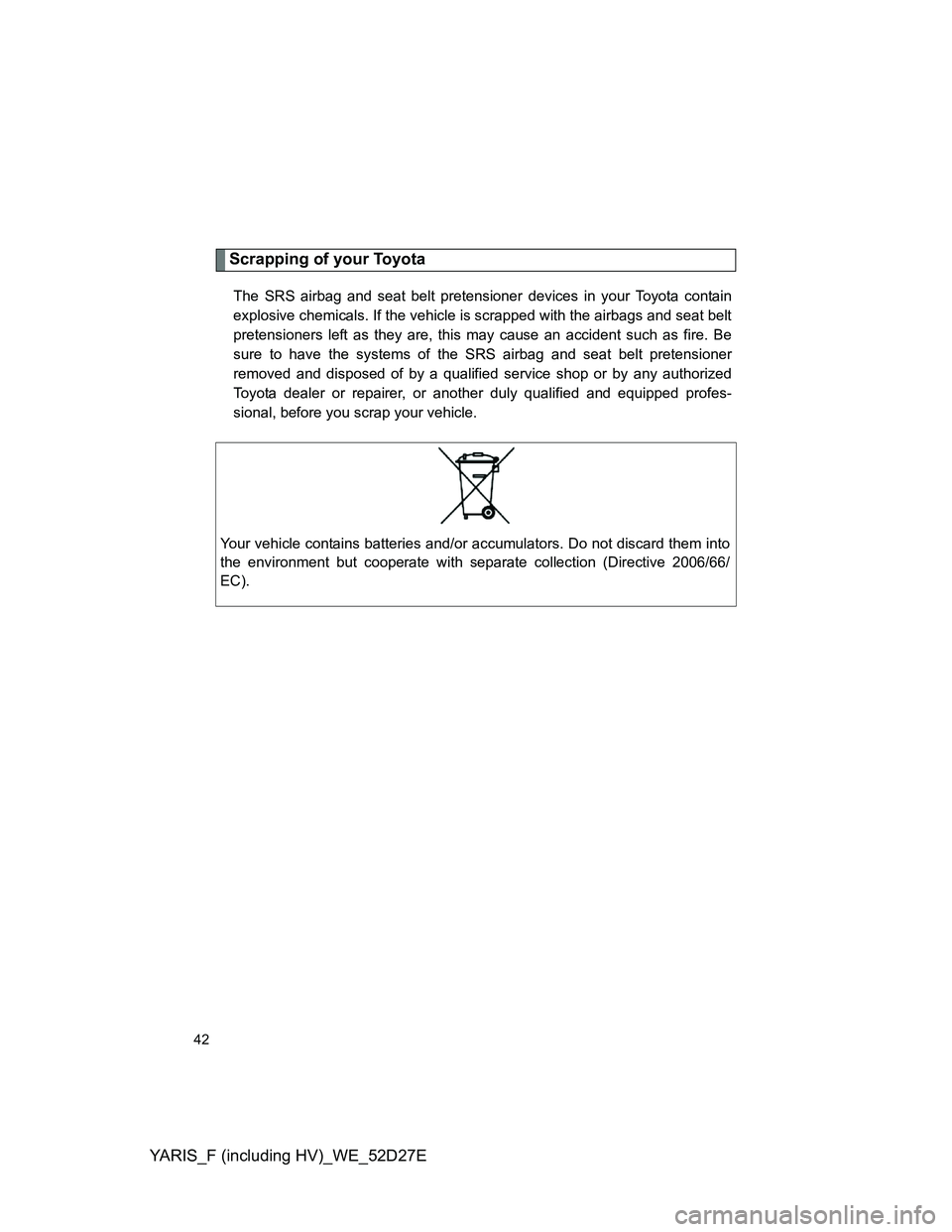

Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.
Your vehicle contains batteries and/or accumulators. Do not discard them into
the environment but cooperate with separate collection (Directive 2006/66/
EC).

YARIS_F (including HV)_WE_52D27E
43

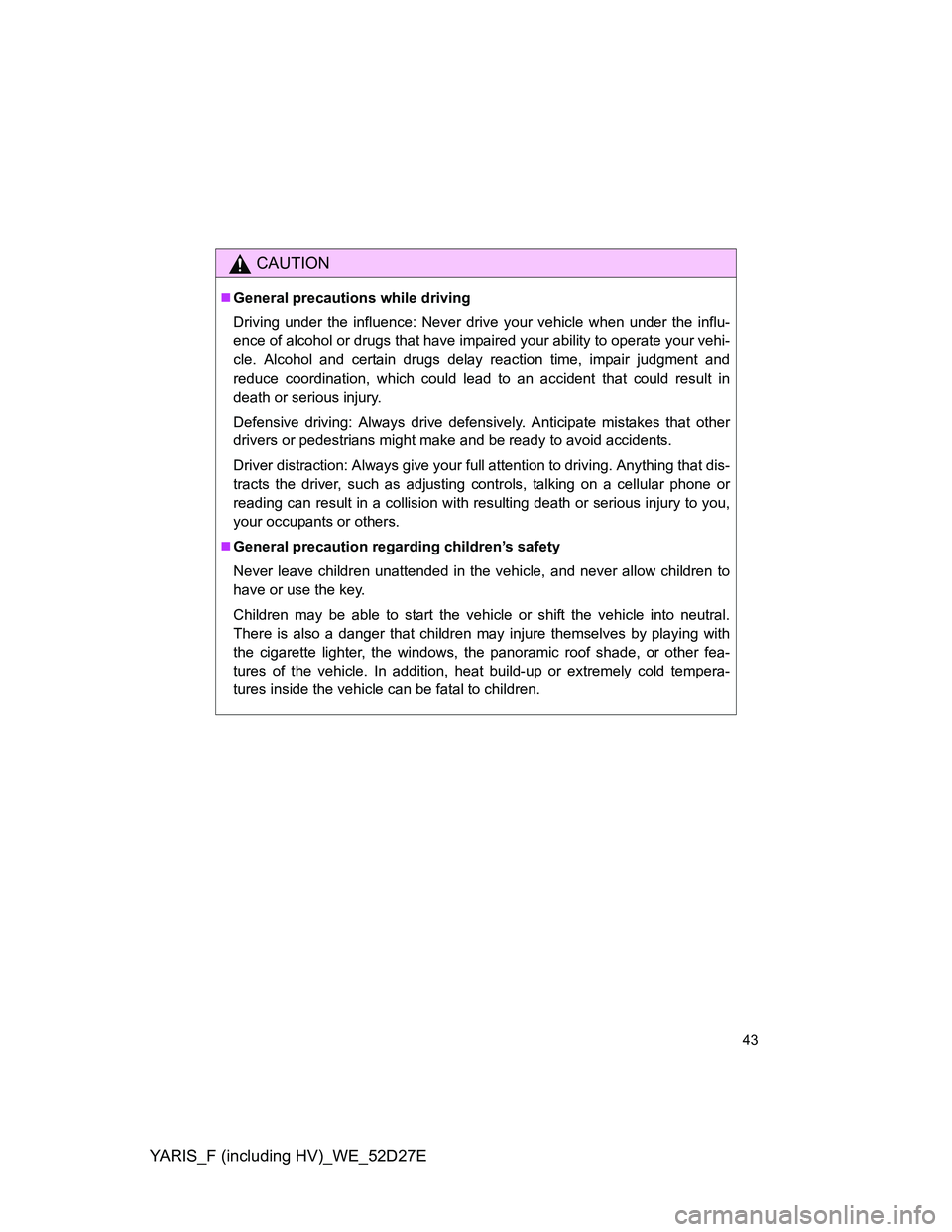

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the panoramic roof shade, or other fea-
tures of the vehicle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

YARIS_F (including HV)_WE_52D27E
44
CAUTION

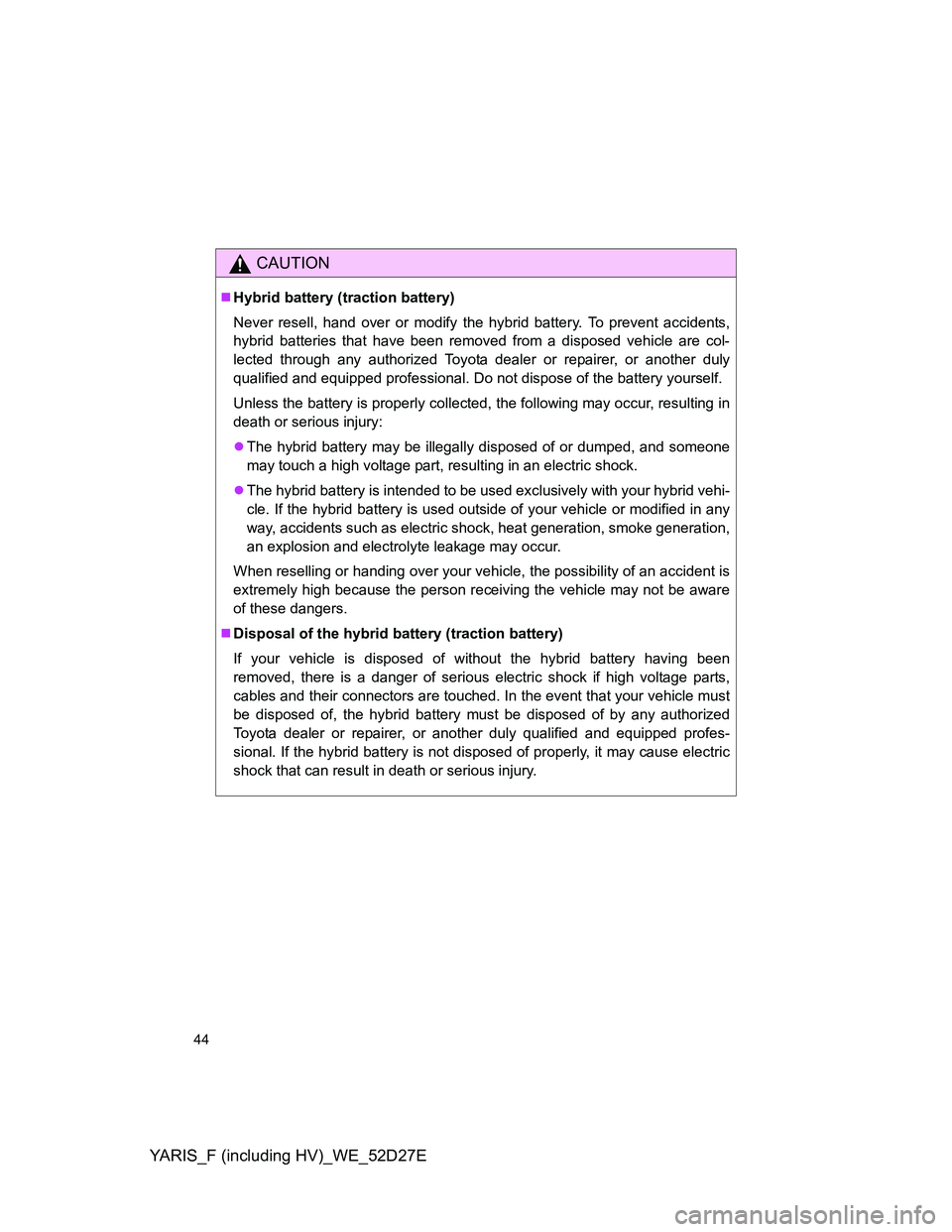

Hybrid battery (traction battery)
Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in
death or serious injury:
The hybrid battery may be illegally disposed of or dumped, and someone
may touch a high voltage part, resulting in an electric shock.
The hybrid battery is intended to be used exclusively with your hybrid vehi-
cle. If the hybrid battery is used outside of your vehicle or modified in any
way, accidents such as electric shock, heat generation, smoke generation,
an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware
of these dangers.
Disposal of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle must
be disposed of, the hybrid battery must be disposed of by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. If the hybrid battery is not disposed of properly, it may cause electric
shock that can result in death or serious injury.

YARIS_F (including HV)_WE_52D27E
45

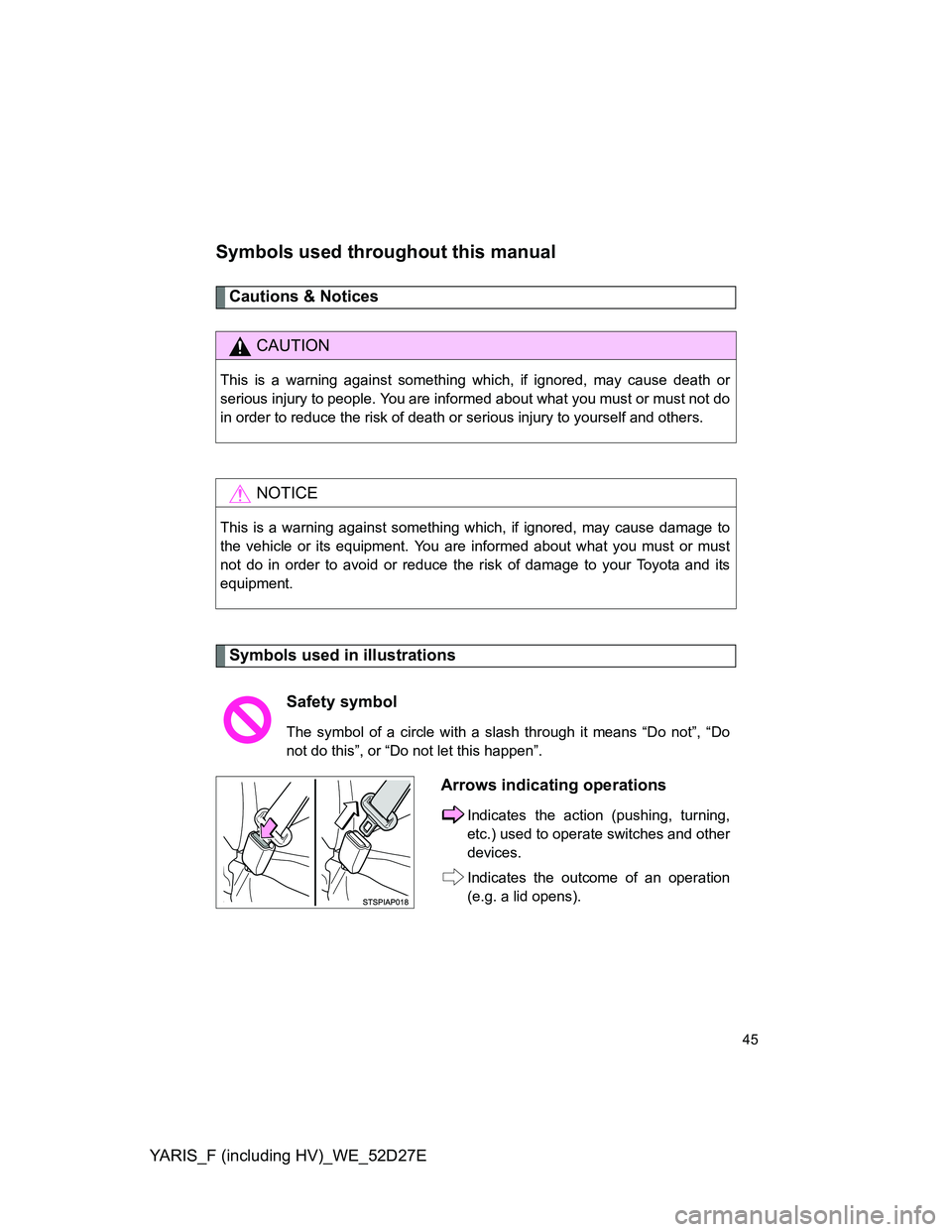

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

YARIS_F (including HV)_WE_52D27E
46

1Before driving
47
YARIS_F (including HV)_WE_52D27E

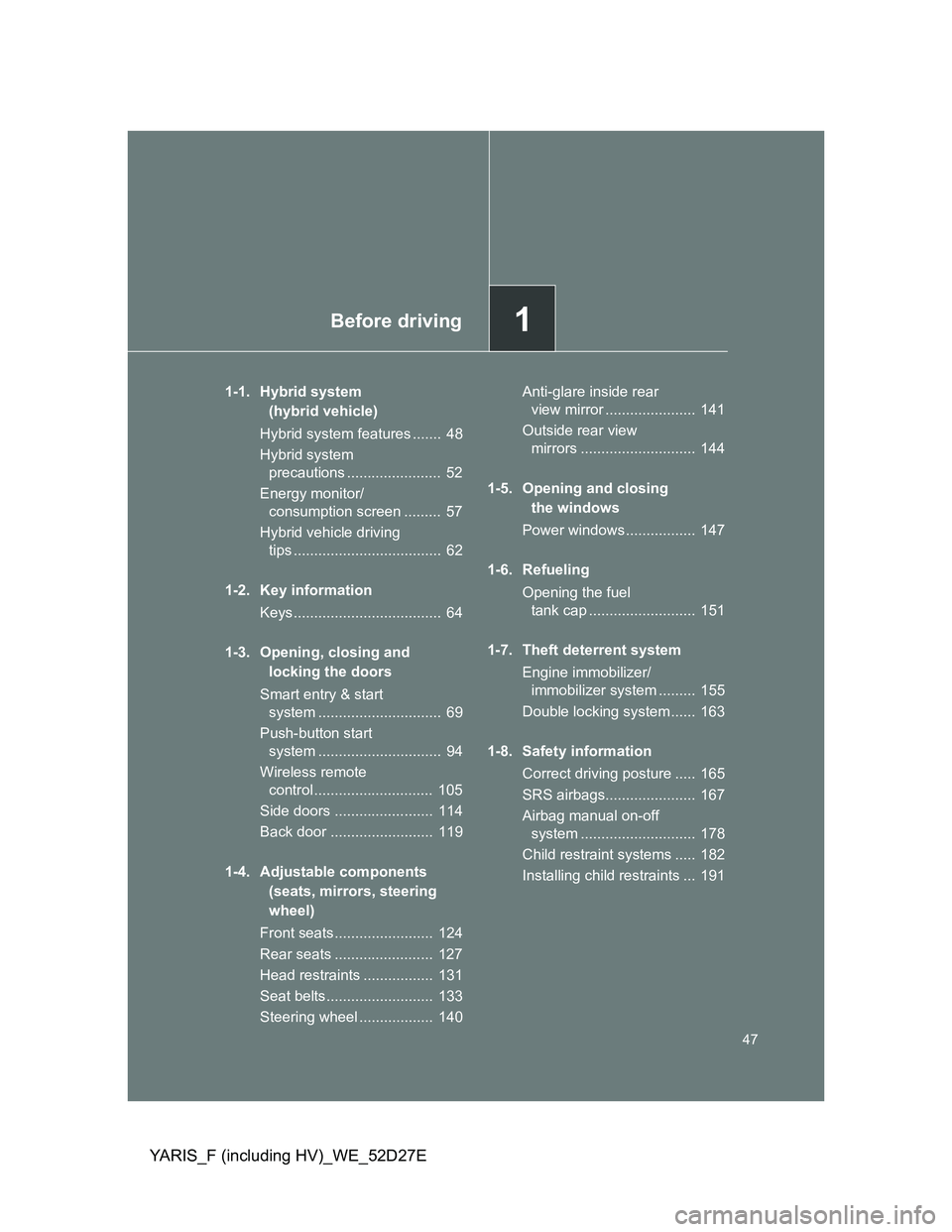

1-1. Hybrid system
(hybrid vehicle)
Hybrid system features ....... 48
Hybrid system
precautions ....................... 52
Energy monitor/
consumption screen ......... 57
Hybrid vehicle driving
tips .................................... 62
1-2. Key information
Keys.................................... 64
1-3. Opening, closing and
locking the doors
Smart entry & start
system .............................. 69
Push-button start
system .............................. 94
Wireless remote
control ............................. 105
Side doors ........................ 114
Back door ......................... 119
1-4. Adjustable components
(seats, mirrors, steering
wheel)
Front seats........................ 124
Rear seats ........................ 127
Head restraints ................. 131
Seat belts.......................... 133
Steering wheel .................. 140Anti-glare inside rear
view mirror ...................... 141
Outside rear view
mirrors ............................ 144
1-5. Opening and closing
the windows
Power windows ................. 147
1-6. Refueling
Opening the fuel
tank cap .......................... 151
1-7. Theft deterrent system
Engine immobilizer/
immobilizer system ......... 155
Double locking system ...... 163
1-8. Safety information
Correct driving posture ..... 165
SRS airbags...................... 167
Airbag manual on-off
system ............................ 178
Child restraint systems ..... 182
Installing child restraints ... 191

48
YARIS_F (including HV)_WE_52D27E
1-1. Hybrid system (hybrid vehicle)

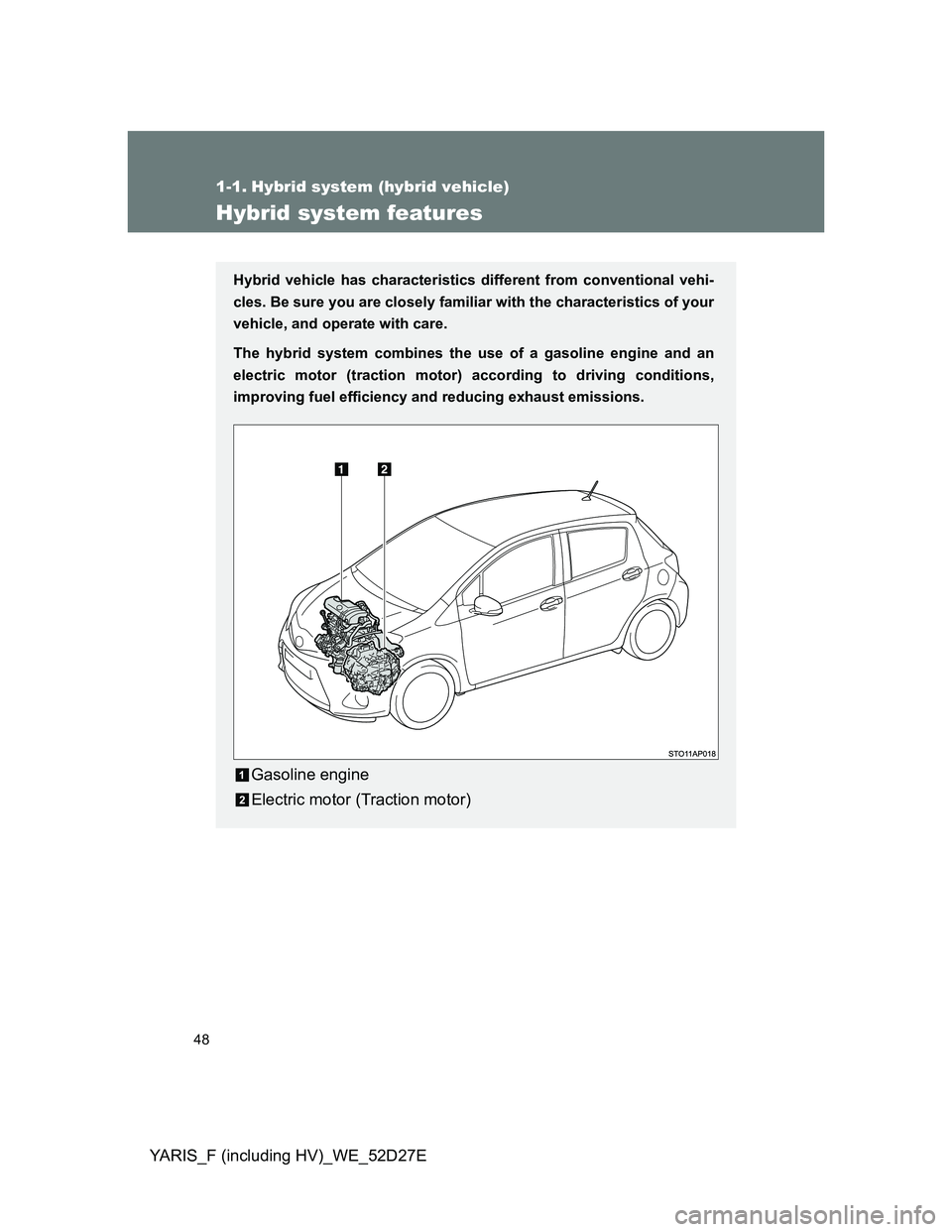

Hybrid system features
Hybrid vehicle has characteristics different from conventional vehi-
cles. Be sure you are closely familiar with the characteristics of your
vehicle, and operate with care.
The hybrid system combines the use of a gasoline engine and an
electric motor (traction motor) according to driving conditions,
improving fuel efficiency and reducing exhaust emissions.
Gasoline engine
Electric motor (Traction motor)

49 1-1. Hybrid system (hybrid vehicle)
1
Before driving
YARIS_F (including HV)_WE_52D27E
Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
The accelerator pedal is released.
The brake pedal is depressed with the shift lever in D or B.
When stopped/during start off
The gasoline engine stops
* when the vehicle is stopped. During
start off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine
is stopped
* and the motor is used.
*: However, when the hybrid battery (traction battery) needs to be
charged or while the engine is being warmed up, the gasoline engine
may not stop automatically. (P. 50)
During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as
necessary.

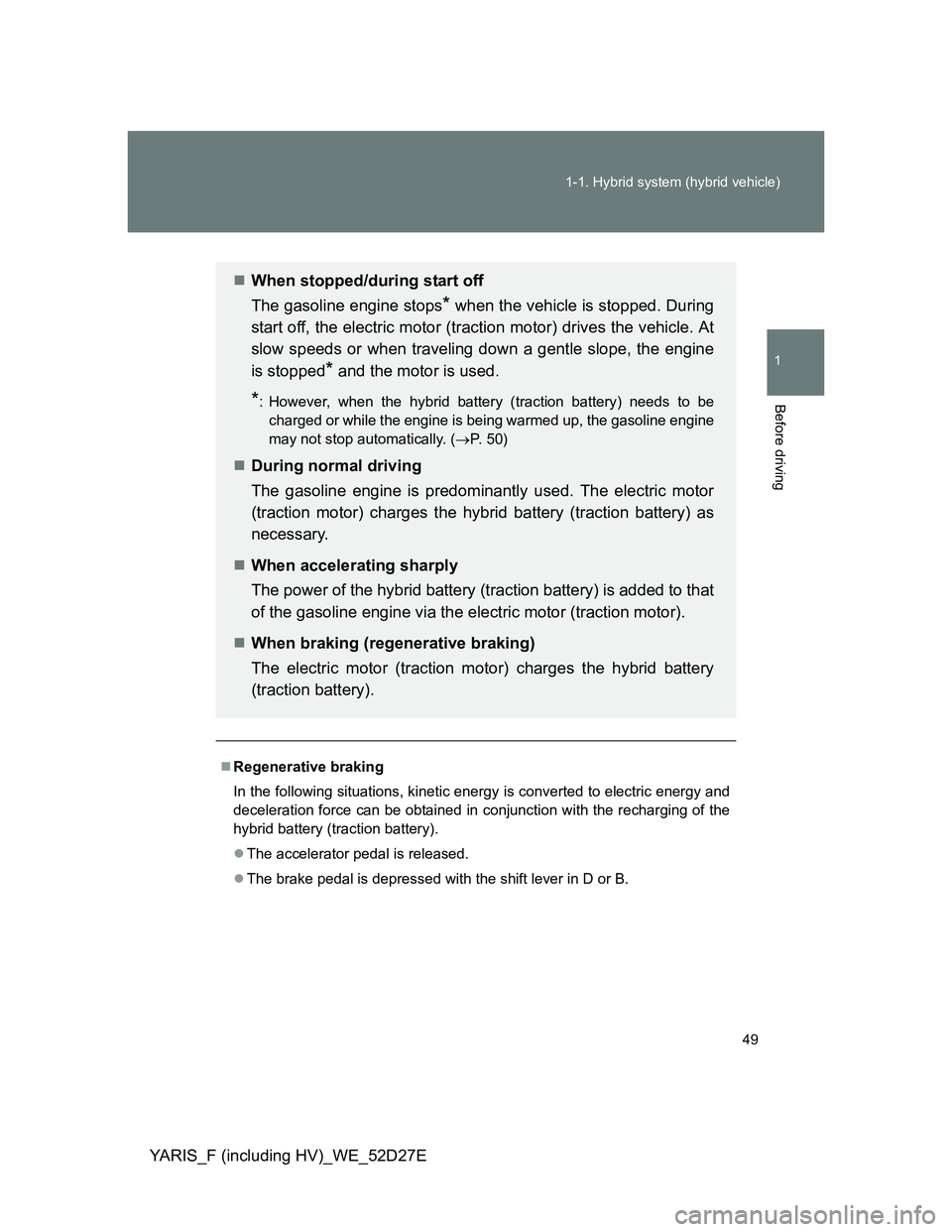

When accelerating sharply
The power of the hybrid battery (traction battery) is added to that
of the gasoline engine via the electric motor (traction motor).
When braking (regenerative braking)
The electric motor (traction motor) charges the hybrid battery
(traction battery).

50 1-1. Hybrid system (hybrid vehicle)
YARIS_F (including HV)_WE_52D27E

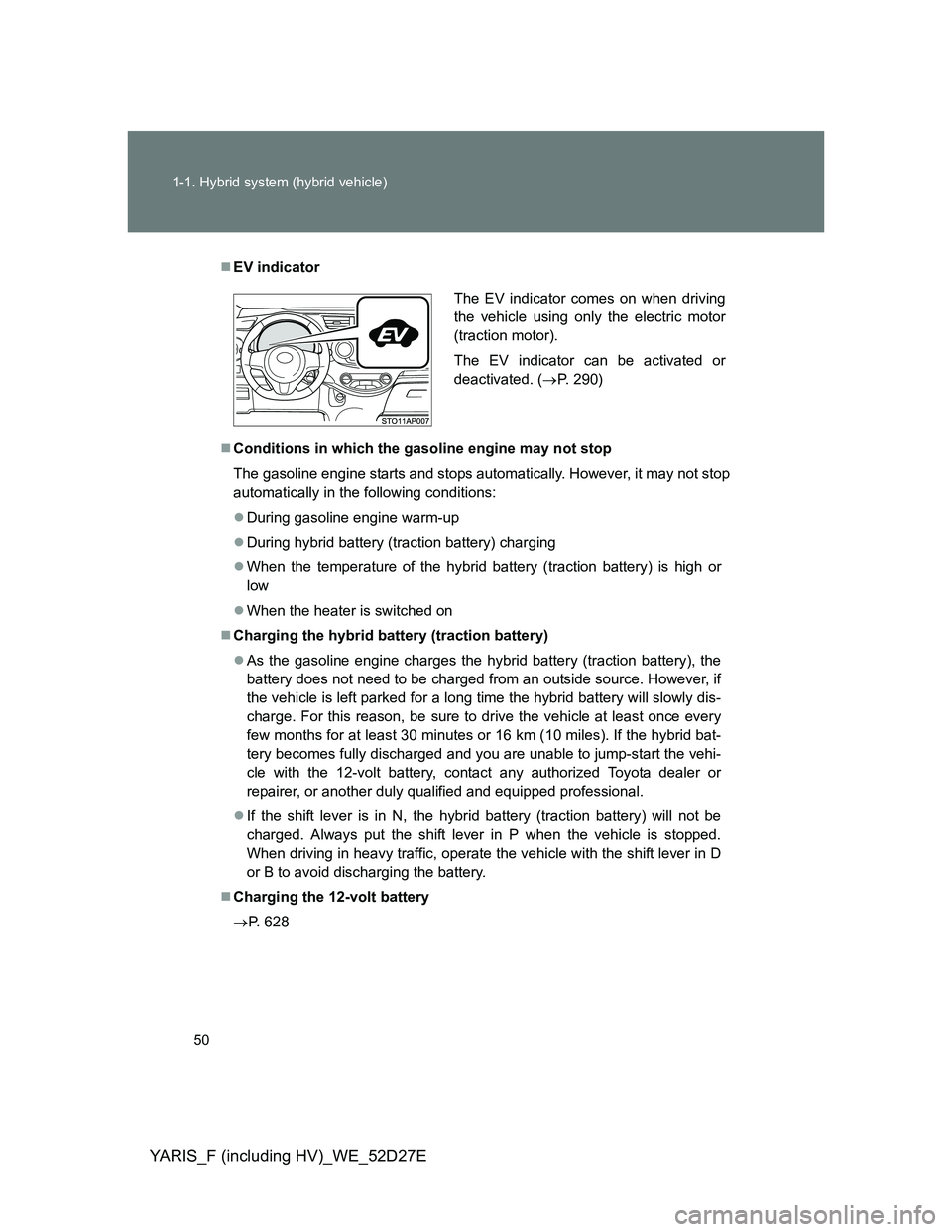

EV indicator
Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
During gasoline engine warm-up
During hybrid battery (traction battery) charging
When the temperature of the hybrid battery (traction battery) is high or
low
When the heater is switched on
Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the
battery does not need to be charged from an outside source. However, if
the vehicle is left parked for a long time the hybrid battery will slowly dis-
charge. For this reason, be sure to drive the vehicle at least once every
few months for at least 30 minutes or 16 km (10 miles). If the hybrid bat-
tery becomes fully discharged and you are unable to jump-start the vehi-
cle with the 12-volt battery, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged. Always put the shift lever in P when the vehicle is stopped.
When driving in heavy traffic, operate the vehicle with the shift lever in D
or B to avoid discharging the battery.
Charging the 12-volt battery
P. 628
The EV indicator comes on when driving
the vehicle using only the electric motor
(traction motor).
The EV indicator can be activated or
deactivated. (P. 290)
