TOYOTA YARIS HYBRID 2015 Owners Manual

3016-3. Using the storage features
6
Interior features
YARIS_HV_EE_OM52F30E

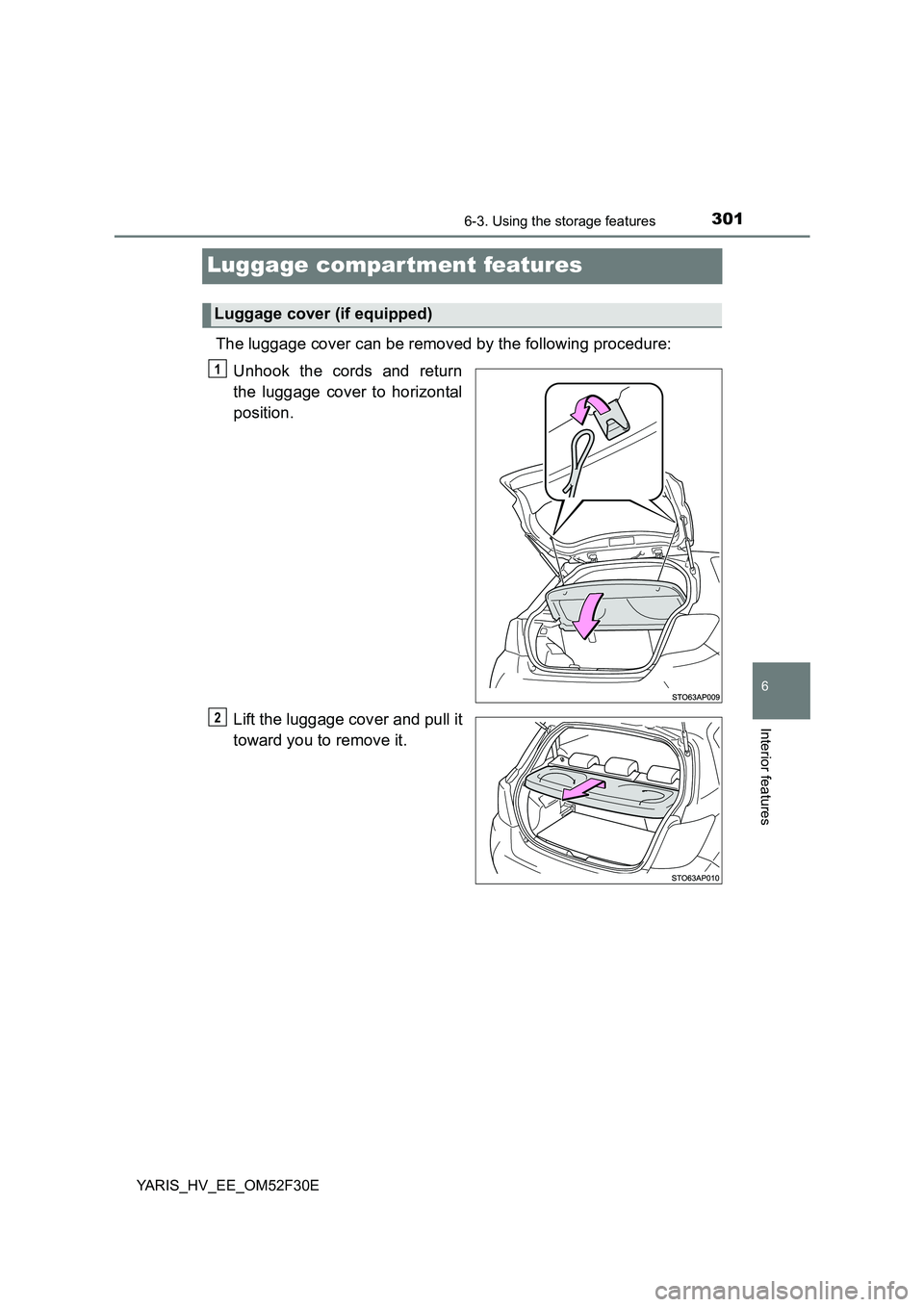

Luggage compartment features
The luggage cover can be removed by the following procedure:
Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover (if equipped)
1
2

3026-3. Using the storage features
YARIS_HV_EE_OM52F30E

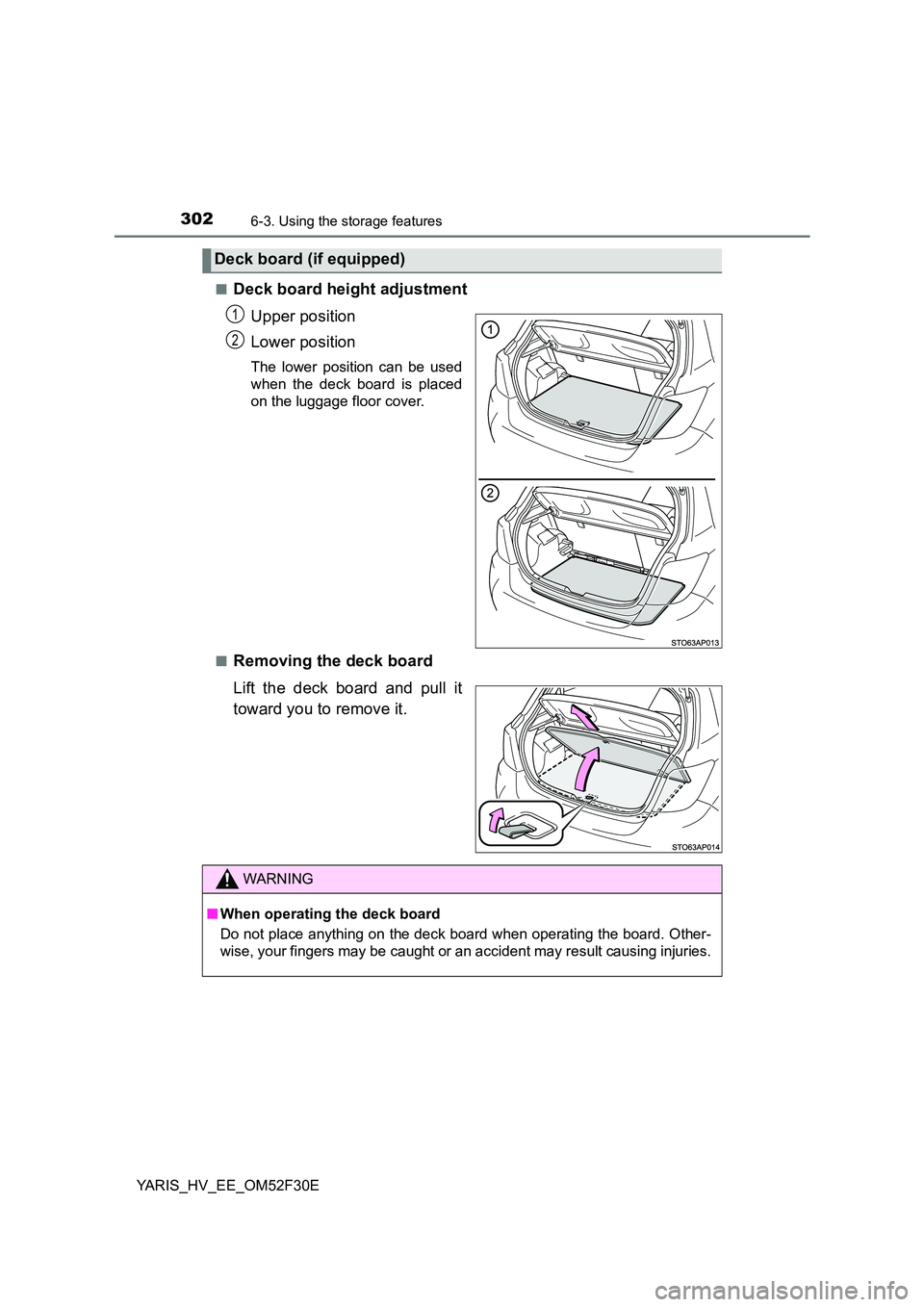

■Deck board height adjustment
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
■Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Deck board (if equipped)
1
2
WARNING
■ When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.

3036-3. Using the storage features
6
Interior features
YARIS_HV_EE_OM52F30E

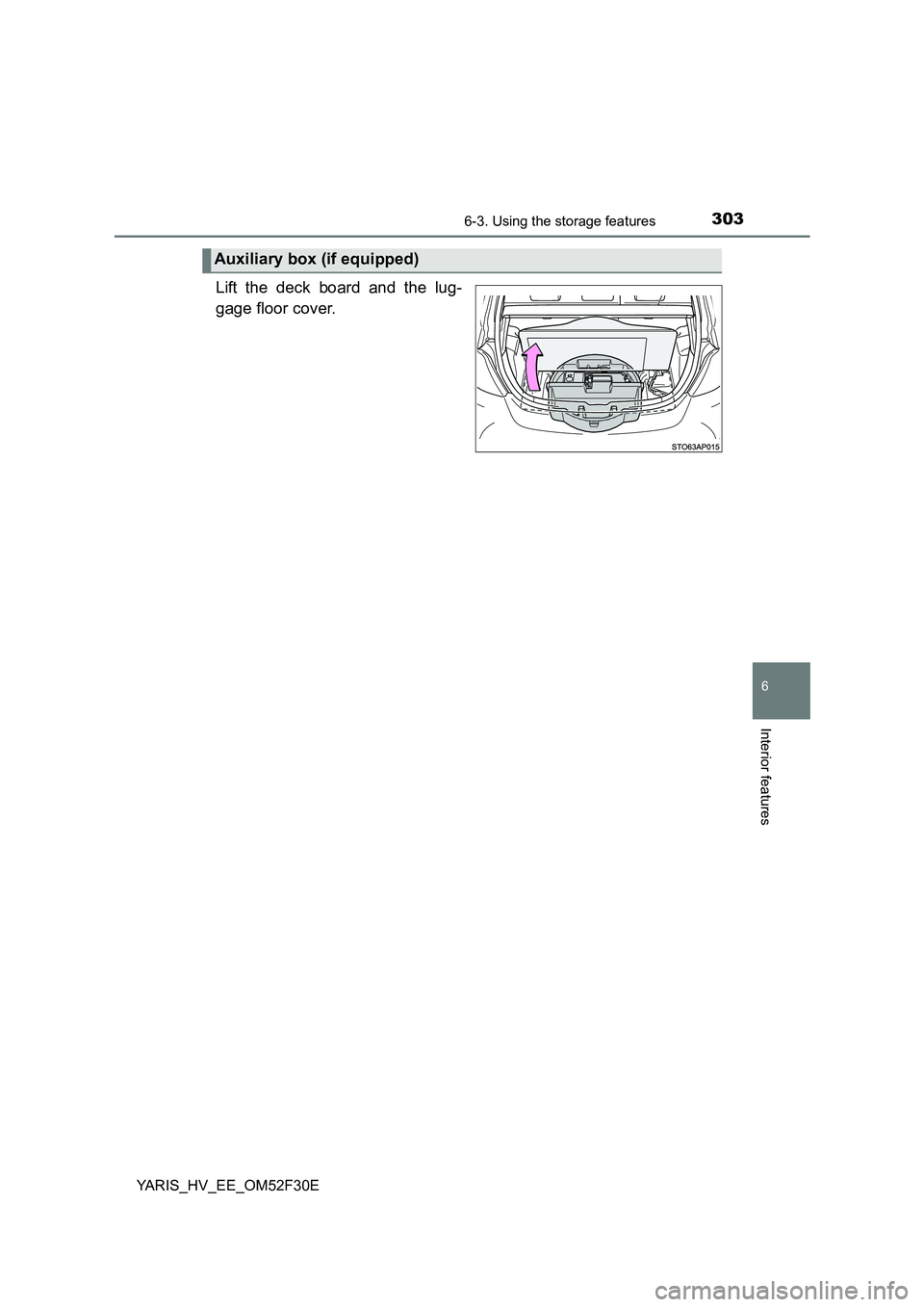

Lift the deck board and the lug-
gage floor cover.
Auxiliary box (if equipped)

3046-4. Using the other interior features
YARIS_HV_EE_OM52F30E

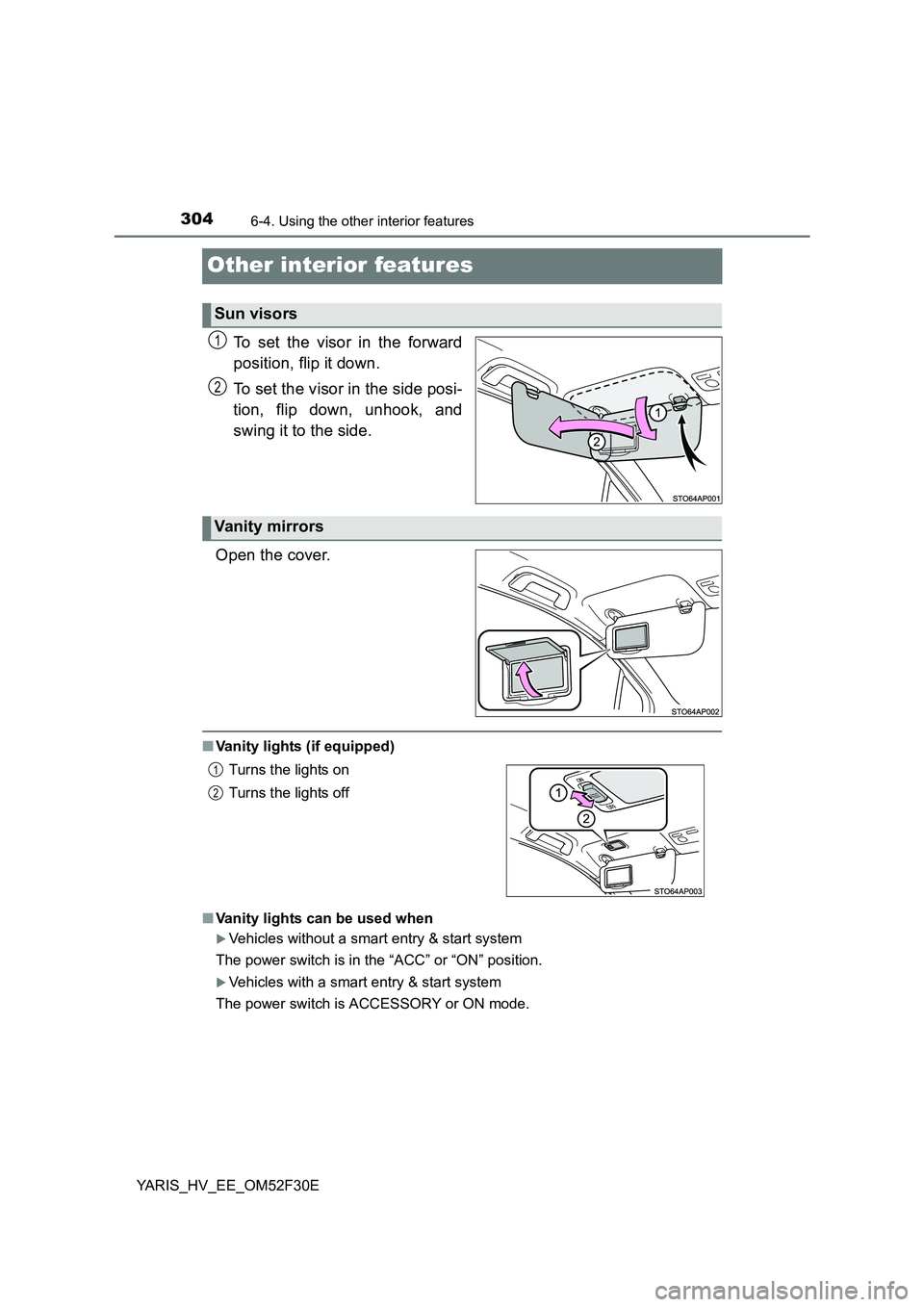

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
■ Vanity lights (if equipped)
■ Vanity lights can be used when
XVehicles without a smart entry & start system
The power switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The power switch is ACCESSORY or ON mode.
Sun visors
1
2
Vanity mirrors
Turns the lights on
Turns the lights off
1
2

3056-4. Using the other interior features
6
Interior features
YARIS_HV_EE_OM52F30E
The ashtray can be installed in a
cup holder. ( →P. 299)
Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.
NOTICE
■ To prevent 12-volt battery discharge (vehicles with vanity lights)
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Portable ashtray (if equipped)
WARNING
■ When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
ashtray or ash flying out.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
Cigarette lighter (if equipped)

3066-4. Using the other interior features
YARIS_HV_EE_OM52F30E

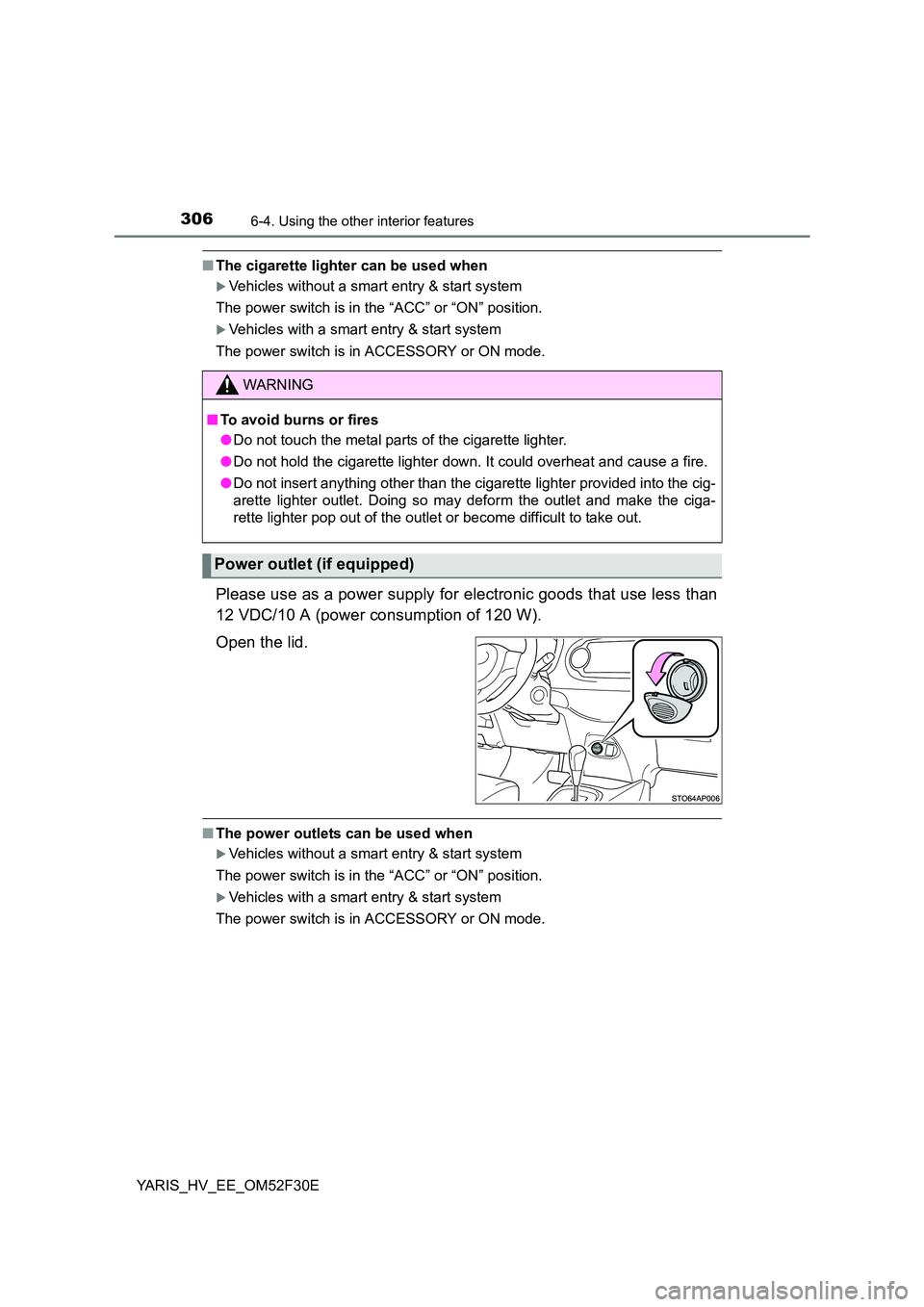

■The cigarette lighter can be used when
XVehicles without a smart entry & start system
The power switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The power switch is in ACCESSORY or ON mode.
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■ The power outlets can be used when
XVehicles without a smart entry & start system
The power switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The power switch is in ACCESSORY or ON mode.
WARNING
■ To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.
Power outlet (if equipped)

3076-4. Using the other interior features
6
Interior features
YARIS_HV_EE_OM52F30E

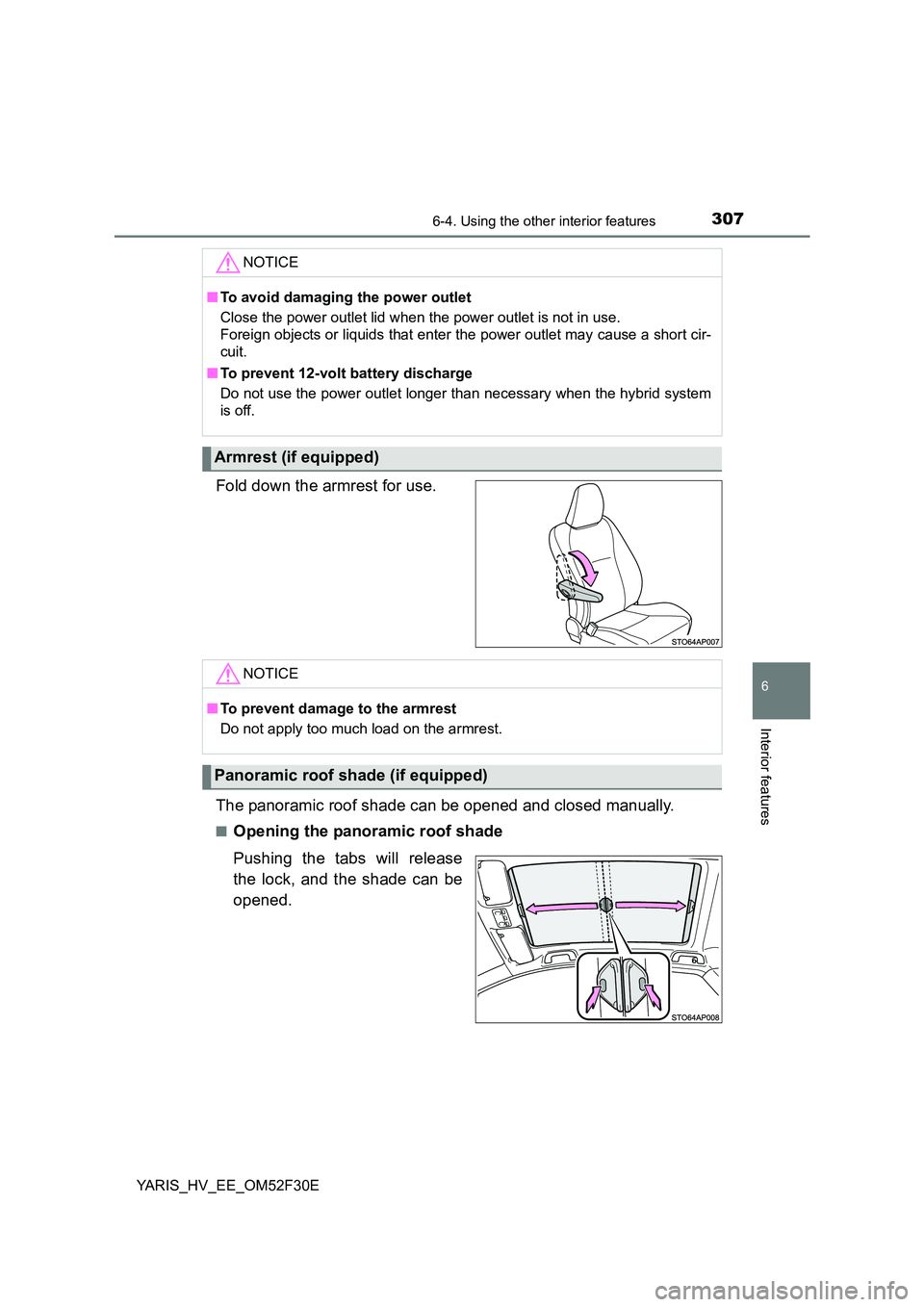

Fold down the armrest for use.
The panoramic roof shade can be opened and closed manually.
■Opening the panoramic roof shade
Pushing the tabs will release
the lock, and the shade can be
opened.
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent 12-volt battery discharge
Do not use the power outlet longer than necessary when the hybrid system
is off.
Armrest (if equipped)
NOTICE
■ To prevent damage to the armrest
Do not apply too much load on the armrest.
Panoramic roof shade (if equipped)

3086-4. Using the other interior features
YARIS_HV_EE_OM52F30E
■Closing the panoramic roof shade
Pull the tabs to the lock position
to close the shade.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
■ Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

309
7Maintenance and care
YARIS_HV_EE_OM52F30E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 310
Cleaning and protecting
the vehicle interior ........... 314
7-2. Maintenance
Maintenance
requirements.................... 317
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 320
Hood .................................. 323
Positioning a floor jack ....... 325
Engine compartment.......... 327
12-volt battery .................... 334
Tires ................................... 340
Tire inflation pressure ........ 354
Wheels ............................... 356
Air conditioning filter .......... 359
Wireless remote control/
electronic key battery....... 361
Checking and replacing
fuses ................................ 365
Light bulbs ......................... 370

3107-1. Maintenance and care
YARIS_HV_EE_OM52F30E

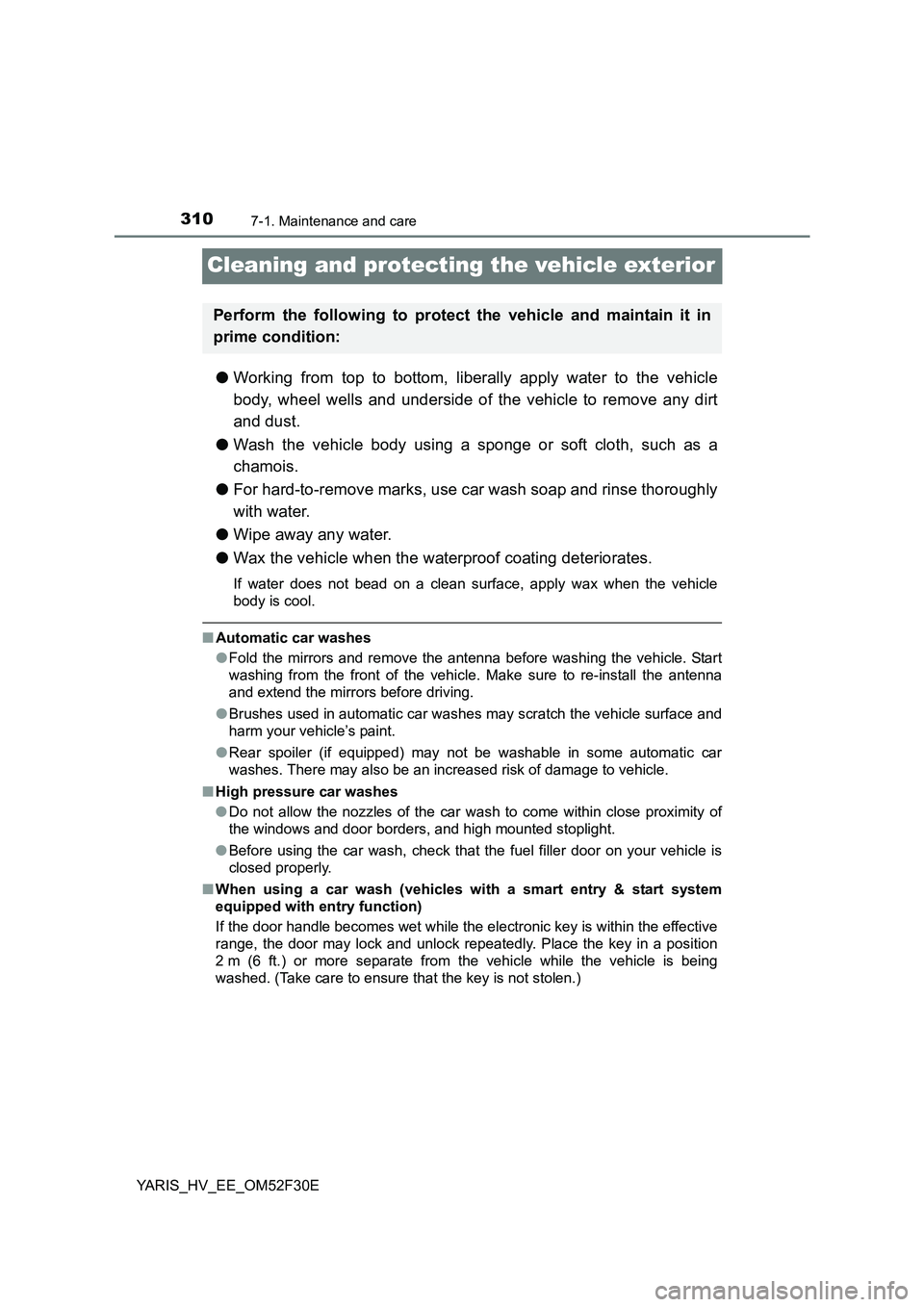

Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Automatic car washes
● Fold the mirrors and remove the antenna before washing the vehicle. Start
washing from the front of the vehicle. Make sure to re-install the antenna
and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● Rear spoiler (if equipped) may not be washable in some automatic car
washes. There may also be an increased risk of damage to vehicle.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows and door borders, and high mounted stoplight.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ When using a car wash (vehicles with a smart entry & start system
equipped with entry function)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position
2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
Perform the following to protect the vehicle and maintain it in
prime condition:
