TOYOTA YARIS HYBRID 2015 Owners Manual

2815-5. Using an external device
5
Audio system
YARIS_HV_EE_OM52F30E

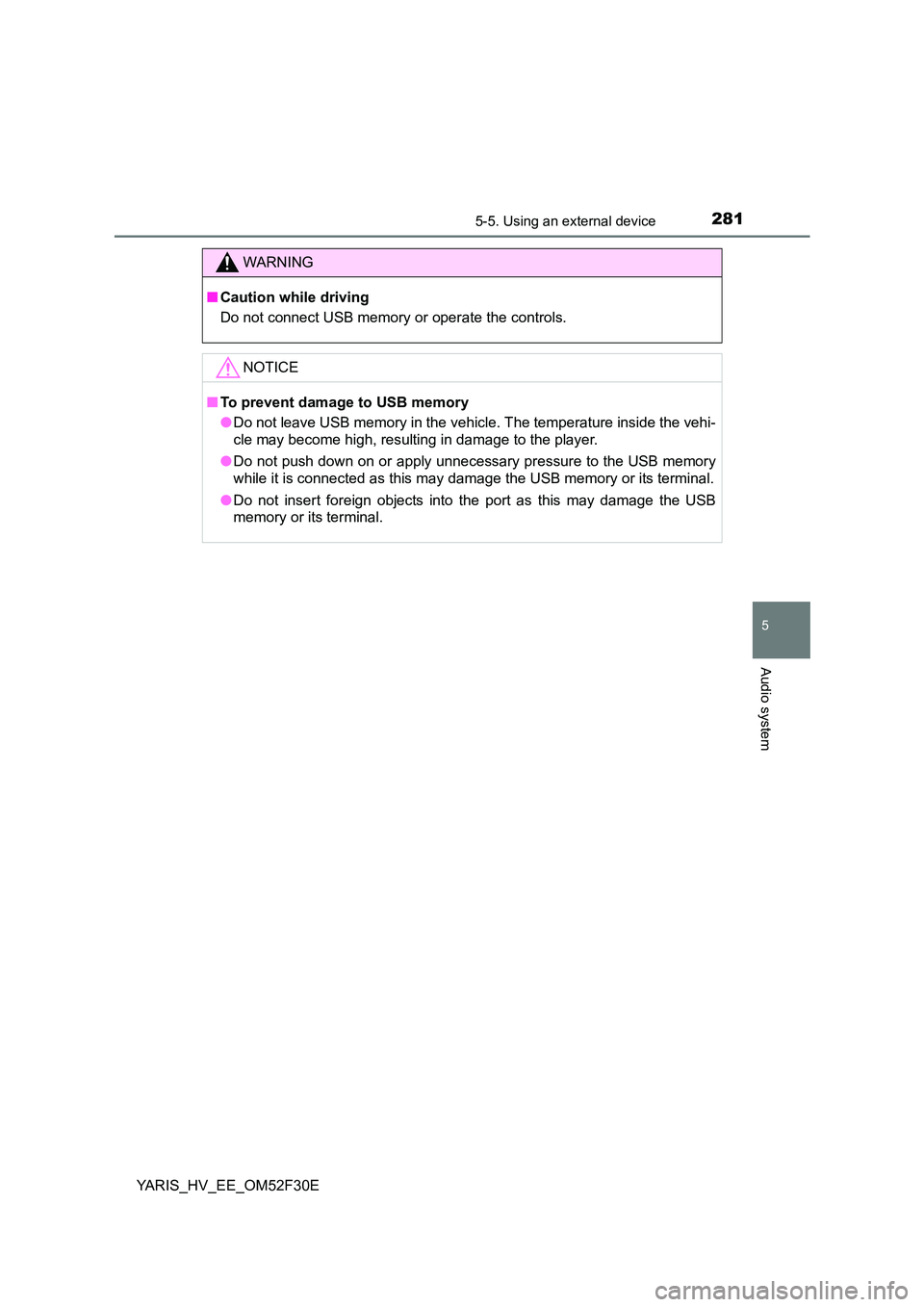

WARNING
■ Caution while driving
Do not connect USB memory or operate the controls.
NOTICE
■ To prevent damage to USB memory
● Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
● Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

2825-5. Using an external device
YARIS_HV_EE_OM52F30E

283

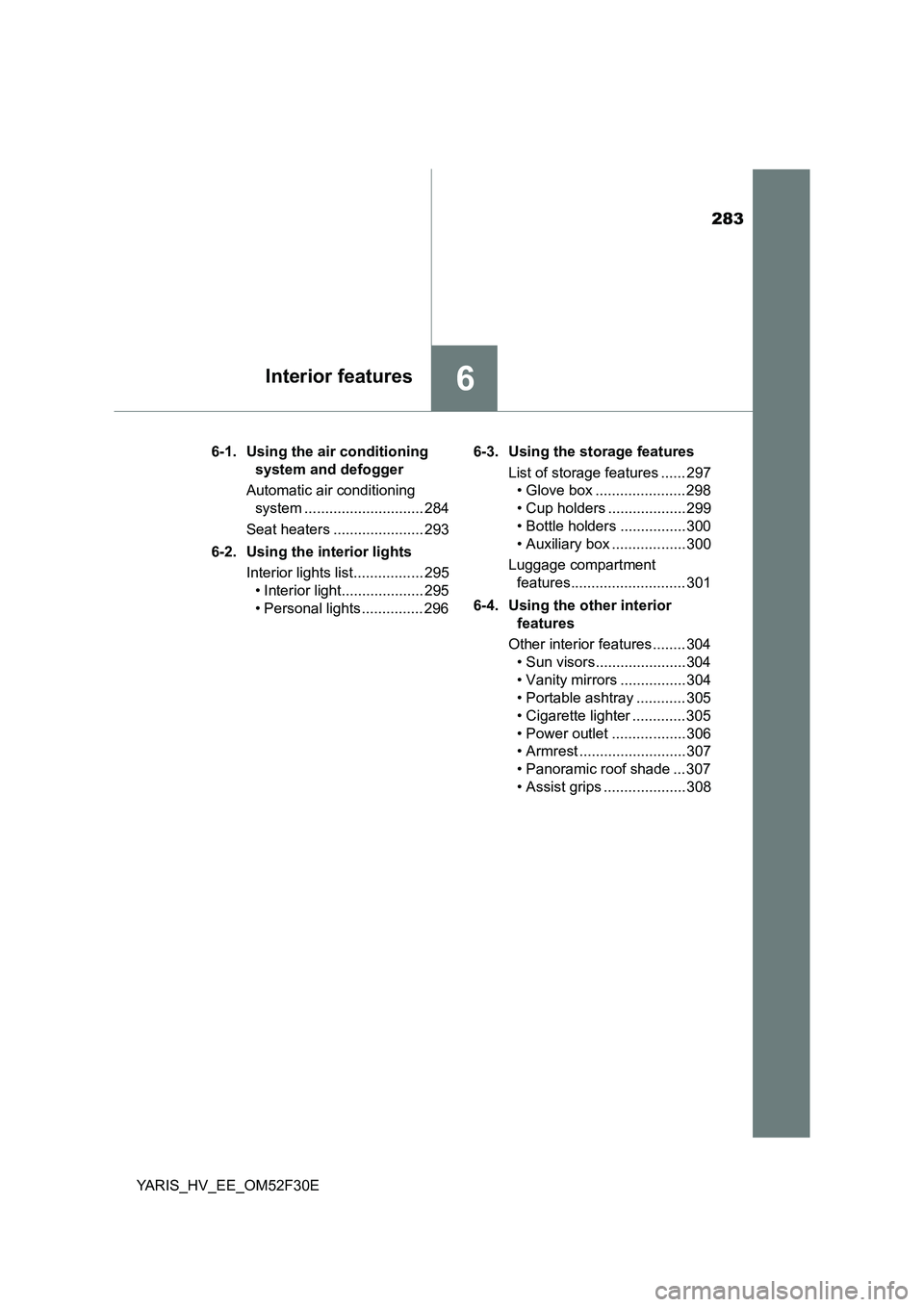

6Interior features
YARIS_HV_EE_OM52F30E
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ............................. 284
Seat heaters ...................... 293
6-2. Using the interior lights
Interior lights list................. 295
• Interior light.................... 295
• Personal lights ............... 296
6-3. Using the storage features
List of storage features ...... 297
• Glove box ...................... 298
• Cup holders ................... 299
• Bottle holders ................ 300
• Auxiliary box .................. 300
Luggage compartment
features............................ 301
6-4. Using the other interior
features
Other interior features ........ 304
• Sun visors...................... 304
• Vanity mirrors ................ 304
• Portable ashtray ............ 305
• Cigarette lighter ............. 305
• Power outlet .................. 306
• Armrest .......................... 307
• Panoramic roof shade ... 307
• Assist grips .................... 308

2846-1. Using the air conditioning system and defogger
YARIS_HV_EE_OM52F30E

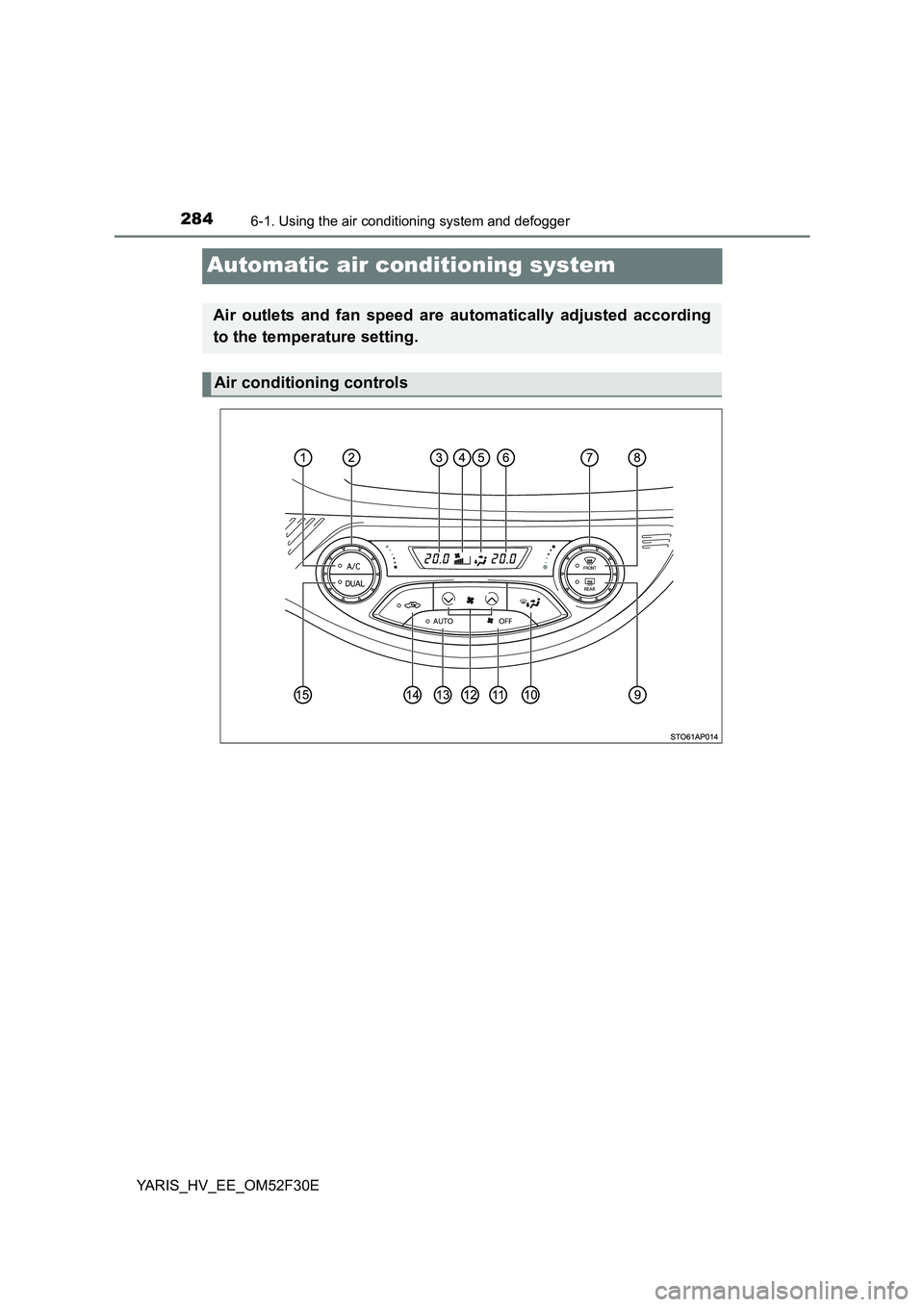

Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

2856-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_EE_OM52F30E

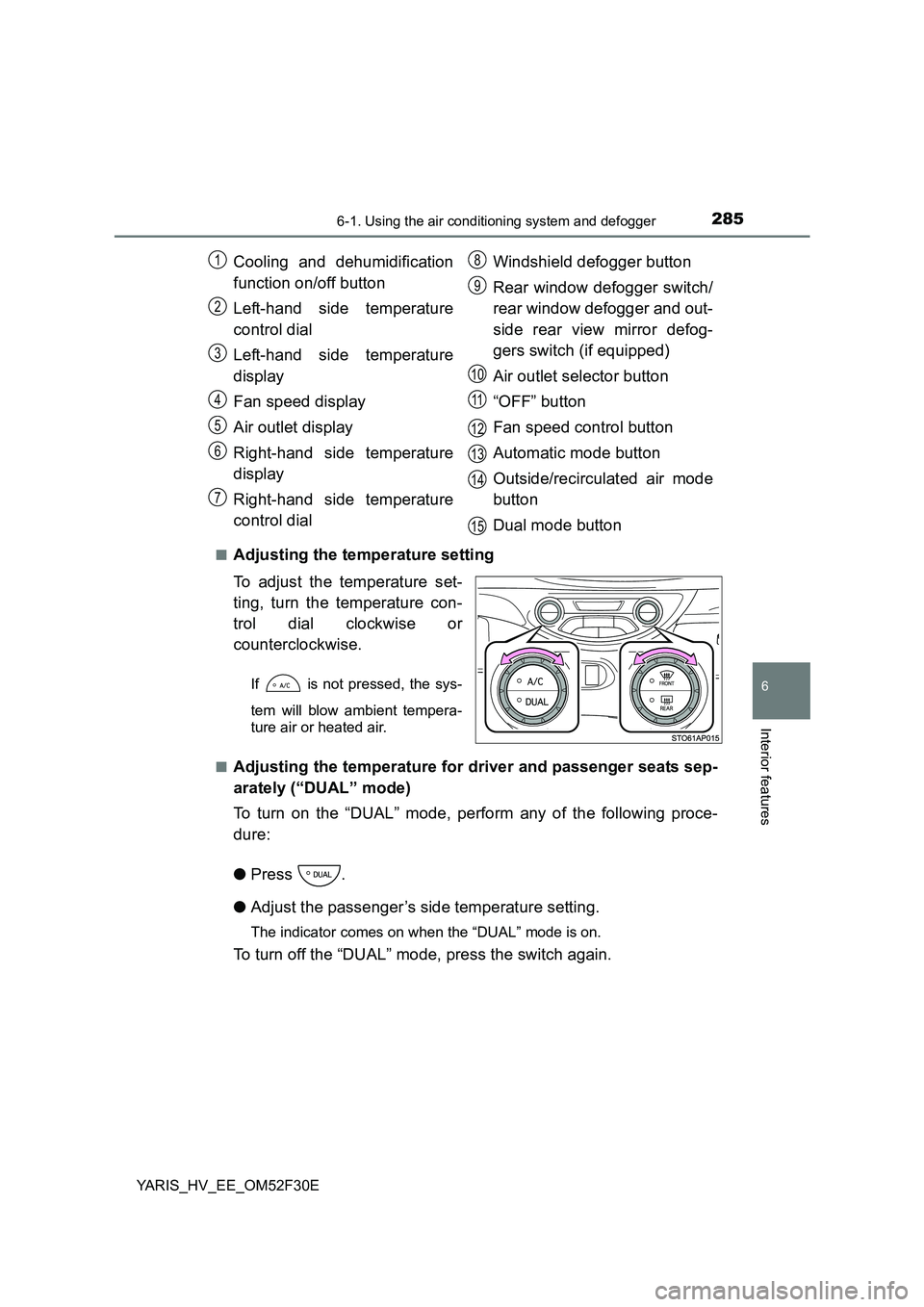

■Adjusting the temperature setting
To adjust the temperature set-
ting, turn the temperature con-
trol dial clockwise or
counterclockwise.
If is not pressed, the sys-
tem will blow ambient tempera-
ture air or heated air.
■Adjusting the temperature for driver and passenger seats sep-
arately (“DUAL” mode)
To turn on the “DUAL” mode, perform any of the following proce-
dure:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the “DUAL” mode is on.
To turn off the “DUAL” mode, press the switch again.
Cooling and dehumidification
function on/off button
Left-hand side temperature
control dial
Left-hand side temperature
display
Fan speed display
Air outlet display
Right-hand side temperature
display
Right-hand side temperature
control dial
Windshield defogger button
Rear window defogger switch/
rear window defogger and out-
side rear view mirror defog-
gers switch (if equipped)
Air outlet selector button
“OFF” button
Fan speed control button
Automatic mode button
Outside/recirculated air mode
button
Dual mode button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

2866-1. Using the air conditioning system and defogger
YARIS_HV_EE_OM52F30E

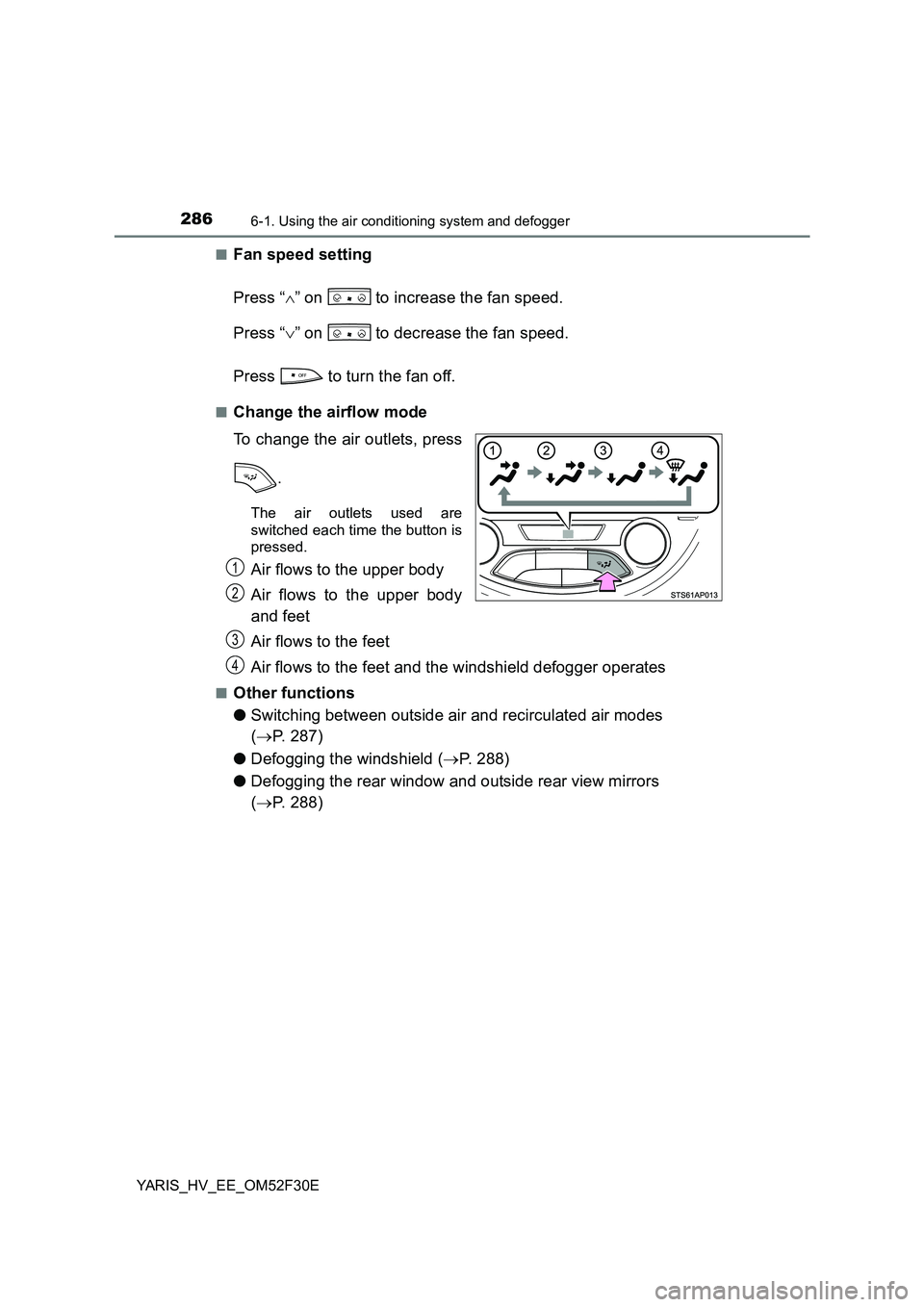

■Fan speed setting
Press “∧” on to increase the fan speed.
Press “∨” on to decrease the fan speed.
Press to turn the fan off.
■Change the airflow mode
To change the air outlets, press
.
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body
Air flows to the upper body
and feet
Air flows to the feet
Air flows to the feet and the windshield defogger operates
■Other functions
●Switching between outside air and recirculated air modes
(→P. 287)
●Defogging the windshield (→P. 288)
●Defogging the rear window and outside rear view mirrors
(→P. 288)
1
2
3
4

2876-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_EE_OM52F30E

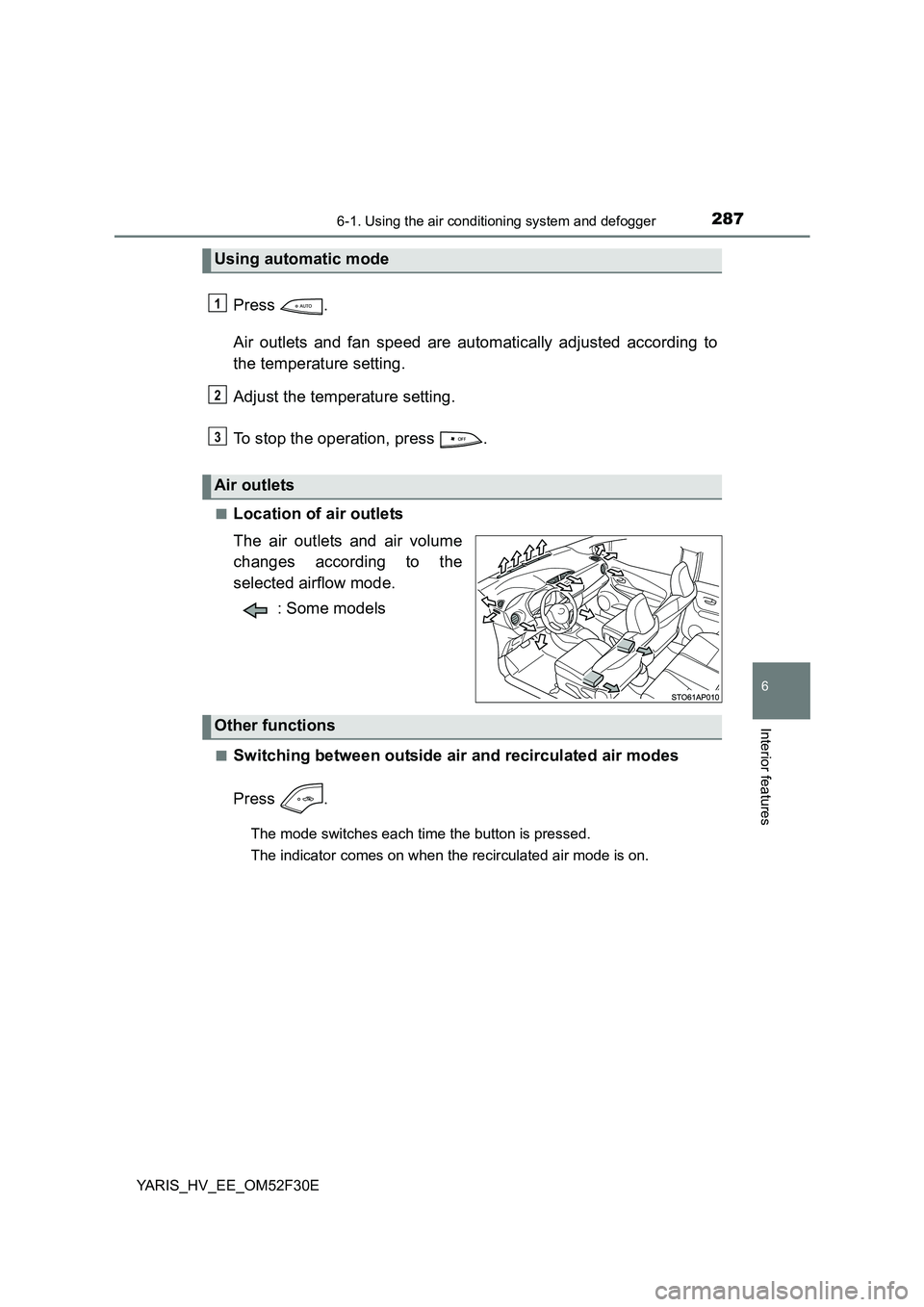

Press .
Air outlets and fan speed are automatically adjusted according to
the temperature setting.
Adjust the temperature setting.
To stop the operation, press .
■Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
■Switching between outside air and recirculated air modes
Press .
The mode switches each time the button is pressed.
The indicator comes on when the recirculated air mode is on.
Using automatic mode
1
2
3
Air outlets
Other functions

2886-1. Using the air conditioning system and defogger
YARIS_HV_EE_OM52F30E

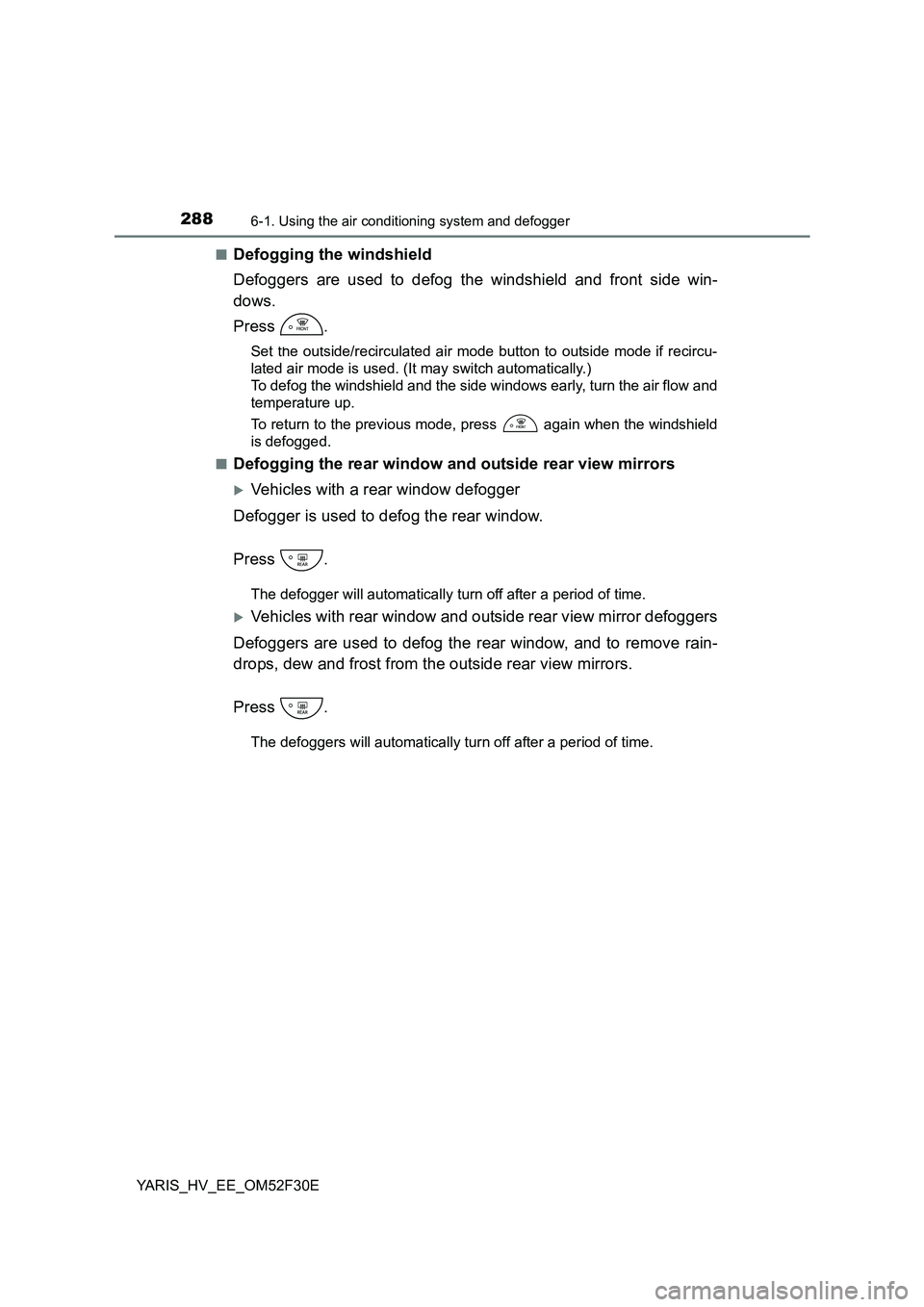

■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
Set the outside/recirculated air mode button to outside mode if recircu-
lated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■Defogging the rear window and outside rear view mirrors
XVehicles with a rear window defogger
Defogger is used to defog the rear window.
Press .
The defogger will automatically turn off after a period of time.
XVehicles with rear window and outside rear view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.

2896-1. Using the air conditioning system and defogger
6
Interior features
YARIS_HV_EE_OM52F30E

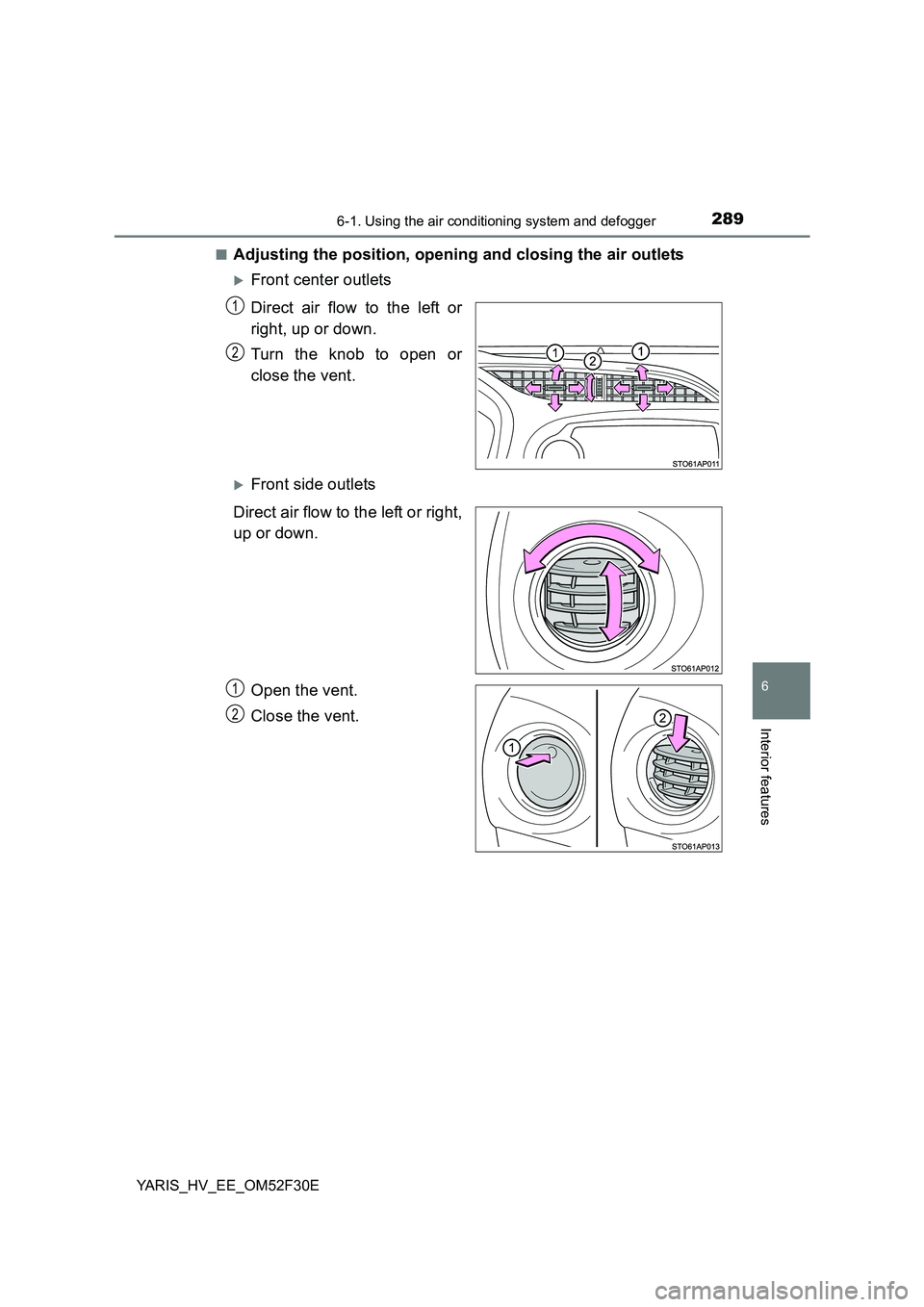

■Adjusting the position, opening and closing the air outlets
XFront center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or
close the vent.
XFront side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
1
2
1
2

2906-1. Using the air conditioning system and defogger
YARIS_HV_EE_OM52F30E

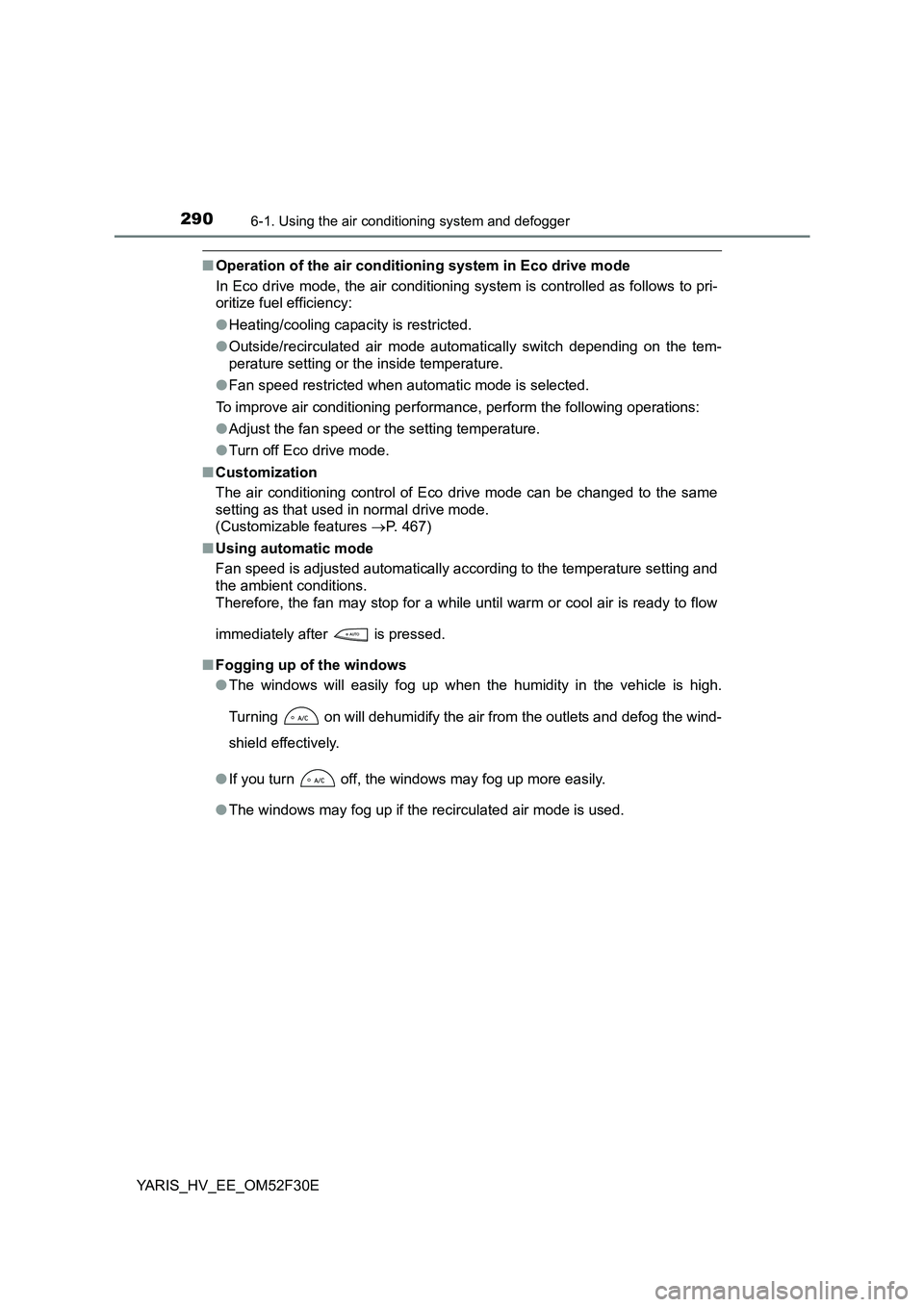

■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Heating/cooling capacity is restricted.
● Outside/recirculated air mode automatically switch depending on the tem-
perature setting or the inside temperature.
● Fan speed restricted when automatic mode is selected.
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed or the setting temperature.
● Turn off Eco drive mode.
■ Customization
The air conditioning control of Eco drive mode can be changed to the same
setting as that used in normal drive mode.
(Customizable features →P. 467)
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
